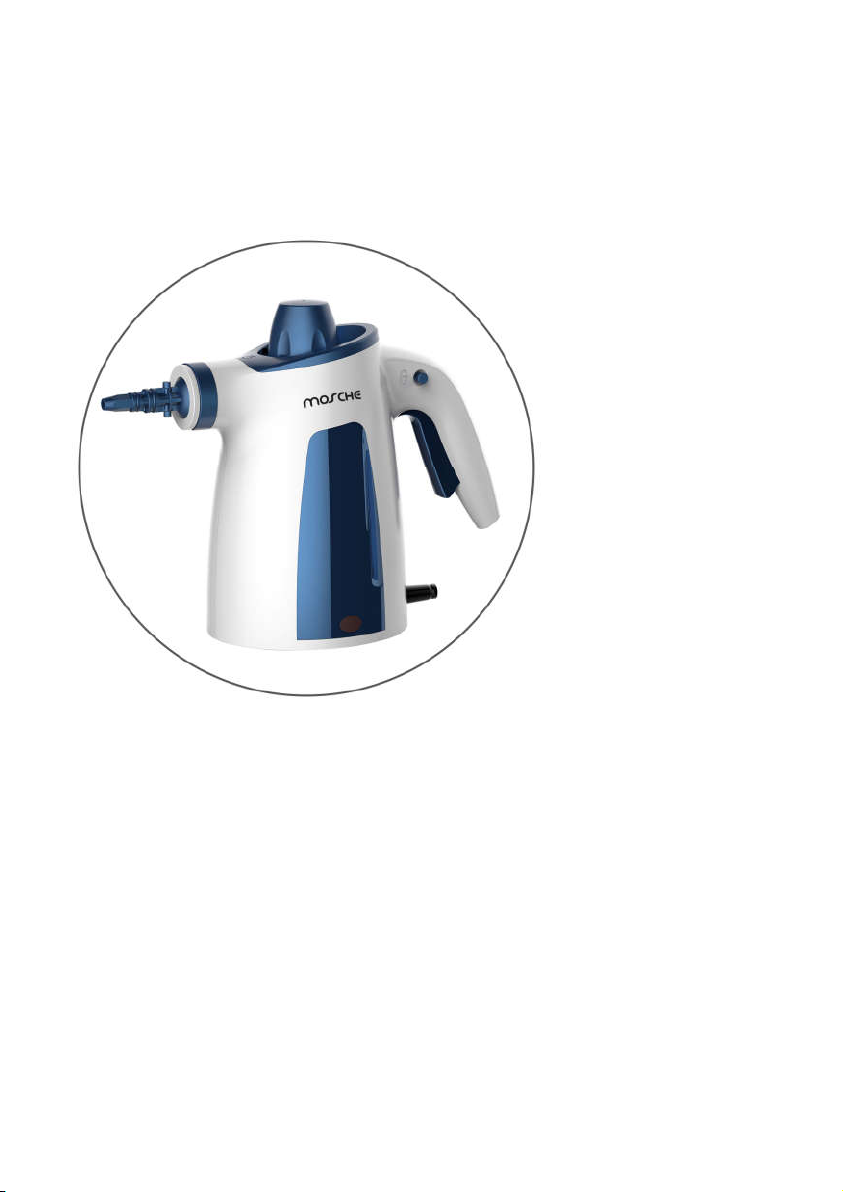

MOSCHE MS69 User manual

Steam Cleaner
MODEL: MOSCHE-MS69
USER MANUAL
Thank you for choosing Steam cleaner. Please read this manual carefully and
keep it for future reference. If you have any questions regarding this product,
please contact the authorized distributors which you purchased from.

2
Warm Tips
Tips 1: As for safe consideration, the steam cleaner we design can only reach to 110 degreeswhich to
avoid being hurt when you use them in high temperature.Not recommend for deeply cleaning due to
the design of 110 degrees only.
Tips 2: Please don't unplug the power of the steam cleaner if you need long-time use.Unplug the
power intermittently that will take a long-time to wait it heating again. In order for the good
experience of usage, please read these tips carefully.
Tips 3: Not recommend for adding the clean water more than 250ML due to safety consideration.
Product Overview
1. Steam Nozzle
2. Hose Connection Thread
3. Safety Cap
4. Safety Lock
5. Steam Button
6. Work Indicating Lamp

A Nozzle Head
B Angled Nozzle Head
C Brush Head
D Extension Hose
E Cloth Cover
F
Window Wiper
G Steaming Iron
H Funnel
I
Measurement Cup
Technical Specification
Model: MOSCHE-MS69
Voltage/Frequency: 110-120V/60 Hz
Power Consumption: 900 - 1050 W
Water Tank Capacity: 350 ml
Heating Time: 0
~3 minutes
Usage Time: 7~10
minutes
Flow Rate: 28 g/min
Boiler Pressure:
3.0 bar
Window Wiper
Measurement Cup
Technical Specification
~3 minutes
minutes
3.0 bar

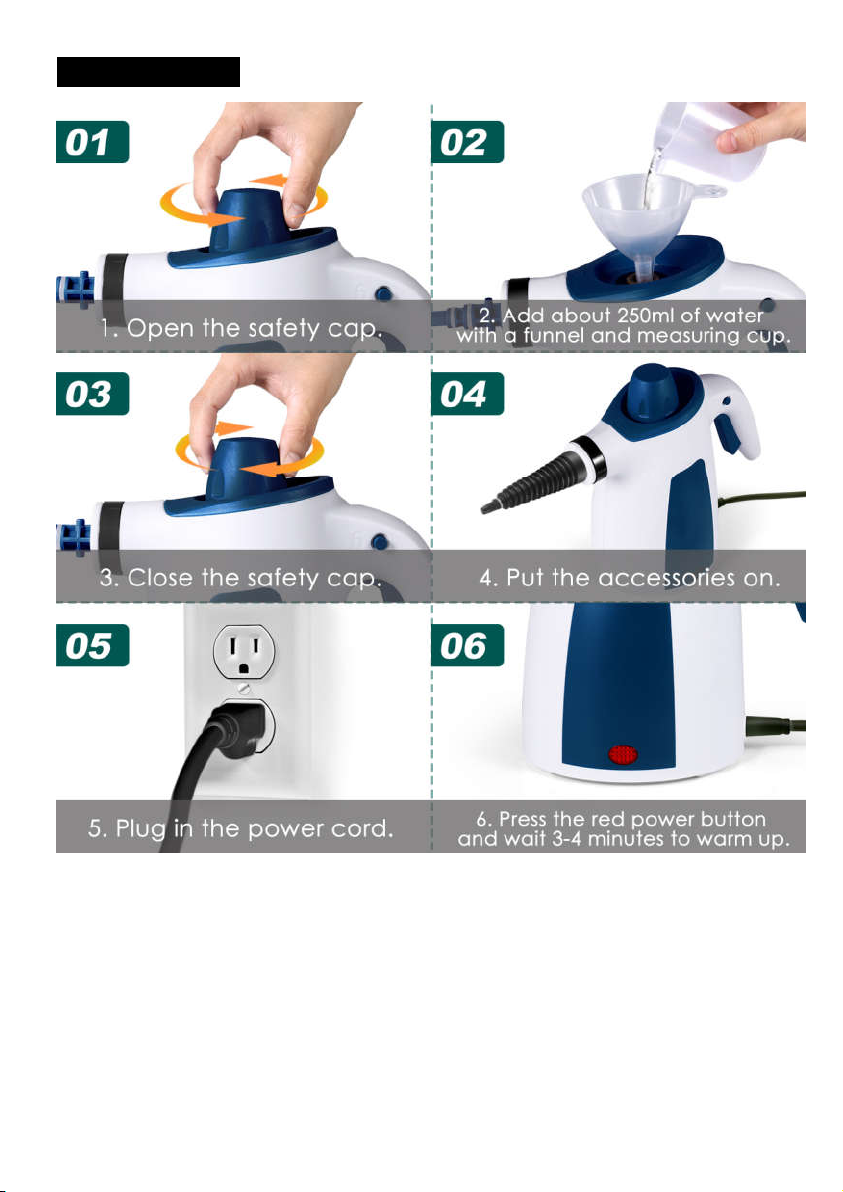

Correct Use Steps
1. Open the safety cap;
2. Add about 250ML of water with a funnel and measuring cup;
3. Close the safety cap;
4. Putting on the accessories;
5. Plug in the power cord;
6. Press the red power button and wait 3-4 minutes to warm up;
7. When the LED changes from red to green, you can use the steam cleaner after driving the safety
lock. (PS: keep the steam cleaner energized during use, and do not turn off the power.)

Important Safety Instruction
CAUTION! Thermal burn hazard!
The device will emit hot steam and parts of it will
become hot during its operation.
Do not point the hot steam in the direction of body parts and touch any parts except the handle and
buttons until the device is disconnected from power and has cooled down.
WARNING! Electric shock hazard!
Improper usage may cause the leakage of dangerous electrical currents.
Keep the device away from children.
Do not modify the device other than described in this user manual.
Do not use this device if any parts of them are damaged.
Only qualified technicians could perform repairs.
This device is only suitable for operation which
with water for the purpose of steam cleaning and
steam ironing fabrics in a dry environment.
Installation and Usage of Accessories
Caution! Thermal burn hazard!
Pull the power plug and let the device cool down completely before attaching or removing any
accessories.
Improperly installed parts can cause an uncontrolled leakage of hot steam.
Extension Hose, Nozzle Head and Steam Iron
5
Important Safety Instruction
become hot during its operation.
Do not point the hot steam in the direction of body parts and touch any parts except the handle and
with water for the purpose of steam cleaning and
Installation and Usage of Accessories
Pull the power plug and let the device cool down completely before attaching or removing any

6
The extension hoseimproves the convenience of the steam application. The brush head and the
angled nozzle can be installed on it.
The nozzle head extends the reach of the steam application. The brush head and the angled nozzle
can be installed on it.
The steam iron features a larger emission surface for the application incarpets,curtains etc. and
allows the removal of creases from fabrics.
Installation: Slide the attachment onto the bayonet mount socket of the device and twist it clockwise
completely until it can’t be turned any further.
Brush Head and Angled Nozzle
The brush head helps with the removal of stubborn dirt.
The angled nozzle helps to reach inside and outside.
Installation: Press the accessory tool firmly onto the plug connection spout of the device, extension
hose or nozzle head.
Window Wiper
The window wiper can be used to clean windows and flat, smooth flooring.
(Window Wiper/Steam Iron/Assembled)

Removal: Push the upper window wiper clip (B)
forwards and pull the wiper away from the steam
iron. Unfasten the lower clips (A) and remove the window wiper.
Cloth Cover
The cloth cover helps to collect dust and dirt when using the steam iron. It can be
washed.
Installation: Simply pull the cloth cover over the steam iron
that can be used.
How to Add Water
Caution! Thermal burn hazard!
Pull the power plug and let the device
before adding water.
An insufficiently closed safety cap can cause an uncontrolled
leakage of hot steam.
1.
Open the safety cap by rotating it anticlockwise.
2. Fill clean water into t
he measurement cup up until to the
marking of 250 ml.
3.
Fill in the water into the boiler by using the funnel. The
boiler must not contain more than
250 ml
4.
Close the safety cap firmly by rotating it clockwise.
Installation: First, hook the lower mounting clips of the
window wiper (A)
the steam iron and then clip the upper mounting clip (B)
into the upper edge of the steam iron.
7
forwards and pull the wiper away from the steam
The cloth cover helps to collect dust and dirt when using the steam iron. It can be
reused after
that can be used.
Pull the power plug and let the device
cool down completely
An insufficiently closed safety cap can cause an uncontrolled
Open the safety cap by rotating it anticlockwise.
he measurement cup up until to the
Fill in the water into the boiler by using the funnel. The
250 ml
of water.
Close the safety cap firmly by rotating it clockwise.
window wiper (A)
onto the lower edge of
into the upper edge of the steam iron.

How to Use the Safety Steam Button: (
Show as the following picture
LOCKED—Right: UNLOCKED)
LOCKED UNLOCKED
Using the Device
1. Connect the power cord
. The power indicator shines while the boiler is heating up.
2. The boiler is heated up and ready to be used when the power
indicator turns off.
3. Disengage the safety lock and press the steam button to emit steam.
4. After use, turn off the device by disconnecting the power cord.
5. Let the device cool downbefore stowing it away.
Maintenance and Care
Caution! Thermal burn hazard!
Pull the power plug and let the device cool down completely before maintaining or
cleaning the device.
Cleaning the device
Use a soft, damp cloth with a mild detergent to clean the casing of the device.
Remove sediments from the boiler by shaking
them out with some water.
8
Show as the following picture
s (Left:
. The power indicator shines while the boiler is heating up.
indicator turns off.
Pull the power plug and let the device cool down completely before maintaining or
Use a soft, damp cloth with a mild detergent to clean the casing of the device.
them out with some water.

9
Recycling
Do not dispose of as normal household waste!
Electrical devices contain recyclable and sometimes hazardous materials. Ask your
regional administration about the nearest collection centre for electrical device
waste and dispose it there.
Warranty and Contact
To ensure peace of mind, we provide a 12-month warranty from the date of purchase. This warranty
covers any defects in materials, workmanship and malfunctions under normal use. If you have any
problems concerning the product, please contact us via our after-sales service email address and we
will respond to you as soon as possible.
