Installation and set-up of the Tilt-Only Cantilever Armrest should be completed by a trained technician
or healthcare professional. If you are not certified as an installer, please arrange immediately for
training by a Motion Concepts technician or sales agent who has been certified to teach installation
and set-up of the Cantilever Armrests. Every effort will be made to meet your training needs.
Note: Before proceeding with the installation/ set-up, please ensure there are no pages are missing
from this manual.
Tools
The following tools are required for the installation/ set-up of the pivot plus power legrests:
Wrenches: 7/16”, 1/2”
Socket wrenches: 7/16”, 1/2”
Allen keys: 3/16”, 1/4”, 1/8”
Screw Drivers

- 4 -

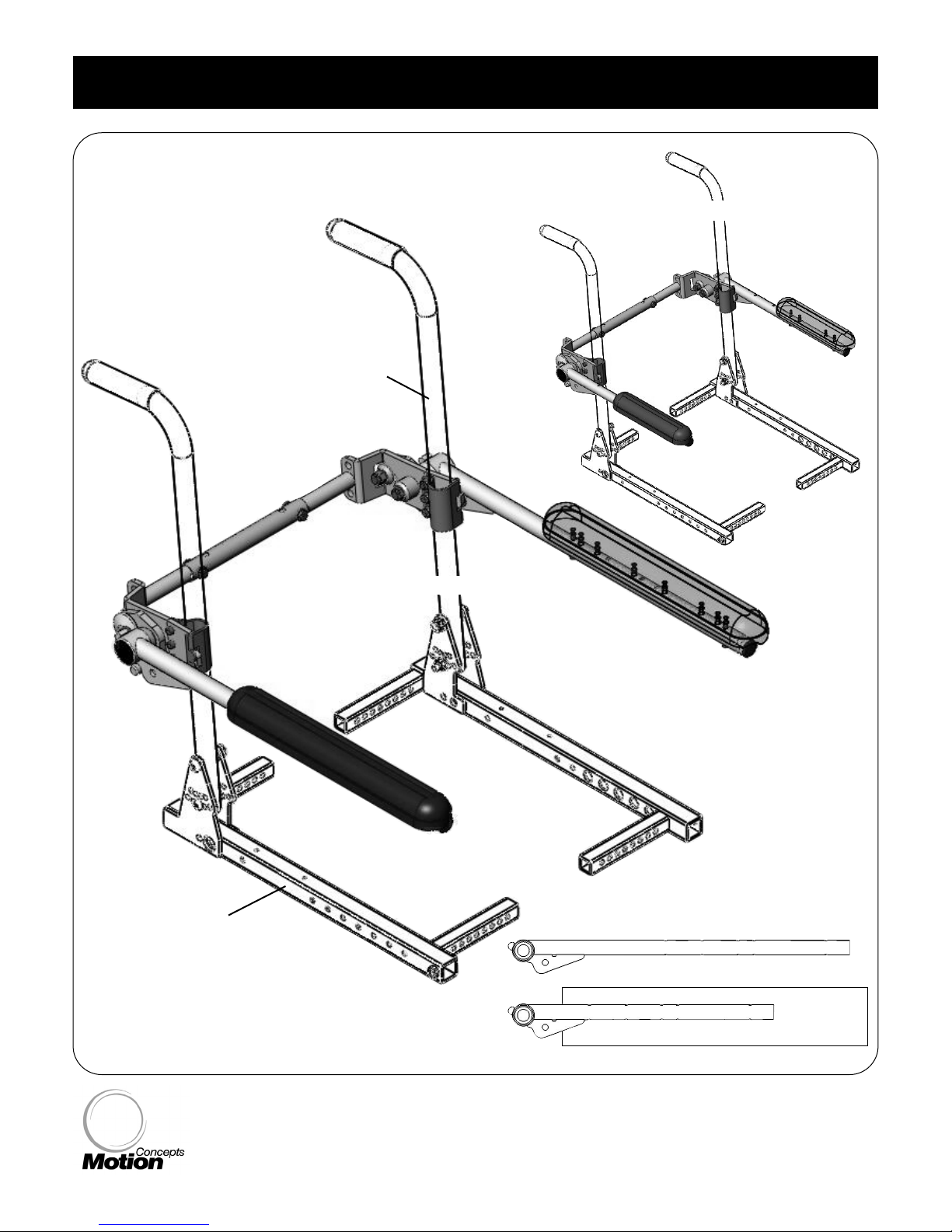

11..00OOvveerrvviieewwDDrraawwiinnggss
TIL
TILT T-ONL -ONLY CANTILEVER Y CANTILEVER ARMRESTS ARMRESTS
Seat Side Frame
Tilt-Only
Back Cane
DESK LENGTH
DESK LENGTH* Cantilever Armrest Ass’y
FULL
FULL LENGTH LENGTH* Cantilever Armrest Ass’y
*Desk Length Armrest Tube = 16-5/8”
*Full Length Armrest Tube = 21-3/8”

- 5 -
TRD0274, Cantilever Armrest (Tilt-Only) Installation & Set-up, Rev 1.0 - March 30, 2009
11..00OOvveerrvviieewwDDrraawwiinngg
Standard Arm Pad (full)
OVERHEAD VIEW
Gel Arm Pad (long)
Gel Arm Pad (short)
Standard Arm Pad (full)
Tilt-Only Cantilever Armrest - ARMP ARMPAD OPTIONS AD OPTIONS*
Waterfall Arm Pad (full)
*NOTE: Desk Length armrest tubes will utilize desk length armpads

- 6 -
2.1
2.1 Cane Clamp Installa Cane Clamp Installation tion
1. Loosely install the cantilever armrest onto each back cane (left and right) via the cane clamp assembly- see
Figure 1.0 below.
2. Working on one back cane at a time, determine the desired height of the cantilever armrest and secure the
cane clamp assembly onto the back cane using the hardware provided. (Note: fine tune height adjustments
may be required to complete the installation of the crossbar assembly- see Section 2.2)
Note : the height of the left and right cantilever armrest assemblies may be offset offset from each other by up
to 1.5” (if desired); please refer to Figure 2.0 - Crossbar Installation for instructions.
Important!
The following section provides installation and adjustment instructions for the Tilt-Only Cantilever
Armrest Assembly. If the Cantilever Armrest has already been installed on the seating system,
please proceed to Section 2.4 Section 2.4 for instructions on adjusting the armrest angle.
Note: The following instructions/images show the installation of the cantilever armrest onto the
right side of the seating system, repeat all steps indicated to complete the left armrest installation.
cane clamp
starting on either side of the wheelchair
determine the desired height* for the
cantilever armrest, and secure the cane
clamp assembly onto the back cane
*note: the left and right armrest assemblies may
be offset from each other by up to 1.5” (if desired)
Cantilever Armrest Tube
Tilt Back Cane
Figure 1.0
mounting
plate
right cantilever assembly shown
22..00IInnssttaallllaattiioonn&&AAddjjuussttmmeenntt

- 7 -
TRD0274, Cantilever Armrest (Tilt-Only) Installation & Set-up, Rev 1.0 - March 30, 2009
1. The crossbar is installed between the back canes of the seating system .
2. The crossbar assembly utilizes an adjustable spreader bar/ tube which secures into a cross support on
either side. Each cross support is in turn secured into one of three optional mounting holes*at the rear of
the clamp mounting plate. (refer to Figure 2.0 below)
*note:the optional mounting holes can be utilized to avoid interefence with other back hardware/ fixtures,
or may also be used to offset offset the left and right armrest heights by up to 1.5” (hole spacing is offered in
3/4” increments)
2.2
2.2 Cr Crossbar Installa ossbar Installation tion
width adjustment
crossbar is height adjustable to prevent
interefence issues, or to allow offset offset armrest
heights of up to 1.5” (3/4” increments)
Figure 2.0
22..00IInnssttaallllaattiioonn&&AAddjjuussttmmeenntt
adjustable spreader bar cross support
Standard Crossbar Assembly
Offset Crossbar Assembly
(maximum 1.5” offset shown)

- 8 -
2.3 (Optional) Le
2.3 (Optional) Lev ver er-Loc -Lock Handle f k Handle for Cantile or Cantilev ver er Ar Armr mrests ests
1. The optional lever lock handle is secured to the mounting tab at the rear of the armrest tube. The
lever-lock utilizes a spring operated latch mechanism to prevent the armrest from being raised unless
the latch is released. Refer to Figure 3.0 below for installation instructions.
lever-lock handle
(optional)
Lift to Release
Figure 3.0
22..00IInnssttaallllaattiioonn&&AAddjjuussttmmeenntt
latch
spring
Armrest Tube
FRONT VIEW

- 9 -
TRD0274, Cantilever Armrest (Tilt-Only) Installation & Set-up, Rev 1.0 - March 30, 2009
1. The tiilt-only style cantilever armrest offers a unique adjustment feature that allows the armrest to be
adjusted to any angle within a 20 degree range (plus/minus (+/-) 10 degrees).
Note: Figure 4.0 below shows the armrest poisitions (range of adjustment) based on an initial tilt
backcane angle of 95 degrees 95 degrees (standard configuration).
2.4
2.4 Cantile Cantilev ver er Ar Armr mrest est Ang Angle le Adjustment Adjustment
22..00IInnssttaallllaattiioonn&&AAddjjuussttmmeenntt
Figure 4.0
+10 degrees
-10 degrees
A. (standard set-up)
B. (fully raised)
C. (fully lowered)
Refer to Figures 6a/b & 7.0 (p.10-11) for detailed
images regarding armrest angle adjustments
2. Cantilever armrest angle adjustments are dictated by the cam mechanism (cam lobe & hardware) in
conjunction with the slotted design of the clamp mounting plate. See Figure 5.0 below.
cam lobe
mounting plate
tilt backcane installed at 95o
(standard configuration)
Figure 5.0
support washer
adjustment plate

- 10 -
3. Adjusting the armrest angle:
2.4
2.4 Cantile Cantilev ver er Ar Armr mrest est Ang Angle le Adjustment Adjustment (... cont’d)
22..00IInnssttaallllaattiioonn&&AAddjjuussttmmeenntt
Refer to Figure 7.0 for additional angle adjustment images of the Cantilever Tilt-Only Armrest.
INSIDE VIEW

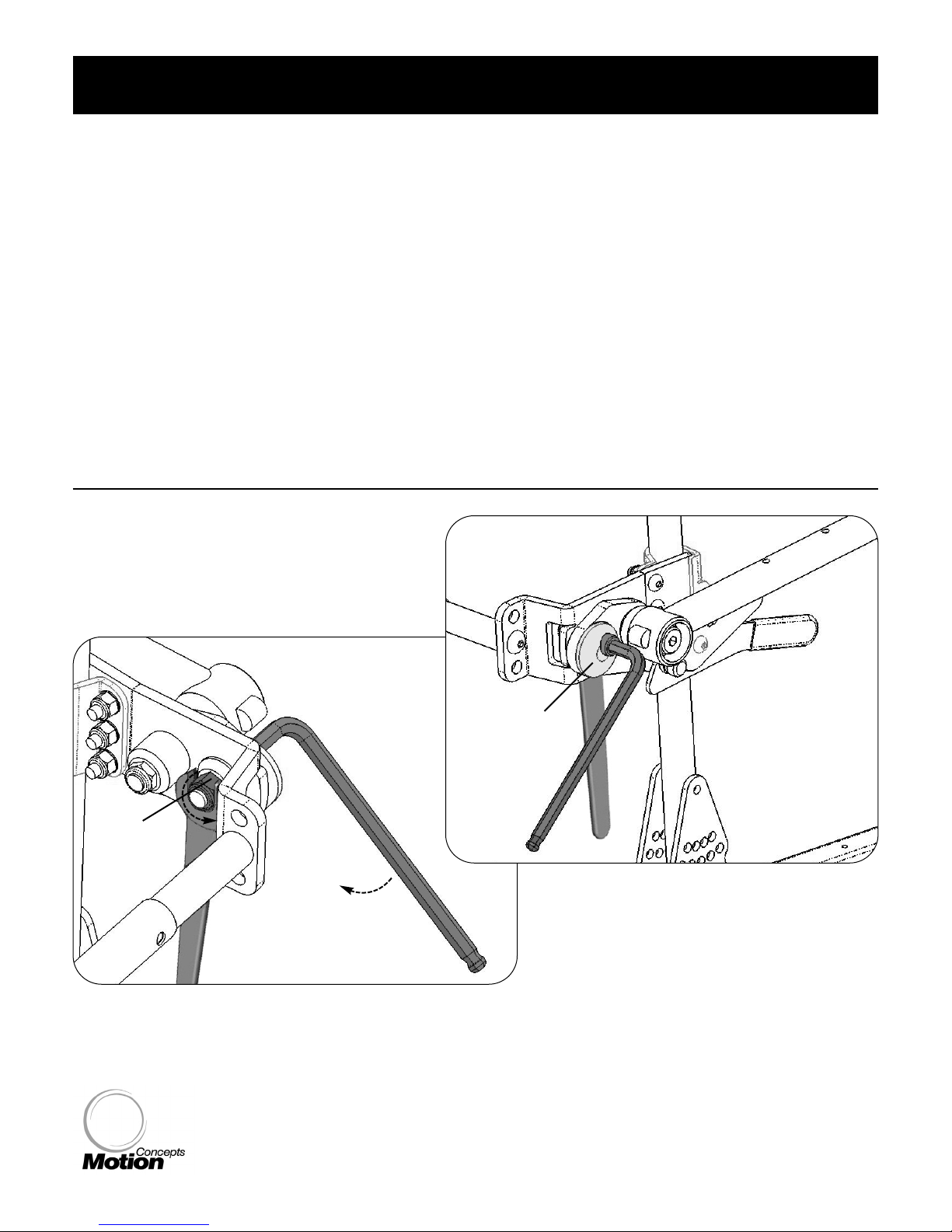

To adjust armrest angle:
- loosen the main bolt for the cam mechanism
- using the allen key as a lever, rotate the cam lobe/
mechanism up or down to adjust the armrest angle.
- tighten the main bolt to lock the armrest into position
main bolt
cam lobe
Figure 6a.
Figure 6b.
i. Before making adjustments, place the seating system in the fully upright position.
ii. To adjust the angle of the cantilever armrest, simply loosen the cam mechanism by loosening the
main bolt on the inside of the mounting plate in assembly (just enough for the cam mechanism to
rotate) (refer to Figure 6a and 6b. below).
iii. With the main bolt loosened, use the Allen Key to rotate the Cam Lobe assembly. By rotating the
cam lobe up and down, the cantilever armrest angle will adjust accordingly- See Figure 7.0 p.11.
iv. Once the desired the angle is set, use the allen key to hold the armrest (cam mechanism) in position,
and use the wrench to re-tighten the main bolt and lock the armrest in place.
Note: if desired, the left & right armrests may be adjusted to provide a unique set-up on each armrest.
loosen the main bolt

- 11 -
TRD0274, Cantilever Armrest (Tilt-Only) Installation & Set-up, Rev 1.0 - March 30, 2009
22..00IInnssttaallllaattiioonn&&AAddjjuussttmmeenntt

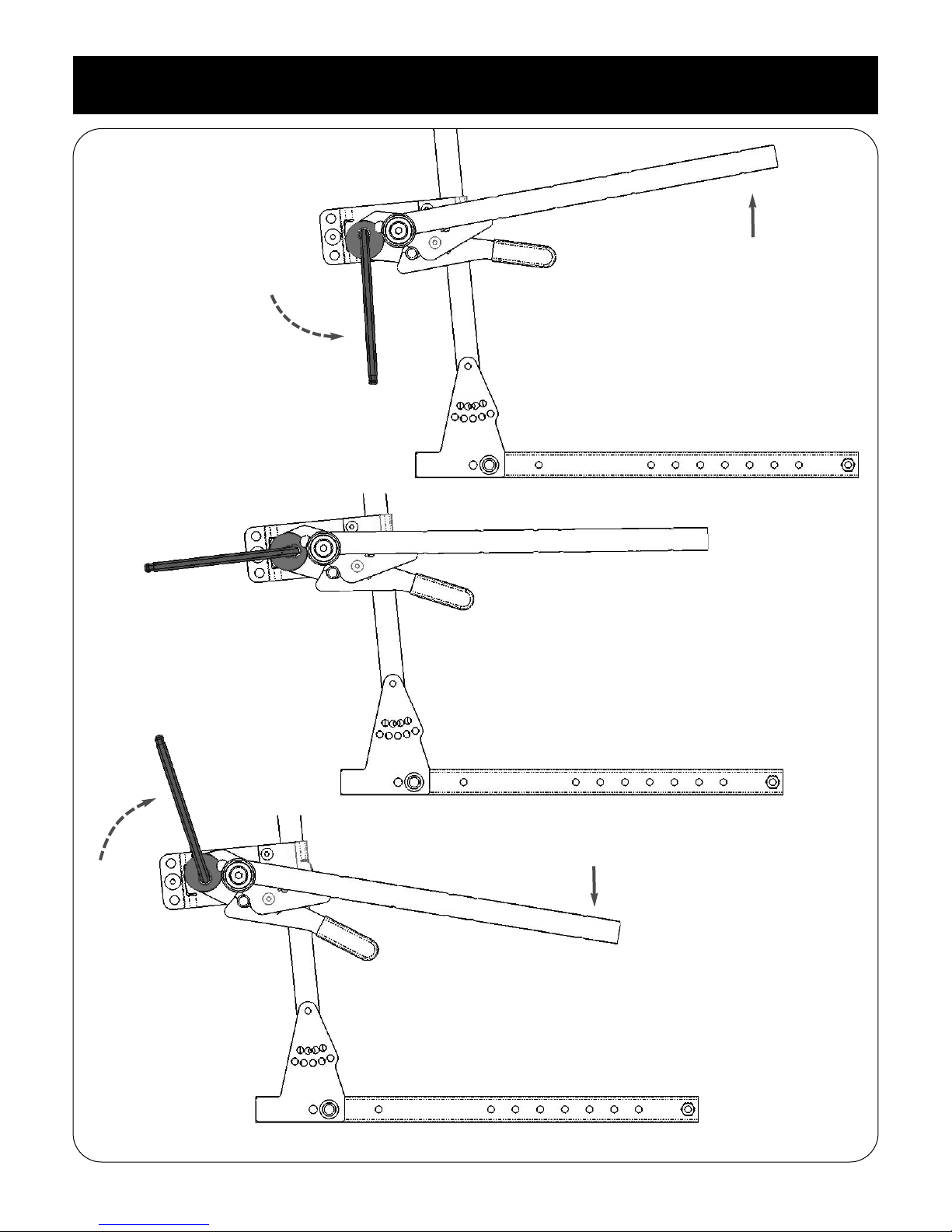

Figure 7.0 Ang
Angle le Adjustments Adjustments
rotate the cam upward to
lower the armrest angle
rotate the cam downward to
lower the armrest angle
(parallel to seat frame)
Note: above images are shown with the lever lock handle (optional)
S
St tandard andard Catilever Armrest Set-Up
Raised
Raised Catilever Armrest Set-Up
Lowered
Lowered Catilever Armrest Set-Up

UUSSAA
700 Ensminger Rd. Suite 112
Tonawanda, NY, USA 14150
716-447-0050
888-433-6818
CCaannaaddaa
84 Citation Dr. Units 1-3
Concord, Ontario,
Canada L4K 1C9
905-695-0134
