Motion Pro 08-0592 User manual

I08-0592 2 1 of 2
Mo t i o n Pr o Fu e l In j e c t o r Cl e a n i n g K i t
P/ N 0 8- 0 59 2, 0 8- 0 59 3 , 0 8- 0 59 4 , 0 8- 0 59 5 a n d 0 8- 0 61 5
Re a d a l l i n s t r u c t i o n s a n d WARNING a t e n d o f i n s t r u c t i o n s
b e f o r e a t t e m p t i n g t o u s e t h i s t o o l !
Th e Mo t i o n Pr o Fu e l In j e c t o r Cl e a n e r i s
d e p o s i t s i n s i d e t h e f u e l i n j e c t o r . Be c a u s e
t h e r e a r e m a n y d i f f e r e n t s t y l e s a n d b r a n d s
o f i n j e c t o r s t h e i n s t r u c t i o n s b e l o w s h o u l d b e
u s e d a s a g u i d e l i n e t o i l l u s t r a t e t h e i n t e n d e d
u s e o f t h i s t o o l .
FLUSHING FUEL INJECTOR
St e p 1 :
Insert the engine side of the injector into the tool as shown
in Fig 1. For this operation the injector will be inserted into
Port 2, however some style injectors may need to be
placed into Port 1.
Turn the electrical connector on the fuel
injector toward the outside of the tool as shown in Fig 2.
Install the hold-down clamp as shown in Fig 2, being
careful not to damage the O-rings. Carefully tighten
injector. Wa r n i n g : DO NOT OVER TIGHTEN THE
SCREWS o r y o u w i l l d a m a g e t h e i n j e c t o r !
Install the electrical connector to both the injector and
the tool with the appropriate pigtail for your injector
(Fig 3 ). Y ou should hear a click when the red button
is pushed. This will open the solenoid inside the injector
Loosen the red knob opposite the port that the injector
is set in. Insert the tube from the aerosol can of injector
cleaner into the bottom of the tool as shown in Fig. 4 .
Tighten the red knob to lightly seal the tube to the
injector cleaner.
FIG 1
FIG 2 FIG 3
FIG 4

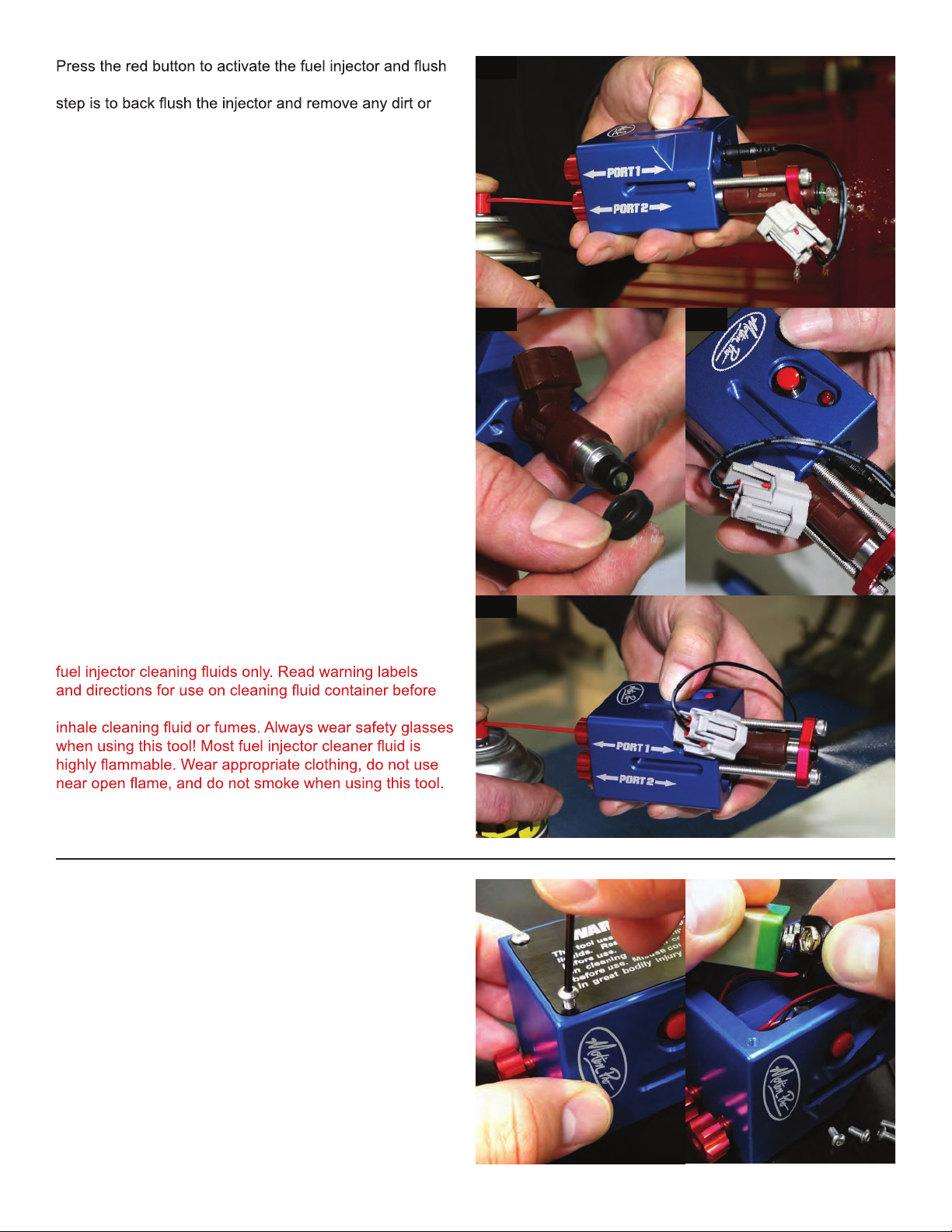

I08-0592 22 of 2
(Fig 5). Note that you will NOT see any spray pattern. This
debris that may accumulate in the injector. Remove the
injector and proceed to Step 2.
CLEANING FUEL INJECTOR
STEP 2:
Remove the lower compression seal on the injector so that
it does not get damaged by the clamp and install the fuel
side of the injector into the tool (Fig 6). For this operation
the injector will be inserted into Port 1, however some style
injectors may need to be placed into Port 2.
Install the clamp and the electrical connector as shown in
the Fig 7, being careful not to damage the O-rings. Again,
DO NOT OVER TIGHTEN THE SCREWS.
Loosen red knob on the port opposite fuel injector and
insert the tube from the aerosol can into the bottom of the
tool as shown in Fig 8. Tighten the red knob to seal the
tube to the injector cleaner as before.
Press the red button to activate the injector and clean as
shown in Fig 8.
WARNING!
Cleaning fuel injectors should be done by a trained
mechanic, following procedures set out in the vehicle’s
factory service manual. Follow instructions in factory
service manual for removal and installation of fuel injector.
This tool is designed for use with commonly available
use. Make sure you have adequate ventilation and do not
Improper use of this tool could damage your fuel injector
and/or could cause great bodily injury or death.
FIG 5
FIG 6 FIG 7
BATTERY REPLACEMENT
To access the battery, you will need a 2 mm hex to
remove the bolts from the side plate. Caution: Carefully
unsnap the battery from the connector, pulling too
hard may cause damage to the connector.
FIG 8
