Motion CM-05 User manual

CM-03

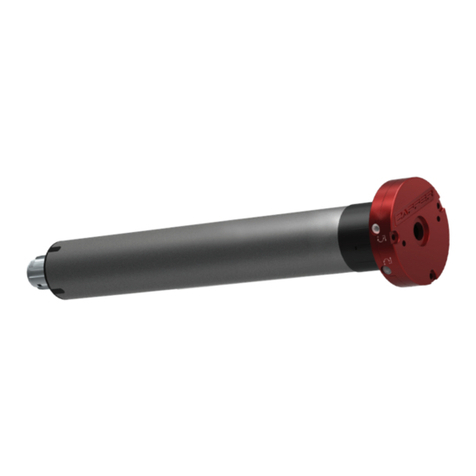

Li-ion battery powered tube motors
with pull and remote operation
MANUAL CM-05

English
Pull Control
Operate with
pull control
Li-ion Battery
Integrated
lithium-ion battery
Motor features
Control options
Support
Remote Control
Operate with a
remote control
USB Rechargeable
Rechargeable with
micro USB
App Control
Operate with the
MOTION app
Wireless
Cable free
installation
Connectivity
Compatible with
home and building
automation
Speed Control
Consistent
rolling speed
Bi-directional
Two-way
communication for
real-time response
Video
How to install,
program and operate
rtube.nl/red980
App Store
Download the
MOTION app
rtube.nl/red981
Google Play
Download the
MOTION app
rtube.nl/red982
CM-05
Li-ion battery powered tube motors with
pull and remote operation
WARNING
Read the instructions carefully
before assembling and
using the product. Assembly
can be completed by non-
professionals. For indoor use
only.
Young children can strangle
themselves with the loop
of pull cords, chains and
tapes, and cords that operate
window coverings.
To avoid strangulation and
entanglement, keep cords out
of reach of young children.
Cords may ensnare a child’s
neck.
Move beds, cots and furniture
away from window covering
cords.
Do not tie cords together.
Make sure cords do not twist
together and form a loop.
Cleaning
Follow these general rules when cleaning the outside
of the device and its components:
Use a damp, soft, lint-free cloth. Avoid getting
moisture in openings.
Do not use aerosol sprays, solvents, alcohol, or
abrasives.
Service & Support
Do not perform repairs yourself. Do not attempt to
open the device or disassemble it. You run the risk of
electric shock and voiding the limited warranty. No
user-serviceable parts are inside.
Warranty Service
First follow the advice in this manual. If the product
appears to be damaged or does not function properly,
go to your local dealer for instructions on how to obtain
warranty service.
Recycle
This marking indicates that this product
should not be disposed with other household
wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return
your used device, please use the return and collec-tion
systems or contact the retailer where the product was
purchased. They can take this product for environmental
safe recycling.
MOTION CM-05 LI-ION TUBULAR MOTOR MOTION CM-05 LI-ION TUBULAR MOTOR

Important Safety instructions
WARNING: To reduce the risk of severe injury or
death, it is important to follow these instructions for
personal safety. Save these instructions.
Read and follow all installation instructions.
This appliance can be used by children aged
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children should not play with
the appliance. Cleaning and user maintenance
should not be performed by children without
supervision.
Do not allow children to play with fixed controls.
Keep remote controls away from children.
Frequently examine the installation for imbalance
and signs of wear or damage to cables and
springs. Do not use if repair or adjustment is
necessary.
This instruction manual is also available on the
website.
The drive must be disconnected from its power
source during cleaning, maintenance and when
replacing parts.
The A-weighted emission sound pressure level of
the drive is equal to or less than 70dB(A).
Indoor and household use only.
Disconnect the drive from the power supply
or switch off the automatic controls when
maintenance, such as window cleaning, is being
carried out in the vicinity.
When operating a biased switch, make sure that
other persons are kept away.
Do not operate when maintenance, such as
window cleaning, is being carried out in the
vicinity.
The tube motor must only be supplied with safety
extra low voltage corresponding to the marking on
the appliance.
This appliance contains batteries that are non-
replaceable.
Important Installation instructions
WARNING: Important safety instructions. Follow all
instructions, since incorrect installation can lead to
severe injury.
This motor can only be used with soft material for
driven parts.
Hazardous unprotected moving parts of the drive
must be installed higher than 2.5m above the
floor or any other level surface that could provide
access to it.
Install the actuating member of a manual release
at a height less than 1.8m.
The actuating member of a biased switch is to be
located within direct sight of the driven part but
away from moving parts. It is to be installed at a
minimum height of 1.5m and not accessible to
the public.
The mass and the dimension of the driven part
must be compatible with the rated torque and
rated operating time.
Fixed controls have to be clearly visible after
installation.
The driven part must be compatible with the rated
torque (CM-05 2.0N.m) and rated operating time
(12min).
Minimum tube diameter: Ø28mm.
The drive is intended to be installed at a height
of at least 2.5m above the floor or any other
accessible level surface.
All-pole disconnection switches must be
incorporated in the fixed wiring in accordance with
the wiring rules.
The appliance must only be supplied at safety
extra low voltage corresponding to the marking on
the appliance.
Before installing the drive, remove any
unnecessary cords or components and disable
any equipment not needed for powered operation.
The battery must be removed from the appliance
before it is scrapped. The appliance must be
disconnected from the supply mains when
removing the battery. The battery is to be
disposed of safely.
FCC Manual | FCC ID: ZY4CM05
Regulatory Information
1 FCC Information for User
This product does not contain any user
serviceable components and is to be used with
approved antennas only. Any product changes or
modifications will invalidate all applicable regulatory
certifications and approvals.
2 FCC Electronic Emission Notices
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received,
including interference that may cause undesired
operation.
3 FCC Radio Frequency Interference
statement
This equipment has been tested and found to
comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference, in which case the
user will be required to correct the interference at
their own expense.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna
Increase the distance separating the equipment
and receiver
Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV
technician for help
EU Declaration
Hereby, Coulisse declares that the radio
equipment type CM-05 is in compliance whith
directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the
following internet address: www.my.coulisse.com
EnglishEnglish
MOTION CM-05 LI-ION TUBULAR MOTOR MOTION CM-05 LI-ION TUBULAR MOTOR

English
Channels Wall
mount
Program
blinds
Single
select
Channel
select
Max.
blinds
Max.
scenes
Frequency Range Power supply Length Width Height Certificates
CM-11
Hand-held remote 1■ ■ - - unlimited n/a 433.925 MHz 30 m with
1 concrete wall CR2430 3.0V 120 mm 45 mm 14 mm
CM-12
Hand-held remote 5■ ■ ■ ■■unlimited n/a 433.925 MHz 30 m with
1 concrete wall CR2430 3.0V 120 mm 45 mm 14 mm
CM-13
Hand-held remote 15 ■ ■■■■unlimited n/a 433.925 MHz 30 m with
1 concrete wall CR2430 3.0V 120 mm 45 mm 14 mm
CM-15
Wall remote 1■ ■ - - unlimited n/a 433.925 MHz 30 m with
1 concrete wall CR2430 3.0V 66 mm 32,5 mm 13,8 mm
CM-16
Wall remote 4 ■- - - unlimited n/a 433.925 MHz 30 m with
1 concrete wall 3 x CR2430 3.0V 86 mm 86 mm 17 mm
CM-17
Table remote 4 - ■- - unlimited n/a 433.925 MHz 30 m with
1 concrete wall 2 x CR2450 3.0V 70,3 mm 62,7 mm 52,3 mm
CM-18
Pull remote 1 - - - - unlimited n/a 433.925 MHz 20 m open
space 2 x LR44 1.5V 19,5 mm ø 69,9 mm
CM-20
Motion Wi-Fi bridge n/a ■ ■ - - 30 20 433.925 MHz
Wi-FI 2.4 GHz
30 m with
1 concrete wall Micro USB - 5V DC 100 mm ø 25 mm
MOTION CM-05 LI-ION TUBULAR MOTOR MOTION CM-05 LI-ION TUBULAR MOTOR
Motor Application Description Motor
diameter
Tube
compatibility
Torque Speed Battery
Capacity
Power
supply
Input Cable
free
Speed
control
Working
temperature
Frequency
emission
power
Certificates
CM-05
CM-05
Tubular motor 28 mm 42-50-65mm 2.0 Nm 28 rpm 2600mAh
31Wh (12V) -10°C~50°C ≤2.32dBm

1
2
3
4
1 3
2 4
Pair
button
Pair
button
Channel
Selection
Channel
indicator
Up
Down
Centre
(stop/favourite)
Centre
(stop/favourite)
Up
Channel
indicator
Down
Right
Up
Channel
indicator
Right
Down
Previous
Channel
Next
Channel
Centre
(stop/favourite)
Left Left
Channel 1
Channel 3
Channel 2 Channel 4
Down
Up
Centre
(stop/favourite)
Pair
button
Pair
button
CM-11
1 Channel Remote
CM-12
5 Channel Remote
CM-13
15 Channel Remote
CM-17
4 Channel Table Remote
English
MOTION CM-05 LI-ION TUBULAR MOTOR MOTION CM-05 LI-ION TUBULAR MOTOR

CM-15
1 Channel Wall Remote
CM-16
4 Channel Wall Remote
CM-18
1 Channel Tassel Remote
CM-20
Motion Bridge
Pair
button
Pair
button
Up
Right
Down
Left
Centre
(stop/favourite)
Down
Up
Centre
(stop/favourite)
See manual CM-20
Pair
button
English
MOTION CM-05 LI-ION TUBULAR MOTOR MOTION CM-05 LI-ION TUBULAR MOTOR

Click!
Click!
Click!
2
3
4
7.1
6.1
6.2
6.3
7.2
1 6
5
7
English
Activate the motor by charging it with a micro
USB cable. A green LED will start flashing.
The motor can be used during charging.
(To activate the motor without a micro
USB cable, see step 25)
Shortly press the down button to check if the
blind unrolls the right way. If the blind moves
up, the rotational direction must be changed.
Pair a remote control that is able to program blinds. See pages 4 and 5
for remote control details. In this manual, CM-12 is displayed.
WARNING: risk of damage.
Stop the blind before reaching
the end positions.
End limits must be programmed to use a blind properly and to prevent it from being damaged.
Proceed to step 12 if end limits are already set.
Shortly press the program button on the
motor. The blind will start stepping, indicating
that program mode has been activated.
(The blind keeps stepping until the program
mode is deactivated.)
Repeat steps 6.1 - 6.3 to remove a blind from
a channel.
Press the pair button on the back of the remote
control to pair the blind with the selected channel.
The blind will shortly stop stepping, indicating that
the remote has been paired to the blind.
Select a desired channel for the blind using the
channel selection button on the remote control.
Channel
Selection Pair
button
Channel
indicator
Up
Down
Install the blind
Activate the motor
Pair a remote
Check rotational direction
Simultaneously press the up and down button
to change the rotational direction.
MOTION CM-05 LI-ION TUBULAR MOTOR MOTION CM-05 LI-ION TUBULAR MOTOR
