MotionComposites Helio C2 User manual

helio c2
USER MANUAL

2

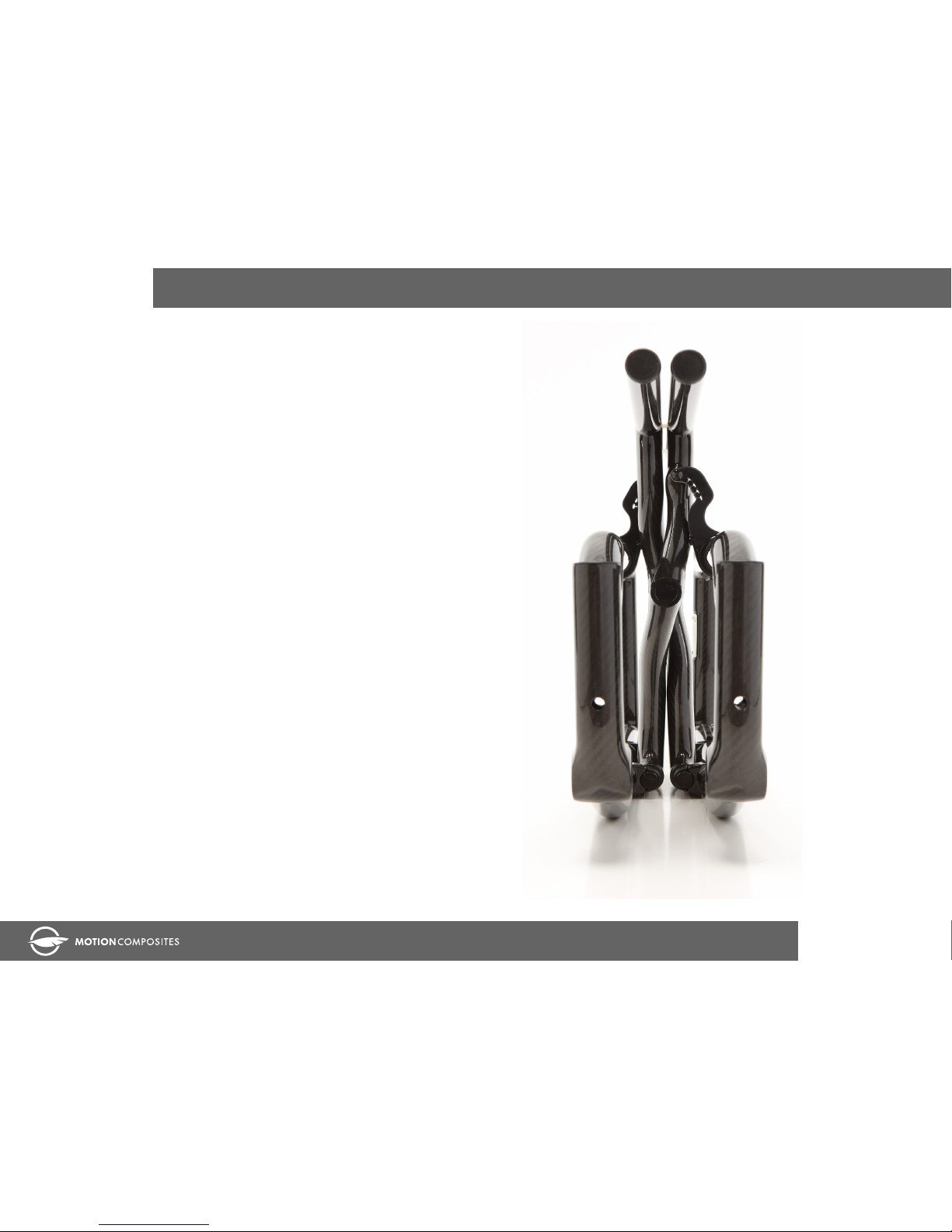

helio c2
TABLE OF CONTENTS
FRAME - 3
CROSSBRACE ASSEMBLY - 4
CROSSBRACE FRONT/REAR - 5
CENTRAL SHAFT KIT - 6
BASE SHAFT KIT - 7
LINK KITS - 8
LINK DIMENSION TABLE - 9
REAR WHEEL MOUNTING PLATE - 10
AMPUTEE AXLE PLATE - 11
BACK WHEELS - 12
HANDRIMS - 13
SPOKES GUARD - 14
TITRFRONT WHEEL ASSEMBLY - 15
CASTER LOCK - 16
FOOTRESTS - 17
FOOTRESTS - 18
ELEVATING LEGRESTS - 20
BACK RESTS / PUSH HANDLES - 21
DUO ARMREST - 22
ARMREST PIVOT POINT - 23
“I” ARMREST - 24
SIDEGUARD - 25
MUDGUARD - 26
“L” ARMREST - 27
BRAKES - 28
ANTI-TIPPERS - 29

3
helio c2
FRAME
23
510
11
6789
12
1
43
HOW TO MEASURE YOUR FRAME
X''
Ex: HELIO C2 X '' LEFT FRAME ASSEMBLY
ITEM NO. PARTNO DESCRIPTION QTY.
1 32060 LOWER BACK SLEEVE 1
2 11015
MOUNTING RAIL 2
3 99660
POP RIVET 3_32 D X .365 L X .126_.250 5
4 12140
LINK GUIDE 1
6 90988
Metric JIS Pan Head Phillips Machine Screw M4
X 0.7 X 8mm
1
7 21023
H-BLOCK V2 1
8 11034
CLAMP H-BLOCK SEAT SUPPORT 1
9 90726
SOCKET CAP SCREW M4X0.7 X 14mm LONG,
FULLY THREADED
1
10 11013
FOOTREST PIVOT SLEEVE 1
11 99661
POP RIVET 1_8 DIA X .328 LGHT (.126_.187 GRIP) 1
12 11020
ANTI-TIPPER BUMPER SLEEVE CARBON FRAME 1
2,3,4,5,10,11,12 1000789
HELIO C2 15" RIGHT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000790
HELIO C2 16" RIGHT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000791
HELIO C2 17" RIGHT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000792
HELIO C2 18" RIGHT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000793
HELIO C2 19" RIGHT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000794
HELIO C2 20" RIGHT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000795
HELIO C2 21" RIGHT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000796
HELIO C2 15" LEFT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000797
HELIO C2 16" LEFT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000798
HELIO C2 17" LEFT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000799
HELIO C2 18" LEFT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000800
HELIO C2 19" LEFT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000801
HELIO C2 20" LEFT FRAME ASSEMBLY 1
2,3,4,5,10,11,12 1000802
HELIO C2 21" LEFT FRAME ASSEMBLY 1

4
helio c2
D
E
1
3
456
7
8
9
REFER TO NOTE BELOW
2
10
12
11 15 16 12 14
10
12
11 141213
FOR LINK 16 INCHES AND UNDER FOR LINK 17 INCHES AND OVER
ITEM NO. PARTNO DESCRIPTION QTY.
1 12142 C2 XBRACE CENTER SHAFT 1
2 12145 C2 XBRACE CENTER PIVOT SLEEVE 4
3
12143 C2 XBRACE BASE SHAFT 2
4 12149 C2 XBRACE BASE PIVOT SHAFT PLASTIC CAP 4
5
90745
SOCKET CAP SCREW M5X0.8 X 14mm LONG,
FULLY THREADED
4
6
12150 C2 XBRACE BASE PIVOT SHAFT ALU PLUG 4
7 12006 C2 XBRACE BASE PIVOT SLEEVE 4
8
90994
FLANGE BUTTON HEAD CAP SCREW, M8X.8 X
10mm
1
9
99704 CAP 1 IN CARBON 4
10 99000 SCREW PHILLIPS PAN HD #6-32 X 1/2 3
11 99598 LOCKWASHER #10 (.062 WIDE X .047 THK) 3
12 99550 WASHER #10 .200 ID X 7_16 OD X .037 THK 6
13 99600 SPACER M5 BOLT, 10MM LG, 0.7MM WALL THK 2
14 90651
BUTTON HEAD CAP SCREW M5X0.8 X 30mm
LONG, FULLY THREADED
3
15 22028 CASTER SPACER SMALL 2
16 99605 SPACER M5 BOLT, 16MM LG, 0.7MM WALL THK 2
CROSSBRACE ASSEMBLY

5
helio c2

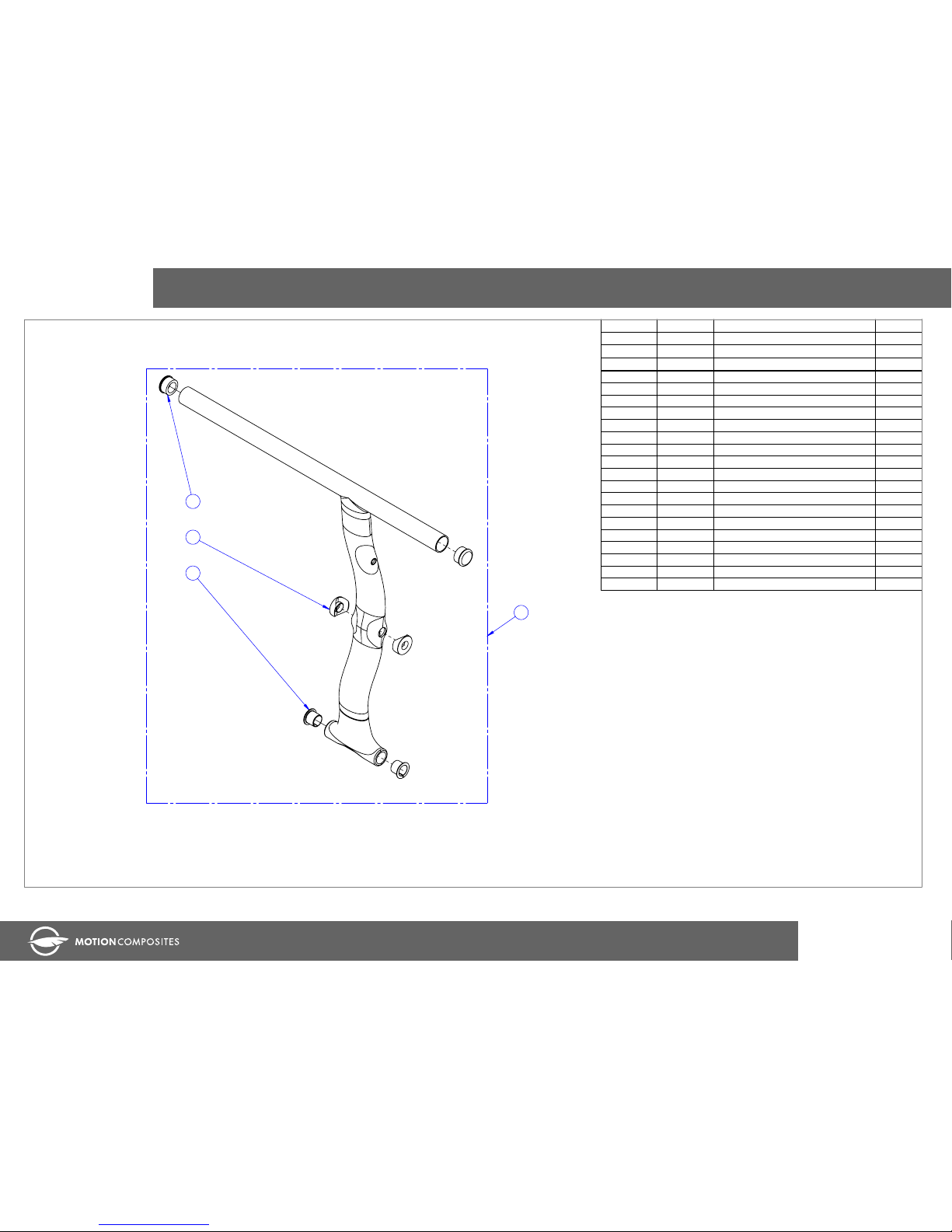

CROSSBRACE FRONT/REAR
1
2
3
4
SPECIFIY TOP TUBE LENGHT AND XBRACE DIMENSION DEPENDING ON
ACTUAL WHEELCHAIR LENGHT AND WIDTH
ITEM NO. PARTNO DESCRIPTION QTY.
1 99704 CAP 1 IN CARBON 2
2 12145
C2 XBRACE CENTER PIVOT SLEEVE 2
3 12006
C2 XBRACE BASE PIVOT SLEEVE 2
4a 1000541 HELIO C2 12'' FRONT XBRACE ASSEMBLY 1
4b 1000542 HELIO C2 13'' FRONT XBRACE ASSEMBLY 1
4c 1000543 HELIO C2 14'' FRONT XBRACE ASSEMBLY 1
4d 1000544 HELIO C2 15'' FRONT XBRACE ASSEMBLY 1
4e 1000545 HELIO C2 16'' FRONT XBRACE ASSEMBLY 1
4f 1000546 HELIO C2 17'' FRONT XBRACE ASSEMBLY 1
4g 1000547 HELIO C2 18'' FRONT XBRACE ASSEMBLY 1
4h 1000548 HELIO C2 19'' FRONT XBRACE ASSEMBLY 1
4i 1000549 HELIO C2 20'' FRONT XBRACE ASSEMBLY 1
4j 1000552 HELIO C2 12'' REAR XBRACE ASSEMBLY 1
4k 1000553 HELIO C2 13'' REAR XBRACE ASSEMBLY 1
4l 1000554 HELIO C2 14'' REAR XBRACE ASSEMBLY 1
4m 1000555 HELIO C2 15'' REAR XBRACE ASSEMBLY 1
4n 1000556 HELIO C2 16'' REAR XBRACE ASSEMBLY 1
4o 1000557 HELIO C2 17'' REAR XBRACE ASSEMBLY 1
4p 1000558 HELIO C2 18'' REAR XBRACE ASSEMBLY 1
4q 1000559 HELIO C2 19'' REAR XBRACE ASSEMBLY 1
4r 1000560 HELIO C2 20'' REAR XBRACE ASSEMBLY 1

6
helio c2
CENTRAL SHAFT KIT
21 3
4
ITEM NO. PARTNO DESCRIPTION QTY.
1 90994
FLANGE BUTTON HEAD CAP SCREW, M8X.8 X
10mm
1
212145
C2 XBRACE CENTER PIVOT SLEEVE 4
312142
C2 XBRACE CENTER SHAFT 1
41000563
HELIO C2 XBRACE CENTRAL SHAFT ASSEMBLY 1

7
helio c2
BASE SHAFT KIT
3
2
1
4
5
4
5
2
3
6
ITEM NO. PARTNO DESCRIPTION QTY.
1 12143 C2 XBRACE BASE SHAFT 1
2 12150
C2 XBRACE BASE PIVOT SHAFT ALU PLUG 2
3 12006
C2 XBRACE BASE PIVOT SLEEVE 2
4 12149
C2 XBRACE BASE PIVOT SHAFT PLASTIC CAP 2
5 90745
SOCKET CAP SCREW M5X0.8 X 14mm LONG,
FULLY THREADED
2
6 1000564
HELIO C2 XBRACE BASE SHAFT ASSEMBLY 1

8
helio c2

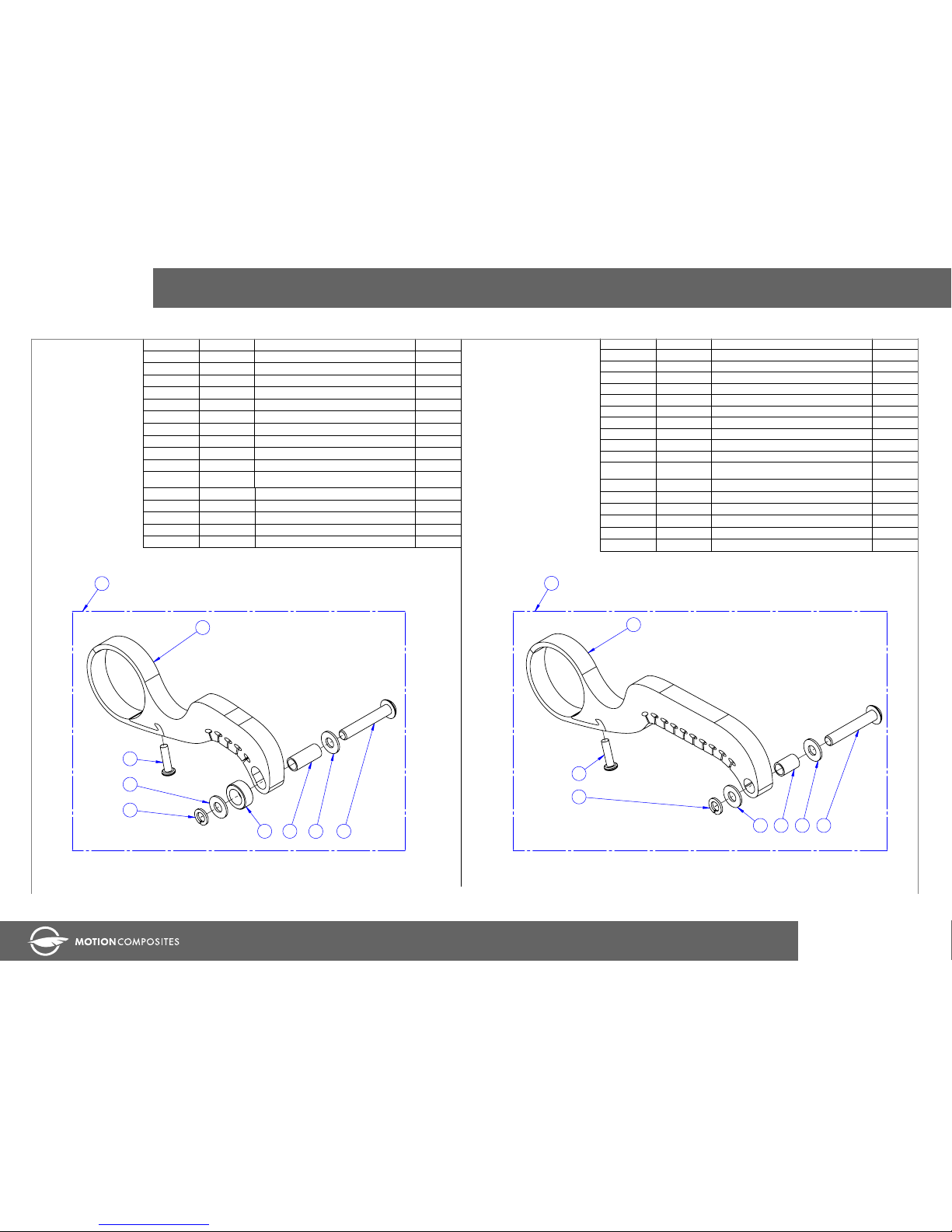

LINK KITS
1
2
3
4
5 6 37
8
1
2
3
4 5 4 6
7
ITEM NO. PARTNO DESCRIPTION QTY.
1a 12152 LINK 12'' 1
1b 12153 LINK 13'' 1
1c 12154 LINK 14'' 1
1d 12155 LINK 15'' 1
1e 12156 LINK 16'' 1
2 99000
SCREW PHILLIPS PAN HD #6-32 X 1/2 1
3 99550
WASHER #10 .200 ID X 7_16 OD X .037 THK 2
4 99598
LOCKWASHER #10 (.062 WIDE X .047 THK) 1
5 22028
CASTER SPACER SMALL 1
6 99605
SPACER M5 BOLT, 16MM LG, 0.7MM WALL THK 1
7 90651
BUTTON HEAD CAP SCREW M5X0.8 X 30mm
LONG, FULLY THREADED
1
ITEM NO. PARTNO DESCRIPTION QTY.
1a 12157 LINK 17'' 1
1b 12158 LINK 18'' 1
1c 12159 LINK 19'' 1
1d 12160 LINK 20'' 1
1e 12161 LINK 21'' 1
1f 12162 LINK 22'' 1
2 99000
SCREW PHILLIPS PAN HD #6-32 X 1/2 1
3 99598
LOCKWASHER #10 (.062 WIDE X .047 THK) 1
4 99550
WASHER #10 .200 ID X 7_16 OD X .037 THK 2
5 99600
SPACER M5 BOLT, 10MM LG, 0.7MM WALL THK 1
6 90651
BUTTON HEAD CAP SCREW M5X0.8 X 30mm
LONG, FULLY THREADED
1
8a 1000576 HELIO C2 12" LINK ASSEMBLY 1
8b 1000577 HELIO C2 13" LINK ASSEMBLY 1
8c 1000578 HELIO C2 14" LINK ASSEMBLY 1
8d 1000579 HELIO C2 15" LINK ASSEMBLY 1
8e 1000580 HELIO C2 16" LINK ASSEMBLY 1
7a 1000581 HELIO C2 17" LINK ASSEMBLY 1
7b 1000582 HELIO C2 18" LINK ASSEMBLY 1
7c 1000583 HELIO C2 19" LINK ASSEMBLY 1
7d 1000584 HELIO C2 20" LINK ASSEMBLY 1
7e 1000585 HELIO C2 21" LINK ASSEMBLY 1
7f 1000586 HELIO C2 22" LINK ASSEMBLY 1

9
helio c2
LINK DIMENSION TABLE
1 2 3 4 5 6 7 8 9 10 11
12'' 18''14''13'' 15'' 16'' 17'' 19'' 20'' 21'' 22''
ITEM NO. PARTNO DESCRIPTION QTY.
1 12152 LINK 12'' 1
2 12153
LINK 13'' 1
3 12154
LINK 14'' 1
4 12155
LINK 15'' 1
5 12156
LINK 16'' 1
6 12157
LINK 17'' 1
7 12158
LINK 18'' 1
8 12159
LINK 19'' 1
9 12160
LINK 20'' 1
10 12161
LINK 21'' 1
11 12162
LINK 22'' 1

10
helio c2
REAR WHEEL MOUNTING PLATE
1234
5
6
7
8
1
9 10
11
9
12 13 14
ITEM NO. PARTNO DESCRIPTION QTY.
1 21024 PLASTIC SLEEVE 2
2 21016
MOUNTING PLATE 1
3 21023
H-BLOCK V2 1
4 90988
Metric JIS Pan Head Phillips Machine Screw M4
X 0.7 X 8mm
1
5 99536
NUT M18X1.5 1
6 99597
LOCK WASHER M18 X 1.5 1
7a 21008 0° BUSHING 1
7b 21009 3° BUSHING 1
8a 21020 FACE PLATE 0° V2 1
8b 21022 FACE PLATE 3° V2 1
9 90774
SOCKET CAP SCREW M6X1 X 30mm LONG,
FULLY THREADED
4
10 21014
QUICK RELEASE 1
11a 21019 POSITIONNING NUT 0° V2 1
11b 21021 POSITIONNING NUT 3° V2 1
12 99530
NYLOCK JAM NUT 1_2-13 (3_4 AF X 5_16 THK) 1
13 99595
WASHER 1_2, 17_32 ID X 7_8 OD X .032 THK 2
14 99352
HEX SCREW 1/2-13 x 4 1/2'' 1
5,6,7a,8a,11a 1000686 V2 0° BUSHING KIT 1
5,6,7b,8a,11a 1000687 V2 3° BUSHING KIT 1
5,6,7b,8b,11b 1000688 V2 6° BUSHING KIT 1

11
helio c2
AMPUTEE AXLE PLATE
H
1
2 3
45
4
6
5 6
7
8
9
ITEM NO. PARTNO DESCRIPTION QTY.
1 21508 V2 0° BUSHING KIT 2
2 51119
UNIVERSAL 1.25IN ALU CLAMP 1
3a 21026 LEFT AMPUTE PLATE V2 1
3b 21025 RIGHT AMPUTE PLATE V2 1
4 21008
0° BUSHING 3
5 99597
LOCK WASHER M18 X 1.5 3
6 99536
NUT M18X1.5 4
7 90777
SOCKET CAP SCREW M6X1 X 45mm LONG,
24mm THREADED
2
8 99560
WASHER 1/4 17/64 ID X 1/2 OD X .032 THK 2
9a 1000852 RIGHT AMPUTE PLATE V2 ASSEMBLY 1
9b 1000853 LEFT AMPUTE PLATE V2 ASSEMBLY 1

12
helio c2
BACK WHEELS
1
2
3
REAR WHEELS TIRES
TUBES
ITEM NO. PARTNO DESCRIPTION
1 21106 22" MAG WHEEL
1 21107 24" MAG WHEEL
2 21110 22" NEWTON STANDARD SPOKE WHEEL
2 21111 24" NEWTON STANDARD SPOKE WHEEL
3 21113 20" NEWTON INFINITY
3 21114 22" NEWTON INFINITY
3 21115 24" NEWTON INFINITY
3 21116 25" NEWTON INFINITY
3 21117 26" NEWTON INFINITY
- 21 126 22" SPINERGY LX
- 21 127 24" SPINERGY LX
- 21 128 25" SPINERGY LX
- 21 129 26" SPINERGY LX
- 21 136 22" SPINERGY SPOX
- 21 137 24" SPINERGY SPOX
- 21 138 25" SPINERGY SPOX
- 21 139 26" SPINERGY SPOX
PARTNO DESCRIPTION
21 305 20"x1" HP TIRE IRONCAP
21 306 22"x1" HP TIRE IRONCAP
21 307 24"x1" HP TIRE IRONCAP
21 308 25"x1" HP TIRE IRONCAP
21 309 26"x1" HP TIRE IRONCAP
21 313 24"x1" HP TIRE MARATHON PLUS
21 315 20"x1⅜" PNEUMATIC TIRE
21 316 22"x1⅜" PNEUMATIC TIRE
21 317 24"x1⅜" PNEUMATIC TIRE
21 318 25"x1⅜" PNEUMATIC TIRE
21 319 26"x1⅜" PNEUMATIC TIRE
21 322 24"x1⅜" KOURIER TIRE
21 324 26"x1⅜" KOURIER TIRE
21 356 22"X1" SOFT URETHANE SHOX HP TIRE
21 357 24"X1" SOFT URETHANE SHOX HP TIRE
21 358 25"X1" SOFT URETHANE SHOX HP TIRE
21 359 26"X1" SOFT URETHANE SHOX HP TIRE
21 365 20"X1⅜" SOFT URETHANE TIRE
21 366 22"X1⅜" SOFT URETHANE TIRE
21 367 24"X1⅜" SOFT URETHANE TIRE
21 391 22" PYRAMID - HARD URETHANE TIRE
21 392 24" PYRAMID - HARD URETHANE TIRE
PARTNO DESCRIPTION
21 250 20"x1" TUBE
21 251 22"x1" TUBE
21 252 24"x1" TUBE
21 253 25"x1" TUBE
21 254 26"x1" TUBE
21 255 20"x1⅜" TUBE
21 256 22"x1⅜" TUBE
21 257 24"x1⅜" TUBE
21 259 26"x1⅜" TUBE
21065 RIM TAPE 20-22"
21066 RIM TAPE 24"
21067 RIM TAPE 25"
21068 RIM TAPE 26"

13
helio c2
HANDRIMS
1
2
4
3
ITEM NO. PARTNO DESCRIPTION
1 21 200 20" ALUMINUM ANODIZED HANDRIM
1 21 201 22" ALUMINUM ANODIZED HANDRIM
1 21 202 24" ALUMINUM ANODIZED HANDRIM
1 21 203 25" ALUMINUM ANODIZED HANDRIM
1 21 204 26" ALUMINUM ANODIZED HANDRIM
2 21 205 22" ALUMINUM ANODIZED HANDRIM/ MAG WHEEL
2 21 206 24" ALUMINUM ANODIZED HANDRIM/ MAG WHEEL
2 21 207 22" PLASTIC COATED HANDRIM/ MAG WHEEL
2 21 208 24" PLASTIC COATED HANDRIM/ MAG WHEEL
1 21 210 20" PLASTIC COATED HANDRIM
1 21 211 22" PLASTIC COATED HANDRIM
1 21 212 24" PLASTIC COATED HANDRIM
1 21 213 25" PLASTIC COATED HANDRIM
1 21 214 26" PLASTIC COATED HANDRIM
1 21 215 20" HIGH FRICTION HANDRIM
1 21 216 22" HIGH FRICTION HANDRIM
1 21 217 24" HIGH FRICTION HANDRIM
1 21 218 25" HIGH FRICTION HANDRIM
1 21 219 26" HIGH FRICTION HANDRIM
3 21 221 22" NATURAL FIT HANDRIM
3 21 222 24" NATURAL FIT HANDRIM
3 21 224 26" NATURAL FIT HANDRIM
4 21 230 22" SILICONE HANDRIM COVER
4 21 231 24" SILICONE HANDRIM COVER
3 21 232 22" SURGE HANDRIM
3 21 233 24" SURGE HANDRIM

14
helio c2
SPOKES GUARD
12
ITEM NO. PARTNO DESCRIPTION QTY.
1 51034 SPOKE SHIELD CLIP 6
2a 51019 SPOKE GUARD 20" 1
2b 51020 SPOKE GUARD 22" 1
2c 51021 SPOKE GUARD 24'' 1
2d 51025 SPOKE GUARD 26" 1

15
helio c2
TITRFRONT WHEEL ASSEMBLY
J
2
3
4
1
5
6
8
9
8
10 11 12 13 6 14 15
16
17
16
18
1920
7
ITEM NO. PARTNO DESCRIPTION QTY.
1 22052 FRONT WHEEL CLAMP V2 1
222009
HOUSING SIDE CAP 1
390777
SOCKET CAP SCREW M6X1 X 45mm LONG,
24mm THREADED
1
490749
SOCKET CAP SCREW M5X0.8 X 20mm LONG,
FULLY THREADED
2
599700
CAP Ø1.5 1
690992
M12 LOW NYLON LOCK 2
799595
WASHER 1_2, 17_32 ID X 7_8 OD X .032 THK 1
8 22011
BEARING R8/2RS 2
922047
FRONT WHEEL HOUSING ASSEMBLY 1
10 99114 SOCKET CAP SCREW #10-32 X 1 1
11 22004 FRONT TIE DOWN 1
12 90659
BUTTON HEAD CAP SCREW M6X1 X 16mm
LONG, FULLY THREADED
2
13 90990 M8 LOW NYLON LOCK 1
14a 22100 3''x1-1/2'' FORK 1
14b 22106 4''x2'' FORK 1
14c 22107 5''x2'' FORK 1
14d 22109 7''x2'' FORK 1
15 90685
BUTTON HEAD CAP SCREW M8X1.25 X 60mm
LONG, 28mm THREADED
1
16a 22029 CASTER SPACER LARGE 2
16b 22028 CASTER SPACER SMALL 1
17a 22016 3''x1'' STANDARD CASTER 1
17b 22017 4''x1'' STANDARD CASTER 1
17c 22018 5''x1'' STANDARD CASTER 1
17d 22019 6''x1'' STANDARD CASTER 1
17e 22020 7''x1'' STANDARD CASTER 1
17f 22021 8''x1'' STANDARD CASTER 1
17g 22022 4''x1-1/2'' SOFT ROLL CASTER 1
17h 22023 5''x1-1/2'' SOFT ROLL CASTER 1
17i 22024 6''x1-1/2'' SOFT ROLL CASTER 1
17j 22025 6''x1-1/4'' PNEUMATIC CASTER 1
17k 22027 8''x1-1/4'' PNEUMATIC CASTER 1
17l 22044 4''x1'' ALUMINUM HARD ROLL COURT CASTER 1
17m 22045 5''x1'' ALUMINUM HARD ROLL COURT CASTER 1
17m 22046 6''x1'' ALUMINUM HARD ROLL COURT CASTER 1
18a 22031 STEM BOLT STD 1
18b 22032 STEM BOLT + 1 1
18c 22033 STEM BOLT + 2 1
19 90993
FLANGE BUTTON HEAD CAP SCREW, M5X.8 X
12mm
1
20 22053 TORQUE ARM V2 1

16
helio c2
CASTER LOCK
1
2 3 4 5
6
ITEM NO. PARTNO DESCRIPTION QTY.
1 22060 CASTER LOCK PIN PLATE 1
2a 22061 FRONT TIE DOWN +1 FOR CASTER LOCK PIN 1
2b 22062 FRONT TIE DOWN +2 FOR CASTER LOCK PIN 1
3 90864
FLAT HEAD CAP SCREW M6X1 X 12mm LONG,
FULLY THREADED
2
4 22063
SLIDER LOCK FOR CASTER LOCK PIN 1
5 90748
SOCKET CAP SCREW M5X0.8 X 18mm LONG,
FULLY THREADED
2
6a 22064 4"x2" MACHINED FORK FOR CASTER LOCK PIN 1
6b 22065 5"x2" MACHINED FORK FOR CASTER LOCK PIN 1
6c 22066 7"x2" MACHINED FORK FOR CASTER LOCK PIN 1
6d 22067 3'' x 1½" MACHINED FORK FOR CASTER LOCK PIN 1

17
helio c2
FOOTRESTS
G
STANDARD FOOTPLATE ALUMINUM FOOTPLATE
1
4
3
5
6
7
8
14
15
16
18
5 19 20 21
25
22
27
26
23 24
HEEL STRAP ASSEMBLY
10
11
12
17
2
CARBON FOOTPLATE
9
13
28
29
30
31
ITEM NO. PARTNO DESCRIPTION QTY.
1a 31177 V2 FOOTREST 90° STRUCTURE 1
1b 31166 V2 FOOTREST 60° STRUCTURE 1
1c 31167 V2 FOOTREST 70° STRUCTURE 1
2 31551
V2 FOOTREST PIVOT - ASSEMBLY 1
3 90664
BUTTON HEAD CAP SCREW M6X1 X 30mm LONG, FULLY THREADED 1
4 31162
V2 FOOTREST PIVOT 1
5 99512
M6 LOW NYLON LOCK 2
6a 31549 V2 FOOTREST HOUSING LEFT - ASSEMBLY 1
6b 31550 V2 FOOTREST HOUSING RIGHT - ASSEMBLY 1
7 31176
V2 FOOTREST THREADED SPACER 1
8 90629
BUTTON HEAD CAP SCREW M4X0.7 X 5mm LONG, FULLY THREADED 4
9 31554
V2 FOOTREST ANCHOR - ASSEMBLY 1
10 90665
BUTTON HEAD CAP SCREW M6X1 X 35mm LONG, 24mm THREADED 1
11 31179
V2 FOOTREST COVED WASHER 1
12 31175
V2 FOOTREST ANCHOR 1
13a 31552 V2 FOOTREST EXTENSION RIGHT CLAMP - ASSEMBLY 1
13b 31553 V2 FOOTREST EXTENSION LEFT CLAMP - ASSEMBLY 1
14 31168
V2 FOOTREST GUIDE SLEEVE 1
15 90745
SOCKET CAP SCREW M5X0.8 X 14mm LONG, FULLY THREADED 1
16a 31170 V2 FOOTREST EXTENSION RIGHT CLAMP 1
16b 31178 V2 FOOTRESTE EXTENSION LEFT CLAMP 1
17a 31169 V2 FOOTREST EXTENSION 1
17b 31209 V2 FOOTREST 90° LONG EXTENSION 1
17c 31198 V2 FOOTREST 90° EXTENSION 1
18 31052
COVED WASHER 1/4 x 3/4 2
19 31115
ANGLE ADJUSTABLE FOOTPLATE PIVOT 1
20 90666
BUTTON HEAD CAP SCREW M6X1 X 40mm LONG, 24mm THREADED 1
21 31116
ANGLE ADJUSTABLE FOOTPLATE CLAMP 2
22 90866
FLAT HEAD CAP SCREW M6X1 X 16mm LONG, FULLY THREADED 2
23 90996
HEX SCREW M6X1 X 50mm LONG, FULLY THREADED 1
24 31101
M6 CONVERSION NUT FOR PLASTIC FOOTPLATE 1
25 90663
BUTTON HEAD CAP SCREW M6X1 X 25mm LONG, FULLY THREADED 1
26 31045
ADJUSTABLE HEEL LOOP 1
27 31016
HEEL LOOP PIN (M) 1
ITEM NO. PART NO. DESCRIPTION QTY.
28a 1000803 12-13" ALUMINUM RIGHT FOOTPLATE ASSEMBLY 1
28b 1000804 12-13" ALUMINUM LEFT FOOTPLATE ASSEMBLY 1
28c 1000805 14-16" ALUMINUM RIGHT FOOTPLATE ASSEMBLY 1
28d 1000806 14-16" ALUMINUM LEFT FOOTPLATE ASSEMBLY 1
28e 1000807 17-18" ALUMINUM RIGHT FOOTPLATE ASSEMBLY 1
28f 1000808 17-18" ALUMINUM LEFT FOOTPLATE ASSEMBLY 1
28g 1000809 19-20" ALUMINUM RIGHT FOOTPLATE ASSEMBLY 1
28h 1000810 19-20" ALUMINUM LEFT FOOTPLATE ASSEMBLY 1
28i 1000811 12-13" ALUMINUM RIGHT FOOTPLATE ASSEMBLY X-LONG 1
28j 1000812 12-13" ALUMINUM LEFT FOOTPLATE ASSEMBLY X-LONG 1
28k 1000813 14-16" ALUMINUM RIGHT FOOTPLATE ASSEMBLY X-LONG 1
28l 1000814 14-16" ALUMINUM LEFT FOOTPLATE ASSEMBLY X-LONG 1
29a 31025 PLASTIC FOOTPLATE 14"-16" 1
29b 31026 PLASTIC FOOTPLATE 17"-18" 1
29c 31027 PLASTIC FOOTPLATE 19"+ 1
30a 1000816 14-16" CARBON FIBRE RIGHT FOOTPLATE ASSEMBLY 1
30b 1000817 14-16" CARBON FIBRE LEFT FOOTPLATE ASSEMBLY 1
30c 1000818 17-18" CARBON FIBRE RIGHT FOOTPLATE ASSEMBLY 1
30d 1000819 17-18" CARBON FIBRE LEFT FOOTPLATE ASSEMBLY 1
30e 1000820 19-20" CARBON FIBRE RIGHT FOOTPLATE ASSEMBLY 1
30f 1000821 19-20" CARBON FIBRE LEFT FOOTPLATE ASSEMBLY 1
31 1000815
ASSEMBLAGE COURROIE APPUI-TALON AJUSTABLE 1

18
helio c2
FOOTRESTS
G
STANDARD FOOTPLATE ALUMINUM FOOTPLATE
1
4
3
5
6
7
8
14
15
16
18
5 19 20 21
25
22
27
26
23 24
HEEL STRAP ASSEMBLY
10
11
12
17c
2
CARBON FOOTPLATE
9
13
28
29
30
31
ITEM NO. PARTNO DESCRIPTION QTY.
1a 31177 V2 FOOTREST 90° STRUCTURE 1
1b 31166 V2 FOOTREST 60° STRUCTURE 1
1c 31167 V2 FOOTREST 70° STRUCTURE 1
2 31551
V2 FOOTREST PIVOT - ASSEMBLY 1
3 90664
BUTTON HEAD CAP SCREW M6X1 X 30mm LONG, FULLY THREADED 1
4 31162
V2 FOOTREST PIVOT 1
5 99512
M6 LOW NYLON LOCK 2
6a 31549 V2 FOOTREST HOUSING LEFT - ASSEMBLY 1
6b 31550 V2 FOOTREST HOUSING RIGHT - ASSEMBLY 1
7 31176
V2 FOOTREST THREADED SPACER 1
8 90629
BUTTON HEAD CAP SCREW M4X0.7 X 5mm LONG, FULLY THREADED 4
9 31554
V2 FOOTREST ANCHOR - ASSEMBLY 1
10 90665
BUTTON HEAD CAP SCREW M6X1 X 35mm LONG, 24mm THREADED 1
11 31179
V2 FOOTREST COVED WASHER 1
12 31175
V2 FOOTREST ANCHOR 1
13a 31552 V2 FOOTREST EXTENSION RIGHT CLAMP - ASSEMBLY 1
13b 31553 V2 FOOTREST EXTENSION LEFT CLAMP - ASSEMBLY 1
14 31168
V2 FOOTREST GUIDE SLEEVE 1
15 90745
SOCKET CAP SCREW M5X0.8 X 14mm LONG, FULLY THREADED 1
16a 31170 V2 FOOTREST EXTENSION RIGHT CLAMP 1
16b 31178 V2 FOOTRESTE EXTENSION LEFT CLAMP 1
17a 31169 V2 FOOTREST EXTENSION 1
17b 31209 V2 FOOTREST 90° LONG EXTENSION 1
17c 31198 V2 FOOTREST 90° EXTENSION 1
18 31052
COVED WASHER 1/4 x 3/4 2
19 31115
ANGLE ADJUSTABLE FOOTPLATE PIVOT 1
20 90666
BUTTON HEAD CAP SCREW M6X1 X 40mm LONG, 24mm THREADED 1
21 31116
ANGLE ADJUSTABLE FOOTPLATE CLAMP 2
22 90866
FLAT HEAD CAP SCREW M6X1 X 16mm LONG, FULLY THREADED 2
23 90996
HEX SCREW M6X1 X 50mm LONG, FULLY THREADED 1
24 31101
M6 CONVERSION NUT FOR PLASTIC FOOTPLATE 1
25 90663
BUTTON HEAD CAP SCREW M6X1 X 25mm LONG, FULLY THREADED 1
26 31045
ADJUSTABLE HEEL LOOP 1
27 31016
HEEL LOOP PIN (M) 1
ITEM NO. PART NO. DESCRIPTION QTY.
28a 1000803 12-13" ALUMINUM RIGHT FOOTPLATE ASSEMBLY 1
28b 1000804 12-13" ALUMINUM LEFT FOOTPLATE ASSEMBLY 1
28c 1000805 14-16" ALUMINUM RIGHT FOOTPLATE ASSEMBLY 1
28d 1000806 14-16" ALUMINUM LEFT FOOTPLATE ASSEMBLY 1
28e 1000807 17-18" ALUMINUM RIGHT FOOTPLATE ASSEMBLY 1
28f 1000808 17-18" ALUMINUM LEFT FOOTPLATE ASSEMBLY 1
28g 1000809 19-20" ALUMINUM RIGHT FOOTPLATE ASSEMBLY 1
28h 1000810 19-20" ALUMINUM LEFT FOOTPLATE ASSEMBLY 1
28i 1000811 12-13" ALUMINUM RIGHT FOOTPLATE ASSEMBLY X-LONG 1
28j 1000812 12-13" ALUMINUM LEFT FOOTPLATE ASSEMBLY X-LONG 1
28k 1000813 14-16" ALUMINUM RIGHT FOOTPLATE ASSEMBLY X-LONG 1
28l 1000814 14-16" ALUMINUM LEFT FOOTPLATE ASSEMBLY X-LONG 1
29a 31025 PLASTIC FOOTPLATE 14"-16" 1
29b 31026 PLASTIC FOOTPLATE 17"-18" 1
29c 31027 PLASTIC FOOTPLATE 19"+ 1
30a 1000816 14-16" CARBON FIBRE RIGHT FOOTPLATE ASSEMBLY 1
30b 1000817 14-16" CARBON FIBRE LEFT FOOTPLATE ASSEMBLY 1
30c 1000818 17-18" CARBON FIBRE RIGHT FOOTPLATE ASSEMBLY 1
30d 1000819 17-18" CARBON FIBRE LEFT FOOTPLATE ASSEMBLY 1
30e 1000820 19-20" CARBON FIBRE RIGHT FOOTPLATE ASSEMBLY 1
30f 1000821 19-20" CARBON FIBRE LEFT FOOTPLATE ASSEMBLY 1
31 1000815
ASSEMBLAGE COURROIE APPUI-TALON AJUSTABLE 1

19
helio c2

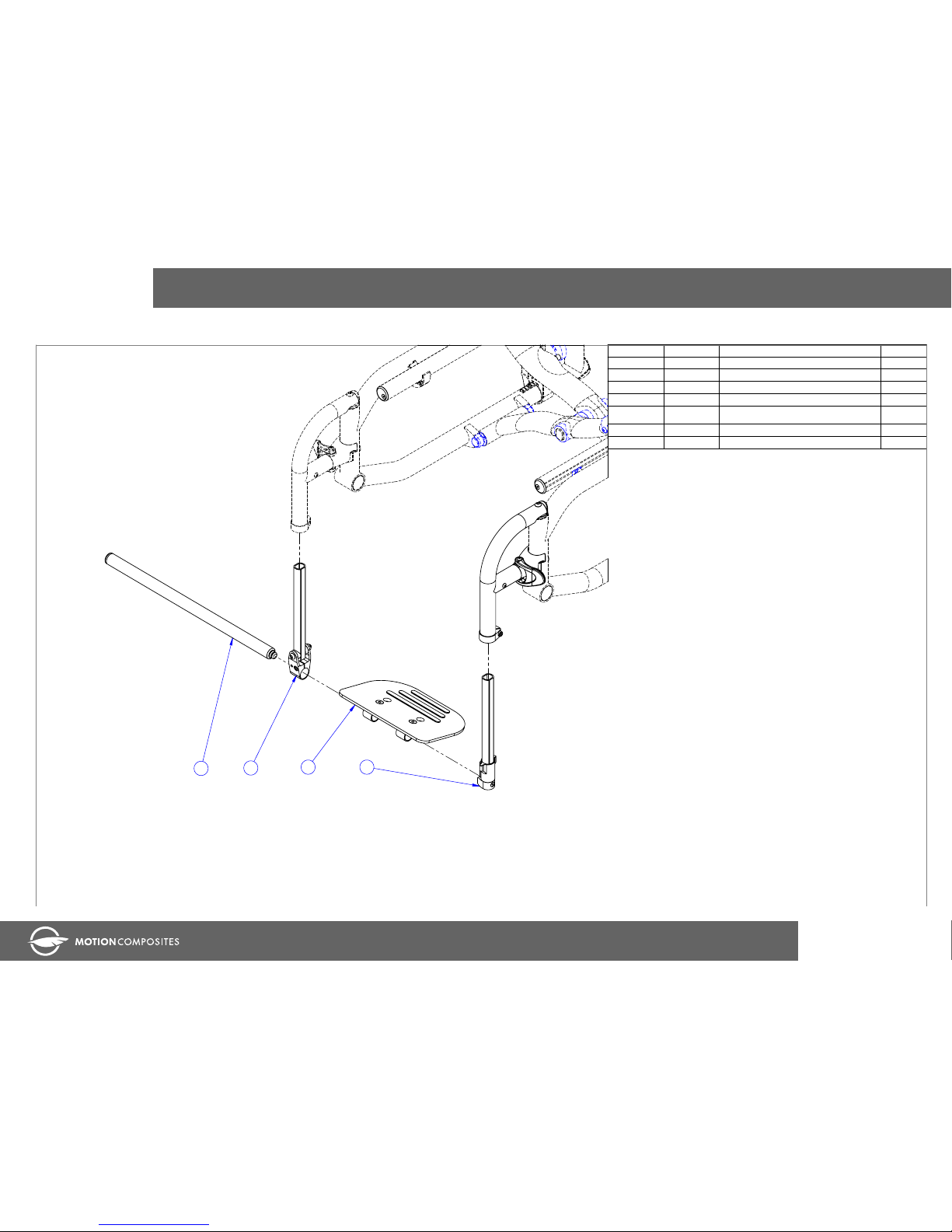

TITRE
412 3
ITEM NO. PARTNO DESCRIPTION QTY.
1 31555 V2 PF PIVOT SIDE EXTENSION TUBE - ASSEMBLY 1
2a 31557 V2 6" PLATEFORM - ASSEMBLY 1
2b 31558 V2 8" PLATEFORM - ASSEMBLY 1
2c 31559 V2 10" PLATEFORM - ASSEMBLY 1
3 31556
V2 PF ANCHOR SIDE EXTENSION TUBE -
ASSEMBLY
1
4a 31560 V2 14½" PLATEFORM MAIN TUBE - ASSEMBLY 1
4b 31561 V2 18½" PLATEFORM MAIN TUBE - ASSEMBLY 1

20
helio c2
ELEVATING LEGRESTS
1
3
2
ELEVATING LEGREST
ITEM NO. PARTNO DESCRIPTION QTY.
1a 31564 V2 ELEVATING LEGREST 14"-15" RIGHT 1
1b 31565 V2 ELEVATING LEGREST 14''-15'' LEFT 1
1c 31568 V2 ELEVATING LEGREST 18''-20'' RIGHT 1
1d 31569 V2 ELEVATING LEGREST 18''-20'' LEFT 1
2a 31562 V2 UNIVERSAL LEGREST HANGER LEFT - ASSEMBLY 1
2b 31563 V2 UNIVERSAL LEGREST HANGER RIGHT - ASSEMBLY 1
3a 31053 ELEVATING LEGREST MEDIUM EXTENSION 1
3b 31057 ELEVATING LEGREST LONG EXTENSION 1
