SERVICE STATION MANUAL
V85 TT
This manual provides the main information to carry out regular maintenance operations on your vehicle.
This manual is intended to Moto Guzzi Dealers and their qualified mechanics; several concepts have
been deliberately omitted as they are considered unnecessary. As it is not possible to include complete
mechanical notions in this manual, users should have basic mechanical knowledge or minimum
knowledge about the procedures involved when repairing scooters. Without this knowledge, repairing or
checking the vehicle may be inefficient or even dangerous. As the vehicle repair and check procedures
are not described in detail, be extremely cautious so as not to damage components or injure individuals.
In order to optimise customer satisfaction when using our vehicles, Piaggio & C. s.p.a. commits itself to
continually improve its products and the relative documentation. The main technical modifications and
changes in repair procedures are communicated to all Moto Guzzi Sales Outlets and its International
Subsidiaries. These changes will be introduced in the subsequent editions of the manual. In case of
need or further queries on repair and check procedures, consult Moto Guzzi CUSTOMER
DEPARTMENT, which will be prepared to provide any information on the subject and any further
communications on updates and technical changes related to the vehicle.
NOTE Provides key information to make the procedure easier to understand and carry out.
CAUTION Refers to specific procedures to carry out for preventing damages to the vehicle.
WARNING Refers to specific procedures to carry out to prevent injuries to the repairer.
Personal safety Failure to completely observe these instructions will result in serious risk of personal
injury.
Safeguarding the environment Sectionsmarked withthis symbol indicate the correctuse of the vehicle
to prevent damaging the environment.
Vehicle intactness The incomplete or non-observance of these regulations leads to the risk of serious
damage to the vehicle and sometimes even the invalidity of the guarantee

INDEX OF TOPICS
PRE-DELIVERY PRE DE
CHARACTERISTICS CHAR
SPECIAL TOOLS S-TOOLS
MAINTENANCE MAIN
ELECTRICAL SYSTEM ELE SYS
ENGINE FROM VEHICLE ENG VE
ENGINE ENG
POWER SUPPLY P SUPP
SUSPENSIONS SUSP
CHASSIS CHAS
BRAKING SYSTEM BRAK SYS
BODYWORK BODYW

INDEX OF TOPICS
PRE-DELIVERY PRE DE

Carry out the listed checks before delivering the motorcycle.
WARNING
HANDLE FUEL WITH CARE.
CAUTION
USE THE DIAGNOSTIC TOOL TO CHECK FOR ANY ERRORS AND CHECK THAT ALL PARAM-
ETERS ARE CORRECT.
ENSURE THAT THE VEHICLE CALIBRATION HAS BEEN UPDATED TO LATEST VERSION
AVAILABLE, AFTER UPDATING THE DIAGNOSTIC TOOL.
Aesthetic inspection
•Paintwork
•Fitting of Plastics
•Scratches
•Dirt
Tightening torques inspection
Safety fasteners:
•Front and rear suspension assembly
•Front and rear brake calliper clamping assembly
•Front and rear wheel assembly
•Engine - frame fastenings
•Steering assembly
•Plastics fixing screws
Electrical system
- Main switch
- Headlamps: high beam lights, low beam lights, taillights (front and rear) and relevant warning lights
- Headlight adjustment according to regulations in force
- Front and rear stop light switches and their bulbs
- Turn indicators and their warning lights
- Instrument cluster lights
- Instrument cluster: fuel and temperature indicator (if present)
- Instrument cluster warning lights
- Horn
- Electric starter
- Engine stop via emergency stop switch and side stand
V85 TT Pre-delivery
PRE DE - 7

- Electric helmet compartment lock release switch (if applicable)
- Through the diagnostic tool, check that the last mapping version is present in the control unit/s and,
if required, program the control unit/s again: consult the technical service website to know about avail-
able upgrades and details regarding the operation.
CAUTION
TO ENSURE MAXIMUM PERFORMANCE, THE BATTERY MUST BE CHARGED BEFORE USE.
INADEQUATE CHARGING OF THE BATTERY WITH A LOW LEVEL OF ELECTROLYTE BEFORE
IT IS FIRST USED SHORTENS THE LIFE OF THE BATTERY.
CAUTION
WHEN INSTALLING THE BATTERY, ATTACH THE POSITIVE LEAD FIRST AND THEN THE NEG-
ATIVE ONE, AND PERFORM THE REVERSE OPERATION DURING REMOVAL.
CAUTION
THE BATTERY ELECTROLYTE IS TOXIC, CORROSIVE AND, AS IT CONTAINS SULPHURIC
ACID, MAY CAUSE BURNING IF IT COMES INTO CONTACT WITH THE SKIN. WHEN HANDLING
BATTERY ELECTROLYTE, WEAR TIGHT-FITTING GLOVES AND PROTECTIVE APPAREL. IN
THE EVENT OF SKIN CONTACT WITH THE ELECTROLYTIC FLUID, RINSE WELL WITH PLENTY
OF CLEAN WATER. IT IS PARTICULARLY IMPORTANT TO PROTECT YOUR EYES BECAUSE
EVEN TINY AMOUNTS OF BATTERY ACID MAY CAUSE BLINDNESS. IN THE EVENT OF CON-
TACT WITH THE EYES, RINSE WITH PLENTY OF WATER FOR FIFTEEN MINUTES AND CON-
SULT AN EYE SPECIALIST IMMEDIATELY. THE BATTERY RELEASES EXPLOSIVE GASES;
KEEP IT AWAY FROM FLAMES, SPARKS, CIGARETTES OR ANY OTHER HEAT SOURCES. EN-
SURE ADEQUATE VENTILATION WHEN SERVICING OR RECHARGING THE BATTERY.
KEEP OUT OF THE REACH OF CHILDREN.
BATTERY LIQUID IS CORROSIVE. DO NOT POUR OR SPILL ON PLASTIC COMPONENTS IN
PARTICULAR. ENSURE THAT THE ELECTROLYTIC ACID IS COMPATIBLE WITH THE BATTERY
BEING ACTIVATED.
CAUTION
NEVER USE FUSES WITH A CAPACITY HIGHER THAN THAT RECOMMENDED. THE USE OF A
FUSE OF UNSUITABLE CAPACITY MAY RESULT IN SERIOUS DAMAGES TO THE WHOLE VE-
HICLE OR EVEN CAUSE A FIRE.
TRADITIONAL BATTERY ACTIVATION PRO-
CEDURE

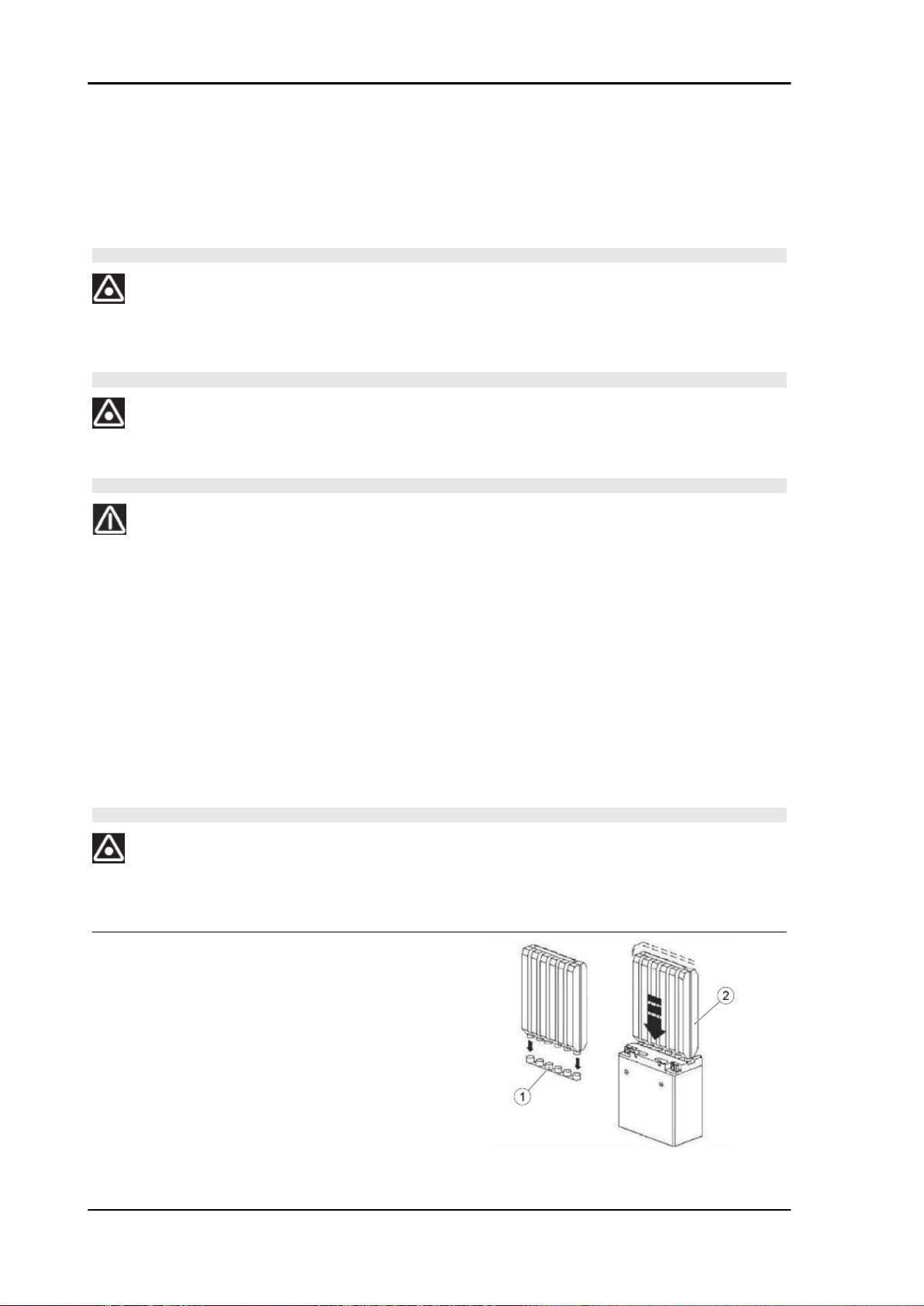

•Place the battery on a flat surface.
•Remove the cell's protective sticker.
•Take the acid container.
•Remove the cap 1 of the container 2.
•Place the container upside down, per-
pendicularly above the battery, align-
ing the outlets with the battery cells.
Pre-delivery V85 TT
PRE DE - 8

•Apply pressure to the container to
break the seals. The liquid will begin to
flow into the cells.
•Check that air bubbles come out of the
cells; let the liquid flow into the cells for
at least 20 minutes.
•If no air bubbles escape and the liquid
does not flow, tap lightly on the bottom
of the container until the liquid begins
to flow into the cells. Never remove the
container from the battery, pierce it or
cut it to facilitate the exit of the liquid.
•Make sure the liquid container is com-
pletely empty before removing it.
•Allow the battery to stand for at least 1
hour,before starting the charging proc-
ess, without closing the six cells. This
operation is extremely important in or-
der to have the best battery perform-
ance over time.

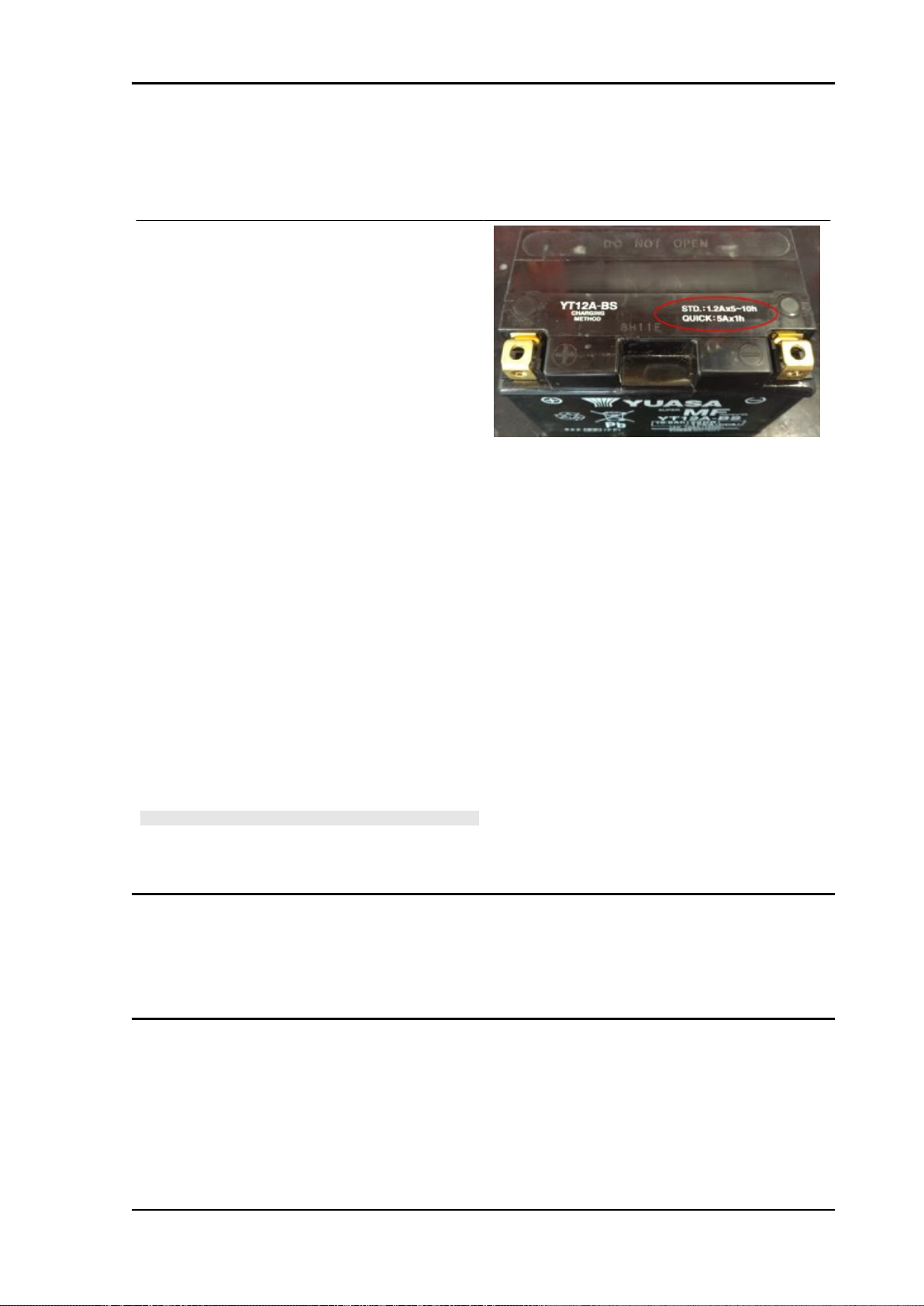

•Recharge the battery following the
specifications indicated on the battery
(see photo ) and using a suitable bat-
tery charger.
NOTE
IN THE SHOWN EXAMPLE IT IS IMPORTANT TO USE A
BATTERYCHARGERWITH1.2 AMPERE(CHARGING TIME
5-10 HOURS) OR 5 AMPERE (CHARGING TIME 1 HOUR).
Levels check
•Braking system liquid level (front and rear)
•Engine oil level
Road test
•Cold start
•Instrument operations
•Throttle control response
•Stability on acceleration and braking
V85 TT Pre-delivery
PRE DE - 9

•Front and rear brake efficiency
•Front and rear suspension efficiency
•Abnormal noise
Static test
Static control after the test drive:
•Restarting when warmed up
•Minimum holding (turning the handlebar)
•Uniform turning of the steering
•Any leaks
Functional inspection
•Hydraulic braking system
•Brake and clutch lever stroke (where applicable)
•Clutch - check proper operation
•Engine - check for proper general operation and absence of abnormal noise
•Check documents, frame number and engine number
•Check included tools (where applicable)
•License plate fitting
•Locks check
•Tyre pressure check
•Installation of mirrors and any accessories
•Battery installation
NEVER EXCEED THE RECOMMENDED INFLATION PRESSURES SINCE THE TYRES MAY
BURST.
CAUTION
CHECK AND ADJUST TYRE PRESSURE WITH TYRES AT AMBIENT TEMPERATURE.
Pre-delivery V85 TT
PRE DE - 10

Specific operations for the vehicle
WINDSHIELD KIT ASSEMBLY
•The box containing the windshield is in
the vehicle packaging. The installation
hardwareismountedonthewindshield
bracket assembled to the vehicle
•Installation begins with the removal of
the mounting hardware from the wind-
shield bracket (for each of the four fas-
tening points, made up of: rubber
piece, bushing and screw)
•Subsequently, the four rubber pieces
(1) are fitted in the respective holes on
the windshield, avoiding the use of
tools that can damage or scratch the
component
•The bushings (2) should be inserted in
the holes of the rubber pieces from the
front side of the windshield
•The windshield should then be rested
on the relative bracket on the vehicle
and, supporting it firmly, the screws
shouldbefastened(3),tighteningthem
to the torque indicated on the chart
WINDSHIELD KIT TIGHTENING TORQUES
Tightening torque chart Tightening torques
Nm (lbf ft) Residual torque Nm (lbf ft)
Windshield fastening to windshield bracket 10 Nm (7.38 lb ft) 8 Nm (5.90 lb ft)
HANDGUARDS AND REAR VIEW MIRRORS
KIT ASSEMBLY
•The box containing the right and left
handguards, the anti-vibration weights
and the hardware required for assem-
bling the aforementioned components
is in the vehicle packaging
•There is also a box containing the rear
view mirrors
V85 TT Pre-delivery
PRE DE - 11

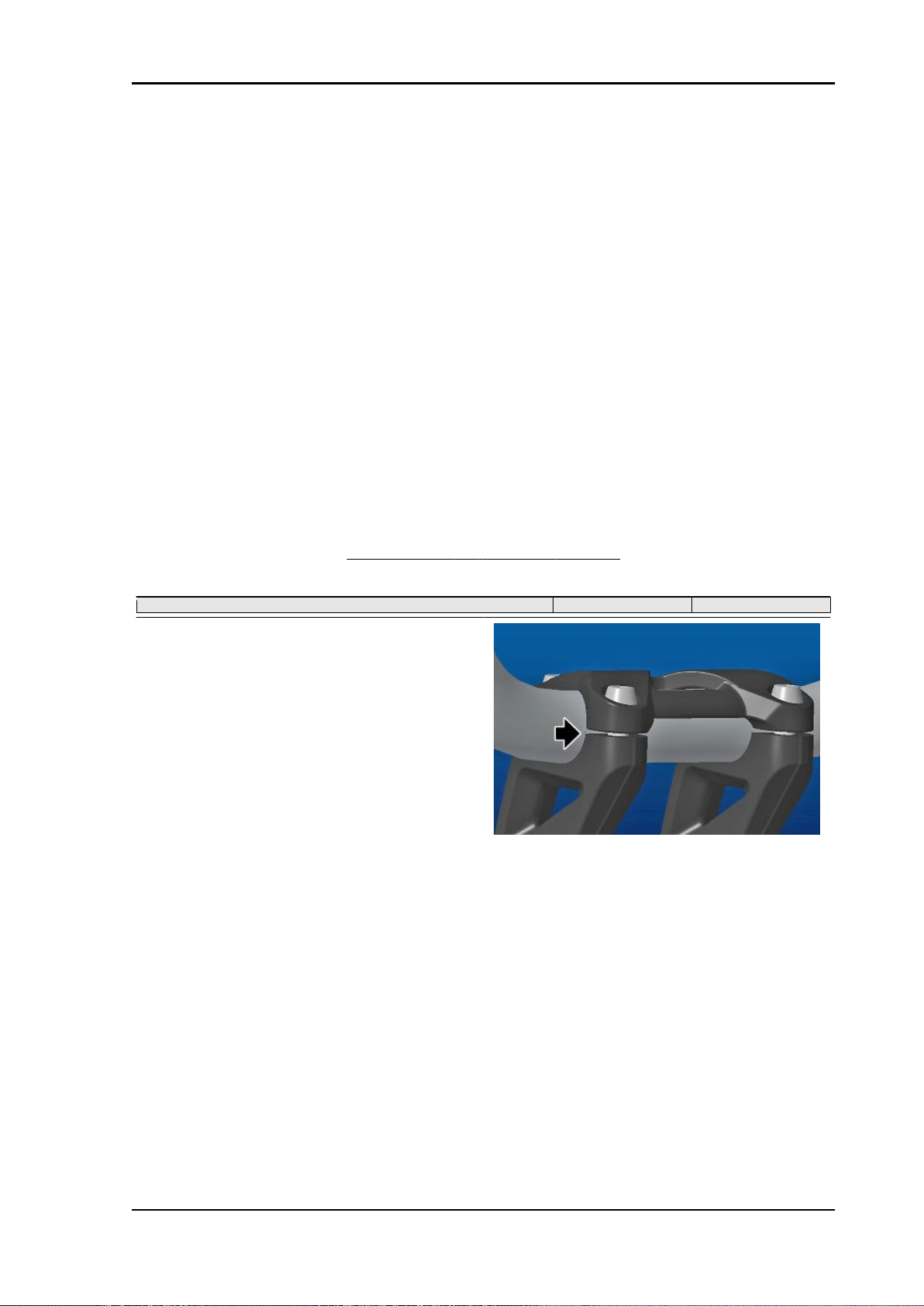

•Installation of the handguards begins
with the insertion of the rubber piece
(1) in the specific cylindrical lodging on
the internal side of the handguards.
•Then, rest the anti-vibration weight (2)
in correspondence to the end of the
handlebar and on this handguard (3),
takingcaretolineuptheinsidewiththe
shape of the anti-vibration weight;
then, the "T" bushing (4) (diam.15 mm)
should be inserted on the handguard
and the screw (5) inserted without
tightening it all the way.
•Then, insert the other "T" bushing (5)
(diam.18 mm) from below on the sec-
ond handguard fastening hole and
screw in the rear view mirror (7)
•Then, tighten the screw (6), observing
the tightening torque indicated on the
attached chart
•Repeat the same procedure to mount
the handguard/rear view mirror on the
opposite side
HANDGUARDS/REAR VIEW MIRRORS KIT TIGHTENING TORQUES
Tightening torque chart Tightening torques
Nm (lbf ft) Residual torque Nm (lbf ft)
Fastening handguard / anti-vibration weight to handlebar 6 Nm (4.43 lb ft) 4.8 Nm (3.54 lb ft)
BATTERY COVER ASSEMBLY
•Remove the saddle, acting on the lock
positioned on the licence plate holder
and lift it from the rear part, unhooking
it from its lodgings in correspondence
to the fuel tank
•Remove the screws (1) and extract the
battery cover (2) from the front lodg-
ings, sliding it toward the rear
Pre-delivery V85 TT
PRE DE - 12

•Place the battery in the appropriate
lodging and connect it, taking care to
observe the polarity
•Refit the battery cover, inserting it in
the appropriate lodgings as indicated
in figure "C"
•Insert the screws (1) in the appropriate
holes, observing the tightening torque
indicated on the attached chart
•Refit the saddle, hooking it in the front
part in the appropriate lodgings in cor-
respondence to the fuel tank and lower
it at the rear, ensuring that the saddle
lock has clicked.
BATTERY COVER KIT TIGHTENING TORQUES
Tightening torque chart Tightening torques
Nm (lbf ft) Residual torque Nm (lbf ft)
Fastening batter cover to frame 10 Nm (7.38 lb ft) 8 Nm (5.90 lb ft)
RESTORING THE HANDLEBAR
•Position the centre of the punch mark
indicated in the figure in correspond-
ence with the corner of the lower left U-
bolt
•Tighten the four fixing screws by hand
•Placea 1 mm(0.04 in) shimto the front
between the lower U-bolts and the up-
per U-bolt
•Tighten the two front screws, in the di-
rection of travel, to 2 Nm (1.48 lbf ft)
•Tighten the two rear screws, in the di-
rection of travel, to 5 Nm (3.69 lbf ft)
•Remove the previously positioned
shim.
•In sequence, tighten the front and rear
screws to the specified torque
V85 TT Pre-delivery
PRE DE - 13

HANDLEBAR KIT TIGHTENING TORQUES
Tightening torque chart Tightening torques
Nm (lbf ft) Residual torque Nm (lbf ft)
Upper U-bolt fastening 25 Nm +/- 10% (18.44
lbf ft +/- 10%) 20 Nm (14.75 lbf bft)
LOCK ASSEMBLY ON THE CASES
In the Travel Pack version, the motorcycle is sup-
pliedwith twoassemblykitstoaccompany thelock
kit already present in the under-seat compartment
to assemble and install the cases.
The first kit is used to assemble the lock of the ca-
ses:
•Insert the pawl (1) in the case from the
outside to the inside and position the
knurled washer (2).

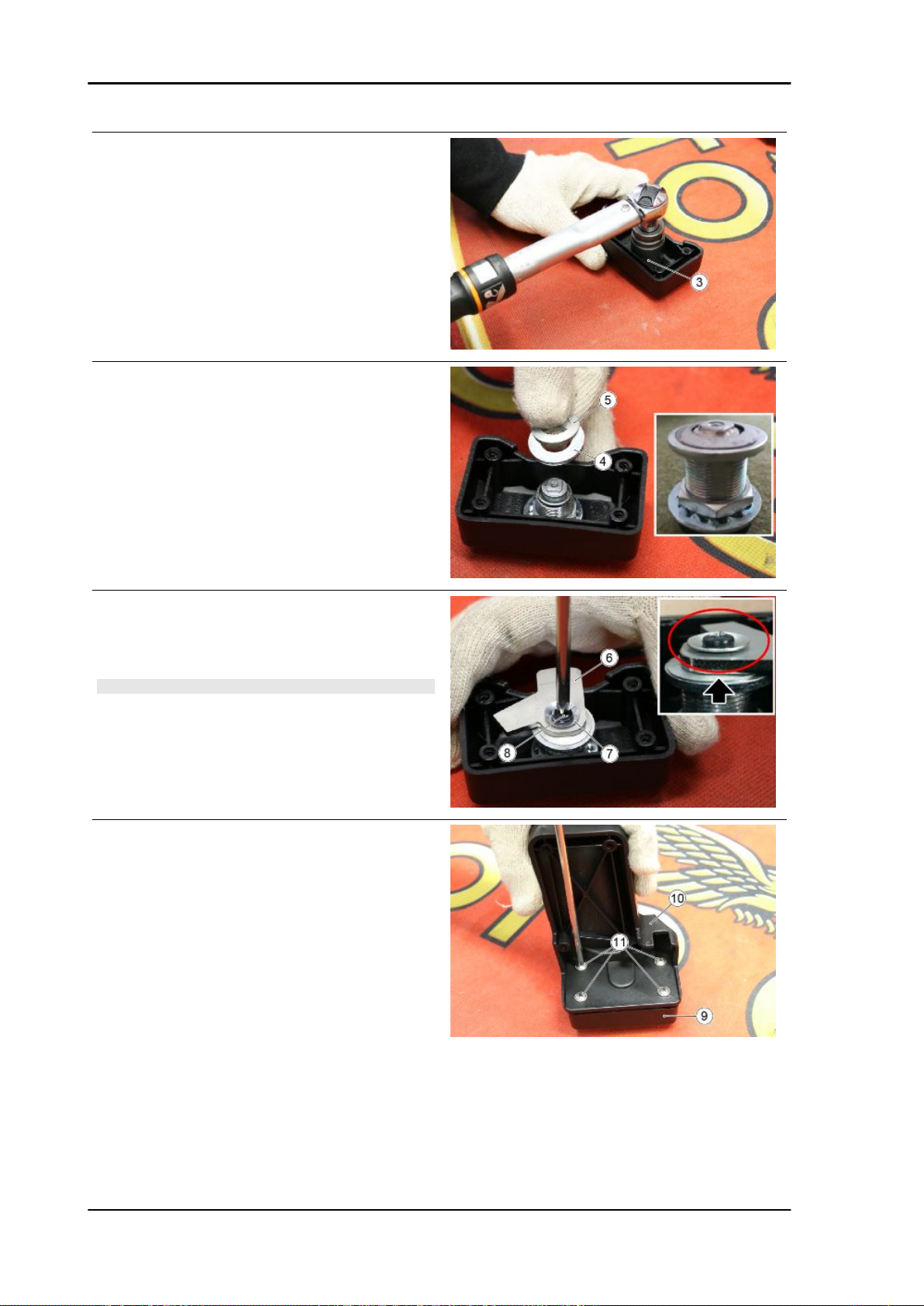

•Insert the locking nut (3) of the pawl
and tighten it to the prescribed torque.
Locking torques (N*m)
Pawl lock nut 10 Nm (7.38 lb ft)
•Position the spacer washer (4) and the
spring washer (5) and check the cor-
rect position
Pre-delivery V85 TT
PRE DE - 14

•Position the latch bolt (6) in the direc-
tion indicated, the spring washer (7)
and relative fixing screw (8).
NOTE
MAKE SURE THE SPRING WASHER IS ASSEMBLED COR-
RECTLY AS SHOWN IN THE IMAGE.
Locking torques (N*m)
Lockinghooklocking screw3 Nm(2.21lbfft)+ Loct.
243
•Position the protective cover (9) of the latch bolt and press it onto the cover until it hooks
onto the cover itself.
LOCK ASSEMBLY ON THE CASE SUPPORT
The second kit is used to assemble the latch of the cases:
•Insert the pawl (1) in the support as shown in image (A) and position the knurled washer (2).
V85 TT Pre-delivery
PRE DE - 15

•Insert the locking nut (3) of the pawl
and tighten it to the prescribed torque.
Locking torques (N*m)
Pawl lock nut 10 Nm (7.38 lb ft)
•Position the spacer washer (4) and the
spring washer (5) and check the cor-
rect position
•Position the lock plate (6) in the direc-
tion indicated, the spring washer (7)
and relative fixing screw (8).
NOTE
MAKE SURE THE SPRING WASHER IS ASSEMBLED COR-
RECTLY AS SHOWN IN THE IMAGE.
Locking torques (N*m)
Lockinghooklocking screw3 Nm(2.21lbfft)+ Loct.
243
•Position the protective cover (9) of the
locking hook on the support (10) with
the four screws (11) tightening them to
the prescribed torque.
Locking torques (N*m)
Locking screws of the cover on the support3.5
Nm (2.58 lb ft)
Pre-delivery V85 TT
PRE DE - 16

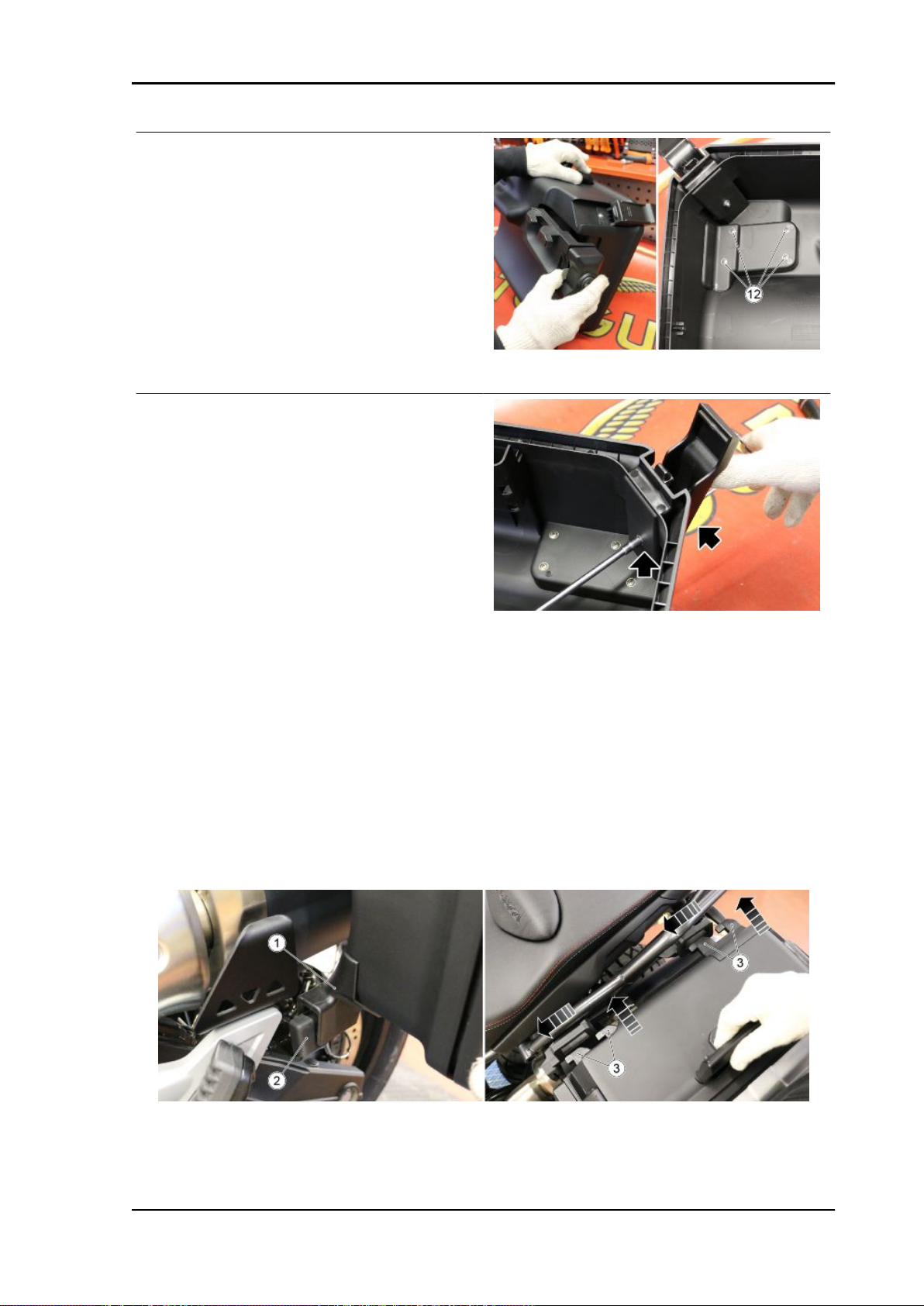

•Position the pre-assembled support on
the case and secure it with the four
screws (12) tightening them to the pre-
scribed torque.
Locking torques (N*m)
Case support fixing screws 3.5 Nm (2.58 lb ft)
INSTALLATION OF CLOSURE LEVERS ON CASES
THEOPERATION DESCRIBEDIS RELATED TO
A SINGLE CLOSURE LEVER BUT IS VALID
FOR BOTH
•Position the complete closure lever on
the case and insert the screw from the
outside towards the inside (with rela-
tive washer).
•From the inside of the case, insert the
nut (with its washer).
•Holding the nut, tighten the screw to
the prescribed torque.
Locking torques (N*m)
Closure lever locking screws 2.5 Nm (1.84 lb ft)
HOOKING THE CASES TO THE VEHICLE
•Position the lower centring element (1) of the case on the pad (2) of the lower centring
bracket.
•Insert the hooks of the case (3) on the slots of the connectors.
V85 TT Pre-delivery
PRE DE - 17

•Turn the key of the side lock fully anti-
clockwise and move the case forward
for the entire length of the connector
slots.
•With a final push on the rear of the
case, make sure the case has arrived
at the end of the connector slots.
•Turnthe keyclockwise to lock the case
to the connector.
CAUTION
MAKE SURE THAT THE CASE IS CORRECTLY ALIGNED
BY CHECKING THAT THE CASE CONNECTOR IS
ALIGNED WITH THE HOOKING SLOT ON THE SUPPORT
CAUTION
REMOVETHE KEYONLY AFTERHAVINGCHECKEDTHAT
THE CASE IS CORRECTLY ATTACHED.
Pre-delivery V85 TT
PRE DE - 18

INDEX OF TOPICS
CHARACTERISTICS CHAR

Rules
Safety rules
Carbon monoxide
If you need to keep the engine running while working on the vehicle, please ensure that you do so in
an open or very well ventilated area. Never run the engine in an enclosed area. If you do work in an
enclosed area, make sure to use a fume extraction system.
CAUTION
EXHAUSTEMISSIONSCONTAINCARBONMONOXIDE,APOISONOUSGAS WHICHCANCAUSE
LOSS OF CONSCIOUSNESS AND EVEN DEATH.
Fuel
CAUTION
FUEL USED TO DRIVE EXPLOSION ENGINES IS HIGHLY INFLAMMABLE AND CAN BECOME
EXPLOSIVE UNDER SPECIFIC CONDITIONS. IT IS THEREFORE RECOMMENDED TO CARRY
OUT REFUELLING AND MAINTENANCE PROCEDURES IN A VENTILATED AREA WITH THE EN-
GINE SWITCHED OFF. DO NOT SMOKE DURING REFUELLING OR NEAR FUEL VAPOUR. AVOID
ANY CONTACT WITH NAKED FLAME, SPARKS OR OTHER HEAT SOURCES WHICH MAY
CAUSE IGNITION OR EXPLOSION.
DO NOT ALLOW FUEL TO DISPERSE INTO THE ENVIRONMENT.
KEEP OUT OF THE REACH OF CHILDREN.
Hot parts
The engine and the exhaust system components get very hot and remain in this condition for a certain
time interval after the engine has been switched off. Before handling these components, make sure that
you are wearing insulating gloves or wait until the engine and the exhaust system have cooled down.
Used engine oil and transmission oil
CAUTION
WHEN CARRYING OUT MAINTENANCE OPERATIONS, IT IS ADVISABLE TO WEAR PROTEC-
TIVE IMPERMEABLE GLOVES.
THE ENGINE OR GEARBOX OIL MAY CAUSE SERIOUS INJURIES TO THE SKIN IF HANDLED
FOR PROLONGED PERIODS OF TIME AND ON A REGULAR BASIS.
WASH YOUR HANDS CAREFULLY AFTER HANDLING OIL.
HAND THE OIL OVER TO OR HAVE IT COLLECTED BY THE NEAREST USED OIL RECYCLING
COMPANY OR THE SUPPLIER.
DO NOT DISPOSE OF OIL IN THE ENVIRONMENT
KEEP OUT OF THE REACH OF CHILDREN.
Characteristics V85 TT
CHAR - 20
