Motorline professional MLS4 Use and care manual

V1.7
REV. 05/2023
MLS4MLS4 EN
USER’S AND INSTALLER’S MANUAL

A B
1B
4A
4B
6B
6B
8A
7A
7B
8A
8A
4A
4A
4B
5A
6A
ENEN
DESCRIPTION
DEVICE INSTALLATION
FACTORY RESET AND SET ADMINISTRATOR CARD
DEFINITIONS OF ADMINISTRATOR IN REMOTE CONTROL
OPEN DOOR AS USER
PRODUCT INSTALLATION
ADMINISTRATOR CARD
SOUND AND LIGHT INDICATION
ADVANCED CONFIGURATIONS
. SAFETY INSTRUCTIONS
. DEVICE
. INSTALLATION AND CONNECTIONS
. CONFIGURATIONS
. CONTENT . SAFETY INSTRUCTIONS
INDEX
SPECIFICATIONS
TECHNICAL CHARACTERISTICS
WIRES
STANDALONE FOR A DOOR WITH POWER SUPPLY
WIEGAND READER CONNECTION
ATTENTION:
This product is certified in accordance with European
Community (EC) safety standards.
This product complies with Directive 2011/65/EU of the
European Parliament and of the Council, of 8 June 2011, on
the restriction of the use of certain hazardous substances
in electrical and electronic equipment and with Delegated
Directive (EU) 2015/863 from Commission.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the
product and electronic accessories (eg. Charger, USB cable,
electronic material, controls, etc.) should not be disposed
of as other household waste at the end of its useful life. To
avoid possible harm to the environment or human health
resulting from the uncontrolled disposal of waste, separate
these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material
resources. Home users should contact the dealer where
they purchased this product or the National Environment
Agency for details on where and how they can take these
items for environmentally safe recycling. Business users
should contact their vendor and check the terms and
conditions of the purchase agreement. This product and
its electronic accessories should not be mixed with other
commercial waste.
This marking indicates that the product and electronic
accessories (eg. charger, USB cable, electronic material,
controls, etc.) are susceptible to electric shock by direct or
indirect contact with electricity. Be cautious when handling
theproductandobserveallsafetyproceduresinthismanual.

A EN
GENERAL WARNINGS
•This manual contains very important safety and usage information.
very important. Read all instructions carefully before beginning the
installation/usage procedures and keep this manual in a safe place
that it can be consulted whenever necessary.
•This product is intended for use only as described in this manual. Any
other enforcement or operation that is not mentioned is expressly
prohibited, as it may damage the product and put people at risk
causing serious injuries.
•This manual is intended firstly for specialized technicians, and does
not invalidate the user’s responsibility to read the “User Norms”
section in order to ensure the correct functioning of the product.
•The installation and repair of this product may be done by qualified
and specialized technicians, to assure every procedure are carried
out in accordance with applicable rules and norms. Nonprofessional
and inexperienced users are expressly prohibited of taking any action,
unless explicitly requested by specialized technicians to do so.
•Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and
other mechanical assembly parts.
•Do not use the product if it is necessary repair or adjustment is
required.
•When performing maintenance, cleaning and replacement of parts,
the product must be disconnected from power supply. Also including
any operation that requires opening the product cover.
•The use, cleaning and maintenance of this product may be carried
out by any persons aged eight years old and over and persons whose
physical, sensorial or mental capacities are lower, or by persons
without any knowledge of the product, provided that these are
supervision and instructions given by persons with experienced in
terms of usage of the product in a safe manner and who understands
the risks and dangers involved.
•Children shouldn’t play with the product or opening devices to avoid
the motorized door or gate from being triggered involuntarily.
WARNINGS FOR TECHNICIANS
•Beforebeginningtheinstallationprocedures,makesurethatyouhave
all the devices and materials necessary to complete the installation
of the product.
•You should note your Protection Index (IP) and operating temperature
to ensure that is suitable for the installation site.
•Provide the manual of the product to the user and let them know
how to handle it in an emergency.
•If the automatism is installed on a gate with a pedestrian door, a
door locking mechanism must be installed while the gate is in motion.
•Do not install the product “upside down” or supported by elements
do not support its weight. If necessary, add brackets at strategic
points to ensure the safety of the automatism.
• Do not install the product in explosive site.
•Safety devices must protect the possible crushing, cutting, transport
and danger areas of the motorized door or gate.
•Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify if
the necessary mechanical stops are in the appropriate places.
•The central must be installed on a safe place of any fluid (rain,
moisture, etc.), dust and pests.
•You must route the various electrical cables through protective
tubes, to protect them against mechanical exertions, essentially on
the power supply cable. Please note that all the cables must enter
the central from the bottom.
•If the automatism is to be installed at a height of more than 2,5m
from the ground or other level of access, the minimum safety and
health requirements for the use of work equipment workers at the
work of Directive 2009/104/CE of European Parliament and of the
01. SAFETY INSTRUCTIONS

A EN
01. SAFETY INSTRUCTIONS
SYMBOLS LEGEND:
• Important safety
notices
• Useful information
• Programming
information
• Potentiometer
information
• Connectors
information
• Buttons
information
Council of 16 September 2009.
•Attach the permanent label for the manual release as close as
possible to the release mechanism.
•Disconnectmeans,suchasaswitchorcircuitbreakerontheelectrical
panel, must be provided on the product’s fixed power supply leads
in accordance with the installation rules.
•If the product to be installed requires power supply of 230Vac or
110Vac, ensure that connection is to an electrical panel with ground
connection.
•The product is only powered by low voltage satefy with central (only
at 24V motors)
WARNINGS FOR USERS
•Keep this manual in a safe place to be consulted whenever necessary.
•If the product has contact with fluids without being prepared, it
must immediately disconnect from the power supply to avoid short
circuits, and consult a specialized technician.
•Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
•If the system requires any repair or modification, unlock the
automatism, turn off the power and do not use it until all safety
conditions have been met.
•In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult
this manual, contact a technician.
•Keep the operation area of the motorized gate free while the gate in
in motion, and do not create strength to the gate movement.
•Do not perform any operation on mechanical elements or hinges if
the product is in motion.
RESPONSABILITY
• Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
•Safety norms are not followed in the installation, use and
maintenance of the product.
• Instructions in this manual are not followed.
•Damaged is caused by unauthorized modifications
• In these cases, the warranty is voided.
MOTORLINE ELECTROCELOS SA.
Travessa do Sobreiro, nº29
4755-474 Rio Côvo (Santa Eugénia)
Barcelos, Portugal

A B
ENEN
. DEVICE
DESCRIPTION
SPECIFICATIONS

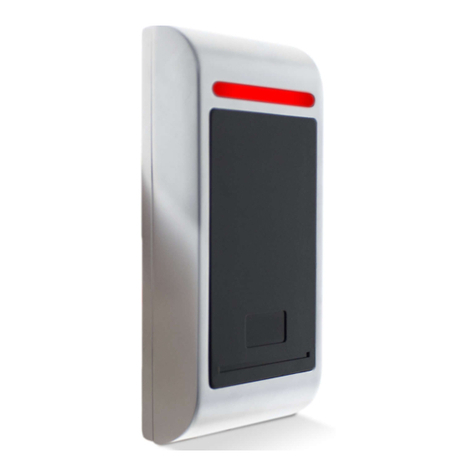

MLS4isawaterproofstandaloneaccesscontrol,readingEM&HIDcard.ItusesanadvancedMicroprocessor,
with high-capacity flash memory for 10000 users. Users can be easily added and deleted via admin card.
The infrared remote control allows the device not only to have alarm, protection, anti-passback function
but also allows to install two units interlocked and add and delete the user on the device.
Besides, it has a low power consumption, anti-theft alarm and door release button.
All these characteristics make it convenient, safe and reliable.
Feature Description
Waterproof Design Rainproof, moistureproof , durable
Ultralow power consumption Longer working life, more stable performance
Large capacity 10 000 user cards
Wiegand reader Can be used as wiegand 26 output reader
External reader connection Can be connected an EM/IC/HIDwiegand 26 output
reader
Two devices interlocked Two devices can be interlocked online
Anti-passback Single door or two doors anti-passback
TECHNICAL CHARACTERISTICS
• Power Supply 12Vdc ± 10%
• Static current <30mA
• Maximum card reading distance 5 ~ 8cm
• Operating temperature -25°C ~ 55°C
• Operating humidity 20% ~ 98%
• Output load blocking 2A
• Alarm Output load 2A
• Administrator card 2 units
. INSTALLATION AND CONNECTIONS
DEVICE INSTALLATION
WIRES
1•Drill the holes according to the distance and the dimension on the back cover, or install the distributing
box;
2 • Pass the cable through the hole, connect the necessary wires and insulate the unused wires with
insulation tape to safeguard a short circuit;
3 • Fix the back cover on the wall with special screws;
4 • Fix the front cover to the back cover with the screws.
Note • Please check all wires and install the front cover carefully before turn on the device.
Sequence Marks Color Description
1 D Green WG output line D
2 D White WG output line D
 OPEN Yellow Exit button
 V Red V Input
 GND Black GND
 NO Blue Relay NO end
COM Purple Relay Com
 NC Orange Relay NC end

A B
D1 D0
OPEN
+12VGNDNOCOMNC
MLS4
GND+12VD1D0
- +
NC COM NO PUSHGND +12V
+ -
D1 D0
OPEN
+12VGNDNOCOMNC
MLS4
GND+12VD1D0
- +
NC COM NO PUSHGND +12V
+ -
ENEN
. INSTALLATION AND CONNECTIONS . INSTALLATION AND CONNECTIONS
STANDALONE FOR A DOOR WITH POWER SUPPLY
12Vdc power supply 12Vdc power supplyElectric lock Electromagnetic lock
Exit
Button Exit Button
External reader External reader
Purple Purple Blue Blue Black Black Red Red
Yellow Yellow
White White
Green Green
STANDALONE FOR A DOOR WITH POWER SUPPLY
• ELECTRIC LOCK • ELECTROMAGNETIC LOCK

A B
D0D1
OPEN
+12VGNDNOCOMNC
MLS4
GND +12V
D1
D0
ENEN
. INSTALLATION AND CONNECTIONS . CONFIGURATION
FACTORY RESET AND SET MANAGEMENT CARD
Connect the yellow wire to the black wire and turn on the power. After the sound “didi”, Factory reset is
finished. When indication LED turns green, it means you can set the two admin cards. Pass the first card
through the reader as admin add card. After that pass the second card as admin delete card. Then LED
turns red flash, and after that, the device can work normally.
Note • Resetting to factory defaults does not delete user cards. If you present the same card on the
second reading, the device will beep 3 consecutive times. Then you can present another card. If no
operations occur within 10seconds, the device will enter working mode automatically and the parameter
will reset to factory default.
Add users via remote control:
ADMIN SETTING ON KEYPAD
Administrator
operating mode
factory default: 999999
Note • All steps below require you to be in Programming Mode
master code
*#
Change the master
code Note • Master Code length: 6~8 digits
Add consecutive card
numbers Add consecutive user card numbers.
Green fast flash.
Use card number to
add user Note • 1 Card number must be 8 or 10 digits. If the card number
has less than 8 or 10 digits, type 0 before the card number as
many times as necessary. 2Press #and confirm, click one last
time on #to finish and click on *to get out.
Read card to add user
cards quantity
1#
pass card
1#pass card #
8 or 10 digits card number
new code
0#repeat new code #
card number
1#card number #
WIEGAND READER CONNECTION
Black Red
White
Green
External reader
#
...
#
...
Add user with ID
and Card
User ID 1
1#pass card 1 #
User ID 2 #pass card 2 ##
...
#
8 or 10 digits card number ##
...

A B
ENEN
PRODUCT INSTALLATION
. CONFIGURATION
Remove user by remote control:
Set security mode
Delete all users Note • This operation will delete all users, but admin cards won’t
be deleted.
Pass card to delete
user
Normal mode (factory
default)
Dead mode Continuous reading of 10 invalid cards within 10 minutes will lead
to device inactivity for 10 minutes
Use card number to
remove user
#
#
pass card 1
2
3
3
0
1
8 or 10 digits card number
8 or 10 digits card number
2
pass card 2 #
#
#
#
...
...
. CONFIGURATION
PRODUCT INSTALLATION
Set Red light mode:
Add user:
Delete user:
Set Interlock:
Set Anti-passback:
Static mode disabled
Close interlock
(factory default)
Disable anti-passback
(factory default)
Enable hosting anti-
passback mode
#
#
#
#
6
7
8
8
0
0
0
1
Static mode enabled
(factory default)
Open interlock
#
#
6
7
1
1
Enable auxiliary anti-
passback mode Note • Details will be illustrated in Advanced Setup on page 7A.
#
8 2
ADMIN CARD OPERATION
pass "Add User" card
pass "Delete User" card
pass "Delete User" card
"Add User" card
pass user card 1
pass user card 1 pass user card 2
pass user card 2
Set Door impulse time Note • Duration “0-99 seconds”, 0mS equals 50mS
#
4 0~99
Remove user by ID 2#
...
User ID 1 #User ID 2 #
...
...
Set Reader Mode
Standalone Mode
Slave Reader Mode Note • For the reader to communicate with the MCA control
board, it must be configured as a slave reader
#
3 11
#
3 13
2# 0000

A B
ENEN
. CONFIGURATION
OPERATION LED COLOR BUZZER
Initialization Orange Bip Bip
Static Red Flash
Correct code Long bip
Enter programming Red Long bip
Setting Orange Bip
Exit Red Flash Long bip
Operation Failed Bip Bip
Lock open Green Long bip
Add sequential card number Green Quick Flash
SOUND AND LIGHT INDICATION
1 • Two devices for single door
Install one device at inside and the other at outside. Inside device works as the controller and the
outside device works as reader. The difference between two interlocked devices for a one door and a
single device working with “Standalone” is below:
1.1 • Add users on both devices. Both inside user data and outside data can be shared. Up to 10,000 users
can be added.
1.2 • The setting of the two devices must be the same. When admin PIN setting is different, outside device
can’t open the door with saved users data.
2 • Two interconnected devices for two doors
Install two controllers for two doors in way to control two locks separately, set interlock for two devices,
open door contact. One door is closed when the other door is open. The device can’t control another
electric lock and saved data can’t be shared between different devices. This function mainly apply for
bank, prison etc.
. CONFIGURATION
ADVANCED CONFIGURATIONS
ADVANCED CONFIGURATIONS
3 • Anti-passback for Single door
Install a common reader outside (or use this device without any card No. for reader). Install this device
outside and set it as anti-passback host mode. In this case, the two devices consist of an anti-passback
system for single door, mainly apply to controlling enter and exit for single door. Functions as follows:
3.1 • Set the necessary functions and add an user card on the host device.
3.2 • Users can only present the card on the outside reader to enter, and then present the card on the
host device to exit. Users can't enter or exit 2 consecutive times.
4 • Anti-passback for two doors
Install one device on Door 1 in auxiliary anti-passback mode. Install one device on Door 2 in hosting anti-
passback mode. In this case, the two devices consist in a anti-passback for two doors, mainly apply for
one-way in and out for double doors like a parking. Functions as follows:
4.1 • Set the necessary functions and add an user card on the host device.
4.2 • Users can only present the card on the auxiliary device to enter, and then present the card on the
hosting device to exit. Users can't enter or exit at 2 consecutive times.
OPEN DOOR AS USER
Pass user card Pass a valid user card through the reader. Note • The admin card
cannot be used to open doors.
