Motorline professional FLAMA Use and care manual

v.
REV. /
FLAMA
FLAMA EN
USER’S AND INSTALLER’S MANUAL

1B
4B
4A
5A
8A
7
8A
8B
9
10
11
12
14
13B
13B
13A
13B
13B
5B
6
1A 1B
ENEN
00. CONTENT 01. SAFETY INSTRUCTIONS
INDEX
This product is certified in accordance with European
Community (EC) safety standards.
This product complies with Directive 2011/65/EU of the
European Parliament and of the Council, of 8 June 2011, on
the restriction of the use of certain hazardous substances
in electrical and electronic equipment and with Delegated
Directive (EU) 2015/863 from Commission.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the
product and electronic accessories (eg. Charger, USB cable,
electronic material, controls, etc.) should not be disposed
of as other household waste at the end of its useful life. To
avoid possible harm to the environment or human health
resulting from the uncontrolled disposal of waste, separate
these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material
resources. Home users should contact the dealer where they
purchased this product or the National Environment Agency
for details on where and how they can take these items
for environmentally safe recycling. Business users should
contact their vendor and check the terms and conditions
of the purchase agreement. This product and its electronic
accessories should not be mixed with other commercial
waste.
This marking indicates that the product and electronic
accessories (eg. charger, USB cable, electronic material,
controls, etc.) are susceptible to electric shock by direct or
indirect contact with electricity. Be cautious when handling
the product and observe all safety procedures in this manual.
ATTENTION:
PREINSTALLATION INFORMATION
PERFORMANCE DESIGNATION
CONTROL BOARD
INSTALLATION MAP
INSIDE PACKAGE
TECHNICAL CHARACTERISTICS
. SAFETY INSTRUCTIONS
. OPERATOR
. PACKAGE
. INSTALLATION
FIXING THE SIDE GUIDES AND MANEUVER BOARD

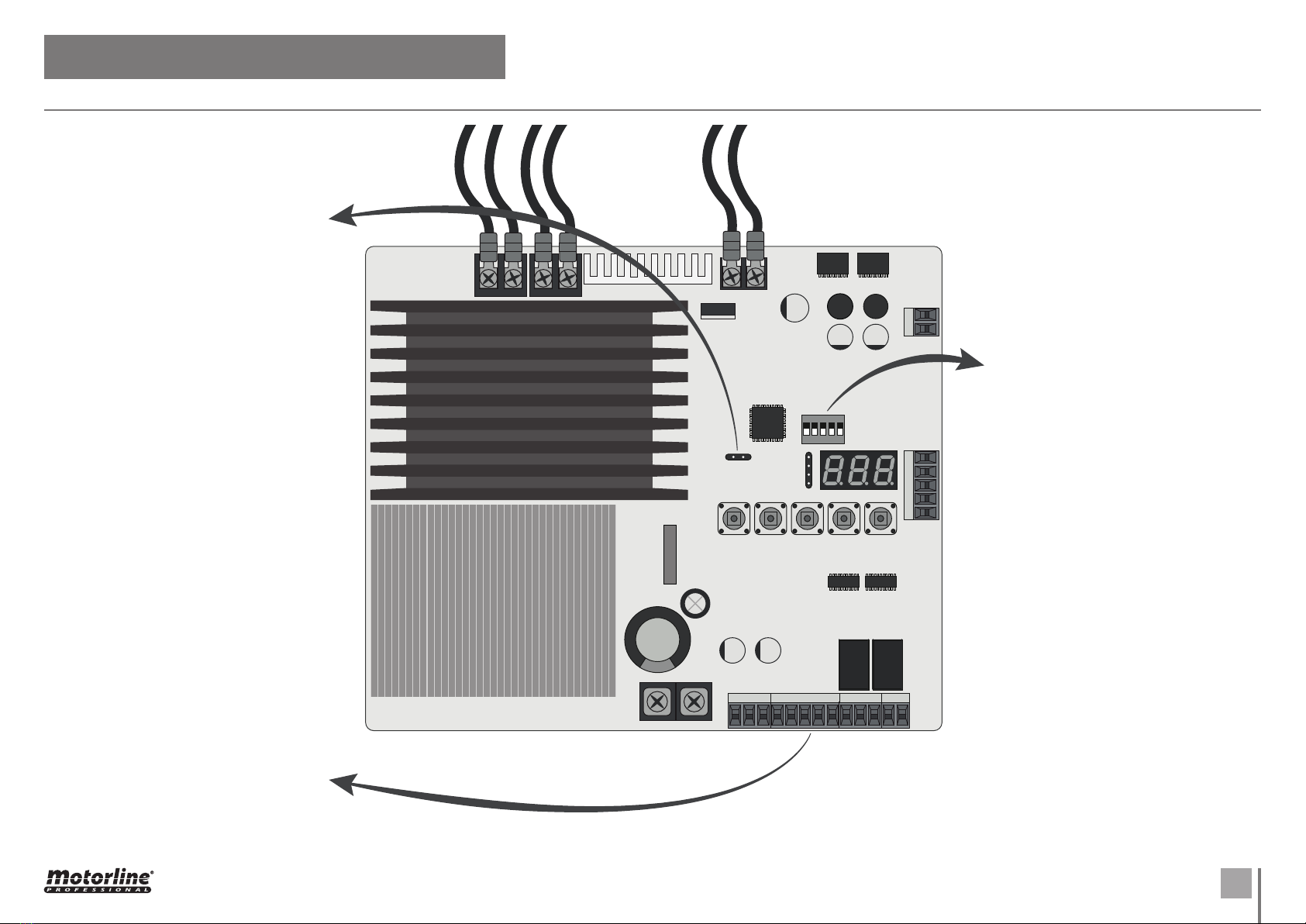

DC CONTROL BOARD DIAGRAM
FIXING THE SAFE PROFILE
DC AND DC CONTROL BOARD DIAGRAM
. SETTINGS
FINAL CONSUMERS AND SPECIALIZED TECHNICIANS INSTRUCTIONS
MANUAL OPERATING MODE
LIMIT SWITCHES PROGRAMMING
ENERGY FAILURE
. TROUBLESHOOTING
. AUXILIARY INFORMATION
LIMIT SWITCHES PROGRAMMING WITH INTERMEDIATE STOP
VISUAL AND SOUND ALARM
TEST FUNCTIONS
DIMENSIONS
SAFE PROFILE INSTALLATION MEASURES

2EN
01. SAFETY INSTRUCTIONS
GENERAL WARNINGS
•This manual contains very important safety and usage information.
Read all instructions carefully before beginning the installation/
usage procedures and keep this manual in a safe place that it can be
consulted whenever necessary.
•This product is intended for use only as described in this manual. Any
other enforcement or operation that is not mentioned is expressly
prohibited, as it may damage the product and put people at risk
causing serious injuries.
•Thismanual is intendedfirstlyfor specialized technicians, and does not
invalidate the user’s responsibility to read the “User Norms” section in
order to ensure the correct functioning of the product.
•The installation and repair of this product may be done by qualified
and specialized technicians, to assure every procedure are carried
out in accordance with applicable rules and norms. Nonprofessional
and inexperienced users are expressly prohibited of taking any action,
unless explicitly requested by specialized technicians to do so.
•Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and other
mechanical assembly parts.
•Do not use the product if it is necessary repair or adjustment is
required.
•When performing maintenance, cleaning and replacement of parts,
the product must be disconnected from power supply. Also including
any operation that requires opening the product cover.
•The use, cleaning and maintenance of this product may be carried
out by any persons aged eight years old and over and persons whose
physical,sensorialormentalcapacitiesarelower,orbypersonswithout
any knowledge of the product, provided that these are supervision
and instructions given by persons with experienced in terms of usage
of the product in a safe manner and who understands the risks and
dangers involved.
•Children shouldn’t play with the product or opening devices to avoid
the motorized door or gate from being triggered involuntarily.
WARNINGS FOR TECHNICIANS
•Before beginning the installation procedures, make sure that you have
all the devices and materials necessary to complete the installation
of the product.
•You should note your Protection Index (IP) and operating temperature
to ensure that is suitable for the installation site.
•Provide the manual of the product to the user and let them know how
to handle it in an emergency.
•If the automatism is installed on a gate with a pedestrian door, a door
locking mechanism must be installed while the gate is in motion.
•Do not install the product “upside down” or supported by elements do
not support its weight. If necessary, add brackets at strategic points
to ensure the safety of the automatism.
•Do not install the product in explosive site.
•Safety devices must protect the possible crushing, cutting, transport
and danger areas of the motorized door or gate.
•Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify if the
necessary mechanical stops are in the appropriate places.
•The centralmust beinstalledon a safeplace of any fluid (rain,moisture,
etc.), dust and pests.
•You must route the various electrical cables through protective tubes,
to protect them against mechanical exertions, essentially on the
power supply cable. Please note that all the cables must enter the
central from the bottom.
•If the automatism is to be installed at a height of more than 2,5m from
the ground or other level of access, the minimum safety and health
requirements for the use of work equipment workers at the work of
Directive 2009/104/CE of European Parliament and of the Council of 16

3EN
01. SAFETY INSTRUCTIONS
September 2009.
•Attach the permanent label for the manual release as close as possible
to the release mechanism.
•Disconnect means, such as a switch or circuit breaker on the electrical
panel, must be provided on the product’s fixed power supply leads in
accordance with the installation rules.
•If the product to be installed requires power supply of 230Vac or
110Vac, ensure that connection is to an electrical panel with ground
connection.
•The product is only powered by low voltage satefy with central (only
at 24V motors)
WARNINGS FOR USERS
•Keep this manual in a safe place to be consulted whenever necessary.
•If the product has contact with fluids without being prepared, it must
immediately disconnect from the power supply to avoid short circuits,
and consult a specialized technician.
•Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
•Ifthesystemrequiresanyrepairormodification,unlocktheautomatism,
turn off the power and do not use it until all safety conditions have
been met.
•In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult this
manual, contact a technician.
•Keep the operation area of the motorized gate free while the gate in in
motion, and do not create strength to the gate movement.
•Do not perform any operation on mechanical elements or hinges if the
product is in motion.
RESPONSABILITY
•Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
•Safety norms are not followed in the installation, use and
maintenance of the product.
•Instructions in this manual are not followed.
•Damaged is caused by unauthorized modifications
•In these cases, the warranty is voided.
MOTORLINE ELECTROCELOS SA.
Travessa do Sobreiro, nº29
4755-474 Rio Côvo (Santa Eugénia)
Barcelos, Portugal
SYMBOLS LEGEND:
• Important safety
notices
• Useful information
• Programming
information
• Potentiometer
information
• Connectors
information
• Buttons
information

4A 4B
ENEN
FLAMA is a fire curtain built with indicated galvanized steel profiles, with lacquer.
03. OPERATOR02. PACKAGE

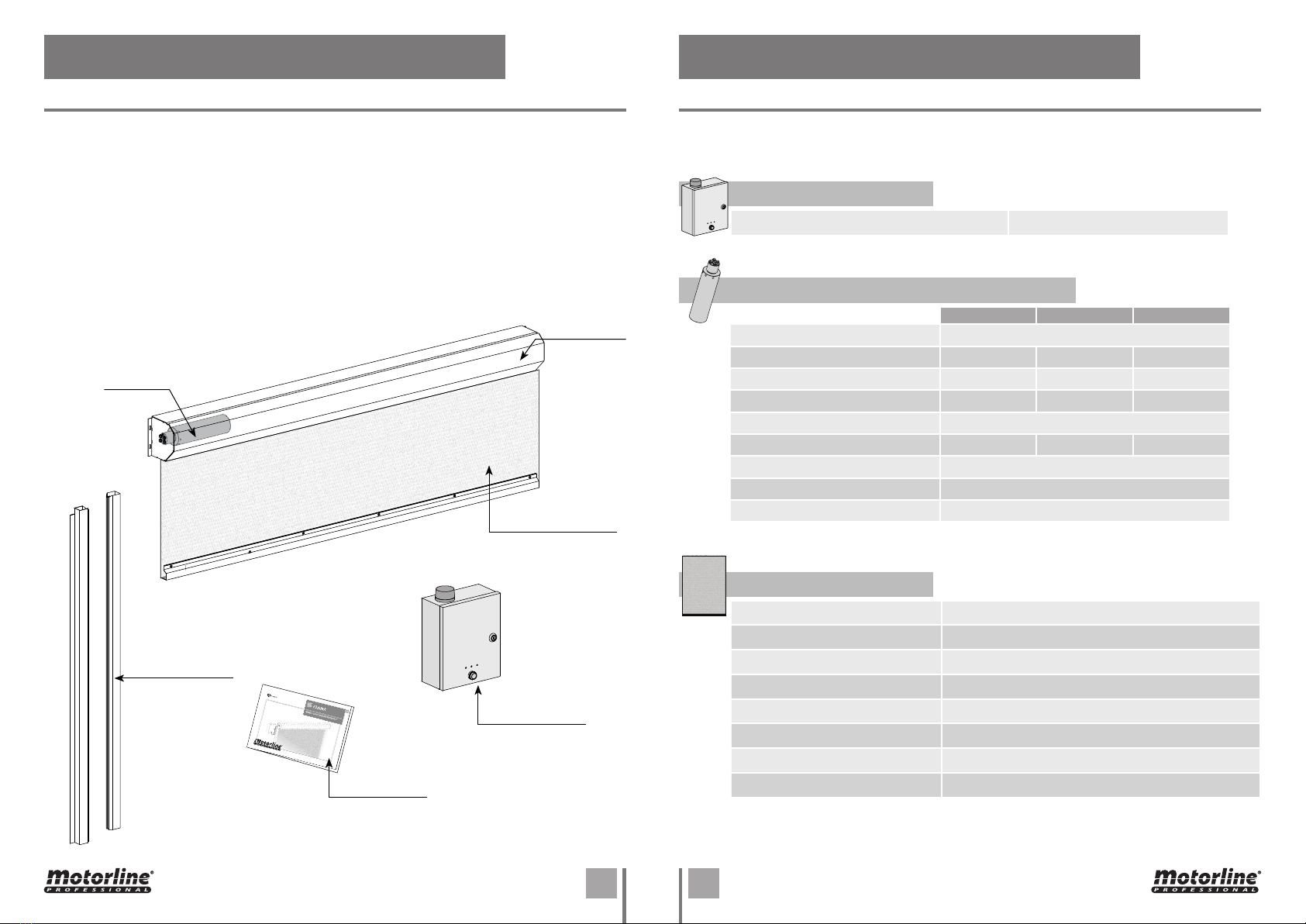

TECHNICAL CHARACTERISTICS
The kit consists of the following components:
•  Motor
•  Side guides
•  Iron Safe
•  Fire Breaker Fabric
•  Maneuver Board
•  Outside RESET button
•  User's Manual
INSIDE PACKAGE
Maneuver
Board
User's
manual
Side guides
Iron Safe
Fire Breaker
Fabric
Motor
MANEUVER BOARD
• Power Supply  Vac  Hz
MOTOR
DC DC DC
• Power Supply Vdc
• Current .A .A A
• Power  W  W  W
• RPM  RPM  RPM . RPM
• Noise LpA   dB (A)
• Force  Nm  Nm  Nm
• Working temperature -C a C
• Protection grade IP 
• Working frequency  
FIRE BREAKER FABRIC
• Wire EC / VA
• Weight  g/m
• Thickness . mm
• Operating temperature -C  C
• Color Silver / Gray Coating both sides
• Weaving pattern H Satin
• Construction Web →  wires/cm | Weft →  wires/cm
• Tensile Strength N/cm 

5A 5B
ENEN
OTHER COMPONENTS
STRUCTURE
• Galvanized steel DXD Z
03. OPERATOR
TECHNICAL CHARACTERISTICS
03. OPERATOR
PERFORMANCE DESIGNATION
We have the following performance designation approved by TECNALIA:
• EI - Prevents the passage of flames, hot gases and temperature transmission with water.
• EW - Prevents the passage of flames, hot gases and the transmission of thermal radiation
without water.
• E - Prevents the passage of flames and hot gases without water.
When tested with water, FLAMAs sprinklers had the following characteristics:
• During the test, a flow rate of L/min was used, at a pressure of  bar. Each sprinkler
should operate at approximately ,L/min·m.
• They must be placed ,m apart.
•The distance between the fire breaker fabric/iron safe and the sprinklers is cm.
SAFE PROFILE INSTALLATION MEASURES
FLAMAhas twomodels,andtheinstallationof eachmodel isvariabledue toits measurements.
See the table below:
FLAMA ST FLAMA XL
• Transformer  V   Vac
• Battery  Batteries in series  V  V
COFRE
Height Width
1000 2000 3000 4000 5000 6000 7000 8000 9000 10 000
1000
2000
3000
4000
5000
6000
7000
8000
9000
10 000

6
320mm
260mm 130mm
40mm
70mm 70mm
185mm
204mm
47,5mm
35mm 105mm
23mm 204mm
77,5mm
50mm
132mm
233mm
400mm
300mm 140mm
40mm
250mm
250mm
47,5mm
30mm
100mm 100mm
23mm
250mm
197mm
77,5mm
50mm
298mm
100mm
105mm
105mm 105mm
35mm
EN

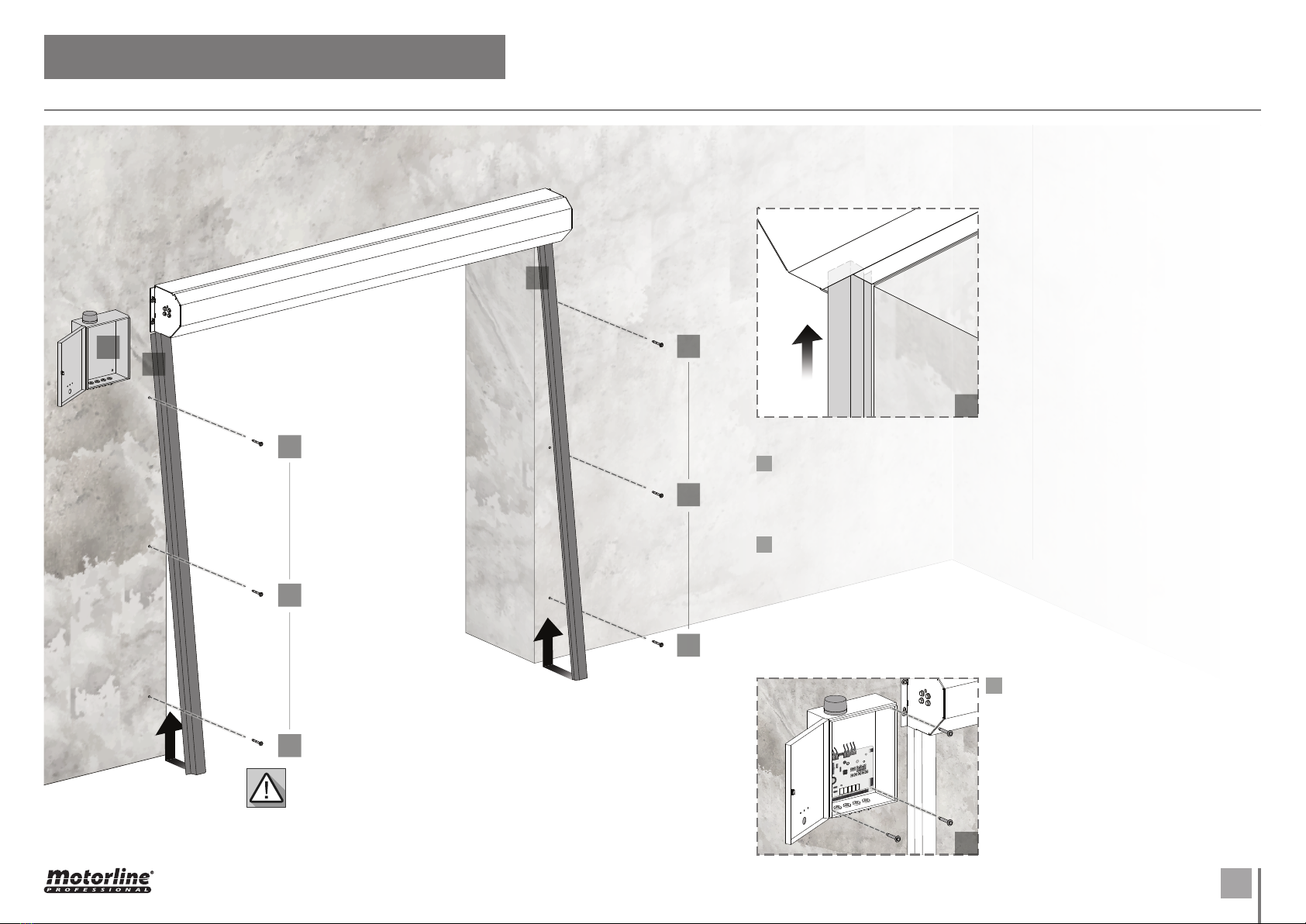

04. INSTALLATION
GUIDE GUIDE
GUIDE GUIDE
WALL WALL
WALL WALL
PASSAGE SPAN PASSAGE SPAN
PASSAGE SPAN PASSAGE SPAN
∫MANEUVER BOARD DC95 ∫MANEUVER BOARD DC120 AND DC160
∫OUT OF PASSAGE SPAN
∫TUNNEL
∫OUT OF PASSAGE SPAN
∫ TUNNEL
FLAMA ST DIMENSIONS FLAMA XL DIMENSIONS
• MSL - Minimum side clearance Mínima • MSL - Minimum side clearance Mínima
(MSL) (MSL) (MSL) (MSL)
Legend: Legend:

7
10
9
3
2
14
8
5
7
6
EN
04. INSTALLATION
INSTALLATION MAP
1 • Safe profile
2 • Motor
3 • Guide
4 • Maneuvers board
5 • Flashing light
6 • RESET button
7 • Informative LEDS
8 • Runner profile (not included in kit)
9 • Fire Breaker Fabric
10 • Bottom Crossbar

CBA
1
3
3
2
2
8A 8B
ENEN
04. INSTALLATION
FIXING THE SAFE PROFILE
In order to the FLAMA work correctly, before the installation it is important to
take into account the following parameters:
• Read all the steps at least once, in order to learn about the installation and configuration
process.
• Check the horizontal ground alignment, so that the door can be installed properly.
• Make sure there is adequate electrical protection against short circuits / power surges and
grounding in Electrical Board.
• Be careful in the event of handling directly the control board. Improper handling can damage
some electrical components.
• Make sure you have prepared all the necessary materials for the installation.
• Evaluate the security devices to be installed. This will ensure that unexpected accidents do
not happen.
• Use appropriate screws to the place where the components of the FLAMA will be fixed.
• Do not use plastic wall plugs in the FLAMA installation.
04. INSTALLATION
PRE-INSTALLATION INFORMATION
CONTROL BOARD
It is very important that all precautions are respected!
Only in this way it can be assured the proper functioning and durability of the
FLAMA!
Before proceeding with installation, should check that if all the measurements are correct,
taking into account the installation location. It is also important that the installation site
is properly leveled, since only then will it be possible to ensure the correct operation of
the FLAMA.
PASSAGE SPAN
POSITION SAFE PROFILE
Apply the safe to the wall of the
installation place, paying attention to
the horizontal leveling.
The safe should be centered with the
span.
Based on the holes in the support plates,
mark the drilling areas.
FIX SAFE PROFILE
Drill the holes at the marked locations,
and then apply the safe to the wall,
fixing it with metal wall plugs or screws.
The safe must be securely fastened to
prevent accidents.
POSITION GUIDES
Place the guides at the installation place
to understand if the safe will be fixed in
the right place for the legs assembly.
1
3
2
METAL WALL
PLUGS OR
SCREWS
LED Status Description
A
(Green)
On V power supply
Off No V power supply
B
(Yellow)
On The battery is active
Off The battery has no charge
Flashing Motor without sinal
C
(Red)
On The battery is off
Off The battery is on
Control board reset button

9
6
4
4
3
6
5
5
5
5
5
5
EN
FIXING THE SIDE GUIDES AND MANEUVER BOARD
04. INSTALLATION
PASSAGE SPANPASSAGE SPAN
POSITION GUIDES
Place the guides by inserting them through the openings at the bottom of
the safe.
FIX GUIDES
With the guides against the wall mark the fixing points and then drill the
holes.
Fix the guides to the wall with the metal wall plugs or screws.
FIX MANEUVER BOARD
Determine the location for the
MANEUVER BOARD and proceed to the
fixation on to the wall.
NOTE • To conclude, add a rail
covering the cable from the motor to
the maneuver board (this rail is not
supplied in the kit).
4
5
6
METAL WALL
PLUGS OR
SCREWS

10

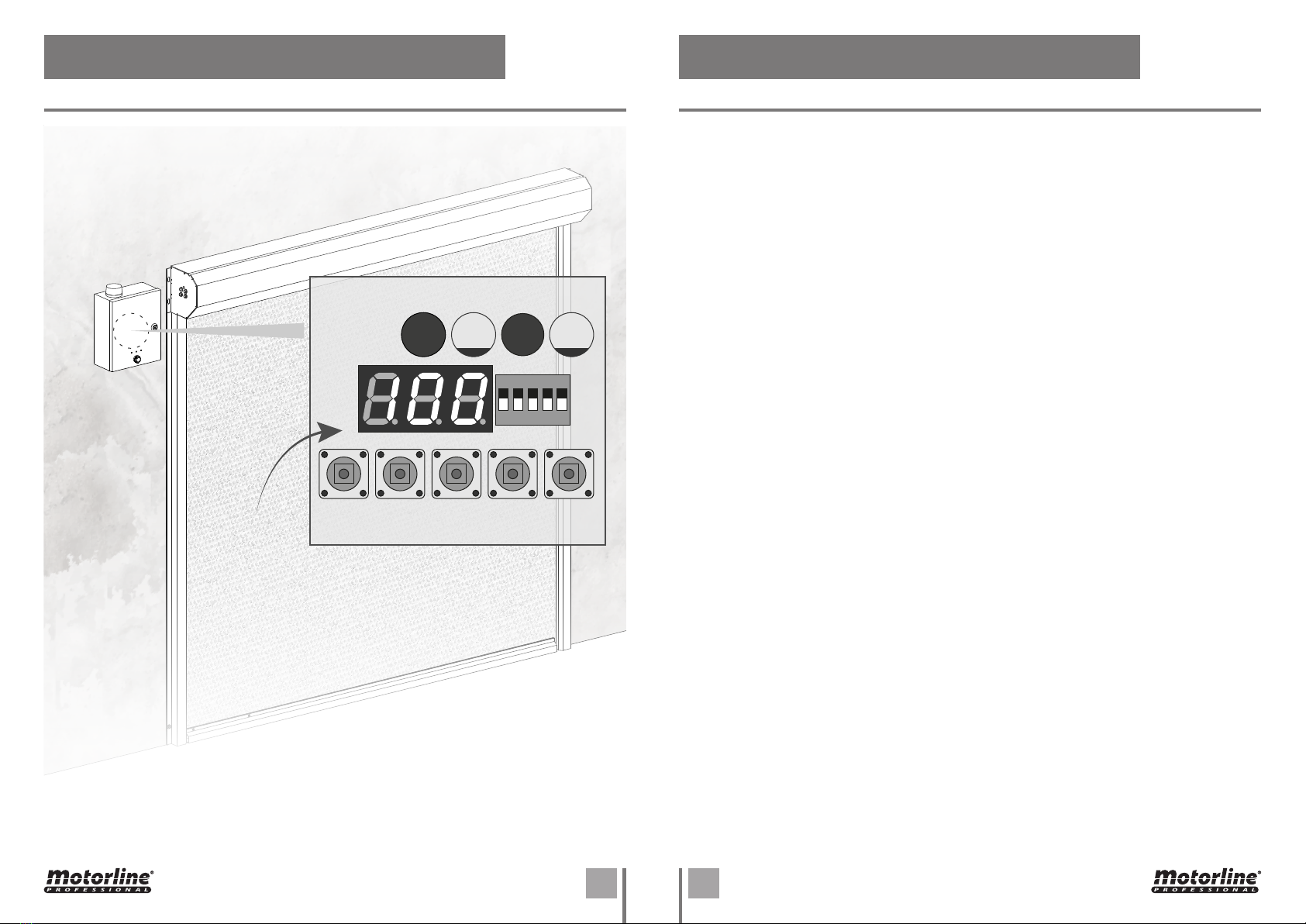

Up Stop Down Setting Reset
1 2 3 4 5 14 15 16 17 188 9 10 11 12 136 7 22 2319 20 21
24 25 26 27 28 29 30 31
ON
1 2
DP
3 4 5
COM
NC
EN

11
Up Stop Down Setting Reset
4 5 6 7 8 12 131 2 3 9 10 11
14 15 16 17 18 19 20
ON
1 2
DP
3 4 5
RED BLACK
EN

12
ON
1 2
DP
3 4 5
Up Stop Down Setting Reset
1 2 3 4 5 14 15 16 17 188 9 10 11 12 136 7 22 2319 20 21
24 25 26 27 28 29 30 31
ON
1 2
DP
3 4 5
S6
Down Setting Reset
2 3 4 5
1
18 20 21
19 23 22
ON
1 2
ON
1 2
DP
3 4 5
Up Stop Down Setting Reset
1 2 3 4 5 14 15 16 17 188 9 10 11 12 136 7 22 2319 20 21
24 25 26 27 28 29 30 31
ON
1 2
DP
3 4 5
EN

Up Stop Down Setting Reset
1 2 3 4 5 14 15 16 17 188 9 10 11 12 136 7 22 2319 20 21
24 25 26 27 28 29 30 31
ON
1 2
DP
3 4 5
ENEN

14 EN
