USER’S GUIDE
MBP41, MBP41/2,
MBP41/3, MBP41/4
BABY MONITOR
USER’S GUIDE
The features described in user's guide are subject to
modifications without prior notice.

This User's Guide provides you with all the information you need
to get the most from your product.
Before you can use the baby monitor, we recommend you insert
and fully charge the battery in the parent unit, so that it continues
to work if you disconnect it from the power supply to carry it to
another location. Please read the Safety Instructions on page 6
before you install the units.
Got everything?
• 1 x Parent unit
• 1 x Baby unit
• 1 x Rechargeable Ni-MH battery pack for the parent unit
• 1 x Power adapter for the Parent unit
• 1 x Power adapter for the Baby unit
In multi-camera packs, you will find one or more additional
camera units with power adapter units.
Welcome...
to your new Motorola Baby Monitor!
Thank you for purchasing the MBP41, MBP41/2, MBP41/3, MBP41/4.
Now you can see and hear your baby sleeping in another room or
you can monitor your older children in their playroom.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola product, you will need to provide
a copy of your dated sales receipt to confirm warranty status.
Registration is not required for warranty coverage.
For product related questions, please call:
U.
52,

1. Display (LCD screen)
2. Up Key +
Normal Mode: Tilt Up
Menu Mode: Up
3. Down Key -
Normal Mode: Tilt Down
Menu Mode: Down
4. Left Key <
Normal Mode: Pan Left
Menu Mode: Left
5. Right Key >
Normal Mode: Pan Right
Menu Mode: Right
6. Menu Key M
Press to open the Menu options
7. OK %XWWRQ O
8. Video ON/OFF Key V
,QPRQLWRUPRGHSUHVVWR
9. Talk Key T
Press and hold to WDONEDFN
WKURXJKWKHFDPHUD
10. Power LQGLFDWRU LED
BLUE when mains adapter
power on.
RED when battery low.
11. Unit ON/OFF LED (Green)
12. Audio Level LED (Green,
Orange, Red, Red)
13. Microphone
14. Power Key P
Press and Hold to turn the unit
ON/OFF
15. Antenna
Lift the antenna for optimal
reception
16. Battery cover
17. Stand
18. Speaker
19. Power Adapter 6RFNHW
Overview of the Parent Unit
Parent unit menu icons
1
Signal Level (5 Levels)
N
Night Vision Mode (Screen changes to Black/White)
T
Talk Mo de
Battery Level Control (4 Levels)
H
Pan Left
J
Pan Right
K
Tilt Up
L
Tilt Down
B
WXUQWKHGLVSOD\212))
3UHVVWRFRQILUPDVHOHFWLRQ
18
15
14
13
16
17
19
6
7
8
9
2
3
4
5
11 1 12
10

1. Photo Sensor
(Night Vision Mode)
2. Camera Lens
3. Infared LEDs
4. Power LED
5. Microphone
6. Speaker
7. ON/OFF Switch
8. Power Adapter 6RFNHW
9. Antenna
10. Pair Key
Important guidelines for installing your Baby Monitor
• To use your Video Monitor Baby and Parent Unit together, you must
be able to establish a radio link between them, and the range will be
affected by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet,
metallic doors or reinforced concrete between the Baby and Parent
Unit may block the radio signal.
• The signal strength may also be reduced by other solid structures, like
walls, or by radio or electrical equipment, such as TVs, computers,
cordless or mobile phones, fluorescent lights or dimmer switches.
• Use of other 2.4GHz products, such as wireless networks (WiFi®
routers), Bluetooth®systems, or microwave ovens, may cause
interference with this product, so keep the baby monitor away at least
5ft (1m) from these types of products, or turn them off if they appear
WRbe causing interference.
• If the signal is weak, try moving the Parent and/or the Baby Unit to
different positions in the rooms.
Parent unit menu icons (cont’d)
Overview of Your Baby Unit
*Volume Level Control (8 Levels)
&Brightness Level Control (8 Levels)
ZZoom Level Control (1X, 2X)
AAlarm Setting (6h, 4h, 2h, OFF)
CCam Control (scan, view, add, del)
1
9
10
8
2
3
6
5
4
7

Table of contents 5
ENGLISH
Table of contents
1. Safety Instructions ......................................................................... 6
2. Getting Started ............................................................................... 8
2.1 Baby Unit Power Supply.................................................................8
2.2 Parent Unit Battery Installation .......................................................8
2.3 Parent Unit Power Supply ..............................................................9
2.4 Registration (Pairing)....................................................................11
3. Using the Baby Monitor 12
3.1 Setting up .....................................................................................12
3.2 Pan and Tilt ..................................................................................1
3.3 Night Vision Mode ........................................................................12
3.4 Talk Mode.....................................................................................12
3.5 Video ON/OFF..............................................................................12
4.Parent Unit Menu2SWLRQV
4.1 Volume .........................................................................................13
4.2 Brightness.....................................................................................13
4.3 Zoom ............................................................................................13
4.4 Alarm ............................................................................................13
4.5 Camera Control ............................................................................14
4.5.1 Add (pair) a camera .......................................................14
4.5.2 View a camera ...............................................................14
4.5.3 Delete a camera .............................................................15
4.5.4 Scan cameras ................................................................15
5. Disposal of The Device (environment) ....................................... 16
6. Cleaning ........................................................................................ 17
7. Help................................................................................................ 18
8. General Information ..................................................................... 20
2

6 Safety Instructions
1. Safety Instructions
WARNING
This baby monitor is compliant with all relevant standards regarding
electromagnetic fields and is, when handled as described in the User's
Guide, safe to use. Therefore, always read the instructions in this User's
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This baby monitor is not a substitute for responsible adult supervision.
• Keep this user's guide for future reference.
• Do not place the baby unit or cords in the cot or within reach of the
baby (the unit should be 1 meter away).
• Keep the cords out of reach of children.
• Do not cover the baby monitor with a towel or blanket.
WARNING:
STRANGULATION HAZARD - Keep the unit and adapter cord
NEVER place camera or cords within the cot.
Secure the cord more than 1 meter away from the baby's reach.
Never use extension cords with AC Adapters. Only use the AC
Adapters provided.
CAMERA SET UP & USE:
●Determine a location for the CAMERA that will provide the best
view of your baby in his cot.
●Place the CAMERA on a flat surface, such as a dresser, bureau,
or shelf.
●NEVER place camera or cords within the cot.
more than 1 meter from the cot and out of the baby's reach.
and cords more than

Safety Instructions 7
ENGLISH
• Test this monitor and all its functions so that you are familiar with it
prior to actual use.
• Do not use the baby monitor in moist places or close to water.
• Do not install the baby monitor in extreme cold or heat, or in direct
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and
battery pack.
• Only insert a battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
sunlight, or close to a heat sources.
• Connect the power adapters to easily accessible mains sockets.

8 Getting Started
2. Getting Started

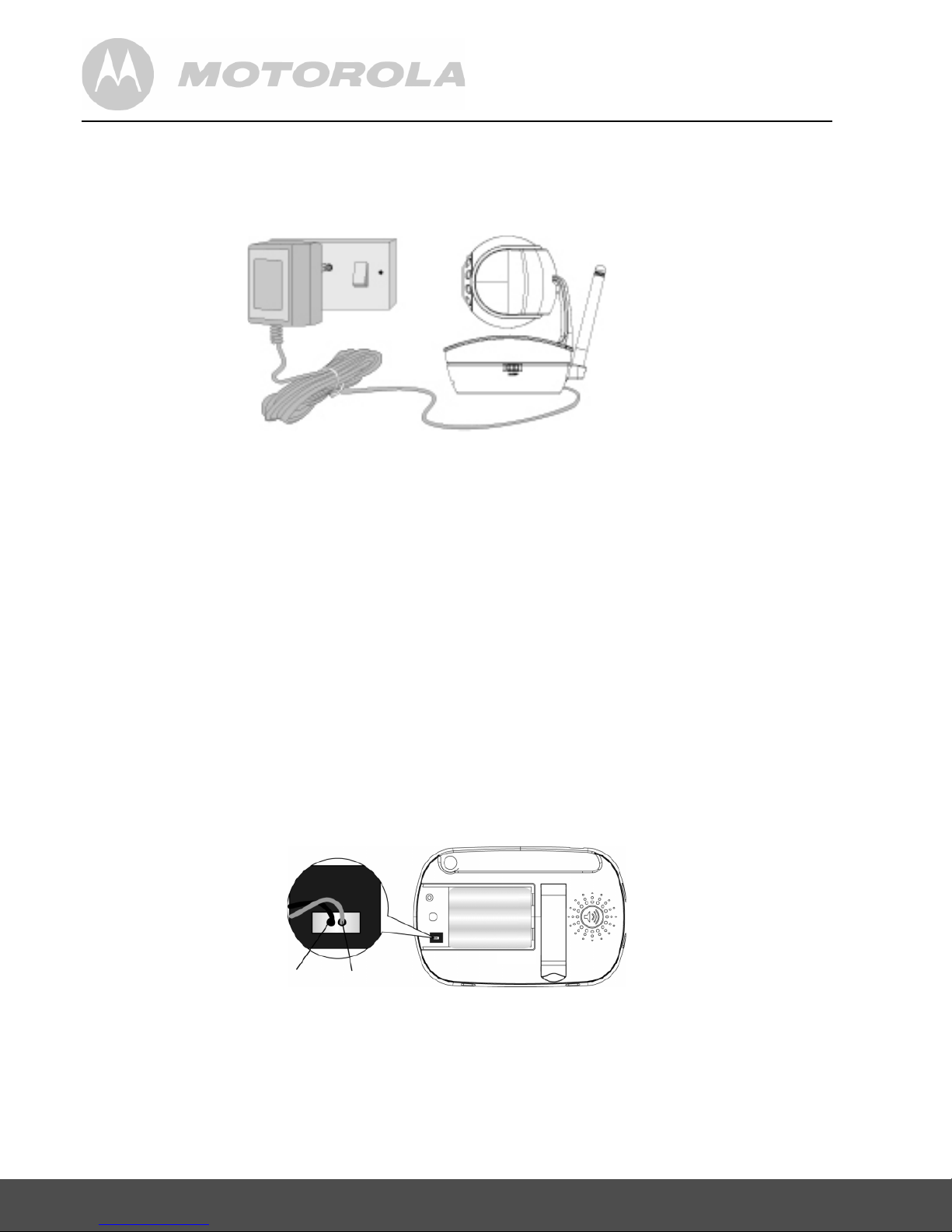

2.1 Baby Unit Power Supply
1. Connect the small plug of the power adapter to the baby(camera) and
NOTE
Only use the enclosed power adapter (5.9V DC / 1000mA).
2. Slide the ON/OFF switch to the ON position. The power LED will
light up in blue.
3. Slide the ON/OFF switch to the OFF position to turn the Baby Unit off.
2.2 Parent Unit Battery Installation
1. Insert the plug of the rechargeable battery pack into the contact
slot as shown above and fit the battery pack into the compartment.
Black Red
the other end to the electrical outlet.
The supplied rechargeable battery pack should be fitted so the parent
unit can be moved without losing the link with the camera. Charge the
battery in parent unit before first time use or when the parent unit
indicates the battery is low.

Getting Started 9
ENGLISH
2. Replace the battery cover over the compartment and gently tighten
the screw in a clockwise direction using a Small cross head or Flat
end screw drivers.
2.3 Parent Unit Power Supply
IMPORTANT
Installing the rechargeable battery pack and charging it fully before use is
recommended. This will allow the unit to operate on battery in the event
of a power failure, or when moving to a different room.
1. Connect the small plug of the power adapter to the parent unit and
the other end to the electrical outlet. Only use the enclosed power
adapter (6V DC/500mA) with the slightly smaller DC plug.
2. Press and hold the PPOWER ON/OFF button for 1 second to
turn ON the parent unit.
3. Once the baby and parent units are switched on, the display on the
parent unit will show the video captured by the baby unit.
Small cross head or
Flat end screw driver

Getting Started 10
4. If there is no connection or you are out of range, the video display
will go off and the words
No Signal will be shown on the LCD display,
and the unit will beep every 5 seconds. Move the parent unit closer
to the baby unit until the link is re-established.
5. Press and hold the PPOWER ON/OFF button, until the progress
bar scrolls fully across, to turn OFF the parent unit.
NOTE
The battery icon turns RED to indicate that the battery is low, and it
gives a beep every 16 seconds. The battery needs to be recharged. The
battery pack takes about 16 hours to charge fully.
0
When charging
1.If the parent unit is turned OFF, when the adapter is plugged in, it
displays a "mains plug" icon briefly, then a large battery icon with
internal segments cycling for 60 seconds, before the display goes
blank, but the unit continues to charge. The Blue LED at top left
corner lights up to indicate adapter is plugged in.
If the parent unit is turned ON, when the adapter is plugged in, the
battery icon in the screen's top right corner will show that the battery
corner lights up to indicate adapter is plugged in.
is charging by cycling the internal segments. The segments stop
cycling when the battery is fully charge. The Blue LED at top left
2.

1Getting Started
2.4 Registration (Pairing)
The Baby monitor camera is pre-registered to your Parent Unit. You do
loses its link with the
To re-register your Baby Unit, or register a new Baby Unit, follow the
procedure below:
1. Press the Mbutton of the parent unit and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until Cis highlighted,
and the
del/add/view/scan menu will pop up.
3. Press the +UP button or -DOWN button to select
ADD , and press
the OK button to confirm.
4.
CAM 1 / CAM 2 / CAM 3 / CAM 4 will pop up, press the +UP button or -
DOWN button to select the desired CAM and press the OK button to
start searching for a camera unit. The green audio level LED blinks
while searching.
5. Press the OK button to confirm.
6. Press and hold the PAIR button under the bottom of the camera unit until
NOTE
If a particular Baby Unit was registered previously, registering this current
Baby Unit again will overwrite the old registration.
not need to register it again unless the Baby Unit
If no camera unit is found within about 0 seconds, the search will end and
the parent unit will return to its previous mode.
appears.
the parent unit finds the camera, beeps and the video from the camera
Parent Unit.
ENGLISH

Using the Baby Monitor12
3. Using the Baby Monitor
3.1 Setting up
• Place the baby unit in a convenient location (e.g. on a table) and point
the camera lens towards the area you want to monitor.
• Adjust the baby unit's head angle by rotating the camera up, down, left
and right until you are satisfied with the image in the parent unit.
NOTE
Do not place the baby unit within baby's reach! If there is interference with
the picture or sound, try moving the units to different locations, and
ensure they are not close to other electrical equipment.
3.2 Pan and Tilt
The camera can be remotely controlled from the parent unit.
1. Press the +UP or -DOWN buttons to move up or down the display
2. Press the <LEFT or >RIGHT buttons to pan the display left or
3.3 Night Vision Mode
The baby unit has 8 high-intensity infrared LEDs for picking up clear
images in the dark. When the built-in photo sensor detects a low level of
ambient light, the LEDs will automatically activate and the screen on the
parent unit will display in black and white. The Nicon will be displayed at
the top of the screen.
right.
view.
3.4 Talk Mode
Press and hold the TTALK button on the parent unit to talk to your baby
through the baby unit's loudspeaker. The Ticon will be displayed at the
top of the LCD screen.
3.5 Video ON/OFF
Press the VVIDEO ON/OFF button on the parent unit to turn the LCD
display on or off, but will still leave the audio monitor on.

Parent Unit Menu Options 13
ENGLISH
4. Parent Unit Menu Options
4.1 Volume
1. Press the Mbutton and the first menu option will appear.
2. Press the <LEFT button or >button until * is highlighted.
3. Press the +UP button or -DOWN button to select the desired
volume level from level 1 ~ 8. (The default volume level setting is
level 4.)
4.2 Brightness
1. Press the Mbutton and the first menu option will appear.
2. Press the <LEFT button or >button until &is highlighted.
3. Press the +UP button or -DOWN button to select the desired
brightness level from level 1 ~ 8. (The default brightness level setting
is level 4.)
4.3 Zoom
1. Press the Mbutton and the first menu option will appear.
2. Press the <LEFT button or >button until Zis highlighted.
3. Press the +UP button or -DOWN button to select the
1X or 2X
Zoom. (The default setting is 1X.) When in 2X Zoom mode the
4.4 Alarm
1. Press the Mbutton and the first menu option will appear.
2. Press the <LEFT button or >RIGHT button until Ais highlighted.
3. Press the +UP button or -DOWN button to select the alarm time
(
6h , 4h , 2h ). (The default setting is Alarm OFF.)
If an alarm time is selected, the parent unit will beep at the end of the
selected 6, 4 or 2 hour period, and the alarm icon will flash red. The
alarm is cancelled after about 60 seconds or by pressing any button
on the parent unit.
Set the alarm again if you want another alarm call.
Z
icon is displayed, and the functions of the UP, DOWN,
+-<
LEFT and RIGHT buttons allow you to view different areas of the
>
original 1X video screen.

14 Parent Unit Menu Options
4.5 Camera Control
4.5.1 Add (pair) a camera
1. Press the Mbutton and the ILUVWPHQXRSWLRQZLOODSSHDU
2. Press the <LEFT button or >RIGHT button until Cis highlighted,
and the
del/add/view/scan menu will pop up.
3. Press the +UP button or -DOWN button to select
ADD , and press
the OK button to confirm.
4.
CAM 1 / CAM 2 / CAM 3 / CAM 4 will pop up, press the +UP button or -
DOWN button to select the desired CAM, and press the OK button
to start searching for a camera unit. The green audio level LED will
flash rapidly while searching.
5. Press and hold the PAIR button underneath the baby unit until the
parent unit finds the camera, beeps and the picture from the camera
appears.
NOTE
A camera can only be registered to one parent unit at any one time.
4.5.2 View a camera
1. Press the Mbutton and the first menu option will appear.
2. Press the <LEFT button or >RIGHT button until Cis highlighted
and the
del/add/view/scan menu pops up.
3. Press the +UP button or -DOWN button to select
VIEW , and press
the OK button to confirm.
4.
CAM 1 / CAM 2 / CAM 3 / CAM 4 will pop up, press the +UP button or -
DOWN button to select desired CAM, and press the OK button to
view the picture from that camera.
TIP
Quick Method to View Cameras instead of using the menu.
Directly press OK repeatedly to select
CAM 1 , CAM 2 , CAM 3 , CAM 4 , SCAN .

Parent Unit Menu Options 15
ENGLISH
4.5.3 Delete a camera
1. Press the Mbutton and the first menu option will appear.
2. Press the <LEFT button or >RIGHT button until Cis highlighted,
and the
del/add/view/scan menu will pop up.
3. Press the +UP button or -DOWN button to select
DEL , and press
the OK button to confirm.
4.
CAM 1 / CAM 2 / CAM 3 / CAM 4 will pop up, press the +UP button or -
DOWN button to select the desired CAM, and press the OK button
to delete that registration.
4.5.4 Scan cameras
1. Press the Mbutton and the first menu option will appear.
2. Press the <LEFT button or >RIGHT button until Cis highlighted,
and the
del/add/view/scan menu will pop up.
3. Press the +UP button or -DOWN button to select
SCAN , and press
the OK button to confirm.
4. The screen will then display images from different registered
cameras in a loop of
CAM 1 / CAM 2 / CAM 3 / CAM 4 , changing about every
12 seconds.
TIP
Quick Method to View Cameras instead of entering into the menu bar.
Directly press OK repeatedly to select
CAM 1 , CAM 2 , CAM 3 , CAM 4 , SCAN .
NOTE
WARNING
3 ?
If the parent unit is in scan mode and one of the registered cameras is
turned off or out of range, the scan will stop at the missing camera
(e.g.camera 3 ) and display the icon while emitting a warning
beep every 8 88
seconds.
If you want to continue in camera scan mode without that camera, delete
Check the camera and correct the fault immediately if you are using that
camera to monitor your baby.
the camera (see 4.5.3 Delete a camera)
<RXFDQQRWGHOHWHWKHFDPHUDLILWLVWKHRQO\FDPHUDSDLUHGLQWKHV\VWHP
NOTE
and start the scan again.
V\VWHP

16 Disposal of The Device (environment)
5. Disposal of The Device
(environment)
At the end of the product lifecycle, you should not dispose
of this product with normal household waste. Take this
product to a collection point for the recycling of electrical
and electronic equipment. The symbol on the product,
user's guide and/or box indicates this.
Some of the product materials can be reused if you take
them to a recycling point. By reusing some parts or raw materials from
used products you make an important contribution to the protection of the
environment.
Please contact your local authorities in case you need more information
on the collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner
according to your local regulations.

Cleaning 17
ENGLISH
6. Cleaning
Clean the MBP41, MBP41/2, MBP41/3, MBP41/4 with a slightly damp
cloth or with an anti-static cloth. Never use cleaning agents or abrasive
solvents.
Cleaning and care
• Do not clean any part of the product with thinners or other solvents
and chemicals –- this may cause permanent damage to the product
which is not covered by the warranty.
• Keep your MBP41, MBP41/2, MBP41/3, MBP41/4 away from hot,
humid areas or strong sunlight, and don't let it get wet.
• Every effort has been made to ensure high standards of reliability for
your MBP41, MBP41/2, MBP41/3, MBP41/4. However, if something
does go wrong, please do not try to repair it yourself –- contact
Customer Service for assistance.

18 Help
7. Help
Display
No display
• Try recharging or replacing the battery pack.
• Reset the units. Disconnect the battery pack of the parent unit and
unplug both the units' electrical power, then plug them back in.
• Is the unit turned on?
Press and hold the ON/OFF key Pon the parent unit to turn it ON.
• Is the correct camera selected?
Change the camera number, if necessary.
• Is the video display turned on?
Press the VIDEO ON/OFF key Vto turn it on.
• When operating using batteries only, the Display will go blank after 2
minutes to save power. The unit is still active and will give you audio
alerts. You can reactivate the screen by pressing any button.
Registration
If the Baby Unit has lost its link with the Parent Unit
• Try recharging or replacing the battery pack.
• If the Baby Unit is too far away it may be going out of range, so move
the Baby Unit closer to the Parent Unit.
• Reset the units by disconnecting them from the battery and electrical
power. Wait about 15 seconds before reconnecting. Allow up to one
minute for the Baby Unit and the Parent Unit to synchronise.
• See 2.4 Registration (Pairing), if there is a need to re-register the
units.

Help 19
ENGLISH
Interference
Noise interference on your parent unit
• Your baby and parent units may be too close. Move them farther apart.
• Make sure there is at least 1 to 2 meters between the 2 units to avoid
audio feedback.
• lf the baby unit is too far away it may be out of range, so move the
baby unit closer to the parent unit.
• Make sure the baby and parent units are not near other electrical
equipment, such as a television, computer or cordless/mobile telephone.
• Use of other 2.4GHz products, such as wireless networks (Wi-Fi®
routers), Bluetooth®systems, or microwave ovens, may cause
interference with this product, so keep the baby monitor away at least
be causing interference.
• If the signal is weak, try moving the Parent and/or Baby Unit to
different positions in the rooms.
1.5m from these types of products, or turn them off if they appear to

20 General Information
8. General Information
lf your product is not working properly....
1. Read this User's Guide or the Quick Start Guide.
2. Contact Customer Service:
To order a replacement battery pack, contact customer service.
Consumer Products and Accessories Limited
Warranty ("Warranty")
Thank you for purchasing this Motorola branded product manufactured
under license by Binatone Electronics International LTD ("BINATONE").
What Does this Warranty Cover?
Subject to the exclusions contained below, BINATONE warrants that this
Motorola branded product ("Product") or certified accessory
("Accessory") sold for use with this product that it manufactured to be free
from defects in materials and workmanship under normal consumer
usage for the period outlined below. This Warranty is your exclusive
warranty and is not transferable.
Who is covered?
This Warranty extends only to the first consumer purchaser, and is not
transferable.
UK 0845 218 0890
ROI 08187 62092
What will BINATONE do?
BINATONE or its authorized distributor at its option and within a
commercially reasonable time, will at no charge repair or replace any
Products or Accessories that does not conform to this Warranty. We may
use functionally equivalent reconditioned/ refurbished/ pre-owned or new
Products, Accessories or parts.
