Motorola i1 User manual

FCC Filing Package for Motorola i1 Transceiver FCC ID: IHDP56KV1
Temporary Confidentiality Requested
iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN
Exhibit 8: User’s Manual -- 47 CFR 2.1033(b)(3)
The attached User’s Manual is the final production-intended version of the generic Motorola
International English User Manual. This guide will be adapted to carrier-specific versions, but the key
information herein will be retained. Translations into other languages will also be done to support the
needs of other markets. Minor revisions may be made to these manuals, prior to and subsequent to,
placing this product onto the market. Selected portions of the User Guide can be found as indicated
below:
8.1 Safety Section: Page 46
8.2 Part 15B Declaration of Conformity: Page 52
8.3 Specific Absorption Rate (SAR) Data: Page 47
8.4 Guidance for use with Hearing Aids: Page 55

1Congratulations
Congratulations
MOTOROLA i1
The MOTOROLA i1 brings the convenience of
push-to-talk calls together with a premium browsing
and messaging experience, all in a touchscreen device.
• Private Calls. Stay in touch with your family, friends
and colleagues with the simple touch of a button.
• Organization. Check your email, calendar, and
contacts wherever you are.
• Browsing. Get more from the Web with a huge
screen for an improved browser experience. Search,
browse, everything you want to do, all made easier.
• Maps, entertainment, and more. The latest
technology and apps. Google Maps™ to find your
way. YouTube™ to stay entertained. Easy access to
Google™ and thousands of Android applications to
expand your world.
Caution: Before assembling, charging or using your
phone for the first time, please read the important
legal and safety information packaged with your
phone.
More information
On your computer—Go to
www.motorola.com/support/.
So, whether you want to read, watch, or play, we can
help.
Note: Remember to check your data plan with your
service provider. Streaming downloads, surfing and
other services may use a lot of data.

2Your phone
Your phone
the important keys & connectors
Note: Your phone might look a little different.
6:50 PM
Browser
MessagingCall log Contacts
Press to turn
on or off.
2.5mm
Headset Jack
Home Key
Back Key
Microphone
Menu Key
Micro USB
Connector
Charge or
connect to PC.
PTT Button
Touchscreen
Camera
Key
Speaker
Key
Volume Keys
Talk Key
End/Power
Key
Screen Lock Key
Navigation
Key
OK Key
OK
Contents
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Touchscreen & keys. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Push-to-Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Google Maps™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Latitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
YouTube™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Apps for all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Manage your life . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Text entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Personalize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . . 37
Wi-Fi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
USB & memory card . . . . . . . . . . . . . . . . . . . . . . . . 40
Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Rugged Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Safety, Regulatory & Legal. . . . . . . . . . . . . . . . . . . . 45

3Let’s go
Let’s go
let’s get you up and running
Assemble & charge

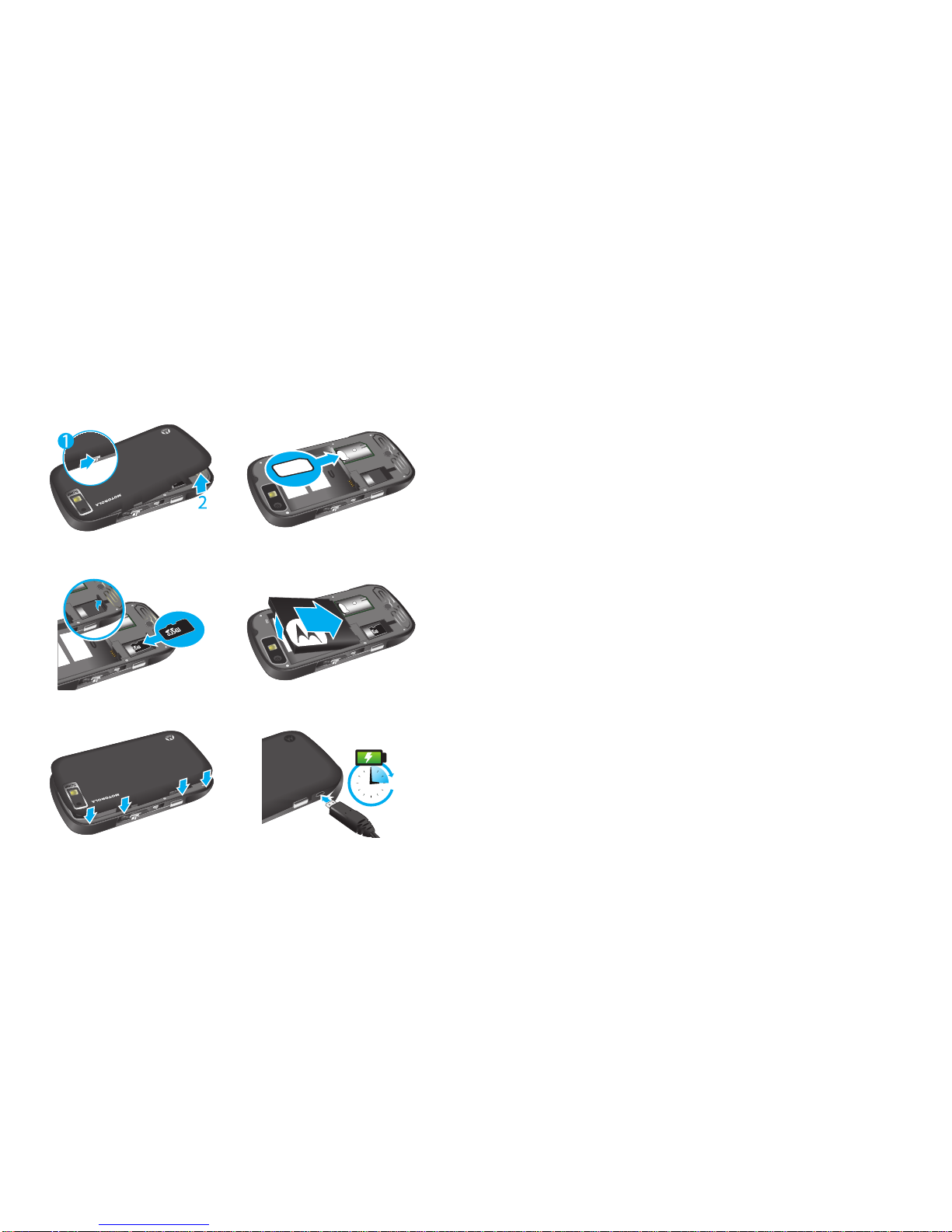

1Remove cover 2SIM in
3MicroSD in 4Battery in
5Cover on 6Charge up
3H
Caution: Please read “Battery Use & Safety” on
page 45.
Set up & go
The first time you turn on your phone, a setup wizard
guides you through:
•Setting up your Wi-Fi connection
•Signing into your existing Google™ account.
Note: If you don’t have a Google account, you can
create one using the wizard.
Tip: Remember to write down your user name and
password, and keep them in a safe place.
•Setting up additional email accounts such as POP3,
IMAP, or Microsoft™ Exchange.
•Enabling your location setting.
•Loading contacts from your SIM card.
•Loading applications from your microSD card.
•Selecting your keyboard type.
Note: Remember to check your data plan with your
service provider. Streaming, downloads, surfing and
other services may use a lot of data.

4Touchscreen & keys
Turn it on & off
To turn on your phone, press and
hold End/Power .
To turn off your phone, press and
hold End/Power , then touch
Power off.
Wi-Fi connect
If you want to use a Wi-Fi computer network for even
faster Internet access, press Menu > Settings
> Wireless controls > Wi-Fi settings.
Cool content & more
Browse and download thousands of the coolest apps
on the planet from Android Market™.
Your phone comes with a microSD memory card
slot—you can load it up with photos, videos, and
music from your computer using “USB drag & drop”
on page 40.
Power Key
Touchscreen & keys
a few essentials
Touch tips
Here are some tips on how to navigate around your
phone.
Touch
To choose an icon or option, touch it.
Touch & hold
To open special options,
touch and hold an icon or
other item. Try it: In the home
screen, touch Contacts,
then touch and hold a contact
to open options.
Email Messages BrowserCall log
ges
Browser
Contacts
Alex Pico
Delete contact
Alex Pico
View contact
Call
Send Text Message

5Touchscreen & keys
Drag
To scroll through a list or
move slowly, drag across the
touchscreen. Try it: In the
home screen, touch
Contacts, then drag your
Contacts list up or down.
Tip: When you drag or flick a
list, a scroll bar appears on
the right. Drag the scroll bar
to move the list to a letter A - Z.
Flick
To scroll through a list or move quickly, flick across the
touchscreen (drag quickly and release).
Tip: When you flick a long list, touch the screen to stop
it from scrolling.
Zoom
Get a closer look at maps or web pages. To zoom in,
double-touch the screen, or touch the screen with two
fingers and then slide them apart. To zoom out, double
touch the screen again, or drag your fingers together.
Rick Wasser
Wallace Mans
Jennie Jenkins
Leo Heaton
J
L
M
R
My Sign
Draw on your screen to get to your favorite apps. To
open My Sign, touch the My Sign icon in the
Applications tab.
Draw the sign for the action
you want. For example,
draw a “V” to go to
voicemail.
To see which actions are
already assigned to
gestures, press Menu .
You’ll also see several
gestures that are
unassigned.
To assign an action to a
gesture, press Menu ,
touch the gesture, then
touch an app from the list.
1:22 PM
Call Voicemail
1-555-555-5555

6Touchscreen & keys
Key tips
Menu, home, & back
Press Home to return to the home screen. You
can press and hold Home to show the last few
apps you used, then touch an app to open it.
Press Menu to open menu options, or press
Back to go back.
Sleep & wake up
To save your battery, prevent
accidental touches, or when you
want to wipe smudges off your
touchscreen, put the touchscreen to
sleep by pressing Screen Lock .
To wake up the touchscreen, just
press Screen Lock again.
To change how long your phone waits before the
screen goes to sleep automatically, press Menu >
Settings > Sound & display > Screen timeout.
Home
Key
Back Key
Menu
Key
Speaker Key
Talk Key
End/Power
Key
Navigation
Key
OK Key
OK
Screen Lock Key
Tip: To make the screen lock when it goes to sleep,
use “Screen lock” on page 42.
Power key menu
Press and hold End/Power to open the power key
menu, where you can turn off the phone (Power off),
or turn Airplane mode or Silent mode on or off.
Adjust volume
Press the volume keys to
change the ring volume (in the
home screen), or the earpiece
volume (during a call).
Spin the screen
The touchscreen can rotate 90
degrees to stay right-side up when you rotate your
phone:
Find it: Menu > Settings > Sound & display >
Orientation
Note: Not all applications are designed to change
rotate.
Volume
Keys

7Home screen
Home screen
quick access to the things you need most
Quick start: Home screen
The home screen gives you all your latest information
in one place. It’s what you see when you turn on the
phone or press Home from a menu. It’s basically
like this:
Note: Your home screen might look a little different.
The home screen extends beyond what you see on
the screen to give you more room for adding
Heather Jones
Resume PTT:
1:22 PM
Email Messages BrowserCall log
ges
Browser
Status Bar
Touch & drag this bar down
to check notifications.
Status Indicators
Shortcuts
Touch to open.
Drag up to see
all your apps.
Applications Tab
Widgets
Touch to open, or touch &
hold to move or delete.
Flick left or right to open
more panels.
shortcuts, widgets, and more. Flick the home screen
left and right to see more panels or to add widgets or
shortcuts.
Widgets
Add a widget, such as a clock, music player, or a
calendar that shows upcoming appointments.
To open a widget, touch it. To add widgets,
press Menu > Add > Widgets.
Note: If you install apps from Android Market that
have widgets, touch and hold the home screen, then
select a widget to add to the home screen.
Shortcuts
To add shortcuts to the home screen, open the
Applications tab, then touch and hold the shortcut you
want. It will be added to the home screen. Or, press
Menu > Add > Shortcuts.
Google search
1:22 PM 1:22 PM1:22 PM
Email Messages BrowserCall log
ges
Browser

8Home screen
Apps
Your phone comes with some apps already, and you
can download and install more. To open an app, touch
it.
Applications tab
All the apps on your phone, including
the apps that came with your phone,
and the ones you download and
install, are listed in alphabetical order
in your Applications menu.
Touch the app tab, , in the
home screen to open the app menu.
Running multiple apps
No need to close an app before opening another one.
Your phone runs multiple apps, all at once.
You can open a new app while already running another.
Press Home to return to the home screen. Open
the Applications tab and touch the app you want. To
switch from one running app to another, press and
hold Home to see what apps are already open,
then touch the one you want. You can view up to the
last six apps that you ran.
1:22 PM
Calendar Happenings News File Man...
E-mail Voice Mail Camera Calculator
Alarm Clock Browser Settings Video Player
C
Search
To search, press Menu and touch Search.
Phone status & notifications
The status bar at the top of the screen contains icons
that tell you about messages and phone status. To
view your notifications, touch the status bar and drag it
down. Icons on the right tell you about phone status:
Tip: To see today’s date, touch and hold the status bar
at the top of the screen.
Bluetooth™ active network (full signal)
GPS active call alert
Wi-Fi active private call
downloading line 1 active
vibrate line 2 active
silent flight mode
data active battery (charging)
speakerphone active battery (full charge)
data sync text message
Google search
Type, then touch the
icon for a text search.

9Calls
Calls
it’s good to talk
Quick start: Calls

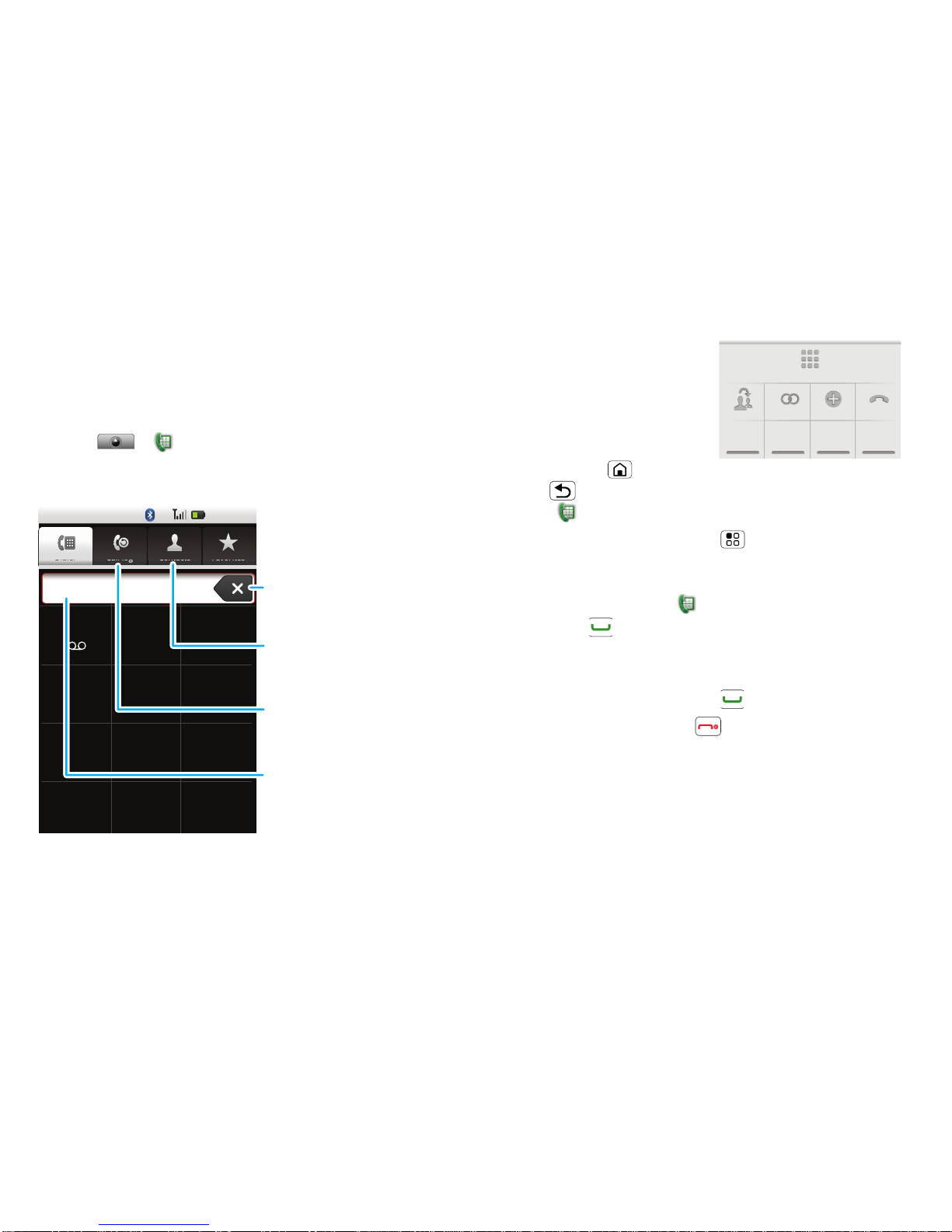

Dialing options
Find it: > Dialer
Dialer Call log Contacts Favorites
1:22 PM
555-555-5555
TUVPQRS WXY
8
79
*+#
0
GHI MNO
465
JKL
ABC DEF
123
Di
Di
al
al
er
er
Call
l
og
g
g
g
Contacts
Favorites
Contacts
Touch to open, then tap an
entry to call.
Recent Calls
Touch to open, then tap an
entry to call.
Delete
Touch to delete a digit you
entered.
Call
Enter a phone number and
touch here to call it.

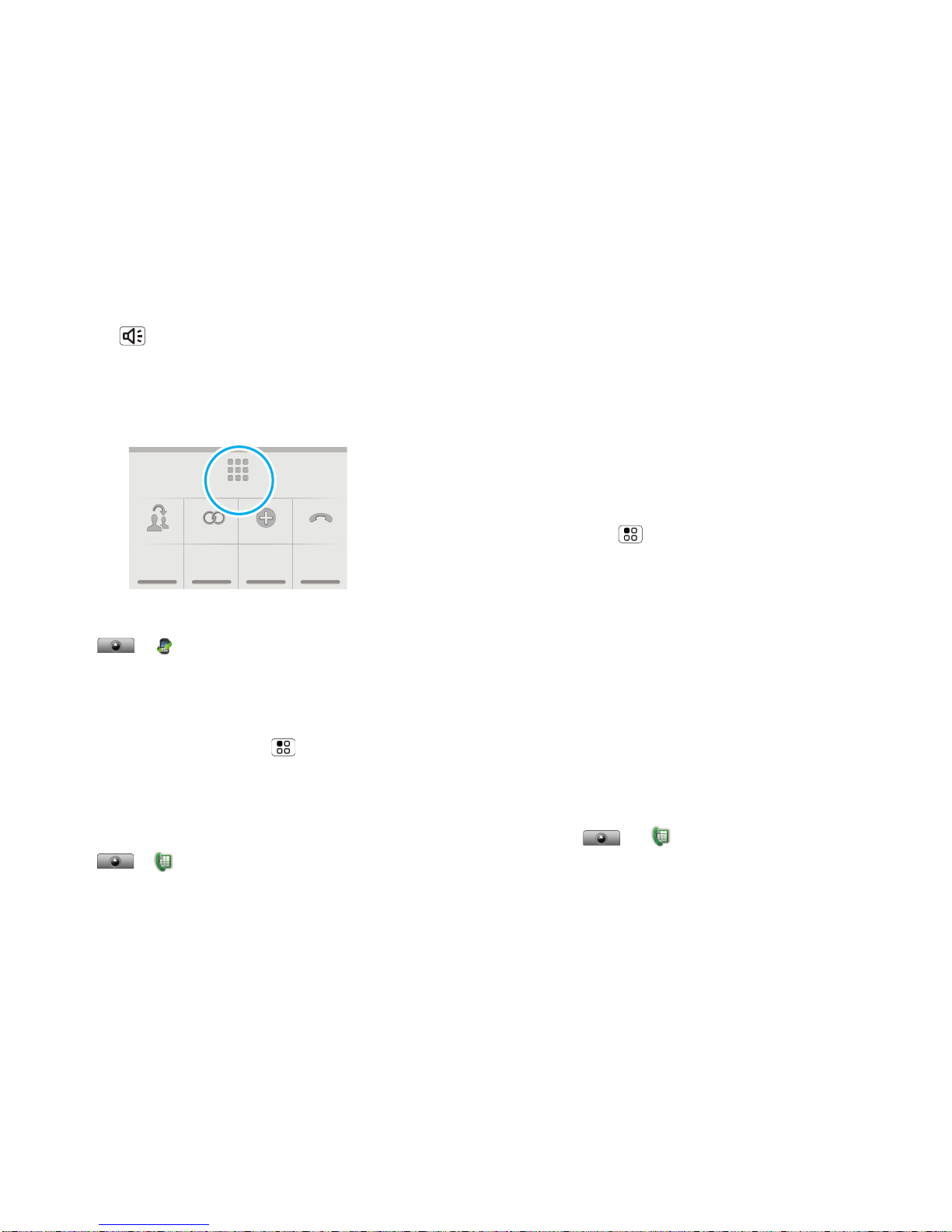

In-call options
During a call,
touch Bluetooth to use
a Bluetooth™ device,
place a call on Hold,.or
start a conference call.
Tip: You can
press Home or
Back to leave the active call display. To reopen it,
touch Dialer > Return to call in progress.
To mute a call, press Menu and touch Mute.
Make & answer calls
To make a call, touch Dialer, enter a number, then
press Talk .
Tip: When dialing a phone number, you can also press
the phone number field to start a call.
To answer a call, press Talk .
To end a call, press End .
Handsfree
Note: Using a mobile device or accessory while
driving may cause distraction and may be illegal.
Always obey the laws and drive safely.
During a call:
Show Dialpad
Swap call Merge call Add call End call
Hold Mute Speaker Bluetooth
