GUÍA DEL USUARIO
V3c
TM
MOTORAZR

1
HELLOMOTO
We are pleased that you have chosen the MOTO RAZR™ V3c wireless phone.
040128o
Left Soft Key
Perform function
in lower left
display.
Voice Key
Create voice
records, activate
speech dialing &
voice
commands.
Smart/
Speakerphone
Key
Volume Keys
Camera Key
4-Way Navigation Key
with Center Select
From home screen, press
center key to open main menu.
Clear Key
Right Soft Key
Perform function
in lower right
display.
Power & End Key
Turn phone
on/off, end calls,
exit menu
system.
Accessory
Connector Port
Insert charger &
phone
accessories.
Send Key
Make & answer
calls.
Camera Lens
Smart/
Speakerphone
Key
Take self-portrait
photo with
camera when flip
is closed.
External Display
View incoming
call information,
use as camera
viewfinder when
flip is closed.

2
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing
impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the
capabilities and settings of your service provider’s
network. Additionally, certain features may not be
activated by your service provider, and/or the provider's
network settings may limit the feature’s functionality.
Always contact your service provider about feature
availability and functionality. All features, functionality,
and other product specifications, as well as the
information contained in this user's guide are based
upon the latest available information and are believed to
be accurate at the time of printing. Motorola reserves
the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in
the US Patent & Trademark Office. The Bluetooth
trademarks are owned by their proprietor and used by
Motorola, Inc. under license. All other product or service
names are the property of their respective owners.
© Motorola, Inc. 2006
Caution: Changes or modifications made in the
radio phone, not expressly approved by Motorola,
will void the user's authority to operate the
equipment.
Manual number: 6809506A03-O

3
contents
contents
menu map . . . . . . . . . . . . 5
Use and Care . . . . . . . . . 7
essentials . . . . . . . . . . . . 8
about this guide . . . . . . 8
battery . . . . . . . . . . . . . 9
turn it on. . . . . . . . . . . . 11
adjust volume. . . . . . . 12
make a call . . . . . . . . . 12
answer a call. . . . . . . . 12
change the call alert . . 13
view your phone
number. . . . . . . . . . . . 13
main attractions . . . . . . 14
airplane mode. . . . . . . 14
record & play video
clips . . . . . . . . . . . . . . 14
take & send a photo . . 16
send a multimedia
(Pix/Flix) message. . . . 18
receive a multimedia
(Pix/Flix) message. . . . 21
download pictures . . . 22
Bluetooth®
connections . . . . . . . . 22
cable connections. . . . 24
TTY operation . . . . . . . 25
basics . . . . . . . . . . . . . . 27
home screen . . . . . . . 27
navigation key. . . . . . . 30
menus . . . . . . . . . . . . 30
enter text . . . . . . . . . . 32
handsfree speaker . . . 37
external display. . . . . . 39
change a code, PIN,
or password . . . . . . . . 39
lock/unlock keypad . . . 39
lock/unlock phone. . . . 40
if you forget a code,
PIN, or password . . . . 40
customize . . . . . . . . . . . 41
ringer/alert styles &
detailed settings . . . . . 41
ringer IDs . . . . . . . . . . 42
talking phone
settings. . . . . . . . . . . . 42
answer options. . . . . . 43
wallpaper . . . . . . . . . . 43
screen saver . . . . . . . . 44
backlight . . . . . . . . . . . 44
hide or show
location information . . 45
AGPS limitations
& tips . . . . . . . . . . . . . 45

4
contents
conserve battery . . . . . 46
calls . . . . . . . . . . . . . . . 47
conference calls . . . . . 47
change active line . . . . 47
redial . . . . . . . . . . . . . . 47
automatic redial. . . . . . 47
emergency numbers . . 48
AGPS during an
emergency call . . . . . . 48
recent calls . . . . . . . . . 49
return
unanswered call . . . . . 50
attach number . . . . . . . 51
speed dial . . . . . . . . . . 51
voicemail . . . . . . . . . . . 51
in-call options. . . . . . . . 52
other features . . . . . . . 53
messages . . . . . . . . . . 53
contacts. . . . . . . . . . . . 55
personalizing
features . . . . . . . . . . . . 59
menu . . . . . . . . . . . . . . 62
dialing . . . . . . . . . . . . . 64
monitor calls . . . . . . . . 64
handsfree . . . . . . . . . . 65
Bluetooth® wireless
connections . . . . . . . . . 66
data & fax calls . . . . . . 67
network . . . . . . . . . . . . 67
personal organizer . . . . 68
security . . . . . . . . . . . . 69
news
& entertainment . . . . . 70
service & repairs . . . . . . 72
SAR Data . . . . . . . . . . . 73
Safety Information . . . . 76
Warranty . . . . . . . . . . . . 81
Hearing Aid
Compatibility
. . . . . . . . 85
WHO Information . . . . . 86
Product Registration . . . 86
Export Law
Assurances
. . . . . . . . . . 87
Wireless: The New
Recyclable
. . . . . . . . . . 87
Smart Practices While
Driving
. . . . . . . . . . . . . 88
index . . . . . . . . . . . . . . 90

5
menu map
menu map
main menu
B GET IT NOW*
• Get Tunes & Tones
• Get Pix & Flix
• Get Fun & Games
• Get News & Info
•GetGoing
C MESSAGING
•NewTxtMsg
•NewPixMsg
•Inbox
•Sent
•Drafts
•Voicemail
E CONTACTS
• New Contact
• Contact List
• Groups
• Speed Dials
A RECENT CALLS
•Missed
• Received
•Dialed
•All
•ViewTimers
D SETTINGS & TOOLS
(see next page)
* optional features
This is the standard main
menu layout. Your phone’s
menu may be a little different.

6
menu map
settings & tools menu
Tools
• Calendar
•AlarmClock
• World Clock
• Notepad
•Calculator
Sounds Setting
• Ring Styles
• Talking Phone Settings
Airplane Mode
• Airplane Mode
• Prompt at Startup
Display
• Wallpaper
• Screen Saver
• Display Themes
• Greeting
•HomeScreen
System
•SystemSelect
•DeviceInfo
•Location
• Security
• Icon Glossary
Call Settings
• In-Call Setup
• Headset
Initial Setup
• SpeakerPhone
• Auto Redial
• Backlight
• TTY Setup
• Language
• Battery Save
•DTMF
• Hyphenation
• Master Reset
• Master Clear
Connections
• Incoming Call
• Bluetooth

7
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to
water, rain, extreme humidity,
sweat, or other moisture.
Don’t expose your phone to
dust, dirt, sand, food, or other
inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below
-10°C/14°F or above 45°C/113°F.
To clean your phone, use only a
dry soft cloth. Don’t use alcohol
or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a
microwave oven.
Don’t drop your phone.

8
essentials
essentials
about this guide
This guide shows how to locate a menu
feature as follows:
Find it: Press MENU ( s )  ARECENT CALLS
 Dialed
This example shows that from the home
screen, you must press
MENU ( s ), scroll
across to
RECENT CALLS on the main menu, then
scroll down to and select
Dialed . Press S to
scroll across and down, and the center
key
s to select a menu option.
CAUTION: Before using the phone for the
first time, read the
Important Safety and
Legal Information
included in the
gray-edged pages at the back of this guide.
032259o
symbols
This means a feature is network/
subscription dependent and may not
be available in all areas. Contact your
service provider for more
information.
This means a feature requires an
optional accessory.

9
essentials
battery
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
• Always use Motorola
Original batteries and
chargers. The warranty
does not cover damage
caused by non-Motorola batteries and/
or chargers.
• New batteries or batteries stored for a
long time may take more time to
charge.
• When charging your battery, keep it
near room temperature.
• When storing your battery, keep it
uncharged in a cool, dark, dry place.
• Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
• It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.

10
essentials
install the battery
charge the battery
New batteries are shipped partially charged.
Before you can use your phone, you need to
install and charge the battery as described
below. Some batteries perform best after
several full charge/discharge cycles.
Note: When the battery is charging, the
phone automatically changes to the audible
Master Volume setting, regardless of which
ringstyle you have set. The phone changes
back to your selected ringstyle when you
disconnect the charger.
To charge your battery with the charger:
1
Insert the charger
into the USB
connector on your
phone as shown.
2 Plug the other
end of the charger
into the
appropriate electrical outlet.
The battery indicator
N flashes while
your phone is charging.
3 When your phone indicates Charge Complete
and/or the battery indicator stops flashing,
remove the charger.
1. 2.
3. 4.

11
essentials
Tip: You can safely leave the charger
connected to the phone after charging is
complete. This will
not damage the battery.
When you charge the battery, the battery level
indicator in the upper right corner of the
display shows how much of the charging
process is complete. At least one segment of
the battery level indicator must be visible to
ensure full phone functionality while charging.
To charge your battery from a PC:
You can charge your battery by connecting a
cable from your phone’s mini-USB port to a
high-power USB port on a computer (not a
low-power one such as the USB port on your
keyboard or bus-powered USB hub). Typically,
USB high-power ports are located directly on
your computer.
Both your phone and the computer must be
turned on, and your computer must have the
correct software drivers installed. Cables and
software drivers are available in Motorola
Original data kits, sold separately.

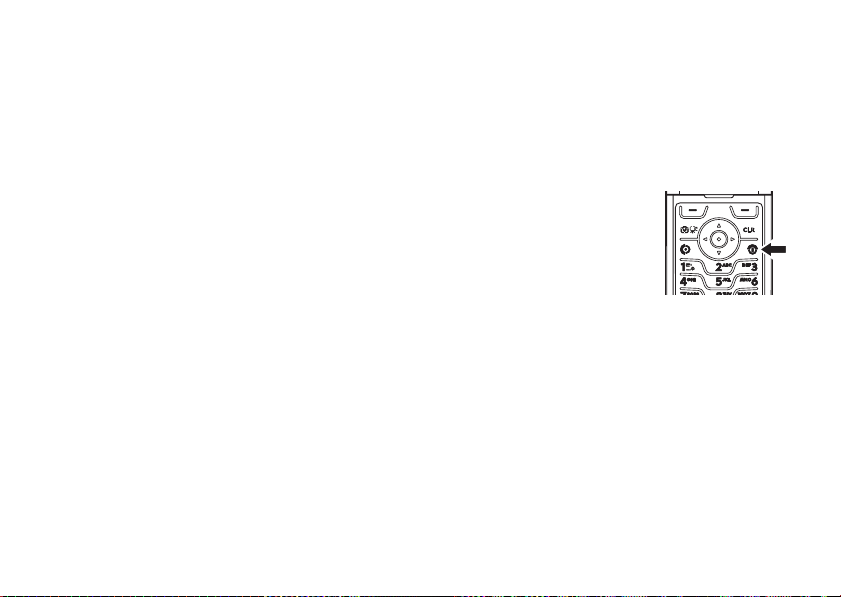

turn it on
1 Open your phone.
2 Press and hold the
power key for three
seconds.
The phone may
require several
seconds to power on.
3 If necessary, enter your four-digit unlock
code (the last four digits of your phone
number) and press
OK to unlock the
phone.

12
essentials
adjust volume
Press the up or down
volume keys to:
• increase or
decrease earpiece
volume during a call
• increase or decrease ringer volume
setting when the home screen is
visible (phone must not be in a call and
flip must be open)
• silence an incoming call alert
make a call
1 Dial the number.
Tip: If you make a mistake, press the
clear key
B to delete the last digit. Press
and hold
B to clear all digits.
2 Press N to make the call.
3 Press P to end the call.
Tip: Closing the flip also ends the call unless
you are using the speakerphone feature (see
page 37).
Note: You must dial the phone number from
the home screen. See page 27.
answer a call
When you receive a call, your phone rings or
vibrates and displays an incoming call
message.
1 Press N to answer.
2 Press P to end the call.
Tip: You can set the phone to answer calls
when you open the flip. (To activate, press
MENU ( s )  DSETTINGS & TOOLS  Call Settings
 In-Call Setup  Answer Options  Open To Answer .)
Note: If the phone is locked, you must first
enter your four-digit unlock code to answer
the call.
040135o

13
essentials
change the call alert
phone flip open
In the home screen,
press the down volume
key to switch to lower
call alert volume, then
switch to
Vibrate , then
Alarm , and, finally, All Off . Press the up volume
key to cycle back from silent alert to vibrate
and then to the lowest alert volume setting.
phone flip closed
Press and hold
the up or down
volume key,
then, within five
seconds, press
the smart/speakerphone key to scroll through
the alert styles:
Master Volume , Alarm Only , Vibrate Only ,
and
All Off . The alert styles are shown on the
external display.
After scrolling to the desired alert style, press
the up or down volume key to save the setting
and return to the home screen.
view your phone
number
To view your phone number from the home
screen, press
B # .
While you are on a call, press
Options , then
select
My Number .
040135o
Botones de
volumen
Tecla
inteligente/
altavoz

14
main attractions
main attractions
You can do much more with your phone than
make and receive calls! This section
describes some of your phone’s highlights.
airplane mode
Note: Consult airline staff about the use of
Airplane Mode in flight. Turn off your phone
whenever instructed to do so by airline staff.
Airplane mode turns off your phone’s calling
features in locations where wireless phone
use is prohibited.
You can not make or
receive calls in airplane mode,
but you can
use your phone’s other non-calling features.
Find it: Press MENU ( s )  DSETTINGS & TOOLS
 Airplane Mode  On or Off
Your phone can prompt you to activate or
deactivate airplane mode each time you turn
on the phone:
Find it: Press MENU ( s )  DSETTINGS & TOOLS
 Airplane Mode  Prompt at Startup  On or Off
record & play video
clips
You can record a video clip with your phone
and send it to other wireless phone users in a
multimedia message.
record
To activate your phone’s video camera:

15
main attractions
1 Press S left to open the GET PIX & FLIX
menu.
2 Scroll to Take FLIX and press OK ( s ).
Tip: You can also activate the video
camera viewfinder by pressing and
holding the camera key
b .
The active viewfinder image appears on
your display.
3 Point the camera lens at the video
subject.
Press
S left and right to zoom in and out.
Press
Options to open the OPTIONS menu (see
“adjust video recording settings” on
page 16).
4 Press REC ( s ) to begin recording.
Press
Pause to temporarily stop recording,
then press
Resume to continue.
5 Press Stop ( s ) to stop recording.
6 Press Save to save the video.
or
Press SEND ( s ) to save the video and go
to the
CREATE PIX MESSAGE screen.
or
Press Erase to delete the video and return
to active viewfinder.
ß
176x144
Press right soft
key to view
Options menu.
Press left soft
key to view
My FLIX .
Press sto
begin recording.
My FLIX Options
REC
N

16
main attractions
adjust video recording
settings
When the video camera is active, press Options
to open the OPTIONS menu, which can include
the following options:
play
To play a video clip stored on your phone:
1 Press S left to open the GET PIX & FLIX
menu.
2 Scroll to My FLIX and press OK ( s ).
3 Scroll to the clip you want to view and
press
PLAY ( s ).
Press
Mute while the video clip is playing to
mute the video clip sound. Press
Mute
again to turn sound on again.
take & send a photo
You can take a photo with your phone, and
send it to other wireless phone users in a
multimedia message.
option
Brightness
Adjust image brightness.
White Balance
Adjust for different lighting.
Duration
Specify standard lengths of video clips of 5,
10, or 15 seconds.
Color Effects
Select Normal , Sepia , Black & White , or Negative .

17
main attractions
take & send photo
To activate your phone’s camera:
1 Press S left to open the GET PIX & FLIX
menu.
2 Scroll to Take PIX and press OK ( s ).
Tip: You can also activate the camera
viewfinder by pressing the camera
key
b .
The active viewfinder image appears on
your phone’s display.
3 Point the camera lens at the photo
subject, then press
TAKE ( s ) to take a
photo.
Press
S left and right to zoom in and out.
Press
Options to open the OPTIONS menu (see
“camera settings” on page 18).
4 Press Save to save the photo.
or
Press SEND ( s ) to save the photo and go
to the
Create Pix Msg screen.
or
Press Erase to delete the photo and return
to active viewfinder.
ß
640x480
Press right soft
key to view
Options menu.
Press left soft
key to view
My PIX.
Press sto Take
photo.
My PIX Options
TAKE
N

18
main attractions
camera settings
When the camera is active, press Options to
open the
OPTIONS menu, which can include the
following options:
send a multimedia
(Pix/Flix) message
A multimedia message contains embedded
media objects (possibly including photos,
option
Resolution
Set resolution to High (1280x1024) ,
Medium (640x480) , Low (320x240) , or
Thumbnail (160x120) .
Self timer
Set a timer for the camera to take a photo.
Brightness
Adjust image brightness.
White Balance
Adjust for different lighting.
Image Quality
Select Fine , Normal , or Economy .
Shutter Sound
Activate a tone that plays when you take a
photo.
Color Effects
Select Normal , Sepia , Black & White , or Negative .
Multishot
Set the camera to take multiple photos with
a single press of the camera key
b .
Fun Frame
Go to Fun Frames to select an amusing frame
for your photo.
option
