Motorola MOTO QA1 User manual

APPLICANT MOTOROLA INC. FCC ID: IHDT56KE1
INSTRUCTION MANUAL
A representative version of the user's manual follows:
Exhibit 8

QA1
Getting Started Guide
MOTOTM

1
congratulations
The MOTO ™ QA1 is a QWERTY slider that gives you
messaging and networking in a fresh compact design.
• Messaging made easy —The slide-out QWERTY
keyboard makes it fast and easy to enter text.
Unified messaging keeps all your conversations
in one place, and message threading shows text
message conversations just like an IM exchange
(page 37).
• Videos made clear —You can play video files on
your phone (page 53), and stand your phone on
end to get the best speakerphone sound.
• Locate People and Places —GPS helps you find
your way. Enter an address to get turn-by-turn
directions, or find nearby restaurants and more
(page 80)!
Caution: Before using your phone for the first time,
please read the important
legal and safety
information at the back of this guide (page 91).

2
more information
To learn even more, go to www.motorola.com/consumer/
support .
this guide
symbols in this guide
This means a feature is network, SIM card, or
subscription dependent and may not be
available in all areas. Contact your service
provider for more information.
This means a feature requires an optional
accessory.

3
contents
your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
settings menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
address book. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
text entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
AT&T Mobile Music™ portfolio. . . . . . . . . . . . . . . . 55
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
games & applications . . . . . . . . . . . . . . . . . . . . . . . 64
airplane mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Bluetooth® wireless. . . . . . . . . . . . . . . . . . . . . . . . . 66
cable connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

4
memory card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
service & repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
legal & safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

your phone
5
your phone

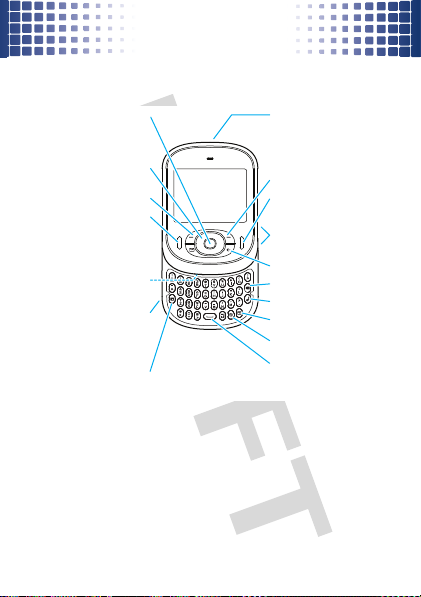

the important keys & connectors
Tip:
You can talk with your phone open or closed.
You can choose whether your phone ends calls when you
close it (see page 12). To change your
Keypad Lock setting,
see page 88.
3.5mm Headset Jack
Left Soft Key
Microphone
Navigate menus.
Open the main menu
& select items.
Make & answer
calls.
Charge up or
connect micro USB
cables.
Hold to performthe
blue key function.
Volume
Power up & end
calls.
Go online.
Undo/Back
Delete
Enter
Space
Caps
Right Soft Key

main menu
6
mai n menu
c Social Networking
AT&T GPS
d Messaging
• Create Message
• Message Inbox
•Voicemail
•Drafts
• Templates
•Browser
Messages
• Outbox
• Create Voice
Message
• Info Services *
Yellowpages.com
Ë MEdia Net
Á AT&T Mall
• Shop Tones
• Shop Games
• Shop Graphics
• Shop Multimedia
• Shop Applications
• Shop Videos
• MEdia Net Home
W Cellular Video
à My Stuff
• AT&T Music
• Media Finder
• Games & Apps
•Tools
•RecentCalls
• Calendar
•AlarmClock
• World Clock
• Dialing Services
• Calculator
•Camera
• Video Camera
• Voice Record
= Address Book
L Settings
• (see next page)
* optional features
This is the standard main menu layout.
Your phone’s menu may be a little
different.
To change your home screen
shortcuts and your main menu
appearance, see page 47.

settings menu
7
setting s menu
•Personalize
• Home Screen
•Skin
• Greeting
• Wallpaper
• Screen Saver
• Slide Tone
• Dial AT&T
• Themes
• Audio
• Connection
• Bluetooth® Link
• USB Settings
• Call Forward *
• In-Call Setup
• In-Call Timer
• Call Cost Setup *
•MyCallerID
• Answer Options
• Call Waiting
•MSGAlert
• Hearing Aid
• Initial Setup
• Time and Date
• Speed Dial
• Display Timeout
• Backlight
• Charging Lights
• TTY Setup *
•Scroll
• Slide Closed
• Text Marquee
• Language
• Battery Save
• Brightness
•DTMF
• Video Share Setup
• Master Reset
• Master Clear
• Software Update
• Phone Status
• Headset
• Car Settings
• Airplane Mode
•Network
•Security
• Java™ Settings
• WebAccess
* optional features

let’s go
8
let’s go
let’s get you up & running
Caution: See page 91 for battery use & safety
information.
12 SIM
3 microSD 4
56
4H

basics
9
basic s
here are some basics to get you started
turn it on & off
Press and hold I for a few seconds
or until the display lights up.
Caution: If your phone asks for your eight-digit SIM card
PIN code and/or four-digit unlock code, see page 86.
make & answer calls
To make a call , enter a phone
number and press
J .
To answer a call when your phone rings and/or vibrates,
just slide the phone open or press
J .
To ch o o s e
Hold , Mute , Transfer , or other options during a call,
press
Options .
end calls
Press I .

basics
10
volume and navigation keys
volume
Press the volume keys to:
• turn off an incoming call alert.
• change the earpiece volume during calls.
• change the ringer volume from the home screen.
Tip: Sometimes silence really is golden. That’s
why you can quickly set your ringer to
Vibrate or
Silent by holding the down volume key while you
are in the home screen. You can also switch to
Vibrate or back by holding # in the home screen.
Left Soft Key
Smart Key
Open messages.
Volume
Undo/Back
Right Soft Key
Navigate menus.Open the main menu
& select items.

basics
11
smart key
The smart key gives you another way to do things. For
example, when you scroll to a menu item, you can press
the smart key to select it (instead of pressing the
center key
s ). The smart key usually does the same
thing as pressing the center key
s . To find the smart
key, see page 5. To change what the smart key does in
the home screen, see page 47.
store contacts
1 Enter a phone number in the home screen.
2 Press Store (if necessary, choose Create New Contact ).
3 Enter details, then press Done to store the contact.
To manage your
Address Book , see page 31.
call or text contacts
1 Press Main Menu > Address Book
2 Scroll to highlight the contact.
Tip: To jump to a contact in the address book, enter
the first few letters of the name.

basics
12
3 To call , press J .
To
send a text message , press Options > Create Message .
To speed dial contacts, see page 25.
Note: You can use contacts stored in your phone’s
memory or on your SIM card (see page 32).
Facebook & MySpace
You can use your phone to update and check your
Facebook and MySpace accounts.
Find it: Main Menu > Social Networking
Choose either Facebook or MySpace to open your browser
with a login page for your account. Once you log in, you
can use the site’s features in your phone’s full HTML
browser.
slider phone settings
You can change what happens when you close your
phone:
Find it: Main Menu > Settings > Initial Setup > Slide Closed
>
Continue Task or End Task

basics
13
To change the sound that you hear when you open or
close your phone, press
Main Menu > Settings > Personalize
>
Slide Tone and choose a sound. The volume for this sound
is set by the
Key Volume in your ring style details (see
page 45).

home screen
14
home screen
you can always go home
The home screen appears when you turn on the phone,
or any time you press
I . It looks similar to this:
To
open shortcuts , press S left or right and then
press
s . To change shortcuts, see page 47. To open the
functions at the bottom of the display, press the
soft
keys
(see page 5).
To open the
menu , press Main Menu . To go back, press | .
status indicators
6 Network Strength : 1 or 0 means you
can’t make or receive calls
Status
Indicators
Left Soft Key Right Soft Key
Quick Launch
Bar
Options Main Menu
Service Provider
Date
Messages
Time

home screen
15
B GPRS shows when high-speed
General Packet Radio Service (GPRS)
is
B available or * in use
L Data Connection shows when your
phone is exchanging data:
L /
K secure / unsecure packet data,
N / M secure / unsecure application, S /
T secure / unsecure Circuit Switch Data
(CSD),
R / Q USB connect / transfer,
} USB mass storage mode,
8 High-Speed Downlink Packet Access
(HSDPA),
O Bluetooth®
k Network Type shows when you are
using a
b 2G or k 3G network
h Active Call : h active call,
g forwarding All Calls . If you have a
dual-line SIM card:
f line 1 active
(
i with call forward on), e line 2 active
(
j with call forward on)

home screen
16
l Reminder : You set an alarm, or an alert for
a calendar event.
X means a Java™ application is active.
É New Message : É text T voice
U voice & text é IM
I Ring Style : ring only, H vibrate only,
J silent, ring & vibrate, or
I vibrate then ring
ì Battery : Recharge when you see î .

calls
17
calls
it’s good to talk
For the basics, see page 9.
recent calls & redial
1 From the home screen, press J to see a list of calls.
To show
Dialed Calls , Received Calls ,or Missed Calls ,
press
* or # .
2 Scroll to a call.
To call it, press
J . If you hear a busy signal ,
you can press
J or Retry to redial the number.
When the call connects, your phone rings or
vibrates and shows
Redial Successful .
To ch o o s e
Send Message , Store , Delete , or other options,
press
Options .
caller ID
Calling line identification (caller ID) shows the
caller’s name when they’re stored in your address
book, or
Incoming Call when caller ID information isn’t
available.
