Motorola MOTOKRZR K1m User manual

MOTOKRZR K1m
www.motorola.com
MOTOMANUAL

1
HELLOMOTO
Introducing your new MOTO KRZR™ K1m wireless phone. Here’s a quick anatomy lesson.
Play/
Pause
Skip
back.
Skip
forward.
Music Player Controls/
Camera
Increase/
decrease
volume.
Launch
music,
lock player
controls
or
use camera
(press and
release).
N
P
X
51
N
Contacts
P
X
51
Smart/
Speakerphone
Key
Make & answer
calls.
Scroll up, down,
left, or right.
Turn on & off,
hang up, exit
menus.
Select.
Volume Keys
Left Soft Key Right Soft Key
Clear/Back Key
Mini USB Port
Charge &
connect phone
accessories.
Voice
Command/
Voice Record
Key
NOTE : The K1m currently available through Bell does not support
Mobile Web, Multimedia Messaging (MMS), Dial up Networking/USB
Tethered Data, Downloadable Content/Applications, or French
Language. You can register to be notified when these features are
available at www.motorola.ca/K1mBellsupport.

2
6Îì
MON 1/15/07
8:45am
Recent Contacts
h
e
ns
É
wm
M
h
L
Æ
e
t
1
23
Press the center
key sto open the
Main Menu.
Press and hold the
Power Key P for a
few seconds or until
the display lights up to
turn on your phone.
4
Home Screen Main Menu
Press the center
key sto select.
Press the navigation
key S
up , down ,
left , or right to
highlight a menu
option.
Select Exit
Media Gallery

3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing
impaired)
1-800-461-4575 (Canada)
www.hellomoto.com
Certain mobile phone features are dependent on the
capabilities and settings of your service provider’s
network. Additionally, certain features may not be
activated by your service provider, and/or the
provider’s network settings may limit the feature’s
functionality. Always contact your service provider
about feature availability and functionality. All
features, functionality, and other product
specifications, as well as the information contained
in this user’s guide are based upon the latest
available information and are believed to be accurate
at the time of printing. Motorola reserves the right to
change or modify any information or specifications
without notice or obligation.
MOTOROLA and the Stylized M Logo are registered
in the US Patent & Trademark Office. The Bluetooth
trademarks are owned by their proprietor and used by
Motorola, Inc. under license. All other product or
service names are the property of their respective
owners.
© Motorola, Inc., 2006.
Caution: Changes or modifications made in the radio
phone, not expressly approved by Motorola, will void
the user’s authority to operate the equipment.
Manual number: 6809506A09-O

4
contents
contents
menu map . . . . . . . . . . . 6
Use and Care . . . . . . . . . 8
essentials . . . . . . . . . . . . 9
about this guide. . . . . . . 9
battery . . . . . . . . . . . . . 10
turn it on . . . . . . . . . . . 12
adjust volume . . . . . . . 13
make a call. . . . . . . . . . 13
answer a call . . . . . . . . 14
change call alert. . . . . . 14
view your phone
number . . . . . . . . . . . . 15
main attractions . . . . . 16
airplane mode . . . . . . . 16
MP3 music player . . . . 16
take a photo. . . . . . . . . 27
record & play video
clip. . . . . . . . . . . . . . . . 29
create, send, & receive
a multimedia message 31
memory card . . . . . . . . 31
cable connections . . . . 34
Bluetooth™
connections . . . . . . . . . 35
TTY operation . . . . . . . 37
basics . . . . . . . . . . . . . . 39
home screen . . . . . . . . 39
navigation key . . . . . . . 42
menus . . . . . . . . . . . . . 42
enter text. . . . . . . . . . . 44
external display . . . . . . 50
handsfree speaker. . . . 50
change a code or
password. . . . . . . . . . . 52
lock/unlock phone . . . . 52
if you forget an unlock
code or security code . 53
customize . . . . . . . . . . 54
ring styles & alerts. . . . 54
answer options . . . . . . 55
wallpaper . . . . . . . . . . . 55
screen saver . . . . . . . . 56
display brightness . . . . 56
display timeout . . . . . . 56
backlight . . . . . . . . . . . 57
talking phone settings . 57
AGPS & your location . 57
AGPS limitations & tips 58
conserve battery . . . . . 59
calls . . . . . . . . . . . . . . . 60
change active line . . . . 60
redial . . . . . . . . . . . . . . 60
(continued next page)

5
contents
calls (continued)
automatic redial . . . . . 60
silence a call alert . . . . 61
emergency calls . . . . . 61
use AGPS during
emergency call . . . . . . 61
call history . . . . . . . . . 62
notepad . . . . . . . . . . . 64
return unanswered call 64
attaching a number. . . 64
speed dial . . . . . . . . . . 64
1-touch dial . . . . . . . . . 65
voicemail . . . . . . . . . . 65
other features . . . . . . . . 66
advanced calling . . . . . 66
messages. . . . . . . . . . 67
contacts . . . . . . . . . . . 69
personalize . . . . . . . . . . 74
call times & data
volumes . . . . . . . . . . . 79
Bluetooth™ wireless
connections . . . . . . . . 81
handsfree . . . . . . . . . . 82
data & fax calls . . . . . . 84
network . . . . . . . . . . . 84
personal organizer . . . 85
security. . . . . . . . . . . . 87
fun & games. . . . . . . . 88
service & repairs . . . . . 90
Specific Absorption
Rate Data
. . . . . . . . . . . 91
Safety and General
Information
. . . . . . . . . 94
Industry Canada Notice
to Users
. . . . . . . . . . . . 99
FCC Notice To Users . 100
Motorola Limited
Warranty for the
United States and
Canada
. . . . . . . . . . . . 101
Hearing Aid
Compatibility with
Mobile Phones
. . . . . . 106
Information from the World
Health
Organization
. . . . . . . . 107
California Perchlorate
Label
. . . . . . . . . . . . . . 109
Smart Practices While
Driving
. . . . . . . . . . . . 110
index . . . . . . . . . . . . . . 112

6
menu map
menu map
main menu
n Contacts
s Recent Calls
•Received
• Dialed
• Notepad
•CallTimes
• Data Times*
• Data Volumes*
e Messages
•Voicemail
• Create Message
• Inbox
•Drafts
• Outbox
•QuickText
•Drafts
• Browser Alerts*
This is the standard main
menu layout. Your phone’s
menu may be a little different.
L Mobile Web
h Media Gallery
•Camera
•Pictures
• Sounds
• Video Camera
• Videos
• MP3 Player
M Datebook
w Settings
(see next page)
É Tools
• Calculator
• Datebook
• Voice Records
•AlarmClock
• Airplane Mode
m Phone Status
• My Tel. Number
• Active Line*
•BatteryMeter
• Storage Devices
• Other Information
* This is an optional feature. The
feature may be available in a future
software release.

7
menu map
settings menu
t Ring Styles
•Style
•Style Detail
l Personalize
• Home Screen
•MainMenu
•Skin
• Wallpaper
• Screen Saver
• Sound Settings
U In-Call Setup
• In-Call Timer
• Answer Options
•MSGAlert
u Security
• Phone Lock
• Lock Keypad
• Lock Application
• Restrict Calls
• New Passwords
Z Initial Setup
• SpeakerPhone
• Auto Redial
• Display Timeout
• Backlight
• TTY Setup
•Scroll
• Language
• Battery Save
• Brightness
•DTMF
• Hyphenation
• Master Reset
•MasterClear
j Network
• Current Network
•SetMode
• Service Tone
• Call Drop Tone
J Car Settings
• Auto Answer
• Auto Handsfree
•Power-offDelay
• Charger Time
S Headset
• Auto Answer
•VoiceDial
ò Location
• Location On
•911Only
L Connection
• Incoming Call
• Bluetooth™ Link
• USB Settings*
* This is an optional feature. The feature
may be available in a future software
release.

8
Use and Care
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water,
rain, extreme humidity, sweat, or
other moisture.
Don’t expose your phone to dust, dirt,
sand, food, or other inappropriate
materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/
14°F or above 45°C/113°F.
To clean your phone, use only a dry
soft cloth. Don’t use alcohol or other
cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a
microwave oven.
Don’t drop your phone.

9
essentials
essentials
about this guide
This guide shows how to locate a menu
feature as follows:
Find it: s > sRecent Calls > Dialed Calls
This example shows that from the home
screen, you must press the center key
s to
open the main menu, scroll to
History Call , then
scroll to and select
Dialed Calls . Press S to
scroll and the center key
s to select a menu
option.
CAUTION: Before using the phone for the
first time, read the
Important Safety and
Legal Information
included in the
gray-edged pages at the back of this guide.
032259o
symbols
This means a feature is network/
subscription dependent and may not
be available in all areas. Contact your
service provider for more
information.
This means a feature requires an
optional accessory.

10
essentials
battery
battery tips
• Battery life depends on the network,
signal strength, temperature, features,
and accessories you use.
Always use Motorola
Original batteries and
chargers. The warranty
does not cover damage
caused by non-Motorola batteries and/
or chargers.
• New batteries or batteries stored for
a long time may take more time to
charge.
• When charging your battery, keep it
near room temperature.
• When storing your battery, keep it
uncharged in a cool, dark, dry place.
• Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
• It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.

11
essentials
install the battery
1
2
3
charge the battery
New batteries are shipped partially charged.
Before you can use your phone, you need to
install and charge the battery as described
below. Some batteries perform best after
several full charge/discharge cycles.
To charge using the charger:
1
Insert the
charger into the
USB connector
on your phone
as shown.
2 Plug the other
end of the charger into the appropriate
electrical outlet.
3 When your phone displays Charge Complete ,
remove the charger.

12
essentials
Tip: You can safely leave the charger
connected to the phone after charging is
complete. This will
not damage the battery.
When you charge the battery, the battery level
indicator at the upper right of the screen
shows charging progress. At least one
segment of the battery level indicator must be
visible to ensure full phone functionality while
charging.
To charge from your PC:
You can charge your battery by connecting a
cable from your phone’s mini-USB port to a
high-power USB port on a computer (not a
low-power one such as the USB port on your
keyboard or bus-powered USB hub). Typically,
USB high-power ports are located directly on
your computer.
Both your phone and the computer must be
turned on, and your computer must have the
correct software drivers installed. Cables and
software drivers are available in Motorola
Original data kits, sold separately.
turn it on
1 Open your phone.
2 Press and hold
the power key for
three seconds.
The phone may
require several
seconds to power on.
3 If necessary, enter your four-digit unlock
code (the last four digits of your phone
number) and press
OK to unlock the
phone.
Power
Key

13
essentials

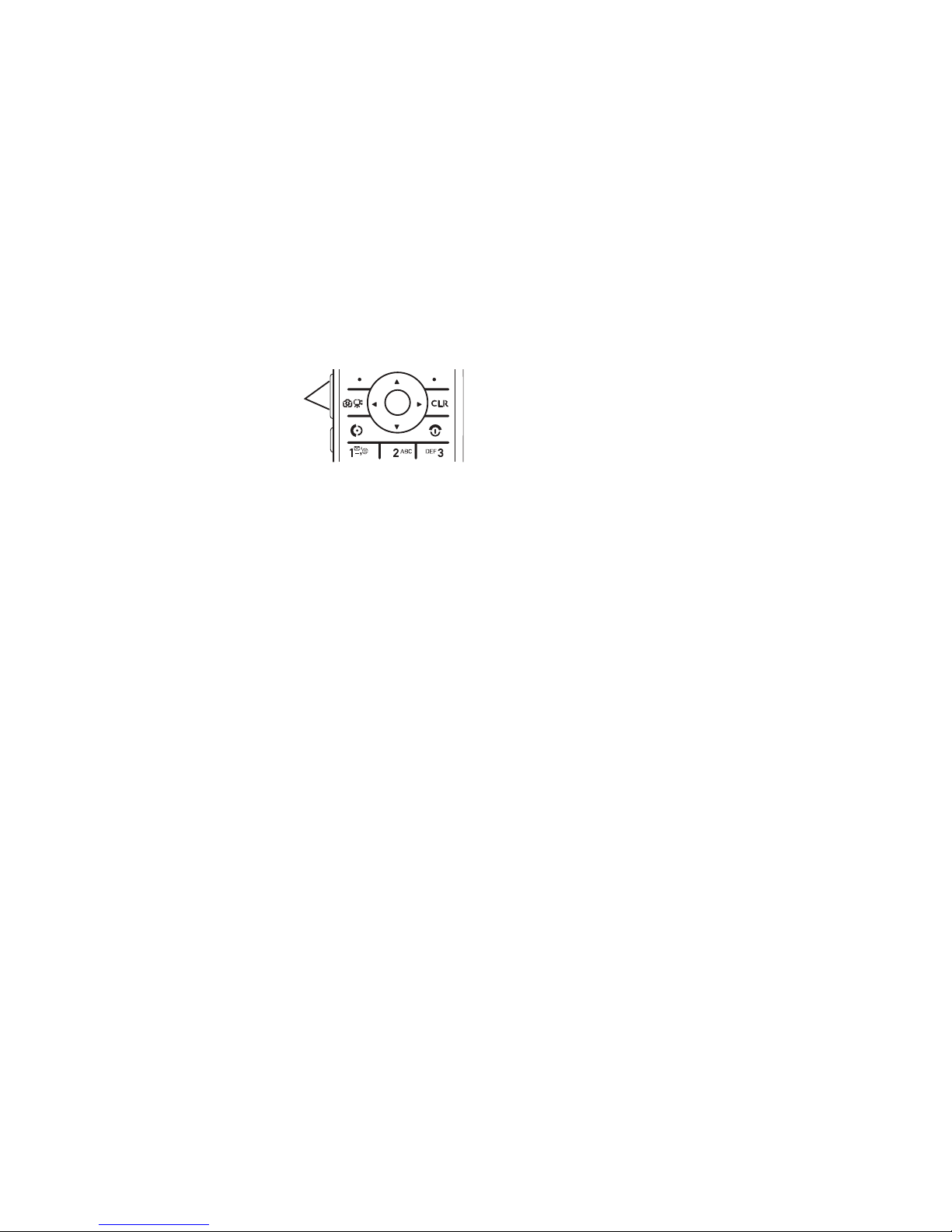

adjust volume
Press the up or
down volume keys
to:
• increase or
decrease
earpiece volume during a call
• increase or decrease ringer volume
setting when the home screen is
visible (phone must not be in a call and
flip must be open)
• silence an incoming call alert
make a call
Note: You must dial the phone number from
the home screen. See page 39.
1 Dial the number.
Tip: If you make a mistake, press the
clear key
B to delete the last digit. Press
and hold
B to clear all digits.
2 Press N to make the call.
3 Press P to end the call.
Tip: Closing the flip also ends the call unless
you are using the speakerphone feature (see
page 50).
Volume
Keys

14
essentials
answer a call
1 Press N to answer.
2 Press P to end the call.
Tip: You can set the phone to answer calls
when you open the flip:
Find it: s > wSettings > In-Call Setup
> Answer Options > Open To Answer
Note: If the phone is locked, you must first enter
your four-digit unlock code to answer the call.
change call alert
phone flip open
From the home
screen, press the
down volume key
to switch to lower
call alert volume,
then switch to vibrate and, finally, to silent
alert. Press the up volume key to cycle back
from silent alert to vibrate and then to the
lowest alert volume setting.
phone flip closed
Press the up or
down volume key
for two seconds,
then press the
smart/speaker-
phone key to scroll
through alert styles:
Loud , Soft , Vibrate , Vibe then
Ring
, and Silent . Alert styles are shown on the
external display.
After scrolling to the desired alert style, press
the up or down volume key to save the setting
and return to the home screen.
Volume
Keys
Volume keys
Smart/
Speaker-
phone key

15
essentials
view your phone
number
To view your phone number from the home
screen:
• Press B# .
or
• Press s > mPhone Status
> My Tel. Number .
While you are on a call, press
Options , then
select
My Tel. Number .

16
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
airplane mode
Note: Consult airline staff about the use of
Airplane Mode in flight. Turn off your phone
whenever instructed to do so by airline staff.
Airplane mode turns off your phone’s calling
features in locations where wireless phone
use is prohibited. You can use the phone’s
other non-calling features in airplane mode.
Find it: s > ÉTools > Airplane Mode
> Airplane Mode > On or Off
Your phone can prompt you to activate or
deactivate airplane mode each time you turn
on the phone:
Find it: s > ÉTools > Airplane Mode
> Prompt atStartup > On or Off
MP3 music player
Use your phone’s MP3 music player to play
MP3 music files that you copy to your phone
or to an optional memory card (see page 31).
If you have a memory card in your phone, the
music player uses it as its default storage
device for music. If you do not have a memory
card, the player uses phone memory.
Note: You can use the Sounds option of the
MediaGallery (see page 89) to listen to music
files in formats other than MP3. However, the
Sounds option does not include all of the
capabilities of the MP3 music player.

17
main attractions
load music
To copy music from a computer to your
memory card, see page 32.
Some wireless providers offer services
that allow you to buy and download
music from a Web site. Contact your wireless
provider for more information.
Note: If you download a copyrighted file and
store it on your memory card, you can use the
file only while your memory card is inserted in
your phone. You cannot send, copy, or change
copyrighted files.
play music—flip closed
To activate the MP3 player or to resume
playback
while the flip is closed, press and
hold the smart/speakerphone key
until the
touch sensor controls are lit (see page 1).
Lock the touch sensor controls by holding the
smart/speakerphone key
for two seconds .
Repeat this step to unlock the controls.
touch sensor controls
pause/play
Press & release y .
fast forward Press & hold z (for at
least two seconds).
skip to next
song
Press & release z .
rewind Press & hold x (for at
least two seconds).
skip back to
previous
song
Press & release x (for at
least two seconds).
turn off
music
player
Press & hold y (for at least
four seconds).

18
main attractions
play music—flip open
To activate your phone’s MP3 music player
while the flip is open :
Find it: s > hMediaGallery > MP3 Player
Your phone displays the My Music menu:
The MP3 player
My Music menu includes:
My Music
Playlists
Recently Played
Artists
Albums
Songs
Genres
Options Exit
Highlighted
Selection
Press Exit
to exit
MP3 player.
Press Options
to open
Options menu.
option description
Playlists Create or play a playlist.
Recently Played View & play songs you played
recently.
Artists Find & play music by an
artist.
Albums Find & play music from a
specific album.
Songs Find & play a song.
Note: All of your phone’s
songs are listed here. Some
songs do not have
Artist , Album ,
or
Genre information, so that
information is not included.
Genres Find & play music from a
specific genre (type of music)
such as rock or jazz.
