Motorola Motoluxe XT User manual

MOTOLUXETM XT
EN
2012.09.28
FCC

2012.09.28
FCC

1Congratulations
Congratulations

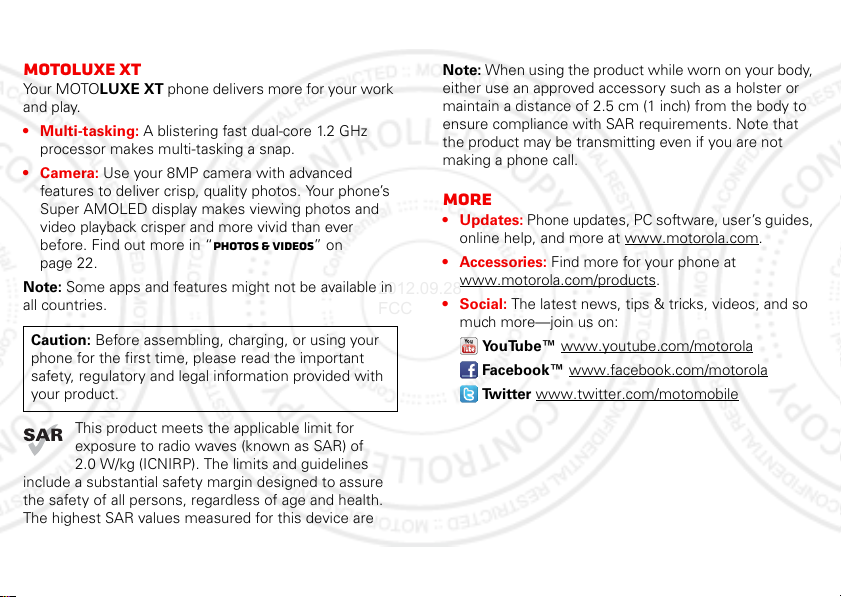

MOTOluxe xt
Yo u r M OTO LUXE XT phone delivers more for your work
and play.
• Multi-tasking: A blistering fast dual-core 1.2 GHz
processor makes multi-tasking a snap.
• Camera: Use your 8MP camera with advanced
features to deliver crisp, quality photos. Your phone’s
Super AMOLED display makes viewing photos and
video playback crisper and more vivid than ever
before. Find out more in “Photos & videos” on
page 22.
Note: Some apps and features might not be available in
all countries.
This product meets the applicable limit for
exposure to radio waves (known as SAR) of
2.0 W/kg (ICNIRP). The limits and guidelines
include a substantial safety margin designed to assure
the safety of all persons, regardless of age and health.
The highest SAR values measured for this device are
Caution: Before assembling, charging, or using your
phone for the first time, please read the important
safety, regulatory and legal information provided with
your product.
listed in the regulatory information packaged with your
product.
Note: When using the product while worn on your body,
either use an approved accessory such as a holster or
maintain a distance of 2.5 cm (1 inch) from the body to
ensure compliance with SAR requirements. Note that
the product may be transmitting even if you are not
making a phone call.
More
• Updates: Phone updates, PC software, user’s guides,
online help, and more at www.motorola.com.
• Accessories: Find more for your phone at
www.motorola.com/products.
• Social: The latest news, tips & tricks, videos, and so
much more—join us on:
YouTube™ www.youtube.com/motorola
Facebook™ www.facebook.com/motorola
Tw i t t e r www.twitter.com/motomobile
2012.09.28
FCC

2Your phone
Your phone

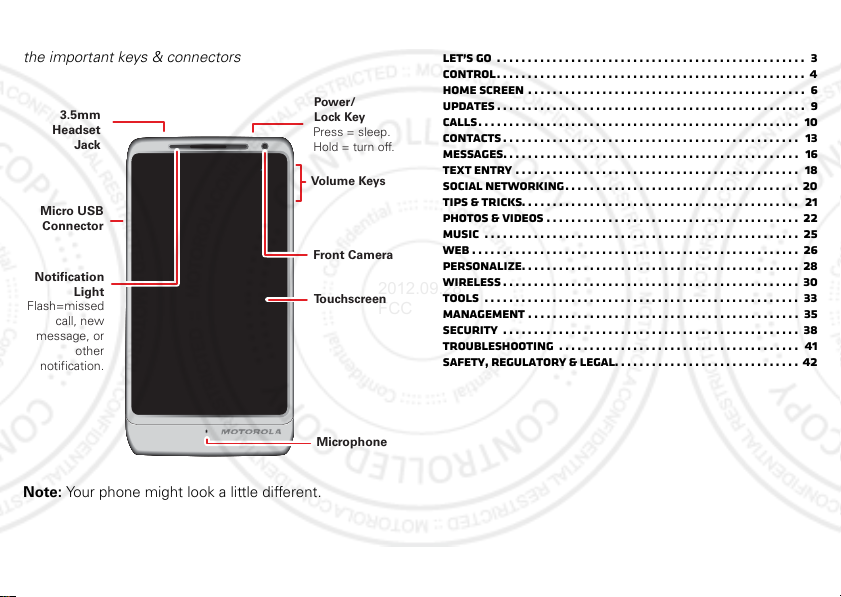

the important keys & connectors
Note: Your phone might look a little different.
Press = sleep.
Hold = turn off.
3.5mm
Headset
Jack
To u chscreen
Power/
Lock Key
Volume Keys
Microphone
Front Camera
Notification
Light
Flash=missed
call, new
message, or
other
notification.
Micro USB
Connector
Contents
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Social networking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Tips & tricks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Personalize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Safety, Regulatory & Legal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2012.09.28
FCC

3Let’s go
Let’s go
let’s get you up and running

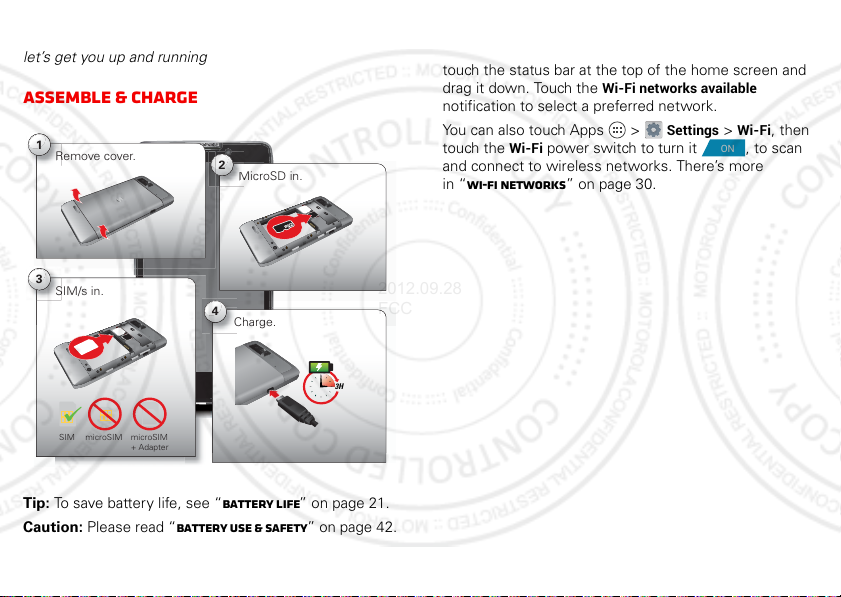

Assemble & charge
Tip: To save battery life, see “Battery Life” on page 21.
Caution: Please read “Battery Use & Safety” on page 42.
SIM/s in.
S
3
MicroSD in.
M
2
Remove cover.
R
1
4
3H
SIM microSIM microSIM
+ Adapter
Charge.
Wi-Fi connect
To use a Wi-Fi network for even faster Internet access,
touch the status bar at the top of the home screen and
drag it down. Touch the Wi-Fi networks available
notification to select a preferred network.
You can also touch Apps > Settings > Wi-Fi, then
touch the Wi-Fi power switch to turn it , to scan
and connect to wireless networks. There’s more
in “Wi-Fi networks” on page 30.
ON
2012.09.28
FCC

4Control
Control

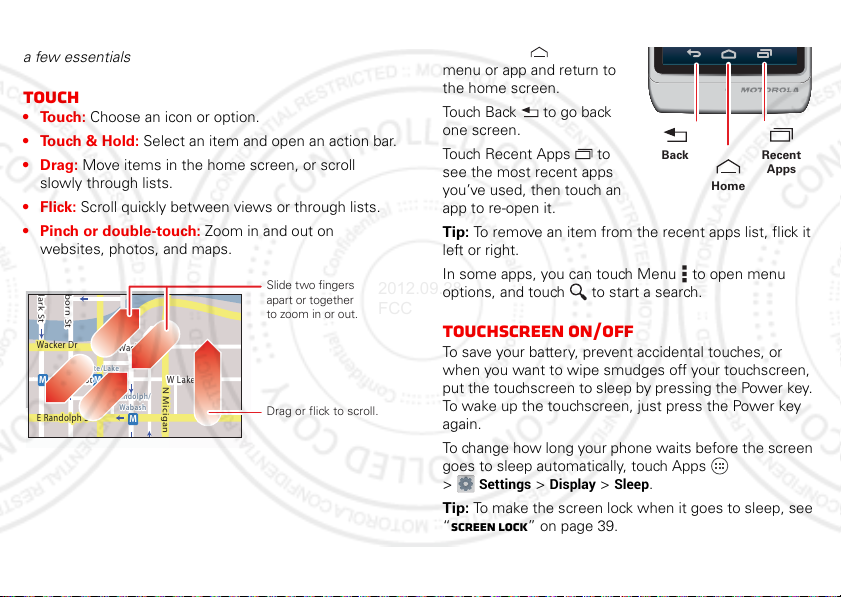

a few essentials
Touch
•Touch:Choose an icon or option.
• Touch & Hold: Select an item and open an action bar.
•Drag:Move items in the home screen, or scroll
slowly through lists.
•Flick:Scroll quickly between views or through lists.
• Pinch or double-touch: Zoom in and out on
websites, photos, and maps.
lark St
Wacker Dr
M
born St
N Micigan
W Lake St W Lake St
E Wacker Pl
State/Lake
Lake Randolph/
Wabash
M
M
M
E Randolph St
Slide two fingers
apart or together
to zoomin or out.
Drag or flick to scroll.
Home, back, and recent apps
Touch Home to close a
menu or app and return to
the home screen.
Touch Back to go back
one screen.
Touch Recent Apps to
see the most recent apps
you’ve used, then touch an
app to re-open it.
Tip: To remove an item from the recent apps list, flick it
left or right.
In some apps, you can touch Menu to open menu
options, and touch to start a search.
Touchscreen on/off
To save your battery, prevent accidental touches, or
when you want to wipe smudges off your touchscreen,
put the touchscreen to sleep by pressing the Power key.
To wake up the touchscreen, just press the Power key
again.
To change how long your phone waits before the screen
goes to sleep automatically, touch Apps
>Settings > Display > Sleep.
Tip: To make the screen lock when it goes to sleep, see
“Screen lock” on page 39.
Recent
Apps
Home
Back
2012.09.28
FCC

5Control

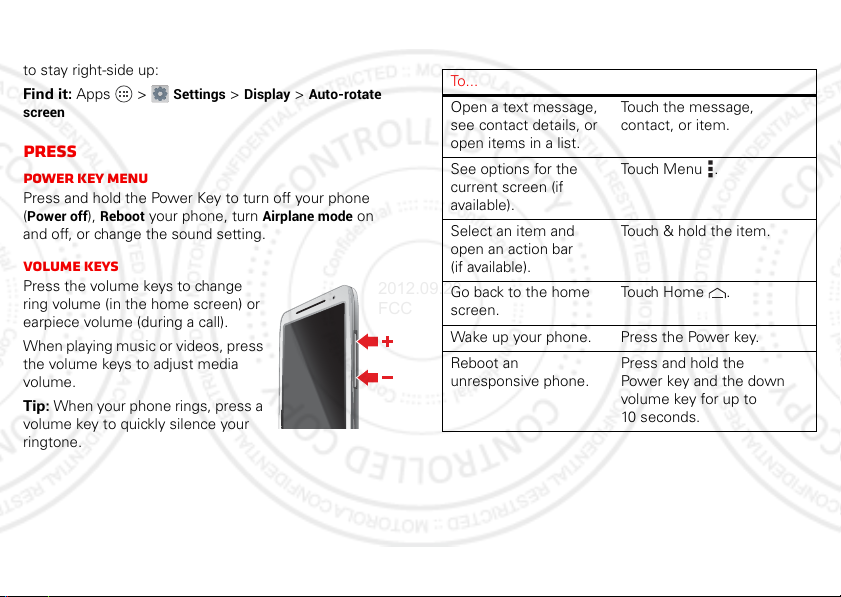

Rotate the screen
When you turn your phone, the touchscreen can rotate
to stay right-side up:
Find it: Apps > Settings > Display > Auto-rotate
screen
Press
Power key menu
Press and hold the Power Key to turn off your phone
(Power off), Reboot your phone, turn Airplane mode on
and off, or change the sound setting.
Volume keys
Press the volume keys to change
ring volume (in the home screen) or
earpiece volume (during a call).
When playing music or videos, press
the volume keys to adjust media
volume.
Tip: When your phone rings, press a
volume key to quickly silence your
ringtone.
Quick tips
If you’re not sure what to do next, try one of these:
To...
Open a text message,
see contact details, or
open items in a list.
Touch the message,
contact, or item.
See options for the
current screen (if
available).
Touch Menu .
Select an item and
open an action bar
(if available).
Touch & hold the item.
Go back to the home
screen.
Touch Home .
Wake up your phone. Press the Power key.
Reboot an
unresponsive phone.
Press and hold the
Power key and the down
volume key for up to
10 seconds.
2012.09.28
FCC

6Home screen
Home screen
quick access to the things you need most
Quick start: Home screen
The home screen gives you all your latest information in
one place. It’s what you see when you turn on your
phone or touch Home .
Status Bar
Shortcuts
Touch to open.
Notifications
Drag this bar down
to see details.
Flick left or right to see
more pages of shortcuts
& widgets.
Favorites Tray
Touch Apps to see
all your apps & widgets.
Recent Apps
Home
Back
Widgets
Note: Your home screen might look a little different.
Use & change your home screen
Shortcuts on the home screen are icons that open your
favorite apps. Widgets are apps or tools that provide
additional phone functionality and live content.
Some shortcuts (like People) have a quick view that you
can open by flicking up or down on the shortcut—look
for quick view arrows next to the shortcut.
To see other pages of shortcuts and widgets, flick the
home screen left or right.
• Add shortcuts & widgets: Touch Apps , touch and
hold an app or widget, then drag it to a spot on a
home screen page.
• Create shortcut folders: To create a folder of
shortcuts on your home screen, touch and hold a
shortcut, then drag it on top of another shortcut. To
add more shortcuts, drag them onto the folder. To
name the folder, touch it and enter a name at the
bottom.
2012.09.28
FCC

7Home screen

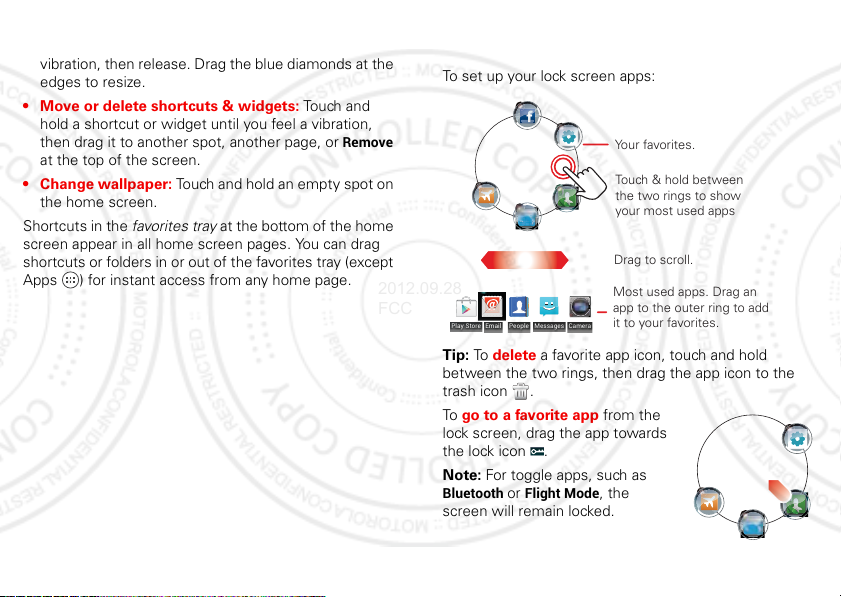

• Resize widgets: You can resize some
widgets—touch and hold a widget until you feel a
vibration, then release. Drag the blue diamonds at the
edges to resize.
• Move or delete shortcuts & widgets: Touch and
hold a shortcut or widget until you feel a vibration,
then drag it to another spot, another page, or Remove
at the top of the screen.
• Change wallpaper: Touch and hold an empty spot on
the home screen.
Shortcuts in the favorites tray at the bottom of the home
screen appear in all home screen pages. You can drag
shortcuts or folders in or out of the favorites tray (except
Apps ) for instant access from any home page.
moto switch
Jump right to your favorite apps from the lock screen!
To set up your lock screen apps:
Tip: To delete a favorite app icon, touch and hold
between the two rings, then drag the app icon to the
trash icon .
To go to a favorite app from the
lock screen, drag the app towards
the lock icon .
Note: For toggle apps, such as
Bluetooth or Flight Mode, the
screen will remain locked.
Drag to scroll.
Touch & hold between
the two rings to show
your most used apps
Most used apps. Drag an
app to the outer ring to add
it to your favorites.
Your favorites.
Email Messages
Play Store Camera
People
2012.09.28
FCC

8Home screen
Search
Touch the Search widget in the home screen, then start
typing your search text.
As you type, suggestions appear below the search field:
•To search for a suggestion, touch it.
•To add a suggestion to the search field, touch the
arrow beside it.
•To search for the text in the search field, touch on
the touchscreen keypad.
The browser shows a list of search results.
Phone status & notifications
Icons at the top right of
the home screen show
status information, like
signal strength, battery
level, and time.
Icons at the top left show
messages and app
notifications. To see your
notifications, touch the
status bar and drag it
down. Touch a
notification to select it.
4:00
June 26, 2012
New voicemail
Dial *86
10:41 AM
Wi-Fi networks available
Select a Preferred Network
11:20 AM
Jim Somers: Meeting time?
[email protected]
11:23 AM
3 new messages
Yahoo!
10:49 AM
3
6
1
Tip: To remove a notification from the list, flick it left or
right. To clear all notifications, touch . To go to your
settings menu, touch .
Status & notification icons
network (full signal) H (fastest data)
Wi-Fi in range Wi-Fi connected
Bluetooth™ on Bluetooth
connected
GPS active warning
USB connected background
data sync
active call missed call
airplane mode microSD card
new text message alarm set
new email calendar event
reminder
new voicemail music player active
vibrate speakerphone on
sound off call muted
battery (charging) downloading
battery (full charge)
2012.09.28
FCC

9updates
updates
get the app you want
One of the great things about a smartphone is the apps.
Whatever you’re into, whatever you want to do, there’s
probably an app that can help you. So, go to the place
that has it all, Google Play™ Store, where you can
choose from hundreds of thousands of apps.
Update my phone
You can check, download, and install phone software
updates using your phone, or using your computer:
•Using your phone:
You may get an automatic notification of an available
update on your phone. Simply follow the instructions
to download and install.
To manually check for updates, touch Apps
>Settings > About phone > System updates.
Your phone downloads any updates over your mobile
network. Remember, these updates can be quite
large (25MB or more) and may not be available in all
countries. If you don’t have an unlimited data plan, or
mobile network updates are not available in your
country, you can update using a computer.
•Using your computer:
On your computer, go to www.motorola.com and
check the “Software” links. If an update is available,
follow the installation instructions.
2012.09.28
FCC

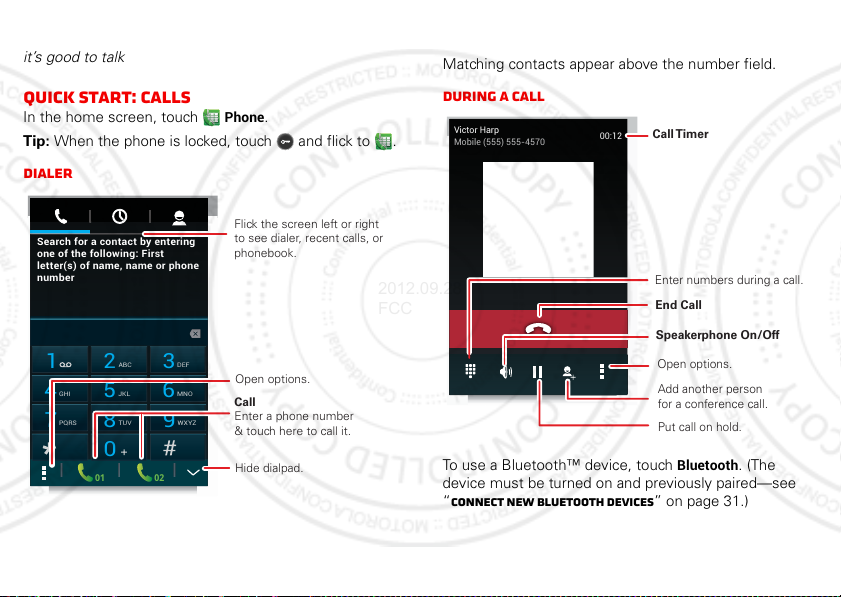

10 Calls
Calls
it’s good to talk
Quick start: Calls
In the home screen, touch Phone.
Tip: When the phone is locked, touch and flick to .
Dialer
Search for a contact by entering
one of the following: First
letter(s) of name, name or phone
number
0201
1 2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
0
Call
Enter a phone number
& touch here to call it.
Flick the screen left or right
to see dialer, recent calls, or
phonebook.
Open options.
Hide dialpad.
Tip: Search for contacts right from the dialpad! For
example, to find Jeff in your contacts list, touch 5-3-3-3.
Matching contacts appear above the number field.
During a call
To use a Bluetooth™ device, touch Bluetooth. (The
device must be turned on and previously paired—see
“Connect new Bluetooth devices” on page 31.)
Open options.
Call Timer
Speakerphone On/Off
Add another person
for a conference call.
Enter numbers during a call.
Victor Harp
Mobile [phone]:12
End Call
Put call on hold.
2012.09.28
FCC

11Calls
Tip: You can touch Home or Back to leave the
active call display. To reopen it, touch Home
>Phone.
Note: Using a mobile device or accessory while driving
may cause distraction and may be illegal. Always obey
the laws and drive safely.
Make & answer calls
To make a call, touch Phone, enter a number, then
touch .
Tip: When you hold your phone to your ear, the display
goes dark to prevent accidental touches. When you
move the phone away from your ear, the display lights
up again.
To answer a call, touch and flick to .
To send an incoming call to your voicemail, touch
and flick to .
Tip: To silence an incoming call alert, press the
Power key or the volume keys.
Recent calls
Find it: Phone >
•To call a number, touch next to the entry.
•To see call details, touch the entry.
•To view options such as send a text message, create
a contact, view a contact, touch the contact.
•To search the recent calls list, touch .
•To clear the list, touch Menu > Clear call log.
Favorites
Find it: Apps > People >
•To call, text, email, or view contact information, touch
the contact.
•To edit, share, delete, or set a ringtone for a contact,
touch the contact, then touch Menu .
Conference calls
To start a conference call, call the first number. After the
call connects, touch . Dial the next number, or select
it from contacts or favorites. When the next number
answers, touch .
Your phone number
Find it: Apps > Settings > About phone > Status
>Select Subscription > My phone number
Emergency calls
Note: Your service provider programs one or more
emergency phone numbers that you can call under any
circumstances, even when your phone is locked.
Emergency numbers vary by country. Your
pre-programmed emergency number(s) may not work in
all locations, and sometimes an emergency call cannot
2012.09.28
FCC

12 Calls
be placed due to network, environmental, or
interference issues.

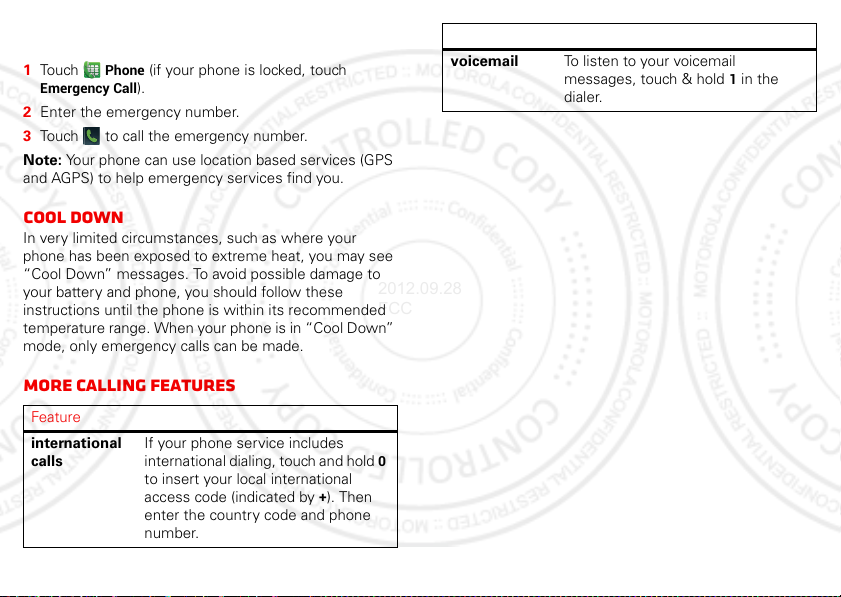

1Touch Phone (if your phone is locked, touch
Emergency Call).
2Enter the emergency number.
3Touch to call the emergency number.
Note: Your phone can use location based services (GPS
and AGPS) to help emergency services find you.
Cool down
In very limited circumstances, such as where your
phone has been exposed to extreme heat, you may see
“Cool Down” messages. To avoid possible damage to
your battery and phone, you should follow these
instructions until the phone is within its recommended
temperature range. When your phone is in “Cool Down”
mode, only emergency calls can be made.
More calling features
Feature
international
calls
If your phone service includes
international dialing, touch and hold 0
to insert your local international
access code (indicated by +). Then
enter the country code and phone
number.
voicemail To listen to your voicemail
messages, touch & hold 1in the
dialer.
Feature
2012.09.28
FCC

13Contacts
Contacts
be a people person
Quick start: Contacts
Find it: Apps > Contacts
Tip: When the phone is locked, touch and flick to .
#
Set up my profile
ME
2 contacts
Abe Baudo
Allie Smyth
Create & view
groups of contacts.
Contacts List
Touch to view contact
information, call, send a text
message, & more.
Touch a letter to jump to
contact names that start
with that letter.
Add contacts.
Search for contacts.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
View favorites.
Transfer contacts
Get all your contacts, all in one place. Here are a few
helpful hints:
•Use Gmail™
When you first set up your phone and sign in to your
Google™ account, all your Gmail contacts are synced
automatically with your People app. After that, your
contacts stay in sync whether you make changes on
your phone, from another device, or from a web
browser. Most contact applications for mobile phones
and email accounts allow you to export your contacts
as a “.csv” file. You can then use Gmail to import the
file. For more details, go to
www.motorola.com/transfercontacts or log in to your
Gmail account on your computer and select “Help”.
•More
There are other methods and tools to help you at
www.motorola.com/transfercontacts.
Link contacts
You might have two or more contacts for the same
person, maybe a Gmail contact who is also stored on
your phone, or one friend with two email addresses. To
combine these contacts:
2012.09.28
FCC

14Contacts
Find it: Apps > Contacts
Touch a contact to open it, touch Menu > Edit
>Menu >Join, then touch the second contact.
Call or email contacts
Find it: Apps > Contacts
•To call a contact, touch the contact’s name, then
touch the number you want to call. To send a text
message, touch next to the number.
•To email a contact, touch the contact’s name, then
touch the contact’s email address.
View contacts
When you log in to a social networking account, you’ll
know what everybody’s up to and when.
Find it: Apps > Contacts
•To find a contact, touch and type the contact
name.
Touch a contact to open its details. You can start a call
or message by touching the phone number,
message , or email address.
•To change which group of contacts is shown (like All
contacts) touch Menu > Contacts to display.
•To change how you view the list of contacts, touch
Menu > Settings > Display options.
Create contacts
Find it: Apps > Contacts >
Touch any entry area to open the touchscreen keypad.
When you’re finished, touch Done.
Favorites
To add a contact to your favorites list, touch the contact
to open it, then touch .
To see your favorites list:
Find it: Apps > Contacts >
PHONE
EMAIL
ADDRESS
EVENTS
Name
Add organization
Add new
Email
Address
Date
MOBILE
HOME
BIRTHDAY
HOME
Phone
Set a contact picture.
Set the number type.
Remove this number.
Add another number.
2012.09.28
FCC

15Contacts
Edit or delete contacts
Find it: Apps > Contacts > contact >Menu
>Edit or Delete
Synchronize contacts
When you change one of your contacts, your
smartphone automatically updates your other accounts.
When you change a contact in one of your other
accounts, your smartphone updates the contact
information in your Contacts app.
Personalize contacts
Find it: Apps > Contacts
Add a photo: To u ch .
Set a ringtone: Touch contact >Menu >Set ringtone.
Groups
Find it: Apps > Contacts > GROUPS > group
name
You can put your contacts into groups (like “Friends” or
“Family”) to make it easier to find them.
To create a new group, touch Apps > People >
>.
2012.09.28
FCC

16 Messages
Messages
sometimes it’s best to text, or IM, or email . . .
Read & reply to messages
Find it: Apps > Messaging
Tip: From the phone unlock screen, touch and flick
to .
•To open a text message and all of its replies, touch it.
•To respond to a text message, open it and enter your
response in the text box at the bottom.
•To delete a message, touch and hold to select it, then
drag it to the trash can in the upper right corner.
•To adjust messaging options, touch Apps
>Messaging >Menu >Settings.
Create messages
Find it: Apps > Messaging >
Enter the recipient and message. Touch Menu to Insert
smiley or Add subject.
To add an attachment, touch in the upper right corner.
Send & receive MESSAGE attachments
To send a file in a message, open a new message and
touch in the upper right corner.
When you receive a message with an attachment, open
the message and touch the file name to download it.
Touch the name again to open it. Some file types can be
converted to HTML for faster viewing, and your phone
will show Get HTML version.
While viewing the attachment, touch it to save it, share
it, and more.
Tip: To send and receive large attachments faster, use a
Wi-Fi connection (see “Wi-Fi networks” on page 30).
2012.09.28
FCC

17Messages
Email
You can set up multiple email accounts on your phone.
Touch Apps > Settings > Accounts & sync > ADD
ACCOUNT, then:
•Select Corporate for Microsoft™ Exchange server
work email accounts. Enter details from your IT
administrator.
Tip: You might need to enter your domain name and
user name (like domain/username).
•Select Email for your personal email accounts. For
account details, contact the account provider.
To read and reply to messages on your email accounts,
touch Apps > Email.
Instant messages
To send and receive instant messages, you can use
Google Talk™.
Find it: Apps > Talk
Tip: You can also download an instant messaging app
from Play Store™.
Voicemail
When you have a new voicemail, appears at the top
of the screen. Drag down the status bar and touch the
New voicemail notification to listen to your voicemail
message.
If you need to change your voicemail number, in the
home screen touch Phone >Menu >Settings then
select the SIM card and touch Voicemail Settings.
2012.09.28
FCC

18 Text entry
Text entry
keys when you need them

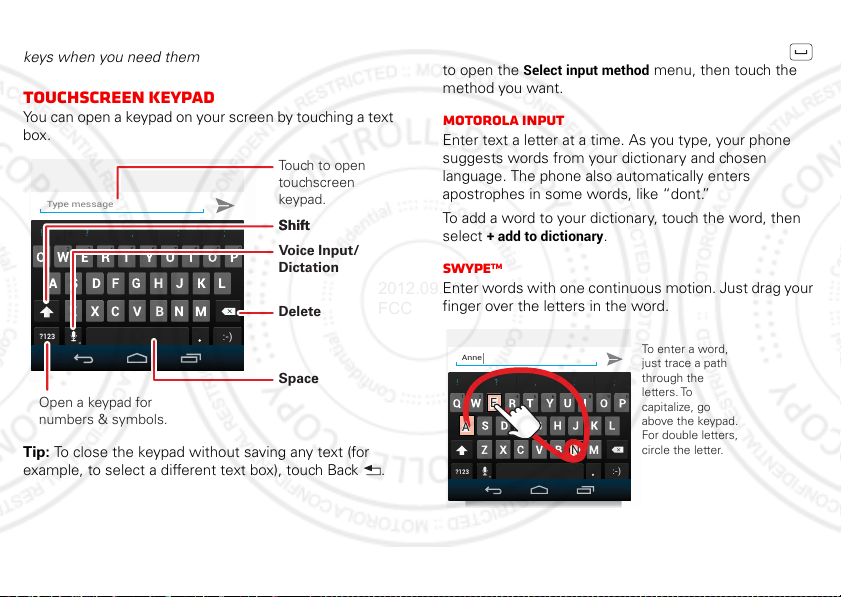

Touchscreen keypad
You can open a keypad on your screen by touching a text
box.
Tip: To close the keypad without saving any text (for
example, to select a different text box), touch Back .
Type message
!?, :;
?123
:-)
Open a keypad for
numbers & symbols.
Voice Input/
Dictation
Delete
Shift
Space
Touch to open
touchscreen
keypad.
Shift
Input methods
To select a text input method, touch and hold Space
to open the Select input method menu, then touch the
method you want.
Motorola input
Enter text a letter at a time. As you type, your phone
suggests words from your dictionary and chosen
language. The phone also automatically enters
apostrophes in some words, like “dont.”
To add a word to your dictionary, touch the word, then
select + add to dictionary.
SwypeTM
Enter words with one continuous motion. Just drag your
finger over the letters in the word.
Anne
!?, :;
?123
:-)
To enter a word,
just trace a path
through the
letters. To
capitalize, go
above the keypad.
For double letters,
circle the letter.
+
+
EE
NN
aAaA
2012.09.28
FCC
