Motorola V323i User manual

motorola.com
V323i
CDMA
English

1
HELLOMOTO
Introducing your new Motorola V323i CDMA wireless phone. Here’s a quick anatomy lesson.
Left Soft Key
Camera Key
Volume Keys
Smart/
Speakerphone
Key
Right Soft Key
Clear/Back Key
Make &
answer calls.
In home
screen, open
Main Menu.
In Main Menu,
select options.
Turn on & off,
hang up, or exit
menus.
& @ã É
New Message
Ã
External Display
View caller ID & status
icons.
Camera Lens
Take photos to send
to others & use on
your phone.
Headset Jack
Self Portrait Mirror
Ring Lights
Indicate incoming
calls & other events.

2
Home Screen Main Menu
7/7/05
3O\ruôÉ
6:35am
Contacts Recent
e
h
M
J
p
s
n
t
SELECT EXIT
JÜ
8k
Voice Records
h
u
1
2
Press the Navigation Key
up, down, left, or right (
S
)
to highlight a menu feature.
3
4
Press and hold the
Power Key
for a
few seconds, or until
the screen lights up,
to turn on your
phone.
Press the rkey
to select.
Press the rkey
to open the
Main Menu .

3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the
US Patent & Trademark Office. All other product or service names
are the property of their respective owners. Java and all other
Java-based marks are trademarks or registered trademarks of
Sun Microsystems, Inc. in the U.S. and other countries.
© Motorola, Inc., 2006.
Manual Number: 6809504A36-O

4
contents
contents
menu map . . . . . . . . . . . . 6
Use and Care . . . . . . . . . . 8
essentials . . . . . . . . . . . . . 9
about this guide. . . . . . . 9
battery . . . . . . . . . . . . . 10
turn it on & off . . . . . . . 12
make a call. . . . . . . . . . 12
answer a call . . . . . . . . 12
adjust volume . . . . . . . 12
change the call alert. . . 13
store a phone
number . . . . . . . . . . . . 13
call a stored
phone number. . . . . . . 14
view your phone
number . . . . . . . . . . . . 14
main attractions . . . . . . 15
take & send a photo . . . 15
send a multimedia
message . . . . . . . . . . . 17
receive a multimedia
message . . . . . . . . . . . 19
cable connections . . . . 20
Bluetooth®
connections . . . . . . . . . 20
TTY operation . . . . . . . 22
basics . . . . . . . . . . . . . . . 24
home screen . . . . . . . . 24
text entry . . . . . . . . . . . 27
handsfree speaker. . . . 33
external display . . . . . . 33
codes & passwords. . . 34
lock & unlock phone . . . 35
customize. . . . . . . . . . . . 36
store your name
& phone number . . . . . 36
ring styles & alerts. . . . 36
set answer options . . . 37
set wallpaper . . . . . . . . 37
set screen saver . . . . . 38
backlight . . . . . . . . . . . 38
AGPS & your
location . . . . . . . . . . . . 39
AGPS limitations
& tips . . . . . . . . . . . . . . 39
conserving battery
power . . . . . . . . . . . . . 40

contents
5
calls . . . . . . . . . . . . . . . . 41
change active line. . . . 41
turn off a call alert. . . . 41
redial a number. . . . . . 41
automatic redial . . . . . 41
recent calls . . . . . . . . . 42
return a missed call . . . 43
notepad . . . . . . . . . . . 43
attach number . . . . . . 43
emergency calls . . . . . 43
AGPS during an
emergency call . . . . . . 44
speed dial . . . . . . . . . . 45
voicemail . . . . . . . . . . 45
other features . . . . . . . . 47
advanced calling . . . . . 47
contacts . . . . . . . . . . . 49
messages. . . . . . . . . . 52
personalize . . . . . . . . . 54
call times . . . . . . . . . . 59
handsfree . . . . . . . . . . 60
data & fax calls . . . . . . 62
network . . . . . . . . . . . 63
personal organizer . . . 63
security. . . . . . . . . . . . 65
fun & games. . . . . . . . 66
service & repairs. . . . . . 68
Specific Absorption
Rate Data. . . . . . . . . . . . 69
Safety and General
Information . . . . . . . . . . 72
Industry Canada
Notice to Users. . . . . . . 77
FCC Notice To Users. . . 78
Motorola Limited
Warranty for the
United States
and Canada . . . . . . . . . . 79
Hearing Aid
Compatibility with
Mobile Phones . . . . . . . 83
Information from
the World Health
Organization . . . . . . . . . 84
Smart Practices
While Driving . . . . . . . . 87
index . . . . . . . . . . . . . . . 89

6
menu map
menu map
main menu
w Settings
• (see next page)
h Media Gallery
•Camera
•Pictures
• Sounds
• Video Camera
t Ring Styles
•Style
•Style Detail
• Ring Lights
• Event Lights
J Brew
Ü Voice Records
n Contacts
8 Datebook
e Messaging
•Voicemail
• New TXT Msg
• Inbox
•Drafts
•Saved
•QuickNotes
• Sent
• Settings
f Extras
• Recent Calls
• Tools
This is the standard main menu layout.
Your phone’s menu may be a little different.

menu map
7
settings menu
Personalize
• Home Screen
• Main Menu
•VoiceDialSetup
•Skin
• Greeting
• Wallpaper
• Screen Saver
• Sound Settings
In-Call Setup
• In-Call Timer
• Answer Options
•MSGAlert
Security
• Phone Lock
• Lock Keypad
• Lock Application
• Restrict Calls
• New Passwords
• Data Connection
Initial Setup
• SpeakerPhone
• Auto PIN Dial
• Auto Redial
• Backlight
• TTY Setup
•Scroll
• Language
• Battery Save
• Brightness
•DTMF
• Hyphenation
• Master Reset
• Master Clear
Network Options
• Current Network
• Analog Only
• Set Mode
• Service Tone
• Call Drop Tone
Car Settings
• Auto Answer
• Auto Handsfree
• Power-off Delay
• Charger Time
Headset
• Auto Answer
• Voice Dial
Location
• Location On
•911Only
Connection
• Incoming Call
• Bluetooth Link
Phone Status
• My Tel. Number
• Active Line
•BatteryMeter
• Other Information

8
Use and Care
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture. Don’t expose your phone to dust, dirt, sand, food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/14°F or
above 45°C/113°F. To clean your phone, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven. Don’t drop your phone.

9
essentials
essentials
about this guide
This guide shows how to locate a menu
feature as follows:
Find it: Press r > hMedia Gallery > Pictures
This means that, from the home screen:
1 Press r to open the menu.
2 Press the navigation key S to scroll to
hGallery , and press r to select it.
3 Press the navigation key S to scroll to
Pictures , and press r to select it.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is
network/subscription dependent
and may not be available in all areas.
Contact your service provider for
more information.
This means a feature requires an
optional accessory.

10
essentials
battery
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
• Always use Motorola
Original batteries and
chargers. The warranty does
not cover damage caused by
non-Motorola batteries and/or chargers.
• New batteries or batteries stored for a
long time may take more time to
charge.
• When charging your battery, keep it
near room temperature.
When storing your battery, keep it
uncharged in a cool, dark, dry place.
• Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
• It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.
032375o

11
essentials

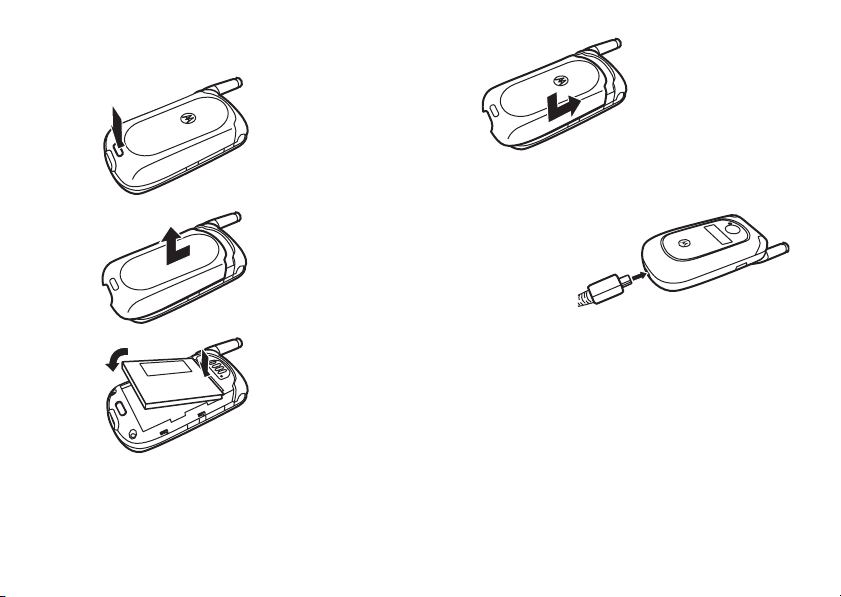

battery installation
1
2
3
4
battery charging
New batteries
are not fully
charged. Plug
the battery
charger into
your phone and an electrical outlet. Your
phone might take several seconds to start
charging the battery. Your display shows
Charge Complete when finished.
Tip: Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.

12
essentials
turn it on & off
To turn on your
phone, press and
hold
O for a few
seconds or until
the display turns
on. If prompted,
enter your four-digit unlock code.
To turn off your phone, press and hold
O for
two seconds.
make a call
Enter a phone number and press N to make
a call.
To “hang up,” close the flip or press
O .
answer a call
When your phone rings and/or vibrates, just
open the flip or press
N to answer.
To “hang up,” close the flip or press
O .
adjust volume
Press the
volume keys up
or down to:
• increase
or
decrease
earpiece volume during a call
• increase or decrease the ringer volume
setting when the home screen is
visible (with the flip open)
• turn off an incoming call alert
Tecla
d
encen
d
Volume
Keys

13
essentials
change the call alert
flip open
From the home
screen, press
the down
volume key to
switch to lower
call alert
volume, then vibrate, and finally silent alert.
Press the up volume key to cycle back from
silent alert to vibrate and then to the lowest
alert volume setting.
flip closed
Press the up or down volume key, then press
the smart/speakerphone key to scroll through
the alert styles:
Loud , Soft , Vibrate , Vibrate then Ring ,
and
Silent . The alert styles are shown on the
phone’s external display.
After scrolling to the desired alert style, press
the up or down volume key to save the setting
and return to the home screen.
store a phone number
You can store a phone number in Contacts :
1 Enter a phone number in the home
screen.
2 Press the Store key.
3 Enter a name and other details for the
phone number. To select a highlighted
item, press
r .
4 Press the Done key to store the number.
To edit or delete a
Contacts entry, see page 50.
To store an email address, press
r > nContacts > [New Entry] > Email Address .
Enter the new contact’s name and email
address information.
Volume
Keys

14
essentials
call a stored phone
number
Find it: Press r > nContacts
1 Scroll to the Contacts entry.
Shortcut: In Contacts , press keypad keys to
enter the first letters of an entry you want.
You can also press
* and # to see the
entries you use frequently, or entries in
other categories.
2 Press N to call the entry.
view your phone
number
Find it: Press r > wSettings > Phone Status
>
My Tel. Number
Tip: Want to see your phone number while
you’re on a call? Press
Options > My Tel. Number .

15
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
take & send a photo
You can take a photo with your phone and
sent it in a multimedia message to other
wireless phone users.
To activate your phone’s camera:
1 Press the camera key e .
Your phone displays the active viewfinder
image:
2 Point the camera lens at the photo
subject.
ß
480x640
Press right soft
key to return to
previous screen.
Press left soft
key to view
Options menu.
Options Exit
N
Zoom
1x
621
Displays when
you press S to
change photo
settings.

16
main attractions
Press S up and down to select one of
these settings:
• Zoom —Press S left and right to
increase or decrease image size.
• Style —Press S left or right to scroll to
Color , Black and White , Antique , or Negative .
• Lighting Conditions —Press S left or right
to scroll to
Automatic , Sunny , Cloudy ,
Indoor (Home) , Indoor (Office) , or Night .
Press
Options to open the Pictures menu and
adjust camera settings (see page 16).
3 Press e to take a photo.
4 Press Options to view the Store Options menu
selections:
Store Only , Apply as Wallpaper , Apply
as Screen Saver
, Apply as Contacts Entry .
or
Press Send to go to the Send Options menu
and send the photo in a multimedia
message or send it to an online album.
adjust camera settings
When the camera is active, press Options to
open the
Pictures menu, which can include
these options:
options
Go To Pictures View pictures and photos stored
on your phone.
Auto-Timed
Capture
Set a timer for the camera to
take a photo.
Camera Setup Change resolution, image
quality, or shutter tone.
Capture Title Assign a name to a captured
photo.
View
Free Space
See how much memory
remains for storing pictures.

17
main attractions
send a multimedia
message
A multimedia message contains embedded
media objects (possibly including photos,
pictures, animations, sounds, and voice
records). You can send a multimedia message
to other wireless phones with multimedia
messaging capabilities and to email
addresses.
create & send message
Note: You can send the message after
entering a recipient phone number or email
address and the message text. You do not
need to complete the other entry fields.
Find it: Press r > eMessaging > Create Message
1 Scroll to New Picture Message and press Select .
2 Enter message text.
Press
OPTIONS to open the MMS Menu
(see “mms message options” on
page 18).
3 With Insert highlighted, press Select to open
the
Insert Options menu.
4 Scroll to one of the following options and
press
Select :
• Picture —Insert a saved picture or photo.
• New Picture —Take a new photo to insert
into the message (see “take & send a
photo” on page 15.
• Voice Record —Insert a voice record.
• Sound —Insert a saved sound.
• Quick Text —Insert a prewritten message.
Your phone comes with several quick
text messages, and you can create
additional ones.

18
main attractions
5 After you add a multimedia object, press
Send To .
6 Scroll to an entry to receive the message
and press
r .
or
Scroll to [ New Number] and press r to enter
a phone number. On the
To: screen, enter
the number and press
Ok , or press Options
to select a number from
Contacts .
or
Scroll to [New Email Address] and press r to
enter an email address.
7 Press SEND to send the message.
or
Press OPTIONS to open the Send To Menu ,
which can include these options:
• Message Options —Open the Message Options
menu to copy other recipients, enter a
message subject, add attachments, set
message priority, or request a
message delivery report.
• Message Details —View detailed
information about the message.
• Save to Drafts —Save the message to the
Drafts folder.
• Abort Message —Cancel the message and
return to the
Message Center .
mms message options
While creating a multimedia message, press
Options to open the MMS Menu :
options
Insert Insert a multimedia object.
