MOTOROLA XT682
IRON MAX TV (LA)
Getting Started
Guide January 30,
2012
30th. January, 2012

30th. January, 2012

1Congratulations
Congratulations
MOTOROla xt682

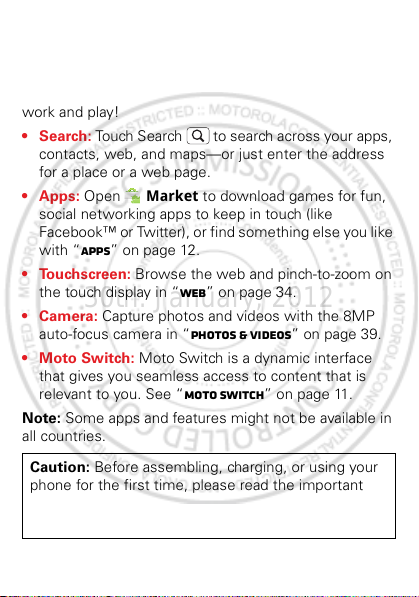

Yo u r M O TO R O L A XT682 phone delivers more for your
work and play!
•Search:Touch Search to search across your apps,
contacts, web, and maps—or just enter the address
for a place or a web page.
• Apps: Open Market to download games for fun,
social networking apps to keep in touch (like
Facebook™ or Twitter), or find something else you like
with “Apps” on page 12.
• Touchscreen: Browse the web and pinch-to-zoom on
the touch display in “Web” on page 34.
• Camera: Capture photos and videos with the 8MP
auto-focus camera in “Photos & videos” on page 39.
• Moto Switch: Moto Switch is a dynamic interface
that gives you seamless access to content that is
relevant to you. See “moto switch” on page 11.
Note: Some apps and features might not be available in
all countries.
Caution: Before assembling, charging, or using your
phone for the first time, please read the important
legal and safety information packaged with your
product.
30th. January, 2012

2Congratulations
More
• Support: Phone updates, PC software, online help
and more at www.motorola.com/support.
• Accessories: Find accessories for your phone at
www.motorola.com/products.
30th. January, 2012

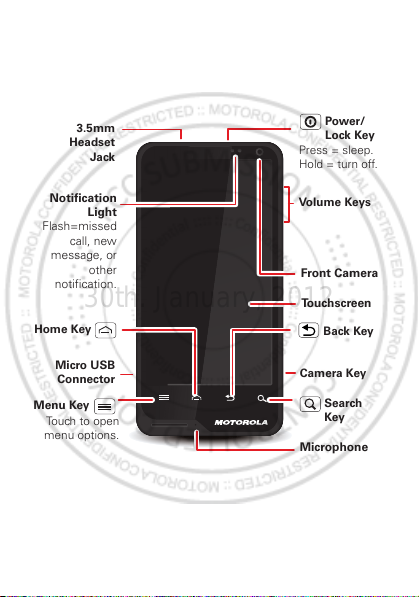

3Your phone
Your phone
the important keys & connectors
Press = sleep.
Hold = turn off.
3.5mm
Headset
Jack
Back Key
Menu Key
Home Key
To u chscreen
Power/
Lock Key
Volume Keys
Touch to open
menu options.
CameraKey
Search
Key
Micro USB
Connector
Microphone
Front Camera
Notification
Light
Flash=missed
call, new
message, or
other
notification.
30th. January, 2012

4Your phone
Contents
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Mobile TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Bluetooth™, Wi-Fi, & cable connections . . . . . . . . . . . . . . . . . 47
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
30th. January, 2012

5Let’s go
Let’s go
let’s get you up and running
Assemble & charge
Caution: Please read “Battery Use & Safety” on page 56.
1Cover off 2SIM in
3microSD in (optional) 4Battery in
5Cover on 6Charge up
3
H
30th. January, 2012

6Let’s go
Set up & go
Note: This phone supports data-intensive apps and
services. It is strongly recommended that you purchase
a data plan that meets your needs. Contact your service
provider for details.
When you turn on your new phone, you can create or
enter a Google™ account so that you can download
apps, use Gmail™, and much more:
1Press and hold
Power/Lock Key to
turn on your phone.
2Touch the Android™
image to begin setup.
3Touch a button to
Create a Google
account, Sign in with
one you have, or Skip.
You can log into your account from a computer at
accounts.google.com.
4Enter details to create or sign into your account.
When your phone confirms the account, it shows
account sync options.
•To change whether your phone shows the Google
account’s contacts, Gmail™, and calendar, touch
the Google account name.
Press = sleep.
Hold = turn off.
Power/
Lock Key
30th. January, 2012

7Let’s go
•To add another account, touch Add account. For
details, see “Email” on page 26.
•To exit setup touch Home .
If your phone cannot connect, you can touch Menu
> Settings > Wireless & networks to change mobile
network settings.
sleep & wake up
Your screen sleeps when you hold it to your ear during a
call, or when it is inactive. To change the sleep delay,
touch Menu > Settings > Display > Screen
timeout.
To unlock the screen, drag the
lock icon to the outer ring.
Tip: To access all your favorite
apps from a lock screen, see
“moto switch” on page 11.
30th. January, 2012

8Let’s go

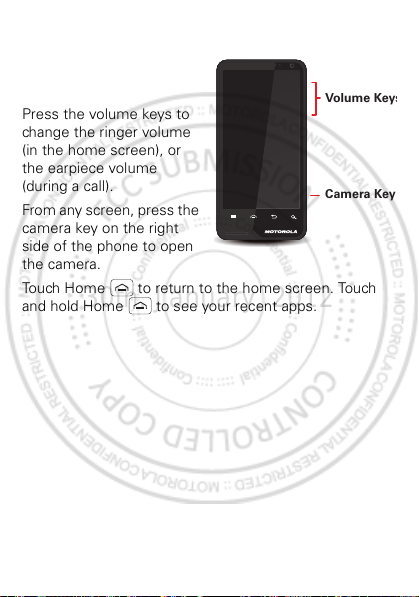

Keys
Use your phone’s keys to
navigate and open options
at any time.
Press the volume keys to
change the ringer volume
(in the home screen), or
the earpiece volume
(during a call).
From any screen, press the
camera key on the right
side of the phone to open
the camera.
Touch Home to return to the home screen. Touch
and hold Home to see your recent apps.
Volume Keys
CameraKey
30th. January, 2012

9Home screen & apps
Home screen & apps
a few essentials
Use your home screen for quick access to apps, search,
and more. Download social networking apps (like
Facebook™ or Twitter) to keep in touch!
Quick start: Home screen
You’ll see the home screen when you turn on the phone
or touch Home from a menu:
11:19
Notifications
Flick down for details.
Status Indicators
Shortcuts
Open the app menu.
Widgets
Touch to open. Touch & hold to
move or delete.
Drag or flick to open panels (or
scroll in lists).
30th. January, 2012

10 Home screen & apps

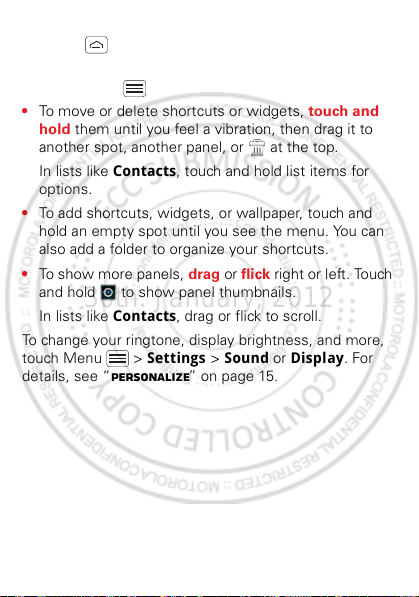

•To open shortcuts or widgets, touch them. Touch
Home to return to the home screen.
When you open shortcuts or widgets,
touch Menu for options.
•To move or delete shortcuts or widgets, touch and
hold them until you feel a vibration, then drag it to
another spot, another panel, or at the top.
In lists like Contacts, touch and hold list items for
options.
•To add shortcuts, widgets, or wallpaper, touch and
hold an empty spot until you see the menu. You can
also add a folder to organize your shortcuts.
•To show more panels, drag or flick right or left. Touch
and hold to show panel thumbnails.
In lists like Contacts, drag or flick to scroll.
To change your ringtone, display brightness, and more,
touch Menu > Settings > Sound or Display. For
details, see “Personalize” on page 15.
30th. January, 2012

11Home screen & apps
moto switch
Jump right to your favorite apps from the lock screen!
To set up your lock screen apps:
Tip: To delete a favorite app icon, touch and hold
between the two rings, then drag the app icon to the
trash icon .
To go to a favorite app from the
lock screen, drag the app towards
the lock icon .
Note: For toggle apps, such as
Bluetooth or Fl ight Mode, the
screen will remain locked.
11:19
Calendar Camera Contacts Email Gmail
Drag to scroll.
Touch & hold between
the two rings to show
your most used apps
at the bottom.
Most used apps. Drag an app to
the outer ring to add it to your
favorites.
Your favorites.
30th. January, 2012

12 Home screen & apps

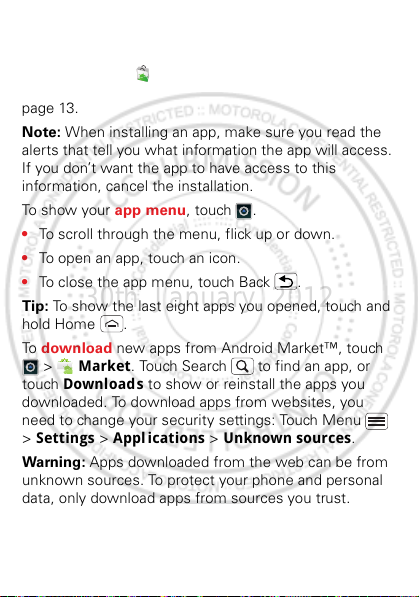

Apps
Tip: Choose your apps and updates carefully, from
trusted sites like Market, as some may impact your
phone’s performance—see “Choose carefully” on
page 13.
Note: When installing an app, make sure you read the
alerts that tell you what information the app will access.
If you don’t want the app to have access to this
information, cancel the installation.
To show your app menu, touch .
•To scroll through the menu, flick up or down.
•To open an app, touch an icon.
•To close the app menu, touch Back .
Tip: To show the last eight apps you opened, touch and
hold Home .
To download new apps from Android Market™, touch
> Market. Touch Search to find an app, or
touch Downloads to show or reinstall the apps you
downloaded. To download apps from websites, you
need to change your security settings: Touch Menu
> Settings > Appl ications > Unknown sources.
Warning: Apps downloaded from the web can be from
unknown sources. To protect your phone and personal
data, only download apps from sources you trust.
30th. January, 2012

13Home screen & apps
To move or uninstall your apps, touch Menu >
Settings > Appl ications > Manage appl ications.
Touch an app in the list to show details and options.
On your computer, you can browse and manage apps for
all your devices powered by Android™ at
market.android.com.
Choose carefully
Apps are great. There's something for everyone. Play,
communicate, work, or have fun. But remember, choose
your apps carefully. Here are a few tips:
•To help prevent spyware, phishing, or viruses from
affecting your phone or privacy, use apps from trusted
sites, like Market.
•In Market, check the apps’ ratings and comments
before installing.
•If you doubt the safety of an app, don't install it.
•Like all apps, downloaded apps will use up memory,
data, battery, and processing power—some more
than others. For example, a simple battery level
widget will use less than a streaming music player
app. After installing an app, if you're not happy with
how much memory, data, battery or processing
power it's using, uninstall it. You can always install it
again later.
30th. January, 2012

14 Home screen & apps
•Just like web browsing, you may want to monitor
childrens’ access to apps to help prevent exposure to
inappropriate content.
•Certain apps may not provide completely accurate
information. Take care, especially when it comes to
personal health.

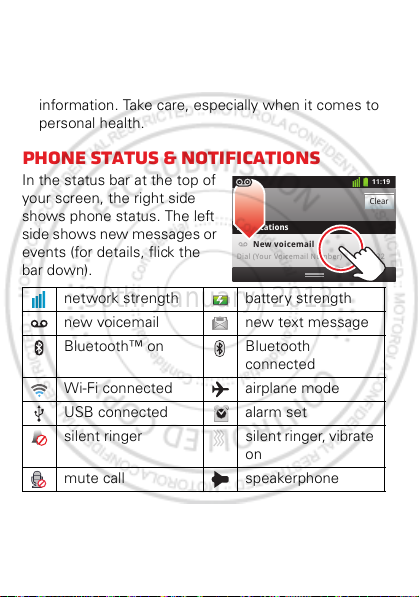

Phone status & notifications
In the status bar at the top of
your screen, the right side
shows phone status. The left
side shows new messages or
events (for details, flick the
bar down).
network strength battery strength
new voicemail new text message
Bluetooth™ on Bluetooth
connected
Wi-Fi connected airplane mode
USB connected alarm set
silent ringer silent ringer, vibrate
on
mute call speakerphone
Clear
Notifications
10:32
New voicemail
Dial (Your Voicemail Number)
11:19
30th. January, 2012

15Personalize
Personalize
add your personal touch
Customize your phone’s sounds and appearance to
make it unique to you!

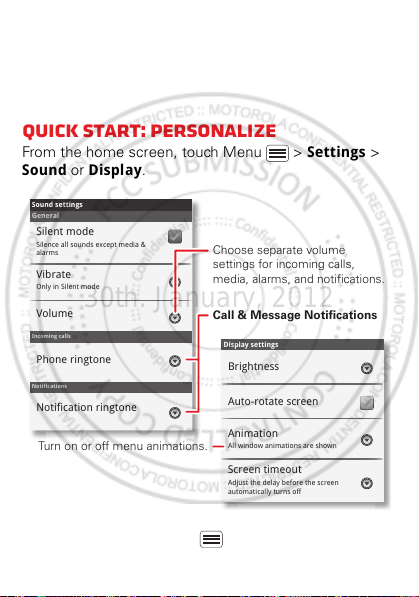

Quick start: Personalize
From the home screen, touch Menu > Settings >
Sound or Display.
•To choose a ringtone or vibration for calls and
messages, touch Menu > Settings > Sound,
Display settings
Brightness
Screen timeout
All window animations are shown
Animation
Auto-rotate screen
Adjust the delay before the screen
automatically turns off
Sound settings
General
Incoming calls
Only in Silent mode
Vibrate
Volume
Silent mode
Silence all sounds except media &
alarms
Phone ringtone
Notifications
Notification ringtone
Screen timeout
Choose separate volume
settings for incoming calls,
media, alarms, and notifications.
Call & Message Notifications
Turn on or off menu animations.
30th. January, 2012

16 Personalize
then choose Phone ringtone, Notification
ringtone, or Vibrate.

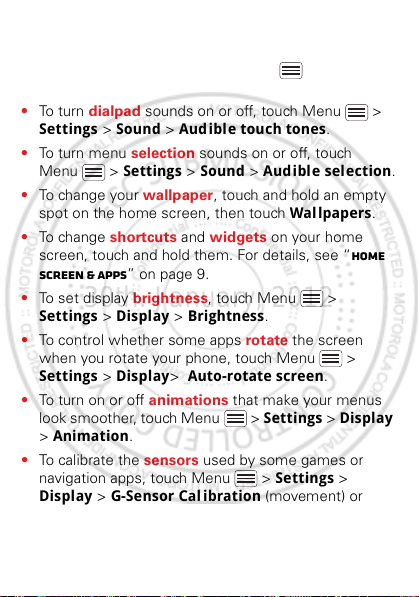

•To change the volume, touch Menu > Settings >
Sound > Volume.
•To tu rn dialpad sounds on or off, touch Menu >
Settings > Sound > Audible touch tones.
•To tu r n me nu selection sounds on or off, touch
Menu > Settings > Sound > Audible selection.
•To change your wallpaper, touch and hold an empty
spot on the home screen, then touch Wal lpapers.
•To change shortcuts and widgets on your home
screen, touch and hold them. For details, see “Home
screen & apps” on page 9.
•To set display brightness, touch Menu >
Settings > Display > Brightness.
•To control whether some apps rotate the screen
when you rotate your phone, touch Menu >
Settings > Display> Auto-rotate screen.
•To turn on or off animations that make your menus
look smoother, touch Menu > Settings > Display
> Animation.
•To calibrate the sensors used by some games or
navigation apps, touch Menu > Settings >
Display > G-Sensor Cal ibration (movement) or
E-Compass Cal ibration (direction).
30th. January, 2012

17Personalize
Language & region
To set your menu language and region, touch Menu
> Settings > Language & keyboard > Select
language
30th. January, 2012

18 Calls
Calls
it’s good to talk
Dial numbers, see recent calls, combine calls, or set up
forwarding, restrictions, and more.

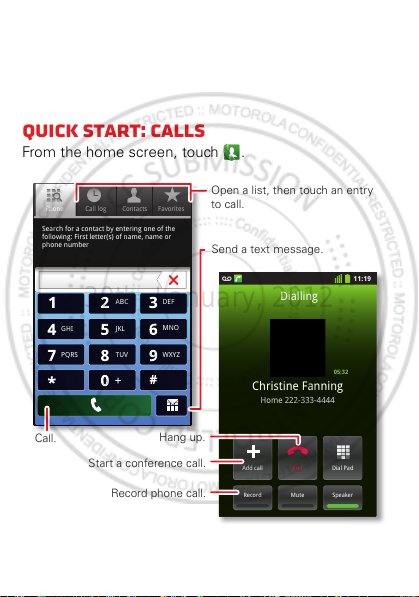

Quick start: Calls
From the home screen, touch .
Search for a contact by entering one of the
following: First letter(s) of name, name or
phone number
Contacts FavoritesPhone Call log
11:19
Dial PadAdd call
SpeakerMuteRecord
End
Christine Fanning
Home 222-333-4444
Dialling
05:32
ABC DEF
MNO
WXYZ
JKL
TUV
GHI
PQRS
+
Open a list, then touch an entry
to call.
Send a text message.
Record phone call.
Hang up.
Start a conference call.
Call.
30th. January, 2012
