SPECIFICATION SHEET

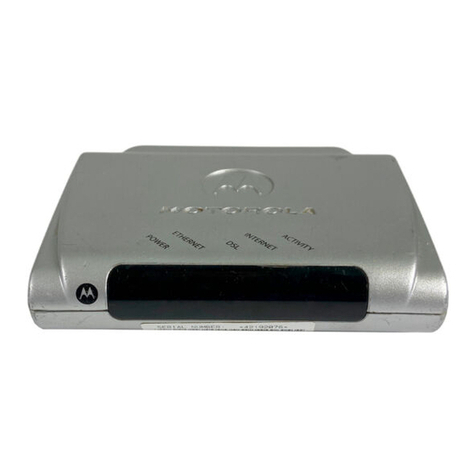

Motorola Netopia®
2200 Series
ADSL2+ Gateways
Multiple LAN networking
options
Supports single-user
households and home
networking
Customer-friendly
installation
CD-less installation makes
setup simple
Compatible service delivery
Works with most DSL service
providers
Configured to support
Voice-over-IP (VoIP) and
streaming video services
Video-on-demand (VOD)
functionality
Highly integrated design
meets sensitive cost
targets for large-scale
deployments by service
providers
Low Price, High Value
With this low-priced gateway, experiencing high-
speed Internet is only the beginning. The 2200
Series has the ability to enable VoIP, experience
broadcast quality video, or set up a small home
network to share data, music, or video files.
They are easy to install and can be automatically
configured and remotely managed. The 2200
Series opens up the Internet without the high
cost.
Affordable Triple-Play for the Home
The Motorola Netopia® 2200 Series ADSL2+
gateways are ideal for the home user who
wants an affordable gateway armed with the
triple-play power of voice, video, and data
service delivery.
The Power of Choice
Customers have the choice of connecting
through an Ethernet port or a USB port for wired
ADSL2+ connection. With available four-port
Ethernet switch, the gateway can link multiple
computers and devices to share data, music,
and video files. Multiple computers can connect
to the same network printer and print from
anywhere in the home or small office.
The affordable, reliable residential gateway for optimized data, video, and
voice.

SPECIFICATION SHEET
MOTOROLA NETOPIA®2200 SERIES
ADSL2+ Gateways
Benefits
Consumers: High Quality, Flexible Delivery,
and Video-on-Demand
The 2200 Series enables high-speed data, VoIP,
and IPTV triple-play service delivery with the
following benefits:
•Broadcast-quality video and crystal-
clear voice quality provided by the
Motorola VGx Quality of Service (QoS)
technology
•Multiple Service delivery from different
providers concurrently delivered to
multiple TVs or devices, while maintaining
service quality and rapid channel changing
through support for TR-101 and IGMPv3
•VOD functionality enabled though Real
Time Streaming Protocol (RTSP) support
Service Providers: Remote Management and
Troubleshooting, and Cost-Effective
Deployment
For the service provider, comprehensive remote
manageability, including centralized remote
provisioning, troubleshooting, and management,
is offered through support of the DSL Forum
TR-069 specification.
The 2200 Series gateways are ideal for cost-
sensitive mass deployments to residential and
small-office subscribers and feature Motorola’s
legendary ease of use, reliability, and security.
The 2200 Series gives providers new
opportunities for competitive differentiation and
revenue generation.
The Motorola Netopia
2200 Series ADSL2+
Gateway (2246N-VGx)
The 2246N-VGx is built for the
user who wants to branch
out. It is equipped with two
LAN options (Ethernet or
USB), but the addition of a
four-port Ethernet switch
allows the user to set up a
small network of computers
or other Ethernet-enabled
devices.
The Motorola Netopia
2200 Series ADSL2+
Gateway (2247NWG-VGx)
The 2247NWG-VGx is
equipped with a built-in
wireless access point for
connecting to the Internet
from anywhere in the home
or small business—and with
the four-port Ethernet switch,
PCs and laptops in a home
network can share the
Internet from one IP address.
Extra ports can be used to
hook up network peripherals
like printers or external
storage devices.

SPECIFICATION SHEET
MOTOROLA NETOPIA®2200 SERIES
ADSL2+ Gateways
The Motorola Netopia
2200 Series ADSL2+
Gateway (2240N-VGx)
The 2240N-VGx is equipped
with a single Ethernet port for
connecting to a laptop or
desktop, perfect for the
single-PC user. Download
music and video files faster,
enable a VoIP adapter, and all
the while feel secure with
Motorola’s reliable firewall and
quality-of-service standards.
The Motorola Netopia
2200 Series ADSL2+
Gateway (2241N-VGx)
The 2241N-VGx offers the
same standards and quality of
service as the 2240N-VGx,
but is equipped with two LAN
options for connecting a PC
or laptop—Ethernet (standard)
or USB 1.1.
With Motorola Netopia 2200 Series ADSL2+ gateways,
users can download music and video files faster and
enjoy VoIP and IPTV services, all with the security of
Motorola’s reliable firewall and quality-of-service
standards.

SPECIFICATION SHEET
MOTOROLA NETOPIA®2200 SERIES
ADSL2+ Gateways
Hardware
WAN INTERFACE
ADSL2+ RJ-11
LAN INTERFACE
2240N-VGx/ One 10/100 Ethernet (RJ-45)
2250N-VGx
2241N-VGx/ One 10/100 Ethernet (RJ-45)
2251N-VGx One USB 1.1
2246N-VGx Four-port 10/100 Ethernet switch
2256N-VGx (RJ-45)
2247NWG-VGx/ Built-in 802.11b/g wireless
2257NWG-VGx Four-port 10/100 Ethernet switch
(RJ-45)
LEDS
Power, Link, Status, Activity
Firmware
ENCODING AND LINE SPEED
ANSI T1.413 Issue 2
ITU 992.1 (G.dmt) Annex A, B, 992.2 (G.lite),
992.3 ADSL2 (G.dmt.bis), 992.4 ADSL2 (G.lite.bis), 992.5
ADSL 2+
PROTOCOL SUPPORT
ATM Adaptation Layer 5 (AAL5)
Up to eight Permanent Virtual Circuits (PVCs)
Bridged or routed Ethernet encapsulation
IP multicast pass-through
PPP over Ethernet gateway/pass-through
PPP over ATM LLC and VC multiplexing
BRIDGING AND ROUTING FUNCTIONS
Network Address Translation (NAT), IP maps, and pinholes
Static routes
IP multicast outbound support through NAT
DHCP client, server, and relay
DNS proxy
RIP1 and RIP2 on LAN/WAN
DDNS
Transparent bridged Ethernet over ATM
TR-101 support
SECURITY
Network Address Port Translation (NAPT)
Stateful firewall
Configurable firewall function
Denial-of-service protection
VPN pass-through for PPTP, L2TP, and IPSec
WIRELESS (2247NWG-VGX AND 2257NWG-VGX
ONLY)
Antennas Removable, omni-directional,
with diversity support
3-D Reach®Express Wi-Fi®
EMEA 100 mW transmit power
North America 200 mW transmit power
Channel Set
North America 1–11
Europe 1–13
Data Rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36,
48, and 54 Mbps with auto-rate
fallback
WEP 64-, 128-, and 256-bit encryption
802.1x, WPA, WPA-PSK, 802.11i/WPA2
Wi-Fi Multimedia (WMM) support
Transmit power control

SPECIFICATION SHEET
MOTOROLA NETOPIA®2200 SERIES
ADSL2+ Gateways
Motorola, Inc. 101 Tournament Drive, Horsham, Pennsylvania 19044 U.S.A. www.motorola.com
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Netopia and 3-D Reach are registered trademarks of Netopia, Inc., a
wholly owned subsidiary of Motorola, Inc. Wi-Fi and the Wi-Fi Alliance logo are registered marks of the Wi-Fi Alliance. All other product or service names are the
property of their respective owners. © Motorola, Inc. 2007. All rights reserved.
541635-001-a 5782 - 0707 - 0K
QOS AND TRAFFIC MANAGEMENT
VGx Virtual Gateway technology
Differentiated services (Diffserv)
IEEE 802.1p priority bits
IEEE 802.1q VLAN tagging
IGMP v2/v3 snooping/forwarding with fast leave
TR-111 support
DEVICE MANAGEMENT
TR-069 remote management
Remote and local management options using Web UI
(HTTP) and CLI (Telnet)
Two-level password-protected access
Statistic and log reporting, remote syslog support
Seven-layer diagnostics
SNMP v1 and v2
Utilities Ping, traceroute, reverse DNS
Regulatory
COMPLIANCE
FCC Part 68, Part 15, Class B
CE Mark
UL Listed, CSA Approved
European EMC and Immunity
DSL Forum TR-068 support
Industry Canada
RoHS-compliant
Environmental
TEMPERATURE
Operating 0 °C to 40 °C (32 °F to 104 °F)
Storage –40 °C to 85 °C (–40 °F to 185 °F)
RELATIVE HUMIDITY
5% to 90%, non-condensing
Physical
WIRED
(2240N-VGx/2250N-VGx/2241N-VGx/2251N-VGx)
Weight 1.2 lb (550 g)
Dimensions 1.06 in H x 4.36 in W x 5.71 in L
(2.69 cm x 11.07 cm x 14.50 cm)
WIRELESS
(2246N-VGx/2256N-VGx/2247NWG-VGx/
2257NWG-VGx)
Weight 1.2 lb (550 g)
Dimensions 1.2 in H x 5.2 in W x 6.8 in L
(3.0 cm x 13.2 cm x 17.2 cm)
Specifications are subject to change without notice.
