Motorola H730 User manual

Quick Start Guide
MOTOROLA H730

1Congratulations
Congratulations
Your MOTOROLA H730 headset is designed for quick
connections, clear calls, and lasting comfort.
We’ve crammed all of the main features of your
headset into this handy guide, and in a matter of
minutes we’ll show you just how easy your headset is
to use.
So go on, check it out.
more information
on the Web: www.motorola.com/support
Caution: Before using your headset for the first
time, please read the important Safety, Regulatory
& Legal information at the back of this guide (page
15).

2Your headset
Yo u r h e a d s e t
the important parts
Earhook
Micro USB
Charging
Connector
Volume
Button
Call
Button
Status
Light
Microphone
Boom
Volume
Button
Microphone

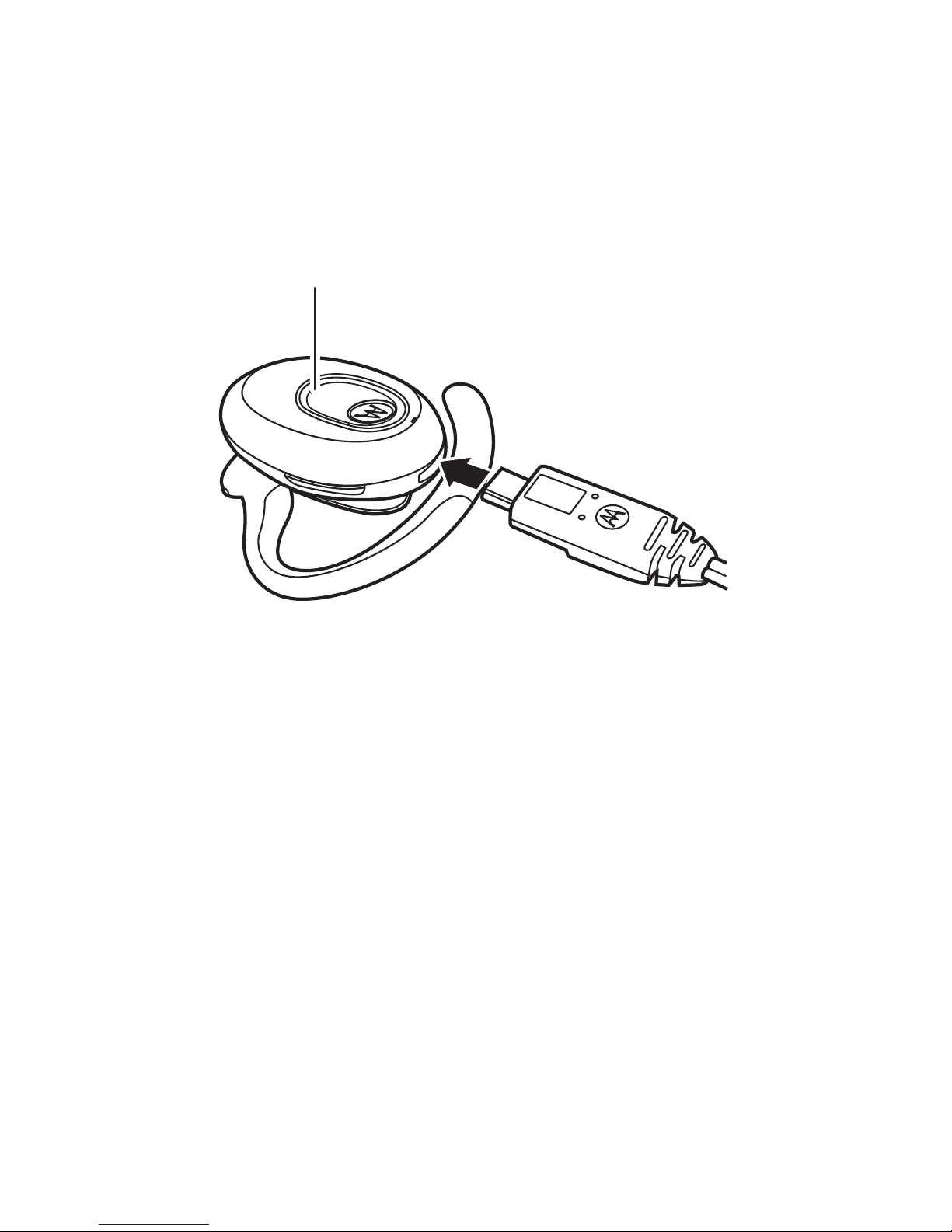

3Charge it
Charge it
let’s get you up and running
While your headset is charging, you won’t be able to
use it.
Note: Your battery is designed to last the life of your
product. It should only be removed by a recycling
facility. Any attempt to remove or replace your battery
will damage your headset.
Indicator Light
Red/Purple - charging
Blue - fully charged

4Basics
Basics
a few essentials to get you started
Tu rn o n & o ff
To turn on/off your headset, flip the boom to the open
(extended)/closed (folded under the headset body)
position.

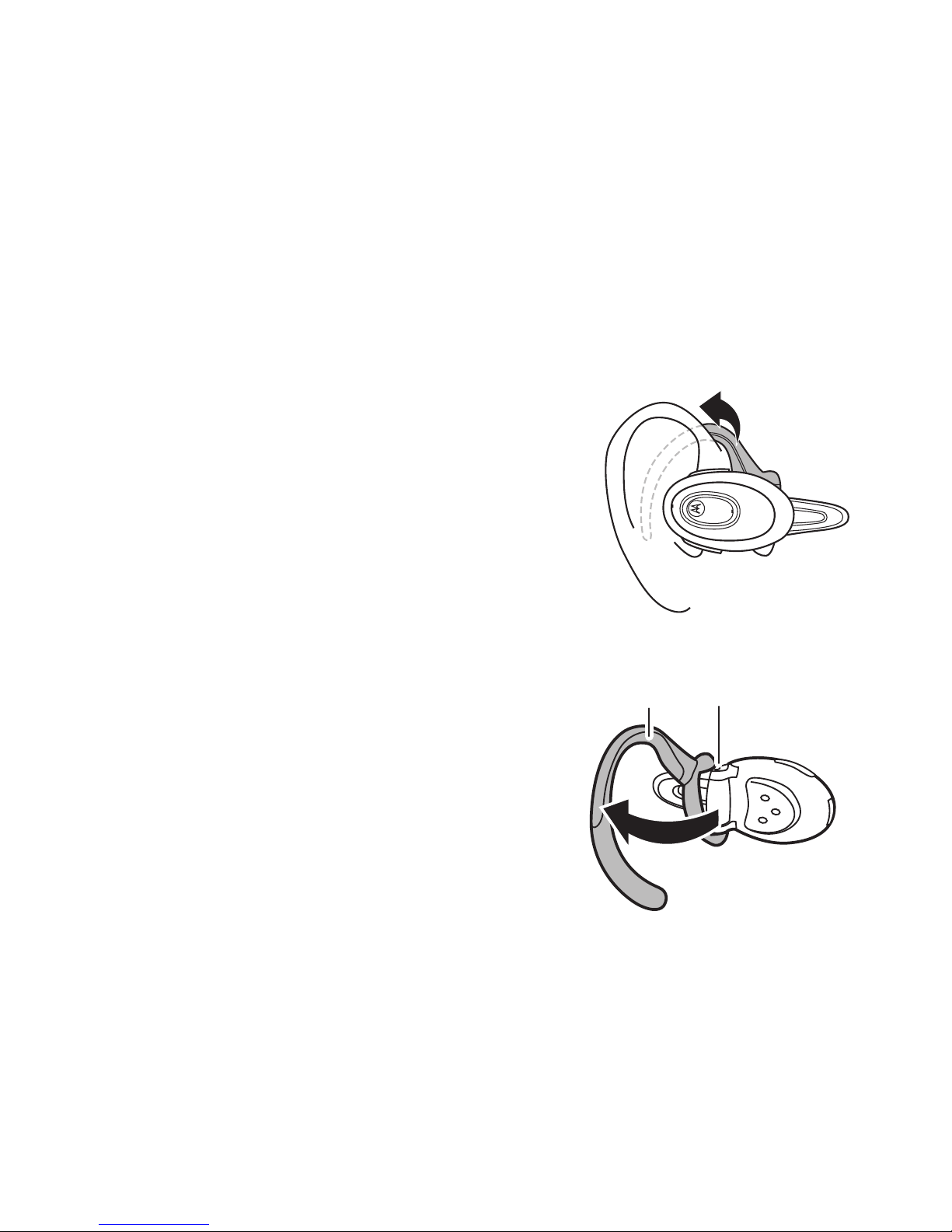

Wear it
Open the boom, flex the earhook
and loop it over your ear.
Make sure the speaker aligns with
your ear canal.
Change for left ear use
Open the boom and earhook
and gently lift top of the
earhook up and off, flip the
headset over, and then hook
bottom of the earhook onto
the lower hinge pin and lift top
of the earhook up and on to
the upper hinge pin.
Hinge pinEar hook

5Pair & connect
Pair & connect
connect and go
Note: The voice prompts are only in English.
Pair & connect with your phone
1Turn off any Bluetooth® devices previously paired
with your headset.
2Turn on the Bluetooth feature on your phone.
3Turn on your headset (see “Turn on & off” on
page 4).
4Put the headset on your ear (see “Wear it” on
page 4).
The status light is steadily lit in blue and you hear
“ready to pair”.
5Follow the voice prompts to connect your phone to
your headset.
Note: When prompted for the passkey, enter 0000.
When your headset successfully pairs with your
phone, you hear “pairing complete”.
For daily use, make sure your headset is turned on,
and your phone’s Bluetooth feature is on. Your headset
and phone will connect automatically.

6Pair & connect
Pair & connect a second phone (optional)
1Turn off first phone and any other Bluetooth devices
previously paired with your headset.
2Turn your headset off (see “Turn on & off” on
page 4).
3Turn on the Bluetooth feature on your phone.
4Put the headset on your ear.
5Turn on your headset.
The status light becomes steadily lit in blue and you
hear “ready to pair”.
6Follow the voice prompts to connect your phone to
your headset.
Note: When prompted for the passkey, enter 0000.
When your headset successfully pairs with your
phone, you hear “pairing complete”.
To connect to both phones, turn on both phones and
then turn your headset off and back on again. When
you hear “phone 1 connected” and “phone 2
connected” you’re ready to go. The last paired phone
(your second phone) is your primary phone (or “phone
1”) for voice dial functionality.

7Pair & connect
Test your connection
1Place the headset on your ear.
2On your phone, dial a phone number and press the
Call/Send key.
If your phone and headset are successfully connected,
you hear ringing on the headset.

8Calls
Calls
it’s good to talk
Note: Some features are phone/network dependent.
Note: The voice prompts are only in English.
Tip: When connected to two phones, voice prompts
help manage call functions such as voice dial, redial,
and end call. Follow the voice prompts to execute a
function on the desired phone.
To. ..
answer call Press the Call button.
reject call Press and hold a Volume button
until you hear a tone
make a voice
dial call
Press the Call button and you hear
a tone.
redial last call Press and hold the Call button until
you hear a tone.
mute or
unmute a call
Press both Volume buttons and you
hear “mute on” or “mute off”.
end a call Press the Call button.
answer
second
incoming call
Press the Call button.
reject second
incoming call
Press and hold a Volume button
until you hear a tone.

9Talk time
Talk tim e
check your chat time
Note: The voice prompts are only in English.
Press both Volume buttons while not on a call.
To save battery power, turn off the headset when not
using it.
If light
shows...
and/or you
hear...
your remaining talk
time is..
red “battery level is
low”
less than 4 hours
purple “battery level is
medium”
between 4 to 9
hours
blue “battery level is
high”
more than 9 hours

10 Status light
Status light
know your headset
If light shows... your headset is...
three blue flashes powering on/off
steady blue in pairing/connect mode
rapid blue/purple flashes connecting to your
phone
quick blue flash receiving or making a
call on phone 1
quick purple flash receiving or making a
call on phone 2
slow blue pulse on a call
slow blue flash in standby (not on a
call—connected to one
phone)
slow green flash in standby (not on a
call—connected to two
phones)
slow red flash idle (not connected to a
phone)

11Status light
Note: After 20 minutes on a call or of inactivity, the
light stops flashing to conserve power, but the headset
remains on.
slow purple pulse muting the call
steady red trying to connect to your
phone
quick red flash in a low battery state
If light shows... your headset is...

12 Settings
Settings
make some changes
Customize
Note: The voice prompts are only in English.
Voice prompts
With the headset turned on, press and hold either
Volume button and Call button until you hear “voice
prompts on” or “voice prompts off”.
Volume buttons
1Turn your headset off.
2Press and hold the Volume
button you want to assign as
‘volume up”.
3Turn your headset on.
Reset
Caution: This action erases all pairing information
stored in your headset.
With your headset on, press and hold the Call button
and both Volume buttons for 10 seconds until the
status light is steadily lit in blue.
Volume buttons

13Problems?
Problems?
we’ve got solutions
Note: The voice prompts are only in English.
My headset will not enter pairing mode
Make sure that any devices previously paired with the
headset are turned off. If the status light is not steadily
lit in blue, turn off both the other device and headset,
wait 10 seconds, then turn headset back on. The
status light to become steadily lit in blue and you hear
“ready to pair”.
My phone doesn't find my headset when searching
Make sure the status light on your headset is steadily
lit in blue when your phone is searching for devices. If
not, press and hold the Call button and Volume button
while turning the power on until you hear “ready to
pair”and see the status light steady blue.
My headset worked before but now it's not
working
Make sure your phone is on and the Bluetooth feature
is turned on in your phone. If the Bluetooth feature
was turned off or was turned on only temporarily, you
may need to restart the Bluetooth feature and pair your
phone and headset again (see “Pair & connect” on
page 5).

14 Support
Support
we’re here to help
If you have questions or need assistance, contact us at
1-877-MOTOBLU, or visit us at
www.motorola.com/Bluetoothsupport or
www.motorola com/bluetoothconnect.

15
Safety, Regulatory & Legal
Safety & General Information
Safety Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ
THIS INFORMATION BEFORE USING YOUR DEVICE.
Use & Safety for Battery-Powered Accessories
• Do not store or use your battery-powered accessory (such as a Bluetooth®
headset or other device) in temperatures below -10°C (14°F) or above 60°C
(140°F).
• Do not recharge your accessory in temperatures below 0°C (32°F) or above 45°C
(113°F).
• Conditions inside a parked car can exceed this range. Do not store your accessory
in a parked car.
• Do not store your accessory in direct sunlight.
• Storing your fully charged accessory in high-temperature conditions may
permanently reduce the life of the internal battery.
• Battery life may temporarily shorten in low-temperature conditions.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited to batteries,
antennas, and convertible covers, may cause your mobile device to exceed RF
energy exposure guidelines and may void your mobile device’s warranty. For a list of
approved Motorola accessories, visit our Web site at:
www.motorola.com
Driving Precautions
Responsible and safe driving is your primary responsibility when behind the wheel
of a vehicle. Using a mobile device or accessory for a call or other application while
driving may cause distraction. Using a mobile device or accessory may be prohibited
or restricted in certain areas, always obey the laws and regulations on the use of
these products.

16
While driving, NEVER:
• Type or read texts.
• Enter or review written data.
• Surf the web.
• Input navigation information.
• Perform any other functions that divert your attention from driving.
While driving, ALWAYS:
• Keep your eyes on the road.
• Use a handsfree device if available or required by law in your area.
• Enter destination information into a navigation device before driving.
• Use voice activated features (such as voice dial) and speaking features (such as
audible directions), if available.
• Obey all local laws and regulations for the use of mobile devices and accessories
in the vehicle.
• End your call or other task if you cannot concentrate on driving.
Responsible driving practices can be found at www.motorola.com/callsmart
(in English only).
Caution About High Volume Usage
Warning: Exposure to loud noise from any source for extended
periods of time may affect your hearing. The louder the volume sound
level, the less time is required before your hearing could be affected.
To protect your hearing:
• Limit the amount of time you use headsets or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness
in your ears, ringing in your ears, or muffled speech, you should stop listening to the
device through your headset or headphones and have your hearing checked.
For more information about hearing, see our Web site at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp (in English
only).

17
Small Children
Keep your mobile device and its accessories away from small children.
These products are not toys and may be hazardous to small children. For example:
• A choking hazard may exist for small, detachable parts.
• Improper use could result in loud sounds, possibly causing hearing injury.
• Improperly handled batteries could overheat and cause a burn.
Symbol Key
Your battery, charger, or mobile device may contain symbols, defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a fire.
Do not dispose of your battery or product with your household
waste. See “Recycling” for more information.
For indoor use only.
032374o
032376o

18
European Union Directives Conformance
Statement
EU Conformance
Hereby, Motorola declares that this product is in compliance with:
• The essential requirements and other relevant provisions of Directive 1999/5/EC
• All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC
(to R&TTE Directive) at
www.motorola.com/rtte . To find your DoC, enter the
Product Approval Number from your product’s label in the “Search” bar on the Web
site.
Product
Approval
Number
