Motorola iDEN SYN7875 User manual

DESCRIPTION
The SYN7875 Inductive Neckloop is an accessory designed for use
with Motorola’s iDEN
®
and cellular portable phones.
GENERAL
When used with a T-coil-equipped hearing aid, the neckloop provides
audio to the hearing aid and enables hands-free use of wireless phones.
Note: Your hearing aid must be switched to T-mode or MT-mode.
The neckloop includes a break-away connector that facilitates placing
and removing the neckloop around the neck. A battery charger for
your neckloop is also included.
1
Neckloop User Guide Page 3 Thursday, June 29, 2000 10:37 AM

IMPORTANT SAFETY INFORMATION
Read this information before using.
Pacemakers
The Health Industry Manufacturers Association recommends that a
minimum separation of six (6”) be maintained between a wireless
phone’s antenna and a pacemaker to avoid potential interference with
the pacemaker.These recommendations are consistent with the
independent research by and recommendations of Wireless
Technology Research.
Persons with pacemakers:
• should ALWAYS keep the phone more than six inches from their
pacemaker when the phone is turned ON
2
Neckloop User Guide Page 4 Thursday, June 29, 2000 10:37 AM

• should turn the phone OFF immediately if you have any reason to
suspect that interference is taking place
Other Medical Devices
If you use any other personal medical device, consult the manufacturer
of your device to determine if it is adequately shielded from external
RF energy.
Your physician may be able to assist you in obtaining this information.
Turn our phone OFF in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care
facilities may be using equipment that could be sensitive to external
RF energy.
3
Neckloop User Guide Page 5 Thursday, June 29, 2000 10:37 AM

POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn off your radio product when you are in area with a potentially
explosive atmosphere, unless it is a radio product type especially qual-
ified for such areas (for example, Factory MutualApproved). Sparks in
a potentially explosive atmosphere can cause an explosion or fire
resulting in bodily injury, or even death.
The areas with potentially explosive atmospheres referred to above
include fueling areas such as: below decks on boats; fuel or chemical
transfer or storage facilities; areas where the air contains chemicals or
particles such as grain, dust or metal powders; and any other area
where you would normally be advised to turn off your vehicle engine.
Areas with potentially explosive atmospheres are often, but not always
posted.
4
Neckloop User Guide Page 6 Thursday, June 29, 2000 10:37 AM

BATTERIES
Do not replace or charge batteries in a potentially explosive atmo-
sphere. Contact sparking may occur while installing or removing
batteries and cause an explosion.
PREPARING THEACCESSORY FOR USE
Battery Charging
Your neckloop’s battery is shipped in an uncharged state with a
protective cover unit.To begin using your neckloop, slip the battery
out of its protective cover, charge it overnight using the included
battery charger (see charger instruction sheet for battery charger
operation), then install the battery in the neckloop.
After initial charging, the battery can be charged in 1-2 hours.
5
Neckloop User Guide Page 7 Thursday, June 29, 2000 10:37 AM

The LED will display a pulsing yellow when the battery is low. The
yellow pulse rate is approximately 1/4 second on, 2 seconds off. If the
LED pulses yellow, remove the battery at your earliest convenience
and charge it using the included Motorola battery charger.
Attaching and Charging the Neckloop’s battery
To install the battery:

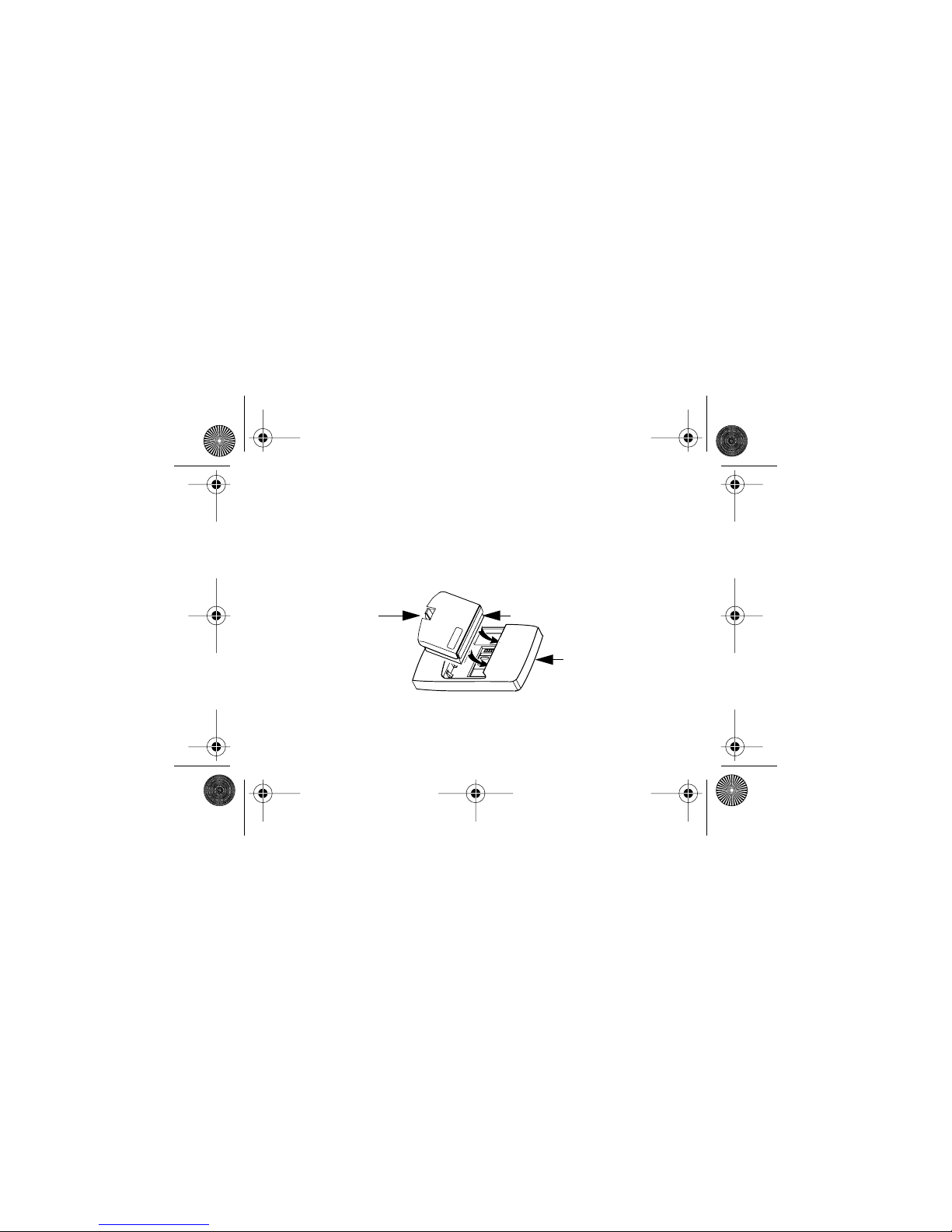

1. Place the side of the battery opposite the release latch into the
compartment.
6
Battery
Microphone
Housing
Battery’s
Release Latch
Neckloop User Guide Page 8 Thursday, June 29, 2000 10:37 AM

2. Press the side with the release latch down until you feel it click
into place.
To remove the battery:
1. Pull the release latch back toward the battery and lift the battery out.
Temperature. Batteries should be at or near room temperature when
charging. To prolong battery life and charge capacity, avoid exposing
your batteries to temperatures below -10˚ C (14˚ F) or above 45˚ C
(113˚ F). It is a good idea to take your phone and neckloop with you
when you leave your car.
Inactivity. New batteries, or batteries that have been stored for long
periods of time, may not rapid charge properly. In these instances, the
battery requires an overnight charge.
7
Neckloop User Guide Page 9 Thursday, June 29, 2000 10:37 AM

Extended Usage. Over extended periods of time, batteries gradually
wear down and require longer charging times. This is normal. If you
charge your battery regularly and notice a decrease in talk-time or an
increase in charging time, then it is probably time to purchase a new
battery.
Attachment/Removal of the Neckloop
Note: When using iDEN portable phones, the neckloop must be
used with the audio adapter accessory, NTN8654. This accessory
is sold separately. See your dealer for more information.
8
Neckloop User Guide Page 10 Thursday, June 29, 2000 10:37 AM

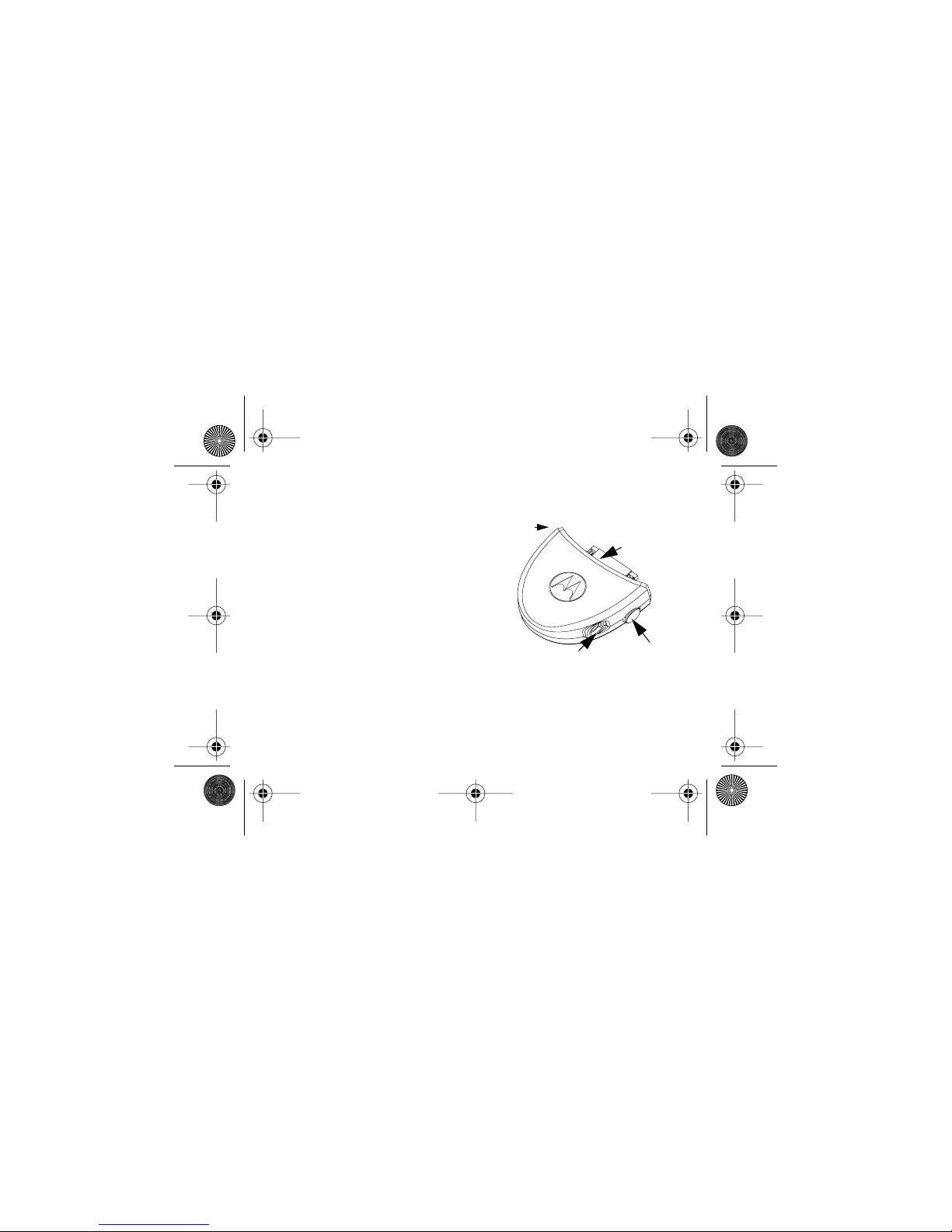

Attaching the Audio Adapter to
the iDEN phone
1. Hold both the audio adapter and
the phone facing you so you can
see the Motorola logo.
2. Insert the audio adapter’s con
nector into the phone’s connec-
tor.You will feel the connector
snap into place.
Audio
Adapter
Release
Button
2.55mm Release
Button
9
Neckloop User Guide Page 11 Thursday, June 29, 2000 10:37 AM

10

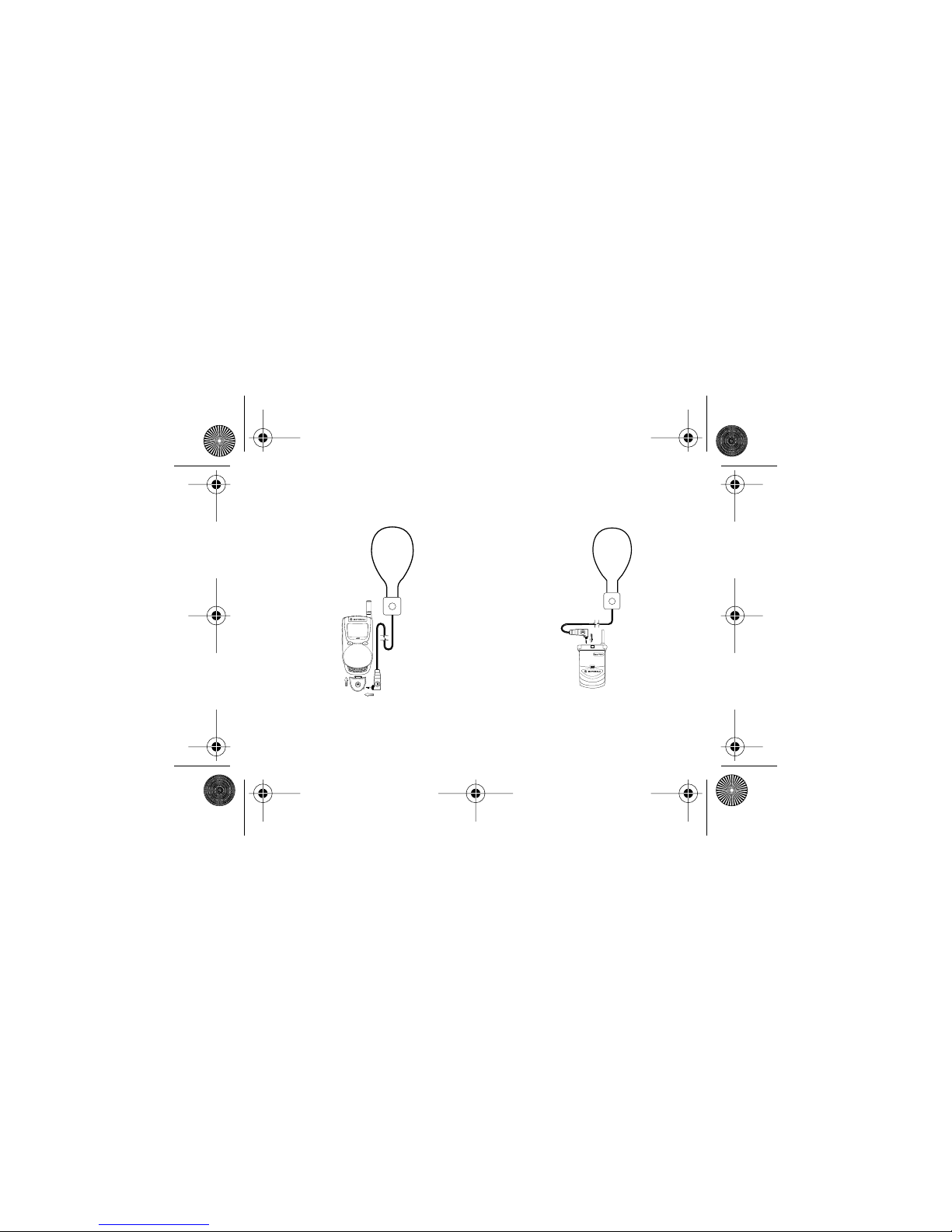

CellulariDEN
Attaching/Removing the Neckloop
Neckloop User Guide Page 12 Thursday, June 29, 2000 10:37 AM

1. Insert the 2.5mm plug of the neckloop’s cord into the jack on your
phone, or iDEN phone, the jack of the audio adapter.
2. Pull on the plug, not the cord, to remove the neckloop accessory.
Removing theAudio Adapter from iDEN phones
1. Simultaneously press the release buttons located on each side of the
audio adapter.
2. Pull the audio adapter from the phone.
11
Neckloop User Guide Page 13 Thursday, June 29, 2000 10:37 AM

WEARING THE NECKLOOP
12

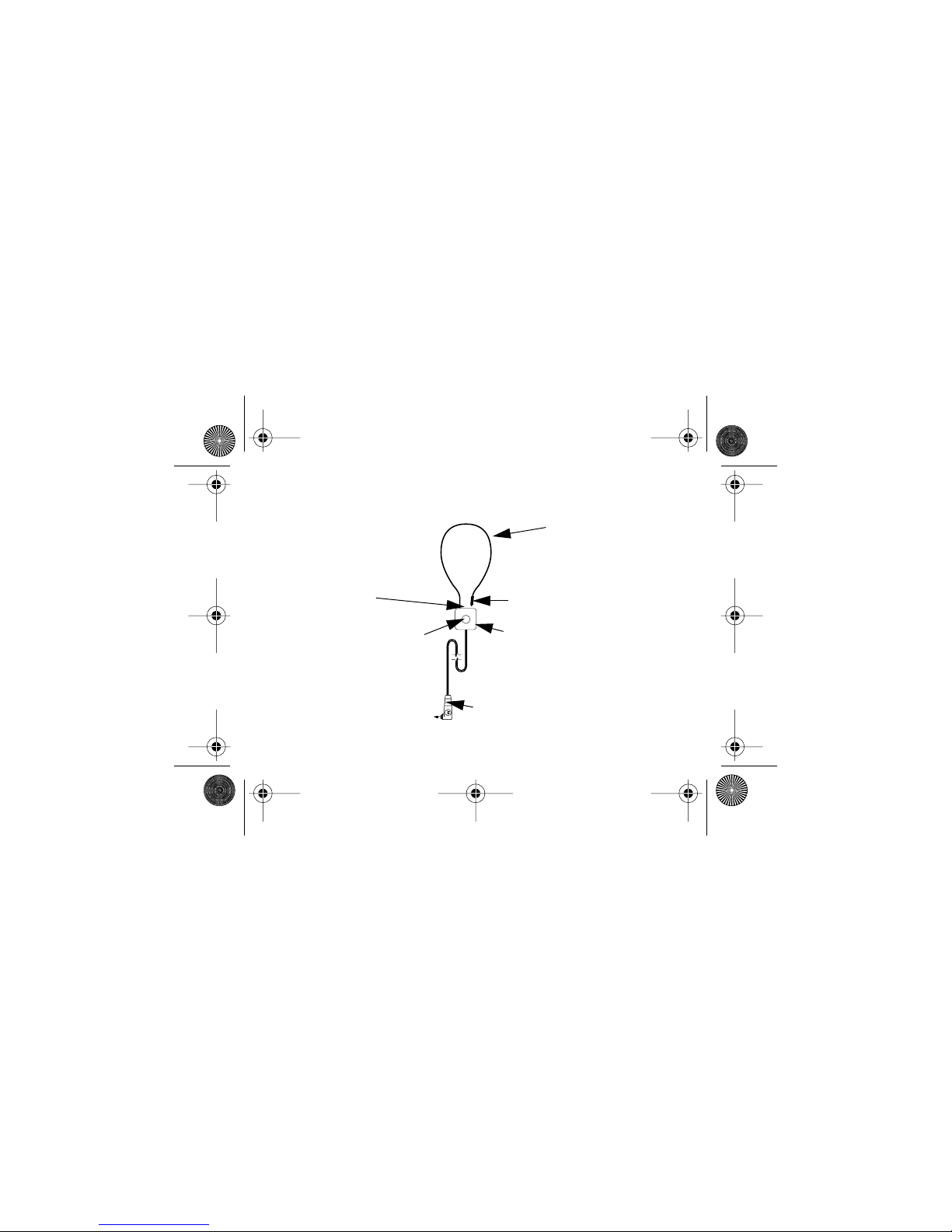

2.5mm plug
Inductive
Cord
Indicator
• Low Battery-yellow
• Mute-red
Mute Button Microphone Housing
Break-Away Connector
Neckloop User Guide Page 14 Thursday, June 29, 2000 10:37 AM

1. To put the neckloop on: Unplug the inductive cord by pinching
together the two ends of the inductive cord where they connect to
the housing.
2. Place the inductive cord around your neck
and plug the break-away connector into the
housing socket.
3. Switch your hearing aid toT-mode or
MT-mode.
4. Make or answer a call as you would nor-
mally. See your phone owner’s manual for
instructions.
13
Neckloop User Guide Page 15 Thursday, June 29, 2000 10:37 AM

To Remove:
1. Unplug the inductive cord by pinching together the two ends of the
inductive cord where they connect to the housing.
OPERATION
The neckloop is controlled by the phone.The neckloop becomes active
when plugged into the phone and the phone has been powered on.
Similarly, the neckloop turns off when unplugged from the phone or
when the phone is powered off.
You may need to set your phone to “vibrate” mode so that you are
alerted to any incoming phone calls. (Refer to your phone User’s
Guide for instructions.)
14
Neckloop User Guide Page 16 Thursday, June 29, 2000 10:37 AM

Using the Mute Button
When the microphone is muted, you will be able to hear the party on
the other end, but he or she will not hear you or any undesired back-
ground noise. This is especially useful in noisy environments.
1. To enable the mute feature, press the mute button located on the
front of the neckloop housing once. The LED will flash red approx-
imately 1/2 second off, 1/2 second on, signaling that the micro-
phone has been muted.
2. To disable the mute feature, press the mute button once and the
LED will stop flashing.
15
Neckloop User Guide Page 17 Thursday, June 29, 2000 10:37 AM

For best performance, follow these 3 steps:
1. Verify that your hearing aid is equipped with a T-coil and is operat-
ing in the T-coil mode. (Refer to your hearing aid manual if more
information is required.)
2. Attach the neckloop accessory as described in “ATTACHMENT/
REMOVAL OF THE NECKLOOP” .
3. Adjust the volume setting on the phone and hearing aid to a com-
fortable listening level.
Note: To minimize audio interference, the phone should not be
close to your head and hearing aid.
16
Neckloop User Guide Page 18 Thursday, June 29, 2000 10:37 AM

Note: The neckloop has ample output to cause audio distortion in
some hearing aids. If this occurs, reduce the phone volume and
adjust the hearing aid volume to compensate.
LIMITEDWARRANTY POLICY
MOTOROLA, INC. (Motorola) warrants this Motorola cellular
accessory against defects in material and workmanship under normal
use for ONEYEAR from the date of original retail purchase. This
warranty extends to the original retail purchaser only and is not
transferable. Motorola, at its option, will at no charge either repair the
accessory (with new or reconditioned parts) or replace the accessory
or refund the purchase price of the accessory during the warranty
period. Repaired/replacement accessories are warranted for either
17
Neckloop User Guide Page 19 Thursday, June 29, 2000 10:37 AM

ninety days or the remainder of the original warranty period,
whichever is longer. All replaced items become Motorola's property.
This warranty does not cover defects or damage resulting from
abnormal use, misuse, mishandling, neglect, accident or tampering.
This limited warranty does not apply if the product has:
• Been misused, neglected, repaired, altered, or willfully damaged.
• A defect resulting from failure to follow instructions in the manual
or product specifications.
• A defect which has arisen from the use of non-Motorola approved
accessories/products in conjunction with a Motorola phone.
You can obtain warranty service through your original place of
purchase on most cases. Or you can obtain warranty service by
18
Neckloop User Guide Page 20 Thursday, June 29, 2000 10:37 AM

returning the accessory directly to Motorola. In either case, you must
return the accessory with transportation prepaid and provide proof that
the accessory is within the warranty period (for example dated
purchase receipt). For more information, including about returning an
accessory to Motorola, please call the Motorola Cellular Information
Center toll-free at 1-800-331-6456 in the USA.
THIS IS THE COMPLETE WARRANTY FOR THE ACCESSORY
BY MOTOROLA AND SETS FORTHYOUR EXCLUSIVE
REMEDIES . THIS WARRANTY IS GIVEN IN LIEU OF ALL
OTHER EXPRESS WARRANTIES, IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WHICH ARE LIMITED TOTHE
19
Neckloop User Guide Page 21 Thursday, June 29, 2000 10:37 AM

DURATION OF THIS LIMITED WARRANTY. IN NO EVENT
SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EXCESS
OF THE PURCHASE PRICE OF THE ACCESSORY OR FOR ANY
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE SUCH
ACCESSORY, TOTHE FULL EXTENT SUCH MAY BE
DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the exclusion or limitation
of incidental or consequential damages, or limitations on how long an
implied warranty lasts, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
This warranty is valid only in the USA.
20
Neckloop User Guide Page 22 Thursday, June 29, 2000 10:37 AM
