Motorola MOTOPURE 6803578F33 User manual

H15 MOTOMANUAL

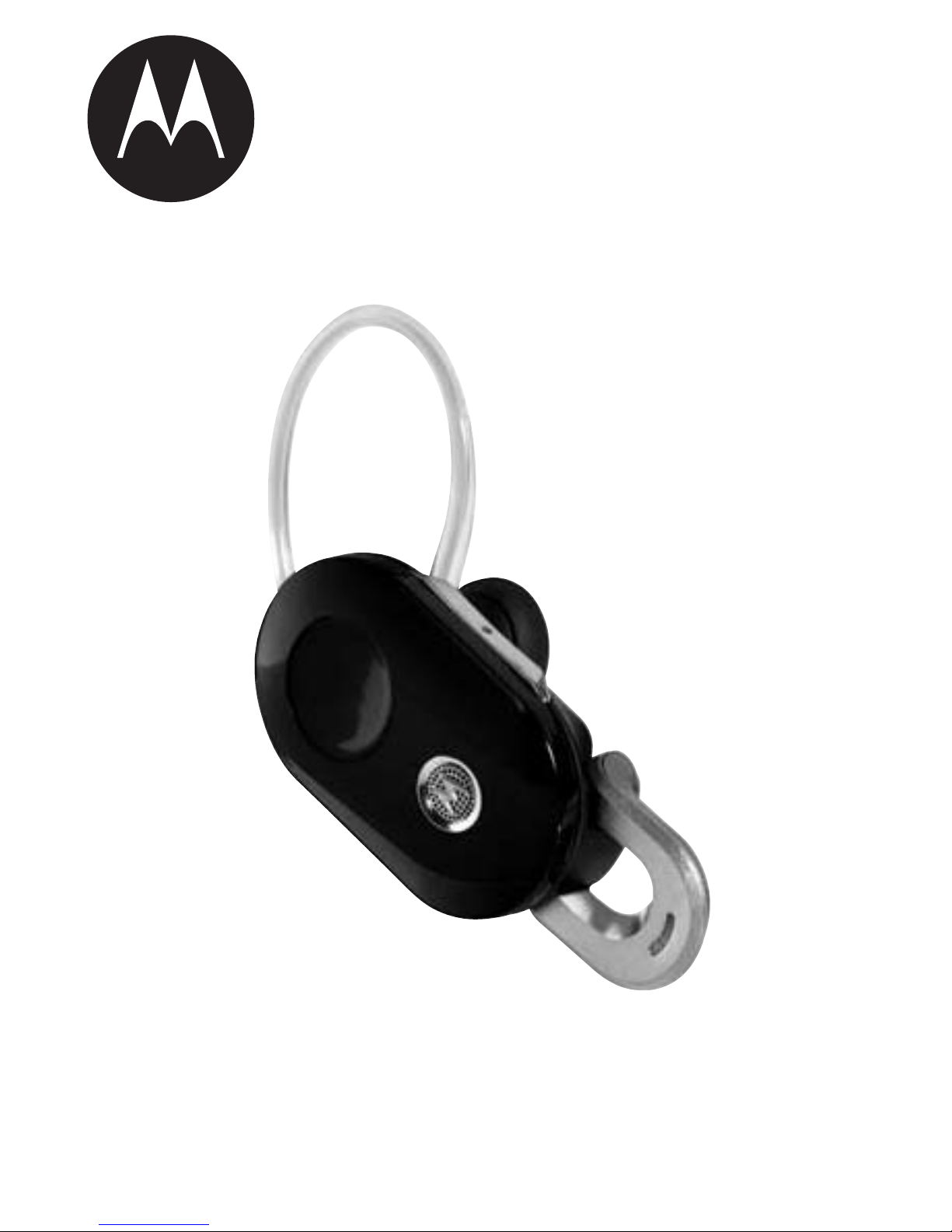

MOTOPURETM H15
Universal Flip
Bluetooth®
Headset

1
Figure 1
Figure 2
5
2
3
4
1
2
3
1

2
Figure 3
Figure 4 Figure 5

English
3
European Union Directives Conformance Statement
Hereby, Motorola Inc., declares that this H15 is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (the R&TTE Directive) at www.motorola.com/rtte.
Caring for the Environment by Recycling
When you see this symbol on a Motorola product, do not dispose
the product with household waste.
Recycling Mobile Phones and Accessories
Do not dispose of mobile phones or electrical accessories, such as chargers
or headsets, with your household waste. In some countries or regions,
collection systems are set up to handle electrical and electronic waste items.
Contact your regional authorities for more details. If collection systems aren’t
available, return unwanted mobile phones or electrical accessories to any
Motorola Approved Service Centre in your region.
FCC Notice to Users
Users are not permitted to make changes or modify the device in any way.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment. See-
47-CFR-Sec.-15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation. See-47-CFR-Sec.-15.19(3).

English
4
Before you begin
See figure 1 on page 1.
Take a moment before you get started to familiarize yourself with your new
H15 Bluetooth®Hands-free Headset. Along with your headset, a desktop
charger is provided for both charging and storage.
Bluetooth headset Desktop charger
1Call Button 1Power Indicator light
2Volume Buttons 2Headset Charging Connector
3Speaker 3Charger Port
4Multi-color Indicator light
5Boom
Charging your headset
See figure 2 on page 1.
You need to charge your headset using the included travel charger or
desktop charger.
Charging with travel charger
The indicator light turns red when the battery is charging. It may take up to
1 minute for the indicator light to turn on. When the headset’s battery is fully
charged (about 2 hours), the indicator light turns green.
Note: Headset is NOT functional while charging with travel charger.

English
5
Charging with desktop charger
The desktop charger light is lit, and the headset indicator light turns red
when the battery is charging. It may take up to 1 minute for the headset
indicator light to turn on. When the headset’s battery is fully charged (about
2 hours), the headset indicator light turns green.
Headset is functional while charging on desktop charger with the boom
open. When there is an incoming call, simply take headset off the desktop :
the call is automatically answered.
This product uses a lithium ion, rechargeable, non-replaceable
battery.
Your battery is designed to last the life of the product. It should only
be removed by a recycling facility. ANY ATTEMPT TO REMOVE OR
REPLACE YOUR BATTERY WILL DAMAGE THE PRODUCT.
Quick battery check
While your headset is turned on and not on a call, you can check the battery
charge level by pressing and holding both Volume buttons.
The indicator light displays charge status until you release the buttons. See
below for details on indicator light and available talk time based on charge
status.
Headset Indicator Available Talk Time
Red Less than 1 hours
Yellow From 1 to 3 hours
Green Greater than 3 hours

English
6
Wearing your headset
See figure 3 on page 2
Your H15 headset is supplied with multiple ear cushions. Your headset’s
performance is greatly dependent upon achieving a good fit on your ear.
Therefore, we recommend trying all the supplied ear cushions with your
headset.
The ear cushion is fitted onto the end of your headset’s earpiece speaker and
placed onto your ear when using your headset.
When fitting an oval-shaped ear cushion on your headset, be sure the
cushion is pointing towards the microphone.
You can wear your H15 headset on your left or right ear. The headset comes
ready for the right ear.
Placing the headset on your ear: see figure 4 on page 2
Placing the headset on the left ear: see figure 5 on page 2
Turning headset on and off
To turn your headset on, open the headset boom. The indicator light first
flashes blue 3 times, then:
UÊÊÊy>ÃiÃÊLÕiÊÃÜÞÊ>vÌiÀÊy>Ã}Ê«ÕÀ«iÉLÕiÊvÊ«>Ài`Ê>`ÊViVÌi`ÊÜÌÊ
a phone), or
UÊÊLiViÃÊÃÌi>`ÞÊLÕiÊvÊÀi>`ÞÊÌÊLiÊ«>Ài`®°
To turn your headset off, close the headset boom. The indicator light will
turn off.

English
7
Pairing your headset
Your phone’s Bluetooth feature is off by default. To use your headset, you
must turn on the Bluetooth feature in your phone. Please check your phone’s
user’s guide.
Note : The Bluetooth feature remains on until you turn the feature off.
Before you can use your headset, you must pair (link) it with your phone.
1 Ensure headset is in pairing mode
Open the headset boom to power on the headset and initiate pairing. After a
few moments, the indicator light will be steadily lit in blue to indicate headset
is in pairing mode.
If the headset does not enter into pairing mode, see “Troubleshooting” section.
2 Set your phone to look for your headset
UÊ Ê*iÀvÀÊ >Ê `iÛViÊ `ÃVÛiÀÞÊ vÀÊ ÌiÊ «i°Ê ÀÊ `iÌ>ÃÊ >LÕÌÊ `iÛViÊ
discovery, consult your phone’s user’s guide. The phone lists Bluetooth
devices it finds.
UÊ Ê-iiVÌÊ Motorola H15 in the list of discovered devices and confirm by
following the on-screen prompts.
UÊ Ê7iÊ«À«Ìi`ÊLÞÊÌiÊ«i]ÊiÌiÀÊÌiÊ«>ÃÃiÞÊ0000 and confirm.
Pairing is successful when the headset indicator flashes purple and blue.
Test and use
Your phone and headset are now paired and ready to make and receive calls.
To confirm they are successfully paired and operating properly, place the
headset over your ear and make a call from your phone. You will hear ringing
from the headset.
After you have successfully paired your phone and headset, you do not need
to repeat these steps each time you use the headset.
To conserve power, close the boom to turn your headset off. Re-open the
boom to make a call.

English
8
Using your headset with a second phone
Multipoint technology allows you to make and receive calls from 2 Bluetooth
enabled devices like your personal and business phones.
1 To pair a second phone to your headset, follow these steps :
ÊÊUÊÊÊ/ÕÀÊvvÊ>ÞÊ«iÃÊÀÊ`iÛViÃÊÌ>ÌÊ>ÀiÊ>Ài>`ÞÊ«>Ài`ÊÜÌÊÞÕÀÊi>`ÃiÌ
ÊÊUÊÊÊ/ÕÀÊvvÊÞÕÀÊi>`ÃiÌÊLÞÊVÃ}ÊÌiÊi>`ÃiÌÊL
ÊÊUÊÊÊ*>ÀÊÞÕÀÊi>`ÃiÌÊÜÌÊÞÕÀÊÃiV`Ê«iÊ>ÃÊ`iÃVÀLi`Êʺ*>À}ÊÞÕÀÊ
headset” section)
2To reconnect your headset with your first phone and thus be connected
to both phones :
ÊÊUÊÊÊ/ÕÀÊÊÌiÊwÀÃÌÊ«iÊ
ÊÊUÊÊÊÃiÊi>`ÃiÌÊLÊ>`ÊÌiÊÀi«iÊÌ
Your headset automatically connects to both phones. Your most recently
paired phone is now your primary phone for voice dial functionality.
Use the following tips when using H15’s multipoint technology :
UÊÊÊV}ÊV>ÃÊV>ÊLiÊ>ÃÜiÀi`ÊvÀÊLÌÊ«iÃÊ\
-When answering a call, the idle phone is disconnected from the
headset.
-When the call ends, the idle phone is automatically reconnected to the
headset.
UÊÊÊ>ÃÌÊ ÕLiÀÊ Ài`>Ê `>ÃÊ ÌiÊ >ÃÌÊ ÕÌ}}Ê V>Ê >`iÊ vÀÊ ÌiÊ «À>ÀÞÊ
phone.
UÊÊÊ6ViÊ`>ÊÃÊ>VViÃÃLiÊvÀÊiÌiÀÊ«iÊÛ>Ê`vviÀiÌÊiÞÊ>VÌÃÊ\
-For your primary device (last paired phone), tap the Call button until you
hear the tone.
-For your secondary device (other paired phone), tap the Call button and
either Volume button until you hear the tone.

English
9
Using your headset : making and receiving calls
Your headset supports both Hands-free and Headset Profiles. Accessing
call functions depends upon which profile your phone supports. See your
phone’s user’s guide for more information.
Note: some features are phone/network dependent.
Function Action
Answer a call Open the boom or tap the call button (if
boom is ready open), hear a low-to-high
tone
End a call Tap the Call button, and hear a high-to-low
tone
Reject a call Press and hold either Volume button until
you hear a tone
Redial last call Press and hold the Call button until you
hear a tone
Make a voice dial call Tap the Call button and speak the name
(Primary phone) after the tone
Make a voice dial call Tap the Call button and either Volume
(Secondary phone) button and speak the name after the tone
Answer a second incoming call Press and hold the Call button (places first
call on hold), and hear a tone
Reject second incoming call Press and hold either Volume button until
you hear a tone
Transfer a call from Press both Volume buttons and Call button,
the headset to the phone and hear a descending tone
Mute or unmute a call Tap both Volume buttons until you hear a
mute tone

English
10
Indicator lights
With No Charger Plugged In
Headset Indicator Headset Statuts
Off Power off
3 blue flashes Powering on/off
Steady blue Pairing mode
Quick blue/purple flashes Pairing successful
Quick blue flash Incoming call on primary phone
Quick purple flash Incoming call on secondary phone
Slow blue pulse Connected (on a call)
Slow blue flash Standby (not on a call)
Red flash Idle (not connected to phone)
Slow purple pulse Connected call muted
Quick red flash Low battery
Note: After 20 minutes on a call or of inactivity, the light stops flashing to
conserve power, but the headset remains on. To disable the indicator light,
press and hold both Volume buttons while turning headset on.
Note : Set your primary and secondary phones to different ring tones to know
which phone is ringing when wearing the headset.
With the Charger Plugged In To Travel Charger
Headset Indicator Headset Status
Red Battery level less than 50% charge
Yellow Battery level above 50% charge
Green Charging complete

English
11
With the Headset Plugged In to Desktop Charger
Headset Indicator Headset Status
Red Battery level below than 50% charge
Yellow Battery level above 50% charge
Green Charging complete
Quick blue flash Incoming call on primary phone
Quick purple flash Incoming call on secondary phone
Audio tones
Audio Tone Headset Status
Ring tone Incoming call
Short tone Phone network not available
High to low tone End call
1 short tone when pressing Volume at minimum or maximum
Volume button during a call
Ascending tone Mute enabled
Low tone (repeated every Mute reminder
15 seconds)
Descending tone Mute disabled
Low to high tone Connection confirmation/voice activation
No audio indications; Out of range
deteriorating quality
2 tones repeated every minute Low battery

English
12
Troubleshooting
My headset will not enter pairing mode
Make sure that any devices previously paired with the headset are turned
off. If the indicator light is flashing in blue, first turn off the other device, then
close and reopen the headset boom. The indicator light becomes steadily lit
in blue indicating the headset is now in pairing mode.
My headset will not pair with my phone
Open the boom flip. Press and hold both Volume buttons and the Call button
for more than 10 seconds. The indicator light flashes blue 3 times and then
becomes steadily lit. The headset is now in pairing mode to complete the
pairing process.
My phone doesn’t find my headset
Make sure the indicator light on your headset is on (lit in blue) and steady
when your phone is searching for devices.
My headset worked before but now it’s not working
Make sure your phone is on and the Bluetooth feature is turned on in
your phone.If the Bluetooth feature was turned off or was turned on only
temporarily, you may need to restart the Bluetooth feature and pair your
phone and headset again.
If you have any additional questions, please call your hotline number
(0870-9010-555) or visit us at www.hellomoto.com.

MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. All other product or service names are the property of
their respective owners. The Bluetooth trademark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks by Motorola, Inc. is under
license. © 2008 Motorola, Inc. All rights reserved.
6803578F33 - Printed in the EU.
motorola.com
