Motorola CB200-U User manual

1
CB200-M
User Guide
CB200-U
CB200-M
User Guide

2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
TABLE OF CONTENTS
RF Safety & FCC...............................................................................................................................
Safety & Information........................................................................................................................
Electromagnetic Interference Compliance.......................................................................................
Industry Canada Compliance............................................................................................................
Computer Software Copyrights........................................................................................................
Documentation Copyrights...............................................................................................................
BatteryInstallation............................................................................................................................
Controls Interface ............................................................................................................................
LCDDisplay........................................................................................................................................
LCDWakeup......................................................................................................................................
Scrolling Menu.................................................................................................................................
FrequencySelection..........................................................................................................................
CodeSelection...................................................................................................................................
Message Recording..........................................................................................................................
Message Playback............................................................................................................................
VolumeAdjusting..............................................................................................................................

3
TABLE OF CONTENTS
LCDContrast......................................................................................................................................
User Defined Frequencies.................................................................................................................
Software Version..............................................................................................................................
CallCycles.........................................................................................................................................
CycleDelay........................................................................................................................................
Inverted Codes..................................................................................................................................
Changing VHF to MURS...................................................................................................................
RF Busy Delay....................................................................................................................................
Mounting the Device........................................................................................................................
Frequency Tables - UHF ...................................................................................................................
Frequency Tables - VHF....................................................................................................................
Frequency Tables - MURS................................................................................................................
CTCSS Code Tables...........................................................................................................................
Notes.................................................................................................................................................
20
21
22
23
24
25
26
27
28-29
30-31
32
33
34-36
37-39

4RF SAFETY & FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Federal Communications Commision
445 12th Street, SW
Washington, DC 20554
1-888-225-5322 (1-888-CALL FCC) Voice: toll free 1-888-835-5322 (1-888-TELL FCC) TTY: toll free

5
RF SAFETY & FCC COMPLIANCE SAFETY & INFORMATION
The CB200 requires care in mounting and servicing. Observing the following precautions will
ensure the proper function and safety of the unit.
CAUTION!
• Do not screw through the device to mount to a surface.
• Keep the Callbox away from water, high moisture, and high temperatures.
• This equipment contains potentially hazardous voltages.
• Do not attempt to disassemble the unit.
• Except for the batteries, this unit contains absolutely no user serviceable components and all
service should be completed only by qualified service personnel.
• Do not dispose of batteries in fire. The batteries may explode.
• Do not open or mutilate the batteries, they contain dangerous electrolytes.
• Operating this unit in any capacity other than its intended purpose may result in system failure
and possible injury and voids any and all warranty.

6EMI COMPATIBILITY
ELECTROMAGNETIC INTERFERENCE (EMI) COMPLIANCE
NOTE: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if
inadequately shielded, designed, or otherwise configured for electromagnetic compatibility.
This device complies with part 15 of the FCC Rules and Industry Canada License-exempt RSS
standard(s). Operation is subject to the following conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation of the device.
(3) Changes or modifications made to this device, not expressly approved by Motorola, could void
the authority of the user to operate this equipment.

7
INDUSTRY CANADA COMPLIANCE
Industry Canada (IC) statement (Canada) / Déclaration de Canada d’industrie (IC) (Canada)
IC RF Exposure Statement / Déclaration d’exposition d’IC RF
This device meets the IC requirements for RF exposure in public or uncontrolled environments.
Cet appareil est conforme aux conditions de la IC en matière de RF dans des environnements publics ou
incontrôlée.
IC Warning / Avertissement d’IC
This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the
following two conditions: 1. this device may not cause interference, and 2. this device must accept any
interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence (s). Son utilisation
est soumise à Les deux conditions suivantes: 1. cet appareil ne peut pas provoquer d’interférences et 2.
cet appareil doit accepter Toute interférence, y compris les interférences qui peuvent causer un mauvais
fonctionnement du dispositive.

8
The Motorola Solutions products described in this manual may include copyrighted
Motorola Solutions computer programs stored in semiconductor memories or other media. Laws
in the United States and other countries preserve for Motorola Solutions certain exclusive rights
for copyrighted computer programs including, but not limited to, the exclusive right to copy or
reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola
computer programs contained in the Motorola Solutions products described in this manual may
not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the
express written permission of Motorola Solutions. Furthermore, the purchase of Motorola Solutions
products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents or patent applications of Motorola Solutions, except for the
normal nonexclusive license to use that arises by operation of law in the sale of a product.
COMPUTER SOFTWARE COPYRIGHTS

9
No duplication or distribution of this document or any portion thereof shall take place
without the express written permission of Motorola Solutions. No part of this manual may be
reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for
any purpose without the express written permission of Motorola Solutions.
DISCLAIMER
The information in this document is carefully examined, and is believed to be entirely
reliable. However, no responsibility is assumed for inaccuracies. Furthermore, Motorola Solutions
reserves the right to make changes to any products herein to improve readability, function, or design.
Motorola Solutions does not assume any liability arising out of the applications or use of any product
or circuit described herein; nor does it cover any license under its patent rights, nor the rights of
others.
DOCUMENTATION COPYRIGHTS

10 INSTALLING THE BATTERIES
The CB200 uses six (6) AA batteries.
1. Remove the battery holder from
cardboard packaging.
2. Orient the battery holder with the
four copper contacts pointed
towards you.
3. Insert the batteries following
battery sled sticker.
4. Insert battery holder into
bottom of device with the four
contacts first.
5. Replace the battery holder cover.
BATTERY
HOLDER
BATTERY
HOLDER
COPPER
CONTACT
BATTERY HOLDER
COVER
+
-

11
CONTROL INTERFACE
1. Menu Button
2. Enter Button
3. Esc Button
4. Display
5. Microphone
6. Wake Up Button
7. Call Button
Available Controls and Components

12 LCD DISPLAY
Initial Power-Up
Once the batteries are installed in the unit, the Call Button
blinks and LCD display shows
Interface ENA.
If the USB Serial Interface is not to be used, press the ESC
button to exit this mode. The default status screen will be
shown on the display. If nothing is pressed, the unit will en-
ter sleep mode after 60 seconds and the screen will clear.
Status Screen
The Status Screen toggles the current Frequency and
CTCSS setting continuously.
INTERFACE ENA
-ESC to EXIT-
Freq No: 6
MHZ:467.8750
Freq No: 6
MHZ:467.8750

13
LCD WAKEUP
The screen is in a blank “sleep” state during most operation, even when the system is operating.
This is a feature to increase battery life and prevent tampering.
To enter the Menu options, press the Wakeup button on the unit. The large round button blinks to
indicate it is awake.

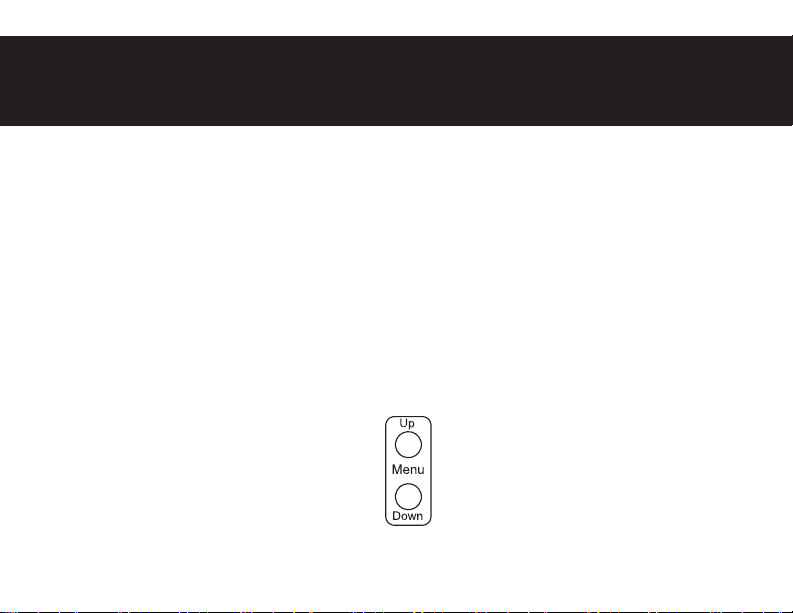

The display remains disabled until any LCD menu control button is pressed. The LCD menu control
buttons are Up or Down as shown in the following.

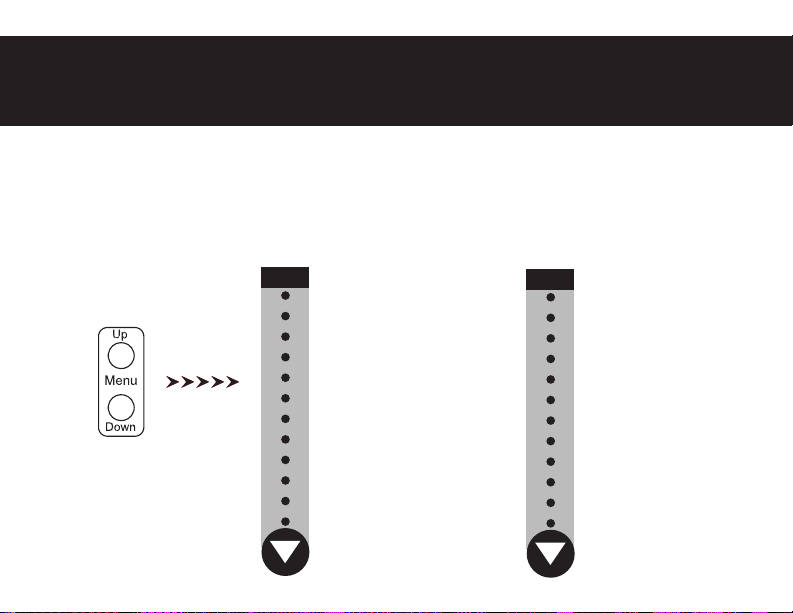

14 SCROLLING MENU
You can setup preferred features on CB200 by scrolling through the menu options. Press the Menu
buttons to scroll through menus.
Menu options are presented in the order below, and the list repeats continuously.
vv
Set Radio Frequency
Set Radio Code
Message Record
Message Playback
Volume Adjust
LCD Contrast
User Defined Frequency
Software Version
Call Cycles
Cycle Delay
Inverted Codes
RF Busy Delay
VHF Frequency No.
Set Radio Code
Message Record
Message Playback
Volume Adjust
LCD Contrast
User Defined Frequency
Software Version
Call Cycles
Cycle Delay
Inverted Codes
Channel Spacing
MURS or VHF
RF Busy Delay
UHF VHF

15
VHF Frequency No.
Set Radio Code
Message Record
Message Playback
Volume Adjust
LCD Contrast
User Defined Frequency
Software Version
Call Cycles
Cycle Delay
Inverted Codes
Channel Spacing
MURS or VHF
RF Busy Delay

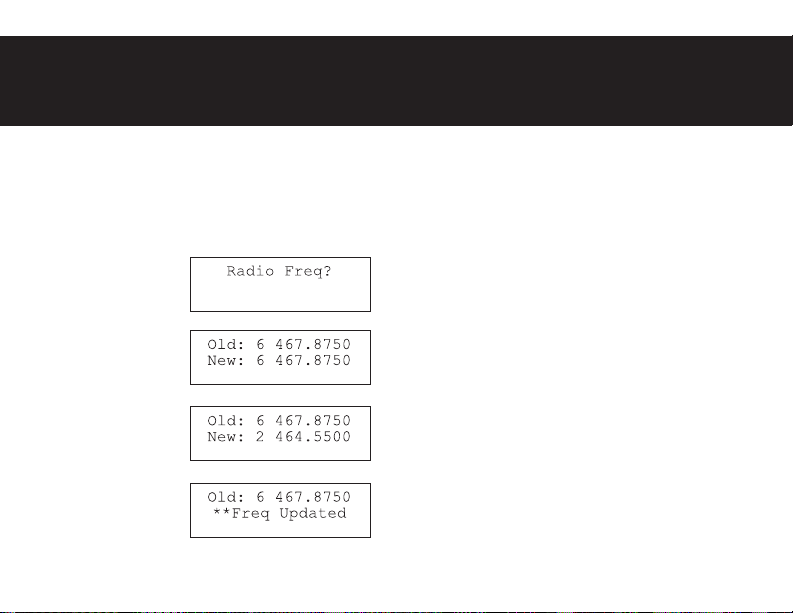

RADIO FREQUENCY SELECTION
Set Radio Frequency
When the unit is awake and displaying the Status Screen, press the
UP or Down Menu buttons until “Radio Freq?” appears.
Press Enter
Press Up or Down to
select new frequency
Press Enter to select new
frequency
Press Enter to select new
frequency
The radio is now programmed with the new frequency selected.

16 RADIO CODE SELECTION
Radio Code?
Old:12 100.0 Hz
New:12 100.0 Hz
Old:12 100.0 Hz
New:13 103.5 Hz
Old:12 100.Hz
**Code Updated
The radio is now programmed with the new CTCSS code.
Set Code Frequency
When the unit is awake and displaying the Status Screen, press the
UP or Down Menu buttons until “Radio Code?” appears.
Press Enter
Press Up or Down to
select new code
Press Enter to select new
code
Press Enter to select new
code

17
MESSAGE RECORDING
Press Up or Down button until “Msg Record?” appears.
The new message automatically playback to verify it was recorded correctly. Message cannot be
longer than 10 seconds.
Msg Record?
Select Message?
Aux Message
Select Message?
Local Message
Hold ENTER Btn
To Record Msg
Press Enter
Press Up or Down to find
message to record.
Press Enter to select mes-
sage to record.
Hold Enter button to record
a new message.

18 MESSAGE PLAYBACK
Press Up or Down button until “Msg Playback?” appears.
Press Enter
Press Up or Down to find
message to playback.
Press Enter to select
message to playback.
Select new message to
playback or press Esc to exit.
Msg Playback?
Select Message?
Local Message
Select Message?
Radio Message
-Playback Act-
Radio Message

19
VOLUME ADJUSTMENT
Volume Adjust?
Speaker Volume?
-Speaker Vol-
Vol(1-63): 45
Press Up or Down button until “Volume Adjust?” appears.
Press Enter
Press Up or Down to select which volume
to adjust, then press Enter.
Press Up or Down until desired volume
selection is shown. The volume settings
take place immediately. Press Esc to exit.

20 LCD CONTRAST
Press Up or Down button until “LCD Contrast?” appears.
If the need arises to adjust the LCD contrast, check the batteries first. The batteries may be too
weak to operate the unit correctly.
Press Enter
Press Up or Down until desired contrast
selection is shown. The contrast settings
take place immediately. Press Esc to exit.
LCD Contrast?
-LCD Contrast-
(0-15): 0
