Motorola PMP 100 Instruction Manual

FCC Draft
Software Release 10.5
Release Notes and User Guide
Supplement
PMP 100 and PTP 100 (FSK)
PMP 400 and PTP 200 (OFDM)
FCC Draft
November 2010

FCC Draft
Notices
See important regulatory and legal notices in Section 10 on Page 31.
Trademarks, Product Names, and Service Names
MOTOROLA, the stylized M Logo, Canopy, and all other trademarks indicated as such herein are
registered trademarks of Motorola, Inc. ® Reg. US Pat & Tm. Office. All other product or service
names are the property of their respective owners.
© 2010 Motorola, Inc. All rights reserved
http://motorola.wirelessbroadbandsupport.com

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 3
Table of Contents
1Introduction .......................................................................................................... 5
1.1 Release 10.5 Overview ................................................................................. 5
1.2 Document Change History ............................................................................ 5
1.3 Abbreviations ................................................................................................ 5
1.4 Feedback on Documentation ........................................................................ 6
1.5 Technical Support ......................................................................................... 6
2Applicability .......................................................................................................... 8
3Upgrading to Release 10.5................................................................................... 9
3.1 Obtaining CNUT Upgrade Packages............................................................. 9
3.2 Network Management ................................................................................... 9
3.3 PMP 430 –Options for 5, 10, and 20 MHz Channel Size .............................. 9
4Features .............................................................................................................. 11
4.1 US -Operation to avoid Interference with TDWR ........................................ 12
5Resolved Issues .................................................................................................16
6Known Open Issues ........................................................................................... 17
7Notes and Reference.......................................................................................... 18
7.1 Notes .......................................................................................................... 18
7.2 US Region Code Operation......................................................................... 21
7.3 PMP 430 Center Channels.......................................................................... 21
7.4 PMP 100 Series DFS Operation Based on Region Code ............................ 23
7.5 PTP 100 Series DFS Operation Based on Region Code............................. 24
7.6 PMP 400/430 and PTP 200 DFS Operation Based on Region Code........... 25
8Canopy MIB......................................................................................................... 26
9Performance Benchmarking Process ............................................................... 27
9.1 Definitions ................................................................................................... 27
9.2 System Performance and System Constraints ............................................ 27
9.3 Benchmark Definition .................................................................................. 29
10 Regulatory and Legal Notices........................................................................... 31
10.1 Important Note on Modifications .................................................................31

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 4
10.2 National and Regional Regulatory Notices.................................................. 31
10.3 RF Exposure Separation Distances ............................................................ 39
10.4 Legal Notices.............................................................................................. 42
10.5 Limit of Liability ........................................................................................... 44
List of Tables
Table 1: Release 10.5 Features ..................................................................................11
Table 2: TDWR Location Information ..........................................................................14
Table 3: Issues resolved in Release 10.5 ....................................................................16
Table 4: Release 10.5 known open issues ..................................................................17
Table 5: Notes first discussed with Release 10.3.1......................................................18
Table 6: Notes first discussed with Release 9.5 ..........................................................19
Table 7: PMP 430 center channels by channel bandwidth and region code ................22
Table 8: PMP 100 (FSK) AP/SM DFS operation based on region code.......................23
Table 9: PTP 100 (FSK) BHM/BHS operation based on region code ..........................24
Table 10: PMP 400/430 and PTP 200 (OFDM) DFS operation based on region code.25
Table 11: US FCC IDs and Industry Canada Certification Numbers and covered
configurations ..............................................................................................32
Table 12: China disclosure table .................................................................................38
Table 13: Exposure separation distances ....................................................................39
Table 14: Calculated exposure distances and power compliance margins ..................40
List of Figures
Figure 1: Applicable products ........................................................................................8
Figure 2: PMP AP and PTP BH Region Code Set to United States .............................21
Figure 3: PPS Benchmark Test Setup .........................................................................30

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 5
1Introduction
1.1 RELEASE 10.5 OVERVIEW
Release 10.5 is a general release for all Canopy FSK and OFDM radios, including PMP 100,
PMP 400/430, PTP 100, and PTP 200 Series modules. This document contains release note
information (resolved issues and known open issues) as well as information that supplements the
Motorola PMP Solutions Users Guide (descriptions, procedures, and reference information).
For the US, Release 10.5 and this document supports
oavoiding interfering with Terminal Doppler Weather Radar (TDWR) (used near major
airports) when using the 5.4-GHz band, especially within 35 km (21.75 mi) of the
TDWR
ocertification and shipment of US 5.4-GHz PMP 430 (OFDM) APs and SMs
ocertification and shipment of US Series P11 5.4-GHz PMP 100 (FSK) APs and SMs
and PTP 100 (FSK) BHs
For details on these and other Release 10.5 features, see section 4 on page 11.
For improvements and issues resolved in Release 10.5, see section 5on page 16.
For release open issues, see section 6on page 17.
Modules should be running Release 10.4 before upgrading to Release 10.5.
To manage modules running Release 10.5, including managing features new to this release, use
either Prizm 3.3 or Wireless Manager 2.2.
1.2 DOCUMENT CHANGE HISTORY
FCC Draft
Draft for FCC approval process
1.3 ABBREVIATIONS
The following abbreviations and acronyms are used in these notes and related documentation:
AES Advanced Encryption Standard
AP Access Point
BAM Bandwidth and Authentication Manager
BH Backhaul Module
BHM Backhaul Module –Master
BHS Backhaul Module –Slave
CAP Access Point Module
CEPT Conference of European Post and
Telecommunications
CIR Committed Information Rate
CMM Cluster Management Module
CNUT Canopy Network Updater Tool
CSM Subscriber Module
DES Data Encryption Standard
DFS Dynamic Frequency Selection
DHCP Dynamic Host Configuration Protocol
DNS Domain Name System
EIRP Equivalent Isotropically Radiated Power
EFTA European Free Trade Association
ETSI European Telecommunications
Standards Institute
EU European Union
FAA US Federal Aviation Administration
FCC US Federal Communications
Commission
FSK Frequency Shift Keying
FTP File Transfer Protocol
FTPS Secure FTP
GPS Global Positioning System
HPAP High Performance AP (PMP 430 AP)
IC Industry Canada
IETF Internet Engineering Task Force
IP Internet Protocol
ISM Industrial, Scientific, Medical
LAN Local Access Network

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 6
MAC Media Access Controller
MIB Management Information Base
MIR Maximum Information Rate
NAT Network Address Translation
NTIA National Telecommunications and
Information Administration
OFDM Orthogonal Frequency Division
Multiplexing
OID SNMP Object Identifier
P7/P8/P9/P10/P11 Hardware Series
PMP Point to Multi-Point
PTP Point to Point
RADIUS Remote Authentication Dial In User
Service
RF Radio Frequency
RLAN Radio Local Area Network
SM Subscriber Module
SNMP Simple Network Management Protocol
SNR Signal to Noise Ratio
TCP/IP Transmission Control Protocol/Internet
Protocol
VDC Volts Direct Current
VID VLAN ID
VLAN Virtual LAN
WAN Wide Area Network
WISPA Wireless Internet Service Providers
Association
WM One Point Wireless Manager
1.4 FEEDBACK ON DOCUMENTATION
Is this document accurate, complete, and clear? How can it be improved? Please send your
feedback on Canopy documentation to [e-mail].
1.5 TECHNICAL SUPPORT
Tip! Do not clear the Event Log after you encounter issues. It may be useful to
Technical Support, if you need to escalate the issue.
Here is the escalation path for resolution of a problem:
1. Check documentation:
These Release Notes
Motorola PMP Solutions Users Guide, available at
http://motorola.wirelessbroadbandsupport.com/software.
2. Consider checking the Community Forum and Knowledge Base at
http://motorola.wirelessbroadbandsupport.com/support/community.
3. Consider checking the Support Home Page at
http://motorola.wirelessbroadbandsupport.com/support/technical.php
4. Escalate the problem to your supplier or reseller.
5. Escalate the problem to Technical Support or other designated Tier 3 technical
support:
Email: [e-mail]
Phone:
U.S. and Canada 1-866-961-9288
Europe, Middle East, and Africa
Denmark 043682114
France 0157323434
Germany 06950070204
Italy 0291483230
Lithuania 880 030 828
Netherlands 0202061404
Norway 24159815
Portugal 0217616160
Spain 0912754787
Russia 810 800 228 41044
Saudi Arabia 800 844 5345
South Africa 0800981900
United Kingdom 0203 0277499
All other countries [phone]

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 7
Latin and Central America
Argentina 0800-666-2789
Brazil 0800-891-4360
Columbia 01-800-912-0557
Mexico 001-800-942-7721
Peru 0800-70-086
All other countries [phone]
Asia and Pacific
Australia 1 800 457 439
Northern China 10 800 713 0885
Southern China 10 800 130 0867
China, local DID [phone]
Hong Kong 30 027 861
India 000 800 100 3098
Japan 221626765
Japan, PSTN (81) 335 708 643
South Korea 080 681 0880
Malaysia 1 800 812 384
New Zealand 0 800 448 472
Philippines 63 29 003 057
Singapore 64 155 110
Taiwan 00 801 14 8690
Thailand 001 800 441 0950
Indonesia 001 803 015 20 20530
All other countries [phone]
When you send e-mail or call, please include, as appropriate, software release on each module,
IP addresses, MAC addresses, and features enabled, like NAT, VLAN, high priority channel, or
CIR. You may be asked to run the Support Tool on CNUT or Prizm to provide a complete network
picture.

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 8
2Applicability
Release 10.5 is a general release recommended for all the products shown in Figure 1.
Modulation and
Module Type
PMP Radio Series
(Point-to-MultiPoint)
PTP Radio Series
(Point-To-Point)

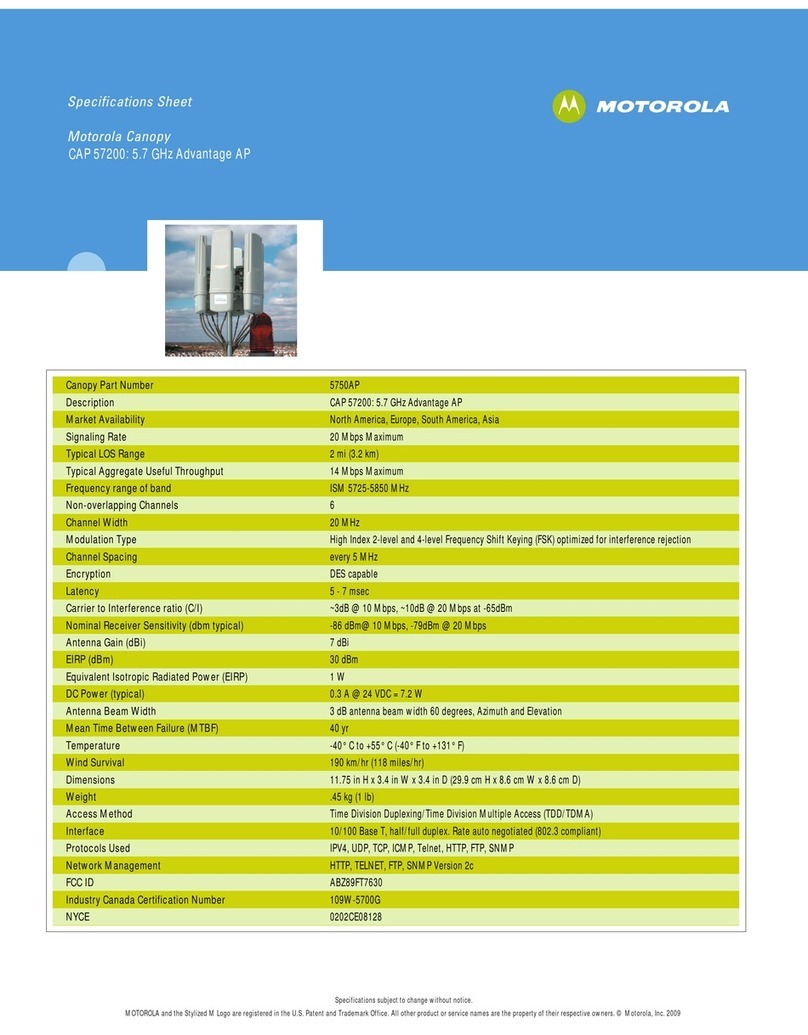

PMP 100 Series
PTP 100 Series
Frequencies: 900MHz,
2.4, 5.1, 5.2, 5.4, 5.7,
5.9, 6.050-GHz
Frequencies:
2.4, 5.2, 5.4, 5.7-GHz
FSK
AP/SM/BH
Note: P7 and P8 APs
cannot be upgraded
Note: AES P7 and P8
SMs cannot be upgraded
(All DES SMs can be)
Note: P7 and P8 BHs
cannot be upgraded
PMP 430 Series
N/A
OFDM
AP/SM
Frequencies:
5.4-GHz PMP 54430
5.8-GHz PMP 58430
N/A
PMP 400 Series
PTP 200 Series
OFDM
AP/SM/BH
Frequencies:
4.9-GHz PMP 49400
5.4-GHz PMP 54400
Frequencies:
4.9-GHz PTP 49200
5.4-GHz PTP 54200
Figure 1: Applicable products
Not all products are available in all markets. Please check with your local reseller for availability.

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 9
3Upgrading to Release 10.5
Use version 3.20.13 of the Network Updater Tool (CNUT) to upgrade to Release 10.5.
CNUT and its release notes can be downloaded from the Motorola wireless broadband support
web site: http://motorola.wirelessbroadbandsupport.com/software/
Modules in operating sectors should be on Release 10.4 before upgrading to avoid upgrade
issues.
3.1 OBTAINING CNUT UPGRADE PACKAGES
To download the Canopy software to your computer, perform the following steps:
1. Go to http://motorola.wirelessbroadbandsupport.com/software.
2. Follow the directions on that page to access the software download page.
3. On the software download page, select the appropriate package or packages. Options
include [for betas, use packages provided by technical support]
CANOPY105BUILDOFFICIAL_DES.pkg3
CANOPY105BUILDOFFICIAL_AES.pkg3
CANOPY105BUILDOFFICIAL_OFDM_DES.pkg3
CANOPY105BUILDOFFICIAL_OFDM_AES.pkg3
4. Click Accept User Agreement and Request Download Links.
RESULT: You will receive an email with a link or links to the software.
5. In the email sent to you, click on the desired link or links.
RESULT: The appropriate.pkg3 package or packages will download to your computer.
For additional information on using CNUT, see the CNUT help file or click on the Help menu in
the CNUT application.
3.2 NETWORK MANAGEMENT
Either One Point Wireless Manager or Prizm can be used to manage Motorola PMP and PTP
networks. For additional information, see
One Point Wireless Manager:
(http://motorola.wirelessbroadbandsupport.com/support/opws/software/
Prizm: http://motorola.wirelessbroadbandsupport.com/software/
3.3 PMP 430 – OPTIONS FOR 5, 10, AND 20 MHZ CHANNEL SIZE
PMP 430 APs and SMs ship with a 10-MHz channel size. Using CNUT 3.20.13 this can be
changed to 20 MHz or 5 MHz.
Note for US and Canadian Operators: 5.4-GHz PMP 430 APs and SMs with a US model
number (and a locked Region Code of US) or a Region Code of Canada do not support a 5
MHz channel size, consistent with FCC certification and Industry Canada certification. (5.7-GHz
PMP 430 APs and SMs do include a 5-MHz channel size, consistent with their certifications.)
Changing channel size on an AP requires using CNUT. (CNUT loads the appropriate software
components into the AP.)

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 10
Changing channel size on deployed SMs can be done on the SM GUI but is usually better done
using CNUT, as CNUT changes all the SMs in a sector at once.
Changing channel size on an installing SM should be done on the SM GUI.
The AP and the SM must have the same channel size to connect.
Important: In an operating sector, use CNUT to change the channel size of the SMs first, then
the AP. If you change the AP’s channel size first, SMs won’t register to it since the AP and SMs
are operating at different channel sizes. You will have to change the AP back before proceeding.
Important for US and Canadian Operators:
Don’t change 5.4-GHz APs to 5-MHz channel size. CNUT will change a PMP 430 AP to 5-MHz
channel size regardless of the Region Code, but a US or Canada 5.4-GHz PMP 430 AP will boot
with transmit disabled, consistent with its certification, and you will have to change the AP back to
10 MHz or 20 MHz channel size using CNUT before proceeding.
Don’t set 5.4-GHz SMs to 5-MHz channel size. PMP 430 SMs with a Region Code of US or
Canada do not provide the option for a 5-MHz channel. However, if the Region Code isn’t set or
is set to another region, you can set the SM to 5-MHz channel size, but it won’t connect to a US
or Canada AP, and you will need to change it to the same channel size as the AP to connect.
See the CNUT 3.20.13 release notes for specific procedures for setting PMP 430 channel size.

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 11
4Features
Release 10.5 adds the features listed in Table 1.
Table 1: Release 10.5 Features
Regions
Affected
Products
Affected
Feature
Description
See for
Details
US
All 5.4-GHz
5.4-GHz PMP 100
(FSK)
5.4-GHz PTP 100
(FSK)
5.4-GHz PMP 430
(OFDM)
5.4-GHz PMP 400
(OFDM)
5.4-GHz PTP 200
(OFDM)
Operation to avoid
interference with
Terminal Doppler
Weather Radar
(TDWR)
To avoid interference with TDWR (47
locations, near major airports), 5.4-GHz
US radios must
◦be professionally installed
◦have a transmit frequency set on
the AP/BHM at least 30 MHz
(center-to-center) from any TDWR
within 35 km (21.75 mi) of the
AP/BHM or any of its SMs/BHS.
http://www.spectrumbridge.com/udia/se
arch.aspx supports the necessary map
analysis and includes a database for
registering the location of these radios
to expedite interference resolution.
Section 4.1
US
US 5.4-GHz PMP
430 (OFDM)
US FCC Certification
of new product
US 5.4-GHz PMP 430 APs and SMs
are now approved for sale in the US.
As certified, the US 5.4-GHz PMP 430
AP is limited to operate at
◦no higher than 85% Data
Downlink %
◦10-MHz and 20-MHz channel
sizes, but not 5-MHz
Lens and reflector were not included in
the certification.
Section 7.6,
Table 10
Section
10.2.1,
Table 11
US
US P11 Hardware
Series 5.4-GHz
PMP 100 (FSK)
US P11 Hardware
Series 5.4-GHz
PTP 100 (FSK)
US FCC Certfication
of new hardware
series
US P11 5.4-GHz PMP 100 APs and
SMs and PTP 100 BHs are now
approved for sale in the US.
As certified, the US P11 PMP 100 AP
and PTP 100 BHM is limited to operate
at
◦no higher than 75% Data
Downlink %
(Older hardware series are not limited
by Release 10.5.)
Section 7.5,
Table 8,
Table 9
Section
10.2.1,
Table 11
Canada
5.4-GHz PMP 430
(OFDM)
IC Certification of
new product
5.4-GHz PMP 430 APs and SMs are
now approved for sale in Canada.
As certified, the AP is limited to
◦10-MHz and 20-MHz channel
sizes, but not 5-MHz
For compliant operation, the Region
Code must be set to Canada by the
professional installer.
Section
10.2.2 and
Table 11

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 12
Regions
Affected
Products
Affected
Feature
Description
See for
Details
Canada
P11 Hardware
Series 5.4-GHz
PMP 100 (FSK)
P11 Hardware
Series 5.4-GHz
PTP 100 (FSK)
IC Certfication of new
hardware series
P11 Hardware Series 5.4-GHz PMP
100 APs and SMs and PTP 100 BHs
are now approved for sale in Canada.
For compliant operation, the Region
Code must be set to Canada by the
professional installer.
Section
10.2.2 and
Table 11
4.1 US -OPERATION TO AVOID INTERFERENCE WITH TDWR
The US FCC, NTIA, FAA, and industry are working to resolve interference to Terminal Doppler
Weather Radar (TDWR) systems used near airports that has occurred from some outdoor
wireless systems operating in the 5470 MHz –5725 MHz band. These wireless devices are
subject to Section 15.407. When operating as a master device they are required to implement
radar detection and DFS functions and radios must not transmit on channels which overlap the
5600-5650 MHz band used by TDWR.
Additional information is available from
othe FCC’s Knowledge Database (KDB) Publication 443999 “Interim Plans to Approve
UNII Devices Operating in the 5470-5725 MHz Band with Radar Detection and DFS
Capabilities” available at https://fjallfoss.fcc.gov/kdb/GetAttachment.html?id=33781
othe Wireless Internet Service Providers Association (WISPA) in coordination with
Spectrum Bridge: http://www.spectrumbridge.com/udia/home.aspx.
5.4-GHz radios must be professionally installed. The professional installer must have the
following expertise:
oUnderstanding of the configurations outlined in Table 11: US FCC IDs and Industry
Canada Certification Numbers and covered configurations, especially those
applicable to the 5470-5725 MHz U-NII band.
oUnderstanding of the master/slave operation of the AP/BHM and SM/BHS –that the
AP or BHM determines the transmission frequency for both master and slave.
oUnderstanding of the SM/BHS frequency scan selection settings and how they can
be set to prevent scanning and therefore transmission on any specific frequencies.
oUnderstanding of the option to set primary and two alternate frequencies on the AP
or BHM.
oAbility to use the GUI to set the primary and alternate transmit frequencies on an AP
or BHM, scanned frequencies on an SM or BHS, and Transmit Output Power of a
radio.
oAbility to use the spectrum analyzer feature of the radio to observe the local RF
environment.
oAbility to determine if a radio is within 35 km (21.75 mi) of any Terminal Doppler
Weather Radar (TDWR) using the Search function available at
http://www.spectrumbridge.com/udia/search.aspx, or using various mapping
programs and the data from in Table 2: TDWR Location Information.
oAbility to set the AP/BHM’s transmit frequency (frequencies, if using alternate
frequencies) and SM/BHS’s scanned frequencies at least 30 MHz (center-to-center)
from any TDWR operating frequency or frequencies within 35 km of the radio.
To gain this expertise the following training is required:

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 13
oStudy of the documentation
oFamiliarization in a lab or test environment
oHands-on training with an experienced installer.
Procedure 1 provides the specific instructions to avoid interfering with TDWR when using 5.4-
GHz APs, SMs, and BHs.
Procedure 1: Avoiding interference with Terminal Doppler Weather Radar (TDWR)
1. Use standard installation procedures with the additional steps outlined below.
2. Confirm the AP, SM, or BH has a Region Code of US. If it doesn’t, set the
Region Code to US.
Note, all radios currently shipping to the US and older radios previously set to the
US Region Code and upgraded to a recent release are “hardset” to the US
Region Code.
3. For each 5.4-GHz AP, BH, or SM, determine if it is within 35 km (21.75 mi) of any
Terminal Doppler Weather Radar (TDWR). This can be done using the map
search tool at http://www.spectrumbridge.com/udia/search.aspx, or other
mapping tools using the data from Table 2.
4. If an AP or BHM is within 35 km (21.75 mi) of any TDWR, set the primary
transmit frequency (and alternate frequencies, if used) to a frequency (or
frequencies) at least 30 MHz (center-to-center) from the TDWR operation
frequency shown on http://www.spectrumbridge.com/udia/search.aspx or in
Table 2.
5. If an SM or BHS is within 35 km (21.75) mi of any TDWR
Ensure its AP or BHM is using primary and alternate (if used) transmit
frequencies that are at least 30 MHz from the TDWR operation frequency
Set the SM’s or BHS’s scanned frequencies to not include frequencies within
30 MHz of the TDWR operation frequency.
Note, even if the AP or BHM itself is more than 35 km from the TDWR, if any of
its SMs or BHS are within 35 km, it must operate at least 30 MHz from the TDWR
operation frequency.
Note, in some instances an AP, BH, or SM may be within 35 km of multiple
TDWRs. In this case, the AP, BH, or SM must use a frequency at least 30 MHz
from all local TDWR operation frequencies.
6. Register each 5.4-GHz AP, SM, or BH operating within 35 km (21.75 mi) of any
TDWR in the voluntary WISPA-sponsored database at
http://www.spectrumbridge.com/udia/home.aspx.
Note, this database may help expedite resolution of any interference to TDWRs.
7. Registration includes, at a minimum, Latitude, Longitude, and External Antenna
Model. When registering a device, choose whether to allow General Access or to
have the device information viewable only by you and government
representatives.
=========================== end of procedure ===========================

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 14
Table 2: TDWR Location Information
State
City
Longitude
Latitude
Frequency
Terrain
Elevation
(MSL) (ft)
Antenna
Height
above
Terrain
(ft)
AZ
PHOENIX
W 112 09 46
N 33 25 14
5610 MHz
1024
64
CO
DENVER
W 104 31 35
N 39 43 39
5615 MHz
5643
64
FL
FT LAUDERDALE
W 080 20 39
N 26 08 36
5645 MHz
7
113
FL
MIAMI
W 080 29 28
N 25 45 27
5605 MHz
10
113
FL
ORLANDO
W 081 19 33
N 28 20 37
5640 MHz
72
97
FL
TAMPA
W 082 31 04
N 27 51 35
5620 MHz
14
80
FL
WEST PALM BEACH
W 080 16 23
N 26 41 17
5615 MHz
20
113
GA
ATLANTA
W 084 15 44
N 33 38 48
5615 MHz
962
113
IL
MCCOOK
W 087 51 31
N 41 47 50
5615 MHz
646
97
IL
CRESTWOOD
W 087 43 47
N 41 39 05
5645 MHz
663
113
IN
INDIANAPOLIS
W 086 26 08
N 39 38 14
5605 MHz
751
97
KS
WICHITA
W 097 26 13
N 37 30 26
5603 MHz
1270
80
KY
COVINGTON CINCINNATI
W 084 34 48
N 38 53 53
5610 MHz
942
97
KY
LOUISVILLE
W 085 36 38
N 38 02 45
5646 MHz
617
113
LA
NEW ORLEANS
W 090 24 11
N 30 01 18
5645 MHz
2
97
MA
BOSTON
W 070 56 01
N 42 09 30
5610 MHz
151
113
MD
BRANDYWINE
W 076 50 42
N 38 41 43
5635 MHz
233
113
MD
BENFIELD
W 076 37 48
N 39 05 23
5645 MHz
184
113
MD
CLINTON
W 076 57 43
N 38 45 32
5615 MHz
249
97
MI
DETROIT
W 083 30 54
N 42 06 40
5615 MHz
656
113
MN
MINNEAPOLIS
W 092 55 58
N 44 52 17
5610 MHz
1040
80
MO
KANSAS CITY
W 094 44 31
N 39 29 55
5605 MHz
1040
64
MO
SAINT LOUIS
W 090 29 21
N 38 48 20
5610 MHz
551
97
MS
DESOTO COUNTY
W 089 59 33
N 34 53 45
5610 MHz
371
113
NC
CHARLOTTE
W 080 53 06
N 35 20 14
5608 MHz
757
113
NC
RALEIGH DURHAM
W 078 41 50
N 36 00 07
5647 MHz
400
113
NJ
WOODBRIDGE
W 074 16 13
N 40 35 37
5620 MHz
19
113
NJ
PENNSAUKEN
W 075 04 12
N 39 56 57
5610 MHz
39
113
NV
LAS VEGAS
W 115 00 26
N 36 08 37
5645 MHz
1995
64
NY
FLOYD BENNETT FIELD
W 073 52 49
N 40 35 20
5647 MHz
8
97
OH
DAYTON
W 084 07 23
N 40 01 19
5640 MHz
922
97
OH
CLEVELAND
W 082 00 28
N 41 17 23
5645 MHz
817
113
OH
COLUMBUS
W 082 42 55
N 40 00 20
5605 MHz
1037
113
OK
AERO. CTR TDWR #1
W 097 37 31
N 35 24 19
5610 MHz
1285
80
OK
AERO. CTR TDWR #2
W 097 37 43
N 35 23 34
5620 MHz
1293
97
OK
TULSA
W 095 49 34
N 36 04 14
5605 MHz
712
113
OK
OKLAHOMA CITY
W 097 30 36
N 35 16 34
5603 MHz
1195
64
PA
HANOVER
W 080 29 10
N 40 30 05
5615 MHz
1266
113
PR
SAN JUAN
W 066 10 46
N 18 28 26
5610 MHz
59
113
TN
NASHVILLE
W 086 39 42
N 35 58 47
5605 MHz
722
97
TX
HOUSTON INTERCONTL
W 095 34 01
N 30 03 54
5605 MHz
154
97
TX
PEARLAND
W 095 14 30
N 29 30 59
5645 MHz
36
80
TX
DALLAS LOVE FIELD
W 096 58 06
N 32 55 33
5608 MHz
541
80
TX
LEWISVILLE DFW
W 096 55 05
N 33 03 53
5640 MHz
554
31
UT
SALT LAKE CITY
W 111 55 47
N 40 58 02
5610 MHz
4219
80
VA
LEESBURG
W 077 31 46
N 39 05 02
5605 MHz
361
113
WI
MILWAUKEE
W 088 02 47
N 42 49 10
5603 MHz
820
113
Latitude and Longitude are specified in NAD 83
Last updated July 30, 2010

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 15

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 16
5Resolved Issues
Issues resolved in Release 10.5 are listed in Table 3.
Table 3: Issues resolved in Release 10.5
Products
Affected
Issue
Discussion
TBD
Stuck VC
messages
TBD
TBD
Every 8th ping
lost
TBD
TBD
Latency issue
TBD

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 17
6Known Open Issues
Known open issues for Release 10.5 are listed in Table 4.
Table 4: Release 10.5 known open issues
Products
affected
Release
reported
Description
Discussion and Recommendations
TBD
TBD
TBD

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 18
7Notes and Reference
7.1 NOTES
Notes and tips for best operation are listed in Table 5, and Table 6.
Table 5: Notes first discussed with Release 10.3.1
Products
Affected
Description
Discussion and Recommendations
PMP 430
used with
Prizm or
BAM
PMP 430 SM
MIR configured
by Prizm to
greater than max
sustained MIR
data rate (12257)
If the Configuration Source on a PMP 430 AP’s Configuration > General
tab is set to Authentication Server or Authentication Server + SM,
SMs will receive their MIR settings from Prizm (or BAM). The resulting SM
MIR may be greater than the keyed throughput of the SM. For context, the
PMP 430 SM is available keyed to have a maximum throughput of 4, 10,
20 or 40 Mbps.
If the SM receives a MIR setting from Prizm that is greater than the keyed
bandwidth, the SM will cap the MIR using this formula:
(desired uplink MIR * SM aggregate capped rate) / desired aggregate rate
(desired downlink MIR * SM aggregate capped rate) / desired aggregate rate
Note: Desired aggregate rate is the sum of the desired uplink rate and desired
downlink rate
For example, if a PMP 430 4 Mbps SM with a max MIR cap of 4000
receives a MIR setting from Prizm that is greater than 4000 kbps, it will
cap the downlink MIR and the uplink MIR to equal a max of 4000 kbps.
Below is an example with Prizm settings of 10000 kbps uplink MIR and
7000 downlink MIR sent to a 4 Mbps SM that is capped at 4000 kbps max
MIR:
Uplink calculation: (10000 * 4000) / (7000 + 10000) = 2352 kbps
Downlink calculation: (7000 *4000) / (7000 + 10000) = 1648 kbps
Thus the Uplink MIR of 2352 + Downlink MIR of 1648 = 4000 kbps
In this example, the PMP 430 AP sessions page will display a SM uplink
and downlink MIR SMCAP as shown below.
For reference, the max SM MIR in kbps for each SM type is:
4 Mbps SM = 4000
10 Mbps SM = 10000
20 Mbps SM = 20000
40 Mbps SM = 65535 (displays Unlimited in the Home > General Status tab)

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 19
Table 6: Notes first discussed with Release 9.5
Products
Affected
Description
Discussion and Recommendations
All
SM –DNS below
a NATed SM
when DNS Server
Proxy is enabled
Microsoft Vista and Windows 7 will not route a 169.254/16 subnet used as
the default Canopy subnet since these operating systems use 169.254/16
subnet to talk between local machines. This is not an issue if:
-the PC is connected directly to the NATed SM.
-the NAT/routing CPE underneath the NATed SM provides DNS services.
However; if a NAT/routing CPE that is not providing DNS services (e.g.
some home routers) is placed between the SM and the user’s PC, a
Microsoft Vista or Windows 7 machine will not route to the default
169.254/16 SM IP address space to access DNS services.
Workaround: Reconfigure the SMs NAT LAN address to a private IP
address such as 192.168/16, 172.16/12, or 10/8 or leave DNS Server
Proxy disabled.
All
Updating
Community
Strings on the
Web GUI (11699)
To flip-flop the read/write and read-only community string names, it is
necessary to change one community string to a temp name first before
switching community string names.
Remote
AP
Remote AP Sync
Input (7427)
Remote AP receives sync from SM by setting SYNC Input to Timing Port.
However, if this is incorrectly configured as SYNC input to Power port the
Remote AP will still correctly receive SYNC.
AP
Disable TCP ACK
prioritizing in
broadcast video
applications
(10263)
When optimizing a system for broadcast video, on the AP’s Configuration
=> General page configure Prioritized TCP ACK to Disabled.
In a system being used for internet access or similar applications
prioritizing TCP ACKs improves downloading of FTP files and other
activities making significant use of TCP ACKs under heavy load. However,
in a system being used for broadcast video or video surveillance,
prioritizing TCP ACKs can cause sporadic choppy video in the uplink.
AP or SM
Procedures for
saving an XML
file of a spectrum
graph (8484)
When the SpectrumAnalysis.xml button is clicked on the SM’s Tools >
Spectrum Analyzer tab or the AP’s Tools > Remote Spectrum Analyzer
tab, the spectrum graph is redisplayed using XML and XSL if the browser
supports XSL. To save the underlying XML file, right click and select “Save
Target As” on a Windows PC, or equivalent action for other operating
systems.
SM
SM scan
frequencies not
“cancelled” by
SNMP actions
(8172)
If you make frequency changes on the SM GUI, and then back them out
using SNMP, the Reboot Required message remains on the GUI.
Workaround:
If it says Reboot Required, go ahead and reboot, just to clear the
message.

Release 10.5 Release Notes and User Guide Supplement
FCC Draft,November 2010 Page 20
Products
Affected
Description
Discussion and Recommendations
All
Managing module
accounts and
passwords (none)
The best security practice is to be aware a factory unit comes with root
and admin accounts, to plan your approach to accounts, and set
passwords for all accounts.
A module that either is fresh from the factory or has been operator-reset to
factory defaults has two user accounts: root and admin, both with
ADMINISTRATOR level permissions.
To secure a module, access the Account => Change Users Password tab
and add a password to each of these accounts. Adding a password to only
one account still leaves the other open. Furthermore, an account without a
password will accept any password potentially giving the impression the
unit is protected when it isn’t.
Alternatively, an operator’s practices may be to delete the adminaccount
or delete the root account and replace them with their own account(s). By
default, Prizm, One Point Wireless Manager and CNUT use the root
account to manage the module, so if you delete root accounts on
modules you will need to make coordinated changes to Prizm, Wireless
Manager, and CNUT to access them with your own accounts.
All
Use 16 or fewer
alphanumeric
characters in user
account names,
passwords, and
Community
Strings (7808)
SNMP doesn’t do data-entry checking, so more than 16 characters may be
entered, but only 16 characters will be saved and displayed.
AP and
SM
Timed Spectrum
Analyzer settings
anomaly (7442)
Values of Timed Spectrum Analyzer duration and Spectrum Analysis
on Boot get saved by clicking any button on the page, not just when
clicking Save Changes or Start Time Spectrum Analysis (which is
typical operation for other pages).
AP and
SM
Best Practice is to
set SM to same
Region Code as
AP (none)
When an SM registers to an AP, it assumes the Region Code and
associated parameters of the AP, disregarding any Region code set in the
SM by you. However, the best practice is still for you to set a Region Code
in the SM so that displayed options are consistent with the region.
All
Details on pinging
Canopy modules
(4831)
A ping size larger than 1494 bytes to a radio will time out and fail.
However, a ping of greater than 1494 bytes to a system that is behind a
radio typically succeeds. To gain an accurate view of latency, ping through
the radio to a system beyond. Canopy transports ping traffic with the same
priority as all transport traffic, but may handle a direct ping with lower
priority when running under load.
SM
AP may be listed
twice in SM’s AP
Evaluation tab
(5298)
To help during aiming, the SM’s Tools > AP Evaluation tab maintains AP
entries for 15 minutes. If the frequency of an AP is changed, for 15
minutes the AP is listed twice in the AP Evaluation tab, once with the
former frequency, and once with the new one.
AP and
SM
When using Link
Test with MIR,
need to set both
ends (4844, 2756)
To see the effects of MIR capping, you can run a link test with MIR
enabled. To get meaningful results, set Link Test with MIR to Enabled on
the Tools => Link Capacity Test tab in both the SM and the AP. When it is
enabled on only one end, results are misleading.
After you run perform a link test with MIR capping enabled, consider
immediately changing Link Test with MIR to Disabled in both the SM and
the AP, to avoid mistakenly capping only one end of the link test.
