Total Solutions for Industrial Device Networking
Secure Terminal
Servers/Terminal
Servers
4
Terminal Servers
Terminal Server Tutorial 4-2
Terminal Server Selection Guide 4-7
Secure Terminal Servers
NPort 6150 1-port Secure Terminal Server 4-13
NPort 6250 Series 2-port Secure Terminal Server 4-15
NPort 6450 4-port Secure Terminal Server 4-17
Terminal Servers
NPort 6600 Series 8, 16, and 32-port RS-232/422/485 Rackmount 4-19

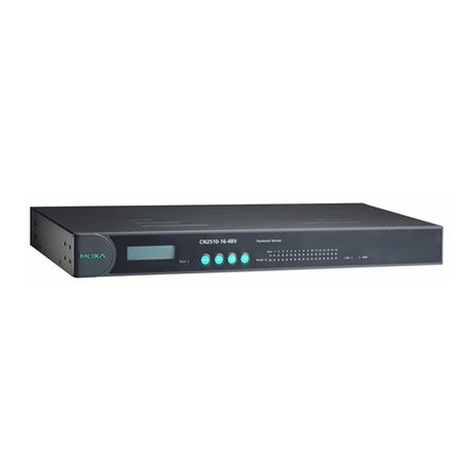

CN2510 Series 8 and 16-port RS-232 Terminal Server 4-23
CN2610 Series 8 and 16-port Dual LAN RS-232 Terminal Server 4-26
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

4-2 www.moxa.com e-mail: [email protected]
Secure Terminal Servers/Terminal Servers
Secure Terminal Server/Terminal Server
The Difference Between Device Servers,
Terminal Servers, and Console Servers
4
The terms “terminal server,” “device server,” and “console server”
can be confusing. They all refer to hardware that connects to RS-232
devices and transmits serial data using TCP/IP Telnet, SSH, or a
vendor-specific protocol. In fact, these three server types represent the
evolution of user demand for information technologies.
Terminal servers were first introduced to help engineers connect
so-called "dumb terminals" to a host computer over an Ethernet
connection. With terminal servers, data transmission is text based and
is transmitted using Telnet, TCP/IP, SSH, or some other manufacturer-
defined protocol. Terminal servers are designed to enable users
to access front-end IT equipment using PPP or dial-in/dial-out,
without using a modem. Terminal servers are generally found in IT
environments such as data centers, airports, and banks.
Before the development of Ethernet technology, terminal servers were
used to provide access to data using dial-up connections. However, as
Ethernet became more common, demand for industrial applications
also grew. Most machine-to-machine communication is serial-based,
which is effective only over short distances. This makes it difficult to
manage all equipment from a central location, which is the foundation
of industrial automation. Device servers emerged as a result.
A device server is essentially a simplified terminal server. For industrial
applications, serial-to-Ethernet communication does not require
sophisticated functionality. Device server manufacturers typically
include drivers or COM mapping functions that make things easier for
engineers who are not familiar with IT concepts. With drivers installed,
serial devices can be controlled over Ethernet using legacy software,
without requiring knowledge of difficult TCP/IP routing techniques
or socket programming. Engineers can continue relying on their
knowledge of COM/TTY port programming for device control.
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

Total Solutions for Industrial Device Networking
www.moxa.com e-mail: [email protected] 4-3
Secure Terminal Servers/Terminal Servers
Terminal Server Device Server Console Server
RS-232 Interface ** * **
RS-422/485 Interface ** * ***
4 or fewer ports ** * **
8 or more ports *** *
DC 48V Input * *** *
Dual Power Inputs * *** *
OS Driver Support ** * ***
Central Management Utility ** ** *
Assign IP to Serial Port ** *** *
Data Security * *** *
User Identification ** *** *
User Authorization ** *** *
Dial-up Service * *** *
PPPoE ** ** **
Break-safe ** *** *
*** Very Important
** Important
*Less Important
4
As IT infrastructures quickly expanded, the "console server" or "serial
console server" developed as a management tool. Corporate MIS
decision-makers originally adapted terminal servers for use in central
management solutions. However, with the overwhelming adoption of
Ethernet, specific needs emerged for console servers. Management
security became a crucial issue, and console servers began requiring
advanced authentication functions. Moreover, to cope with ever-
increasing numbers of servers and routers, utilities and other solutions
have developed to simplify centralized management and reduce the
workload required.
Rquirements for Terminal, Device, and Console Servers
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

4-4 www.moxa.com e-mail: [email protected]
Secure Terminal Servers/Terminal Servers
Secure Terminal Server/Terminal Server
4
Overview
Secure Terminal Servers
Network security is a critical issue for certain applications. Security
is especially important when data is transmitted over the Internet,
where it is vulnerable to interception by third parties. NPort 6000
device servers use SSL to implement secure modes for network data
security, including Secure TCP Server, Secure TCP Client, Secure
NPort 6000 device servers provide serial-to-Ethernet connectivity that
is more reliable and more secure. They can connect any serial device
to an Ethernet network using different operation modes such as TCP
Server, TCP Client, UDP, and Pair Connection mode. For applications
that require data security, such as banking, telecom, access control, or
remote site management, secure modes are also available, including
Secure TCP Server, Secure TCP Client, Secure Pair-Connection, and
Secure Real COM mode.
Secure Data Communication with SSL Protocol
Pair Connection, and Secure Real COM modes. The NPort 6000
and included drivers adhere to the SSL standard and automatically
negotiate the encryption key. To prevent hacker attacks, the NPort will
automatically switch from DES/3DES to AES encryption.
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

Total Solutions for Industrial Device Networking
www.moxa.com e-mail: [email protected] 4-5
Secure Terminal Servers/Terminal Servers
4
A powerful hardware encryption engine that supports the complete
DES/3DES/AES encryption algorithms is built into the NPort 6000. For
DES and 3DES encryption, the NPort 6000 supports ECB, CBC, CFB,
and OFB modes. For AES encryption, the NPort 6000 supports ECB,
CBC, CFB, OFB, and CTR modes with a 128-bit, 192-bit, or 256-bit key.
Powerful hardware encryption engine reduce
encryption time.
3DES
DES AES
Unauthorized access is a major concern for system managers. NPort
6000 device servers help control access by supporting IP filtering and
password protection. Extra protection from hackers is also provided by
SSH and SSL. Secure configuration of the NPort 6000 is provided by
opening the web console with a web browser that supports https (e.g.,
Internet Explorer), or by opening the Telnet console using a terminal
emulator that supports SSH (e.g., PuTTY).
Secure Remote Management and Configuration with SSH and SSL
Powerful Hardware Encryption Engine
Power Redundancy with 802.3af PoE (Under Development)
NPort 6000 device servers can act as a PD (Powered Device) in
compliance with the 802.3af POE (Power Over Ethernet) standard.
This means that the NPort 6000 does not require a power adaptor, but
can operate using power supplied by a device acting as a PSE (Power
Sourcing Equipment).
Support for POE can also be used to for power redundancy. When
the power redundancy feature is enabled, the NPort 6000 relies on a
PSE for backup power. If the main power source (i.e., the power cable
or adaptor) fails, the NPort 6000 automatically continues operation
without interruption using power supplied by the PSE.
Powerful encryption engine that
reduces encryption time
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

4-6 www.moxa.com e-mail: [email protected]
Secure Terminal Servers/Terminal Servers
Secure Terminal Server/Terminal Server
4
Most device servers support only standard baudrates. However, some
applications require special baudrates, such as 250 Kbps or 500 Kbps.
With NPort 6000 device servers, users can use any baudrate between
50 and 921.k Kbps. The NPort 6000 works flawlessly with all devices
that require special baudrates.
Interchangeable modules provide maximum Ethernet
expansion flexibility.
RJ45EthernetPort 1 FiberEthernet Port
singlemode/multi-mode 2FiberEthernetPort singlemode/multi-mode1DB25PrinterPort
Although more and more devices are now Ethernet-ready, many legacy
devices only provide a serial interface. The main purpose of device
servers is to connect serial devices to Ethernet, allowing engineers to
integrate all devices into an Ethernet environment.
A problem can arise if both Ethernet-ready and legacy serial devices
need to be connected from the same location. The NPort 6450 and
6650 can use the Ethernet expansion module to add additional
Ethernet ports, effectively allowing operation as a combination Ethernet
switch/device server. With Ethernet expansion modules for the NPort
6450 and 6650, users no longer need to invest in a more expensive
switch or hub to connect every device. Modules are available for
different Ethernet media, including copper Ethernet, multi-mode fiber,
and single-mode fiber. Ethernet expansion modules can also be used
to create a cascading topology where device servers are connected to
each other in a daisy chain.
Any Nonstandard Baudrate Between 50 to 921.6 Kbps
Ethernet Port Expansion (NPort 6450/6650 only)
For mission-critical applications, data collected from a serial device
must be safeguarded if the Ethernet connection is severed. The NPort
6000 provides exceptionally reliable data transmission by saving serial
data to an internal 64 KB port buffer if the Ethernet connection fails.
When the Ethernet is reconnected, data in the buffer is automatically
released and sent to the appropriate destination. For the NPort 6250,
6450, and 6650, this buffer can be expanded by installing an SD card.
Port Buffering that Preserves Data if Ethernet Fails
Interchangeable modules for Ethernet expansion
1 RJ45 Ethernet Port 1 fiber Ethernet port
(single or multi mode)
2 fiber Ethernet ports
(single or multi mode)
1 DB25 printer port
Interchangeable modules provide maximum Ethernet
expansion flexibility.
RJ45EthernetPort 1 FiberEthernet Port
singlemode/multi-mode 2FiberEthernetPort singlemode/multi-mode1DB25PrinterPort
Interchangeable modules provide maximum Ethernet
expansion flexibility.
RJ45EthernetPort 1Fiber EthernetPort
singlemode/multi-mode 2FiberEthernetPort singlemode/multi-mode1DB25PrinterPort
Interchangeable modules provide maximum Ethernet
expansion flexibility.
RJ45EthernetPort 1Fiber EthernetPort
singlemode/multi-mode 2FiberEthernetPort singlemode/multi-mode1DB25PrinterPort
Interchangeable modules provide maximum Ethernet
expansion flexibility.
RJ45EthernetPort 1Fiber EthernetPort
singlemode/multi-mode 2FiberEthernetPort singlemode/multi-mode1DB25PrinterPort
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

Total Solutions for Industrial Device Networking
www.moxa.com e-mail: [email protected] 4-7
Secure Terminal Servers/Terminal Servers
4
Device Networking Solutions
NPort 6000 device servers support the Turbo Ring cascade topology. In a Turbo Ring topology, if any segment of the daisy-chained ring is
disconnected, the network will recover in less than 300 ms.
NPort 6000 device servers have an industrial-strength power input
connector to minmize the chance of accidental power disconnection.
With serial devices connected to an NPort 6000 device server,
users can use any networked computer to control the devices over
an Ethernet network, intranet, or the Internet. Connections can be
established using different operation modes such as Real COM/TTY,
TCP Server, or TCP Client mode. The NPort 6000 also supports PPPoE
for ADSL connections, and DDNS can be used to help locate NPort
6000 device servers on the network. In addition, fiber optic models are
available to extend the Ethernet connection distance.
Ethernet Ring Topology with Fast Recovery (under development)
Supports ADSL Dial-up and DDNS
Reliable Power Input
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

4-8 www.moxa.com e-mail: [email protected]
Secure Terminal Servers/Terminal Servers
Secure Terminal Server/Terminal Server
Model Name NPort 6150 NPort 6250 NPort 6250-M-SC
LAN
10/100M Ethernet 1 1 ---
100M Fiber --- --- Multi-Mode
Connector RJ45 RJ45 SC
Extension Slot --- --- ---
10/100BaseT RJ45 Module --- --- ---
Multi Mode SC Connector Module --- --- ---
Single Mode SC Connector Module --- --- ---
Parallel Port Module --- --- ---
Power Over Ethernet (IEEE802.3af) Under development Under development Under development
1.5 KV Magnetic Isolation √ √ √
Serial Interface
RS-232/422/485 1 port, DB9 (Male) 2 port, DB9 (Male) 2 port, DB9 (Male)
Speed 50 to 921.6 Kbps
Communication Parameters Parity: None, Even, Odd, Space, Mark; Data Bits, 5, 6, 7, 8; Stop Bit(s): 1, 1.5, 2
Flow Control (RTC/CTS/ XON/XOFF) √ √ √
15 KV ESD Protection √ √ √
Any Baudrate Support √ √ √
Patented ADDC √ √ √
Software Features
Protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, HTTP, SMTP, SNTP, ARP, SSH, SSL
Utilities NPort Driver Manager for Windows 95/98/ME/NT/2000/XP/2003/Vista
OS Driver Support Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64/Vista x64 COM driver, Linux Real TTY driver, Unix fixed TTY driver
Configuration Web console, serial console, Telnet console, SSH, or Windows utility
Operation Mode Standard Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled
Secure Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH
Advanced Built-in
Features
HMI LCM display with Four Push Buttons --- --- ---
Serial Data Log 64 KB 64 KB 64 KB
Offine Port Buffering 64 KB 64 KB 64 KB
SD Card Support --- --- √
Buzzer √ √ √
Real-Time Clock √ √ √
Watch Dog Timer √ √ √
Power Power Input 12 to 48 VDC 12 to 48 VDC 12 to 48 VDC
Power Consumption 285 mA 430 mA 430 mA
Mechanical
Upper Casing: Aluminum (1 mm) √√ √
External Components: PC (Polycarbonate) √√ √
Lower Casing: SECC Sheet Metal (1 mm) √√ √
Dimensions (W × H × D) 67 x 28 x 100.4 mm 77 x 28 x 111 mm 77 x 28 x 111 mm
(2.63 x 1.1 x 3.95 in) (3 x 1.1 x4 .37 in) (3 x 1.1 x 4.37 in)
DIN-Rail/Wall Mountable √ √ √
Environment Operating temperature 0 to 55°C (32 to 131°F), 5 to 95% RH
Storage temperature -20 to 85°C (-4 to 185°F), 5 to 95% RH
Regulatory
Approvals
Safety UL UL60950-1/ TÜV EN60950-1
EMC FCC Part 15, Subpart B, Class A; CE EN55022 Class A; CE EN55024
EN61000-4-2 (ESD) 4 KV contact
EN61000-4-4 (EFT) 1 KV power
EN61000-4-5 (Surge) 2 KV power
Warranty 5 years
Terminal Server
Selection Guide
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

Total Solutions for Industrial Device Networking
www.moxa.com e-mail: [email protected] 4-9
Secure Terminal Servers/Terminal Servers
NPort 6250-S-SC NPort 6450 NPort 6610-16
--- 1 1
Single Mode --- ---
SC RJ45 RJ45
--- 1 1
--- Optional Optional
--- Optional Optional
--- Optional Optional
--- Optional Optional
--- --- ---
√ √ √
2 ports, DB9 (Male) 4 ports, DB9 (Male) 16 ports, RJ45
50 to 921.6 Kbps
Parity: None, Even, Odd, Space, Mark; Data Bits: 5, 6, 7, 8; Stop Bit(s): 1, 1.5, 2
√ √ √
√ √ √
√ √ √
√ √ √
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, HTTP, SMTP, SNTP, ARP, SSH, SSL
NPort Driver Manager for Windows 95/98/ME/NT/2000/XP/2003/Vista
Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64/Vista x64 COM driver, Linux Real TTY driver, Unix fixed TTY driver
Web console, serial console, Telnet console, SSH, or Windows utility
Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled
Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH
--- √ √
64 KB 64 KB 64 KB
64 KB 64 KB 64 KB
--- --- √
√ √ √
√ √ √
√ √ √
12 to 48 VDC 12 to 48 VDC 100 to 240 VAC, 47 to 63 Hz
430 mA 730 mA mA
√√ √
√√ √
√√ √
77 x 28 x 111 mm 158 x 33 x 103 mm 440 x 44 x 195 mm
(3 x 1.1 x 4.37 in) (6.22 x 1.29 x 4 in) (17.32 x 1.73 x 7.67 in)
√ √ √
0 to 55°C (32 to 131°F), 5 to 95% RH
-20 to 85°C (-4 to 185°F), 5 to 95% RH -20 to 70°C (-4 to 158°F), 5 to 95% RH
UL UL60950-1/ TÜV EN60950-1
FCC Part 15, Subpart B, Class A; CE EN55022 Class A; CE EN55024
4 KV contact
1 KV power
2 KV power
5 years
Model Name
LAN
10/100M Ethernet
100M Fiber
Connector
Extension Slot
10/100BaseT RJ45 Module
Multi Mode SC Connector Module
Single Mode SC Connector Module
Parallel Port Module
Power Over Ethernet (IEEE802.3af)
1.5 KV Magnetic Isolation
Serial Interface
RS-232/422/485
Speed
Communication Parameters
Flow Control (RTC/CTS/ XON/XOFF)
15 KV ESD Protection
Any Baudrate Support
Patented ADDC
Software Features
Protocols
Utilities
OS Driver Support
Configuration
Operation Mode Standard
Secure
Advanced Built-in
Features
HMI LCM display with Four Push Buttons
Serial Data Log
Offine Port Buffering
SD Card Support
Buzzer
Real-Time Clock
Watch Dog Timer
Power Power Input
Power Consumption
Mechanical
Upper Casing: Aluminum (1 mm)
External Components: PC (Polycarbonate)
Lower Casing: SECC Sheet Metal (1 mm)
Dimensions (W × H × D)
DIN-Rail/Wall Mountable
Environment Operating temperature
Storage temperature
Regulatory
Approvals
Safety
EMC
EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Warranty
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

4-10 www.moxa.com e-mail: [email protected]
Secure Terminal Servers/Terminal Servers
Secure Terminal Server/Terminal Server
NPort 6610-16-48 NPort 6610-32 NPort 6610-32-48
11 1
--- --- ---
RJ45 RJ45 RJ45
11 1
Optional Optional Optional
Optional Optional Optional
Optional Optional Optional
Optional Optional Optional
--- --- ---
√ √ √
16 ports, DB9 (Male) 32 ports, DB9 (Male) 32 ports, RJ45
50 to 921.6 Kbps
Parity: None, Even, Odd, Space, Mark; Data Bits: 5, 6, 7, 8; Stop Bit(s): 1, 1.5, 2
√ √ √
√ √ √
√ √ √
--- --- ---
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, HTTP, SMTP, SNTP, ARP, SSH, SSL
NPort Driver Manager for Windows 95/98/ME/NT/2000/XP/2003/Vista
Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64/Vista x64 COM driver, Linux Real TTY driver, Unix fixed TTY driver
Web console, serial console, Telnet console, SSH, or Windows utility
Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled
Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH
√ √ √
64 KB 64 KB 64 KB
64 KB 64 KB 64 KB
√ √ √
√ √ √
√ √ √
√ √ √
18 to 72 VDC 100 to 240 VAC/VDC 18 to 72 VDC
mA mA mA
√√ √
√√ √
√√ √
440 x 44 x 195 mm 440 x 44 x 195 mm 440 x 44 x 195 mm
(17.32 x 1.7 x 7.67 in) (17.32 x 1.73 x 7.67 in) (17.32 x 1.73 x 7.67 in)
√ √ √
0 to 55°C (32 to 131°F), 5 to 95% RH
-20 to 70°C (-4 to 158°F), 5 to 95% RH
UL UL60950-1/ TÜV EN60950-1
FCC Part 15, Subpart B, Class A; CE EN55022 Class A; CE EN55024
4 KV contact
1 KV power
2 KV power
5 years
Model Name
LAN
10/100M Ethernet
100M Fiber
Connector
Extension Slot
10/100BaseT RJ45 Module
Multi Mode SC Connector Module
Single Mode SC Connector Module
Parallel Port Module
Power Over Ethernet (IEEE802.3af)
1.5 KV Magnetic Isolation
Serial Interface
RS-232/422/485
Speed
Communication Parameters
Flow Control (RTC/CTS/ XON/XOFF)
15 KV ESD Protection
Any Baudrate Support
Patented ADDC
Software Features
Protocols
Utilities
OS Driver Support
Configuration
Operation Mode Standard
Secure
Advanced Built-in
Features
HMI LCM display with Four Push Buttons
Serial Data Log
Offine Port Buffering
SD Card Support
Buzzer
Real-Time Clock
Watch Dog Timer
Power Power Input
Power Consumption
Mechanical
Upper Casing: Aluminum (1 mm)
External Components: PC (Polycarbonate)
Lower Casing: SECC Sheet Metal (1 mm)
Dimensions (W × H × D)
DIN-Rail/Wall Mountable
Environment Operating temperature
Storage temperature
Regulatory
Approvals
Safety
EMC
EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Warranty
Terminal Server
Selection Guide
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

Total Solutions for Industrial Device Networking
www.moxa.com e-mail: [email protected] 4-11
Secure Terminal Servers/Terminal Servers
NPort 6650-8 NPort 6650-8-48V NPort 6650-16
11 1
--- --- ---
RJ45 RJ45 RJ45
1 1 1
Optional Optional Optional
Optional Optional Optional
Optional Optional Optional
Optional Optional Optional
--- --- ---
√ √ √
8 ports, DB9 (Male) 8 ports, DB9 (Male) 8 ports, RJ45
50 to 921.6 Kbps
Parity: None, Even, Odd, Space, Mark; Data Bits: 5, 6, 7, 8; Stop Bit(s): 1, 1.5, 2
√ √ √
√ √ √
√ √ √
√ √ √
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, HTTP, SMTP, SNTP, ARP, SSH, SSL
NPort Driver Manager for Windows 95/98/ME/NT/2000/XP/2003/Vista
Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64/Vista x64 COM driver, Linux Real TTY driver, Unix fixed TTY driver
Web console, serial console, Telnet console, SSH, or Windows utility
Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled
Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH
√ √ √
64 KB 64 KB 64 KB
64 KB 64 KB 64 KB
--- --- √
√ √ √
√ √ √
√ √ √
100 to 240 VAC/VDC 18 to 72 VDC 100 to 240 VAC/VDC
430 mA 730 mA mA
√√ √
√√ √
√√ √
77 x 28 x 111 mm 158 x 33 x 103 mm 440 x 44 x 195 mm
(3 x 1.1 x 4.37 in) (6.22 x 1.29 x 4 in) (17.32 x 1.73 x 7.67 in)
√ √ √
0 to 55°C (32 to 131°F), 5 to 95% RH
-20 to 70°C (-4 to 158°F), 5 to 95% RH
UL UL60950-1/ TÜV EN60950-1
FCC Part 15, Subpart B, Class A; CE EN55022 Class A; CE EN55024
4 KV contact
1 KV power
2 KV power
5 years
Model Name
LAN
10/100M Ethernet
100M Fiber
Connector
Extension Slot
10/100BaseT RJ45 Module
Multi Mode SC Connector Module
Single Mode SC Connector Module
Parallel Port Module
Power Over Ethernet (IEEE802.3af)
1.5 KV Magnetic Isolation
Serial Interface
RS-232/422/485
Speed
Communication Parameters
Flow Control (RTC/CTS/ XON/XOFF)
15 KV ESD Protection
Any Baudrate Support
Patented ADDC
Software Features
Protocols
Utilities
OS Driver Support
Configuration
Operation Mode Standard
Secure
Advanced Built-in
Features
HMI LCM display with Four Push Buttons
Serial Data Log
Offine Port Buffering
SD Card Support
Buzzer
Real-Time Clock
Watch Dog Timer
Power Power Input
Power Consumption
Mechanical
Upper Casing: Aluminum (1 mm)
External Components: PC (Polycarbonate)
Lower Casing: SECC Sheet Metal (1 mm)
Dimensions (W × H × D)
DIN-Rail/Wall Mountable
Environment Operating temperature
Storage temperature
Regulatory
Approvals
Safety
EMC
EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Warranty
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

4-12 www.moxa.com e-mail: [email protected]
Secure Terminal Servers/Terminal Servers
Secure Terminal Server/Terminal Server
NPort 6650-16-48V NPort 6650-32 NPort 6650-32-48V
11 1
--- --- ---
RJ45 RJ45 RJ45
1 1 1
Optional Optional Optional
Optional Optional Optional
Optional Optional Optional
Optional Optional Optional
--- --- ---
√ √ √
16 ports, DB9 (Male) 32 ports, DB9 (Male) 32 ports, RJ45
50 to 921.6 Kbps
Parity: None, Even, Odd, Space, Mark; Data Bits: 5, 6, 7, 8; Stop Bit(s): 1, 1.5, 2
√ √ √
√ √ √
√ √ √
√ √ √
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, HTTP, SMTP, SNTP, ARP, SSH, SSL
NPort Driver Manager for Windows 95/98/ME/NT/2000/XP/2003/Vista
Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64/Vista x64 COM driver, Linux Real TTY driver, Unix fixed TTY driver
Web console, serial console, Telnet console, SSH, or Windows utility
Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled
Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH
√ √ √
64 KB 64 KB 64 KB
64 KB 64 KB 64 KB
--- --- √
√ √ √
√ √ √
√ √ √
18 to 72 VDC 100 to 240 VAC/VDC 18 to 72 VDC
mA mA mA
√√ √
√√ √
√√ √
77 x 28 x 111 mm 158 x 33 x 103 mm 440 x 44 x 195 mm
(3 x 1.1 x 4.37 in) (6.22 x 1.29 x 4 in) (17.32 x 1.73 x 7.67 in)
√ √ √
0 to 55°C (32 to 131°F), 5 to 95% RH
-20 to 70°C (-4 to 158°F), 5 to 95% RH
UL UL60950-1/TÜV EN60950-1
FCC Part 15, Subpart B, Class A; CE EN55022 Class A; CE EN55024
4 KV contact
1 KV power
2 KV power
5 years
Terminal Server
Selection Guide
Model Name
LAN
10/100M Ethernet
100M Fiber
Connector
Extension Slot
10/100BaseT RJ45 Module
Multi Mode SC Connector Module
Single Mode SC Connector Module
Parallel Port Module
Power Over Ethernet (IEEE802.3af)
1.5 KV Magnetic Isolation
Serial Interface
RS-232/422/485
Speed
Communication Parameters
Flow Control (RTC/CTS/ XON/XOFF)
15 KV ESD Protection
Any Baudrate Support
Patented ADDC
Software Features
Protocols
Utilities
OS Driver Support
Configuration
Operation Mode Standard
Secure
Advanced Built-in
Features
HMI LCM display with Four Push Buttons
Serial Data Log
Offine Port Buffering
SD Card Support
Buzzer
Real-Time Clock
Watch Dog Timer
Power Power Input
Power Consumption
Mechanical
Upper Casing: Aluminum (1 mm)
External Components: PC (Polycarbonate)
Lower Casing: SECC Sheet Metal (1 mm)
Dimensions (W × H × D)
DIN-Rail/Wall Mountable
Environment Operating temperature
Storage temperature
Regulatory
Approvals
Safety
EMC
EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Warranty
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

Total Solutions for Industrial Device Networking
www.moxa.com e-mail: [email protected] 4-13
Secure Terminal Servers/Terminal Servers
Model Name CN2510-8
CN2510-16
CN2510-8-48V
CN2510-16-48V
CN2610-8
CN2610-16
LAN
10/100M Ethernet 1 port 1 port 2 ports
Connector RJ45 RJ45 RJ45
1.5 KV Magnetic Isolation √ √ √
Serial Interface
RS-232 8 ports (CN2510-8)
16 ports (CN2510-16)
8 ports (CN2510-8-48)
16 ports (CN2510-16-48)
8 ports (CN2610-8)
16 ports (CN2610-16)
Connector RJ45 RJ45 RJ45
Speed 50 bps to 921.6 Kbps 50 bps to 921.6 Kbps 50 bps to 921.6 Kbps
Communication Parameters Parity: None, Even, Odd, Space, Mark; Data Bits: 5, 6, 7, 8; Stop Bit(s): 1, 1.5, 2
Flow Control (RTC/CTS/ XON/XOFF) √ √ √
15 KV ESD Protection √ √ √
Software Features
Protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, SMTP, SNTP, ARP, PPP, SLIP
Utilities Utility for Windows 95/98/ME/NT/2000/XP/2003
OS Driver Support Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64 COM driver, Linux Real TTY driver, SCO Unix,
SCO OpenServer 5, UnixWare 7, UnixWare 2.1.x, SVR4.2, Unix
Configuration Serial console, Telnet console
Authentication RADIUS, dial back, PAP, CHAP, local user/password
Management SNMP MIB II
IP Routing Static, RIP-I, RIP-II
Operation Modes
Real COM, TCP Server, UDP, Reverse Telnet, Disabled, Terminal, Reverse Terminal, Printer, PPP,
Multi-Host TTY, Multiplex
– DRDAS
Advanced Built-in Features HMI LCM display with four push buttons, buzzer, real-time clock, watchdog timer
Power Input Power Input 100 to 240 VAC/VDC 38 to 72 VDC 100 to 240 VAC/VDC
Power Consumption 235 mA @ 100V, 145 mA @ 240V 260 mA @ 48V (max.) 235 mA @ 100V, 145 mA @ 240V
Mechanical
Casing: Aluminum (1 mm) √ √ √
Dimensions (W × H × D) 440 x 1.77 x 198 mm (17.3 x 1.77 x 7.8 in)
DIN-Rail/Wall Mountable √ √ √
Environment Operating Temperature 0 to 55°C (32 to 131°F), 5 to 95% RH
Storage Temperature -20 to 70°C (-4 to 158°F), 5 to 95% RH
Regulatory
Approvals
Safety UL UL60950 UL60950 UL60950
TÜV EN60950 EN60950 EN60950
EMC
FCC Part 15, Subpart B Class A Class A Class A
CE EN55022 Class A Class A Class A
EN55024 √ √ √
Power
EN61000-4-2 (ESD) 4 KV contact
EN61000-4-4 (EFT) 1 KV (Power)
EN61000-4-5 (Surge) 2 KV (Power)
Warranty 5 years
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

4-14 www.moxa.com e-mail: [email protected]
Secure Terminal Servers/Terminal Servers
Secure Terminal Server/Terminal Server
Easy way to make serial devices Internet ready
Versatile socket operating modes, including TCP Server, TCP
Client, UDP, Pair Connection, Real COM, and RFC2217
Secure modes for TCP Server, TCP Client, Pair Connection, and
Real COM
Any baudrate supported with high precision
2 or 4-wire RS-485 with patented ADDC™ (Automatic Data
Direction Control)
802.3af support (Power Over Ethernet) - under development
Enhanced remote configuration with https and SSH
Port buffers to hold serial data when Ethernet is off-line
Secure Data Transmission
4
6150
Features
Overview
Ordering Information
NPort 6150-US: 1-port Secure Terminal Server
Package Checklist
• 1 NPort 6150
• Quick Installation Guide
• Document and Software CD-ROM
• Power Adaptor
Optional Accessories
DK-35A: DIN-Rail Mounting Kit (35 mm)
1-port Secure Terminal Server
The NPort 6150 supports SSL and SSH connections, which means that
it can connect a serial device to Ethernet with encryption. The 3-in-1
serial port supports RS-232, RS-422, and RS-485 communication,
and the interface may be selected or changed in the configuration
menu.
The security of information is a very important concern when
connecting serial devices to Ethernet. The NPort 6150 supports the
SSL and SSH protocols, both of which ensure that data is sent over a
secure TCP/IP Ethernet connection. Users can rest assured that their
serial data is transmitted securely over the network.
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

Total Solutions for Industrial Device Networking
www.moxa.com e-mail: [email protected] 4-15
Secure Terminal Servers/Terminal Servers
Dimensions (unit = mm)
Specifications
LAN
Ethernet: 1 10/100 Mbps, RJ45
Protection: Built-in 1.5 KV magnetic isolation
Serial
No. of Ports: 1
Interface: RS-232/422/485, DB9 (Male)
Serial Communication Parameters
Parity: None, Even, Odd, Space, Mark
Data Bits: 5, 6, 7, 8
Stop Bit(s): 1, 1.5, 2
Flow Control: RTS/CTS, XON/XOFF
Speed: 50 bps to 921.6 Kbps
Console Ports: RS-232 console
Software Features
Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP,
HTTP, SMTP
Utilities: NPort Search Utility for Windows 95/98/ME/NT/2000/
XP/2003/Vista
Security Protocols: DES, 3DES, AES, Radius, Local,PAP, CHAP
OS Driver Support: Windows 95/98/ME/NT/2000/XP/2003/XP x 64/
2003 x 64 COM driver, Linux Real TTY driver, Unix
Configuration: Web/serial/Telnet console
Power Requirements
Power Input: 12 to 48 VDC
Mechanical Specifications
Material: Aluminum (1 mm)
Gross Weight: 700g
Environment
Operating Temperature:
0 to 55°C (32 to 131°F), 5 to 95% RH
Storage Temperature:
-20 to 85°C (-4 to 185°F), 5 to 95%RH
Regulatory Approvals
EMC:
CE: EN55022 Class A/EN55024
FCC: FCC Part 15 Subpart B, Class A
Safety:
UL: UL60950-1
TÜV: EN60950-1
Warranty: 5 years
MTBF: 231709
PIN RS-232 RS-422/4-wire
RS-485
2-wire RS-485
1 DCD TxD-(A) ---
2 RxD TxD+(B) ---
3 TxD RxD+(B) Data+(B)
4 DTR RxD-(A) Data-(A)
5 GND GND GND
6 DSR --- ---
7RTS --- ---
8 CTS ---
15
69
100.4 mm (3.95 in)
28 mm (1.10 in)
29 mm (1.14 in)
O 3.2 mm
(0.13 in)
O 7 mm
(0.28 in)
12.45 mm
(0.49 in)
24.9 mm
(0.98 in)
90 mm (3.54 in)
79 mm (3.11 in)
67 mm (2.64 in)
27 mm (1.06 in)
DB9 (Male) RS-232, RS-422,
2/4-wire RS-485 port
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

4-16 www.moxa.com e-mail: [email protected]
Secure Terminal Servers/Terminal Servers
Secure Terminal Server/Terminal Server
Easy way to make serial devices Internet ready
Versatile socket operating modes, including TCP Server, TCP
Client, UDP, Pair Connection, Real COM, and RFC2217
Secure modes for TCP Server, TCP Client, Pair Connection, and
Real COM
Any baudrate supported with high precision
10/100BaseTX RJ45 port or 100BaseFX port (SC connector,
single/multi mode)
Port buffers to hold serial data when Ethernet is off-line
SD slot for optional expansion of port buffers
6250 Series
Features
NPort 6250: 2-port RS-232/422/485 to Ethernet Secure Terminal Server
NPort 6250-M-SC: 2-port RS-232/422/485 to one Multi Mode Fiber Ethernet Secure Terminal Server
NPort 6250-S-SC: 2-port RS-232/422/485 to one Single Mode Fiber Ethernet Secure Terminal Server
Package Checklist
• 1 NPort 6250
• Quick Installation Guide
• Document and Software CD-ROM
• Power Adaptor
Optional Accessories
DK-35A: DIN-Rail Mounting Kit (35 mm)
2-port Secure Terminal Server
The NPort 6250's two serial ports can be independently configured for
RS-232, RS-422, or RS-485 communication. Both 2-wire and 4-wire
RS-485 are supported. Models are available for both copper and fiber
(single-mode or multi-mode) Ethernet ports.
The NPort 6250 is a reliable device server that provide users with
secure serial-to-Ethernet data transmission and a customer-oriented
hardware design. If the Ethernet connection fails, the NPort 6250
will queue all serial data in its internal 64 KB port buffer. When the
Ethernet connection is re-established, the NPort 6250 will immediately
release all data in the buffer in the order that it was received. Users can
increase the port buffer size by installing an SD card.
Overview
No Data Loss if Ethernet Connection Fails
Ordering Information
4
Device Networking Solutions
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

Total Solutions for Industrial Device Networking
www.moxa.com e-mail: [email protected] 4-17
Secure Terminal Servers/Terminal Servers
Dimensions (unit = mm)
Specifications
LAN
NPort 6250-S-SC/NPort 6250-M-SC
Fiber Port: 1 100BaseFX port (SC connector)
NPort 6250
Ethernet: 1 10/100 Mbps, RJ45
Protection: Built-in 1.5 KV magnetic isolation
Optical Fiber
Distance:
Multi Mode: 0 to 2 km, 1310 nm (62.5/125 μm, 500 MHz*km)
Single Mode: 0 to 40 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km))
Min. TX Output:
Multi Mode: -20 dBm
Single Mode: 0 to 40 km, -5 dBm
Max. TX Output:
Multi Mode: -14 dBm
Single Mode: 0 to 40 km, 0 dBm
Sensitivity:
Multi Mode: -34 to -30 dBm
Single Mode: -36 to -32 dBm
Serial
No. of ports: 2
Interface: RS-232/422/485, DB9 (Male)
Serial Communication Parameters
Parity: None, Even, Odd, Space, Mark
Data Bits: 5, 6, 7, 8
Stop Bit(s): 1, 1.5, 2
Flow Control: RTS/CTS, XON/XOFF
Speed: 50 bps to 921.6 Kbps
Console Ports: RS-232 console x 1 (Port 1)
Storage: One SD slot
Software Features
Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP,
HTTP, SMTP, ARP, SSH, SSL, PPPoE, DDNS, RIP
Utilities: Windows utility for Windows 98/ME/2000/XP/2003/XP x64/
2003 x64/Vista x64
Security Protocols: DES, 3DES, AES, Radius, Local,PAP, CHAP
OS Driver Support: Windows 95/98/ME/NT/2000/XP/2003/
XP x64/2003 x64/Vista x64 COM driver
Configuration: Web/serial/Telnet console
Power Requirements
Power Input: 12 to 48 VDC
Mechanical Specifications
Material: Aluminum (1 mm)
Gross Weight: 730g
Environment
Operating Temperature: 0 to 55°C (32 to 131°F), 5 to 95% RH
Storage Temperature
-20 to 85°C (-4 to 185°F), 5 to 95%RH
Regulatory Approvals
EMC:
CE: EN55022 Class A/EN55024
FCC: FCC Part 15 Subpart B, Class A
Safety:
UL: UL60950-1
TÜV: EN60950-1
Warranty: 5 years
MTBF:
NPort 6250: 226128 hours
NPort 6250-M: 225762 hours
NPort 6250-S: 225762 hours
29 mm (1.14 in)
89 mm (3.50 in)
O 7 mm
(0.28 in)
12.45 mm
(0.49 in)
24.9 mm
(0.98 in)
77 mm (3.30 in)
100 mm (3.94 in)
77 mm (3.03 in)
27 mm
(1.06 in)
O 3.2 mm
(0.13 in)
28 mm (1.10 in)
111 mm (4.37 in)
NPort 6250-M-SC/6250-S-SC
NPort 6250
PIN RS-232 RS-422/
4-wire RS-485
2-wire RS-485
1 DCD TxD-(A) ---
2 RxD TxD+(B) ---
3 TxD RxD+(B) Data+(B)
4 DTR RxD-(A) Data-(A)
15
69
Male DB9 RS-232, RS-422, 2/4-wire RS-485 port
PIN RS-232 RS-422/
4-wire RS-485
2-wire RS-485
5 GND GND GND
6 DSR --- ---
7RTS --- ---
8 CTS --- ---
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

4-18 www.moxa.com e-mail: [email protected]
Secure Terminal Servers/Terminal Servers
Secure Terminal Server/Terminal Server
LCD control panel for IP address configuration
Versatile socket operating modes, including TCP Server, TCP
Client, UDP, Pair Connection, Real Com driver, and RFC2217
Secure modes for TCP Server, TCP Client, Pair Connection, and
Real COM
Any baudrate supported with high precision
10/100BaseTx Ethernet port supporting 802.3af Power Over
Ethernet (POE) - under development
Port buffers to hold serial data when Ethernet is off-line
SD slot for optional expansion of port buffers
Slot for network expansion module
6450
Features
NPort 6450: 4-port RS-232/422/485 to Ethernet Secure Terminal Server
Package Checklist
• 1 NPort 6450
• Quick Installation Guide
• Document and Software CD-ROM
• Power Adaptor
Optional Accessories
DK-35A: DIN-Rail Mounting Kit (35 mm)
Network Module: See page 12-11
4-port Secure Terminal Server
The NPort 6450 is a secure device server with 4 RS-232/422/485
serial ports. Serial devices of any type can be connected to the NPort
6450, with all four devices using the same IP address. The Ethernet
port can be configured for a normal or a secure TCP/IP connection.
Overview
Ordering Information
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

Total Solutions for Industrial Device Networking
www.moxa.com e-mail: [email protected] 4-19
Secure Terminal Servers/Terminal Servers
Dimensions (unit = mm)
Specifications
LAN
Ethernet: 1 10/100 Mbps, RJ45
Protection: Built-in 1.5 KV magnetic isolation
Optical Fiber (Network Module)
Distance:
Multi Mode: 0 to 2 km, 1310 nm (62.5/125 μm, 500 MHz*km)
Single Mode: 0 to 40 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km))
Min. TX Output
Multi Mode: -20 dBm
Single Mode: 0 to 40 km, -5 dBm
Max. TX Output
Multi Mode: -14 dBm
Single Mode: 0 to 40 km, 0 dBm
Sensitivity
Multi Mode: -34 to -30 dBm
Single Mode: -36 to -32 dBm
Serial
No. of Ports: 4
Interface: RS-232/422/485, DB9 (Male)
Serial Communication Parameters
Parity: None, Even, Odd, Space, Mark
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Flow Control: RTS/CTS, XON/XOFF
Speed: 50 bps to 921.6 Kbps
Console Ports: RS-232 console x 1 (port 1)
Storage: One SD slot
Software Features
Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP,
SMTP, ARP, SSH, SSL, PPPoE, DDNS, RIP
Utilities: Windows utility for Windows 98/ME/2000/XP/2003/XP x64/
2003 x64/Vista x64
Security Protocols: DES, 3DES, AES, Radius, Local,PAP, CHAP
OS Driver Support: Windows 95/98/ME/NT/2000/XP/2003/XP x64/
2003 x64/Vista x64 COM driver
Configuration: Web/serial/Telnet console
Power Requirements
Power Input: 12 to 48 VDC
Mechanical Specifications
Material: SECC sheet metal (0.8 mm)
Gross Weight: 1020g
Environment
Operating Temperature: 0 to 55°C (32 to 131°F), 5 to 95% RH
Storage Temperature: -20 to 70°C (-4 to 158°F), 5 to 95%RH
Regulatory Approvals
EMC: CE: EN55022 Class A/EN55024
FCC: FCC Part 15 Subpart B, Class A
Safety: UL: UL60950-1, TÜV: EN60950-1
PIN RS-232 RS-422/
4-wire RS-485
2-wire RS-485
1 DCD TxD-(A) ---
2 RxD TxD+(B) ---
3 TxD RxD+(B) Data+(B)
4 DTR RxD-(A) Data-(A)
15
69
DB9 (Male) RS-232, RS-422,
2/4-wire RS-485 port PIN RS-232 RS-422/
4-wire RS-485
2-wire RS-485
5 GND GND GND
6 DSR --- ---
7 RTS --- ---
8 CTS --- ---
12.5 mm
(0.49 in)
25 mm
(0.98 in)
O 7 mm
(0.28 in)
103 mm (4.06 in)
34 mm (1.34 in)
35 mm (1.38 in)
181 mm (7.13 in)
158 mm (6.22 in)
169 mm (6.65 in)
O 3.2 mm
(0.13 in)
SD slot
Expansion slot for LAN
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)

4-20 www.moxa.com e-mail: [email protected]
Secure Terminal Servers/Terminal Servers
Secure Terminal Server/Terminal Server
Up to 32 ports for high density environments
SSL support for secure communication
Secure remote management and configuration with SSH or SSL
Powerful DES, 3DES, and AES hardware encryption engine
Any baudrate allowed
10/100BaseTx Ethernet port supporting 802.3af Power Over
Ethernet (POE) - under development
Port buffers to hold serial data if Ethernet fails
SD slot for optional expansion of port buffers
Slot for network expansion module
6600 Series
Features
8, 16, and 32-port RS-232/422/485 Rackmount Terminal Servers
The NPort 6600 is designed to connect higher densities of serial
devices to the Ethernet. Models are available with 8, 16, or 32
ports. When establishing network connections to a larger number
of serial devices or equipment console ports, greater security may
be needed for TCP data. The NPort 6600 supports secure Ethernet
communication between computers and serial devices with DES,
3DES, and AES, three of the most popular standards for data
encryption.
Overview
The NPort 6600 has a built-in LCD control panel that allows data input,
configuration, and mode selection. The panel displays the server
name, serial number, and IP address. Parameters such as IP address,
netmask, and gateway, can be quickly and easily modified.
Easy Installation with LCD Control Panel
The NPort 6600 provides adjustable termination, pull high, and
pull low resistors for RS-485 communication. In some critical
environments, termination resistors may be needed to prevent the
reflection of serial signals. Pull high and pull low resistors may also
need adjustment so the electrical signal is not corrupted. Since no set
of resistor values works for every environment, the NPort 6600 allows
manual adjustment of the resistor values for each serial port, using
built-in DIP switches.
Adjustable Resistor Values for RS-485
4
IP Systèmes, importateur/distributeur des solutions de communication industrielle MOXA en France Tel : [phone] (15cts/min)
