MP-Man MP-FUB58 User manual

www.mpman.com
www.mpman.com
MP-FUB58
www.mpman.com

28
34
35
37
37
40
40
43
46
46
46
50
MP-FUB58 3
PREPARATION
Features
Checking parts
Names and function of MP-FUB58
LCD panel
INSTALLATION AND USE
Turning on/off the power
Setting the modes
Playing back digital music/voice files
Adjusting the volume
Searching music/voice file
Setting the section repeating function
Recording voice
Button table
APPLICATION
Setting the menu
Setting the repeat function
Setting the equalizer function
Managing file
Setting the logo
Setting the display function
Display the file information
Setting the language
Menu table
COMPUTER CONNECTION
Installing USB Device Driver
for Windows98SE
Connecting MP-FUB58 to PC
Managing files
Formatting
Disconnecting MP-FUB58 from PC
LOGO EDITOR
Installing logo editor
Editing logo
Installing logo
LISTENING VOICE RECORDER
FILES ON PC
Installing voice file converting program
Converting voice recorder files
Listening voice recorder files on PC
PRODUCT SPECIFICATION
Product Specifications
Warning
Continuous use of full
output might damage
the ears
6
6
7
7
10
10
11
11
11
12
13
14
18
18
19
20
21
22
23
23
24

Features
Checking Parts
Names and functions of MP-FUB58

DIGITAL PORTABLE MUSIC PLAYER
P
L
A
Y
/
S
T
O
P
Digital Audio Player
Stereo Earphone
USB cable
Installation CD
One AAA size battery
User manual
Compact and slim design
Plug and play USB flash drive
(USB driver is needed only for Windows 98SE)
MP3, WMA music file playback
Voice recording
10 band equelizer
Controlling diverse menu
Multi language support
User logo support
Blue backlight
High-speed USB communication
Diverse OS support for Windows, Mac, and Linux
Earphone
jack
Mode icon Mode File no. / Total file No. battery icon
Text scroll area
Playing timeRepeat iconEQ icon
Microphone
USB connection
terminal Battery case
LCD display
panel
  Button
 Button
Mode button
Volume control
button()
MP-FUB58 76 MP-FUB58

Turn on/off the power
Converting modes
Playing back digital music/voice files
Controlling volume
Searching music/voice files
Setting section repeating function
Recording voice
Button table

Press the  button on the MP-FUB58 for more than one
second to turn on the power.
To playback - Press   button on MP-FUB58 in stop mode,
and digital music/voice will be played back.
To stop - Press
  button on MP-FUB58 in playback mode,
and digital music/voice will be stopped.

Control volume with volume control button () on MP-FUB58 player.
Volume can be controlled in the range from 0 to 30.
Press the button briefly to control the volume by one level.
Press and hold button to control continuously.
To move desired music/voice file
Press thebutton to move one track backward in the playback or stop mode.
Press the button to move one track forward in the playback or stop mode.
Note) If the  button is pressed within 5 seconds after a song is started, the previous song will be repeated.
If the button is pressed 5 seconds after the song started, the current song will be repeated.
(For VBR files, the previous song wont be played even if the button is pressed within 5 seconds.)
For VBR files, the actually playtime may not match the playback time displayed on MP-FUB58.
*VBR(Variable Bit Rate) file : MP3 file which has multi compression rates applied
Press the  button on the MP-FUB58 for more than one
second to turn off the power.
If the unit is in the Stop mode for longer than one minute,
it will power off automatically.
Stop playback and press the mode button.
It converts like Music mode Voice mode Voice recording mode
Music mode Voice mode Voice recording mode
MP-FUB58 1110 MP-FUB58

To move to the desired spot of the song during playback
Press the / button for more than 1 second and release the /
button at the desired spot of the song.
To cancel a section repeating
Press the mode button in the section repeating status.
Then, the section repeating is cancelled, and it will automatically playback .
To set an end point of section repeating
Press the mode button again briefly at the end point of the desire
section repeating.
Then, it shows Icon on the display panel and the section from A to
B will be automatically repeated.
To set a start point of section repeating
Press the mode button briefly at the start point of the desire section repeating
during digital music/voice playback. Then, the icon on the display panel.
To record voice
Move the voice recording mode
Press
  button and recording starts.
To finish voice recording
Press
  button. Then, recording stops and voice file will be created.
MP-FUB58 1312 MP-FUB58
Note) When memory is fully used, recording stops automatically and voice file will be created.
Possible recording time shows in the lower of the 'standby' text in accordance with memory capacity.

Button

Former staus
Power Off Longer Power on
Music / Voice playback Briefly Stop
Music, Voice playback /
Voice recording / Stop
Power Off
Longer
Longer
Stop (M/V mode) Briefly Playback / recording
Push time Operation Button


MODE
Former staus
Briefly/Longer
Briefly
Playback / Stop
Menu status
Briefly/Longer
Briefly Volume ()
To move in the menu
To move in the menu
Push time Operation
Playback / Stop
Menu status
Menu status


Stop (Record mode) Briefly
Briefly
Recording
Less than 5 sec. after beginning playback : Former file playback
Longer than 5 sec. after beginning playback : File playback from the start
Voice recording Briefly
Longer
Stop
Fast backward search in playback
Menu status
Stop
Briefly
Briefly
To exit menu
To move the menu mode
To select the menu item
To move the former file
Playback Briefly Playback the next file
Playback
Stop Longer Briefly Fast forward search in playback file To move the next file
Playback
Playback
Playback Briefly
Briefly
To appoint the starting spot of the section repeating
During setting section repeating Briefly To appoint the ending spot of the section repeating
Status of setting section repeating Briefly To cancel the section repeating
To change the mode
(music
 voice voice recording )
Stop Briefly
Volume ()
Playback / Stop
MP-FUB58 1514 MP-FUB58

Setting the menu
Setting the repeat function
Setting the equalizer function
Managing files
Setting the logo
Setting the display function
Display the file information
Setting the language
Menu table

Press the mode button more than 1 sec and it will be converted to the menu mode.
When selecting menu, use the mode button and when moving the different
order, use the (  ) button.
Pressing the
 button is to cancel the menu mode.
Repeat when selecting the repeating playback
EQ when using the equalizer function
File when deleting or formatting the music/voice file
Logo when selecting the logo
Display when controlling the display panel
File Info when display the file information
Languge when controlling the language
Exit menu when exiting the menu
Select Repeat in the menu mode.
Move the desired repeat mode with the (  ) button, and then select
the mode button.
Normal when playing back 1 time each of collection in order
Repeat one when listening to one file repeatedly
Repeat all when listening to all files repeatedly
Repeat list when listening to some files after making the list
Shuffle when listening to the appointed file randomly
Intro when listening to the first 10 secs of all the appointed files
Note) If there is no any input in the menu mode for 10 secs,
then it will be automatically cancelled.
Return is not the function in the menu to mode.
Select Return to exit the present mode.
To make the repeat list
When the repeat list menu is selected, it shows the list control panel.
When selecting the desire music/voice file and making the list,
it playbacks and repeats the appointed song only.
Select EQ in the menu mode
Select the mode button after moving to the desire the EQ mode
with the (  ) button.
MP-FUB58 1918 MP-FUB58

Format
All files of the memory are deleted if the format is selected.
Select the file in the menu mode.
Select with the mode button after moving the desire file mode with the
(  ) button.
To delete
To select the place of the deleting file after selecting "delete".
Delete to select the mode button after moving to the file that you want to
delete.
Caution) All files are deleted when executing the format.
The logo can be selected in the display panel.
Default : MPMAN Logo
User :User Logo by using the logo editor.
Displaying the logo
It can be selected if the logo is continuosly displayed.
On : Always
Off : When the power is on
Normal : Setting the 0dB base equalizer
User : User can set the equalizer with user choice
MP-FUB58 2120 MP-FUB58

Select display in the menu mode.
Select with the mode button after moving the
desire display mode with the
(  ) button.
Backlight
The backlight in the display panel can be controlled
-1.On:Using the backlight function
- 2. Off : In accordance with the time.
- 3. Lighting time : The lasting time of backlight
Set the time by pressing the  or  button.
Contrast
Contrast can be controlled in the display panel.
Control the contrast by pressing the or button.
Note) If off is selected, battery is saved.
Scroll Speed
The scroll speed of text can be controlled in the
display panel.
Control the contrast by pressing the  or  button.
- Korean
- Western
- W.Europe
- Japanese
- S.Chinese
- T.Chinese
Bitrate - Sampling Frequency
File Size - Playing Time
MP-FUB58 2322 MP-FUB58

MP-FUB58 2524 MP-FUB58

Installing USB Device Driver for Windows98/SE
Connecting MP-FUB58 to PC
Managing files
Formatting
Disconnecting MP-FUB58 from PC

Note) Do not need to install the driver again after installation for use of windows98SE.
Insert the installation CD into the "CD-ROM driver" in PC and plug
MP-FUB58 into PC's USB port.
Click on the next button when the pop-up diagram shows as below.
Check "Search for the best driver for your device " and click on the
next button when the pop-up diagram shows as below.
MP-FUB58 2928 MP-FUB58

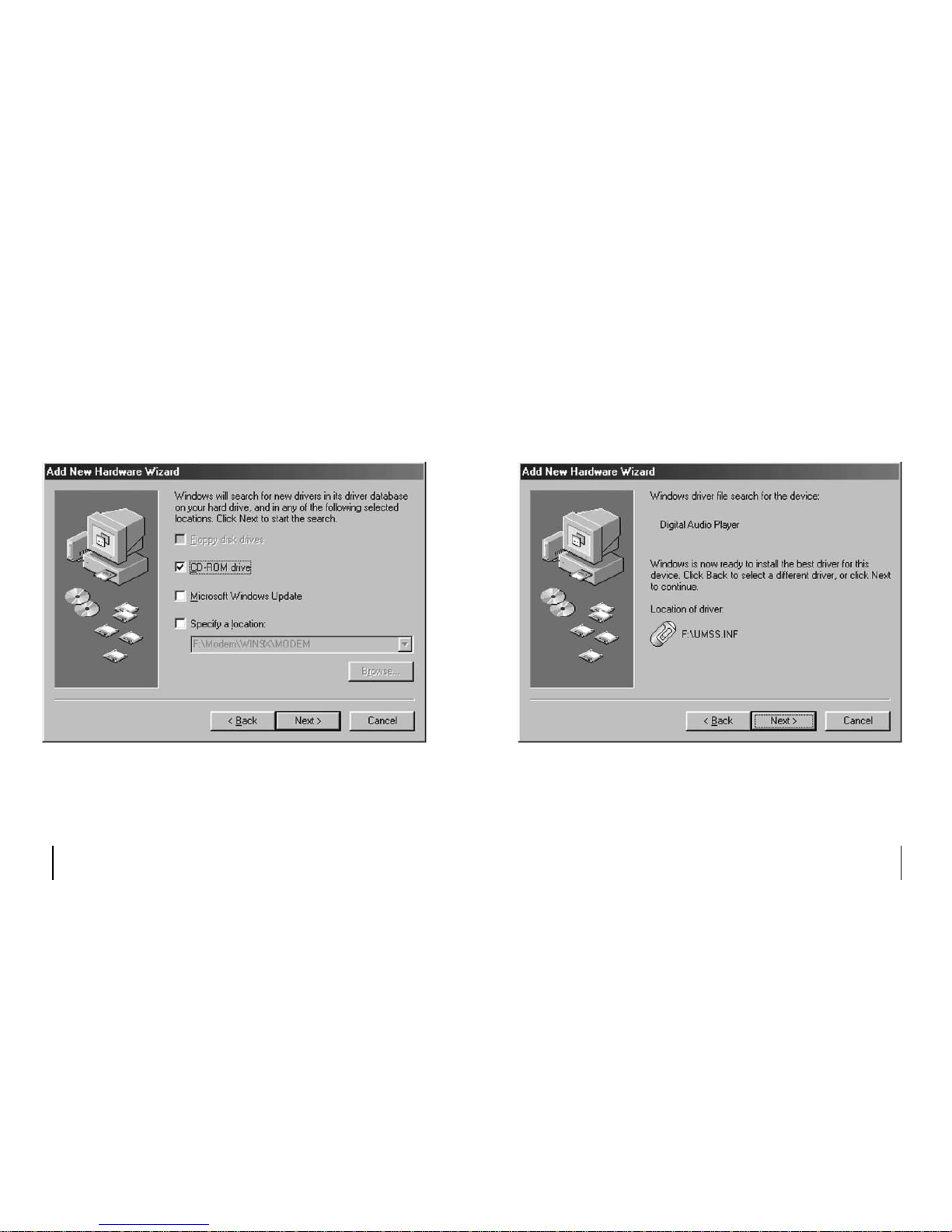

Check "CD-ROM driver" and click on the next button when the pop-up
diagram shows as below. Click on the next button when the pop-up diagram shows as below.
MP-FUB58 3130 MP-FUB58

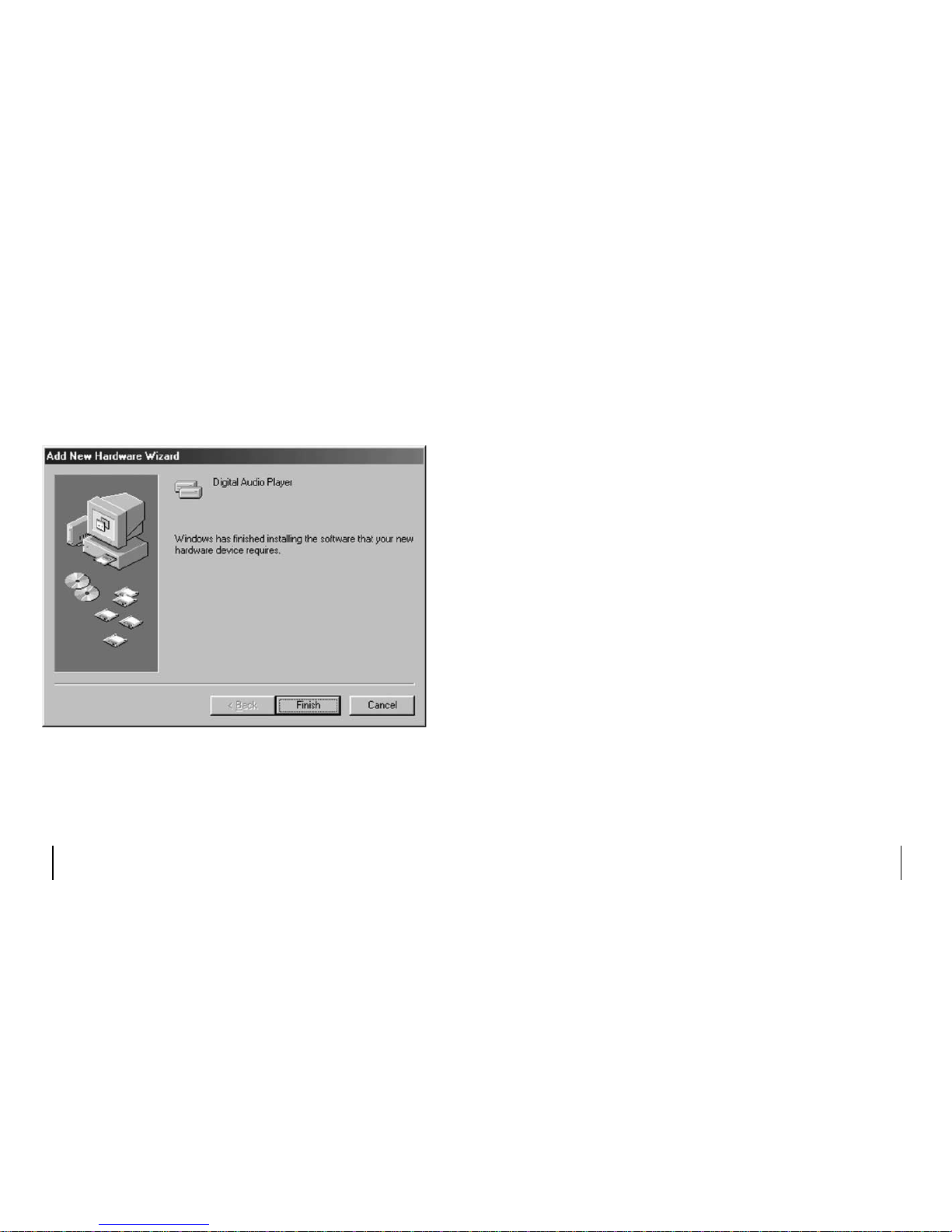

Click on the button to finish the installation.
Now the driver has been installed into your system.
MP-FUB58 3332 MP-FUB58

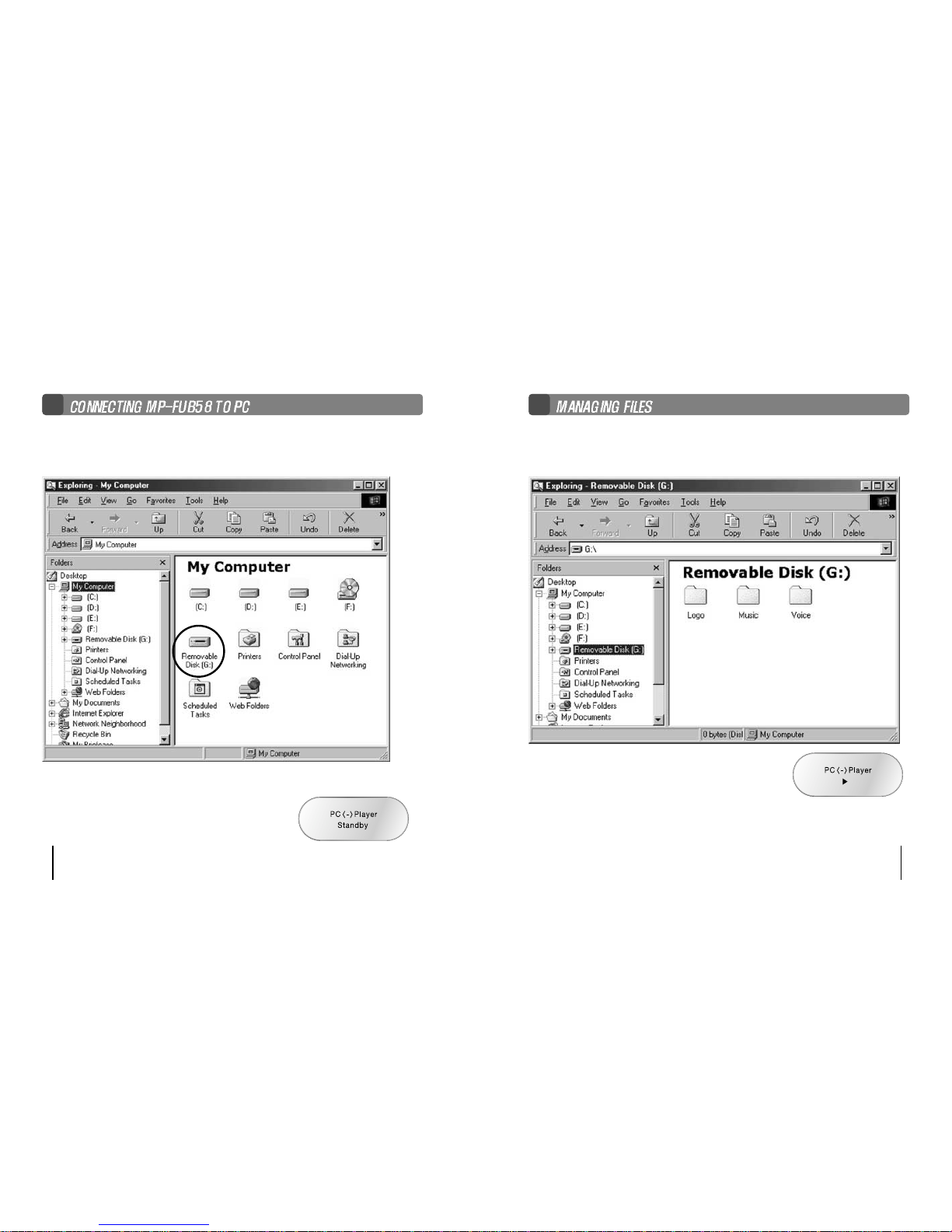

Turn on the PC power
Connect the PC connection cable to USB port on the PC
"Removable Disk" folder is made in the My Computer of the Window Explorer .
The usage is the same as the usage for floppy disk or hard disk.
When MP-FUB58 is removed from PC, the Removable disk disappeares in the My Computer folder.
There are MUSIC, VOICE, and LOGO folders in the removable disk
and they are still existed even if they formatted.
To download the music file.
Save the music file in the MUSIC folder.
The display panel in MP-FUB58 shows as
right while downloading the file.
MP-FUB58 3534 MP-FUB58
The message, waiting shows in the display
panel of MP-FUB58 while connecting to PC.

Caution) Do not remove MP-FUB58 from PC, even if PC monitor says finished, when PC<->Player
() is moving in the LCD panel of MP-FUB58.
Caution) If any other folders are used except MUSIC, or any folders are made in the MUSIC folder for the
music input, the music can not be played back.
Note) MP-FUB58 can be used as the computer memory device.
It is used as the floppy disk or hard disk.
To make voice file
If the voice is recorded, the voice file is saved in the VOICE folder.
Caution) If any other folders are used except VOICE, or any folders are made in the VOICE folder for the
voice input, the voice can not be played back.
To upload
It is used as the floppy disk or hard disk.
To download the logo
Save the logo made by the logo editor in the LOGO folder.
Caution) If any other folders are used except LOGO, or any folders which are made in the LOGO folder
for the input of the logo file, the logo can not be displayed in the display panel.
Click on the right side of the mouse after selecting the removable disk.
Select format in the menu and click on the "start".
Use MP-FUB58 when formatting is completed because MP-FUB58 is
formatted again after formatting in the PC.
Note) It is possible to format with the function, Menu->File->Format in MP-FUB58.
Make sure if the data transfer is completed in the display panel of
MP-FUB58 when separating MP-FUB58 from PC.
The data is damaged while the data is being transferred when
disconnecting MP-FUB58 from PC.
Caution) Do not disconnect MP-FUB58 from PC during PC<->Player () is moving in the display
panel of MP-FUB58.
Note) In Windows 2000, ME, and XP, the safe procedure will be to double click on the icon
( ) located at the bottom right corner of your screen and follow instructions
before removing.
MP-FUB58 3736 MP-FUB58

Installing logo editor
Editing logo
Installing logo
