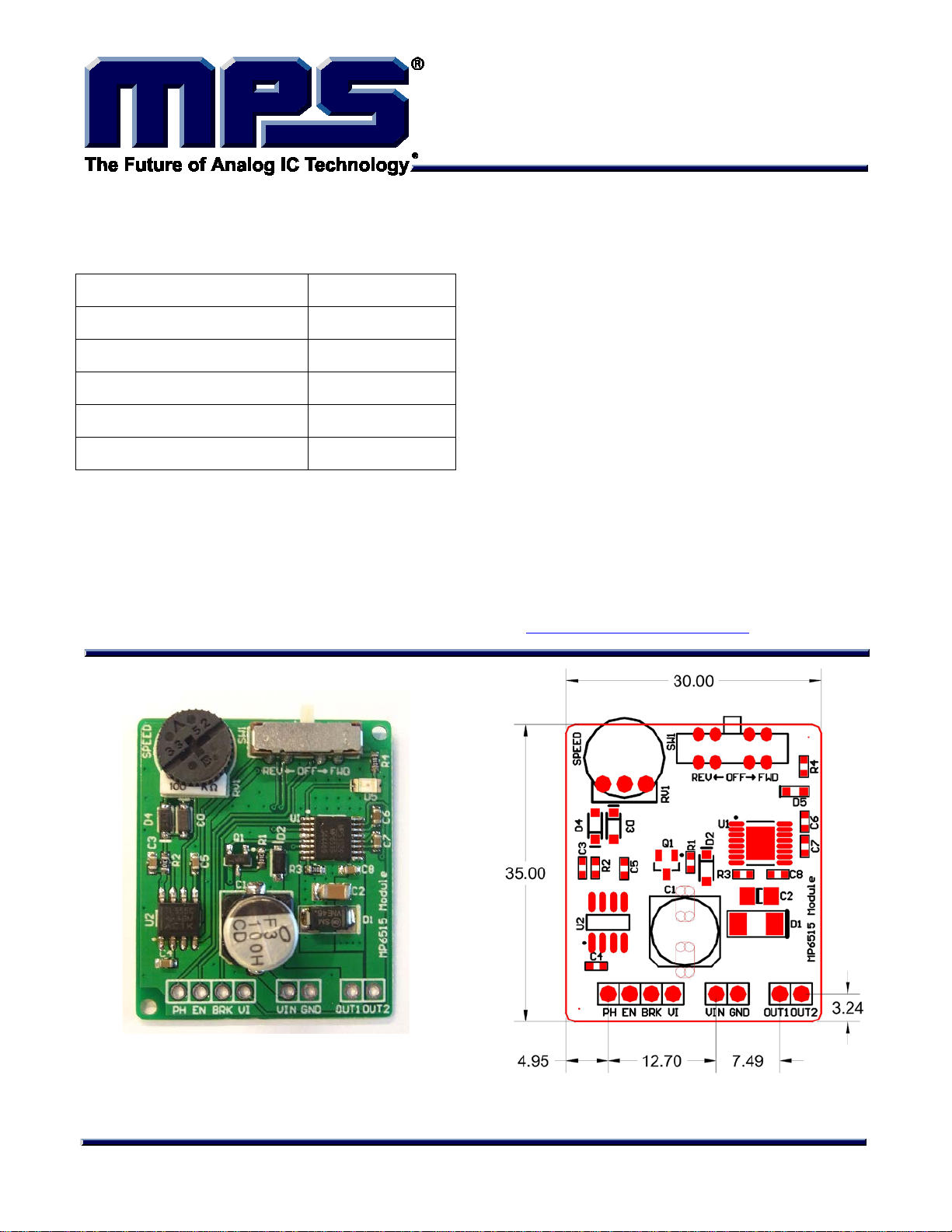

MPS EVKT6515 User manual

EVKT6515 DC Brush
Motor Driver Board
MP5402M Module Board SpecificationRev. 1.0 www.MonolithicPower.com 1
6/10/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2016 MPS. All Rights Reserved.
FEATURES
Input Voltage Range 7V to 35V
Output Current Up to 1.5A
Current Limit / Regulation Yes
Over Current Protection Yes
Over Temperature Protection Yes
Operation Temperature -40°C to +85°C
USER GUIDE
To quickly start using the EVKT6515 DC brush
motor driver board, do the following:
1. Connect the motor to OUT1 and OUT2 pins.
2. Connect a power supply (between 7V and
35V) to the VIN and GND pins.
3. Slide the switch to “FWD” or “REV” to control
the direction of the motor.
4. Adjust the motor speed by turning the
thumbwheel pot.
Note:
Please pay attention to the correct input
polarity connection, to avoid damage due to
reversed connection.
*For more details about the MP6515, please visit MPS’ website: http://www.monolithicpower.com
(Dimensions in millimeters)

MP1494 – SYNCHRONOUS STEP-DOWN CONVERTER WITH INTERNAL MOSFETS
