1. Make sure that the operation of the Blue Switch will never influence your safety.
2. Make sure not to impact the steering or braking system or other key systems essential for proper
operation of the car when installing the Blue Switch.
3. Make sure that the deployment of the airbag is not blocked or impaired in any way.
4. Install the Blue Switch before starting your car.
SAFETY INSTRUCTIONS
The mr Handsfree Blue Switch is a very handy 2 in 1 device that combines a Bluetooth®headset with a
Bluetooth®handsfree carkit. When you place the headset in the holder, it will automatically switch from
headset to handsfree carkit. When using the Blue Switch as a professional carkit, it will automatically switch
to headset when taking it out of the cradle. This function allows you to have in-car handsfree communication
in privacy mode.
2 in 1: 1. Bluetooth® headset
2. Bluetooth®handsfree carkit
FOLLOW THESE STEPS WHEN USING THE BLUE SWITCH FOR THE FIRST TIME:
1. Install the Blue Switch (see ‘Installation of the Blue Switch’).
2. Charge the headset battery (see ‘Charging the Blue Switch’).
3. Switch the device on (see ‘Turning on / off’).
4. Pair the mobile phone to the Blue Switch (see ‘Pairing’).
5. If you want to use the Blue Switch as a carkit, place the headset in the cradle and it will
automatically switch to carkit use.
6. If you want to use the Blue Switch as a headset, take the headset out of the cradle and place
it in your ear.
The mr Handsfree Blue Switch is available in 4 versions:
1. Blue Switch Plug & Play: for easy installation
2. Blue Switch Quick Installation
3. Blue Switch Pro: for professional installation with sound of carkit over the car speakers
4. Blue Switch Pro Music 100: for professional installation with sound of carkit and MP3 player
over the car speakers
=> See ‘Installation of the Blue Switch’ for more information.
INTRODUCTION

GB-7

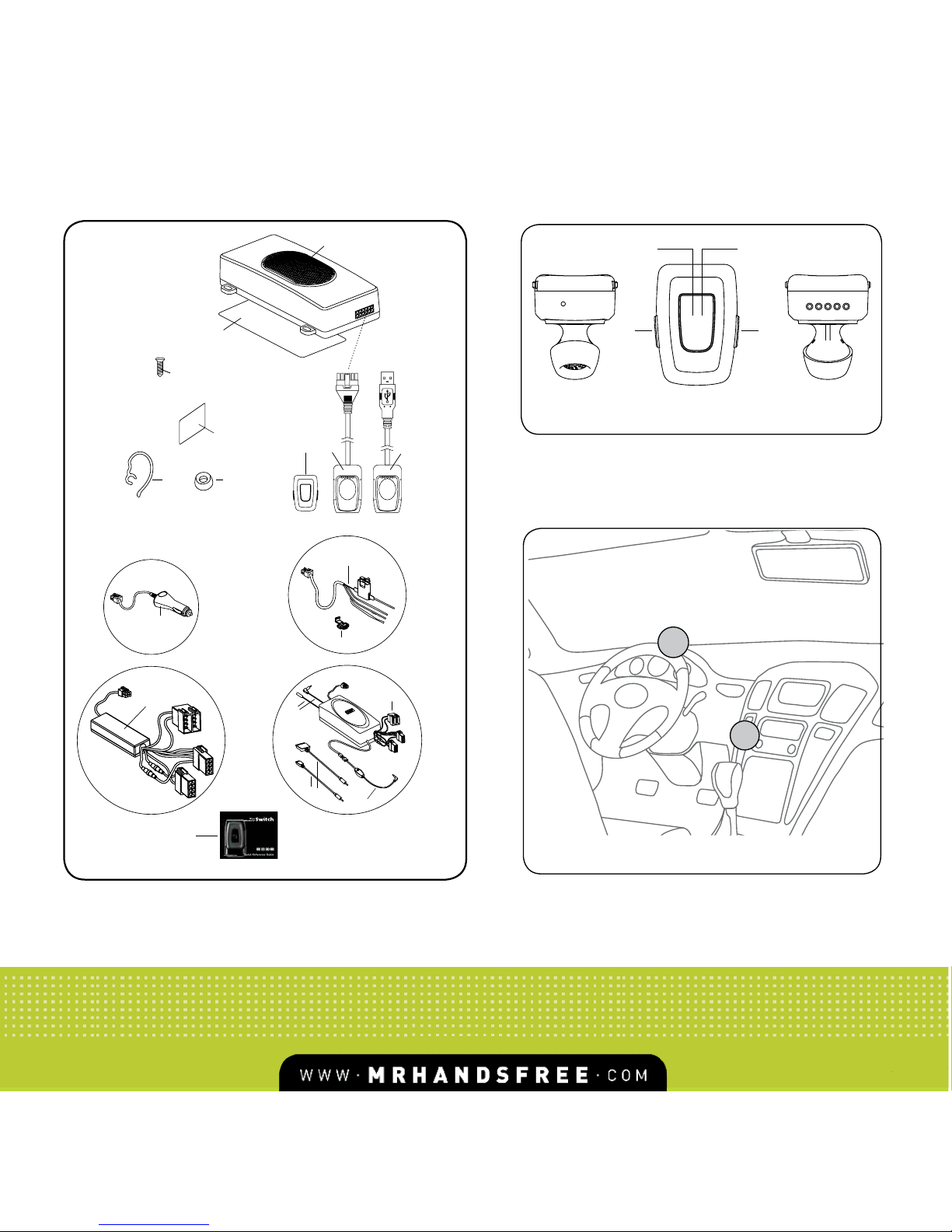

See illustration I
1. Handsfree unit with built-in speaker
2. Double-sided tape plate for fixation of the handsfree unit
3. Set of screws for fixation of the handsfree unit – 4 pcs.
4. Ear hook
5. Ear cap
6. Headset
7. Cradle for headset
8. USB charger with cradle
9. Velcro for fixation of the cradle
10. Cable set – Option 1 – For Blue Switch Plug & Play ( Optional )
10.1. Adapter for connecting the handsfree unit to the car via the cigarette lighter. It includes a
changeable fuse and cord.
11. Cable set – Option 2 – For Blue Switch Quick Installation ( Optional )
11.1. Power cable for connecting the handsfree unit to the power supply of the car, the ignition
system and for muting the radio (small mute cable). It includes a changeable fuse.
11.2. Contact clips for connecting the small mute cable to the car circuitries – 4 pcs.
12. Cable set – Option 3 – For Blue Switch Pro ( Optional )
12.1. Mute box (ISO cable) with ISO sockets for radio connections.
13. Cable set – Option 4 – For Blue Switch Pro Music 100 ( Optional )
13.1. Pro Music 100 cable
13.2. DIN/ISO/FAKRA converter cables
13.3. 2,5 / 3,5 mm stereo jack plug
13.4. Charging cables for audio device
14. Quick Reference Guide
PACKAGE CONTENTS

GB-8
HANDSFREE UNIT
The handsfree unit includes built-in speaker, echo canceller, noise suppressor, DSP technology and
Bluetooth®wireless technology, which provides a wireless connection with Bluetooth®mobile phones.
The handsfree unit has the following jacks for connecting external units:
1. Socket for headset cradle.
2. Socket for external speaker connection (3-6W, min 8 Ohm). When the external speaker is connected
to socket 2, the built-in speaker is switched off automatically. Used for ISO cable and Pro Music 100
cable.
3. Socket for small mute cable, the cigarette plug, the ISO cable and Pro Music 100 cable.
DESCRIPTION
23
1
HEADSET
See illustration II
1. Central button
2. Volume buttons (+) & (-)
3. LED indicator
=> See ‘Parts & Functions’ for more information.

GB-9
CRADLE FOR HEADSET
Cradle for connection to handsfree unit. As soon as the headset is placed in the cradle, it will charge
automatically and will switch to carkit mode.
USB CHARGER WITH CRADLE
Extra cradle for charging the headset with USB connection.
CIGARETTE PLUG ( Optional)
The cigarette plug is used for Plug & Play
installation. It provides power supply via the
cigarette lighter.
The cigarette plug is supplied with changeable
fuses. How to change the fuses is indicated in the
illustration.
Fuse
CIGARETTE PLUG

GB-10
SMALL MUTE CABLE (Optional)
The small mute cable connects the handsfree
unit with the power supply and the ignition
system and is used for muting the radio.
The small mute cable is supplied with
changeable fuses. How to change the fuses is
indicated in the illustration.
Fuse
SMALL MUTE CABLE
ISO CABLE (Optional)
The ISO cable connects the handsfree unit with the
power supply, the ignition system, the mute socket, the
speakers and the radio of the car. It includes the mute
box with relay components and a cable with ISO standard
sockets. Please see the chapter ‘Installation of the Blue
Switch’ where the connection diagram is shown.
SYSTEM CABLE PRO MUSIC 100 (Optional)
This cable connects the handsfree unit with the
power supply, the ignition system, the mute
socket, the speakers and the radio of the car.
It includes the mute box with relay components
and a cable with ISO standard sockets. It also
provides a connection to your MP3 player with
charging function and antenna cables. Please
see the chapter ‘Installation of the Blue Switch’
where the connection diagram is shown.

GB-11
Important!
• Make sure that all the necessary cables, the handsfree unit and/or the external speaker are well
installed before connecting the Blue Switch to the power supply of the car.
• During operation, do not attempt to access the speaker unit and the sockets of the speaker unit.
• For disconnecting the Blue Switch, always disconnect the power supply first.
HEADSET / CARKIT
Please place the unit on the indicated location (see illustration III).
• Make sure the dashboard is clean and free of dust or grease before sticking the Velcro strips!
• Make sure the unit is clean and free of dust or grease before placing the Velcro part on the unit.
• For optimal performance, the microphone should be located at a maximum distance of 50 cm from
the driver’s mouth. If possible, the microphone of the Blue Switch needs to be pointing directly to
the driver’s mouth.
HANDSFREE UNIT
Search for a location in your car where the handsfree unit fits and where it is comfortable for use.
• Make sure that the location in your car where you would like to install your handsfree unit is free
from dust and dirt.
• We recommend mounting the handsfree unit at a less visible position in the car. However, make
sure that the unit can provide good acoustic, by having at least 50 cm distance between the speaker
and the headset / carkit.
• Make sure the speaker is not pointing towards the headset / carkit.
The handsfree unit can be fixed in 2 ways:
1. Under the dashboard or at any other place in the car using the installation screws.
2. Under the dashboard or at any other place in the car using the double-sided tape.
INSTALLATION OF THE BLUE SWITCH

GB-12
CONNECTING TO THE POWER
There are 4 ways of connecting the Blue Switch to the car’s electronic system:
1. Blue Switch Plug & Play: For easy installation (Optional)
Connect the adapter for the cigarette lighter to the car and the other end of the cable to the
handsfree unit.
2. Blue Switch Quick Installation: Immediately to the car’s electronic system via the small mute cable
(Optional).
The wires of the small mute cable are color-coded. They are listed in Table 1 in column A and each
wire should be connected to the corresponding item listed in column B.
Table 1
• To avoid distortions, make sure that the cables are laid far away from the electronic systems of
the car.
• Connect the wires with the contact clips. Put the car wire in the through groove of the clips and
the cable wire in the groove with the confining rib.
Attention!
If there is no “Ignition” wire or if it is unavailable, you should connect the blue cable wire to the red
wire of the handsfree unit and the red cable wire to the “Continuous” wire of the car which keeps
the voltage when the ignition is turned off.
In this case, the phone call will not be disconnected if the ignition is turned off.
A B
Red wire The + voltage of the car’s power supply
Black wire The negative GND connection (-)
Blue wire Ignition
Brown wire Used for Car Radio Muting (CRM) and has to be connected to the car radio (Mute)

GB-13
CAR RADIO MUTING (CRM)
The Blue Switch allows muting your car radio when there is an incoming call.
• Check the user’s manual of your car radio and ensure that it has a Mute function. If additional
settings have to be set from the car radio menu, make sure that they are done correctly.
• Remove the control panel of the car radio.
• Remove the decorative panel and take the car radio out of the sleeve using the handles.
Disconnect the car radio plug.
• Connect the wires of the mr Handsfree Blue Switch to the corresponding wires of the car jack
or of the ISO jack of the car radio. Use the contact clips for the connection.
• Restore connection and installation of the car radio.
3. Blue Switch Pro: Immediately to the car’s electronic system via the ISO cable (Optional).

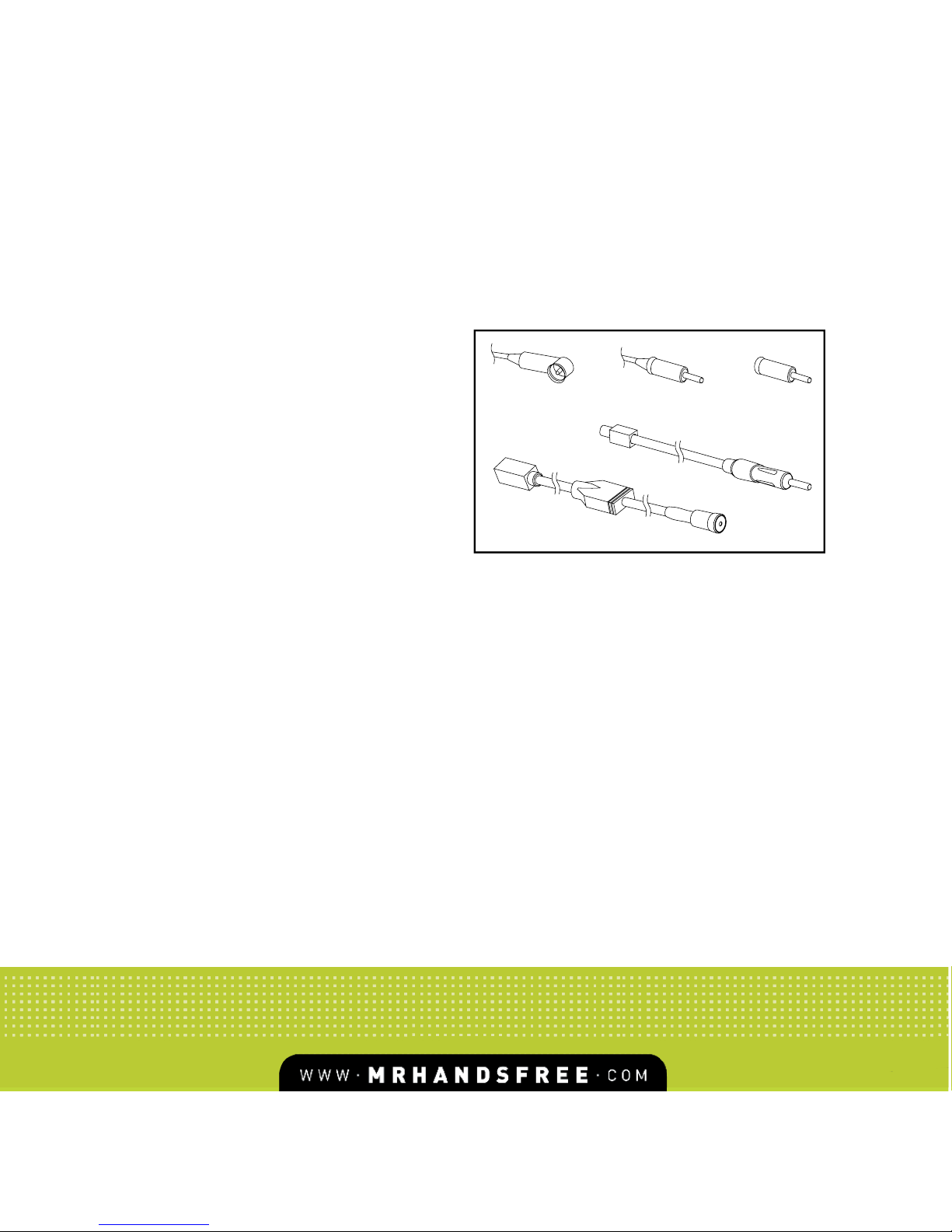

Many cars have their own type of audio connectors. In such case, you will need an ISO2CAR adapter
cable (please check www.iso2car.eu for more details).
• Disconnect the car radio and power leads.
• Join the cable according to the connection diagram shown below. If the car radio has a mute
jack, connect the yellow wire of the ISO cable to one of the “mute in” jacks (1, 2 or 3). Refer to
your car radio manual to determine the position of the mute jack.
• The default connection is “mute 1”. In case this is not corresponding with your car radio, your
car radio will not show “mute” on the screen. However, the sound on the speakers will still be
disconnected from your car radio and connected to your carkit during a phone call.
• The fuses are for (+) plus and (+) ignition. In some cases (e.g. Renault) these fuse holders need
to be swapped.

GB-14
78
56
34
12
78
56
34
12
X1 X2
78
56
3 4
12
7 8
56
34
12
Y1 Y2
POWER/MUTE Y1
1. green yellow ignition (+12V)
2. black (Ground)
3. blue (Aerial*)
4. violet (Illumination*)
5. green (Mute N1)
6. yellow (+12V) permanent
7. white (Mute N2)
8. brown (Mute N3)
SPEAKERS X2
1. green (LB+)
2. green yellow (LB-)
3. blue (LF+)
4. white (LF-)
5. yellow (RF+)
6. brown (RF-)
7. black (RB+)
8. violet (RB-)
SPEAKERS Y2
1. green (LB+)
2. green yellow (LB-)
3. white (LF+)
4. blue (LF-)
5. brown (RF+)
6. yellow (RF-)
7. violet (RB+)
8. black (RB-)
POWER/MUTE X1
1.
3.
4.
5.
6.
7. white (Mute N2)
blue (to mute box) +
green yellow (toY1) ignition (+12V)
8. brown (Mute N3)
green (Mute N1)
green yellow (to
mute box) + yellow
(to Y1) (+12V) permanent
blue (Aerial*)
violet (Illumination*)
2. black + black (Ground)
Blue Compact installation scheme

GB-15
4. Blue Switch Pro Music 100: Immediately to the car’s electronic system via system cable Pro Music
100 (Optional)
• Take out your car radio according to the specifications of your car and your radio.
• Unplug the antenna plug from your radio and connect it to the female antenna socket of your
Pro Music 100.
– If the car has DIN type (1),
make the connection via the
conversion plug (3).
– If the car has ISO type (2),
make the connection directly.
– If the car has FAKRA type,
make the connection via the
conversion plug (4.2).
1 2 3
4.2
4.1
• Plug the male antenna plug from the Pro Music 100 into the car radio.
– If the car has DIN type (1), make the connection directly.
– If the car has ISO type (2), make the connection via the conversion plug (3).
– If the car has FAKRA type, make the connection via the conversion plug (4.1).
• Select a frequency with the 4 dip switches on the Pro Music 100. The frequency table is printed
on the backside of your Pro Music 100. Please take a close look at this frequency table!
• Connect the ISO-plug to the radio and speakers. If your car is provided with plugs other than
ISO-plugs, you will need adapters. These are not included.
• Guide the wire with the button and the 2.5 mm / 3.5 mm jack plug to the place where your audio
device is located.
• Select your charging wire, for mini USB or iPod, and connect this to the Pro Music 100. Guide
this wire also to the place where your audio device is located.
• Place your Pro Music 100 in the hole behind your car radio and place your car radio back into
its place.

GB-16
USE WITH AUDIO DEVICE
• Connect the jack plug of your Pro Music 100 to your audio device.
• Connect your charging cable to your music device when you need to charge the battery.
• Select the frequency of the Pro Music 100 on your car radio (please store this frequency as a
preset).
• Press the control button on the cable of your Pro Music 100 to switch it on or off.
NL - 9
78
56
34
12
78
56
34
12
78
56
3 4
12
7 8
56
34
12
DIN/ISO/FAKRA TO ANTENNA
JACK + MOLEX PLUG TO CARKIT
YELLOW WIRE TO MUTE FROM RADIO*
FREQUENCY SELECTOR FOR FM
CAR SPEAKERS
CAR POWER
CAR RADIO
TO MP3 ETC. JACK 3.5/2.5 MM
FUSE 2 A
MUTE 1 MUTE 2 MUTE 3
X1 X2
Y1 Y2
POWER/MUTE Y1
1. green yellow ignition (+12V)
2. black (Ground)
3. blue (Aerial*)
4. violet (Illumination*)
5. green (Mute N1)
6. yellow (+12V) permanent
7. white (Mute N2)
8. brown (Mute N3)
SPEAKERS X2
1. green (LB+)
2. green yellow (LB-)
3. blue (LF+)
4. white (LF-)
5. yellow (RF+)
6. brown (RF-)
7. black (RB+)
8. violet (RB-)
SPEAKERS Y2
1. green (LB+)
2. green yellow (LB-)
3. white (LF+)
4. blue (LF-)
5. brown (RF+)
6. yellow (RF-)
7. violet (RB+)
8. black (RB-)
POWER/MUTE X1
1.
3.
4.
5.
6.
7. white (Mute N2)
blue (to mute box) +
green yellow (toY1)ignition (+12V)
8. brown (Mute N3)
green (Mute N1)
green yellow (to
mute box) + yellow
(to Y1) (+12V) permanent
blue (Aerial*)
violet (Illumination*)
2. black + black (Ground)
TO iPod
TO MP3-Player
(mini USB)

GB-17
CHARGING THE BLUE SWITCH
The mr Handsfree Blue Switch comes with a rechargeable battery included. Make sure that your Blue
Switch is fully charged before using it. It takes about 3 hours to fully charge the battery.
The Blue Switch offers 2 charging options:
1. Via the cradle with USB cable: connected to your computer
2. Via the cradle installed on the dashboard powered by the car: connected to the cigarette lighter
The red LED indicator will start flashing when the charging process begins. The battery is fully charged
when the red LED indicator turns off.
PARTS & FUNCTIONS
See illustration II
1. CENTRAL BUTTON
(= ON/OFF-button and button for Pairing / Answer a call / End a call / Reject a call / Voice dialing /
Redial / 2nd call)
• Pairing:
You are required to pair the Blue Switch with your mobile phone once before using it. Each Blue
Switch has a default PIN-code 0000 for pairing, which is stored in its internal memory. The Blue
Switch must be turned off before initiating pairing.
Press and hold the Central button (1) for 5 seconds until the indicator (3) flashes red and blue
alternately. → The headset / carkit is now ready for pairing. → Initiate the pairing process on your
Bluetooth®mobile phone to pair with the Blue Switch. (Refer to the manual of your mobile phone.)
→ Select Blue Switch out of the list with found devices on your mobile phone.→ You will be asked
to enter the PIN-code to complete pairing, enter 0000 and confirm it.
Note:
1. If the Blue Switch is not in pairing mode, your mobile phone won’t find the headset / carkit.
Please set the Blue Switch into pairing mode before letting your mobile phone search for the unit.
2. If no pairing is possible for a period of time (approx. two minutes), the Blue Switch will
automatically leave pairing mode. You may need to start all over again.
OPERATION OF THE BLUE SWITCH

GB-18
3. Paired devices remain paired even when:
• One of the devices is not turned on.
• A service connection is interrupted or the service stopped.
• One or both devices are rebooted.
Connection
In some cases the Blue Switch can be disconnected from your phone and you will need to restore
the connection.
• If the Blue Switch has been switched off: Switch on the power and the connection will be restored
automatically.
• If the mobile phone has been switched off: Turn on the mobile phone and restore the connection
via the phone’s menu or press the Central button once.
• If one of the two devices has been out of range: Make sure that both devices are within working
range and press the Central button once.
Disconnection
You can disconnect the headset from your phone when, for example, you want to use another
Bluetooth®device with your phone. The Blue Switch can be disconnected in the following ways:
1. Switch off the Blue Switch.
2. Disconnect the headset in the phone’s menu.
3. Move the phone more than 10 meters away from the headset.
• Turning on:
Press and hold (3 sec) the Central button (1) until you hear a beep tone and the blue LED indicator
(3) starts flashing.
When the headset is in the cradle (carkit mode), it will switch on automatically when the ignition is
turned on.
• Turning off:
Press and hold (3 sec) the Central button (1) until you hear a beep tone and the red LED indicator
(3) lights up briefly before turning off again.
• Answer a call:
Press the Central button (1) to answer a call.
Note:
Due to the different design of some mobile phones, an auto-disconnect may happen even when the

GB-19
Blue Switch is turned on. In that case, the headset / carkit won’t ring when there is an incoming
call. Press the Central button for 1 sec. to reconnect the Blue Switch with your mobile phone for an
incoming call.
• End a call:
Press the Central button (1) to end the current call.
• Reject a call:
Press the Central button (1) for 3 seconds to reject the call.
• Voice dialing:
Press the Central button (1) until you hear a tone that indicates that you can pronounce the desired
name (=’voice tag’). → Say the voice tag. → The phone will now play the voice tag and start dialing
the related phone number.
Note:
Your mobile phone needs to support voice dialing.
Using the phone keys to make a call:
Enter and dial the number on the mobile phone as you normally do. Once the call has been set up,
the sound will be transmitted to your headset / carkit automatically.
• Redial:
Press the Central button (1) twice. → The phone will dial the last dialed number.
• 2nd call:
Press and hold the Central button (1) for 3 seconds to switch to a second call.
Note:
This function only works when your mobile phone service provider provides this service (check with
your network provider).
2. (+) AND (-) VOLUME BUTTON
(= Adjusting the volume / Transferring calls / Restoring default settings of the Blue Switch / Muting/
Un-muting the microphone)
• Adjusting the volume of the Blue Switch:
Press (+) to increase the volume level. Press (-) to decrease the volume level.

GB-20
• Transferring calls:
Press the Volume buttons (+) & (-) (2) simultaneously to transfer the call to the mobile phone while
talking on the headset / carkit. The headset / carkit will be turned off. → If you want to transfer the
call back to the headset / carkit, press the Volume buttons (+) & (-) (2) simultaneously again.
• Restoring default settings of the Blue Switch:
In Standby mode, press and hold both Volume buttons (+) & (-) (2) simultaneously until the blue LED
indicator (3) flashes. → Press & hold both Volume buttons (+) & (-) (2) simultaneously once again
for 2 seconds. → Once the process is completed, the Blue Switch will automatically turn off.
• Muting / Un-muting the microphone:
Press and hold the Volume buttons (+) & (-) (2) simultaneously for 3 seconds to mute the microphone.
Press the Volume buttons (+) & (-) (2) simultaneously again to disable the Mute function.
3. LED INDICATOR
(Can turn red/blue or red & blue)
• Red indicator:
- Flashes in Standby mode: low battery capacity
- Flashes while charging the battery
• Blue indicator:
- Flashes when you turn on the Blue Switch
- Flashes when you restore default settings
• Red + blue indicator:
- Flash alternately in pairing mode
BLUETOOTH®
The Bluetooth®word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by
TE-Group NV is under license. Other trademarks and trade names are those of their respective owners.
