MRHANDSFREE BC9000 User manual

BC9000M - GB1 -
GB
USER’S MANUAL
MULTIMEDIA BLUETOOTH®CARKIT

BC9000M - GB2 -
TABLE OF CONTENTS
INTRODUCTION 3
SAFETY INSTRUCTIONS 3
CERTIFICATION AND SAFETY APPROVALS 4
DECLARATION OF CONFORMITY 4
BLUETOOTH®5
PRODUCT FEATURES 5
PACKAGE CONTENTS 6
BEFORE STARTING 7
1) Check the car configuration
2) Remove the car radio
INSTALLATION 7
1) Install the black box
2) Install the in-car radio cable
3) Notes on the power supply cable
4) Install the music cable, the microphone and the screen unit
FIRST USE 13
1) Description different ways to press the buttons
2) Description different ways to navigate through the menu
3) Pairing
4) Make a call
5) Answer/reject/end a call
6) Adjust the volume
FUNCTIONS 17
1) Transfer a call from the BC9000m to your mobile phone and back
2) 3- way call function:
3) Mute the microphone:
4) Connect/disconnect your phone
5) Delete paired phones
6) Automatic phonebook synchronization
7) Orginate phonebook synchronization from Bluetooth®carkit
8) Originate synchronization from phone

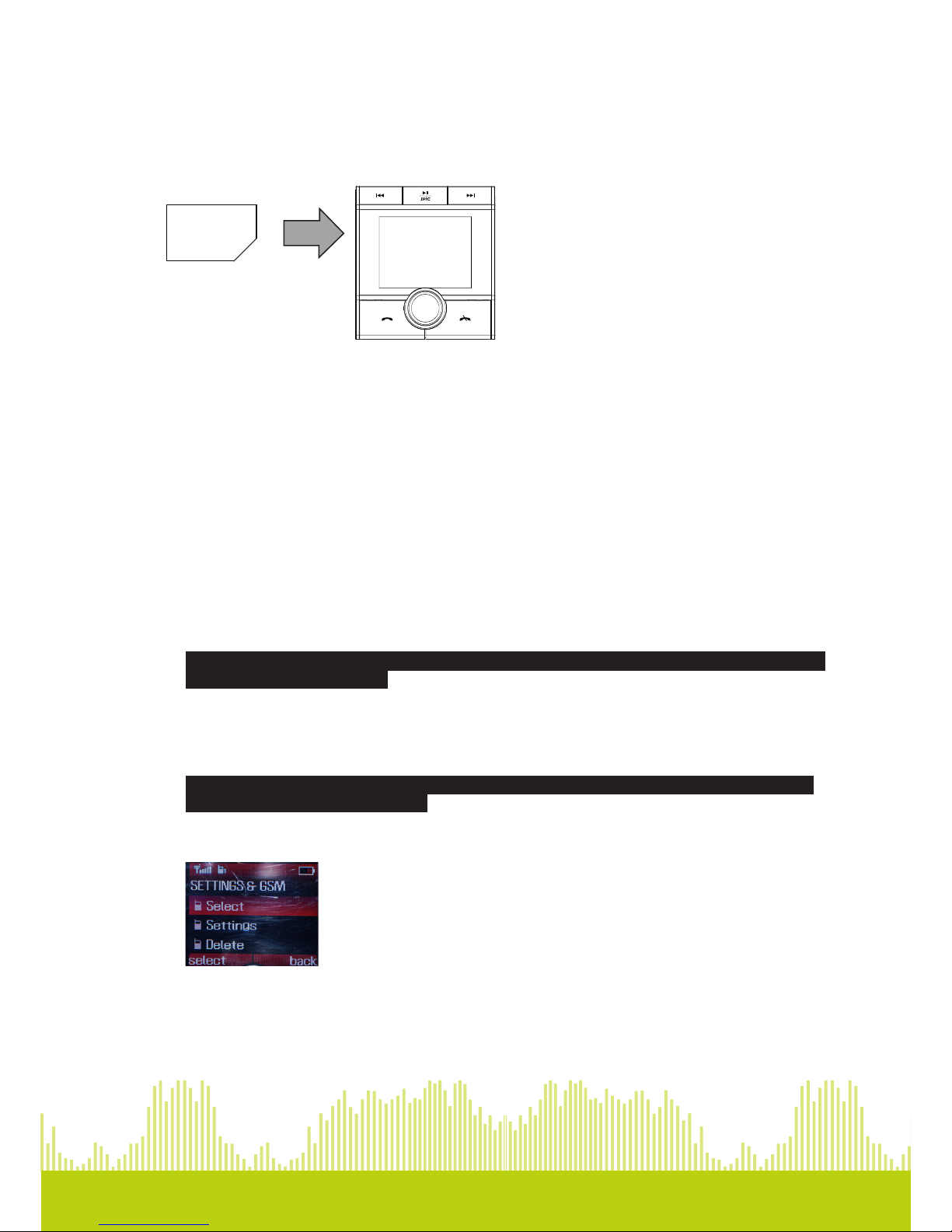

9) Phonebook copy by SIM card
10) Delete phonebook
MUSIC 21
1) Music player connected via line-in cable
2) Music player connected via Bluetooth®
3) Music settings
MULTIPOINT 23
SETTINGS 25
1) Phonebook
2) Mute control
3) Volume control
4) Voice control
5) Auto answer
6) Display
7) Language
8) Security
9) Factory settings
UPGRADE SOFTWARE / CHANGE BACKGROUND PICTURE 28
1) Upgrade software
2) Create your own WALLPAPER
GUARANTEE 30

BC9000M - GB3 -
INTRODUCTION
Thank you for choosing mr Handsfree!
Please read this manual carefully before using the BC9000m. TE-Group NV reserves its rights to
make any changes and improvements to the product described in this document without prior
notice.
Without written permission from TE-Group NV, reproduction, transfer, distribution or storage of
part or all of the contents in this document in any form is prohibited.
Please make sure your mobile phone supports Bluetooth®profiles and network operator supports
the functions described in this manual, otherwise the related functions cannot be realized on
this handsfree device. Please refer to the manual of your mobile phone or contact your network
operator for more detailed information.
SAFETY INSTRUCTIONS
Before starting the installation, make sure that the car ignition is off.
Make sure that the operation and installation of the carkit will never influence your safety.
Before you install the individual components, check that the installation locations have been
selected in such a way that the cable length is sufficient to connect every element.
Do not install any component in the airbag deployment area.
Once the installation is complete, make sure that no cables are pinched or trapped.
Make sure not to damage electrical cables, fuel or brake lines or safety equipment during the
installation.
Make sure not to impact the steering or braking system or other key systems essential for the
proper operation of the car when installing the carkit.
The carkit may only be used at an operating voltage of 12V with the minus pole earthed.
Failure to observe this requirement may result in damage to the car’s electronics system.
Use the accessories compatible with this device. TE-Group NV is not responsible for any losses
caused by using other accessories.
Check the laws and regulations on the use of mobile phones and carkit in the areas where
you drive. Always give full attention to driving, and pull off the road and park before making or
answering a call if driving conditions require.
Do not allow children to play with your Bluetooth®handsfree carkit since it contains small
parts that could become detached and create a choking hazard.
•
•
•
•
•
•
•
•
•
•
•
•

BC9000M - GB4 -
CERTIFICATION AND SAFETY APPROVALS
Warning: Users should not make changes on or modify the device in any way. Changes or
modifications without being expressly approved by TE Group NV could void the user’s authority to
operate the device.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna;
- Increase the separation between the equipment and receiver;
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected;
- Consult the dealer or an experienced radio/ TV technician for help.
RF EXPOSURE WARNING:
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least
20 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter. End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure compliance.
DECLARATION OF CONFORMITY
Company TE-Group NV
Address: Kapelsestraat 61, Kapellen, Belgium
declare, that the following equipment :
Product Name: MrHandsfree BC9000
Product Type Handsfree carkit
Conforms with
EN 301 489-1 V1.6.1(2005-09); EN 301 489-17 V1.2.1(2002-08);
EN 300 328 V1.7.1(2006-10); EN 60950-1:2001�A11:2004EN 300 328 V1.7.1(2006-10); EN 60950-1:2001�A11:2004EN 60950-1:2001�A11:2004
99/5/EC

BC9000M - GB5 -
BLUETOOTH
The Bluetooth®word mark and logos are owned by the Bluetooth®SIG, Inc. and any use of such
marks by TE-Group NV is under license. Other trademarks and trade names are those of their
respective owners.
PRODUCT FEATURES
The BC9000m is a Bluetooth®carkit for handsfree calling & listening to music with the following
features:
Multipoint: connect & use 2 phones at the same time*
Full color TFT screen
Adjustable background color
Customize background with personal picture
Voice control technology: say ‘Answer’ or ‘Ignore’ to accept or reject calls
Innovative Extreme Audio TechnologyTM
Excellent sound quality: NEW Full duplex – DSP technology with ANR feature
Voice and music over car speakers
Play music from any Bluetooth®stereo A2DP compatible device
Dedicated music buttons on carkit
Automatic phonebook synchronization
Phonebook: up to 4000 contacts (1000/phone)
Patented SIM card reader for phonebook copy
Voice dialing**, redial, mute, 2nd call, ...
(*) Your mobile phone needs to support Multipoint
(**) Your mobile phone needs to support voice dialing
•
•
•
•
•
•
•
•
•
•
•
•
•
•
®

BC9000M - GB6 -
PACKAGE CONTENTS
1. Screen unit 2. Black box
3. Microphone 4. ISO cable, including 2 pair of line-out wires
5. Screen unit to black box cable 6. Music line-in cable (Jack cable)
and holder for screen unit
.
7. SW upgrade cable 8. Mounting accessories
(Mini USB to USB convert cable) (Screws, double side adhesive tape, etc.)
9. Mini cd
Version 1.0
User’s manual & Utilities
Advanced Bluetooth®carkit
BC m
10. Quick Reference guide
BC m
CD Contents:
Software to create a background picture for the BC9000m using a
personal picture in order to personalize the BC9000m.
Sample pictures that can be used as background for the BC9000m
(including car brands and country flags)
Full manual
a.
b.
c.

BC9000M - GB7 -
BEFORE STARTING
1 CHECK THE CAR CONFIGURATION
The cables supplied with the kit feature ISO connectors and two pair of line-out wires. The line-
out wires can be used if your audio system has a special amplifier system. Several set-ups are
therefore possible, depending on the type of car stereo and your vehicle.
If your car stereo is not fitted with ISO connectors, you need to purchase an ISO adapter cable
to simplify the wiring procedure.
2 REMOVE THE CAR RADIO
Remove your car radio from you vehicle. Refer to your car radio’s user guide or contact your
car dealer for more information.
The mute function is used to cut the sound of your car radio to enable a phone call. The choice
of the mute-in jack depends on your car radio’s configuration.
INSTALLATION
1 INSTALL THE BLACK BOX
The black box can be fixed in 2 ways:
Under the dashboard or at any other place in the car using the installation screws.
Under the dashboard or at any other place in the car using the double-sided adhesive tape.
•
•
•
•
1.
2.
Blackbox

BC9000M - GB8 -
The black box is fitted with 4 interfaces:
ISO cable connector
Screen unit connector
Music line in
Microphone
We recommend installing all the cables before fixing the screen unit. Each cable supplied has a
different connector to avoid wrong connections.
The box may not be installed near the heating or the air-conditioning. Ensure that it is not exposed
to sunlight. Avoid installation behind metal walls, which could alter the quality of the Bluetooth®
link.
1.
2.
3.
4.
4 3 2 1

BC9000M - GB9 -

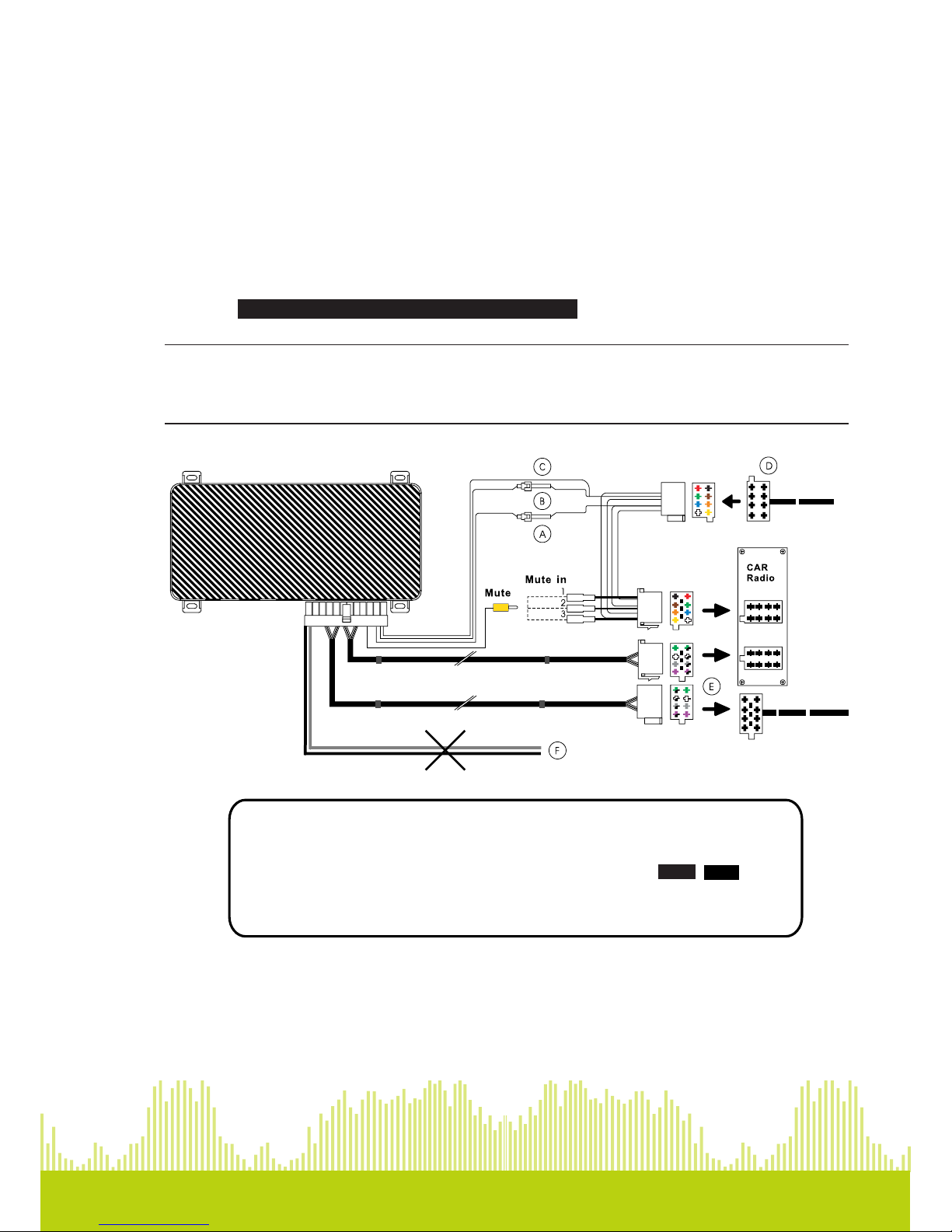

2 INSTALL THE INCAR RADIO CABLE
A. Connect in-car radio with «ISO» connectors
Disconnect the audio and supply bundles from the in-car radio.
Connect the audio and supply bundles from the vehicle to the male connectors.
Link the female connectors of the mute supply cables and of the power supply cable to the
in-car radio.
If the in-car radio is equipped with a mute input, connect the yellow wire of the mute cable to
one of the mute in 1, 2 , 3 or your radio specific connection.
Settings in your screen unit must be set in the music menu.
Select ‘music’ > ‘Audio out’> ’to iso connector’
Note!
Mute in 1, mute in 2 and mute in 3 are only suggested mute locations. You first have to test and verify the
mute on the vehicle. For some cars e.g. the mute connection is in another location. Please check your car
radio’s user manual for more information.
1.
2.
3.
4.
5.
A: 12 V ignition (orange) E: connection to the vehicle’s speaker
B: 12V battery supply (red) 1: Rear right speaker (purple / purple-black)
C: Ground 2: Front right speaker (grey / grey-black)
D: Connection to the vehicle’s power supply 3: Front left speaker ( white / white -black)
4: Rear left speaker (green / green-black)
F: This wiring is not used
( )
black
MUTE (yellow)

BC9000M - GB10 -
B. Connect black box (line-out) to car radio line-in
Use this type of connection by wiring the line-out (brown & white wire or red & black wire to
your car radio’s line-in.
Using the two pairs of line-out will enable you to take advantage of the music function in stereo
over your vehicle’s speakers.
On the installation cable, connect the yellow wire of the mute cable to the corresponding audio
system’s mute-input if available (mute in 1, 2 or 3).
Settings in your screen unit must be set in the music menu.
Select ’music’ > ‘Audio out’ > ’to Line-out’
A: 12 V ignition (orange) F: Line-out 2
B: 12V battery supply (red) 1: Line 2 + red
C: Ground 2: Line 2 - black
D: Connection to the vehicle’s power supply G: These wires are not used
E: Line-out 1
1: Line 1 + white
2: Line 1 - brown
3 NOTES ON THE POWER SUPPLY CABLE
The red wire of the power cable must be connected to the permanent 12V, the orange wire
to the 12V and the black wire to the earthing.
Verify the electric wiring of the ISO supply bundle of the in-car radio. In some vehicles it is
necessary to reverse the positions of the red and orange wires. This operation is simply done
by reversing the fuse holders.
Do not connect the orange wire to the permanent 12V, otherwise you risk causing the vehicle’s
battery to go flat.
On some vehicles, there is no ignition �12V on the vehicle’s connectors. You must therefore
connect the orange power supply wire to the fuse box or another ignition power source.
1.
2.
3.
4.
•
•
•
•
(black)
MUTE (yellow)

BC9000M - GB11 -
4 INSTALL THE MUSIC CABLE, THE MICROPHONE AND THE SCREEN UNIT
A. Music cable / line-in to black box
Connect the music cable to the black box and place the jack connector into the music
device. Make sure that the cable is not pinched. Make the setting in the music menu .
Select ’music’ > ‘Line in detect’ . Choose ‘on’ or ‘Auto detect’

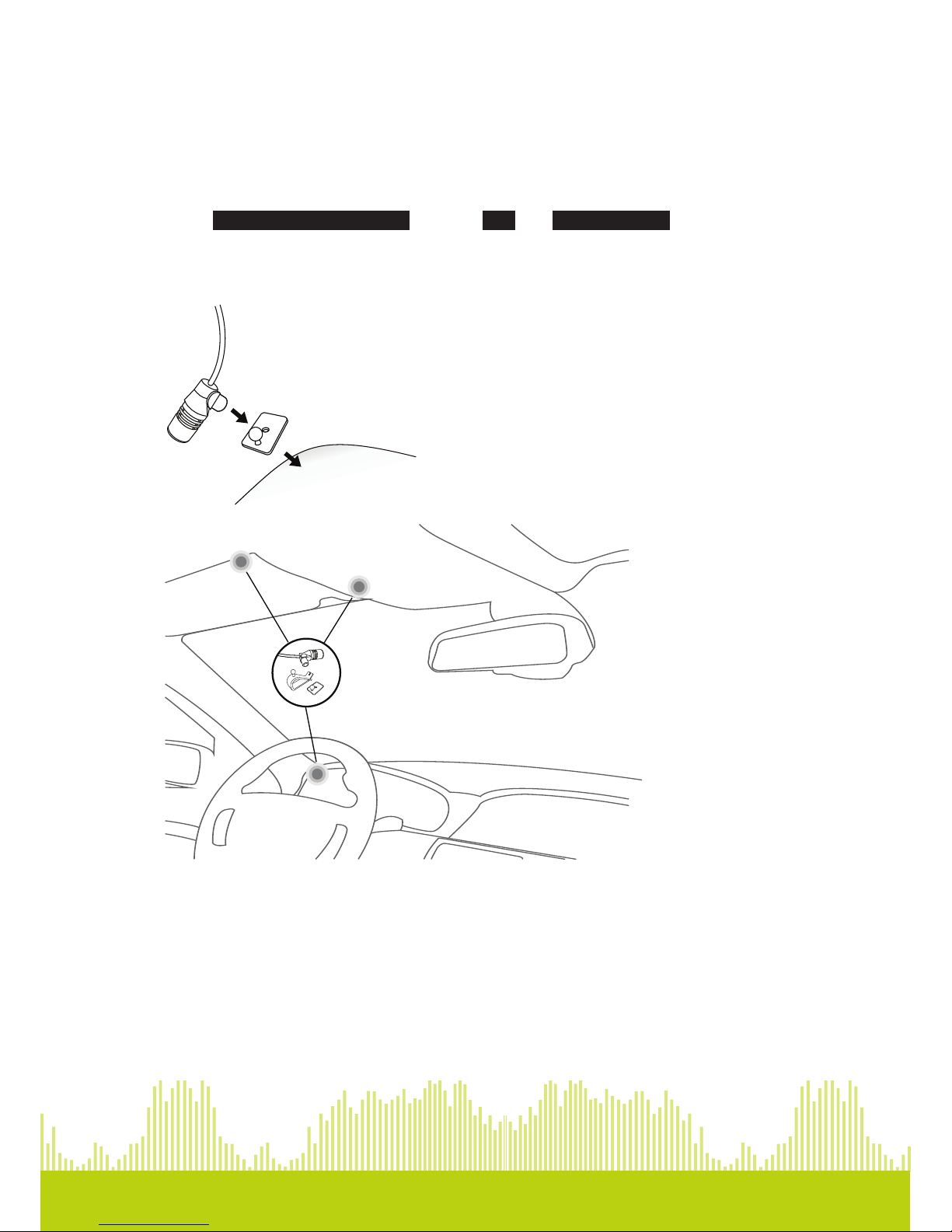

B. Microphone
In order to get high quality conversations, we advise you to respect following recommendations:
Make sure the microphone is installed as close to the user’s mouth as possible. The ideal
distance is 50 cm. The best possible location for the microphone is near the rear-view mirror.
The microphone needs to be pointed towards the user
Make sure the microphone is not exposed to the air stream for air vents.
Do not install the microphone cable in heating, ventilation or air conditioning systems.
Be careful of the side airbags and SRS systems while running the microphone cable.
The mounting location for the microphone must be clean and free from grease or dust. Prior to
installation, clean the area with an appropriate cleansing product.
Once you have stuck the support on the dashboard, wait for approximately 2 hours to make
sure the adhesive tape adheres well.
•
•
•
•
•
•
•

BC9000M - GB12 -
C. Screen unit
See below illustration:
Click the mounting bracket on the screen unit as indicated in below illustration.
Stick the double-sided tape on the back side of the screen unit. Stick the screen unit on a plane
and clean spot on the dashboard.
•
•

BC9000M - GB13 -
FIRST USE
1 DESCRIPTION DIFFERENT WAYS TO PRESS THE BUTTONS
2 DESCRIPTION DIFFERENT WAYS TO NAVIGATE THROUGH THE MENU
3 PAIRING
You are required to pair the BC 9000m with your mobile phone once before using it.
If the phone has been paired before, the carkit will show ‘ Pairing ‘. In that case, you can immediately
skip to step 4.
1→ Press the turning wheel to access the menu and select ‘BLuetooth’ > ‘new phone’
2→ Optionally you can set a pin code to protect your phonebook to be viewed by other users of the
car. If this is not necessary, just press ‘skip’.
3→ The carkit is now ready for pairing.
4→ Make sure that the Bluetooth®function of your mobile phone is turned on and let your phone
search for Bluetooth®devices. (Refer to the manual of your mobile phone.)
5→ Select ‘BC9000m’ out of the list with found devices on your mobile phone.
6→ You may be asked to enter the PIN-code to complete pairing, enter 0000 and confirm it.
Function Description
Access the menu Press the or the central turning wheel to access the menu
Select a menu item Turn the turning wheel to browse through the menu. Press the
or the central turning wheel to select a menu item
Go back Press the to go back to the previous menu
Confirm Press the or the turning wheel to confirm a certain setting
Cancel Press the to cancel a certain setting
ABcdeFG>hiJKLmnop>Qrst Font style & color used in this manual that refers to the menu and
menu-items shown on the screen of the BC9000m
Type of pressing Description
Press Press and release the button within 1 second
Long press Press and hold the button at least 3 seconds, then release
Hold Press and hold the button for more than 3 seconds
Release Release the button after hold
Turn Turn the turning wheel left or right

BC9000M - GB14 -
Attention!
Some mobile phones require an extra action to complete the pairing process. E.g. your phone may ask
‘Authorise BC9000m to connect ?, or ‘Connect to BC9000m’? Please confirm these options whenever
they occur.
When Bluetooth®connection is established, the carkit will automatically start downloading the
phonebook from your phone into the carkit (if supported by your phone).
The carkit screen will show ‘downLoAdinG’ > ‘sortinG’
In case your phone doesn’t support the phonebook download, you can either send your phonebook
content as ‘business card’ to the carkit by the phones menu, or insert your SIM card to the carkit
to copy phonebook saved on your SIM card to the carkit. Please check p.20 ‘Phonebook copy by
SIM card’ for additional information.
A shortcut to start the paring procedure immediately: Long press
Once your phone is paired, the BC9000m will automatically connect with your phone and your
mobile phone will be shown on the display.
4 MAKE A CALL
A. To call a contact listed in your phonebook:
MANUALLY:
Press the turning wheel to access the menu and select ‘phoneBooK’
Turn the turning wheel to choose the letters corresponding with the contact you want to call.
Press the to call the number of this contact. The name or number of the contact is nowThe name or number of the contact is now
shown on the display.
•
•
•

BC9000M - GB15 -
THROUGH VOICE DIALING:
Press the turning wheel and select ‘Voice diAL’
→ you will hear a tone that indicates that you can pronounce the desired name (=’voice tag’). →
Say the voice tag. → The phone will now play the voice tag and start dialing the related phone
number.
Note:
Your mobile phone needs to support voice dialing and you must record voice tags in your phone before
using this function. Please refer to your phone manual for detailed descriptions on how to set up voice
dialing and recording voice tags.
B. To call a contact listed in one of your call lists (missed calls / received calls / dialed numbers ).
→Please note that numbers in this list will only be added when making calls with your carkit.
Phone calls made on your phone without being connected with the carkit will not be saved into
the log lists.
Press the turning wheel to select ‘cALL List’ > ‘missed cALLs’ OR ‘cALL List’ >
‘receiVed cALLs’ OR ‘cALL List’ > ‘diALed numBers’
→ the call list with different numbers is now displayed.
Turn the turning wheel to choose the number you want to call.
Press the to call the number.
The name or number of the contact is now shown on the display.
•
•
•
•
•

BC9000M - GB16 -
C. To call a number that is not listed in your phonebook:
Press the turning wheel and select ‘KeypAd’
• Turn the turning wheel to scroll through the digits and press the turning wheel to input the digits
• You can press the to delete the digits you input
• Press the to call the number
• The number of the contact is now shown on the display.
D. To Redial:
A shortcut to redial: Long press
5 ANSWER/REJECT/END A CALL
A. Answer/reject a call
When you receive a call you will hear your phone’s ringtone followed by the voice command ‘Call/
Answer or ignore’ .
MANUALLY
Press the to answer an incoming call.
Press the to reject an incoming call.
THROUGH VOICE CONTROL
Say “Answer” to accept an incoming call.
Say “Ignore” to reject an incoming call.
Note:
The voice control function can be switched off in the menu settings. In case the voice control function is
switched off, the carkit will not play the voice command, and you cannot accept or reject the incoming call by
voice control.
B. End a call
Press the to end an incoming call.
•
•
•
•
•
•

BC9000M - GB17 -

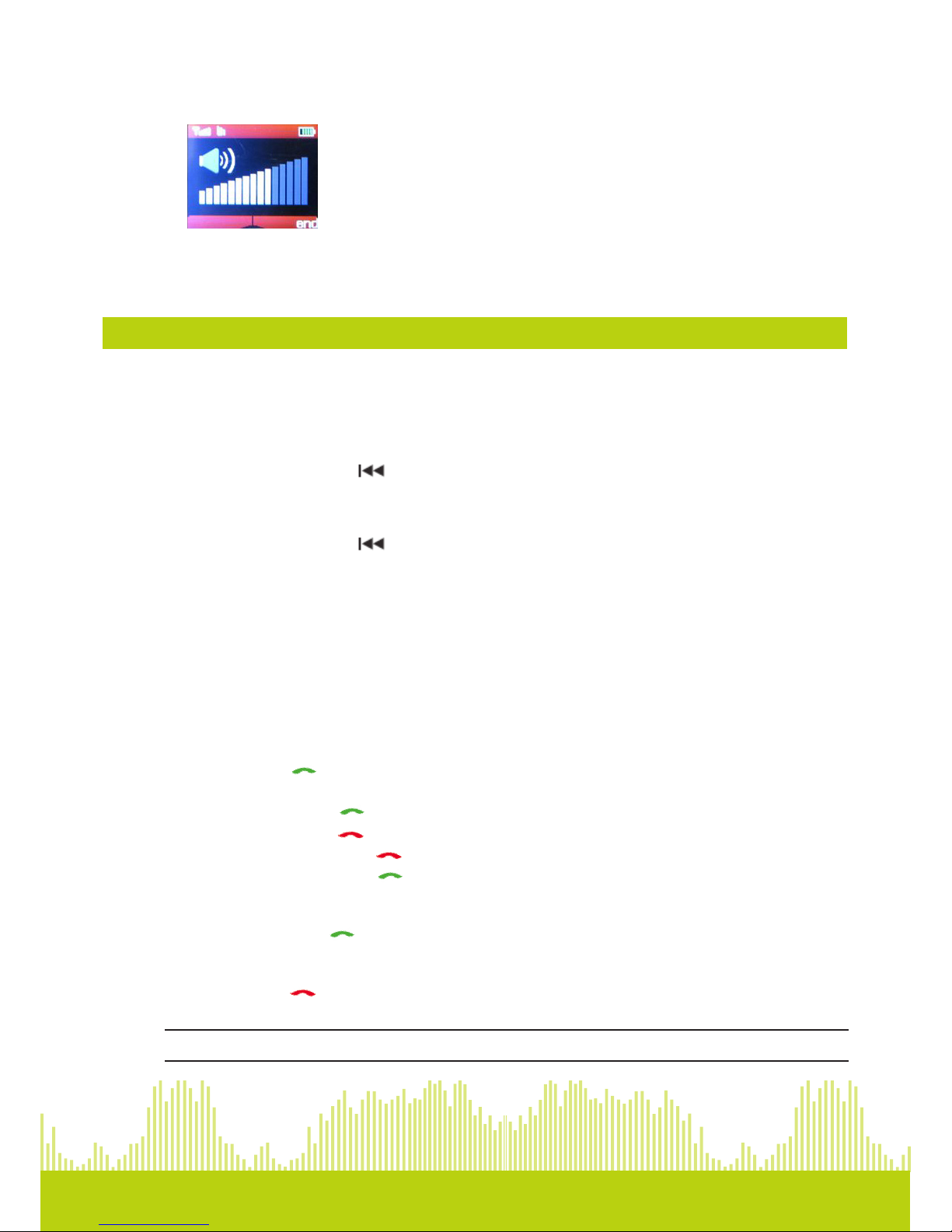

6 ADJUST THE VOLUME
During a call, you can adjust the volume by turning the turning wheel.
The volume setting is saved automatically for next calls.
FUNCTIONS
1 TRANSFER A CALL FROM THE BC9000M TO YOUR MOBILE PHONE AND BACK
To transfer a call from the BC9000m to your mobile phone:
During a call, press the .
The call will now be transferred to the mobile phone.
To transfer a call from your mobile phone back to the BC9000m:
During a call, press the .
The call will now be transferred back to the BC9000m.
After ending the call, the connection with the BC9000m will be restored automatically.
2 3 WAY CALL FUNCTION:
When you are already in a conversation (A) and you receive another incoming call(waiting call) (B),
you can:
Accept the waiting call (B) and put the first call (A) on hold:
o Press the to accept the waiting call (B). The first call (A) is automatically put on hold.
o You can now:
Press the to swap between the talking call and held call.
Press the to hang up the talking call and take the held call.
Long press the to hang up the held call and keep the talking call.
Long press the to put the two calls in a conference call.
Accept the waiting call (B) and hang up the first call (A)
o Long press the to accept the waiting call (B) and hang up the first call (A).
Reject the waiting call (B) and stay with the first call (A).
o Press the to Reject the waiting call (B) and stay with the first call (A).
Note: This feature depends on if your phone supports 3-way call function.
•
•
•
•
•
•
•
•
•
•
•
•
•

BC9000M - GB18 -

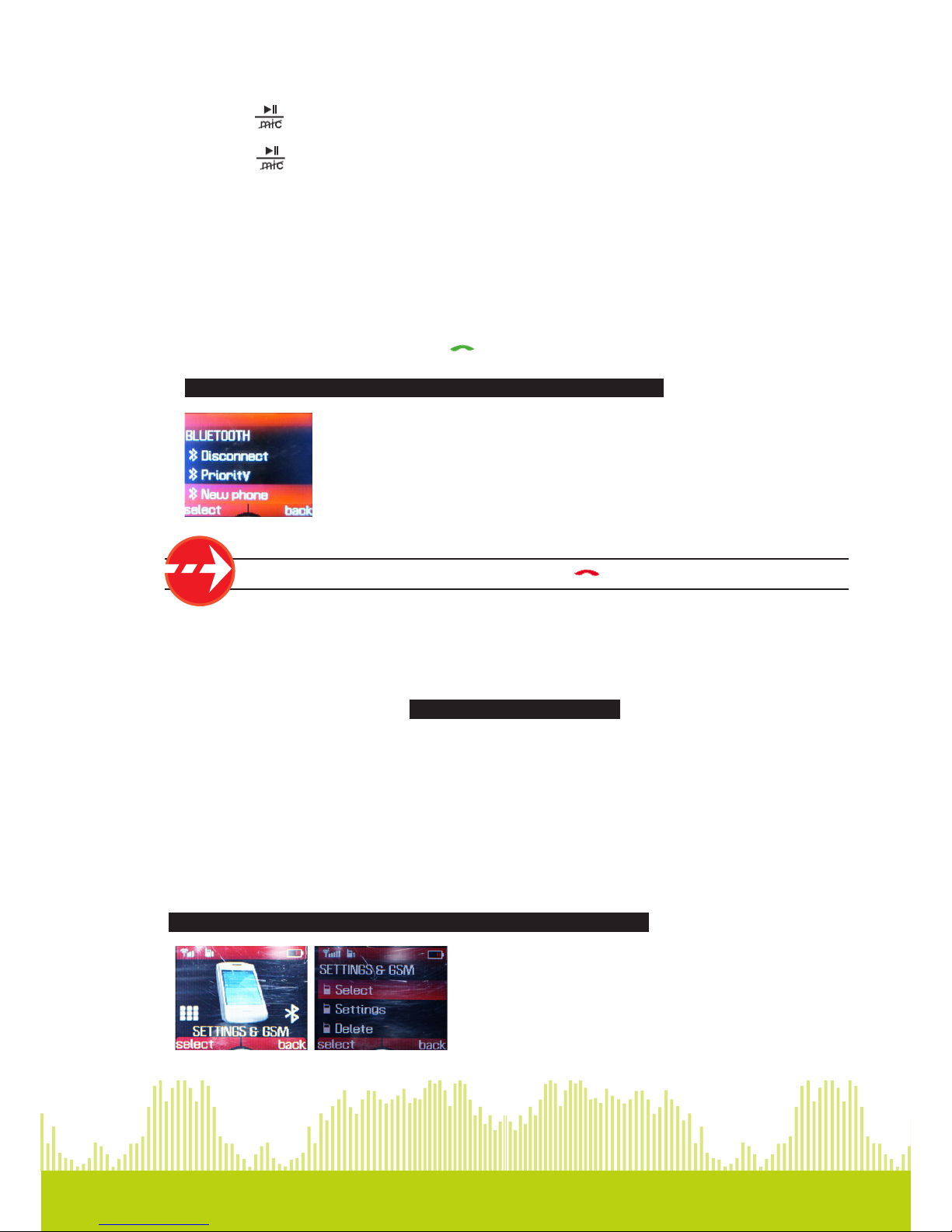

3 MUTE THE MICROPHONE:
When you are in a conversation:
Press the to mute the microphone. You will hear a tone that indicates that the mute function is
activated. You will still hear the other person but this person will no longer be able to hear you.
Press the to unmute the microphone. You will hear a tone that indicates that the mute function is
deactivated.
4 CONNECT/DISCONNECT YOUR PHONE
A. Disconnect your phone from BC9000m
When your phone is currently connected with Bluetooth®carkit (or in the connected mode),
you can disconnect them by pressing or the turning wheel and select
‘BLuetooth’ > ‘disconnect’ > ‘nAme oF your moBiLe phone’
A shortcut to disconnect your phone: Long press
B. Connect an already used phone with BC9000m
If you want to connect BC9000m with another phone you already paired:
Press the turning wheel to select ‘BLuetooth’ > ‘connect’
You will see a list of paired phones.
Select the phone you want to connect with the BC9000m.
5 DELETE PAIRED PHONES
This handsfree device can store up to 4 Bluetooth®equipments. Press the turning wheel and select
‘settinGs & Gsm’ > ‘nAme oF your moBiLe phone’ >‘deLete’
It allows you to erase any paired Bluetooth®device profiles stored in the carkit.
•
•
•

BC9000M - GB19 -
6 AUTOMATIC PHONEBOOK SYNCHRONIZATION
When Bluetooth®connection is established, the carkit will automatically start downloading the
phonebook from your phone into the carkit (if supported by your phone). The carkit screen will
show ‘downloading’ /’ Sorting’.
In case your phone doesn’t support the phonebook download, you can either send your phonebook
content as ‘business card’ to the carkit by the phones menu, or insert your SIM card to the carkit
to copy the phonebook saved on your SIM card to the carkit.
Note: The carkit can store up to 4 phonebooks from 4 different phones. The maximum amount of
contact numbers of each phonebook is 1000.
7 ORGINATE PHONEBOOK SYNCHRONIZATION FROM BLUETOOTH®CARKIT
Press the turning wheel and select ‘phoneBooK’> ‘copy’ > ‘From phone’
The phonebook in the phone will be synchronized to the carkit. This function will only be
visible when your carkit’s phonebook is empty.
Press the turning wheel and select ‘phoneBooK’ > ‘copy’ > ‘From sim’
The phonebook stored on your phone’s SIM card can be wirelessly copied to the carkit, if your
mobile phone supports this function.
This function will only be visible when your phonebook is empty.
8 ORIGINATE SYNCHRONIZATION FROM PHONE
You can also send contacts from your mobile to the carkit via Object Push. Please refer to your
phones’ user guide for more information about sending contacts via Object Push. In most cases
this is done by entering your mobile phone’s contact list →Select All →Send as business card
via Bluetooth®.
•
•

BC9000M - GB20 -
9 PHONEBOOK COPY BY SIM CARD
The BC9000m has a slot at the left side of the screen that fits a standard size SIM card. Insert the
SIM CARD until it locks into place. The phonebook copy will start automatically. If phonebook copy
via Bluetooth®fails, or if you like a simple way of copying the phonebook, then you can insert your
SIM card into the carkit as shown on the illustration below:
SIM
After entering your pincode (if you have set a pin code earlier), the phonebook will be copied from
SIM card to carkit. This can take a while. Please wait until ‘Remove SIM card’ is shown on the
display. When the copying procedure is finished, the SIM card should be placed back into your
phone. To remove the SIM card, you have to press it again in order to release it.
Please note that you first may have to copy contacts saved on your phone’s memory to the SIM
card in order to copy your contacts.
10 DELETE PHONEBOOK
Press the turning wheel and select
‘settinGs & Gsm’ > ‘nAme oF your moBiLe phone’ > ‘settinGs’ > ‘phoneBooK’ >
‘deLete’ > ‘deLete ALL’
You can delete all contacts in the carkit.
Press the turning wheel and select
‘settinGs & Gsm > ‘nAme oF your moBiLe phone’> ‘settinGs’ > ‘phoneBooK’ >
‘deLete’ > ‘deLete seLected’
You can select the contact you want to delete in the carkit.
•
•
