MTE RLW Series User manual

MTE SERIES RLW
World REACTORS
USER MANUAL
PART NO. INSTR –030
REL. 090529
© 2009 MTE Corporation

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 1 of 25 INSTR--30
IMPORTANT USER INFORMATION
NOTICE

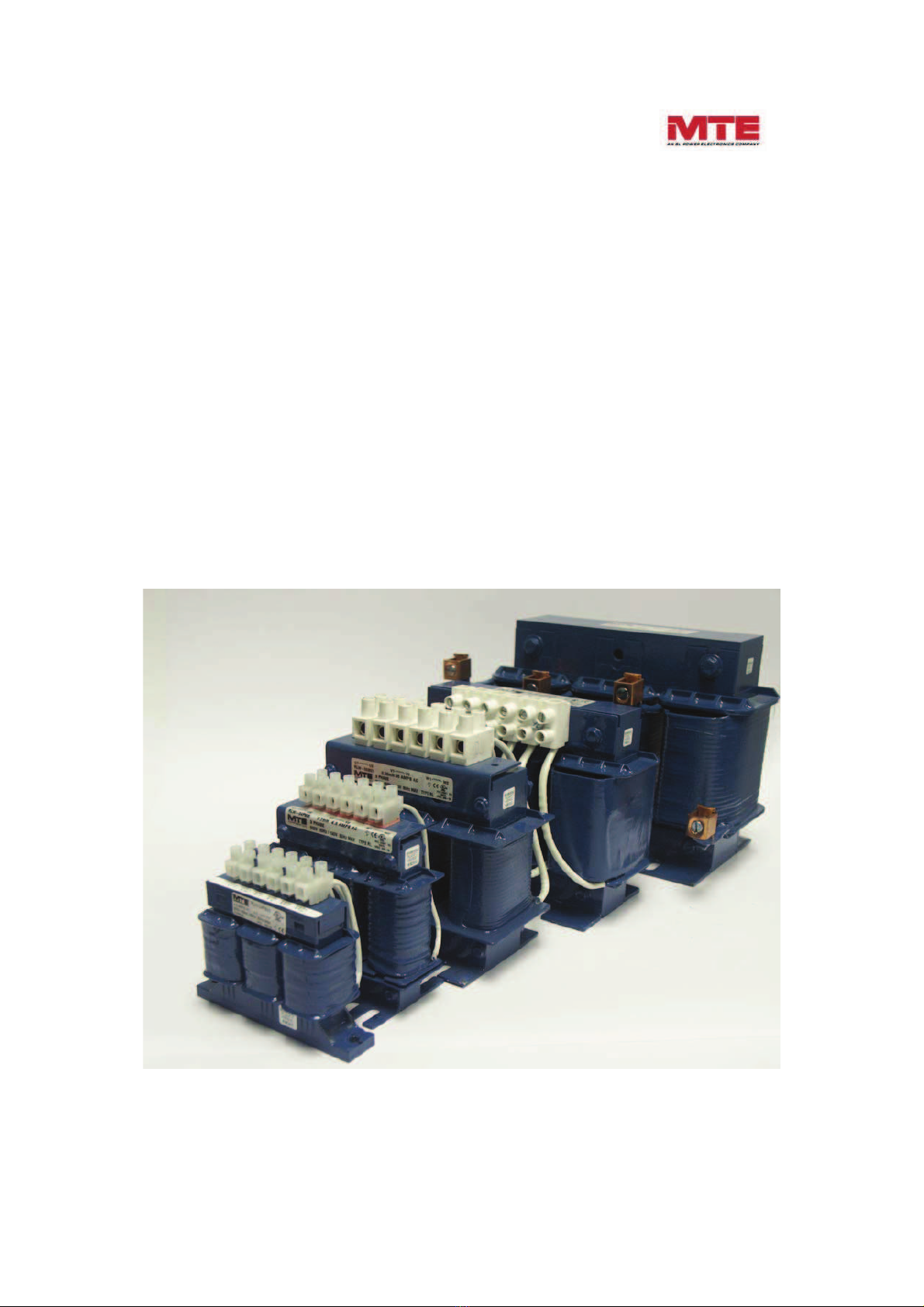

MTE Series RLW Line/Load Reactors are components designed to improve the reliability
of adjustable frequency drives, DC drives and a wide variety of other types of power
electronic equipment. In addition they provide input line current harmonic mitigation and
long lead protection for inverter fed motors. MTE reactors are available in a large number
of current ratings and a variety of inductance values. The suitability of a line/load reactor
for a specific application must therefore be ultimately determined by the customer. In no
event will MTE Corporation assume responsibility or liability for any direct or
consequential damages resulting from the use or application of reactors. Nor will MTE
Corporation assume patent liability with respect to the use of information, circuits or
equipment described in this instruction manual.

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 2 of 25 INSTR--30
Table of Contents
TABLE OF CONTENTS ............................................................................................................................... 2
1. IMPORTANT SAFETY NFORMATION WARNING.................................................................................. 3
2. INTRODUCTION....................................................................................................................................... 4
MODEL CODE PART NUMBER CONFIGURATION................................................................................... 5
SPECIFICATION DATA ............................................................................................................................... 6
SERVICE FACTOR ........................................................................................................................................ 6
AMBIENT TEMPERATURE...............................................................................................................................6
APPROVALS................................................................................................................................................. 6
ENCLOSURES: ............................................................................................................................................. 6
DIN RAIL MOUNT......................................................................................................................................... 6
REACTOR ELECTRICAL DATA ................................................................................................................. 8
SELECTION & APPLICATION GUIDE ......................................................................................................10
RL REACTOR CROSS TO RLW .................................................................................................................... 11
MECHANICAL DATA ................................................................................................................................. 12
OPEN PANEL ............................................................................................................................................. 12
ENCLOSED REACTOR MECHANICAL............................................................................................................ 14
FACTORY CONFIGURED OPTIONS ........................................................................................................15
KIT-0038.................................................................................................................................................. 15
KIT-0039.................................................................................................................................................. 15
KIT-0040.................................................................................................................................................. 15
OUTLINE DRAWINGS ...............................................................................................................................16
FIGURE 1SNAP BASE MOUNT .................................................................................................................... 16
FIGURE 235MM DIN MOUNT OPTION........................................................................................................ 16
FIGURE 3STANDARD MOUNTING ................................................................................................................ 16
FIGURE 4CAB –8...................................................................................................................................... 17
FIGURE 5CAB 13V .................................................................................................................................... 17
FIGURE 6CAB 12C ................................................................................................................................... 18
REACTOR INSTALLATION ........................................................................................................................19
POWER WIRING CONNECTION...............................................................................................................20
GROUNDING..............................................................................................................................................21
CONNECTION DIAGRAMS .......................................................................................................................22
STARTUP ...................................................................................................................................................23
SEQUENCE OF OPERATION......................................................................................................................... 23

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 3 of 25 INSTR--30
1. IMPORTANT SAFETY NFORMATION WARNING
ONLY A QUALIFIED ELECTRICIAN CAN CARRY OUT THE ELECTRICAL
INSTALLATION OF LINE/LOAD REACTORS
WARNING
High voltage is used in the operation of line/load reactors. Use Extreme caution to avoid contact with high voltage
when operating, installing or repairing equipment containing line/load reactors.
INJURY OR DEATH MAY RESULT IF SAFETY PRECAUTIONS ARE NOT OBSERVED.
Line/load reactors are used in conjunction with inverters, or other electrical equipment that may feedback lethal
voltages. Follow the safety instructions in the equipment used with the reactor in addition to the safety instruction in
this manual.
WARNING
The opening of the branch circuit protective device may be an indication that a fault current has been
interrupted. To reduce the risk of fire or electrical shock, line/load reactors should be examined and
replaced if damaged.
WARNING
An upstream disconnect/protection device must be used as required by the National Electrical Code
(NEC).
WARNING
Even if the upstream disconnect/protection device is open, a drive or inverter down stream of the
line/load reactor may feed back high voltage to the reactor. The inverter or drive safety instructions
must be followed. INJURY OR DEATH MAY RESULT IF THE DRIVE SAFETY PRECAUTIONS ARE
NOT OBSERVED.
WARNING
The frame of line/load reactors must be grounded at least at one of the reactor’s mounting holes.
WARNING
Only spare parts obtained from MTE Corporation or an authorized MTE distributor can be used

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 4 of 25 INSTR--30
2. INTRODUCTION
This manual was specifically developed to assist in the installation, interconnection and operation of
MTE Corporation Series RLW Line/Load Reactors
This manual is intended for use by personnel experienced in the operation and maintenance of electronic
drives, inverters and similar types of power electronic equipment. Because of the high voltages required by the
equipment connected to line/load reactors and the potential dangers presented by rotating machinery, it is
essential that all personnel involved in the operation and maintenance of line/load reactors know and practice
the necessary safety precautions for this type of equipment. Personnel should read and understand
the instructions contained in this manual before installing, operating or servicing line/load reactors and
the drive to which the reactor is connected.
Upon Receipt of a Reactor:
MTE Line/load Reactors have been subjected to demanding factory tests before shipment. Carefully
inspect the shipping container for damage that may have occurred in transit. Then unpack the filter and
carefully inspect for any signs of damage. Save the shipping container for future transport of the
reactor.
In the event of damage, please contact and file a claim with the freight carrier involved
immediately.
If the equipment is not going to be put into service upon receipt, cover and store the reactor in a clean, dry
location. After storage, ensure that the equipment is dry and that no condensation has accumulated on
the reactor before applying power.
Repair/Exchange Procedure
MTE Corporation requires a Returned Material Authorization Number before it can accept any reactors
that qualify for return or repair. If problems or questions arise during installation, setup, or operation of the filter,
please call us for assistance at:
Phone: [phone]
FAX: [phone]

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 5 of 25 INSTR--30
Model Code Part Number Configuration
Model Number Code System: RLW- _ _ _ _ X X -
Reactor “W” world
.
Current Rating (i.e. 00P5 is 0.5 Amps)
Mechanical Configurations
0 = Base Mount
1 = NEMA 1
3 = NEMA 3R
Reactor relative impedance no.
1- 6 (1) is lowest value
Options:
KIT 0038 = DIN Rail Mount
KIT-0039 = RL conversion Plate
KIT-0040 = Vibration Pads

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 6 of 25 INSTR--30
Specification Data
Impedance basis Calculation: % Z= (I/V) x 2 fL!3 x 100
Service Factor (continuous): 100%
Overload Rating Line side 150% of RMS rating for 1 minute
200% of RMS rating for 10 seconds
Maximum system voltage 690 Volts
Switching frequency Maximum 20 KHz
Minimum 1 KHz
Insulation system 200º C
Temperature rise 140 C (average)
Ambient temperature Full load:
-40 to 50º C Open
-40 to 45º C Enclosed
-40 to 90º C Storage
Altitude (maximum) 1000 meters
Fundamental frequency 50/60 Hz de-rate above 60 Hz
Inductance tolerance +/- 10%
Inductance curve (typical) 100% at 100% current
80% at 150% current
50% at 200% current
Dielectric Strength 4000 volts RMS (2200 volts peak repetitive)
Max audible level at two meters: Line applications: 65 dBa
Load applications: 76 dBa
Approvals: CE, UL-508, Type RL cUL per CSA C22.2
Note: Short circuit rating not required under Exception No.1 of UL508A SB4.2.1 effective 4/25/06
Enclosures: MTECab-8,13V,17V have NEMA1
Cab 12C and up are NEMA1rated as NEMA2
(Indoor rating with ripping water protection)
MTE NEMA 3R is a type 3R outdoor rating
DIN Rail Mount: 2 spring steel screw mounts for 35mm rail
With 10-32 screws

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 7 of 25 INSTR--30
Altitude Derating Curve
0.70
0.75
0.80
0.85
0.90
0.95
1.00
1.05
0 3300 6600 9900 13200 16500
Altitude (Feet)
Current De-Rating Factor
RLW Inductance curve
0
10
20
30
40
50
60
70
80
90
100
50 100 150 200 250
% Rated Current
% N o m in al Indu ctan ce

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 8 of 25 INSTR--30
Reactor Electrical Data
RMS
Amps Open PN NEMA 1 NEMA 3R Inductance
mH Watts Loss
RLW-00P501 RLW-00P511 RLW-00P531 22 2.3
RLW-00P503 RLW-00P513 RLW-00P533 46 3.6
RLW-00P505 RLW-00P515 RLW-00P535 74 4.8
0.5
RLW-00P506 RLW-00P516 RLW-00P536 92 5.4
RLW-0P7501 RLW-0P7511 RLW-0P7531 15 4.2
RLW-0P7503 RLW-0P7513 RLW-0P7533 31 6.6
RLW-0P7505 RLW-0P7515 RLW-0P7535 49 8.8
0.75
RLW-0P7506 RLW-0P7516 RLW-0P7536 61 10.1
RLW-01P101 RLW-01P111 RLW-01P131 10 4.8
RLW-01P103 RLW-01P113 RLW-01P133 21 7.8
RLW-01P105 RLW-01P115 RLW-01P135 33 10.1
1.1
RLW-01P106 RLW-01P116 RLW-01P136 42 11.9
RLW-01P601 RLW-01P611 RLW-01P631 6.9 6.9
RLW-01P603 RLW-01P613 RLW-01P633 14 10.9
RLW-01P605 RLW-01P615 RLW-01P635 23 15
1.6
RLW-01P606 RLW-01P616 RLW-01P636 29 17.7
RLW-02P101 RLW-02P111 RLW-02P131 5.3 9
RLW-02P103 RLW-02P113 RLW-02P133 11 14.3
RLW-02P105 RLW-02P115 RLW-02P135 18 19.6
2.1
RLW-02P106 RLW-02P116 RLW-02P136 22 22.3
RLW-03P401 RLW-03P411 RLW-03P431 3.2 12.3
RLW-03P403 RLW-03P413 RLW-03P433 6.8 19.6
RLW-03P405 RLW-03P415 RLW-03P435 11 26.5
3.4
RLW-03P406 RLW-03P416 RLW-03P436 14 31.5
RLW-04P801 RLW-04P811 RLW-04P831 2.3 13.8
RLW-04P803 RLW-04P813 RLW-04P833 4.8 23
RLW-04P805 RLW-04P815 RLW-04P835 7.7 37.5
4.8
RLW-04P806 RLW-04P816 RLW-04P836 10 40.1
RLW-07P601 RLW-07P611 RLW-07P631 1.5 19.2
RLW-07P603 RLW-07P613 RLW-07P633 3 37.2
RLW-07P605 RLW-07P615 RLW-07P635 4.8 47.8
7.6
RLW-07P606 RLW-07P616 RLW-07P636 6 53.8
RLW-001101 RLW-001111 RLW-001131 1 26.8
RLW-001103 RLW-001113 RLW-001133 2.1 40.9
RLW-001105 RLW-001115 RLW-001135 3.3 54.4
11
RLW-001106 RLW-001116 RLW-001136 4.3 59.1
RLW-001401 RLW-001411 RLW-001431 0.79 32.7
RLW-001403 RLW-001413 RLW-001433 1.6 48.2
RLW-001405 RLW-001415 RLW-001435 2.6 60.6
14
RLW-001406 RLW-001416 RLW-001436 3.3 66
RLW-002101 RLW-002111 RLW-002131 0.53 38.3
RLW-002103 RLW-002113 RLW-002133 1.1 57.4
RLW-002105 RLW-002115 RLW-002135 1.8 73.5
21
RLW-002106 RLW-002116 RLW-002136 2.2 78
RLW-002801 RLW-002811 RLW-002831 0.39 48.2
RLW-002803 RLW-002813 RLW-002833 0.82 66.8
RLW-002805 RLW-002815 RLW-002835 1.3 93.8
28
RLW-002806 RLW-002816 RLW-002836 1.6 110.6

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 9 of 25 INSTR--30
Amps Open PN NEMA 1 NEMA 3R Inductance
mH Watts Loss
RLW-003501 RLW-003511 RLW-003531 0.35 68
RLW-003503 RLW-003513 RLW-003533 0.71 102
35
RLW-003505 RLW-003515 RLW-003535 1.2 121
RLW-004601 RLW-004611 RLW-004631 0.3 77
RLW-004603 RLW-004613 RLW-004633 0.55 99
46
RLW-004605 RLW-004615 RLW-004635 0.98 179
RLW-005501 RLW-005511 RLW-005531 0.27 67
RLW-005503 RLW-005513 RLW-005533 0.48 109
55
RLW-005505 RLW-005515 RLW-005535 0.75 149
RLW-006501 RLW-006511 RLW-006531 0.19 87
RLW-006503 RLW-006513 RLW-006533 0.38 105
65
RLW-006505 RLW-006515 RLW-006535 0.64 214
RLW-008301 RLW-008311 RLW-008331 0.17 119
RLW-008303 RLW-008313 RLW-008333 0.29 155
83
RLW-008305 RLW-008315 RLW-008335 0.51 191
RLW-010401 RLW-010411 RLW-010431 0.12
RLW-010403 RLW-010413 RLW-010433 0.23
104
RLW-010405 RLW-010415 RLW-010435 0.375
RLW-013001 RLW-013011 RLW-013031 0.095
RLW-013003 RLW-013013 RLW-013033 0.18
130
RLW-013005 RLW-013015 RLW-013035 0.3
RLW-016001 RLW-016011 RLW-016031 0.08
RLW-016003 RLW-016013 RLW-016033 0.155
160
RLW-016005 RLW-016015 RLW-016035 0.26
RLW-020001 RLW-020011 RLW-020031 0.06
RLW-020003 RLW-020013 RLW-020033 0.115
200
RLW-020005 RLW-020015 RLW-020035 0.195
RLW-025001 RLW-025011 RLW-025031 0.05
RLW-025003 RLW-025013 RLW-025033 0.095
250
RLW-025005 RLW-025015 RLW-025035 0.155
RLW-033001 RLW-033011 RLW-033031 0.04
RLW-033003 RLW-033013 RLW-033033 0.075
330
RLW-033005 RLW-033015 RLW-033035 0.125
RLW-042001 RLW-042011 RLW-042031 0.03
RLW-042003 RLW-042013 RLW-042033 0.06
420
RLW-042005 RLW-042015 RLW-042035 0.105
RLW-050201 RLW-050211 RLW-050231 0.025
RLW-050203 RLW-050213 RLW-050233 0.05
502
RLW-050205 RLW-050215 RLW-050235 0.085
RLW-060001 RLW-060011 RLW-060031 0.02
RLW-060003 RLW-060013 RLW-060033 0.04
600
RLW-060005 RLW-060015 RLW-060035 0.065
RLW-075001 RLW-075011 RLW-075031 0.015
RLW-075003 RLW-075013 RLW-075033 0.03
750
RLW-075005 RLW-075015 RLW-075035 0.05

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 10 of 25 INSTR--30
Selection & Application Guide
The MTE World reactor (RLW) is an international product that is a low cost line side
alternative to the present line of MTE “RL” line/ load reactors. RLW’s are RMS current rated
impedance devices. Selection is based on the choice of inductance correlated to the
application motor full load amps, voltage and frequency and the number of phases. Use the
selection table based on input voltage and RMS load current to identify corresponding
reactor percent impedances. You may also pick from the NEC FLA motor selection table for
common voltages. For critical impedance selection based on specific HP or load currents
consult MTE applications engineering.
Single phase applications: The RLW like RL reactors may also be sized to protect single
phase drives. Please see MTE application AN0120 for details
For load side applications reactor current must be de-rated to 70% of the
reactors nominal current rating.
Choose the impedance level:
1.5% Minimum impedance for reduction of low level voltage transients.
RLW reactors may be used as a supplement to already installed reactors.
3% Helps minimize (95%) most drive nuisance tripping and faults caused by
over voltage and input line disturbances.
5% The MTE recommended value to protect drive components from transient
over-voltage prevents (99.9%) nuisance trips and offers limited harmonic
protection to input line power from drive induced harmonics.

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 11 of 25 INSTR--30
RL Reactor cross to RLW
Amps RL Part No. RLW Input
PN
RLW Output
PN Amps RL Part No. RLW Input
PN
RLW Output
PN
RL-00101 RLW-00P506 RLW-01P606 RL-08001 RLW-008301 RLW-013003
RL-00102 RLW-01P106 RLW-01P606 RL-08002 RLW-008305 RLW-013005
RL-00103 RLW-01P105 RLW-01P606
80
RL-08003 RLW-008305 RLW-013005
1
RL-00104 RLW-01P103 RLW-01P603 RL-10001 RLW-010401 RLW-016003
RL-00201 RLW-02P103 RLW-03P405 RL-10002 RLW-010403 RLW-016005
RL-00202 RLW-02P105 RLW-03P406
100
RL-10003 RLW-010405 RLW-016005
RL-00203 RLW-02P106 RLW-03P406 RL-13001 RLW-013001 RLW-020003
2
RL-00204 RLW-02P101 RLW-03P403 RL-13002 RLW-013003 RLW-020005
RL-00401 RLW-04P801 RLW-07P603
130
RL-13003 RLW-013005 RLW-020005
RL-00402 RLW-04P805 RLW-07P606 RL-16001 RLW-016001 RLW-025003
RL-00403 RLW-04P806 RLW-07P606 RL-16002 RLW-016003 RLW-025005
4
RL-00404 RLW-04P806 RLW-07P606
160
RL-16003 RLW-016005 RLW-025005
RL-00801 RLW-07P601 RLW-001403 RL-20001B14 RLW-020001 RLW-033001
RL-00802 RLW-07P603 RLW-001406 RL-20002B14 RLW-020003 RLW-033005
RL-00803 RLW-07P605 RLW-001406
200
RL-20003B14 RLW-020005 RLW-033005
8
RL-00804 RLW-07P606 RLW-001406 RL-25001B14 RLW-025001 RLW-042001
RL-01201 RLW-001101 RLW-002103 RL-25002B14 RLW-025003 RLW-042005
RL-01202 RLW-001103 RLW-002106
250
RL-25003B14 RLW-025005 RLW-042005
12
RL-01203 RLW-001106 RLW-002106 RL-32001B14 RLW-033001 RLW-050203
RL-01801 RLW-001401 RLW-002803 RL-32002B14 RLW-033003 RLW-050205
RL-01802 RLW-001403 RLW-002806
320
RL-32003B14 RLW-033005 RLW-050205
18
RL-01803 RLW-001405 RLW-002806 RL-40001B14 RLW-042001 RLW-060001
RL-02501 RLW-002101 RLW-003501 RL-40002B14 RLW-042003 RLW-060005
RL-02502 RLW-002103 RLW-003505
400
RL-40003B14 RLW-042005 RLW-060005
25
RL-02503 RLW-002105 RLW-003505 RL-50001B14 RLW-050201 RLW-075003
RL-03501 RLW-003501 RLW-005503 RL-50002 RLW-050203 RLW-075005
RL-03502 RLW-003503 RLW-005505
500
RL-50003 RLW-050205 RLW-075005
35
RL-03503 RLW-003505 RLW-005505 RL-60001 RLW-060001
RL-04501 RLW-004601 RLW-006503 RL-60002 RLW-060003
RL-04502 RLW-004603 RLW-006505
600
RL-60003 RLW-060005
45
RL-04503 RLW-004605 RLW-006505 RL-75001 RLW-075001
RL-05501 RLW-005501 RLW-008303 RL-75002 RLW-075003
RL-05502 RLW-005503 RLW-008305
750
RL-75003 RLW-075005
55
RL-05503 RLW-005505 RLW-008305
Note:
1. The RLW was designed to support global IEC and NEC input VFD drive motor
applications. To gain optimum performance and size advantages use the RLW
selections tables by HP and voltage in PB-1101.
2. RLW output selection is based on 70% of fundamental RLW current capacity for
output load applications!
*Open style reactor,other part numbers are NEMA 1-2 and 3R enclosed units.

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 12 of 25 INSTR--30
Mechanical Data
Open Panel
Open Part Number Dimension in inches
RMS
Amps Open PN Wt Fig A B C D E F
RLW-00P501 1.5 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-00P503 1.5 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-00P505 1.6 1 - 2 4.5 3.7 1.5 0.0 4.0 -
0.5
RLW-00P506 1.6 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-0P7501 1.4 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-0P7503 1.5 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-0P7505 1.5 1 - 2 4.5 3.7 1.5 0.0 4.0 -
0.75
RLW-0P7506 1.6 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-01P101 1.5 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-01P103 1.6 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-01P105 1.6 1 - 2 4.5 3.7 1.5 0.0 4.0 -
1.1
RLW-01P106 1.7 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-01P601 1.5 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-01P603 1.6 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-01P605 1.6 1 - 2 4.5 3.7 1.5 0.0 4.0 -
1.6
RLW-01P606 1.7 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-02P101 1.5 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-02P103 1.6 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-02P105 1.7 1 - 2 4.5 3.7 1.5 0.0 4.0 -
2.1
RLW-02P106 1.7 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-03P401 1.6 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-03P403 1.6 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-03P405 2.7 34.4 5 2.8 2.0 1.4 -
3.4
RLW-03P406 2.8 34.4 5 2.8 2.0 1.4 -
RLW-04P801 1.7 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-04P803 1.8 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-04P805 2.8 34.4 5 2.8 2.0 1.4 -
4.8
RLW-04P806 4.0 34.4 5 3.1 2.1 1.4 -
RLW-07P601 1.8 1 - 2 4.5 3.7 1.5 0.0 4.0 -
RLW-07P603 2.8 34.4 5 2.8 2.0 1.4 -
RLW-07P605 4.1 34.4 5 3.1 2.1 1.4 -
7.6
RLW-07P606 4.2 34.4 5 3.1 2.1 1.4 -
RLW-001101 2.7 34.4 5 2.8 2.0 1.4 -
RLW-001103 4.2 34.4 5 3.1 2.1 1.4 -
RLW-001105 5.3 34.4 5 3.5 2.6 1.4 -
11
RLW-001106 7.1 36 5.8 2.9 2.1 2.0 -
RLW-001401 2.8 34.4 5.3 2.8 2.0 1.4 -
RLW-001403 4.3 34.4 5 3.1 2.1 1.4 -
RLW-001405 7.1 36 5.8 2.9 2.1 2.0 -
14
RLW-001406 9.4 36 5.8 3.3 2.5 2.0 -
RLW-002101 4.2 34.4 5.3 3.3 2.4 1.4 -
RLW-002103 7.2 36 6.1 2.9 2.1 2.0 -
RLW-002105 10.0 36 6.1 3.3 2.5 2.0 -
21
RLW-002106 13.3 37.2 7 3.8 2.3 3.0 -
RLW-002801 5.1 34.4 5.3 3.5 2.6 1.4 -
RLW-002803 9.5 36 6.1 3.3 2.5 2.0 -
RLW-002805 10.4 36 6.1 3.3 2.3 2.0 -
28
RLW-002806 14.3 37.2 7 3.8 2.3 3.0 -

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 13 of 25 INSTR--30
Open Panel Mechanical cont.
Open Part Number Dimension in inches
RMS
Amps Open PN Wt Fig A B C D E F
RLW-003501 10 36.0 6.0 3.5 2.73 2.0 3.0
RLW-003503 13 37.2 6.0 3.75 2.25 3.0 -
35
RLW-003505 18 37.2 6.0 4.3 2.75 3.0 -
RLW-004601 13 37.2 6.0 3.75 2.25 3.0 -
RLW-004603 17 37.2 6.0 4.3 2.75 3.0 -
46
RLW-004605 24 39 8.3 4.8 3.24 3.0 4.26
RLW-005501 18 37.2 6.0 4.0 2.75 3.0 -
RLW-005503 20 37.2 6.0 4.25 2.75 3.0 -
55
RLW-005505 26 39.0 7.0 6.5 3.24 3.0 4.26
RLW-006501 18 37.2 6.0 4.0 4.25 3.0 -
RLW-006503 22 37.2 6.0 4.25 2.75 3.0 -
65
RLW-006505 26 39.0 7.0 6.5 3.24 3.0 4.26
RLW-008301 19 37.2 6.0 4.25 2.75 3.0 -
RLW-008303 26 39.0 7.0 6.5 3.24 3.0 4.26
83
RLW-008305 35 39.0 7.0 6.75 3.74 3.0 4.26
RLW-010401
RLW-010403
104
RLW-010405
RLW-013001
RLW-013003
130
RLW-013005
RLW-016001
RLW-016003
160
RLW-016005
RLW-020001
RLW-020003
200
RLW-020005
RLW-025001
RLW-025003
200
RLW-025005
RLW-033001
RLW-033003
330
RLW-033005
RLW-042001
RLW-042003
420
RLW-042005
RLW-050201
RLW-050203
502
RLW-050205
RLW-060001
RLW-060003
600
RLW-060005
RLW-075001
RLW-075003
750
RLW-075005

RLW Reactor Users Manual
Data subject to change without notice 5-29-09 14 of 25 INSTR--30
Enclosed Reactor Mechanical
NEMA 1 NEMA 3R
RMS
Amps Part number Wt Fig Part Number Wt Fig
RLW-00P511 8.5 4RLW-00P531 76.5 6
RLW-00P513 8.5 4RLW-00P533 76.5 6
RLW-00P515 8.6 4RLW-00P535 76.6 6
0.5
RLW-00P516 8.6 4RLW-00P536 76.6 6
RLW-0P7511 8.4 4RLW-0P7531 76.4 6
RLW-0P7513 8.5 4RLW-0P7533 76.5 6
RLW-0P7515 8.5 4RLW-0P7535 76.5 6
0.75
RLW-0P7516 8.6 4RLW-0P7536 76.6 6
RLW-01P111 8.5 4RLW-01P131 76.5 6
RLW-01P113 8.6 4RLW-01P133 76.6 6
RLW-01P115 8.6 4RLW-01P135 76.6 6
1.1
RLW-01P116 8.7 4 RLW-01P136 76.7 6
RLW-01P611 8.5 4 RLW-01P631 76.5 6
RLW-01P613 8.6 4 RLW-01P633 76.6 6
RLW-01P615 8.6 4 RLW-01P635 76.6 6
1.6
RLW-01P616 8.7 4 RLW-01P636 76.7 6
RLW-02P111 8.5 4 RLW-02P131 76.5 6
RLW-02P113 8.6 4 RLW-02P133 76.6 6
RLW-02P115 8.7 4 RLW-02P135 76.7 6
2.1
RLW-02P116 8.7 4 RLW-02P136 76.7 6
RLW-03P411 8.6 4 RLW-03P431 76.6 6
RLW-03P413 8.7 4 RLW-03P433 76.7 6
RLW-03P415 9.7 4 RLW-03P435 77.7 6
3.4
RLW-03P416 20.8 5 RLW-03P436 77.8 6
RLW-04P811 8.7 4 RLW-04P831 76.7 6
RLW-04P813 8.8 4 RLW-04P833 76.8 6
RLW-04P815 20.7 5 RLW-04P835 77.7 6
4.8
RLW-04P816 22.0 5 RLW-04P836 79.0 6
RLW-07P611 8.8 4 RLW-07P631 76.8 6
RLW-07P613 20.7 5 RLW-07P633 77.7 6
RLW-07P615 22.1 5 RLW-07P635 79.1 6
7.6
RLW-07P616 22.2 5 RLW-07P636 79.2 6
RLW-001111 20.7 5 RLW-001131 77.7 6
RLW-001113 22.2 5 RLW-001133 79.2 6
RLW-001115 23.2 5 RLW-001135 80.2 6
11
RLW-001116 25.1 5 RLW-001136 82.1 6
RLW-001411 20.8 5 RLW-001431 77.8 6
RLW-001413 22.3 5 RLW-001433 79.3 6
RLW-001415 25.1 5 RLW-001435 82.1 6
14
RLW-001416 27.4 5 RLW-001436 84.4 6
RLW-002111 22.2 5 RLW-002131 79.2 6
RLW-002113 25.2 5 RLW-002133 82.2 6
RLW-002115 28.0 5 RLW-002135 85.0 6
21
RLW-002116 31.3 5 RLW-002136 88.3 6
RLW-002811 23.1 5 RLW-002831 80.1 6
RLW-002813 27.5 5 RLW-002833 84.5 6
RLW-002815 31.7 5 RLW-002835 88.7 6
28
RLW-002816 32.3 5 RLW-002836 89.3 6
