Mueller Revive M4 User manual

L98005H4R-C
Revive M4 Model 737R
User Manual
One Quench Drive
Prairie du Sac, WI 53578
+1-608.643.8530, [phone]
www.muellersportsmed.com

Revive M4 Model 737R Mueller Sport Medicine inc. User Manual
L98005H4R-C
Table of Contents
1. Important Safety Information........................................................1
2. Revive M4 Specifications and Dimensions ..................................3
3. Labels .............................................................................................4
4. Indications for Use ........................................................................6
5. About Revive M4 ............................................................................6
6. Components of the Revive M4 System ......................................13
7. How to Operate the Revive M4 System ......................................16
8. Using the REVIVE™ Mobile Application ....................................43
9. Maintenance and Storage ...........................................................68
10. Troubleshooting ..........................................................................71
11. Troubleshooting Wireless Connection Problems .....................74
12. Warranty and Contact Information .............................................74
13. Bluetooth Wireless Technology Information .............................75
14. EMC Manufacturer Declarations.................................................76

Revive M4 Model 737R Mueller Sport Medicine inc. User Manual
L98005H4R-C 1
1. Important Safety Information
Read all instructions before using the Revive M4 system for the first time.
Warning: Contraindications for Use
•This system is intended for use by people in good health. This system
is not recommended for people who have heart problems, or vascular
problems, have a condition requiring the use of any medical device, or
have any condition that may affect their normal well-being.
•If you are, or may be, pregnant, consult with your physician before use.
•Do not use this system over insensitive or numb areas, or in the
presence of poor circulation. Do not use if you have been diagnosed
with blood clots, deep vein thrombosis or phlebitis. This system should
not be used over swollen or inflamed areas or skin eruptions. Do not
use in the presence of unexplained calf pain.
•Consult your physician prior to use.
Safety Warnings and Precautions
Warning:
•Explosion Hazard: Do not use the Revive M4 system in the presence
of flammable gases, including flammable anesthetics.
•Electric Shock Hazard: Do not allow liquid to enter any part of the
Revive M4 Console. Do not immerse. To clean, follow instructions in
Chapter 9 - Maintenance and Storage.
•Electric Shock Hazard: To prevent electric shock, do not open the
Console. Do not attempt to service the Console yourself. All
maintenance tasks should be performed only by REVIVE™ trained and
authorized service personnel. Service by unauthorized personnel shall
void any warranty.
•Stop treatment in case of any change of the Revive M4 system
performance.
•Use the Revive M4 Console only with Revive M4 system garments and
accessories.
•Do not modify any part of the Revive M4 system.
•The equipment should not be used adjacent to or stacked with other
equipment. In case adjacent or stacked use is necessary, the
equipment should be observed to verify normal operation in the
configuration in which it is used.
•The Revive M4 system includes small parts. To avoid choking, do not
swallow, and keep away from children and pets.
!
!

Revive M4 Model 737R Mueller Sport Medicine
2 L98005H4R-C
Note:
This console was tested for compliance with safety performance standards
that apply to electro-medical devices:
•Electrical Safety: IEC 60601-1 Ed. 3.1
•Electromagnetic Compatibility: IEC 60601-1-2 Ed. 4.0
•Home-use Devices: IEC 60601-1-11 Ed. 2.0
Caution:
•Do not operate the Revive M4 system during transit.
•Do not store or transport the Revive M4 system beyond the specified
temperature, humidity, and atmospheric pressure ranges
(see Chapter 9 - Maintenance and Storage.
•Do not use the Revive M4 system beyond the specified temperature
range: 10–30°C (50–86°F).
•Do not use the Revive M4 system beyond the specified humidity range:
30–85%rH, non-condensing.
•Use the Revive M4 system up to 3000m above mean sea level.
•To prevent any damage to the Revive M4 system, keep it away from
dust, lint, and dirt. Keep away from sources of heat or moisture.
•Do not inflate the garment without wearing it over the intended body
area. Do not inflate the garment "on empty". Doing so can damage the
garment.
•To prevent any damage to equipment, use only accessories,
detachable parts, and materials described in this User Manual.
•While in use, place the Console on horizontal firm surface only. Do not
place the Console on bed, blanket, mattress, pillow, or soft furniture.
Do not cover the Console.
•Use only accessories approved by the manufacturer (Mego Afek AC
Ltd.). Other accessories may damage the system or interfere with
system function.
•The equipment is to be installed and put into service according to the
EMC information provided in Chapter 14 - EMC Manufacturer
Declarations.
•Portable and mobile RF communication equipment may affect the
equipment.

Revive M4 Model 737R Mueller Sport Medicine inc. User Manual
L98005H4R-C 3
2. Revive M4 Specifications and Dimensions
Model: 737R, appliance coupler, transportable, rated: 100-240 VAC, 50-60 Hz,
internal backup battery: 11.1V, 5000 mAh
Type of protection against electric shock
Class II
Degree of protection against electric shock
Type BF
Degree of protection against ingress of
water
IP21
Degree of safety of application in the
presence of a flammable anesthetic mixture
with air or with oxygen or nitrous oxide
Equipment not suitable for use in the
presence of a flammable anesthetic
mixture with air or with oxygen or nitrous
oxide
Mode of operation
Continuous
Treatment duration
10–90 minutes
Environmental Conditions
Normal: 10–30°C, 30–85% rH, 700–1060
hPa
Pressure Range
20–100 mmHg
Dimensions
22 cm × 17 cm × 13 cm (8.6" × 6.7" × 5.1")
Weight
1.5 kg (3.3 lbs.)

Revive M4 Model 737R Mueller Sport Medicine
4 L98005H4R-C

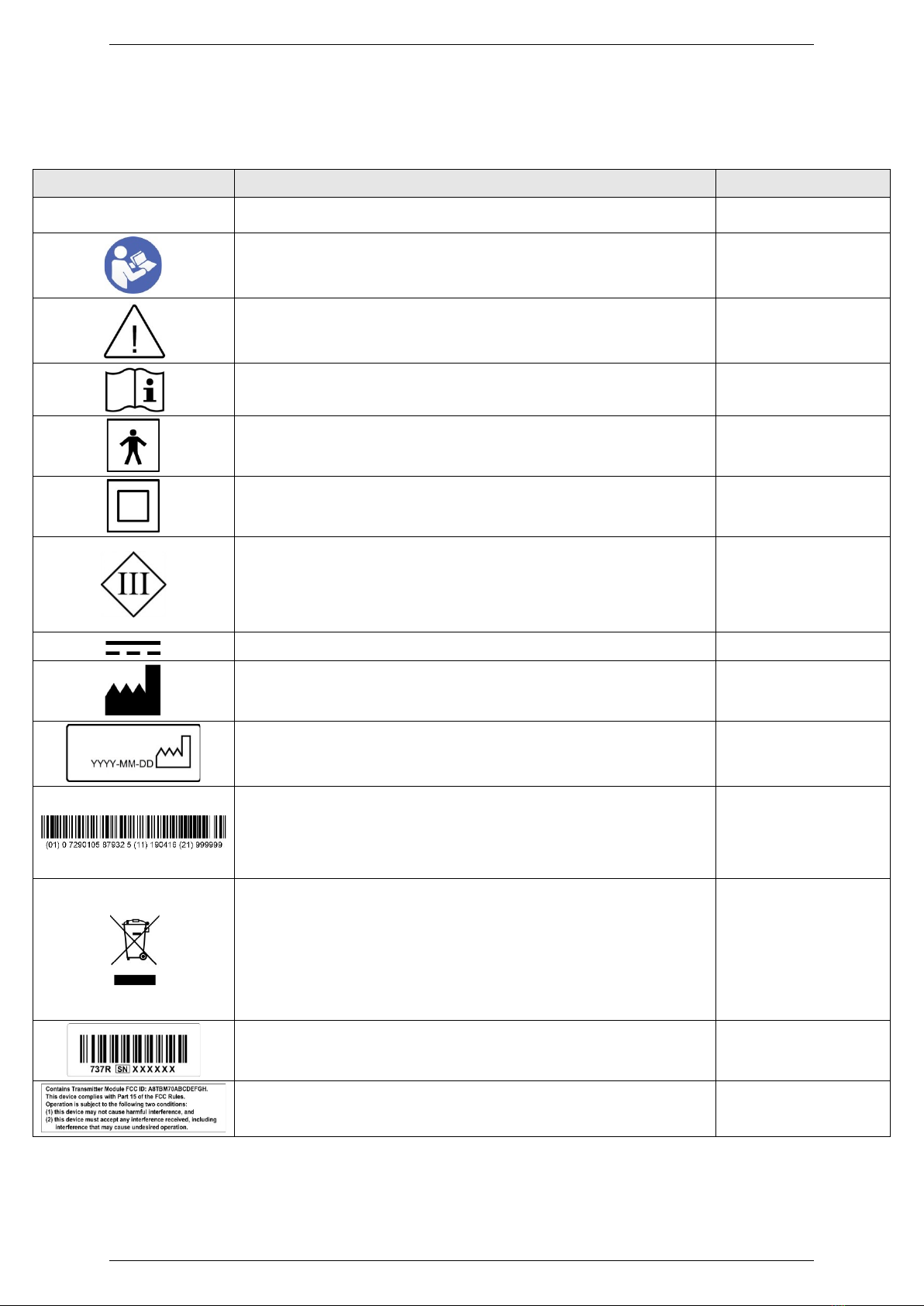

3. Labels
The following labels and symbols appear on the Console, garments and/or packaging.
Symbol
Description
Location
IP21
Degree of protection against ingress of water
On Console base
Read instructions before use
On Console base
Read instructions before use (for China only)
On Console base
Read instructions before use
On garment label
Level of protection type BF applied part
On Console base
Double insulation
On DC power
adapter
Class III equipment
Equipment relying on limitation of voltage to
extra-low-voltage (ELV) values as provision for basic
protection and with no provision for fault protection.
On Console base
Direct current
On Console base
Manufacturer's name and address
On garment label
and Console base
Date of Manufacture
On Console base
Unique Device Identification (UDI)
On Console base
and package, and
garment bag and
package
Separate collection for waste electrical and electronic
equipment
Note:
For more information about disposal of equipment, its
parts and accessories, please contact your local
distributor.
On Console base
Serial number of the console
On Console base
FCC CFR 47 Telecommunications, Part 15 statement
On Console base

Revive M4 Model 737R Mueller Sport Medicine inc. User Manual
L98005H4R-C 5
Symbol
Description
Location
Contraindications label
On package
Fragile, handle with care
On package
Keep dry
On package
This side Up
On package
Keep away from sunlight
On package
Transportation & storage humidity limitation
On package
Transportation & storage atmospheric pressure
limitation
On package
Transportation & storage temperature limitation
On package
"ON" (power)
On power switch
"OFF" (power)
On power switch
Do not wash
On garment tag
Do not dry-clean
On garment tag
Do not tumble dry
On garment tag
Do not bleach
On garment tag
Do not iron
On garment tag

Revive M4 Model 737R Mueller Sport Medicine
6 L98005H4R-C
4. Indications for Use
The Revive M4 is indicated for the temporary relief of minor muscle aches and
pains, and for temporary increase in circulation to the treated areas in people
who are in good health.
The Revive M4 simulates kneading and stroking of tissues by using an
inflatable garment.
5. About Revive M4
Revive M4 is intended for use by people in good health. As noted above, Revive
M4 simulates the kneading and stroking action of manual treatment by use of an
inflatable garment that fills and deflates, applying a directional compress-and-
release treatment. This soothing treatment action temporarily increases circulation
in the areas to which the garment is applied, and temporarily relieves muscle
aches and pain caused by fatigue or overexertion.
Revive M4 Programs
The chambers in the Revive M4 garment overlap for fluent, comfortable
treatment without gaps. Pressure level, treatment time, hold time, and pause
time may be adjusted.
The Revive M4 operates one or two garments.
Revive M4 has five programs:
•Recover
•Warm-up
•Isolation
•Interval
•Custom (Sequential, ISO, Wave, or Flow)
These programs are described in the following sections.

Revive M4 Model 737R Mueller Sport Medicine inc. User Manual
L98005H4R-C 7
Recover and Warm-up Programs
Recover and Warm-up use the Sequential mode that applies a directional
treatment, beginning distally and progressing towards the torso, then
releasing (see Figure 1).
This applies a deep, slow treatment.
•Recover is recommended for after activity.
•Warm-up is recommended before activity.
Figure 1 - Sequential Mode

Revive M4 Model 737R Mueller Sport Medicine
8 L98005H4R-C
Isolation
Isolation uses the ISO cycle providing use-defined two chamber coverage.
There are three options (see Figure 2).
The user can select the pair of chambers (zones) to be inflated:
•Chambers 1 and 2 –Distal zone
•Chambers 2 and 3 –Mid zone
•Chambers 3 and 4 –Proximal zone
Chambers 1 & 2 (Distal)
Chambers 2 & 3 (Mid)
Chambers 3 & 4 (Proximal)
Figure 2 - ISO Cycle Mode

Revive M4 Model 737R Mueller Sport Medicine inc. User Manual
L98005H4R-C 9
Interval
Interval applies periods of inflation (Time On) using the Sequential mode (see
Figure 1) alternated with intervals of no inflation (Time Off).
Time On alternates with intervals of Time Off for a treatment time of up to 8
hours.
Time On (in minutes), Time Off (in minutes), and run time (in hours) are
programmable.
During Time Off, the icon is displayed.
Custom
Custom program allows the user to select Sequential (see Figure 1), ISO (see
Figure 2), Wave (see Figure 3), or Flow (see Flow).
During treatment, the treatment parameters can be changed, but not the
selected cycle.
Wave - As the proximal chamber inflates, the distal chamber starts to deflate,
so at any one time a small area is being compressed.
Figure 3 - Wave Cycle Mode

Revive M4 Model 737R Mueller Sport Medicine
10 L98005H4R-C
Flow
The Flow Cycle is described in the following table:
Chamber 1
Chamber 2
Chamber 3
Chamber 4
Sequence –instance of inflation and release
Progress –advancement of sequences
Four sequences exist. Each sequence is determined by the previous
chamber inflated.
Flow has an associated Frequency parameter that determines the
number of sequences.
The user can set Frequency between 1 and 8. The default setting is 2.
Pretreatment
Pretreatment can be added to the beginning of the cycle mode set in the
Custom Program only.
Pretreatment treats the proximal areas first, decongesting them so that
they can receive the lymph fluid that is mobilized during the Sequential or
Peristaltic cycles. A specific pattern is applied, and the duration varies
according to garment size, lasting 5–12 minutes, with preselected
pressure of 30 mmHg that cannot be changed by the user.
The following diagram describes the progress of Pretreatment.
Sequence 1
Sequence 2
Sequence 3
Note:
Sequence 1 is carried out six (6) times. Sequence 2 and Sequence 3 are
carried out only once.
Progress
Sequence
Sequence
Sequence
Sequence
Progress
Progress
Progress
Sequence
Sequence
Sequence
Sequence

Revive M4 Model 737R Mueller Sport Medicine inc. User Manual
L98005H4R-C 11
Factory Default Program Settings
The Revive M4 Console is supplied with the following default program settings.
Program
Cycle
Mode
Zone
Pre-
treatment
Pressure
[mmHg]
Time
[min]
Hold
[sec]
Release
[sec]
Time
On
[min]
Time
Off
[min]
Total
[hr]
User Modification
Recover
Sequential
–
–
50
30
5
10
–
–
–
Pressure, Time, Hold,
Release, and Gradient
(see note below)
Warm-up
Sequential
–
–
40
15
0
10
–
–
–
Isolation
ISO
Distal
–
20
20
2
10
–
–
–
Zone Pressure, Time,
Hold, Release, and
Gradient (see note
below)
Interval
Sequential
–
–
35
–
2
15
20
30
3
Pressure, Time On,
Time Off, Total, Hold,
Release, and Gradient
(see note below)
Custom
Sequential
Distal
(ISO
only)
–
45
30
4
10
–
–
–
Cycle, Pressure, Time,
Hold, Release,
Pretreatment, and
Gradient (see note
below)
Note:
All programs - The user can change Pressure, Hold, and Release during treatment.
•Isolation - The user can select the zone to be inflated in the ISO cycle mode (Distal, Mid, or
Proximal).
•Interval - The user can select the Time on, Time off and Total treatment time in addition to
the Pressure, Hold, and Release.
•Custom - The user can select the Flow cycle and its Frequency.
To return all programs to the default settings, press and hold both and
until the buzzer beeps twice.

Revive M4 Model 737R Mueller Sport Medicine
12 L98005H4R-C
To return each program to the default settings:
a. Press repeatedly until the required program screen is displayed:
b. Press until the parameters screen is displayed.
c. Scroll down using until reaching DEFAULT.
d. Press .
The buzzer beeps three times, and the selected-program parameters return
to their default settings.

Revive M4 Model 737R Mueller Sport Medicine inc. User Manual
L98005H4R-C 13
6. Components of the Revive M4 System
The Revive M4 737R Console
(See Figure 4)
The Console takes air from the room environment and sends it to the individual
air chambers in the garment The Console then vents the air from the garments,
there is a brief pause, and the treatment cycle repeats.
The Console is powered by either DC power adapter or by a rechargeable
battery inside the Console. The battery can be charged while the Console is
operated by electricity. The following table illustrates the battery power capacity
displayed by the status indicators.
Note:
•Turn On the Power Switch to enable charging the Console.
•Turn Off the Power Switch to conserve battery power when not
charging or not using the Console.
Battery Status Icon
Available Power
75–100% power
50–75% power remaining
25–50% power remaining
5%–25% power remaining
Battery empty
Battery disconnected

Revive M4 Model 737R Mueller Sport Medicine
14 L98005H4R-C
Prong Plug
(See Figure 5)
If you use only one garment, insert this plug into the unused air outlet on the
front of the Revive M4 Console, to seal it off and prevent air from escaping (see
Figure 20).
DC Power Adapter
(See Figure 6)
The DC Power Adapter receives 100–240 VAC, 50–60 Hz AC power and
supplies 12 VDC 3A to the Console.
Caution:
•For indoor use only.
•Use only the provided DC power adapter.
Battery Pack
(See Figure 7)
•The Console can operate on battery power for up to eight (8) hours when
fully charged.
•Battery may be charged during normal operation of the Console.
•Battery charging time is up to 8 hours.
Console737RM4 Revive-4Figure
Figure 5 - Prong Plug
Figure 6 - DC Power Adapter
Figure 7 - Battery Pack

Revive M4 Model 737R Mueller Sport Medicine inc. User Manual
L98005H4R-C 15
Compression Garments
(See Figure 8, Figure 9, Figure 10, Figure 11, and Figure 12).
A variety of garments are available. Revive Full Leg Boot and Revive Calf Boot are
available in several sizes. Revive Half Jacket and Revive Pants are adjustable.
Figure 8 –Revive Full Leg Boot
Figure 9 - Revive Arm Sleeve
Figure 10 –Revive Calf Boot
Figure 11 –Revive Half Jacket
Figure 12 - Revive Pants

Revive M4 Model 737R Mueller Sport Medicine
16 L98005H4R-C
7. How to Operate the Revive M4 System
Following is a description of the Console operating panel and the various
settings and displays (see Figure 13 and The Console Controls).
Read this section before operating the Console for the first time.
Figure 13 - The Console Operating Panel
The Console Controls
Control
Function
Mode/Menu button: Used to access selection of a program, treatment
pressure, treatment time, cycle mode, release time, and hold time.
Up and Down buttons: Used to select a program, treatment pressure,
treatment time, cycle mode, release time, and hold time.
Start/Stop button: Used to start or stop treatment.
Power Switch: Used to power-up the Console (located at the back of
the Console at the bottom right side).
DC Adapter Socket: Used for connecting DC Adapter (located under
the Power Switch).
Mode/Menu
button
Start/Stop
button
Up button
Display
Screen
Down button
