Multitool 362 User manual

The words “us”, “we” or “our” refers to P.A Products or their authorized agent

B.) The warranty will only apply for a period of 1 year from the date of original

have been caused by faulty materials or workmanship. Our liability is limited to the

goods. We will not be liable for any defect caused by unauthorized repair.
WARRANTY AND CONDITIONS OF SALE
BELT CHANGING
To remove the belt simply push down on the underside of belt to compress the tensioner assembly.


BELT TRACKING




PLATEN GRINDING (HORIZONTAL OR VERTICAL)




touches under side of belt. Work of any length can be surfaced on the platen, for example the saw
edges of wood from short pieces up to lengths of several feet. Never grind or sand on platen unless

DISC GRINDING


   



to prevent build up wood resin. When changing a disc pad remove any remaining adhesive with a

CONTACT WHEEL GRINDING, POLISHING, AND SANDING
   
              



Remove rough weld with 40 or 80 grit belt. Remove grinding marks with 240 grit belt. Change
              

  
clogging on wood use.
FREE STRAPPING
Free strapping is a method of belt grinding, sanding or polishing where no backing is used behind

It is done on the underneath side of the belt opposite the platen. Belt grits of 180 to 400 are

MULTITOOL 362


MULTITOOL 482 & MULTITOOL 8CW


MULTITOOL 364

minimum 3/4 (Note: Drive pulley can be bored to maximum 1”.)
MULTITOOL 484

(Note: Drive pulley can be bored to maximum 1”.)
BELT SPEED – ALL MODELS 
AVAILABLE ACCESSORIES
ADJUSTABLE ANGLE WORK TABLE (MTBL) 
SHARPENING JIG (MTSJIG) – for sharpening chisels and planer blades
POLISHING ROUGE (MTRouge)
OPERATING INSTRUCTIONS
ATTACHMENT SPECIFICATIONS
            


of an abrasive belt ensures that the sharp side of each piece of grit is facing outwards on
          
 

ALL METALS  
   
    
   
   
ALUMINUM Always use belt grease to prevent clogging.
WOOD Use Aluminum Oxide Resin Bond (open or closed)
  
PLASTICS & GLASS CERAMIC
 
1. ALWAYS WEAR EYE PROTECTION.

2. AVOID EYE CONTACT WITH BELT OR DISC. The abrasive belt when running is


3. KEEP CHILDREN AWAY. All visitors should be kept a safe distance from the
work area.
4. BOLT THE BENCH GRINDER

5. DO NOT MOUNT 
6. KEEP WORK AREA CLEAN.
7. ALWAYS WEAR A DUST MASK 

8. DO NOT WEAR LOOSE CLOTHING, which may become entangled in the

9. ALWAYS HOLD
steady pressure against abrasive disc or belt.
10. ALWAYS GRIND ON THE DOWNWARD SIDE


11. DO NOT USE BELTS THAT ARE DAMAGED, TORN, OR SHOW SIGNS OF WEAR
12. ALWAYS INSTALL BELTS 


SAFETY INSTRUCTIONS
INTRODUCTION TO BELT GRINDING
BELT APPLICATIONS
WARNING:

have read and understood the following:
Multitool
WWW.MULTITOOLGRINDER.COM
INSTRUCTIONS TO FOLLOW FOR WARRANTY CLAIMS:
1. 
has become apparent.
2. 

3. The customer must prepay all freight charges for returned goods.
4. 

BELT AND DISC
GRINDING ATTACHMENT

1
2
3



washers under heads (B). The outer edge of the adaptor plate is tapered. Face smallest
side of taper away from grinder as shown in Fig 1: A.
NOTE:

E
B
4







*NOTE: If interference occurs, insert carriage bolt with head facing the grinder motor.
5
J
F
G6






NOTE:
maximum of 1”.



NOTE:


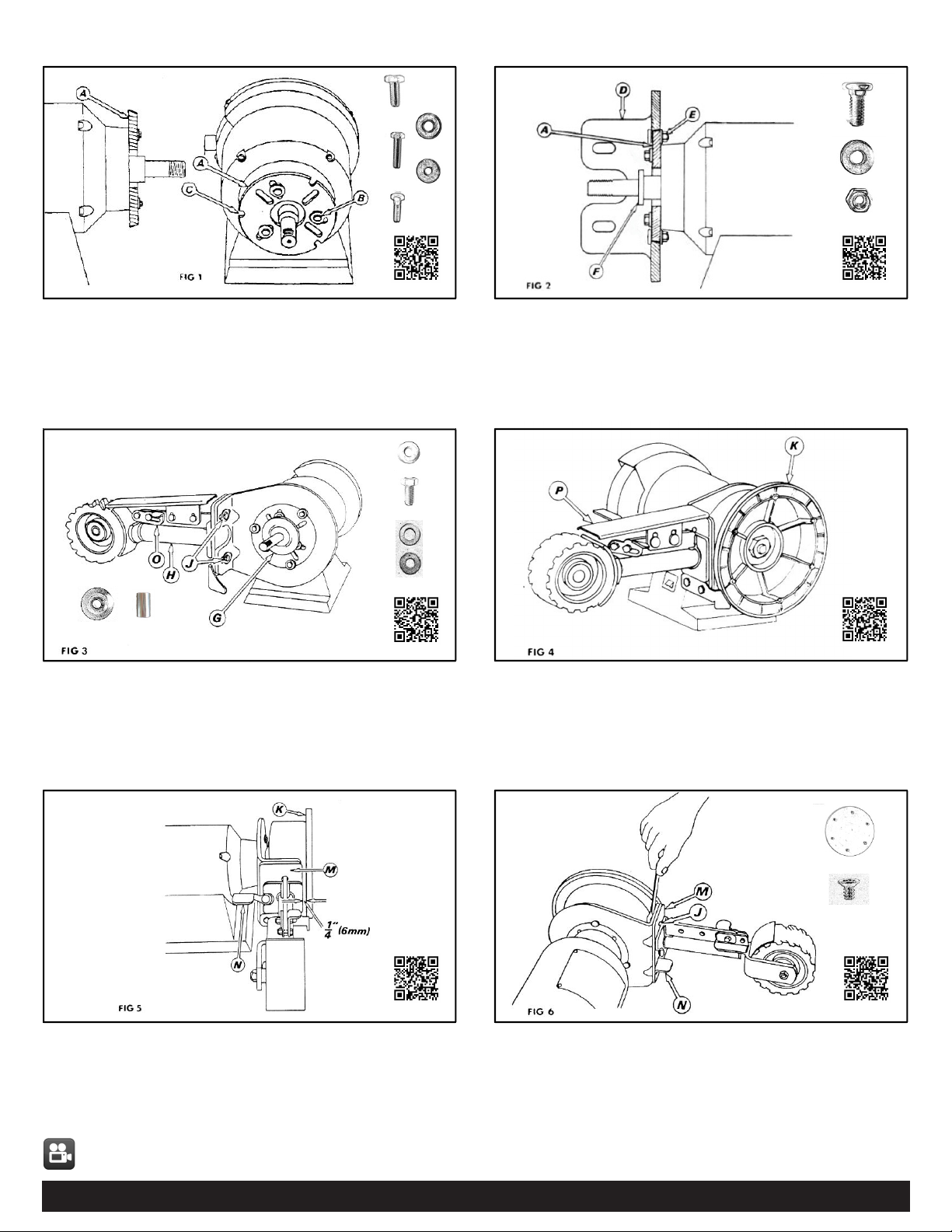

FITTING INSTRUCTIONS - ALL MULTITOOL MODELS




NOTE:

NOTE:
7
8

pulley (K), loosen the top bolt (J) and tap the top of the cam plate (M) in small amount
towards the drive pulley. If the belt moves towards the grinder, tap the top of cam
plate (M) towards the grinder. When the belt runs evenly on the contact wheel,


up moves the belt to the right. Fit the cover plate using counter sunk screws provided

abrasive disc provided.
For parts, tech support, belts, or discs contact Van Sant Distribung, Inc. at 800-828-2043 or sales@multoolgrinder.com
Scan for VideoScan for Video
Scan for Video
Scan for Video Scan for Video
Scan for Video
For short instrucon videos, see
www.youtube.com/vansantdistribung
