Munsch MM-Xtruder User manual

MUNSCH Kunststoff-Schweißtechnik GmbH Edition 12.2011/Rev.07 Page 1 of 27
Operating Instructions
Type: MM-Xtruder Serial number:
230 Volt / 115V P.O. No.:
P.O. date:
Hand Extruder Ident Nos.:
230 V K03969B K04326B
115 V K04180B K04327B
These operating instructions contain important
information to be observed for hand extruder operation
and maintenance.
It is therefore imperative that they be read and their
contents fully understood by the operators before the
hand extruder is placed in service.
MUNSCH Kunststoff-Schweißtechnik GmbH
Im Staudchen •D-56235 Ransbach-Baumbach
P.O.Box 142 •D-56221 Ransbach-Baumbach
Germany
Phone: +49 (0) 26 23-8 98-80
Telefax: +49 (0) 26 23-8 98-85
Internet: http://www.munsch.de
Email: munsch@munsch.de

Hand Extruder MM-Xtruder
Munsch Kunststoff-Schweißtechnik GmbH Edition 12/2011/Rev07 Page 2 of 27
Scope of delivery:
Please check that the delivery is complete.
The delivery comprises:
1 hand extruder 1 hot air hood
1 extruder stand 1 set of mounting tools
1 welding shoe, machined 1 transport case
3 air nozzles

MM-Xtruder Edition 12.2011/Rev. 07 Page 3/27
Contents
1
GENERAL......................................................................................................................................................................5
2
SAFETY..........................................................................................................................................................................5
2.1
I
DENTIFICATION OF INFORMATION IN THE OPERATING INSTRUCTIONS
.......................................................................6
2.2
P
ERSONNEL QUALIFICATION AND TRAINING
..............................................................................................................6
2.3
R
ISKS RESULTING FROM THE NON
-
OBSERVANCE OF THE SAFETY INSTRUCTIONS
.......................................................6
2.4
S
AFE WORKING PRACTICES
........................................................................................................................................6
2.5
S
AFETY INSTRUCTIONS FOR
O
PERATOR
/
OPERATING PERSONNEL
............................................................................6
2.6
S
AFETY INSTRUCTIONS FOR MAINTENANCE
,
INSPECTION AND MOUNTING
.................................................................8
2.7
U
NAUTHORIZED MODIFICATIONS AND SPARE PARTS
.................................................................................................8
3
TRANSPORT AND STORAGE...................................................................................................................................9
3.1
T
RANSPORT
...............................................................................................................................................................9
3.2
S
TORAGE
...................................................................................................................................................................9
3.3
R
ETURN TO
M
UNSCH
.................................................................................................................................................9
4
PRODUCT DESCRIPTION .......................................................................................................................................10
4.1
A
PPLICATION RANGE
...............................................................................................................................................10
4.2
G
ENERAL DESCRIPTION
...........................................................................................................................................10
5
STARTUP AND SHUTOFF........................................................................................................................................11
5.1
G
ENERAL
.................................................................................................................................................................11
5.2
P
REPARATION
..........................................................................................................................................................11
5.3
S
TARTING THE HAND EXTRUDER
.............................................................................................................................12
5.4
W
ELDING WITH THE HAND EXTRUDER
.....................................................................................................................13
5.4.1
Introducing the welding rod............................................................................................................................13
5.4.2
Replacement and aging of welding rod..........................................................................................................13
5.4.3
Welding direction / rate..................................................................................................................................14
5.4.4
Work interruptions..........................................................................................................................................14
5.4.5
Shutoff.............................................................................................................................................................14
5.4.6
Transport/Storage...........................................................................................................................................15
5.5
S
ET TEMPERATURES ON TEMPERATURE CONTROLLER
.............................................................................................15
5.5 Set temperatures ...................................................................................................................................................157
6
MAINTENANCE / INSPECTION .............................................................................................................................18
6.1
M
AINTENANCE
/
INSPECTION OF HAND EXTRUDER
, .................................................................................................18
TYPE
MM-X
TRUDER
...........................................................................................................................................................18
6.2
D
ISMANTLING
..........................................................................................................................................................18
6.2.1
Hand extruder, type MM-Xtruder...................................................................................................................18
7
MALFUNCTIONS, CAUSES AND REMEDIES......................................................................................................22
7.1
T
ROUBLE
-
SHOOTING
................................................................................................................................................22
7.2
F
AULT DIAGNOSIS
....................................................................................................................................................22
8
TECHNICAL DATA ...................................................................................................................................................24

Hand Extruder MM-Xtruder
Munsch Kunststoff-Schweißtechnik GmbH Edition 12/2011/Rev07 Page 4 of 27
EG-Konformitätserklärung des Herstellers
nach der EG-Maschinenrichtlinie 2006/42/EG Anhang II, Nr. 1 A
EC-Declaration of Conformity by the Manufacturer
as defined by machinery directive 2006/42/EC, Annex II, No. 1 A
MUNSCH Kunststoff-Schweißtechnik GmbH
Im Staudchen
D-56235 Ransbach-Baumbach
Germany
Mr. Johann Dausenau,
Kunststoffschweißtechnik GmbH,
is authorised to compile the technical documentation.
We hereby declare that the hand extruders
Machine type: Hand extruder
Type designation: MM-Xtruder
are in accordance with all relevant provisions of the EC Machinery Directive.
The following harmonised standards (or parts of these standards) were applied:
DIN EN ISO 12100-1: 2004 DIN EN 13732-1: 2008
DIN EN ISO 12100-2: 2004
In addition, the hand extruders are in accordance with the following EC-directives, standards, codes and
regulations:
EU Low-Voltage Directive 73/23/EC EU EMC Directive 89/336/EC
EN 60204-1 (VDE 0113 Part 1): 2007 DIN EN 55014-1: 2007
EN 61029-1 (VDE 0740 Part 500): 2003 DIN EN 55014-2: 2009
VDE 0701 Part 1: 2008
VDE 0702 Part 1: 2003
This industrial tool complies with the aforesaid standards insofar as it is used at the contractually agreed
conditions. The operator is responsible for this.
In the event of any modifications to the machine/unit or use not as intended, this declaration becomes invalid
unless the manufacturer’s prior written approval has expressly been given.
Ransbach-Baumbach, 29.12.2009 Dipl.-Ing. Stefan Munsch
Managing Director

MM-Xtruder Edition 12.2011/Rev. 07 Page 5/27
1 General
These operating instructions must always
be available at the place of use of the hand
extruder.
The objective of these operating instructions is to
support operators in familiarizing themselves with the
hand extruder and in using its functions for the
intended service.
These operating instructions provide important
information for the safe, workmanlike and
economical operation of the hand extruder. Their
observance helps avoid danger, minimize repair
costs and downtimes, enhance reliability, and extend
the service life of the hand extruder.
Any person performing work with/on the hand
extruder is required to read the operating
instructions. Such work includes, for instance:
•operation,
•maintenance, inspection and repair
•transport.
The hand extruder may only be mounted, operated
and maintained by trained personnel.
In addition to the operating instructions and the
national and local accident prevention regulations
applicable at the place of use, the acknowledged
technical rules for safe and proper working practices
must be observed.
These operating instructions provide basic
information to be observed for operation and
maintenance. For this reason, it is imperative that
they be read by the specialist personnel/Operator
prior to placing the hand extruder in service and that
they always be available at the place of use.
Apart from the general safety instructions under
section “Safety“, also the special safety instructions
given under the respective sub-sections must be
adhered to.
Non-observance of the safety instructions
may cause hazards to persons and the environment
or damage to the hand extruder.
Moreover, failure to observe the safety instructions
may lead to the forfeiture of any damages.
Non-observance of the safety instructions may in
particular involve the following risks:
•failure of important hand extruder functions,
•hazards to persons due to electrical and
mechanical impacts including risk of burns,
•hazards to the environment due to vapour-phase
hazardous substances,
•risk of fire.
2 Safety
These operating instructions provide basic
information to be observed for operation and
maintenance. For this reason, it is imperative that
they be read by the specialist personnel/Operator
prior to placing the hand extruder in service and that
they always be available at the place of use.
Safe operation of the hand extruder presupposes
that the instructions under section 1 – General – of
these operating instructions are complied with. In no
case must the limit values indicated be violated.
Intact and unaltered hand extruders conform to the
applicable codes and standards and meet all
regulatory limit values regarding EMC
(electromagnetic discharges and interference
immunity). For the country-specific limit values to be
observed, the Operator should consult the local
electric utility. Nevertheless, the hand extruders emit
electromagnetic fields within the acceptable limits.
Electromagnetic fields may interfere with the
operation of vital electronic devices (e.g. cardiac
pacemakers). Persons wearing a cardiac pacemaker
should therefore consult their physician before using
the machine.
In addition to the operating instructions and the
national and local accident prevention regulations
applicable at the place of use, the acknowledged
technical rules for safe and proper working practices
must be observed.
Apart from the general safety instructions under
section “Safety“, also the special safety instructions
given under the respective sub-sections must be
adhered to.
Any working practices posing a safety risk are
prohibited.

Hand Extruder MM-Xtruder
Munsch Kunststoff-Schweißtechnik GmbH Edition 12/2011/Rev07 Page 6 of 27
2.3 Risks resulting from the non-observance of
the safety instructions
Non-observance of the safety instructions may cause
hazards to persons and the environment or damage
to the hand extruder. Moreover, failure to observe
the safety instructions may lead to the forfeiture of
any damages.
Non-observance of the safety instructions may in
particular involve the following risks:
•failure of important hand extruder functions,
•hazards to persons due to electrical and
mechanical impacts including risk of burns,
•hazards to the environment due to vapour-phase
hazardous substances,
•risk of fire.
2.4 Safe working practices
The safety instructions given in these operating
instructions, the applicable national accident
prevention regulations and any existing in-company
work instructions, operating and safety procedures
issued by the Operator are to be followed.
2.5 Safety instructions for Operator /
operating personnel
•Before placing the hand extruder in service,
check the mai
ns voltage and frequency against
the data indicated on the type tag. The allowable
tolerances are ± 5 % for voltage
and /or ±2 % for frequency.
•According to VDE 0100 §55, the hand extruder
must be operated via a residual current-operated
circuit breaker or an isolating transformer.
•CAUTION During hand extruder operation
(under load), a voltage of not less than 230 V
1)
(115V)² must be available at the connector of the
hand extruder.
•When using an extension cable, make sure to
observe the minimum conductor cross-
section.
Use extension cables with protective conductor
only.
Length
[m] Minimum cross-section
[mm²]
up to 19 4.0
1)
20-50 6.0
1)
2.1 Identification of information in the operating
instructions
In these operating instructions, safety instructions
whose non-observance may cause hazards to
persons are identified with
Hazard symbol according to DIN 4844 – W 9
for general hazards and with
Hazard symbol according to DIN 4844 – W 8
for electrical hazards.
Safety instructions whose non-observance may
cause damage to the hand extruder and its functions
are marked with
CAUTION
Instructions directly indicated on the hand extruder
must be strictly followed and kept in a fully legible
state.
2.2 Personnel qualification and training
The operating, maintenance and inspection
personnel must possess appropriate qualification for
the work to be performed. Functional and technical
responsibilities and supervision of the operating
personnel must be clearly regulated by the Operator.
Where the personnel do not have the necessary
skills and knowledge they must be trained and
instructed (e.g. a DVS basic welder training in
extrusion welding). A detailed instruction into hand
extruder operation will be provided by the
Manufacturer / Supplier on request. Furthermore, the
Operator has to make sure that the contents of the
operating instructions is fully understood by the
operating personnel.
1) for 230 V AC
2) for115 V AC

MM-Xtruder Edition 12.2011/Rev. 07 Page 7/27
•Extension cables must be certified for the specific
service conditions (e.g. outdoor service) and
identified accordingly.
Always handle the connecting cable with care.
- Do not kink the connecting cable.
- Do not place any objects on the cable.
- Do not jam or squeeze the connecting cable,
nor pull it over sharp edges.
- Protect the connecting cable from moisture.
•Do not touch the mains connector or
connecting cable with wet hands. Hold the cable
always at the connector when plugging or
unplugging it.
•CAUTION Power generator sets used for power
supply must be designed for the following rated
output:
≥4 x rated output of hand extruder
•Never allow the hand extruder to come into
contact with water: Hazard to persons and
equipment, short-circuit risk.
•CAUTION Never operate the hand extruder
without air supply; risk of hand extruder damage.
When using an external air source, make sure
that the air supply line is adequately
dimensioned.
•CAUTION The supply air must be clean, dry and
free from oil and water.
•The hand extruder must not be used in
explosion hazard areas or flammable
atmospheres.
Make sure to stand on a firm base when
operating the hand extruder.
The connecting cable, welding rod and hose for
external air supply, if applicable, must be freely
movable and must not obstruct the operator or
third parties in their work.

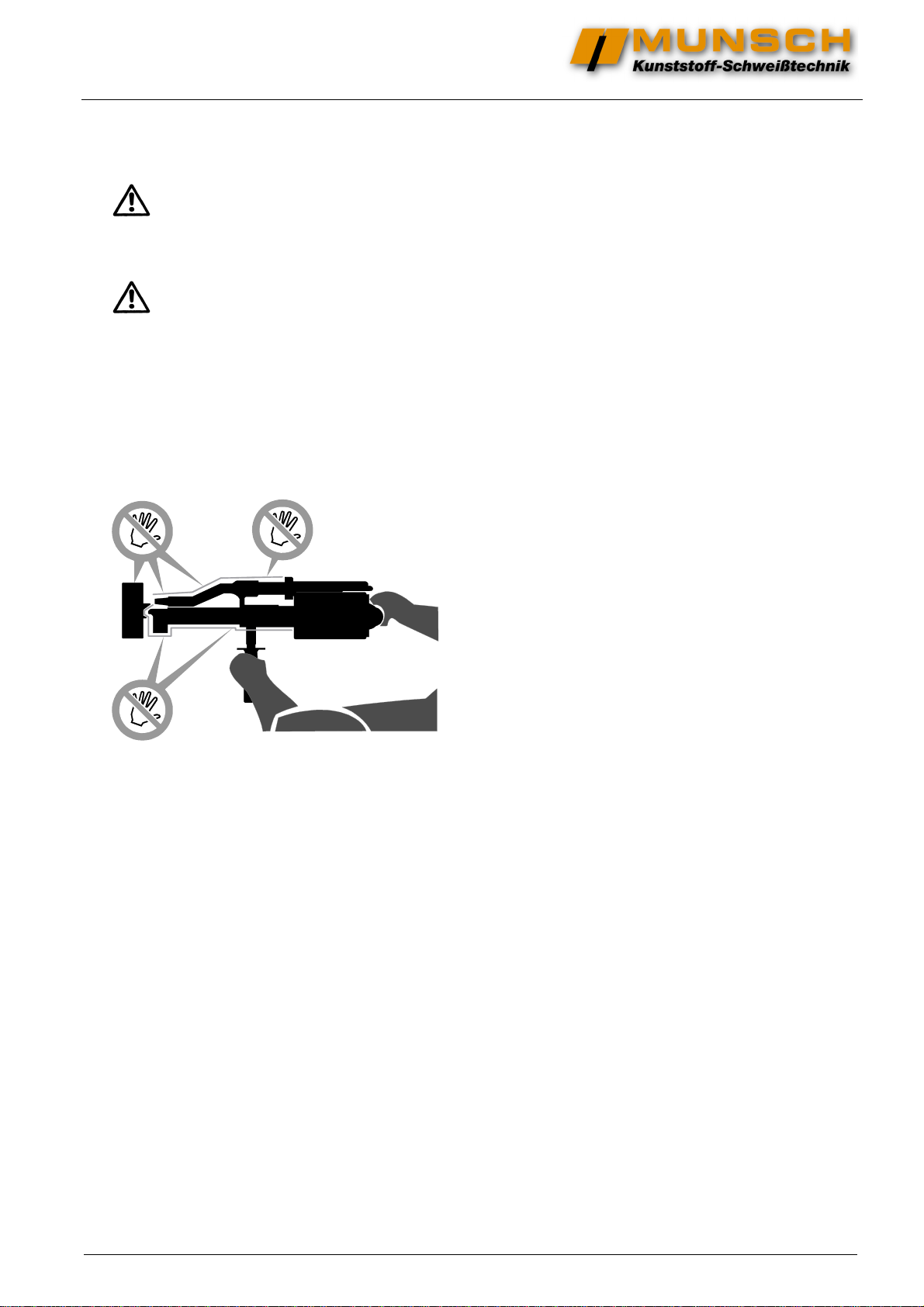

•Hold and touch the hand extruder only on
the handles provided for this purpose.
- Do not touch bare metal parts (including hot
air hood) either with or without gloves. These
parts reach temperatures of up to 450 °C.
- Attachments may be damaged or impaired in
their function if subjected to the full weight of
the hand extruder.
- Bare metal pa
rts must not come into contact
with other items during the work or work
breaks (e.g. cooling).
F
IG
.
D02-0001
D02-0001
•Contact of combustible components
with hot bare metal parts poses a risk of fire!
Do not use synthetic gloves!

Hand Extruder MM-Xtruder
Munsch Kunststoff-Schweißtechnik GmbH Edition 12/2011/Rev07 Page 8 of 27

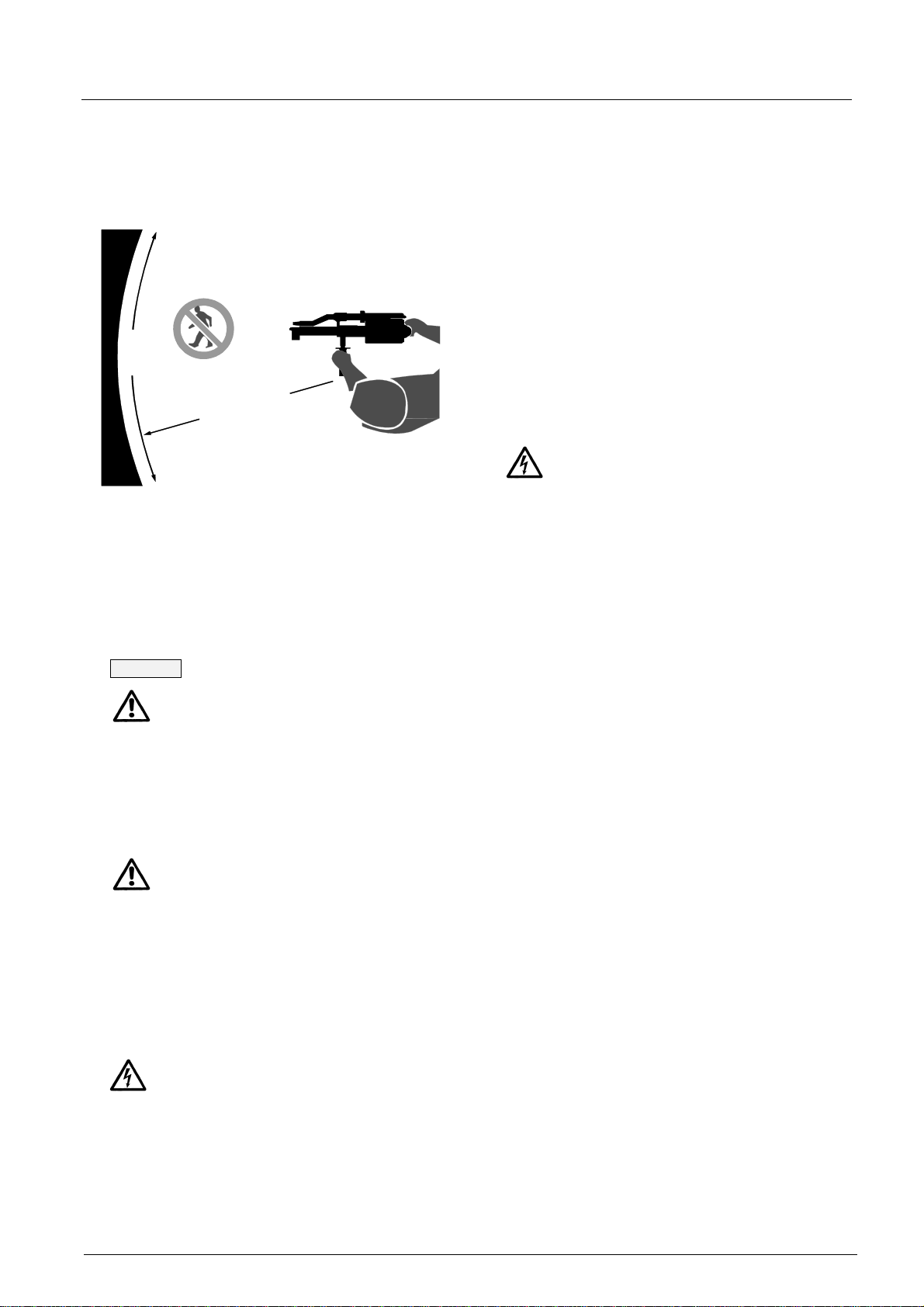

•Do not direct the hot air jet of the hand extruder
towards living beings or temperature-sensitive
items.
Safety distance: 2 m radius
B
ILD
D02-0002
•Use suitable personal protection equipment for
overhead work (e.g. hard hat, safety goggles,
gloves, protective clothes …) to guard against
falling items.
•During work breaks and after completion of the
welding job, place the hand extruder on the rests
supplied for this purpose.
CAUTION The hot air hood must be remounted.
Make sure that the hand extruder is firmly
positioned!
Deposit hand extruder in a dry location.
After completion of the welding job, cool the hand
extruder to safe-to-touch temperature, using the
air supply system.
•Do not operate, dismantle or carry out
modifications on the hand extruder, if
-
the connecting cable or the mains connector
is defective,
- safety devices are damaged,
-
foreign matter or liquid has penetrated
into the hand extruder,
- the unit does not work properly or there are
unusual changes in the operating behaviour.
•Never allow the hand extruder to come into
contact with water: Hazard to persons and
equipment, short-circuit risk.
2.6 Safety instructions for maintenance,
inspection and mounting
The Operator is responsible for ensuring that
maintenance, inspection and mounting activities are
performed by authorized and qualified personnel
who are thoroughly familiar with the operating
instructions.
•As a rule, the hand extruder must be shut off and
the connector unplugged before proceeding to
any work on the unit. The shutoff procedure for
the hand extruder described in the operating
instructions must be strictly observed.
•Electrical hazards must be ruled out (for details,
see VDE guidelines and the standards of your
local electric utility, for instance).
•VDE 0701 (IEC 335) prescribes the
measurement of the protective conductor
resistance, insulation resistance and leakage
current after each repair or modification to
electrical equipment. Furthermore, a visual
inspection of the unit and its connecting cable as
well as voltage and current measurements and a
function test must be carried out.
•Ensure the safe and environmentally compatible
disposal of media, auxiliary materials and
replaced parts!
•Remount and reactivate all safety and protective
devices immediately on completion of the
maintenance, inspection or repair work.
2.7 Unauthorized modifications and spare
parts
Modifications or changes to the unit are only allowed
after consultation with the Manufacturer. In the
interest of safety, only original spare parts and
accessories authorized by the Manufacturer should
be used. The use of components other than the
original spare parts may invalidate Manufacturer’s
liability for any resulting damage.
D02-0002
360°
2m(6ft)

MM-Xtruder Edition 12.2011/Rev. 07 Page 9/27
3 Transport and Storage
3.1 Transport
•Before transport or storage, make sure
that the hand extruder has cooled down to
safe-to-touch temperature.
•Hold and touch the hand extruder only on
the handles provided for this purpose.
Do not touch bare metal parts (including the hot
air hood) – whether with or without gloves –
before having made sure that they are safe to
touch. These parts reach temperatures of up to
450 °C during operation
F
IG
.
D02-0001
•Never transport or store the hand extruder in
such a way that the attachments are exposed to
mechanical loads.
If parts have been removed for transport
purposes, mount and fasten them carefully before
restarting the hand extruder!
Transport of the hand extruder in MUNSCH’s
original shipping case is recommended.
•For transport of the hand extruder, the transport
case supplied together with the unit must be
additionally packed using appropriate shock-proof
packaging.
3.2 Storage
•Store the hand extruder in a dry and frost-free
place.
•Protect the hand extruder from unauthorized
access.
•
Special preservation is not required.
3.3 Return to Munsch
Should it become necessary to return the hand
extruder to MUNSCH Kunststoff-Schweißtechnik
GmbH, always use the original shipping case.
For transport of the hand extruder, the transport case
supplied together with the unit must be additionally
packed using appropriate shock-proof packaging.
D02-0001

Hand Extruder MM-Xtruder
Munsch Kunststoff-Schweißtechnik GmbH Edition 12/2011/Rev07 Page 10 of 27
4 Product Description
4.1 Application range
The application range of the hand extruder is defined
by the data on the type tag and the service limits
indicated in these operating instructions.
CAUTION Operation of the hand extruder outside
the application range stated in these operation
instructions is subject to the Manufacturer’s prior
approval.
4.2 General description
The type MM-Xtruder is a hand extruder with
integrated air supply (Autoair).
CAUTION!
Use 3 mm welding rod exclusively.
CAUTION Too low a speed will pose a risk of drive
overheating!
Driven by a powerful electric motor (1), the welding
rod (2) is fed into the extruder (3) and granulated by
the extruder screw in the process. The screw forces
the granulate into the extruder nozzle, melting it into
a homogeneous, completely plastified mass. As the
molten material exits the extruder nozzle, it is
moulded by a welding shoe (4) to the geometry of
the weld seam to be deposited
Preheating of the parts to be joined is achieved by a
preheat nozzle (5) which is supplied from an on-
board hot air unit (6). Air supply is via an on-board
blower.
The melt and preheat air temperatures are controlled
separately. The set point and momentary values are
displayed concurrently.
For the drive interlock to be released for starting, the
melt and preheat air temperatures must be above
the start interlock temperature and the startup timer
must have timed out. The start interlock
temperature and the startup time can be
separately set for the melt and preheat air.
The temperature-controlled start interlock prevents
the drive from starting if there is still unmolten
material in the extruder, thus precluding damage to
the unit.
The output rate is variable so that the preheat time
can be matched to the weld thickness

MM-Xtruder Edition 12.2011/Rev. 07 Page 11/27
5 Startup and Shutoff
5.1 General
In addition to the operating instructions and the
national and local accident prevention regulations
applicable at the place of use, the acknowledged
technical rules for safe and proper working practices
must be observed.
Any working practices posing a safety risk are
prohibited.
Before starting / shutting off the hand extruder, make
sure to carefully read the instructions under section
“Safety”.
Only trained and qualified personnel may be
assigned to the operation of the hand extruder.
5.2 Preparation
•Place hand extruder with stand on a firm support.

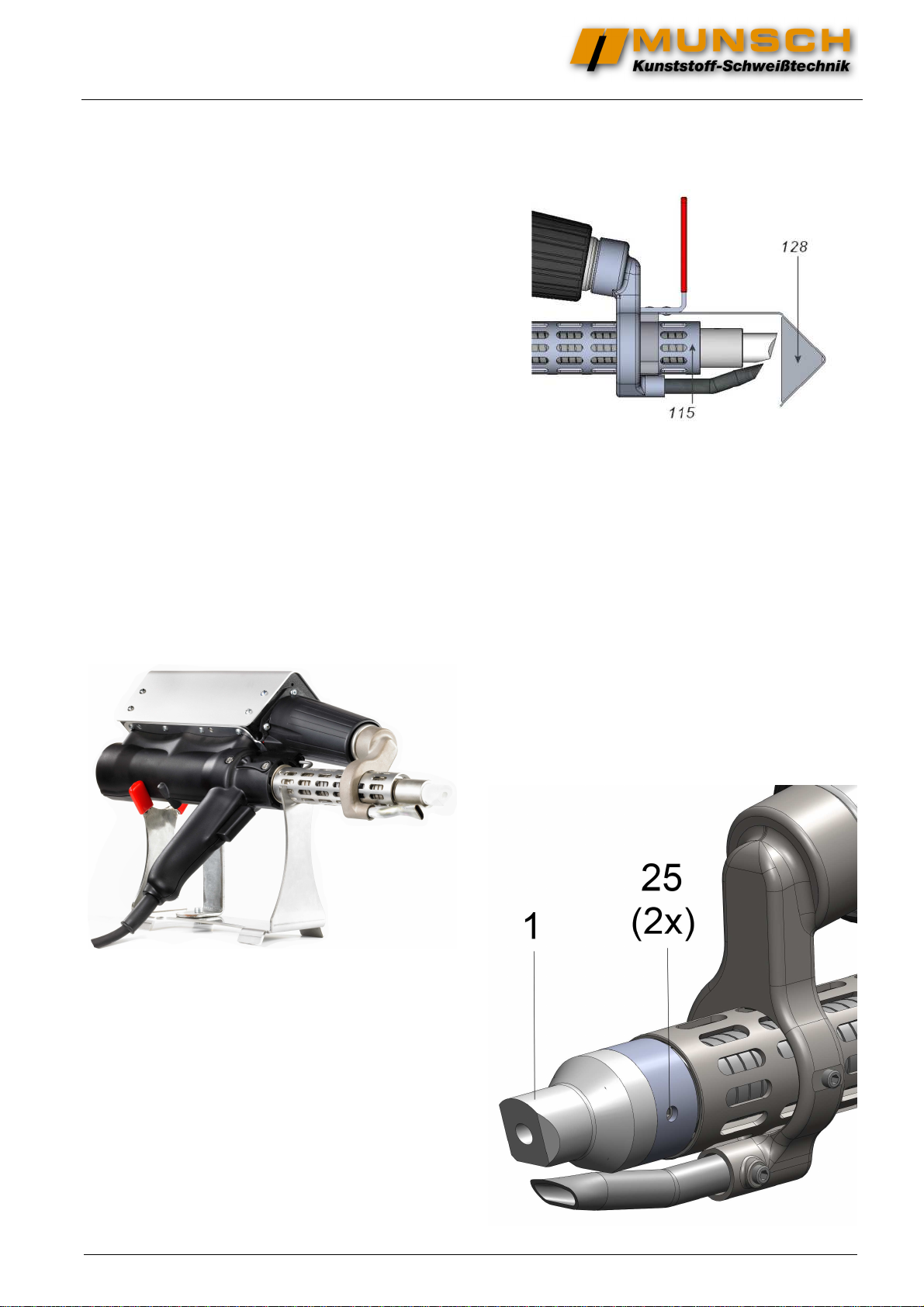

•Mount hot air hood (128) to the heat guard (115)
of the melting chamber.
•Mount welding shoe
- Select the welding shoe required for
the specific weld geometry or machine
a welding shoe blank to the required
geometry.
- Welding shoe (Item 1), to the hand extruder
in the position required for welding mount.
Observe welding direction!
2 x Tighten set screw (25).
- There are different welding shoe types.
For their mounting, proceed in analogy with the
above procedure.

Hand Extruder MM-Xtruder
Munsch Kunststoff-Schweißtechnik GmbH Edition 12/2011/Rev07 Page 12 of 27
•Mount preheat nozzle
- Select and mount the preheat nozzle (4)
required for the specific weld geometry.
- Observe spacing A = 5 mm.
- Tighten the preheat nozzle using the set
screw (25.1).
Table: Preheat nozzle (Item 4)
Care must be taken to ensure that the preheat nozzle
provides intensive and uniform preheating (melting)
of the base material over the entire joint width at as
low a hot air temperature as possible.
5.3 Starting the hand extruder
Observe section “Safety“.
CAUTION Never operate the hand extruder without
air supply. Otherwise the unit may suffer severe
damage.
•CAUTION Before plugging in the mains
connector, check that the drive unit is not set to
continuous operation.
•CAUTION The hot air hood (128) must be
mounted to the heat guard (115) of the hand
extruder melting chamber.
•CAUTION Plug in mains connector.
•CAUTION With the MM-Xtruder with integrated
air supply, the on-board blower must start
automatically.
•CAUTION Once air exits the preheat nozzle (4),
the heating systems for the air/melt temperature
may be activated.

MM-Xtruder Edition 12.2011/Rev. 07 Page 13/27
•For the operation of the temperature controller,
see section 5.5 “Set temperatures”. For the
temperature settings, please see page 15,
“Temperature chart for MM-Xtruder”.
The hand extruder will reach its operating
temperature after about 10 to 15 minutes.
•The drive speeds of the drive unit are set by
default for the individual materials.
Hold and touch the hand extruder only on
the handles provided for this purpose.
F
IG
.
D02-0001
D02-0001
•CAUTION
The Start switch of the drive unit may
only be operated after the operating temperature
has been reached and the startup timer has timed
out. Otherwise, the hand extruder may be
damaged by solidified material still present in the
machine. The hand extruder is equipped with a
start interlock which prevents starting of the drive
before the melting temperature of the welding rod
is reached. For temperature settings, see page
15 “Temperature chart for MM-Xtruder
5.4 Welding with the hand extruder
Observe section ”Safety“ and the data sheet.
General
Welding is to be carried out in accordance with the
guidelines of the German Association for Welding
Technology (Deutscher Verband für Schweißtechnik
DVS).
The parts to be joined and the welding rod must be
clean and dry.
5.4.1 Introducing the welding rod
•CAUTION The hand extruder is provided with a
bore B for introducing the welding rod.
5.4.2 Replacement and aging of welding
rod
•If the welding rod is to be replaced, make sure
that any remaining rod in the hand extruder is
completely removed.
•For this purpose, operate the preheated hand
extruder with the new welding rod until clean new
material discharges.
•The DVS guideline also recommends this
procedure for hand extruders which have been
out of service for prolonged periods while still
being filled with welding rod.
•Ensure safe and environmentally
compatible disposal of any waste generated!

Hand Extruder MM-Xtruder
Munsch Kunststoff-Schweißtechnik GmbH Edition 12/2011/Rev07 Page 14 of 27
5.4.3 Welding direction / rate
•The pressure of the discharging extrudate causes
the welding shoe (and hence, the hand extruder)
to move in welding direction.
•See DVS Guideline for the welding rate.
F
IG
.
D02-0026
5.4.4 Work interruptions
•Observe section “Safety“.
Do not leave the hand extruder unattended.
Make sure to maintain the air supply.
•When interrupting the welding job, switch off the
drive unit and deposit the hand extruder on the
stand as shown in Fig. “A“ below and then mount
the hot air hood.
FIGURE “A“
•When using PVC welding rod, we recommend not
to switch off the unit during work interruptions. In
the case of prolonged interruptions, clean the unit
by feeding PP rod until all the PVC material has
been discharged.
•Caution! When displacing the PVC with PP
rod, set the material to PP on the control
unit.
5.4.5 Shutoff
Observe section “Safety“.
•After completion of the welding job, switch off the
drive unit and deposit the hand extruder as
shown in Fig. “A” (for illustrations, see preceding
section).
Do not leave the hand extruder unattended.
5.4.5.1 Hand extruder with integrated air supply,
type MM-Xtruder
•Maintain the air supply after switching off
the hand extruder until the unit has completely
cooled down!
•Pull mains connector.
Never use water or another coolant to
accelerate the cooling process!
D02-0026

MM-Xtruder Edition 12.2011/Rev. 07 Page 15/27
5.4.5.1 Hand extruder, type MM-Xtruder
•Press “return” button to switch off the heating
circuits.
•Allow extruder to cool for 10 minutes.
•Pull mains connector of hand extruder.
•Do not switch off the hand extruder until
after the unit has completely cooled down!
Never use water or another coolant to
accelerate the cooling process !
5.4.6 Transport/Storage
Make sure to observe the instructions under section
“Transport/Storage”.

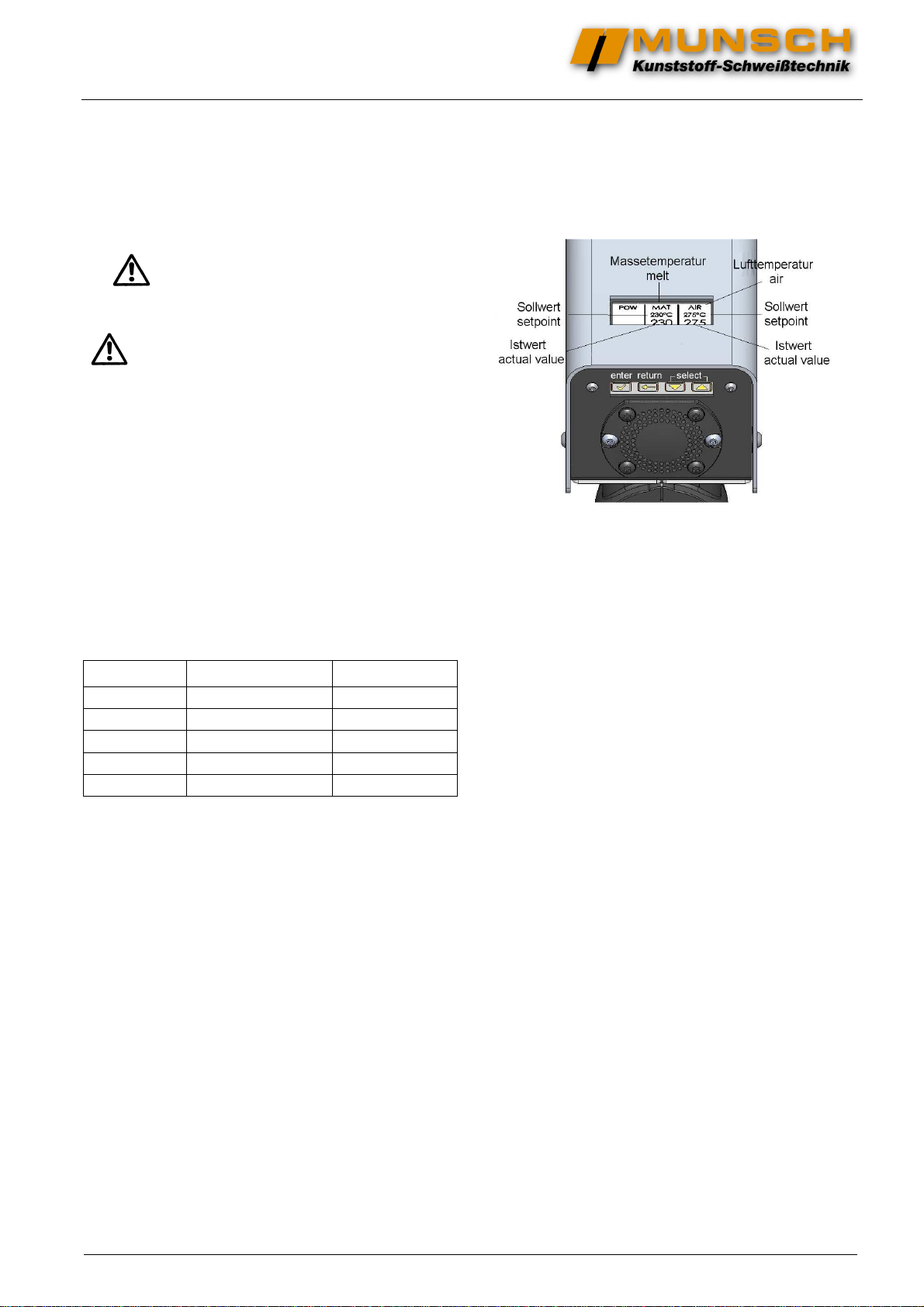

5.5 Set temperatures on temperature con
troller
The default settings for the melt and air temperatures
of the MM-Xtruder are shown in the following
temperature chart (these values have been
determined with the aid of reference materials).
Temperature chart for MM-Xtruder
Material Melt temperature Air temperature
PP 210 – 240°C 250 – 300°C
PE 210 – 230°C 250 – 300°C
PVC-U 180 – 200°C 300 – 360°C
PVC-C 195 – 205 °C 300 – 360°C
PVDF 240 – 260°C 280 – 350°C
If other temperatures and materials are needed the
corresponding settings can be made on the
temperature controller.
5.5 Set temperatures
See the user instructions overleaf

Hand Extruder MM-Xtruder
Munsch Kunststoff-Schweißtechnik GmbH Edition 12/2011/Rev07 Page 16 of 27

MM-Xtruder Edition 12.2011/Rev. 07 Page 17/27

Hand Extruder MM-Xtruder
Munsch Kunststoff-Schweißtechnik GmbH Edition 12/2011/Rev07 Page 18 of 27
6 Maintenance / Inspection
Pull mains connector before carrying out any
mai
ntenance and repair work on the hand extruder.
Maintenance and repair work on electrical tools may
only be carried out by qualified electricians.
The hand extruder with the hot air hood must
have cooled down to safe-to-touch temperature.
Observe the instructions in section “Safety”.
Maintenance and repair work may only be carried
out by qualified personnel or by our service staff.
To ensure the proper function of the hand extruder
over its entire service life for its intended service, we
recommend:
-
to have all maintenance, inspection and mounting
work carried out by authorized and qualified
personnel who are familiar with the operating
instructions,
-
to always shut off the unit before carrying out any
work on it,
-
to remount and reactivate all safety and
protective devices immediately after completion
of the maintenance/repair work.
During maintenance and repair work, make sure that
the hand extruder and its individual components are
firmly positioned.
In addition to the operating instructions and the
national and local accident prevention regulations
applicable at the place of use, the acknowledged
technical rules for safe and proper working practices
must be observed.
Any working practices posing a safety risk are
prohibited.
Activities other than those described in this
section may only be performed at the Manufacturer’s
workshops!
6.1
Maintenance / inspection of hand extruder,
type MM-Xtruder
•CAUTION
After approx. 500 operating hours, the
hand extruder including drive unit must be
thoroughly cleaned and subjected to an
inspection. This work may only be performed at
the Manufacturer’s workshops.
•CAUTION
Cables, switches, plug-in connections
must be inspected by qualified staff every three
months (requirement according to VBG4); the
inspection results must be documented.
•Use original spare parts only.
6.2 Dismantling
Prior to dismantling the hand extruder, pull the mains
connector.
The hand extruder must be at ambient temperature.
Damaged mains connection cables must be
completely replaced. “Mended“ power cables pose a
hazard to life und limb. Cable replacement is to be
carried out by qualified electricians only.
The safety precautions described under sections
”Safety“ and “Malfunctions, Causes and Remedies”
must be strictly adhered to.
For dismantling and assembly, the associated overall
drawing must be strictly observed.
6.2.1 Hand extruder, type MM-Xtruder
Overall drawing no. BA.MM-Xtruder-B.Rev-07
Parts List - MM-Xtruder-B
230 V = K03969B, K04326B
115 V = K04180B, K04327B

MM-Xtruder Edition 12.2011/Rev. 07 Page 19/27
Overall Drawing – Hand Extruder MM-Xtruder-A

Hand Extruder MM-Xtruder
Munsch Kunststoff-Schweißtechnik GmbH Edition 12/2011/Rev07 Page 20 of 27
Parts List - MM-Xtruder
K03969B, K04326B, K04180B, K04327B
Hand Extruder, type MM-Xtruder; 230 V, 120V mN, oN
CAD Qty. Unit Ident No. Designation
004.00 1,00 pc. K03898 Preheat nozzle 18 x 4; MM
004.00 1,00 pc. K04076 Preheat nozzle 12 x 4; MM
004.00 1,00 pc. K0421 3 Preheat nozzle 10 x 4; MM
005.00 1,00 pc. K03879 Extruder screw; MM
015.00 1,00 pc. K02669 Axial deep-groove ball bearing; 51203
020.00 1,00 pc. K03890 Drive unit; 40 / 42 MM
024.00 1,00 pc. K03883 Nozzle; 40-6 MM
025.10 1,00 pc. K03955 Set screw; M 5 x 6
025.14 1,00 pc. K03955 Set screw; M 5 x 6
025.30 2,00 pc. K03955 Set screw; M 5 x 6
025.60 1,00 pc. K03955 Set screw; M 5 x 6
030.00 1,00 pc. K00657 Circlip; I 35 x 1,5
061.10 1,00 pc.
K04808B
(K04809B) Melt/air temperature controller; 230 V, (120V) with integral motor LP MM
061.30 1,00 pc. K04253 Insulating foil for MM-Xtruder; 0.25mm
086.00 1,00 pc. K03880B Extruder body; MM
087.00 1,00 pc. K03891 Integrated air unit mount; 10°MM
115.00 1,00 pc. K03886 Heat guard heating coil; MM
115.10 1,00 pc. K03906 Heat guard air preheater; injection-moulded part MM
122.00 3,00 pc. K03477 Allan screw ; M 4 x 12
122.11 4,00 pc. K01454 Allan screw ; M 4 x 8
122.12 4,00 pc. K03957 Allan screw ; M 5 x 5
122.13 2,00 pc. K03477 Allan screw ; M 4 x 12
122.70 5,00 pc. K00656 Allan screw ; M 4 x 16
124.10 1,00 pc. K04110 Switch EBM 13; without speed control
125.00 4,00 pc. K04595
Hexagon socket mushroom head screw; M 4 x 20 , ISO 7380 ULS
125.10 2,00 pc. K03411
Hexagon socket mushroom head screw; M 4 x 8 , ISO 7380 ULS
125.11 2,00 pc. K03411
Hexagon socket mushroom head screw; M 4 x 8 , ISO 7380 ULS
125.12 2,00 pc. K03411
Hexagon socket mushroom head screw; M 4 x 8 , ISO 7380 ULS
125.13 2,00 pc. K04023
Hexagon socket mushroom head screw; M 3 x6 , ISO 7380 ULS
125.40 8,00 pc. K03411
Hexagon socket mushroom head screw; M 4 x 8 , ISO 7380 ULS
125.50 2,00 pc. K03411
Hexagon socket mushroom head screw; M 4 x 8 , ISO 7380 ULS
125.60 2,00 pc. K03411
Hexagon socket mushroom head screw; M 4 x 8 , ISO 7380 ULS
125.70 6,00 pc. K03411
Hexagon socket mushroom head screw; M 4 x 8 , ISO 7380 ULS
127.00 1,00 pc. K03309 Straight pin; 3 m6 x 10
129.00 1,00 pc. K04786 Switchbox cover; anodized, mN MM
130.00 1,00 pc. K0471 9 Switchbox lower part; black, fine-structured MM
137.10 2,00 pc. K03959 Feather shim; 24 x 17 x 1
137.20 1,00 pc. K03958 Feather shim; 25 x 35 x 1
149.00 1,00 pc. K03960 Nilos ring; 6003 Z AV
165.00 1,00 pc. K03881 Drive flange; MM
166.00 1,00 pc. K03882B Melting chamber; MM
167.00 1,00 pc. K03887 Fan grille; injection-moulded part MM
167.10 1,00 pc. K04738 Controller fan grille; injection-moulded part MM
Other manuals for MM-Xtruder
1
Table of contents
Other Munsch Welding System manuals
Popular Welding System manuals by other brands

Miller Electric
Miller Electric Millermatic Passport Plus owner's manual

SUNSTONE
SUNSTONE CDSP user manual

Bernard
Bernard T-Gun 350 amp Spec sheet

Kemppi
Kemppi A5 MIG Rail System 2500 operating manual

Thermal Dynamics
Thermal Dynamics CE Pak Master 100XL Plus operating manual

Michigan Welding
Michigan Welding ARCTIG140 operating instructions

Miller Electric
Miller Electric Load Bank LBP-350 Specification sheet

Leister
Leister SEAMTEK 2000 AT operating instructions

Eastwood
Eastwood MIG 175 Service manual

ESAB
ESAB CIGWELD EasyWeld 130 operating manual

widos
widos 7000 WM Working Instructions Translation

Everlast
Everlast Power i-MIG 353DPi Operator's manual
