Murata GRM21BF51E225ZA01 Series User manual

GRM21BF51E225ZA01_ (0805, Y5V, 2.2uF, 25Vdc)
_: packaging code Reference Sheet
1.Scope
2.MURATA Part NO. System
(Ex.)
3. Type & Dimensions
(Unit:mm)
4.Rated value
5.Package
Product specifications in this catalog are as of Jan.26,2013,and are subject to change or obsolescence without notice.
Please consult the approval sheet before ordering.
Please read rating and !Cautions first.
CHIP MONOLITHIC CERAMIC CAPACITOR FOR GENERAL
g
0.2 to 0.7
2.2 uF
Temp. Range
(Ref.Temp.)
(8) Packaging
mark
(4)
DC Rated
Voltage
Packaging Unit
+80/-20 %
-30 to 85 °C
-82 to 22 %
-30 to 85 °C
(25 °C)
(3) Temperature Characteristics
(Public STD Code):Y5V(EIA)
Specifications and Test
Methods
(Operationg
Temp. Range)
Temp. coeff
or Cap. Change
(5) Nominal
Capacitance
(6)
Capacitance
Tolerance
25 Vdc
0.7 min.
(2) T
1.25±0.1
This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment.
(1)-1 L
2.0±0.1
(1)-2 W
1.25±0.1
e
L

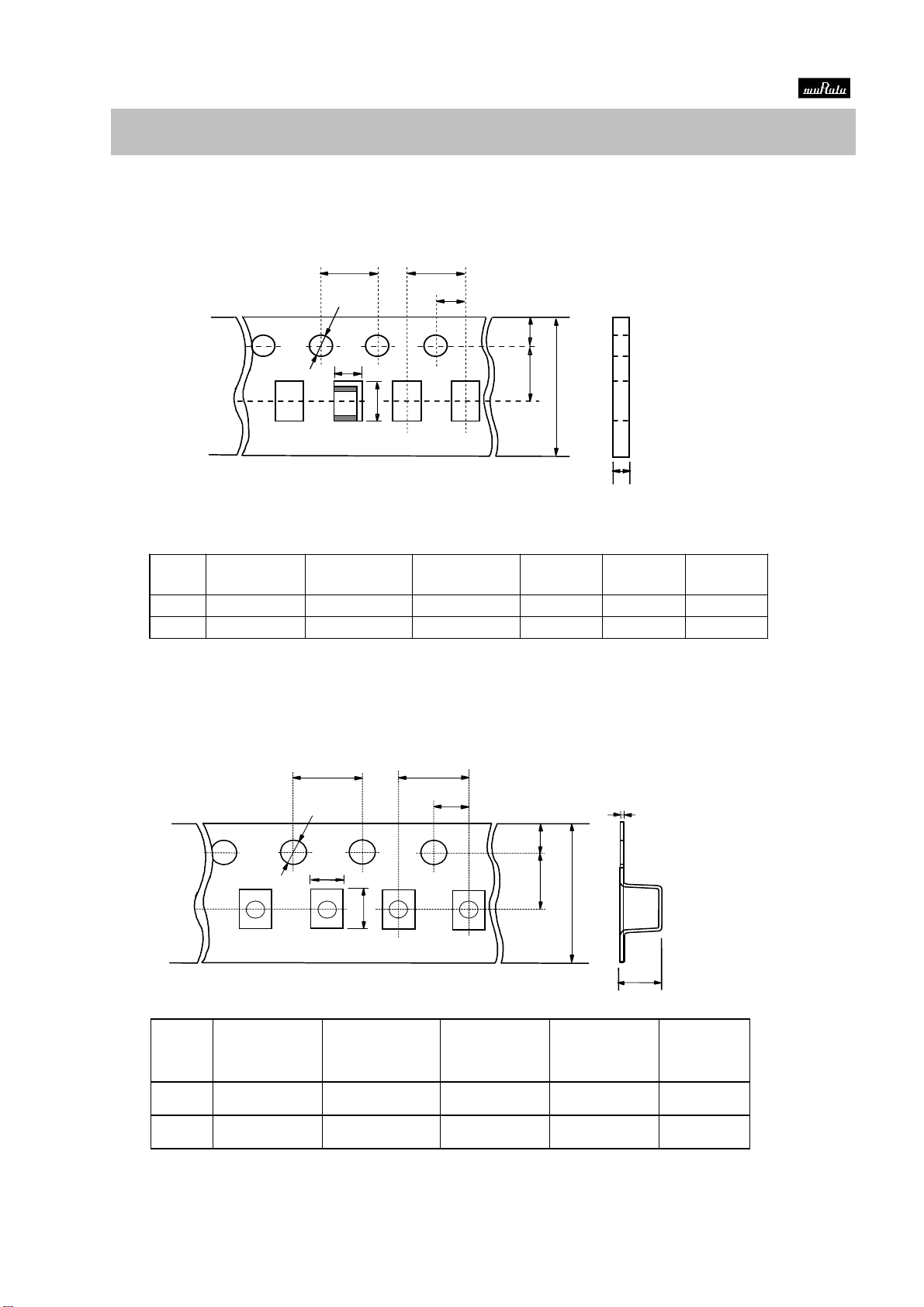

f180mm Reel
EMBOSSED W8P4
3000 pcs./Reel
K
f330mm Reel
EMBOSSED W8P4
10000 pcs./Reel
(1)L/W
Dimensions
(2)T
Dimensions
(3)Temperature
Characteristics
(4)DC Rated
Voltage
(5)Nominal
Capacitance
(6)Capacitance
Tolerance
(8)Packaging
Code
(7)Murata’s
Control Code
T
L
W
e
e
g
GRM 21 BF5 1E 225 Z A01 L
GRM21BF51E225ZA01-01 1

Temperature
Compensating Type
High Dielectric
Constant Type
1 Operating
△C,1X：－55℃to 125℃B1,B3,F1：－25℃to 85℃Standard Temperature：20℃
Temperature Range
0C：－55℃to 150℃R1,R7,C7：－55℃to 125℃(R6,R7,R9,C7,C8,F5,L8：25℃）
Other ：－25℃to 85℃R6：－55℃to 85℃
R9,L8：－55℃to 150℃
C8：－55℃to 105℃
F5：－30℃to 85℃
2 Rated Voltage See the previous pages. The rated voltage is defined as the maximum voltage which may be
applied continuously to the capacitor.
When AC voltage is superimposed on DC voltage, VP-P or VO-P,
whichever is larger, should be maintained within the rated voltage range.
3 Appearance No defects or abnormalities. Visual inspection.
4 Dimension Within the specified dimensions.
Using calipers. (GRM02 size is based on Microscope)
5 Dielectric Strength No defects or abnormalities.
No failure should be observed when 300% of the rated voltage
(temperature compensating type) or 250% of the rated voltage
(high dielectric constant type) is applied between the
terminations for 1 to 5 seconds, provided the charge/discharge
current is less than 50mA.
6 Insulation
C≦0.047μ F:More than 10000MΩ The insulation resistance should be measured with a DC voltage
Resistance
C＞0.047μ F:More than 500Ω·F not exceeding the rated voltage at 20℃/25℃and 75%RH max.
C:Nominal Capacitance and within 2 minutes of charging, provided the charge/discharge
current is less than 50mA.
7Capacitance Within the specified tolerance.
The capacitance/D.F. should be measured at 20℃/25℃at the
frequency and voltage shown in the table.
8 Q/Dissipation
30pF and over:Q≧1000 ［B1,B3,R1,R6,R7,C7,C8,L8］
Factor (D.F.)
30pF and below:Q≧400+20C
W.V.:100V :0.025max.(C＜0.068mF)
(1)Temperature Compensating Type
:0.05max.(C≧0.068mF)
C:Nominal Capacitance(pF) W.V.:50V/25V :0.025max.
W.V.:16V/10V :0.035max.
W.V.:6.3V/4V :0.05max.(C＜3.3mF)
:0.1max.(C≧3.3mF)
[R9]
(2)High Dielectric Constant Type
W.V.:50V: 0.05max.
[F1,F5]
W.V.:25Vmin
:0.05max. (C＜0.1mF)
:0.09max.(C≧0.1mF)
W.V.:16V/10V:0.125max.
W.V.:6.3V:0.15max.
9Capacitance No bias Within the specified
B1,B3 : Within ±10% The capacitance change should be measured after 5min. at each
Temperature tolerance.(Table A)
(-25°C to +85°C) specified temp.stage.
Characteristics
R1,R7 : Within ±15% (1)Temperature Compensating Type
(-55°C to +125°C) The temperature coefficient is determind using the capacitance
R6 : Within ±15% measured in step 3 as a reference.
(-55°C to +85°C) When cycling the temperature sequentially from step 1 through
R9 : Within ±15% 5 (ΔC：+20℃to +125℃：other temp.coeffs.:+20℃to +85℃) the
(-55°C to +150°C) capacitance should be within the specified tolerance for the
C7 : Within ±22% temperature coefficient and capacitance change as Table A-1.
(-55°C to +125°C) The capacitance drift is caluculated by dividing the differences
C8 : Within ±22% between the maximum and minimum measured values in the
(-55°C to +105°C) step 1,3 and 5 by the cap.value in step 3.
F1 : Within +30/-80%
(-25°C to +85°C)
F5 :Within +22/-82%
(-30°C to +85°C)
L8 : Within ±15%
(-55°C to +125°C)
: Within +15/-40%
(+125°C to +150°C)
50% of
B1: Within +10/-30%
the rated
R1: Within +15/-40%
voltage F1: Within +30/-95% 2) High Dielectric Constant Type
The ranges of capacitance change compared with the 20℃
value over the temperature ranges shown in the table should be
Capacitance
Within±0.2% or±0.05pF within the specified ranges.*
Drift
(Whichever is larger.) In case of applying voltage, the capacitance change should be
*Not apply to 1X/25V measured after 1 more min. with applying voltage in
equilibration of each temp. stage.
*Initial measurement for high
dielectric constant type
Perform a heat treatment at 150
+0/-10℃for one hour and then
set for 24±2 hours at room
temperature.
Perform the initial measure-ment.
■SPECIFICATIONS AND TEST METHODS
No
Item
Specification
Test Method
Step
Temperature(C)
1
20±2
2
-55±3(for C)/-25±3(for other TC)
3
20±2
4
125±3(for 2C/3C/4C)
150±3(for 0C)
85±3(for other TC)
5
20±2
Step
Temperature(℃)
Applying
voltage
1
20±2/25±2
No bias
2
-55±3(for R1,R7,R6,R9,C7,C8,L8)/
-25±3(for B1,B3,F1)/
-30±3(for F5)
3
20±2/25±2
4
125±3(for R1,R7,C7)/150±3(for R9,L8)
105±3(for C8)/85±3(for B1,B3,R6,F1,F5)
5
20±2
50% of the
rated voltage
6
-55±3(for R1)/-25±3(for B1,F1)
7
20±2
8
125±3(for R1)/85±3(for B1,F1)
Capacitance
Frequency
Voltage
C≦1000pF
1±0.1MHz
0.5 to 5Vrms
C＞1000pF
1±0.1kHz
1±0.2Vrms
Capacitance
Frequency
Voltage
C≦10μF
1±0.1kHz
1±0.2Vrms
C＞10μF
120±24Hz
0.5±0.1Vrms
JEMCGS-0001S 2

Temperature
Compensating Type
High Dielectric
Constant Type
10 Adhesive Strength No removal of the terminations or other defect should occur. Solder the capacitor on the test jig (glass epoxy board)shown in
of Termination
Fig.3 using an eutectic solder. Then apply 10N* force in parallel
with the test jig for 10±1seconds.
The soldering should be done either with an iron or using the
reflow method and should be conducted with care so that the
soldering is uniform and free of defects such as heat shock.
*1N(GRM02),2N(GRM03),5N(GRM15,GRM18)
11 Vibration  Appearance No defects or abnormalities.
Solder the capacitor on the test jig (glass epoxy board) in the same
Resistance manner and under the same conditions as (10).
Capacitance Within the specified tolerance. The capacitor should be subjected to a simple harmonic motion
having a total amplitude of 1.5mm, the frequency being varied
Q/D.F.
30pF and over:Q≧1000 [B1,B3,R1,R6,R7,C7,C8,L8] uniformly between the approximate limits of 10 and 55Hz. The
30pF and beloow:Q≧400+20C W.V.:100V :0.025max.(C＜0.068mF) frequency range, from 10 to 55Hz and return to 10Hz, should be
:0.05max.(C≧0.068mF) traversed in approximately 1 minute. This motion should be
C:Nominal Capacitance(pF) W.V.:50V/25V :0.025max.
applied for a period of 2 hours in each 3 mutually perpendicular
W.V.:16V/10V :0.035max.
directions(total of 6 hours).
W.V.:6.3V/4V :0.05max. (C＜3.3mF)
:0.1max.(C≧3.3mF)
[R9]
W.V.:50V: 0.05max.
[F1,F5]
W.V.:25Vmin
:0.05max. (C＜0.1mF)
:0.09max. (C≧0.1mF)
W.V.:16V/10V:0.125max.
W.V.:6.3V:0.15max.
12 Deflection Appearance No defects or abnormalities.
Solder the capacitor on the test jig (glass epoxy board) shown in
Fig.1 using an eutectic solder. Then apply a force in the direction
Capacitance
Within ±5% or± 0.5pF Within ±10% shown in Fig 2 for 5±1 seconds. The soldering should be done
Change (Whichever is larger) by the reflow method and should be conducted with care so that
the soldering is uniform and free of defects such as heat shock.
13 Solderability 75% of the terminations is to be soldered evenly and continuously. Immerse the capacitor in a solution of ethanol (JIS-K-8101) and
of Termination rosin (JIS-K-5902) (25% rosin in weight propotion) .
Preheat at 80 to 120℃for 10-to 30 seconds.
After preheating, immerse in an eutectic solder solution for
2±0.5 seconds at 230±5℃or Sn-3.0Ag-0.5Cu solder solution
for 2±0.5 seconds at 245±5℃.
14 Resistance to Appearance No defects or abnormalities.
Preheat the capacitor at 120 to 150℃for 1 minute.
Soldering Heat
Immerse the capacitor in an eutectic solder solution* or
Capacitance
Within ±2.5% or±0.25pF B1,B3,R1,R6,R7,R9,C7,C8,L8:Within ±7.5% Sn-3.0Ag-0.5Cu solder solution at 270±5℃for 10±0.5 seconds.
Change (Whichever is larger) F1,F5 :Within ±20% Set at room temperature for 24±2 hours, then measure.
Q/D.F.
30pF and over:Q≧1000 ［B1,B3,R1,R6,R7,C7,C8,L8］*Not apply to GRM02
30pF and beloow:Q≧400+20C W.V.:100V :0.025max.(C＜0.068mF)
:0.05max.(C≧0.068mF) · Initial measurement for high dielectric constant type
C:Nominal Capacitance(pF) W.V.:50V/25V :0.025max.
Perform a heat treatment at 150+0/-10C for one hour and then set
W.V.:16V/10V :0.035max.
at room temperature for 24±2 hours.
W.V.:6.3V/4V :0.05max. (C＜3.3mF) Perform the initial measurement.
:0.1max.(C≧3.3mF)
[R9]
*Preheating for GRM32/43/55
W.V.:50V: 0.05max.
[F1,F5]
W.V.:25Vmin
:0.05max. (C＜0.1mF)
:0.09max. (C≧0.1mF)
W.V.:16V/10V:0.125max.
W.V.:6.3V:0.15max.
I.R.
More than 10,000MWor 500W·F(Whichever is smaller)
Dielectric No defects.
Strength
15 Temperature Appearance No defects or abnormalities.
Fix the capacitor to the supporting jig in the same
Cycle
manner and under the same conditions as (10).
Capacitance
Within ±2.5% or±0.25pF B1,B3,R1,R6,R7,R9,C7,C8,L8:Within ±7.5% Perform the five cycles according to the four heat
Change (Whichever is larger)
F1,F5 :Within ±20% treatments shown in the following table.
Q/D.F.
30pF and over:Q≧1000 ［B1,B3,R1,R6,R7,C7,C8,L8］Set for 24±2 hours at room temperature, then measure.
30pF and beloow:Q≧400+20C W.V.:100V :0.025max.(C＜0.068mF)
:0.05max.(C≧0.068mF)
C:Nominal Capacitance(pF) W.V.:50V/25V :0.025max.
W.V.:16V/10V :0.035max.
W.V.:6.3V/4V :0.05max. (C＜3.3mF)
:0.1max.(C≧3.3mF)
[R9]
W.V.:50V: 0.05max.
[F1,F5]
W.V.:25Vmin
· Initial measurement for high dielectric constant type
:0.05max. (C＜0.1mF) Perform a heat treatment at 150+0/-10C for one hour and then set
:0.09max. (C≧0.1mF) at room temperature for 24±2 hours.
W.V.:16V/10V:0.125max.
Perform the initial measurement.
W.V.:6.3V:0.15max.
I.R.
More than 10,000MWor 500W·F(Whichever is smaller)
Dielectric No defects.
Strength
■SPECIFICATIONS AND TEST METHODS
No
Item
Specification
Test Method
Table1
Step
Temperature
Time
1
100C to 120C
1 min.
2
170C to 200C
1 min.
Step
Temp.(C)
Time (min)
1
Min.
Operating Temp.+0/-3
30±3
2
Room Temp
2 to 3
3
Max.
Operating Temp.+3/-0
30±3
4
Room Temp
2 to 3
JEMCGS-0001S 3

Temperature
Compensating Type
High Dielectric
Constant Type
16
Humidity Appearance No defects or abnormalities. Set the capacitor at 40±2℃and in 90 to 95% humiduty
(Steady State) for 500±12 hours.
Capacitance
Within ±5% or±0.5pF B1,B3,R1,R6,R7,R9,C7,C8,L8:Within ±12.5% Remove and set for 24±2 hours at room temperature,
Change (Whichever is larger) F1,F5 :Within ±30% then measure.
Q/D.F.
30pF and over:Q≧350 ［B1,B3,R1,R6,R7,C7,C8,L8］
10pF and over W.V.:100V :0.05max.( C＜0.068mF)
30pF and below:Q≧275+5C/2 :0.075max.(C≧0.068mF)
10pF and below:Q≧200+10C W.V.:50V/25V :0.05max.
W.V.:16V/10V :0.05max.
C:Nominal Capacitance(pF) W.V.:6.3V/4V :0.075max.(C＜3.3mF)
:0.125max.(C≧3.3mF)
[R9]
W.V.:50V: 0.075max.
[F1,F5]
W.V.:25Vmin
:0.075max. (C＜0.1mF)
:0.125max. (C≧0.1mF)
W.V.:16V/10V:0.15max.
W.V.:6.3V:0.2max.
I.R. More than 1,000MWor 50W·F(Whichever is smaller)
17 Humidity Load Appearance No defects or abnormalities.
Apply the rated voltage at 40±2℃and 90 to 95% humidity
for 500±12 hours. Remove and set for 24±2 hours at room
Capacitance
Within ±7.5% or±0.75pF B1,B3,R1,R6,R7,R9,C7,C8,L8:Within ±12.5% temprature, then muasure. The charge/discharge current
Change (Whichever is larger) F1,F5 :Within ±30% is less than 50mA.
[W.V.:10Vmax.]
F1 :Within+30/-40%
Q/D.F.
30pF and over:Q≧200 ［B1,B3,R1,R6,R7,C7,C8,L8］• Initial measurement for F1/10Vmax.
30pF and below:Q≧100+10C/3 W.V.:100V :0.05max.( C＜0.068mF) Apply the rated DC voltage for 1 hour at 40±2℃.
:0.075max.(C≧0.068mF) Remove and set for 24±2 hours at room temperature.
C:Nominal Capacitance(pF)
W.V.:50V/25V :0.05max. Perform initial measurement.
W.V.:16V/10V :0.05max.
W.V.:6.3V/4V :0.075max.(C＜3.3mF)
:0.125max.(C≧3.3mF)
[R9]
W.V.:50V: 0.075max.
[F1,F5]
W.V.:25Vmin
:0.075max. (C＜0.1mF)
:0.125max. (C≧0.1mF)
W.V.:16V/10V:0.15max.
W.V.:6.3V:0.2max.
I.R. More than 500MΩ or 25Ω·F(Whichever is smaller)
18
High Temperature
Appearance No defects or abnormalities. Apply 200% of the rated voltage at the maximum
Load
operating temperature±3℃for 1000±12 hours.
Capacitance
Within ±3% or ±0.3pF B1,B3,R1,R6,R7,R9,C7,C8,L8:Within ±12.5% Set for 24±2 hours at room temperature, then measure.
Change (Whichever is larger) F1,F5 :Within ±30% The charge/discharge current is less than 50mA.
[Except 35V,10Vmax and C≧1.0. mF]
F1 :Within+30/-40%
[35V, 10Vmax and C≧1.0. mF]
Q/D.F.
30pF and over:Q≧350 ［B1,B3,R1,R6,R7,C7,C8,L8］･Initial measurement for high dielectric constant type.
10pF and over W.V.:100V :0.05max.( C＜0.068mF) Apply 200% of the rated DC voltage at the maximun operating
30pF and below: Q≧275+5C/2 :0.075max.(C≧0.068mF) temperature ±3°C for one hour. Remove and set for
10pF and below:Q≧200+10C W.V.:50V/25V :0.05max. 24±2 hours at room temperature.
W.V.:16V/10V :0.05max. Perform initial measurement.
C:Nominal Capacitance (pF)
W.V.:6.3V/4V :0.075max.(C＜3.3mF)
:0.125max.(C≧3.3mF)
[R9]
W.V.:50V: 0.075max.
[F1,F5]
W.V.:25Vmin
:0.075max. (C＜0.1mF)
:0.125max. (C≧0.1mF)
W.V.:16V/10V:0.15max.
W.V.:6.3V:0.2max.
I.R. More than 1,000MWor 50W·F(Whichever is smaller)
■SPECIFICATIONS AND TEST METHODS
No
Item
Specification
Test Method
Table A
Char.
Nominal
Values
(ppm/C) *
Capacitance Change from 20C (%)
-55
-25
-10
Max.
Min.
Max.
Min.
Max.
Min.
2C/0C
0±60
0.82
-0.45
0.49
-0.27
0.33
-0.18
3C
0±120
1.37
-0.90
0.82
-0.54
0.55
-0.36
4C
0±250
2.56
-1.88
1.54
-1.13
1.02
-0.75
2P
-150±60
-
-
1.32
0.41
0.88
0.27
3P
-150±120
-
-
1.65
0.14
1.10
0.09
4P
-150±250
-
-
2.36
-0.45
1.57
-0.30
2R
-220±60
-
-
1.70
0.72
1.13
0.48
3R
-220±120
-
-
2.03
0.45
1.35
0.30
4R
-220±250
-
-
2.74
-0.14
1.83
-0.09
2S
-330±60
-
-
2.30
1.22
1.54
0.81
3S
-330±120
-
-
2.63
0.95
1.76
0.63
4S
-330±250
-
-
3.35
0.36
2.23
0.24
2T
-470±60
-
-
3.07
1.85
2.05
1.23
3T
-470±120
-
-
3.40
1.58
2.27
1.05
4T
-470±250
-
-
4.12
0.99
2.74
0.66
3U
-750±120
-
-
4.94
2.84
3.29
1.89
4U
-750+250
-
-
5.65
2.25
3.77
1.50
1X
+350 to -1000
-
-
-
-
-
-
* Nominalvaluesdenotethe temperaturecoefficientwithinarangeof20Cto125C(forC)/150C(for0C)/85C(forother TC).
JEMCGS-0001S 4

Adhesive Strength of Termination,Vibration Resistance,Temperature Cycle,
Test method : Deflection Humidity ,Humidity Load,High Temperature Load
・Test substrate ・Test substrate
Material : Copper-clad laminated sheets for PCBs Material : Copper-clad laminated sheets for PCBs
(Glass fabric base, epoxy resin) (Glass fabric base, epoxy resin)
Thickness : 1.6mm (GRM02/03/15: t:0.8mm) Thickness : 1.6mm (GRM02/03/15: t:0.8mm)
Copper foil thickness : 0.035mm Copper foil thickness : 0.035mm
Gray colored part of Fig.1: Solder resist
(Coat with heat resistant resin for soldr)
Fig.1 (in:mm) Fig.3 (in:mm)
Fig.2 (in:mm)
■SPECIFICATIONS AND TEST METHODS
Type
Dimension (mm)
a
b
c
GRM02
0.2
0.56
0.23
GRM03
0.3
0.9
0.3
GRM15
0.4
1.5
0.5
GRM18
1.0
3.0
1.2
GRM21
1.2
4.0
1.65
GRM31
2.2
5.0
2.0
GRM32
2.2
5.0
2.9
GRM43
3.5
7.0
3.7
GRM55
4.5
8.0
5.6
＊2
4.0±0.1
8.0±0.3
3.5±0.05
0.05以下
＊1
φ1.5
+0.1
-0
Ａ
t
*1,2：2.0±0.05
1.75±0.1
Ｂ
100
40
a
c
b
Land
f4.5
c
＊2
4.0±0.1
8.0±0.3
3.5±0.05
0.05以下
＊1
φ1.5
+0.1
-0
Ａ
t
*1,2：2.0±0.05
1.75±0.1
Ｂ
a
c
b
ﾗﾝﾄﾞ
f4.5
c
Glass epoxy board
Solder resist
Baked electrode or
copper foil
b
Type
Dimension (mm)
a
b
c
GRM02
0.2
0.56
0.23
GRM03
0.3
0.9
0.3
GRM15
0.4
1.5
0.5
GRM18
1.0
3.0
1.2
GRM21
1.2
4.0
1.65
GRM31
2.2
5.0
2.0
GRM32
2.2
5.0
2.9
GRM43
3.5
7.0
3.7
GRM55
4.5
8.0
5.6
45
45
R230
20
50
Flexure:≦1
Capacitance meter
Pressurization
speed
1.0mm/s
Support
Capacitor
Pressurize
45
45
JEMCGS-0001S 5

1.Tape Carrier Packaging(Packaging Code:D/E/W/F/L/J/K)
1.1 Minimum Quantity(pcs./reel)
φ180mm reel φ330mm reel
Plastic Tape Paper Tape Plastic Tape
Code:D/E Code:W Code:L Code:J/ F Code:K
GR□02 40000 (W4P1)
GR□03 15000(W8P2) 30000(W8P1) 50000(W8P2)
2
20000 50000
3/X
10000 50000
5 (Dimensions Tolerance:±0.05) 10000(W8P2) 20000(W8P1) 50000(W8P2)
5 (Dimensions Tolerance:±0.1min.)
10000 40000
GR□18 4000 10000
5/6/9 4000 3000 10000
A/B 3000 10000
6/9 4000 10000
M/X 3000 10000
C2000 6000
5/6/9 4000 10000
A/M 3000 10000
N2000 8000
C2000 6000
R/D/E 1000 4000
M1000 5000
N/C/R/D 1000 4000
E500 2000
S500 1500
M1000 5000
N/C/R/D 1000 4000
E500
F/X 300 1500
1.2 Dimensions of Tape
(1)GR□02 (W4P1 CODE:L) (in:mm)
Code GR□02
A *3 0.23
B *3 0.43 *3 Nominal value
ｔ0.5 max.
Package
GRM/F Type
Type
GR□21
GR□31
GR□32
GR□43
Paper Tape
GR□55
GR□15
t
2.0±0.04
＊2
＊1
φ0.8±0.04
0.9±0.05
4.0±0.05
1.8±0.02
＊1,2：1.0±0.02
0.05以下
Ａ
Ｂ
0.15～0.4
*1,2：1.0±0.02
2.0±0.04
*1
0.9±0.05
4.0±0.05
1.8±0.02
Ａ
Ｂ
t
*2
0.05 max.
φ0.8±0.04
0.15～0.4
JEMCGP-01796 6

(in:mm)
(2)GR□03/15(W8P2 CODE:D/E/J/F)
(3)GRM03/15(W8P1 CODE:W) (in:mm)
Package
GRM/F Type
*1,2：2.0±0.05
＊2
4.0±0.1
8.0±0.3
3.5±0.05
0.05以下
＊1
φ1.5
+0.1
-0
Ａ
t
*1,2：2.0±0.05
1.75±0.1
Ｂ
4.0±0.1
*1
φ1.5
+0.1
-0
1.75±0.1
8.0±0.3
3.5±0.05
Ａ
Ｂ
t
*2
0.05 max.
Code
GR□03
（Dimensions
Tolerance
±0.03）
GR□03
（Dimensions
Tolerance
±0.05）
GR□15
（Dimensions
Tolerance
±0.05）
GR□15
（Dimensions
Tolerance
±0.1）
GR□15
（Dimensions
Tolerance
±0.15）
GR□15
（Dimensions
Tolerance
±0.2）
A*3
0.37
0.39
0.65
0.70
0.72
0.75
B*3
0.67
0.69
1.15
1.20
1.25
1.35
t
0.5max.
0.5 max.
0.8 max.
0.8 max.
0.8 max.
0.8 max.
*3 Nominal value
1.0±0.05
4.0±0.1
φ1.5
+0.1
-0
1.75±0.1
8.0±0.3
3.5±0.05
Ａ
Ｂ
t
1.0±0.05
Code
GRM03
GRM15
A*
0.37
0.65
B*
0.67
1.15
t
0.5max.
0.8max.
*Nominal value
JEMCGP-01796 7

(4)GR□18/21/31/32 T:0.85 rank max. (in:mm)
(5)GR□21/31/32 T：1.0 rank min. (in:mm)
Package
GRM/F Type
4.0±0.1
4.0±0.1
2.0±0.1
φ1.5
+0.1
-0
1.75±0.1
8.0±0.3
3.5±0.05
0.8 max.(T=0.5mm)
1.15 max.(T≦0.85mm)
Ａ
Ｂ
Code
GR□18
（Dimensions Tolerance
±0.15within）
GR□18
（Dimensions Tolerance
±0.2）
GR□18
(Dimensions Tolerance
L:±0.2/ W,T:±0.1）
GR□21
GR□31
GR□32
A
1.05±0.1
1.10±0.1
1.05±0.1
1.55±0.15
2.0±0.2
2.8±0.2
B
1.85±0.1
2.00±0.1
2.00±0.1
2.3±0.15
3.6±0.2
3.6±0.2
8.0±0.3
4.0±0.1
3.5±0.05
1.75±0.1
Ａ
Ｂ
＊
2.0±0.1
φ1.5
+0.1
-0
＊
1.7 max.(T≦1.25mm)
2.5 max. (T:1.35/1.6mm)
3.0 max. (T:1.8/2.0mm)
3.7 max. (T≧2.5mm)
4.0±0.1
0.25±0.1(T≦2.0mm)
0.3±0.1(T：2.5mm)
Code
GR□21
（Dimensions Tolerance:
±0.1）
GR□21
（Dimensions Tolerance :
±0.15 /±0.2）
GR□31
（Dimensions Tolerance:
±0.2 within）
GR□31
（Dimensions Tolerance:
±0.3）
GR□32
A
1.45±0.2
1.5±0.2
1.9±0.2
2.1±0.2
2.8±0.2
B
2.25±0.2
2.3±0.2
3.5±0.2
3.6±0.2
3.5±0.2
JEMCGP-01796 8

(6)GR□43/55 (in:mm)
Code GR□43 GR□55
A *2 3.6 5.2
B *2 4.9 6.1 *2 Nominal value
Package
GRM/F Type
φ1.5
+0.1
-0
4.0±0.1
8.0±0.1
φ1.5
+0.2
-0
12.0±0.3
5.5±0.1
1.75±0.1
Ａ
*
2.0±0.1
*1
2.5 max.(T≦1.8mm)
3.7 max.(T=2.0/2.5mm)
4.7 max.(T≧2.8mm)
4.0±0.1
Ｂ
*1
*：2.0±0.1
0.3±0.1
JEMCGP-01796 9

Package
GRM/F Type
図
1
ﾁｯﾌﾟ詰め状態
(
単位：
mm)
φ21±0.8
ｗ1
W
Top Tape : Thickness 0.06
Feeding Hole :As specified in 1.2.
Hole for Chip : As specified in 1.2.
Base Tape : As specified in 1.2.
Bottom Tape :Thickness 0.05
(Only a bottom tape existence )
W
w1
GR□02
8.0 max.
5±1.5
GR□32 max.
16.5 max.
10±1.5
GR□43/55
20.5 max.
14±1.5
φ180+0/-3.0
φ330±2.0
φ50 min.
φ13±0.5
2.0±0.5
Chip
(in:mm)
Fig.1 Package Chips
Fig.2 Dimensions of Reel
Fig.3 Taping Diagram
JEMCGP-01796 10

1.3 Tapes for capacitors are wound clockwise shown in Fig.3.
(The sprocket holes are to the right as the tape is pulled toward the user.)
1.4 Part of the leader and part of the vacant section are attached as follows.
(in:mm)
1.5 Accumulate pitch : 10 of sprocket holes pitch = 40±0.3mm
1.6 Chip in the tape is enclosed by top tape and bottom tape as shown in Fig.1.
1.7 The top tape and base tape are not attached at the end of the tape for a minimum of 5 pitches.
1.8 There are no jointing for top tape and bottom tape.
1.9 There are no fuzz in the cavity.
1.10 Break down force of top tape : 5N min.
Break down force of bottom tape : 5N min. (Only a bottom tape existence )
1.11 Reel is made by resin and appeaser and dimension is shown in Fig 2.
There are possibly to change the material and dimension due to some impairment.
1.12 Peeling off force : 0.1N to 0.6N*in the direction as shown below.
* GR□02/03:0.05N～0.5N
1.13 Label that show the customer parts number, our parts number, our company name, inspection
number and quantity, will be put in outside of reel.
Package
GRM/F Type
図
1
ﾁｯﾌﾟ詰め状態
(
単位：
mm)
Tail vacant Section
Chip-mounting Unit
Leader vacant Section
Leader Unit
(Top Tape only)
Direction
of Feed
160 min.
190 min.
210 min.
図
1
ﾁｯﾌﾟ詰め状態
(
単位：
mm)
165～180°
Top tape
JEMCGP-01796 11

Caution
■ Limitation of use
Please contact our sales representatives or product engineers before using our products for the applications
listed below which require of our products for other applications than specified in this product.
①Aircraft equipment ②Aerospace equipment ③Undersea equipment ④Power plant control equipment
⑤Medical equipment ⑥Transportation equipment(vehicles,trains,ships,etc.) ⑦Traffic signal equipment
⑧Disaster prevention / crime prevention equipment ⑨Data-processing equipment
⑩Application of similar complexity and/or requirements to the applications listed in the above
■Storage and Operation condition
1. The performance of chip monolithic ceramic capacitors may be affected by the storage conditions.
1-1. Store capacitors in the following conditions: Temperature of +5℃to +40℃and a Relative Humidity
of 20% to 70%.
(1) Sunlight, dust, rapid temperature changes, corrosive gas atmosphere or high temperature and humidity
conditions during storage may affect the solderability and the packaging performance
Please use product within six months of receipt.
(2) Please confirm solderability before using after six months.
Store the capacitors without opening the original bag.
Even if the storage period is short, do not exceed the specified atmospheric conditions.
1-2. Corrosive gas can react with the termination (external) electrodes or lead wires of capacitors, and result
in poor solderability. Do not store the capacitors in an atmosphere consisting of corrosive gas (e.g.,
hydrogen sulfide, sulfur dioxide, chlorine, ammonia gas etc.).
1-3. Due to moisture condensation caused by rapid humidity changes, or the photochemical change caused
by direct sunlight on the terminal electrodes and/or the resin/epoxy coatings, the solderability and
electrical performance may deteriorate. Do not store capacitors under direct sunlight or in high huimidity
conditions
!
JEMCGC-2701V 12

■Rating
1.Temperature Dependent Characteristics
1. The electrical characteristics of the capacitor can change with temperature.
1-1. For capacitors having larger temperature dependency, the capacitance may change with temperature
changes.
The following actions are recommended in order to insure suitable capacitance values.
(1) Select a suitable capacitance for the operating temperature range.
(2) The capacitance may change within the rated temperature.
When you use a high dielectric constant type capacitors in a circuit that needs a tight (narrow) capacitance
tolerance.
Example: a time constant circuit., please carefully consider the characteristics of these capacitors,
such as their aging, voltage, and temperature characteristics.
And check capacitors using your actual appliances at the intended environment and operating conditions.
□Typical temperature characteristics Char.R6 (X5R)
□Typical temperature characteristics Char.R7 (X7R)
□Typical temperature characteristics Char.F5 (Y5V)
2.Measurement of Capacitance
1. Measure capacitance with the voltage and the frequency specified in the product specifications.
1-1. The output voltage of the measuring equipment may decrease when capacitance is high occasionally.
Please confirm whether a prescribed measured voltage is impressed to the capacitor.
1-2. The capacitance values of high dielectric constant type capacitors change depending on the AC voltage
applied.
Please consider the AC voltage characteristics when selecting a capacitor to be used in a AC circuit.
Caution
-20
-15
-10
-5
0
5
10
15
20
-75 -50 -25 025 50 75 100
Capacitance Change (%)
Temperature (℃)
-100
-80
-60
-40
-20
0
20
40
-50 -25 025 50 75 100
Capacitance Change (%)
Temperature (℃)
!
20
15
10
5
0
-5
-10
-15
-20
-75
Capacitance Change (%)
-50
-25
0
25
50
75
100
125
150
Temperature (℃)
JEMCGC-2701V 13

3.Applied Voltage
1. Do not apply a voltage to the capacitor that exceeds the rated voltage as called-out in the specifications.
1-1. Applied voltage between the terminals of a capacitor shall be less than or equal to the rated voltage.
(1) When AC voltage is superimposed on DC voltage, the zero-to-peak voltage shall not exceed the
rated DC voltage.
When AC voltage or pulse voltage is applied, the peak-to-peak voltage shall not exceed the
rated DC voltage.
(2) Abnormal voltages (surge voltage, static electricity, pulse voltage, etc.) shall not exceed the
rated DC voltage.
Typical voltage applied to the DC capacitor
DC voltage DC voltage+AC AC voltage Pulse voltage
（E：Maximum possible applied voltage.）
1-2. Influence of overvoltage
Overvoltage that is applied to the capacitor may result in an electrical short circuit caused by the
breakdown of the internal dielectric layers .
The time duration until breakdown depends on the applied voltage and the ambient temperature.
4. Applied Voltage and Self-heating Temperature
1. When the capacitor is used in a high-frequency voltage, pulse voltage, application,
be sure to take into account self-heating may be caused by resistant factors of the capacitor.
1-1. The load should be contained to the level such that when measuring at atomospheric temperature
of 25℃,the product's self-heating remains below 20℃and surface temperature of the capacitor in the
actual circuit remains wiyhin the maximum operating temperature.
Caution
!
E
E
E
E
0
0
0
0
JEMCGC-2701V 14

5. DC Voltage and AC Voltage Characteristic
1. The capacitance value of a high dielectric constant type capacitor changes depending on the DC
voltage applied.
Please consider the DC voltage characteristics when a capacitor is selected for use in a DC circuit.
1-1. The capacitance of ceramic capacitors may change sharply depending on the applied voltage. (See figure)
Please confirm the following in order to secure the capacitance.
(1) Whether the capacitance change caused by the
applied voltage is within the range allowed or not.
□DC voltage characteristics
(2) In the DC voltage characteristics, the rate of capacitance
change becomes larger as voltage increases.
Even if the applied voltage is below the rated voltage.
When a high dielectric constant type capacitor is in a
circuit that needs a tight (narrow) capacitance tolerance.
Example: a time constant circuit., please carefully
consider the characteristics of these capacitors, such as
their aging, voltage, and temperature characteristics.
And check capacitors using your actual appliances at the
intended environment and operating conditions.
2. The capacitance values of high dielectric constant type capacitors change depending on the AC voltage applied.
Please consider the AC voltage characteristics when selecting a capacitor to be used in a AC circuit.
□AC voltage characteristics
6. Capacitance Aging
1. The high dielectric constant type capacitors have the characteristic
in which the capacitance value decreases with passage of time.
When you use a high dielectric constant type capacitors in a circuit that needs a tight (narrow) capacitance
tolerance. Example: a time constant circuit., please carefully consider the characteristics of these capacitors,
such as their aging, voltage, and temperature characteristics.
And check capacitors using your actual appliances at the intended environment and operating conditions.
Caution
-60
-50
-40
-30
-20
-10
0
10
20
30
0.0 0.5 1.0 1.5 2.0 2.5
Capacitance Change (%)
AC Voltage (Vr.m.s.)
-100
-80
-60
-40
-20
0
20
0 1 2 3 4 5 6 7
Capacitance Change(%)
DC Voltage (VDC)
!
20
10
0
-10
-20
-30
-40
10.0
100.0
1000.0
10000.0
Time(Hr)
CapacitanceChange (%)
5C
RΔ
JEMCGC-2701V 15

7.Vibration and Shock
1. Please confirm the kind of vibration and/or shock, its condition, and any generation of resonance.
Please mount the capacitor so as not to generate resonance, and do not allow any impact on the terminals.
2. Mechanical shock due to falling may cause damage or a crack in the dielectric material of the capacitor.
Do not use a fallen capacitor because the quality and reliability may be deteriorated.
3. When printed circuit boards are piled up or handled, the corners of another printed circuit board
should not be allowed to hit the capacitor in order to avoid a crack or other damage to the capacitor.
■Soldering and Mounting
1.Mounting Position
1. Confirm the best mounting position and direction that minimizes the stress imposed on the capacitor during
flexing or bending the printed circuit board.
1-1.Choose a mounting position that minimizes the stress imposed on the chip during flexing
or bending of the board.
[Component Direction]
Locate chip horizontal to the
direction in which stress acts
[Chip Mounting Close to Board Separation Point]
Chip arrangement
Worst A-C-(B~D) Best
Caution
Floor
Crack
Mounting printed circuit board
Crack
!
①
②
③
1C
1B
1A
Perforation
Slit
A
B
C
D
①
1A
JEMCGC-2701V 16

2.Information before mounting
1. Do Not re-use capacitors that were removed from the equipment.
2. Confirm capacitance characteristics under actual applied voltage.
3. Confirm the mechanical stress under actual process and equipment use.
4. Confirm the rated capacitance, rated voltage and other electrical characteristics before assembly.
5. Prior to use, confirm the Solderability for the capacitors that were in long-term storage.
6. Prior to measuring capacitance, carry out a heat treatment for capacitors that were in long-term storage.
7.The use of Sn-Zn based solder will deteriorate the reliability of the MLCC.
Please contact our sales representative or product engineers on the use of Sn-Zn based solder in advance.
3.Maintenance of the Mounting (pick and place) Machine
1. Make sure that the following excessive forces are not applied to the capacitors.
1-1. In mounting the capacitors on the printed circuit board, any bending force against them shall be kept
to a minimum to prevent them from any bending damage or cracking. Please take into account the
following precautions and recommendations for use in your process.
(1) Adjust the lowest position of the pickup nozzle so as not to bend the printed circuit board.
(2) Adjust the nozzle pressure within a static load of 1N to 3N during mounting.
[Incorrect]
[Correct]
2.Dirt particles and dust accumulated between the suction nozzle and the cylinder inner wall prevent
the nozzle from moving smoothly. This imposes greater force upon the chip during mounting,
causing cracked chips. Also the locating claw, when worn out, imposes uneven forces on the chip
when positioning, causing cracked chips. The suction nozzle and the locating claw must be maintained,
checked and replaced periodically.
Caution
!
Board Guide
Board
Suction Nozzle
Deflection
Support Pin
JEMCGC-2701V 17

4-1.Reflow Soldering
1. When sudden heat is applied to the components, the [Standard Conditions for Reflow Soldering]
mechanical strength of the components will decrease
because a sudden temperature change causes Infrared Reflow
deformation inside the components. In order to prevent
mechanical damage to the components, preheating is
required for both the components and the PCB board.
Preheating conditions are shown in table 1. It is required to
keep the temperature differential between the solder and
the components surface (ΔT) as small as possible.
2. Solderability of Tin plating termination chips might be
deteriorated when a low temperature soldering profile where
the peak solder temperature is below the melting point of
Tin is used. Please confirm the Solderability of Tin plated
termination chips before use. Vapor Reflow
3. When components are immersed in solvent after mounting,
be sure to maintain the temperature difference (ΔT)
between the component and the solvent within the range
shown in the table 1.
Table 1
GR□02/03/15/18/21/31
[Allowable Soldering Temperature and Time]
GR□32/43/55
Recommended Conditions
Infrared Reflow Vapor Reflow
Peak Temperature
230～250℃230～240℃240～260℃
Atmosphere Air Air
Air or N2
Pb-Sn Solder: Sn-37Pb Lead Free Solder: Sn-3.0Ag-0.5Cu In case of repeated soldering, the accumulated
soldering time must be within the range shown above.
4. Optimum Solder Amount for Reflow Soldering
4-1. Overly thick application of solder paste results in
a excessive solder fillet height.
This makes the chip more susceptible to mechanical
and thermal stress on the board and may cause
the chips to crack. * GRM02/03: 1/3 of Chip Thickness min.
4-2. Too little solder paste results in a lack of adhesive in section
strength on the outer electrode, which may result in
chips breaking loose from the PCB.
4-3. Make sure the solder has been applied smoothly to the end surface to a height of 0.2mm* min.
Make sure not to impose any abnormal mechanical shocks to the PCB.
Inverting the PCB
Caution
Part Number
Temperature Differential
ΔT≦190℃
ΔT≦130℃
Pb-Sn Solder
Lead Free Solder
!
Temperature(℃)
PeakTemperature
170℃
150℃
130℃
200℃
Soldering
Gradual
Cooling
Preheating
ΔT
60-120seconds
30-60 seconds
Time
SolderingTemperature(℃)
SolderingTime(sec.)
280
270
260
250
240
230
220
0
30
60
120
90
Temperature(℃)
PeakTemperature
170℃
150℃
130℃
ΔT
Soldering
Gradual
Cooling
Preheating
Time
60-120seconds
20seconds max.
0.2mm* min
JEMCGC-2701V 18

4-2.Flow Soldering
1. When sudden heat is applied to the components, the [Standard Conditions for Flow Soldering]
mechanical strength of the components will decrease
because a sudden temperature change causes
deformation inside the components. In order to prevent
mechanical damage in the components, preheating should
be required for both of the components and the PCB board.
Preheating conditions are shown in table 2. It is required to
keep temperature differential between the solder and
the components surface (ΔT) as small as possible.
2. Excessively long soldering time or high soldering
temperature can result in leaching of the outer electrodes,
causing poor adhesion or a reduction in capacitance value
due to loss of contact between electrodes and end termination.
[Allowable Soldering Temperature and Time]
3. When components are immersed in solvent after mounting,
be sure to maintain the temperature difference (ΔT)
between the component and solvent within the range
shown in the table 2.
4. Do not apply flow soldering to chips not listed in Table 2.
Table 2 Temperature Differential
In case of repeated soldering, the accumulated
soldering time must be within the range shown above.
Recommended Conditions Pb-Sn Solder Lead Free Solder
90～110℃100～120℃
240～250℃250～260℃
Air
N2
Pb-Sn Solder: Sn-37Pb Lead Free Solder: Sn-3.0Ag-0.5Cu
5. Optimum Solder Amount for Flow Soldering
5-1. The top of the solder fillet should be lower than the
thickness of components. If the solder amount is
excessive, the risk of cracking is higher during
board bending or any other stressful condition.
Preheating Peak Temperature
Soldering Peak Temperature
Atmosphere
Caution
Part Number
ΔT≦150℃
GR□18/21/31
!
Up to ChipThickness
Adhesive
in section
Soldering mperature(℃)
Soldering Time(sec.)
280
270
260
250
240
230
220
0
10
20
40
30
Temperature(℃)
Soldering
Peak
Temperature
Preheating
Peak
Temperature
30-90 seconds
Preheating
5 seconds max.
Time
Gradual
Cooling
Soldering
ΔT
JEMCGC-2701V 19

4-3.Correction with a Soldering Iron
1. When sudden heat is applied to the components when using a soldering iron, the mechanical strength of
the components will decrease because the extreme temperature change can cause deformations inside the
components. In order to prevent mechanical damage to the components, preheating is required for both
the components and the PCB board. Preheating conditions, (The "Temperature of the Soldering Iron tip",
"Preheating Temperature", "Temperature Differential" between the iron tip and the components and the
PCB), should be within the conditions of table 3. It is required to keep the temperature differential
between the soldering Iron and the component surfaces (ΔT) as small as possible.
2. After soldering, do not allow the component/PCB to rapidly cool down.
3. The operating time for the re-working should be as short as possible. When re-working time is
too long, it may cause solder leaching, and that will cause a reduction in the adhesive
strength of the terminations.
Table 3
*Applicable for both Pb-Sn and Lead Free Solder.
Pb-Sn Solder: Sn-37Pb
Lead Free Solder: Sn-3.0Ag-0.5Cu
4. Optimum Solder amount when re-working with a Soldering lron
4-1. In case of sizes smaller than 0603, (GR□03/15/18),
the top of the solder fillet should be lower than 2/3's
of the thickness of the component or 0.5mm whichever
is smaller. In case of 0805 and larger sizes, (GR□21/
31/32/43/55), the top of the solder fillet should be lower in section
than 2/3's of the thickness of the component. If the
solder amount is excessive, the risk of cracking is higher
during board bending or under any other stressful condition.
4-2. A Soldering iron with a tip of ø3mm or smaller should be used. It is also necessary to keep
the soldering iron from touching the components during the re-work.
4-3. Solder wire with ø0.5mm or smaller is required for soldering.
4-4.Leaded Component Insertion
1. If the PCB is flexed when leaded components (such as transformers and ICs) are being mounted,
chips may crack and solder joints may break.
Before mounting leaded components, support the PCB using backup pins or special jigs to prevent warping.
Caution
350℃max.
150℃min.
ΔT≦190℃
Air
Part Number
Temperature
of Soldering
Iron tip
ΔT≦130℃
Air
Preheating
Temperature
GR□03/15/18/21/31
Temperature
Differential
(ΔT)
Atmosphere
GR□32/43/55
280℃max.
150℃min.
!
SolderAmount
JEMCGC-2701V 20
