Murdock A152-BF4-FRA Series User manual

A152-BF4-FRA Series
Barrier Free, Wall Mounted Electric Drinking Fountain with Semi-Recessed
Sensor Operated Bottle Filler, 32” Trim Panel and Freeze Resistance Box
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
1.800.591.9360
Technical Assistance Fax: [phone]
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
LIMITED WARRANTY - UNITED STATES & CANADA
Murdock warrants that its products are free from defects in material or workmanship under normal use and
service for a period of one year from date of original shipment or for 18 months after the date of shipment from the
factory, whichever comes first. Murdock’s liability under this warranty shall be discharged solely by replacement
or repair of defective material, provided Murdock is notified in writing within one year from date of shipment,
F.O.B. Industry, California.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this
warranty. Murdock shall not be liable under any circumstances for incidental, consequential or direct charges
caused by defects in the materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all
other warranties expressed or implied. Product maintenance instructions are issued with each unit and disregard
or non-compliance with these instructions will constitute an abnormal use condition and void the warranty.
Stainless steel must be protected on job site during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Mudock’s limited warranty is void.
LIMITED EXPORT WARRANTY - One year on parts only.
COMPLIES WITH
Test rating conditions are
compliant with ARI 1010.
Federal
Public Law
111-380
(No Lead) Member of
MURDOCK
15125 Proctor Ave.
City of Industry, CA
91746 U.S.A.
Phone [phone]
626-336-4561
Fax [phone]
www.murdockmfg.com
Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.
7020-945-001 Date: 03/22/16

IMPORTANT
This fixture is intended to dispense water that has been lowered in temperature, but otherwise remains
unchanged by the materials in the drinking fountain. It is common for electrical equipment to be grounded to
water lines either within a structure or away from it. Every attempt should be made to prevent this kind of
grounding from generating electrical feedback into the drinking fountain creating electrolysis. Electrolysis will
cause a metallic taste or cause water metal content to increase.
NOTICE
A dielectric coupling must be used to connect the drinking fountain to the water supply. A nonmetallic coupler is
furnished with this water cooler to meet this requirement.

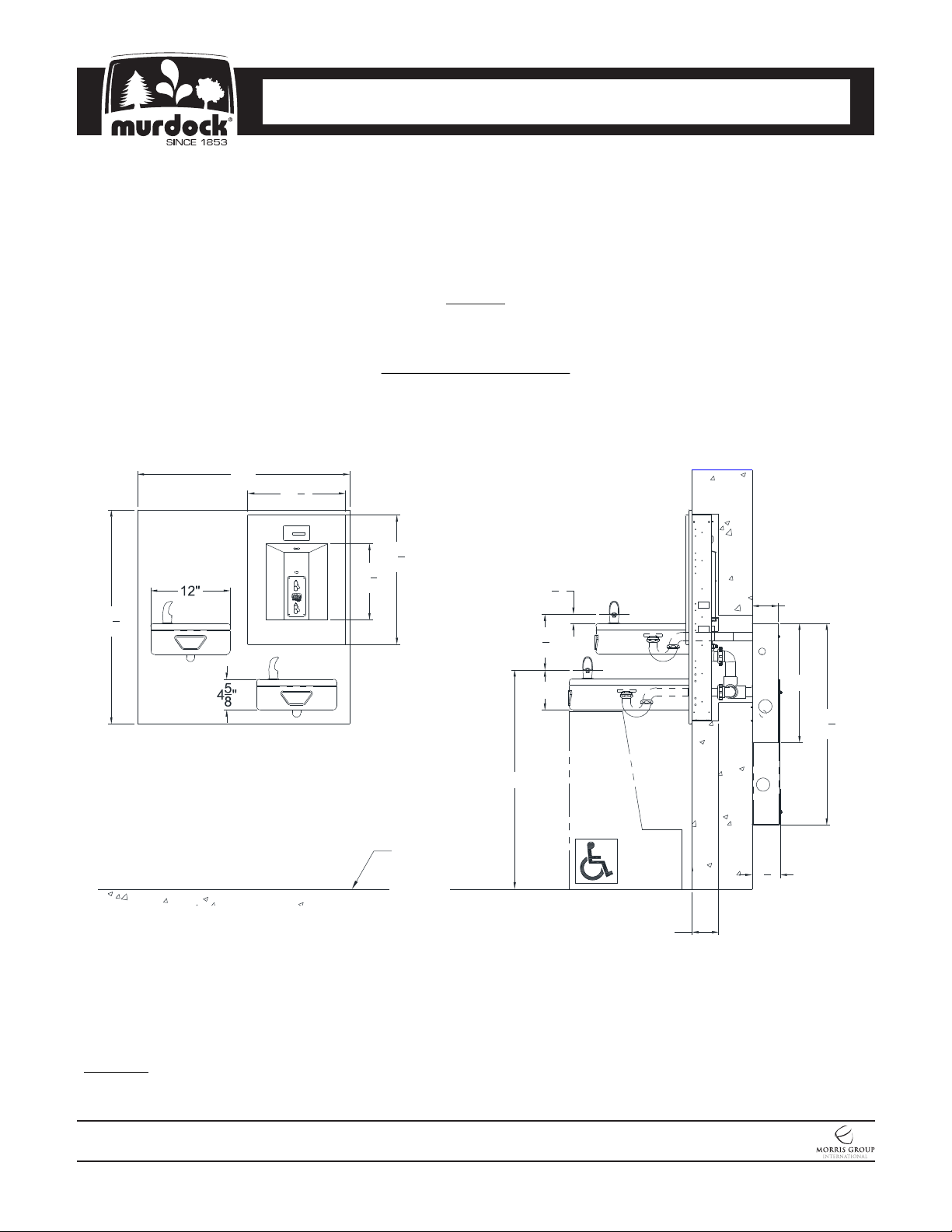

DIMENSIONAL DRAWING
Prior to roughing consult with local, state, and federal codes for proper mounting height.
NOTES: Dimensions shown for Adult ADA compliant installation. For Child ADA compliant parallel
approach installation, decrease height of installation by 3 inches. Provide clear floor space as required.
Adjust vertical dimensions as required to comply with federal, state, and local codes.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 2 of 18
NEW
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
GENERAL NOTES:
1. ALL DIMENSIONS ARE IN INCHES [MM].
*2. DIMENSIONS SHOWN ARE FOR RECOMMENDED ADULT HEIGHT. ADJUST VERTICAL
DIMENSIONS AS NECESSARY TO COMPLY WITH FEDERAL, STATE & LOCAL CODES.
3. WATER LINE FROM CHILLER TO FOUNTAIN SHOULD BE COVERED WITH SPONGE FOAM
RUBBER OR ICE WATER TYPE INSULATION OF ADEQUATE THICKNESS
7020-945-001
FINISHED
FLOOR
*33"
83
8"
321
4"
32"
143
4"
191
2"
13
8"
6"
111
2"
4"
41
4"
303
8"
4"
18"

DIMENSIONAL DRAWING
Prior to roughing consult with local, state, and federal codes for proper mounting height.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 3 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
301
2"
311
4"
16"
1
253
8"

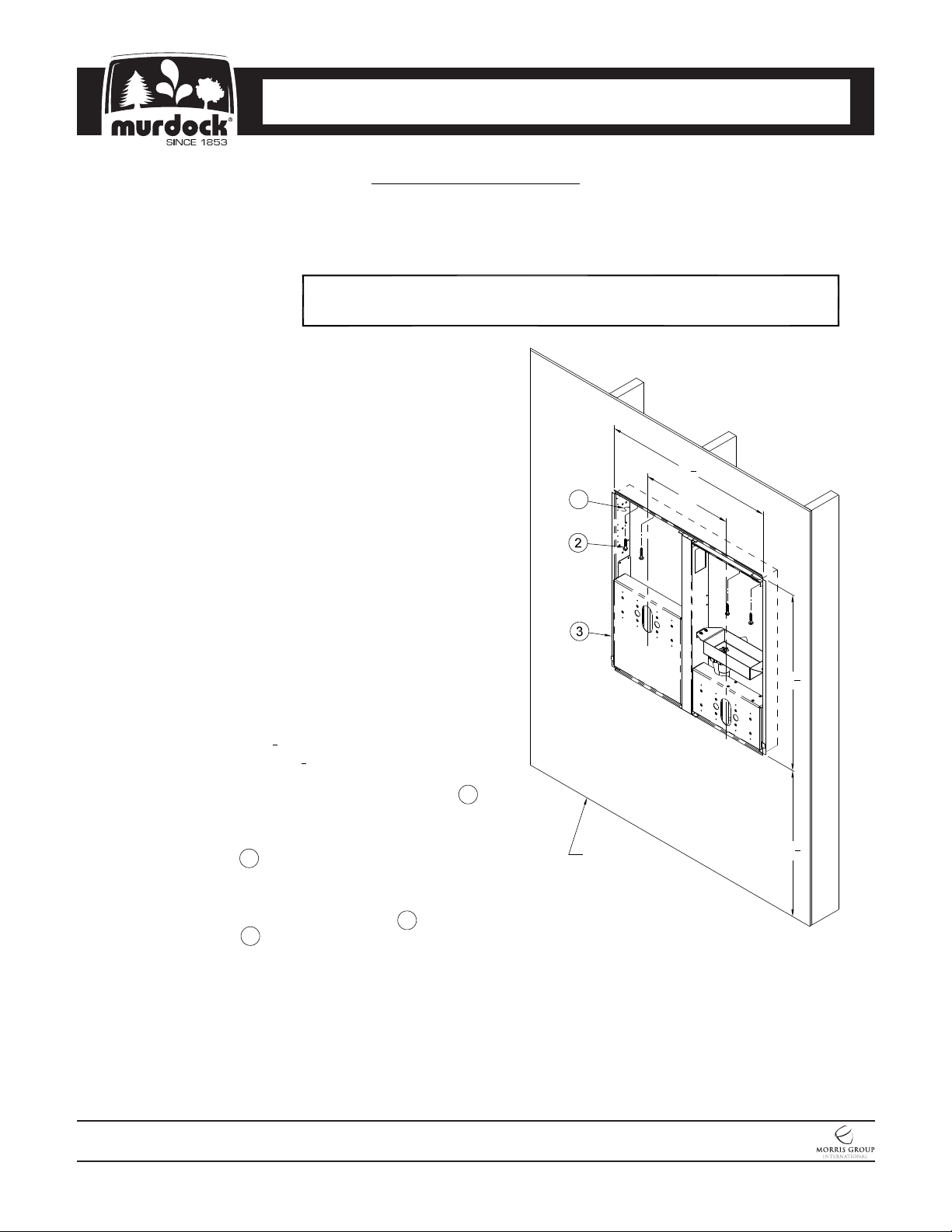

NOTES:
1. STANDARD BI-LEVEL INSTALLATION SHOWN, RBL REVERSE BI-LEVEL MOUNTING FRAME
IS OPPOSITE.
PROVIDE 30-1/2" x 31-1/4" TALL WALL OPENING AT
HEIGHT INDICATED. PROVIDE STRUCTURAL
SUPPORT AROUND THE OPENING FOR FRAME
ANCHORING. NOTE: PROVIDE A ROUGH-IN OPENING
THAT IS PLUMB AND LEVEL. THE ROUGH-IN OPENING
INDICATED ABOVE IS 1
2" WIDER THAN THE OUTSIDE
FRAME DIMENSIONS AND 1
4" TALLER.
CAREFULLY REMOVE BI-LEVEL MOUNTING FRAME 1
AND PANEL FROM PACKAGING PREVENTING
DAMAGE.
FINISHED
FLOOR
INSTALLATION INSTRUCTIONS:
A-
B-
C- CENTER FRAME 1 WITHIN WALL OPENING AND
WHILE MAINTAINING THE INTEGRITY OF THE FRAME,
PLUMB AND LEVEL SECURING THE BOTTOM OF
THE FRAME. SHIM AND SECURE THROUGH THE SIDES,
TOP AND BOTTOM USING HARDWARE BY 2 OTHERS.
NOTE: FLANGES 3 ARE INTENDED TO OVERLAP
FINISHED WALL.

IMPORTANT:
1. Water Supply Service Stop Valve, Water Connections and Electrical Connections to be supplied by others in
accordance with local codes.
2. Waste is 1-1/4” Outer Diameter. Drinking Fountain water inlet is 3/8” Outer Diameter copper tube. Bottle
Filler water inlet is 3/8” Outer Diameter copper tube. Water line by others.
3. Completely flush supply lines of all foreign debris before connecting to fixture. Optional water filter (WF1), is
available should any of these problems arise from the water supply.

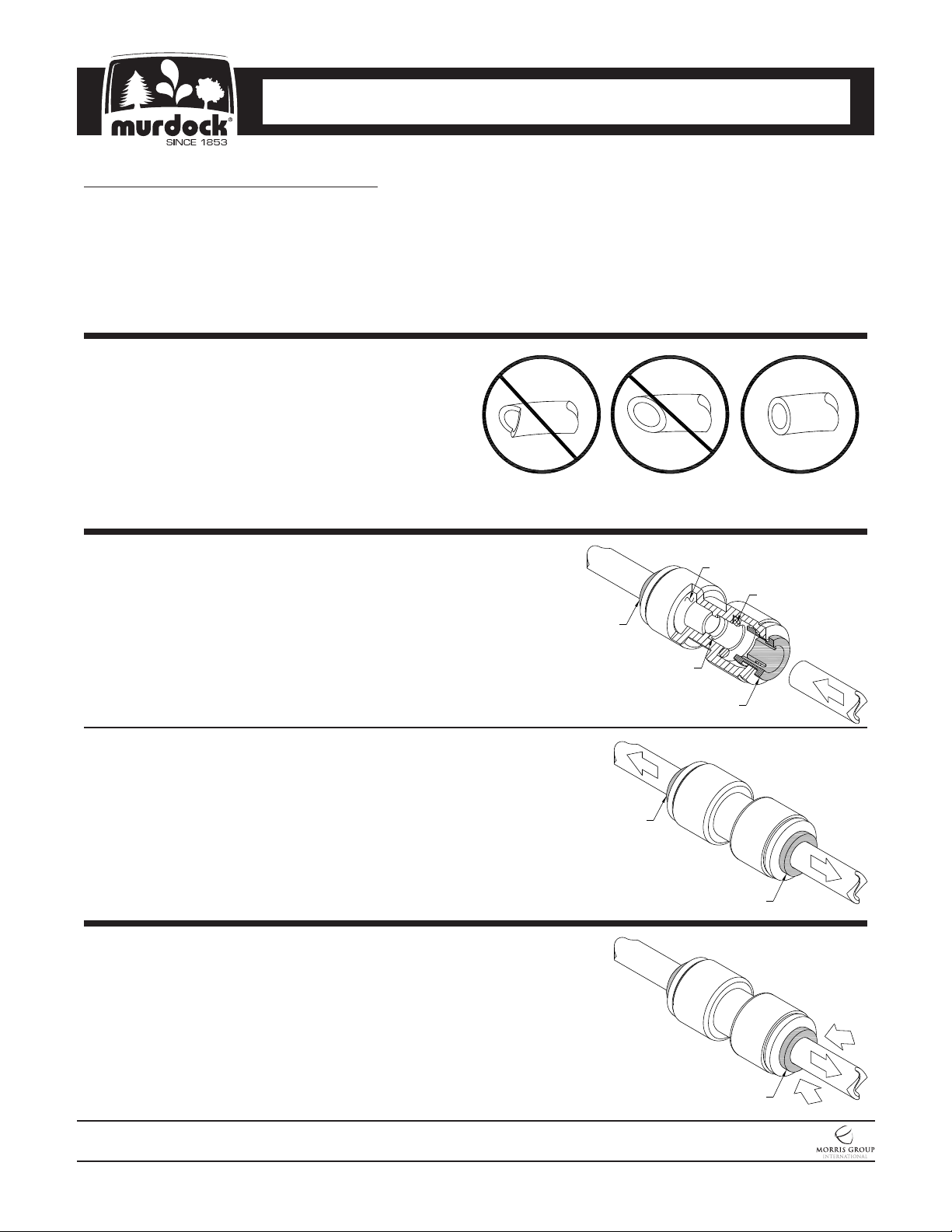

4. Do NOT solder tubes inserted into the bottle filler or the fountain strainer as damage to the o-rings on the
push-in fittings may result.
5. All burrs must be removed from outside of cut tubes before inserting into strainer or other components.
6. Provide electrical service to J-Box to power sensor and solenoid valve.
7. This unit must be grounded per the requirements of applicable electrical codes.
8. Fixture operates within water pressure range of 174 kPa (25 psig) to 724 kPa (105 psig). A pressure
regulator must be furnished by others on supply line if inlet pressure is greater than 724 kPa (105 psig).
9. Per UPC 609.10-All building water supply systems in which quick acting valves are installed shall be
provided with devices to absorb the hammer caused by high pressure resulting from the quick closing of the
valve. These pressure-absorbing devices shall be approved mechanical devices. Water pressure-absorbing
devices shall be installed as close as possible to the quick closing valve.
PRIOR TO INSTALLATION:
1. Read all installation instructions carefully, before proceeding.
2. Carefully remove all fixture components from packaging, preventing scratching or damage. Inspect fixture and
all parts from damages and all parts are bolted on.
3. Provide mounting surface, sufficient to support the fixture and loads on the fixture.
4. Provide rough-ins as shown on the roughing-in and dimensional drawing, including water supply, drain pipe
and gravel drain well. (See rough-in details)
5. Receptacle(s) must be wired to a GFCI protected circuit. Fixture must be earth grounded per NEC (National
Electrical Code).
6. Completely flush water supply lines of all foreign debris, before connecting to the fixture.
DRINKING FOUNTAIN INSTALLATION:
1. Insert mounting frame into the rough-in block out and secure using 1/4”-20 UNC mounting hardware (Provided
by Others).
2. Hang trim panel on mounting frame. Note: The included 1” brackets do not get used with this installation and
the plastic spacers are typically not required and can be discarded.
3. Install the four threaded studs into the Wall Mounting Frame
4. Remove the drinking fountain top by taking out the drain screw and lifting at the front while pulling forward.
Disconnect bubbler tube. Set top aside in a safe place where it will not be damaged. Place the screw in a
secure location where it will not be lost.
5. Slide Fixture over studs and secure with nuts and washers.
6. Assemble P-trap to drain adapter and then assemble to unit with Phillips screws.
7. Make-up 1-1/4” outer diameter waste connection.
8. After thoroughly flushing the 3/8” outer diameter supply line, connect water supply to in-wall chiller and provide
connection from chiller to ‘the multi-line “Y” strainer assembly. From multi-line “Y” strainer assembly, connect to
drinking fountain bubbler.
9. Place drain gasket on drain adapter. Reconnect bubbler tube. Reassemble top to unit by engaging back clip
and securing with screw.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 4 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

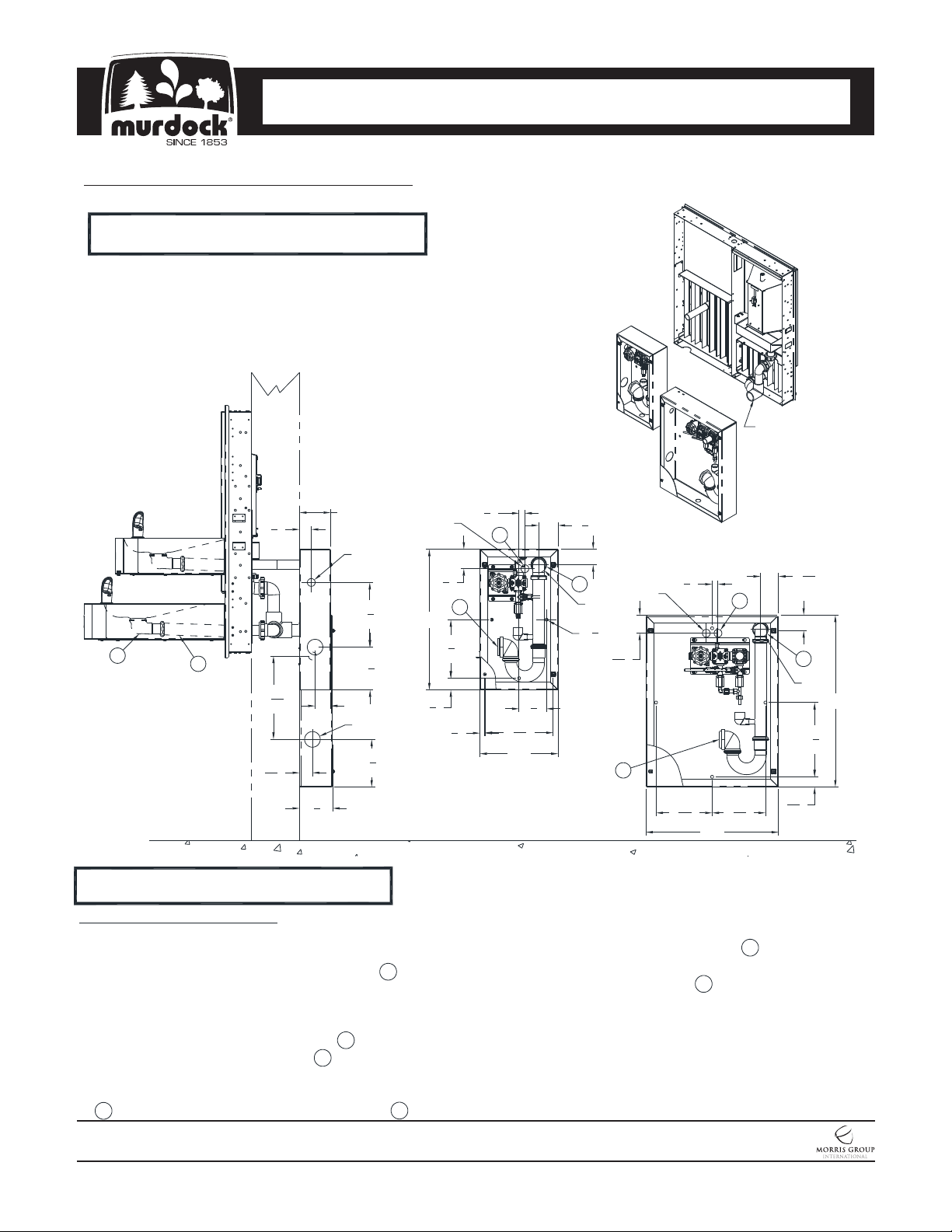

BOTTLE FILLER INSTALLATION:
1. With drinking fountain installed, connect water supply line from multi-line “Y” strainer assembly to bottle filler.
2. Loosen slip nuts to orientate P-trap to desired direction then tighten slip nuts and make up 1-1/4” O.D. waste
connection.
3. FOR -BF4 ONLY Make up power connections to the ground, neutral & hot within the electrical box.
NOTE: BEFORE PERFORMING STEP 4 REFER TO ELECTRICAL INSTALLATION.
4. Test for leaks and proper operation, and then install the bottle filler panel using the water filler bracket and
secure the bottle filler by tightening the screws under the bottle filler.
DRINKING FOUNTAIN START UP:
1. Before connecting power supply, but after thoroughly flushing the supply line and connecting it to drinking
fountains and bottle filler, turn on building water supply and check all connections for leaks.
2. Air within the drinking fountain system or the structure supply piping will cause an irregular bubbler outlet
stream until purged out by incoming water. Covering the bubbler with a clean cup (or similar object) is
recommended when first activating drinking fountain to prevent excessive splashing. Depress front push pad
until steady water stream is achieved.
3. If water flow requires adjustment, insert a slotted narrow blade screwdriver in the hole centered on the
underside of the fixture in the knee clearance area up to the flow regulator. Turning clockwise will increase
flow and turning counterclockwise will decrease flow.
4. Recheck all water connections with water flowing through system.
BOTTLE FILLER START UP:
1. Air within the bottle filler system or the structure supply piping will cause an irregular spout outlet stream until
purged out by incoming water. Press and hold pushbutton until steady water stream is achieved.
ŸSENSOR OPERATED: Hold container to be filled just below the sensor in the center of the filler spout
and then move the container upward and water flow will start automatically. When the container is
almost filled, lower the container below the sensor until the water stops flowing. (See label on the bottle
filler.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 5 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 6 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

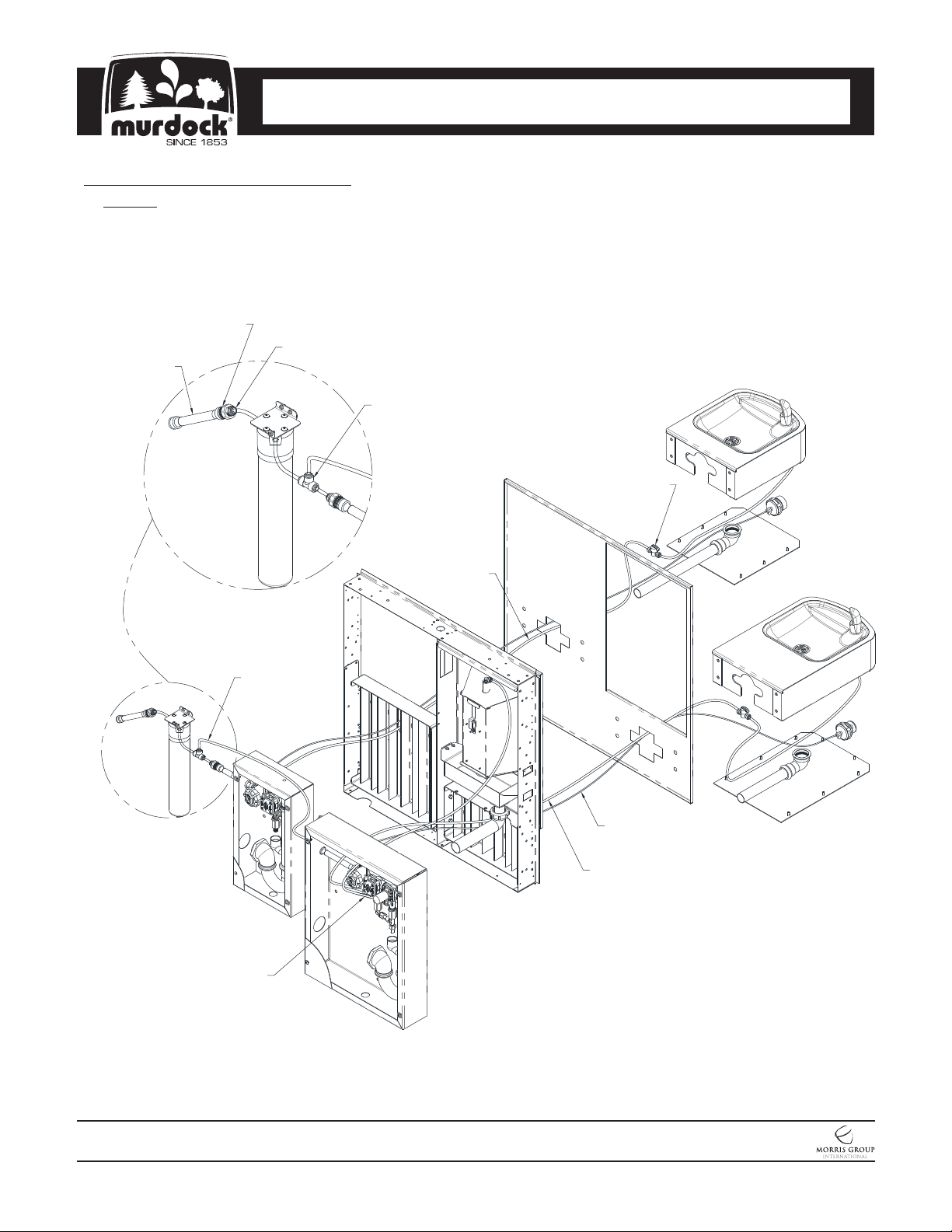

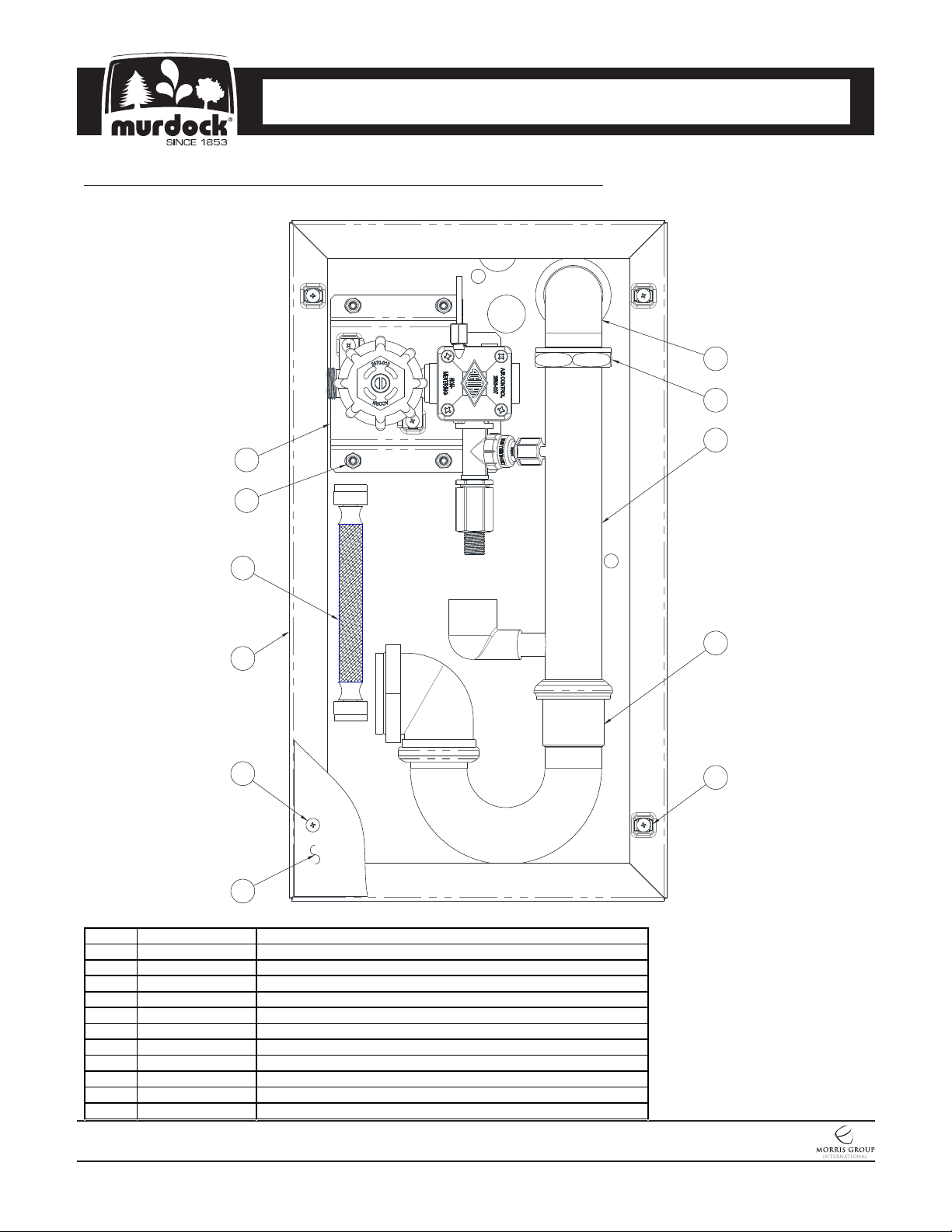

WATER TUBING CONNECTIONS:
NOTE: Insulation on all water tubes not shown (all PE water tubes are insulated).
1/2" NPS x 6-1/4"
Braided Hose
1/4" O.D. x 1/4" NPT
Push-in Fitting
1/4" NPTI x 1/2"
NPTE Adapter
1/4" Push-In Union Tee
1/4 Turn Shut-Off Valve
1/4" PE Tubing
Tee to FRA2
1/4" PE Tubing
Solenoid Valve to
Bottle Filler
1/4" PE Tubing
Valve to Tee
1/4" PE Tubing
Valve to Tee
1/8" PE Tubing
Valve to Pushbutton

A152-BF4-FRA
Page 7 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
ELECTRICAL INSTALLATION:
NOTE: Plug in power is a standard feature.
1A. Plug-In Operation: Plug transformer provided into GFCI protected electrical service, used by the
semi-recessed bottle filler. Plug in transformer to power supply and connect to red sensor wire.
Plug-In Transformer
9-12VDC Solenoid
Valve
Sensor
Freeze Resistant
Box Assembly
Mounting Frame

A152-BF4-FRA
Page 8 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
FREEZE RESISTANT BOX DIMENSIONS:
11
2"
51
2"
81
4"
10"
3
4"21
2"
31
2"
71
2"
11
2"
21
2"
811
16"
5
8"
18"
22"
17"
613
16"
73
16"
91
2"
15
16"
2"
25
16"
3
4"
2"
Ø1"
Ø2"
Ø2"
Ø1"
Ø1"
4"
61
8"
111
16"
1011
16"2"
41
4"
INSTALL FIXTURE FOLLOWING APPROPRIATE
INSTALLATION SHEETS AND PROVIDE THRU WALL
OPENINGS FOR ELBOW WASTE EXTENSION 1
OUTLET AND AIR AND SUPPLY TUBING. NOTE:
THRU WALL CONDUIT AND WALL INSULATION IS
PROVIDED BY THE INSTALLER.
ASSEMBLE WASTE EXTENSION TUBE 1 THRU
WALL TO FIXTURE CLOSE ELBOW 2 .
ANCHOR VALVE AND WASTE BOX ON INTERIOR
WALL BY ALIGNING FP 1-1/2" ELBOW CONNECTION
3 WITH FIXTURE WASTE EXTENSION OUTLET 1 .
MAKE UP WASTE CONNECTIONS TO FP BOX 1-1/2"
IPS P-TRAP WASTE OUTLET 4 .
CONNECT SUPPLY AND AIR TUBING FROM VALVE
THRU BOX OPENING 5 TO FIXTURE BUBBLERS
AND PUSHBUTTONS.
FLUSH WATER SUPPLY LINE OF ALL DEBRIS
PRIOR TO CONNECTING TO VALVE. CONNECT
SUPPLY LINE TO VALVE 1/2" NPS HOSE END
VALVE INLET CONNECTION.
ATTACH COVER TO BOX TO COMPLETE FP
INSTALLATION.
A-
B-
C-
D-
E-
F-
G-
INSTALLATION INSTRUCTIONS:
ALL WALL ANCHORS AND ANCHORING
HARDWARE ARE PROVIDED BY THE INSTALLER.
REFER TO LOCAL CODES AND/OR INDUSTRY
STANDARDS FOR CORRECT WASTE DRAIN SLOPE.
Ø3
8"
Ø2"
PLUMBING KIT
PROVIDED
BY OTHERS
3
3
25
16"
21
4
45
5

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 9 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
PUSH-IN FITTING INSTALLATION
NOTE: FITTINGS AND TUBE SHOULD BE KEPT
CLEAN, BAGGED AND UNDAMAGED PRIOR TO
INSTALLATION.
2. Pull on the fitted tubing to ensure it is secure. Tube
should not come free from the fitting. Water test the
connection assembly prior to leaving the site to ensure
there are no leaks.
DISCONNECTING THE TUBE:
To disconnect the tube from the fitting ensure that the
water line is depressurized. Push collet square towards
the push-in fitting body and hold. While holding the collet
in, pull on the PE tubing to remove from the push-in fitting.
TO CUT TUBE:
Cut to fit length of 1/4” PE tubing and remove any burrs
or sharp edges. Ensure that the outside diameter is free
from score marks. Tube ends should be square.
INSERTING THE TUBE:
1. Firmly and fully insert the tubing end into the push-in
fitting up to the tube stop located approximately ½”
deep.
COLLET
COLLET
O-RING
O-RING
TUBE STOP
COLLET
COLLET
COLLET

TROUBLE SHOOTING:
IMPORTANT: BEFORE MAKING ANY OF THE REPAIRS LISTED,
MAKE SURE THE WATER SUPPLY VALVE IS SHUT OFF.
1. ADJUSTMENTS:
a. Cartridge – The water flow can be adjusted using a slotted narrow blade screwdriver and turning
clockwise to increase flow and counterclockwise to decrease flow.
b. Bubbler Stream - Bubbler can be rotated slightly to direct the stream backwards or forwards. Adjust the
stream to minimize splashing. Splashing may occur from bubbler stream if the unit is not level. Shim
lower mounting point, if necessary, to level chiller.
2. RESTRICTED OR NO WATER FLOW:
a. Ensure water supply service stop valve is fully open.
b. Verify minimum 20 psig supply line flow pressure.
c. Check for twists or kinks in outlet tubing.
d. Check the water inlet “Y” strainer. Sediment from the main supply can get trapped in the screen along
with installation materials such as pipe dope and flux. The screen should be cleaned and checked on a
regular basis and replace if needed.
e. The cartridge valve located in the water control assembly or bubbler can also become clogged with
foreign material. The cartridge valve can only be replaced and not repaired.
f. Check flow adjustment. See start up note #3.
g. Flow control in solenoid valve outlet elbow clogged remove & clean.
h. No power to transformer connections, loose or wires cut.
SENSOR TROUBLE SHOOTING:
3. IF LIGHT WITHIN SENSOR DOES NOT FLASH ONCE WHEN USER IS WITHIN RANGE:
a. Verify 120VAC input & 9VDC output transformer output 9VDC.
b. Replace defective transformer.
c. Transformer polarity crossed. Replace transformer, sensor may be damaged and also need replacement.
d. Sensor in “Security Mode” after 30 seconds of consistent detection. Remove source of detection and wait
30 seconds before checking.
e. Sensor is picking up a highly reflective surface. Eliminate cause of reflection and wait 30 seconds before
checking.
4. IF LIGHT WITHIN SENSOR LENS FLASHES ONCE WHEN THE USER IS WITHIN RANGE:
a. Repair bad connection from sensor to solenoid.
b. There is debris or scale in the solenoid assembly. Remove solenoid, pull out plunger and spring. Clean
with scale remover solution.
c. There is debris or scale in the center or two holes in convolution of the water diaphragm. Remove and
clean.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 10 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 11 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CLEANING & MAINTENANCE GUIDE:
1. Motors have lifetime lubrication and do not require scheduled maintenance.
2. Excess dirt or poor ventilation will cause the compressor overload protector to turn the compressor off and it
will cycle on and off with no cold water coming out of bubbler. Periodically clean with vacuum cleaner, air
hose or brush the condenser fins and cabinet ventilation louvers. In environments where dirt and dust is
more prevalent, clean more frequently.
3. Periodically remove fountain top and clean out in-line strainer.
4. Periodically remove access panel of cooler and clean out inline “Y’’ strainer
For Powder coated units: Units should be cleaned using a mild soap solution with a sponge or cotton cloth.
Wipe down surfaces then rinse with clean water.
For Stainless steel units:
1. To Remove water spots or rust spots, stainless steel cleaner/polish on a cloth is
recommended.
2. If there are stubborn spots or if you wish to treat a scratch, synthetic abrasive general
purpose pads such as scotch brite are recommended.
3. Stainless steel should be kept clean at all times. If a coating of stainless steel cleaner/
polish is maintained, stainless steel surfaces will retain their new, clean, polished
appearance indefinitely.

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 12 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
OPTIONAL -WF1 WATER FILTER
See the following page for models with filter
ITEM PART NUMBER DESCRIPTION
1 0250-006-000 #10 x 5/8" Philips Truss Head Screw
2 7014-035-199 Water Filter Bracket
3 0124-031-000 #8 x 3/8" Hex Washer Head Screw
4 1895-709-000 Elbow, 1/4" Push-In x 1/4" Stem
5 7012-311-000 WF1 Filter 1500 Gallon
1
4
4
2
3
5

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 13 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
REPLACEMENT
CARTRIDGE
ASSEMBLY SHOWN
FOR REFERENCE ONLY
OPTIONAL -WF1 WATER FILTER INSTALLATION
See the following page for models with filter
1. Remove front panel, this allows access to the filter and
the inlet valve (provided by others). Turn valve knob 1/4
turn clockwise to close.
2. With the filter assembly secured on the unit, hold the cap
firmly, turn the replaceable cartridge filter
counterclockwise to remove.
3. Remove and replace the cartridge turning clockwise to
secure.
4. Turn inlet 1/4 turn knob 1/4 turn counterclockwise to
open and test for leaks and proper operation before
closing access door.
FILTER CARTRIDGE REPLACEMENT:

2-STATION FREEZE RESISTANT BOX ASSEMBLY BREAKDOWN
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 14 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
ITEM PART NUMBER DESCRIPTION
1 4970-059-000 SLIP NUT, 1-1/2 IPS x 1-1/2 CHROME PLATE
24953-060-000 1-1/2" x 1-1/2" BRASS L.A. CODE P-TRAP
34872-025-002 WELDMENT, AIR TROL/SOLENOID BOX, FR
44871-025-001 FREEZE-RESISTANT TAILPIECE ASSEMBLY, 2 & 3 STATION
5 4871-021-199 2/3-STN. (-FP) FREEZE RESISTANT BOX COVER
6 2950-024-000 SLOAN FLUSH VALVE INLET ELBOW
7 2590-405-001 VALVE ASSEMBLY, AIR TROL/ SOLENOID, FREEZE RESISTANT
8 2195-010-000 1/2" NPS x 6-1/4"BRAIDED S/S
9 0710-730-001 9V PLUG-IN SWITCHING ADAPTER w / TERMINALS
10 0709-034-001 JUNCTION BOX ASSEMBLY, BF4
11 0308-010-000 #10-32 UNF STAINLESS STEEL HEX NUT
1
2
34
5
6
7
8
9
10
11

1-STATION FREEZE RESISTANT BOX ASSEMBLY BREAKDOWN
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 15 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
ITEM PART NUMBER DESCRIPTION
1 4872-000-002 1-STATION FREEZE-RESISTANT BOX
20316-020-000 #10-32 TINNERMAN NUT
32590-400-001 1-STATION FREEZE-RESISTANT VALVE ASSEMBLY
44953-060-000 1-1/2" x 1-1/2" BRASS L.A. CODED P-TRAP
5 4871-010-001 1-STATION (-FP) FREEZE-RESISTANT T'PIECE
6 2950-024-000 SLOAN FLUSH VALVE INLET ELBOW
7 2950-025-000 SLOAN F.V. COUPLING NUT & GASKET KIT
8 0308-010-000 #10-32 UNF STAINLESS STEEL HEX NUT
9 4871-001-199 1-STATION (-FP) FREEZE-RESISTANT BOX COVER
10 0116-013-000 #10-32 x 3/4" STAINLESS STEEL PHILLIPS ROUND HEAD SCREW
11 2195-010-000 1/2" NPS x 6-1/4" BRAIDED STAINLESS STEEL HOSE
5
8
1
2
3
4
6
7
9
10
11

18”FOUNTAIN PARTS BREAKDOWN WITH FREEZE RESISTANCE COMPONENTS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 16 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
ITEM PART NUMBER DESCRIPTION
1 7001-306-001 18" CONTOUR CABINET ASSEMBLY, 14 GAGE
7000-012-001 STAINLESS STEEL BUBBLER ASSEMBLY
7014-180-001 STAINLESS STEEL BUBBLER ASSEMBLY, GOLD FINISH
7000-012-015 STAINLESS STEEL BUBBLER ASSEMBLY, BRONZE FINISH
3 012-002-000 #10-32 X 1/2" HEX FLAT HEAD SCREW
4 7000-021-001 "Y" STRAINER
5 7000-420-000 1/4 TURN SHUT-OFF VALVE
6 7000-111-199 1-1/4" O.D. x 17" LARGE DRAIN TUBE
7 7000-006-000 FLAT DRAIN ADAPTER GASKET
8 7000-005-199 DRAIN ADAPTER (CHROME PLATED)
9 7000-017-001 ELBOW, O-RING x 1-1/4" COMPRESSION
10 1895-450-000 1/8" O.D. NYLON COMPRESSION NUT
11 2566-056-199 DIAPHRAGM RETAINER, BACK OUTLET
12 2566-022-000 AIR-TROL DIAPHGRAGM
13 2566-022-000 ESCUTCHEON RETAINER
14 7002-125-002 WELDED PUSHBUTTON ASSEMBLY
15 7001-124-199 BOTTOM PLATE
16 0112-002-000 #10-32 x 1/2" BUTTON HEAD CENTER REJECT SCREW
17 0401-128-000 1-7/16 I.D. x 1-5/8 O.D. x 3/32 O-RING
2
1
6
8
7
4
5
15
2
3
10 11 12
13
14
16
17
9

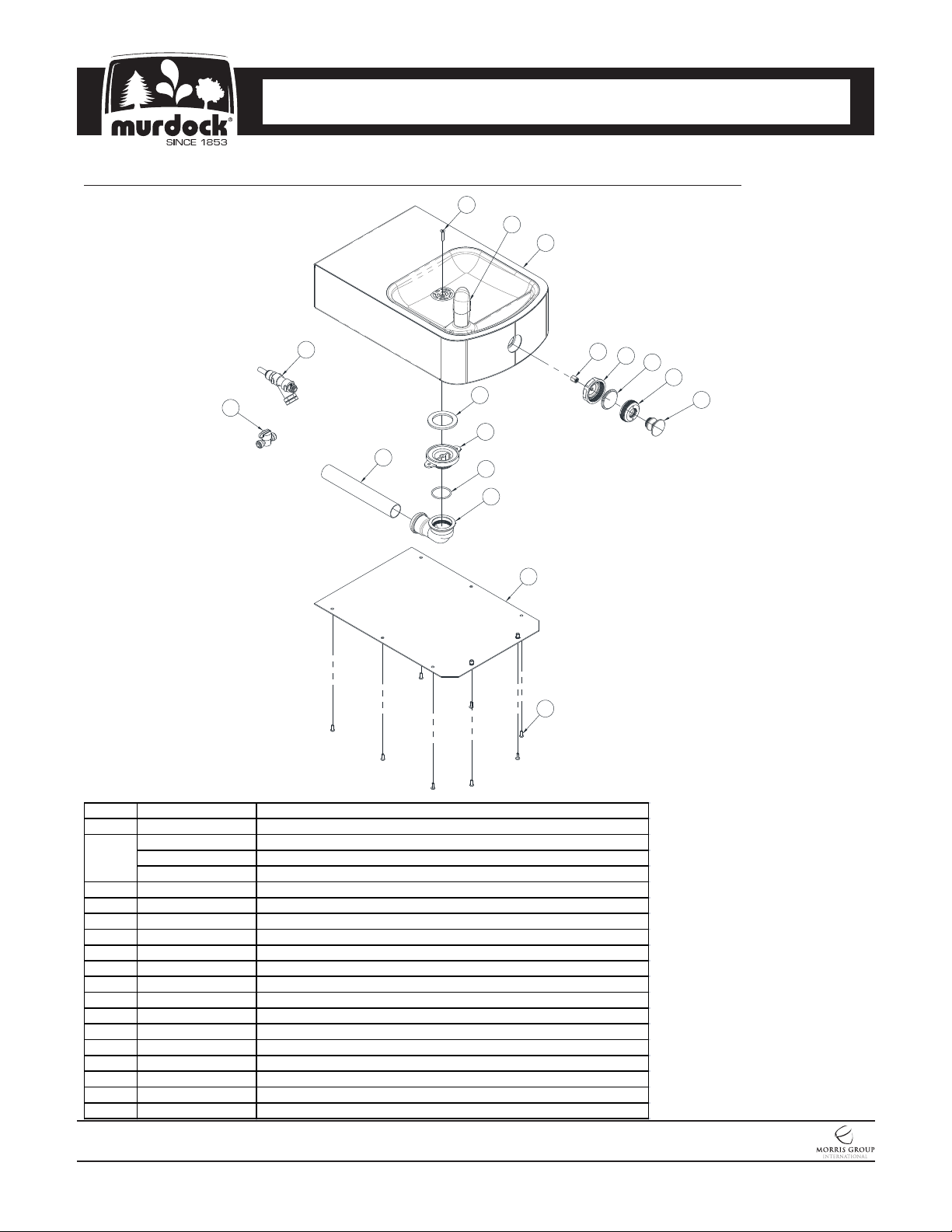

14” FOUNTAIN PARTS BREAKDOWN WITH FREEZE RESISTANCE COMPONENTS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 17 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
ITEM PART NUMBER DESCRIPTION
1 7001-306-001 18" CONTOUR CABINET ASSEMBLY, 14 GAGE
7000-012-001 STAINLESS STEEL BUBBLER ASSEMBLY
7014-180-001 STAINLESS STEEL BUBBLER ASSEMBLY, GOLD FINISH
7000-012-015 STAINLESS STEEL BUBBLER ASSEMBLY, BRONZE FINISH
3 012-002-000 #10-32 X 1/2" HEX FLAT HEAD SCREW
4 7000-021-001 "Y" STRAINER
5 7000-420-000 1/4 TURN SHUT-OFF VALVE
6 7000-111-199 1-1/4" O.D. x 17" LARGE DRAIN TUBE
7 7000-006-000 FLAT DRAIN ADAPTER GASKET
8 7000-005-199 DRAIN ADAPTER (CHROME PLATED)
9 7000-017-001 ELBOW, O-RING x 1-1/4" COMPRESSION
10 1895-450-000 1/8" O.D. NYLON COMPRESSION NUT
11 2566-056-199 DIAPHRAGM RETAINER, BACK OUTLET
12 2566-022-000 AIR-TROL DIAPHGRAGM
13 2566-022-000 ESCUTCHEON RETAINER
14 7002-125-002 WELDED PUSHBUTTON ASSEMBLY
15 7001-124-199 BOTTOM PLATE
16 0112-002-000 #10-32 x 1/2" BUTTON HEAD CENTER REJECT SCREW
17 0401-128-000 1-7/16 I.D. x 1-5/8 O.D. x 3/32 O-RING
2
1
6
9
8
7
4
5
15
2
3
10 11 12
13
14
16
17

A152-BF4 SERIES BREAKDOWN
Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A152-BF4-FRA
Page 18 of 18
NEW
7020-945-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
20
22
23
24
25
19
18
17
16
14
15
13
21
11
12
10
9
8
7
6
5
3
4
2
1
ITEM PART NUM BER DESCRIPTION
1 4872-025-001 2-STATION FREEZE RESISTANT BOX ASSEMBLY
24872-000-001 1-STATION FREEZE RESISTANT BOX ASSEMBLY
30110-004-000 #8 - 3/4" PHILLIPS PAN HED SCREW
40124-031-000 #8 x 3/8" HEX HEAD SCREW
5 7014-034-199 DRAIN TRAY
6 7000-006-000 DRAIN ADAPTER GASKET
7 7003-186-199 1-1/4" x 2-3/4" PLASTIC DRAIN TUBE
8 4970-282-000 1-1/2" SLIP JOIN WASTE ARM x 11-1/2", WHITE POLY
9 7014-041-001 MOUNT FRAME ASSEMBLY, BOTTLE FILLER, W32-RBL
10 7014-042-199 TRIM PANEL BF4-W32-RBL w / BOX FOUNTAINS
11 7001-325-001 14 GAGE OVAL BOX ASSEMBLY, 18" LONG, FRA/FRU
12 7001-326-001 14 GAGE OVAL BOX ASSEMBLY, 14" LONG, FRA/FRU
13 0331-023-000 #8 S/S FLAT WASHER
14 6527-108-000 #8 INTERNAL TOOTH LOCKWASHER
15 0302-003-000 #8-32 S/S HEX NUT
16 7013-014-199 NANO SENSOR BRACKET
17 7013-019-199 FOAM TAPE
18 2563-380-001 NANO SENSOR ASSEMBLY
19 7013-009-001 NANO SENSOR SPACER ASSEMBLY
20 7014-019-003 PANEL ASSEMBLY, BF4
21 7013-032-000 GRAPHICS PLATE, #4 FINISH
22 0116-013-000 #10-32 x 3/4" PHILLIPS ROUND HEAD SCREW
23 7013-103-199 MESH SCREEN
24 7013-114-001 SCREEN PLATE, BF4
25 0302-005-000 1/4-20 UNC S/S HEX NUT
