Murdock A131408F User manual

A131.8 Series
Barrier Free, Wall Mounted Electric Drinking Fountain
A131408F / A131408S
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
1.800.591.9360
Technical Assistance Fax: [phone]
** U.S. DESIGN PATENT D545,607 (Bowl Design)
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
LIMITED WARRANTY - UNITED STATES & CANADA
Murdock warrants that every cooler, bottle filling station, packaged water chiller, fountain and accessory to be free
from defects in material and workmanship under normal use for one (1) year from date of install or eighteen (18)
months after the date of shipment from the factory, whichever comes first.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this
warranty. Murdock shall not be liable under any circumstances for incidental, consequential or direct charges
caused by defects in the materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all
other warranties expressed or implied. Product maintenance instructions are issued with each unit and disregard
or non-compliance with these instructions will constitute an abnormal use condition and void the warranty.
Stainless steel must be protected on job site during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Murdock’s limited warranty is void.
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
LIMITED EXPORT WARRANTY - One year on parts only.
Murdock warrants the compressor and hermetically sealed refrigeration system, including cooling coil assembly
when part of the hermetically sealed refrigeration system, to be free from defects in material and workmanship
under normal use for an additional four (4) years from the end of the one (1) year period described above.
COMPLIES WITH
7020-932-001 Date: 07/18/18
Test rating conditions are
compliant with ARI 1010.
Federal
Public Law
111-380
(No Lead) Member of
MURDOCK
15125 Proctor Ave.
City of Industry, CA
91746 U.S.A.
Phone [phone]
626-336-4561
Fax [phone]
www.murdockmfg.com
Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.

IMPORTANT
This fixture is intended to dispense water that has been lowered in temperature, but otherwise remains
unchanged by the materials in the drinking fountain. It is common for electrical equipment to be
grounded to water lines either within a structure or away from it. Every attempt should be made to
prevent this kind of grounding from generating electrical feedback into the drinking fountain creating
electrolysis. Electrolysis will cause a metallic taste or cause water metal content to increase.
NOTICE
A dielectric coupling must be used to connect the drinking fountain to the water supply. A nonmetallic
coupler is furnished with this water cooler to meet this requirement.
ROUGHING-IN AND DIMENSIONAL DRAWING
Prior to roughing consult with local, state, and federal codes for proper mounting height.
A131408S Refrigerated Wall Mounted Drinking Fountain
Note: There are no mounting changes to be made for -SO models.
NOTES: Dimensions shown for Adult ADA compliant installation. For Child ADA compliant parallel
approach installation, decrease height of installation by 3 inches. Provide clear floor space as required.
Adjust vertical dimensions as required to comply with federal, state, and local codes.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A131.8
Page 2 of 10
Revised: 07/18/18
7020-032-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
FINISHED FLOOR
GENERAL NOTES:
1. ALL DIMENSIONS ARE IN INCHES [MM]
*2. DIMENSIONS SHOWN ARE FOR RECOMMENDED ADULT HEIGHT. ADJUST VERTICAL
DIMENSIONS AS NECESSARY TO COMPLY WITH FEDERAL, STATE, & LOCAL CODES
3. WATER LINE FROM CHILLER TO FOUNTAIN SHOULD BE COVERED WITH SPONGE FOAM
RUBBER OR ICE WATER TYPE INSULATION OF ADEQUATE THICKNESS
13
8"
41
2"
*33"
SUPPLY STOP
VALVE BY
OTHERS
*291
4"
191
4"
20"
19"
WALL
OPENING
3/8" OD SUPPLY
INLET
11"
WALL
OPENING
3/8" OD
COPPER
TUBING
SUPPLIED MTG
FRAME
383
8"
WALL
OPENING
21"
2"
*55
8"
*295
8"
WASTE OUTLET
FOR 1-1/4" P-TRAP

IMPORTANT:
1. Water Supply Service Stop Valve, Water Connections and Electrical Connections to be supplied by others in
accordance with local codes.
9. WARNING: Warranty is voided if installation is not made following current Murdock Mfg. installation
instructions and if components are assembled to the fixture that are not approved by Murdock Mfg.
2. Provide 4” minimum clear space in front of bottom trim panel and above in-wall chiller to allow for proper
ventilation.
6. All burrs must be removed from outside of cut tubes before inserting into strainer or other components.
3. Waste is 1-1/4” Outer Diameter. Chiller water inlet is 3/8” Outer Diameter copper tube. Chiller water outlet is
3/8” Outer Diameter copper tube. Drinking Fountain water inlet is 3/8” Outer Diameter copper tube. Bottle
Filler water inlet is 3/8” Outer Diameter copper tube. Water line by others from in-wall chiller to drinking
fountain must have adequate insulation.
5. Do NOT solder tubes inserted into the chiller, bottle filler or the fountain strainer as damage to the o-rings on
the push-in fittings may result.
7. Power supply must be identical in voltage, cycle and phase to that specified on the chiller data plate. Refer to
submittal.
10. Fixture operates within water pressure range of 174 kPa (25 psig) to 724 kPa (105 psig). Murdock Mfg. will
not warranty chiller damaged when connected to supply lines with flow pressure lower than 174 kPa (25
psig) or higher than 724 kPa (105 psig). A pressure regulator must be furnished by others on supply line if
inlet pressure is greater than 724 kPa (105 psig).
12. Per UPC 609.10-All building water supply systems in which quick acting valves are installed shall be
provided with devices to absorb the hammer caused by high pressure resulting from the quick closing of the
valve. These pressure-absorbing devices shall be approved mechanical devices. Water pressure-absorbing
devices shall be installed as close as possible to the quick closing valve
8. This unit must be grounded per the requirements of applicable electrical codes.
4. Completely flush supply lines of all foreign debris before connecting to fixture. Water cooler designed to not
cause problems with taste, odor, color, or sediment. Optional Water Filter (WF1), is available should any of
these problems arise from the water supply.
11. Due to cold waste water, Murdock Mfg. recommends that waste piping supplied by installer be insulated
appropriately to prevent excessive condensation.
4. Provide rough-ins as shown on the roughing-in and dimensional drawing, including water supply, drain pipe
and gravel drain well. (See rough-in details)
PRIOR TO INSTALLATION:
6. Electrical Receptacle(s) must be wired to a GFCI protected circuit. Fixture must be earth grounded per NEC
(National Electrical Code).
3. Provide mounting surface, adequate to support the fixture and loads on the fixture.
2. Carefully remove all fixture components from packaging, preventing scratching or damage. Inspect fixture and
all parts from damages and all parts that are bolted on.
1. Read all installation instructions carefully, before proceeding.
5. It is common for electrical equipment to be grounded to water lines either within a structure or away; otherwise,
remains unchanged by the materials in the water cooler. Every attempt should be made to prevent this kind of
grounding from generating feedback into the water cooler creating electrolysis. Electrolysis will cause a
metallic taste or cause water content to increase.
7. Completely flush water supply lines of all foreign debris, before connecting to the fixture.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A131.8
Page 3 of 10
Revised: 07/18/18
7020-032-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

2. Verify frame chiller shelf is secure and install the
chiller following the instructions included with
the chiller
1. Install –MF3 Chiller and Drinking Fountain Wall
Mounting Frame following the instructions
included with the frame.
INSTALLATION:
3. Hang upper trim panel on mounting frame.
Note: The included 1” brackets do not get used
with this installation and the plastic spacers are
typically not required and can be discarded.
4. Install the four threaded studs into the Wall
Mounting Frame.
5. Remove the drinking fountain top 1 by taking out the drain screw 2 and lifting at the front while
pulling forward. Disconnect bubbler tube 3 . Set top 1 aside in a safe place where it will not be
damaged. Place the screw 2 in a secure location where it will not be lost.
6. Slide fixture over studs and secure with nuts and washers 4 .
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A131.8
Page 4 of 10
Revised: 07/18/18
7020-032-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

8. Make-up 1-1/4” outer diameter waste connection.
7. Assemble p-trap 5 to drain adapter 6 and then assemble to unit with Phillips screws 7 .
9. After thoroughly flushing the 3/8” outer diameter supply line, connect water supply to in-wall chiller
and provide connection from chiller to drinking fountain in-line strainer 8 .
11. Place drain gasket 9 on drain adapter 6 . Reconnect bubbler tube 3 . Reassemble top
1 to unit by engaging back clip and securing with screw 2 .
10. FOR SENSOR OPERATED ONLY: With transformer NOT plugged in, run wire from behind the
Wall Mounting Frame and Trim Panel into lower drinking fountain and connect to sensor.
2. Air within the drinking fountain system or the structure supply piping will cause an irregular bubbler
outlet stream until purged out by incoming water. Covering the bubbler with a clean cup (or similar
object) is recommended when first activating drinking fountain to prevent excessive splashing.
ŸSENSOR OPERATED: Plug in transformer, trigger lower unit sensor and depress upper unit
front push pad until water stream is achieved.
ŸSTANDARD UNITS: Depress front push pad until steady water stream is achieved.
3. If water flow requires adjustment, insert a slotted narrow blade screwdriver in the hole centered on
the underside of the fixture in the knee clearance area up to the flow regulator. Turning clockwise
will increase flow and turning counterclockwise will decrease flow.
6. Provide power to water chiller and make sure unit begins to function.
7. Assemble louvered bottom trim panel with screws provided to brackets on either side of wall
mounting frame.
START UP:
5. With power still NOT connected, carefully manually rotate cooling fan to ensure proper clearance
and free fan action
TROUBLE SHOOTING:
4. Recheck all water connections with water flowing through system.
IMPORTANT: BEFORE MAKING ANY OF THE REPAIRS LISTED, MAKE SURE THE
WATER CHILLER IS DISCONNECTED FROM THE ELECTRICAL SUPPLY AND THE
WATER SUPPLY VALVE IS SHUT OFF.
1. Before connecting power supply, but after thoroughly flushing the supply line and connecting it to
the cooler, turn on building water supply and check all connections for leaks.
1. Adjustments:
2. Compressor Does Not Run:
b. If the cold thermostat capillary bulb loses its charge or becomes kinked it will fail in the open
position causing a disruption of power to the compressor. Disconnect electrical supply to the
water chiller and using an ohm meter check for continuity across the two electrical terminals on
the thermostat. Install a new thermostat if there is no continuity.
c. Check for loose wires within the compressor box. The incoming power leads must be connected
to the overload and relay.
c. Bubbler Stream - Bubbler can be rotated slightly to direct the stream backwards or forwards.
Adjust the stream to minimize splashing. Splashing may occur from bubbler stream if the unit is
not level. Shim lower mounting point, if necessary, to level chiller.
a. Check the electrical supply for power and correct voltage. The incoming voltage must be within
10% of the rated voltage on the serial nameplate.
a. Cartridge – The water flow can be adjusted using a slotted narrow blade screwdriver and turning
clockwise to increase flow and counterclockwise to decrease flow.
b. Cold Water Thermostat – The water temperature can be adjusted using a slotted screwdriver
and turning clockwise to make colder and counterclockwise to make warmer.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A131.8
Page 5 of 10
Revised: 07/18/18
7020-032-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

b. Check the compressor mounting to make sure the pins and clips are not rattling. If the
compressor appears to be noisy internally, it must be replaced.
b. Verify minimum 20 psig supply line flow pressure.
a. The most common cause for a water chiller to run without producing cold water is a loss of
refrigerant. The water chiller must be taken to a certified refrigerant technician for repairs.
a. Check to make sure the fan blade is rotating freely.
g. The water chiller may also develop a freezing condition in which the water will become frozen
inside the evaporator coil. This indicates a refrigeration problem or thermostat failure in which
case the water chiller needs to be checked by a qualified technician.
b. Check the incoming voltage to make sure it is within 10% of the serial nameplate rating.
4. Compressor Cycling On Overload Protector:
c. Transformer polarity crossed. Replace transformer, sensor may be damaged and also need
replacement.
3. Compressor Runs – Water Is Warm:
b. Make sure the condenser fan motor is operative. The fan blade must turn freely to help remove
the heat of compression.
c. An incorrect refrigerant charge, restriction or defective compressor (not pumping) will also cause
the compressor to run without producing cold water. All these signs indicate a problem within
the refrigeration system and the water chiller must be checked by an authorized service
company.
a. A dirty condenser or a blocked fan will cause a high head pressure and frequent cycling of the
overload protector.
c. A restriction or moisture in the system will also cause intermittent cycling. A certified refrigeration
mechanic should be contacted in this situation.
d. Change the overload or relay if defective.
5. Noisy Operation:
6. Restricted Or No Water Flow:
a. Ensure water supply service stop valve is fully open.
c. Check for twists or kinks in outlet tubing.
d. Check the water inlet strainer. Sediment from the main supply can get trapped in the screen
along with installation materials such as pipe dope and flux. The screen should be cleaned and
checked on a regular basis and replace if needed.
e. The cartridge valve located in the water control assembly or bubbler can also become clogged
with foreign material. The cartridge valve can only be replaced and not repaired.
f. Check flow adjustment. See start up note #3.
h. No power to transformer connections, loose or wires cut.
7. Water Drips Or Will Not Shut Off:
a. Open fixture. Loosen nuts holding valve bracket assembly to bottom of fixture but do not
remove. Move complete valve bracket assembly further back from the front push pad and
tighten to lock in place.
b. Replace valve cartridge.
8. If Light Within Sensor Does Not Flash When User Is In Range:
a. Verify 120VAC input & 9VDC output transformer output 9VDC.
b. Replace defective transformer.
d. Sensor in “Security Mode” after 30 seconds of consistent detection. Remove source of detection
and wait 30 seconds before checking.
e. Sensor is picking up a highly reflective surface. Eliminate cause of reflection and wait 30
seconds before checking.
f. Replace Sensor.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A131.8
Page 6 of 10
Revised: 07/18/18
7020-032-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

1. Strainer plug must be removed before cartridge replacement and strainer maintenance (no need to
turn the water off at the angle stop). Some residual water will drain during plug removal.
2. Clean strainer as needed using clean water.
Note: Use the universal maintenance tool to perform the following:
2. Excess dirt or poor ventilation will cause the compressor overload protector to turn the compressor
off and it will cycle on and off with no cold water coming out of bubbler. Periodically clean with
vacuum cleaner, air hose or brush the condenser fins and cabinet ventilation louvers. In
environments where dirt and dust is more prevalent, clean more frequently.
3. Cartridge replacement - insert diamond end of the universal tool into pushbutton, rotate 90
degrees and pull firmly to remove the button. Remove cartridge retaining nut . Remove and
replace cartridge. When replacing cartridge be sure to align the inlet and outlet ports on the
cartridge with the ports in the valve body.
3. Periodically remove fountain top and clean out in-line strainer.
1. Motors have lifetime lubrication and do not require scheduled maintenance.
CARTRIDGE REPLACEMENT/ STRAINER MAINTENANCE
c. There is debris or scale in the center or two holes in convolution of the water diaphragm.
Remove and clean.
4. DO NOT use harsh chemicals, abrasive or petroleum based cleaners. Use of these will void the
Acorn Engineering warranty.
CLEANING & MAINTENANCE GUIDE:
5. Exterior panels can be cleaned using mild household detergents or warm, soapy water. Extra care
must be used cleaning chrome plated items and mirror finished stainless steel. They can scratch
easily and should only be cleaned using a clean, soft cloth and mild soap with water or a mild glass
cleaner.
—NOTE: STRAINER SCREEN MUST BE IN PLACE FOR WATER TO FLOW.
9. If Light Within Sensor Lens Flashes Once When User Is Within Range:
a. Repair bad connection from sensor to solenoid.
b. There is debris or scale in the solenoid assembly. Remove solenoid, pull out plunger and spring.
Clean with scale remover solution.
ITEM # PART NUMBER DESCRIPTION
1 7000-050-001 Valve Cartridge Assembly
2 7000-060-000 Valve Cartridge
3 7000-053-199 Jam Nut
2
1
3

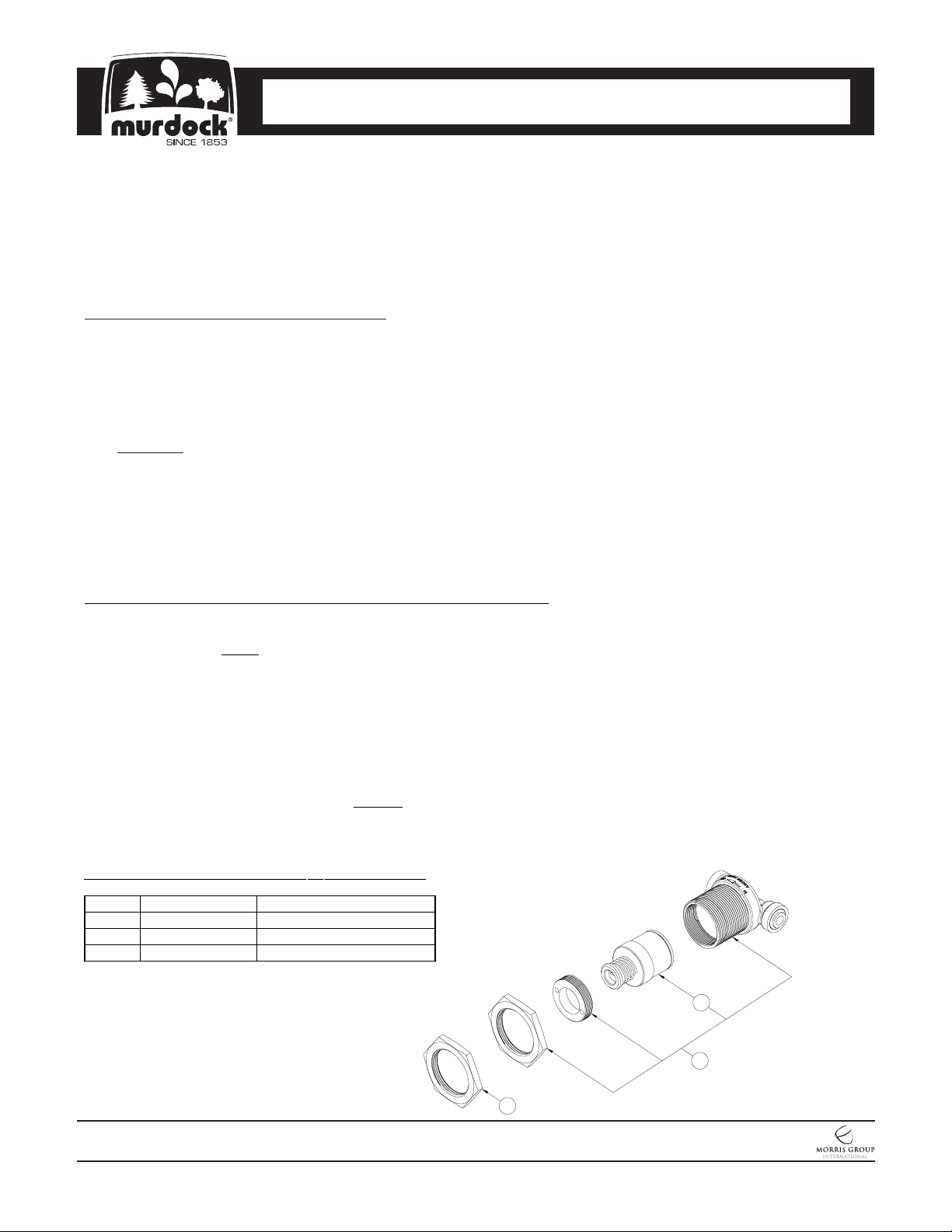

CARTRIDGE VALVE PARTS BREAKDOWN
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A132.8
Page 7 of 10
Revised: 07/18/18
7020-032-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A131.8
Page 8 of 10
Revised: 07/18/18
7020-032-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
PUSH-IN FITTING INSTALLATION
NOTE: FITTINGS AND TUBE SHOULD BE KEPT
CLEAN, BAGGED AND UNDAMAGED PRIOR TO
INSTALLATION.
2. Pull on the fitted tubing to ensure it is secure. Tube
should not come free from the fitting. Water test the
connection assembly prior to leaving the site to ensure
there are no leaks.
DISCONNECTING THE TUBE:
To disconnect the tube from the fitting ensure that the
water line is depressurized. Push collet square towards
the push-in fitting body and hold. While holding the collet
in, pull on the PE tubing to remove from the push-in fitting.
TO CUT TUBE:
Cut to fit length of 1/4” PE tubing and remove any burrs
or sharp edges. Ensure that the outside diameter is free
from score marks. Tube ends should be square.
INSERTING THE TUBE:
1. Firmly and fully insert the tubing end into the push-in
fitting up to the tube stop located approximately ½”
deep.
COLLET
COLLET
O-RING
O-RING
TUBE STOP
COLLET
COLLET
COLLET

CHILLER PARTS BREAKDOWN
Reference installation manual included with in-wall chiller for appropriate Chiller Parts Breakdown.
FOUNTAIN PARTS BREAKDOWN
Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.
6
5
4
2
3
1
7A
7B
12
9
8
10
11 13
14
15
** 16
NOTE:
** Flow Restrictor Only Available
With Low Flow Bubbler.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A131.8
Page 9 of 10
Revised: 07/18/18
7020-032-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
ITEM # PART NUMBER DESCRIPTION ITEM # PART NUMBER DESCRIPTION
1 7000-005-199 Drain Adapter 9 7000-050-001 Valve Assembly
2 0116-016-000 Phillips Truss Head Screw 10 0308-009-000 Nylon Insert Locknut
3 7000-006-000 Flat Drain Adapter Gasket 11 0331-004-000 Flat Washer
4 7000-015-000 1-1/4" OD P-Trap 12 7001-008-001 Valve Activation Ass em bly
5 7000-021-001 "Y" Strainer 13 0341-100-000 Wire Clip
6 0152-040-000 Allen Flat Head Screw 14 7000-100-199 Black Delrin Shaft
7A 7000-012-001 Stainles s Steel Bubbler As s em bly 15 7000-004-000 Push Pad
7B 7000-099-002 Flexible Gray Bubbler Assembly 16 7003-093-001 Flow Restrictor - Low-Flow Bubbler Only
8 7000-060-000 Valve Cartridge

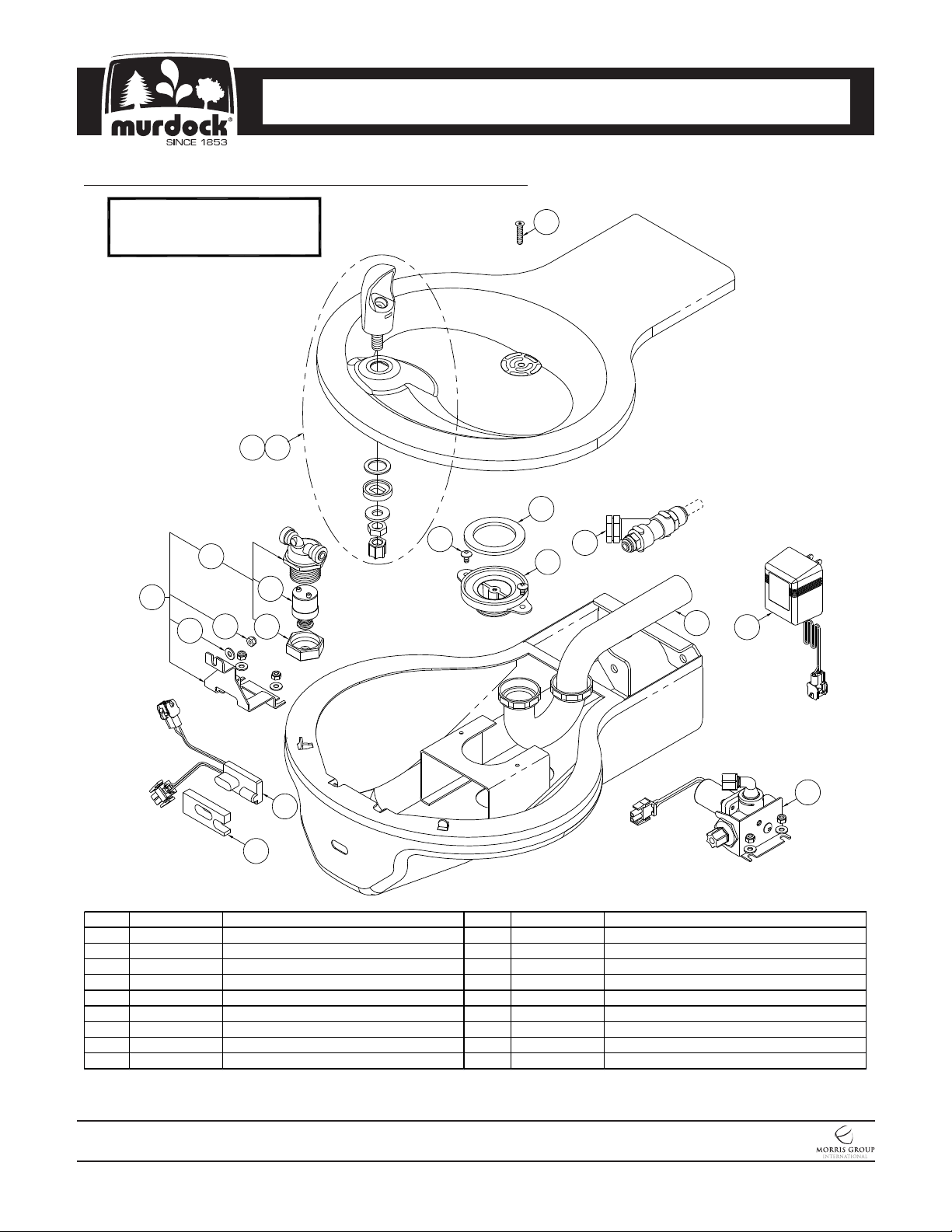

SENSOR OPERATED FOUNTAIN PARTS BREAKDOWN
Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.
ITEM # PART NUMBER DESCRIPTION ITEM # PART NUMBER DESCRIPTION
1 0152-040-000 Allen Flat Head Screw 9 0308-009-000 Nylon Insert Locknut
2A 7000-012-001 StainlessSteel Bubbler Assy 10 0331-004-000 Flat Waher
2B 7000-099-002 Flexible Gray Bubbler Assembly 11 7000-059-199 Valve Cap
3 7000-006-000 Flat Drain Adapter Gasket 12 7000-060-000 Valve Cartridge
4 0116-016-000 Phillips Truss Head Screw 13 2562-373-001 9V DC Sensor Assembly
5 7000-005-199 Drain Adapter 14 7001-202-199 Sensor Spacer
6 7000-021-000 "Y" Strainer 15 7000-015-000 1-1/4" OD P-Trap
7 7000-067-001 Flow Adjustment Valve & Sensor Bracket 16 0711-410-001 9V DC Plug-In Transformer
8 7000-050-001 Valve Assembly 17 7001-200-001 Solenoid Valve Assembly w/ Mounting Bracket
12
11
9
10
7
8
2A
4
3
5
6
1
16
15
17
13
14
2B
NOTE:
** Flow Restrictor Only Available
With Low Flow Bubbler.
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
DRINKING FOUNTAINS
A131.8
Page 10 of 10
Revised: 07/18/18
7020-032-001
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
