MyBinding Paitec ES7000 User manual

Paitec ES7000 Tabletop
Folder and Pressure Sealer
Instruction Manual

ES-7000 User Manual
ES-70O0
User Manual
Rev. 070514

ES-7000 User Manual
- 1 -
Greeting
Thank you for purchasing Paitec USA products.
This manual is prepared to provide guidelines on how to properly operate and maintain
the Model ES-7000.
Copyright
Any of the contents should not be copied, re-printed or translated by other languages
without Paitec USA approval.
Notice
Caution: Physical injury and serious mechanical damage will occur when
disregarding this information.
Important: This information is contained with useful information and guidance.
Reference: This information guides the chapter which detailed contents.

ES-7000 User Manual
- 2 -
Table of Contents
Chapter 1 - Installation
1-1 Installation Environment
1-2 Unpacking
1-3 Removing Safety Tapes and Styrofoam
1-4 Power Connection
Chapter 2 - Before Operating
2-1 Identifying Parts
Chapter 3 - Operation
3-1 Paper Size
3-2 Paper Feeding
3-3 Setting of Paper and Fold Type
3-4 Understanding Folding Mechanisms
3-5 Setting of Count
3-6 Fine Setting of Fold Position
3-7 “Auto Start” Function
3-8 Thickness Sensors
3-9“Jam Free” Function
Chapter 4 - Handling Errors
4-1 Understanding Error Message
4-2 Handling Paper Jams
Chapter 5 - Maintenance
5-1 Replace Friction Reverse Feed Rollers
5-2 Cleaning Rollers
Chapter 6 - Troubleshooting
6-1 Power Off
6-2 Incorrect Folding
6-3 Power on but No Start
6-4 Frequent Double or More Feeding
6-5 ‘Not Available’ Shown on Panel

- 3 -
ES-7000 User Manual
Chapter 1 - Installation
1-1 Installation Environment
1. Input power: 100~110V (5A),
2. Machine size (mm): 17" x 24" x 15" (without conveyor)
3. Machine weight: 100 lbs.
- Since the weight of a product is heavy, please use appropriate table for putting it on.
- Please use grounded power cable.
1-2 Unpacking
Please check if all of the following parts are included in the box.
- Main body, power cord, user’s manual and jam removal handle.
1-3 Removing Safety Tape and Styrofoam Location
Please remove all safety tapes and Styrofoam before operation.
2
1 1. Safety cover of feeding unit (2ea)
2. Safety cover of upper cassette (2ea)
4
3. Lower cassette cover (2ea)
34. Upper cassette (1ea)
5. Paper tray (upper/1ea)
56. Paper tray (lower/2ea)
6 6
7
7. Upper cassette (1ea)
1-4 Power Connection
Please refer to the label for electric information which is located at the back side of the machine. When the
power cable is properly connected, please switch the machine on and check whether ‘Ready’ sign is dis-
played on the display panel. If not, please contact your local dealer for service.

- 4 -
ES-7000 User Manual
Chapter 2 - Before Operating
2-1 Identifying Parts and Functions
1 4 2
3
5
1. Feeding Unit Safety Cover
2. Upper Fold Cassette Safety Cover
3. Lower Fold Cassette Door
4. Control Panel
5. Conveyor (option)

- 5 -
ES-7000 User Manual

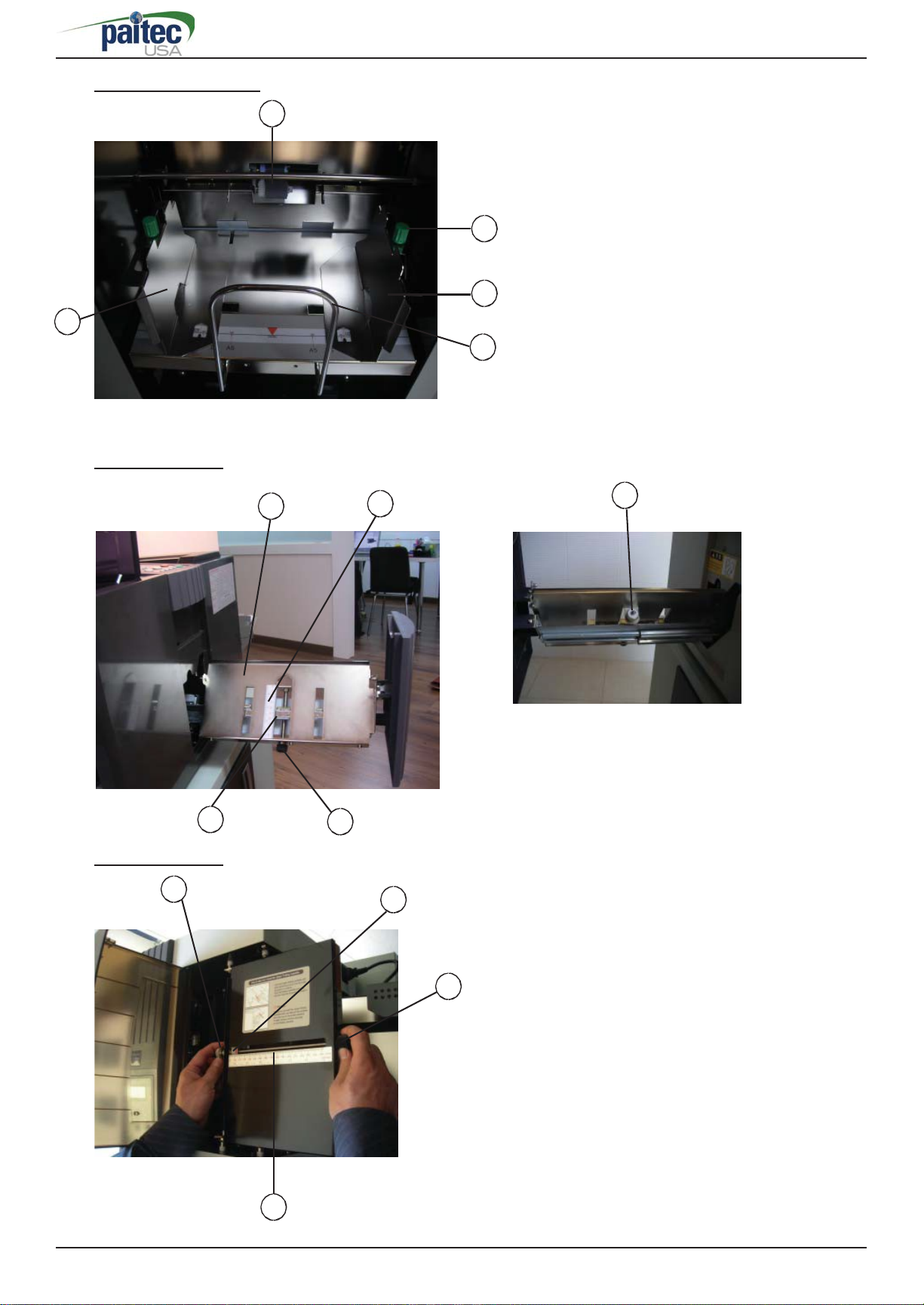

1. Feed Assist Hanger
4
2. Feed Guide (Left)
3. Feed Guide (Right)
34.
Locking Knob
15.
Infeed Roller
Large Capacity Tray
5
2
Lower Cassette
1 4 5
2 3
Upper Cassette
3 4
1. Lower Cassette
2. Stopper
3. Stopper Adjustment Knob
4. Folding Scale Label
5. Stopper Locking Knob
2 1. Folding Scale Label
2. Stopper Adjustment Knob
3. Stopper Locking Knob
4. Fold Position Marker
1

- 6 -
ES-7000 User Manual

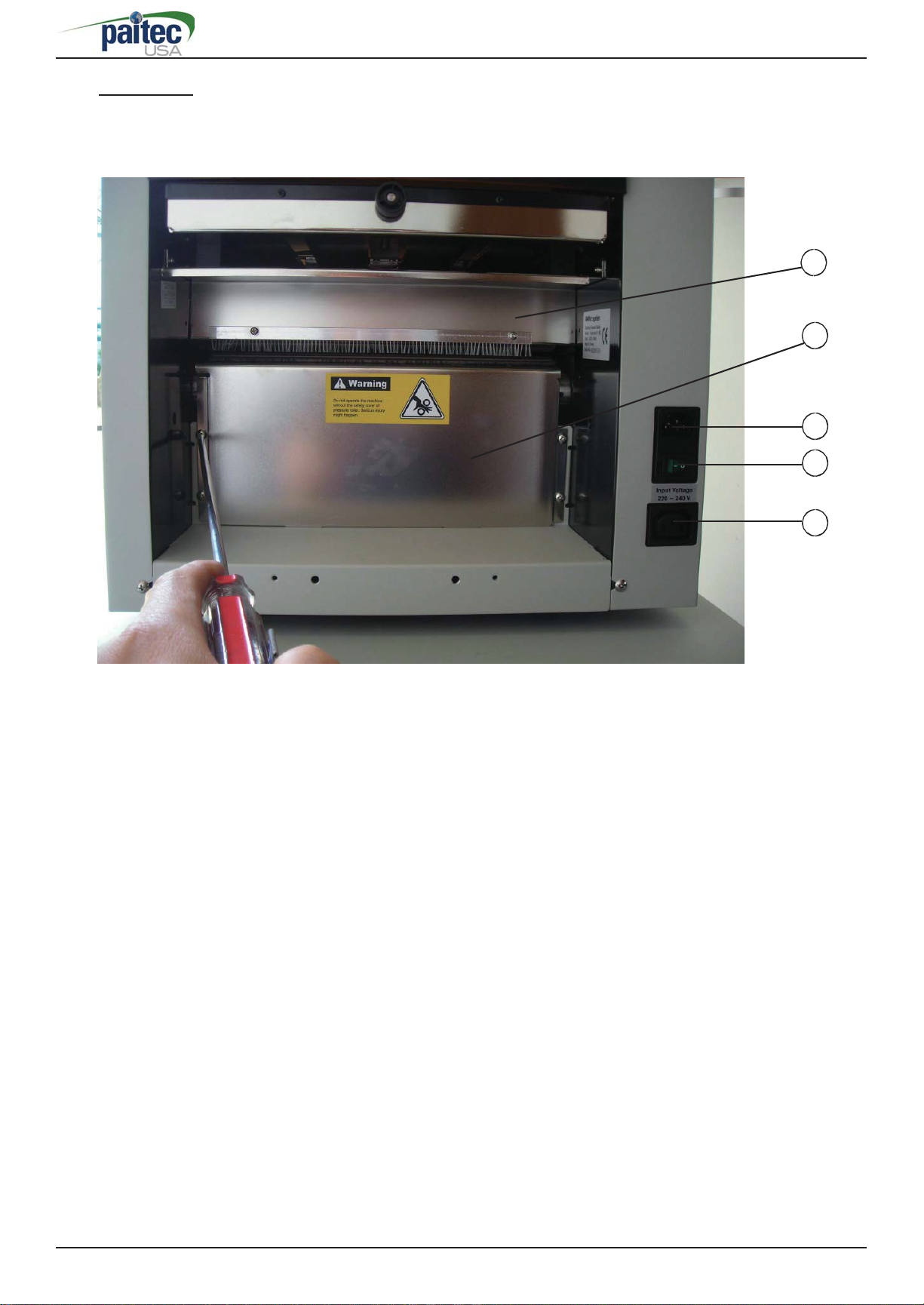

Output Unit
5
4
2
1
3
1. Power Switch
2. Main Power Socket
3. Conveyor Power Socket
4. Lower Press Roller Cover
5. Upper Press Roller Cover

- 7 -
ES-7000 User Manual

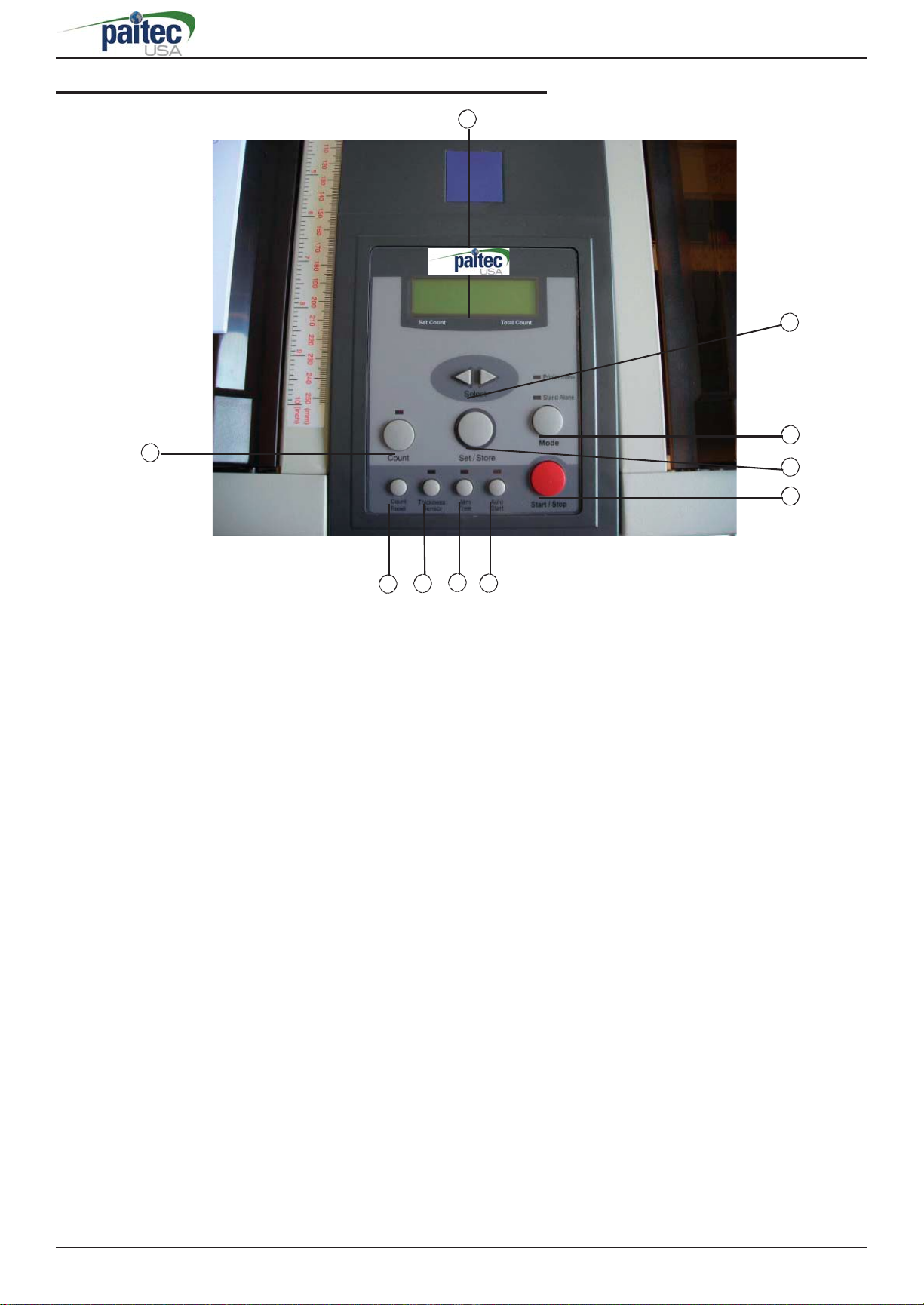

Name and Function of Each Button (ES-7000)
1
6
4
53
2
7 8 9 10
1. Display Panel: showing the setting condition and working of the machine.
2. Start/Stop button: starts and stops the machine. If you press during setting, it returns to the prior
condition.
3. Set/Store button: sets and stores the selected function.
4. Mode button: enters to mode function.
5. Batch counter button: enables you to set the number of forms that you wish to process and have the
machine stop automatically until you press the start button. For example, if you
set the batch counter at 100, after 100 forms are processed, the machine will not
start until you press the start button.
- Press the batch counter button and the light will blink.
- Change the displayed value by using select button and when ready, press the set button.
- When changing the value, press the batch counter button to increase the value by 50 up to
500.
- This setting is not stored after rebooting the machine.
6. Select button: selects yes/no or increase/decrease numerical value when you set.
7. Count reset button: clears the count on the display panel.
8. Function button for sensing double feeding: protects the double or multiple feeding by sensing the
characteristics of paper by digital sensor.
9. Auto start button: re-starts the process after selected time when the job reaches preset count.
10. Jam free button: automatic removal of paper jam at folding roller or press roller.

- 8 -
ES-7000 User Manual
Chapter 3 - Preparing for operation
3-1 Paper Size
ES-7000 cannot handle any form that is larger or smaller than the following forms.
210
357
148
264
Reference
- Using forms that do not fall under the specified size may result in paper
jam or machine damage.
Important
- Please check whether any forms are stapled. Staples will seriously damage
the machine.

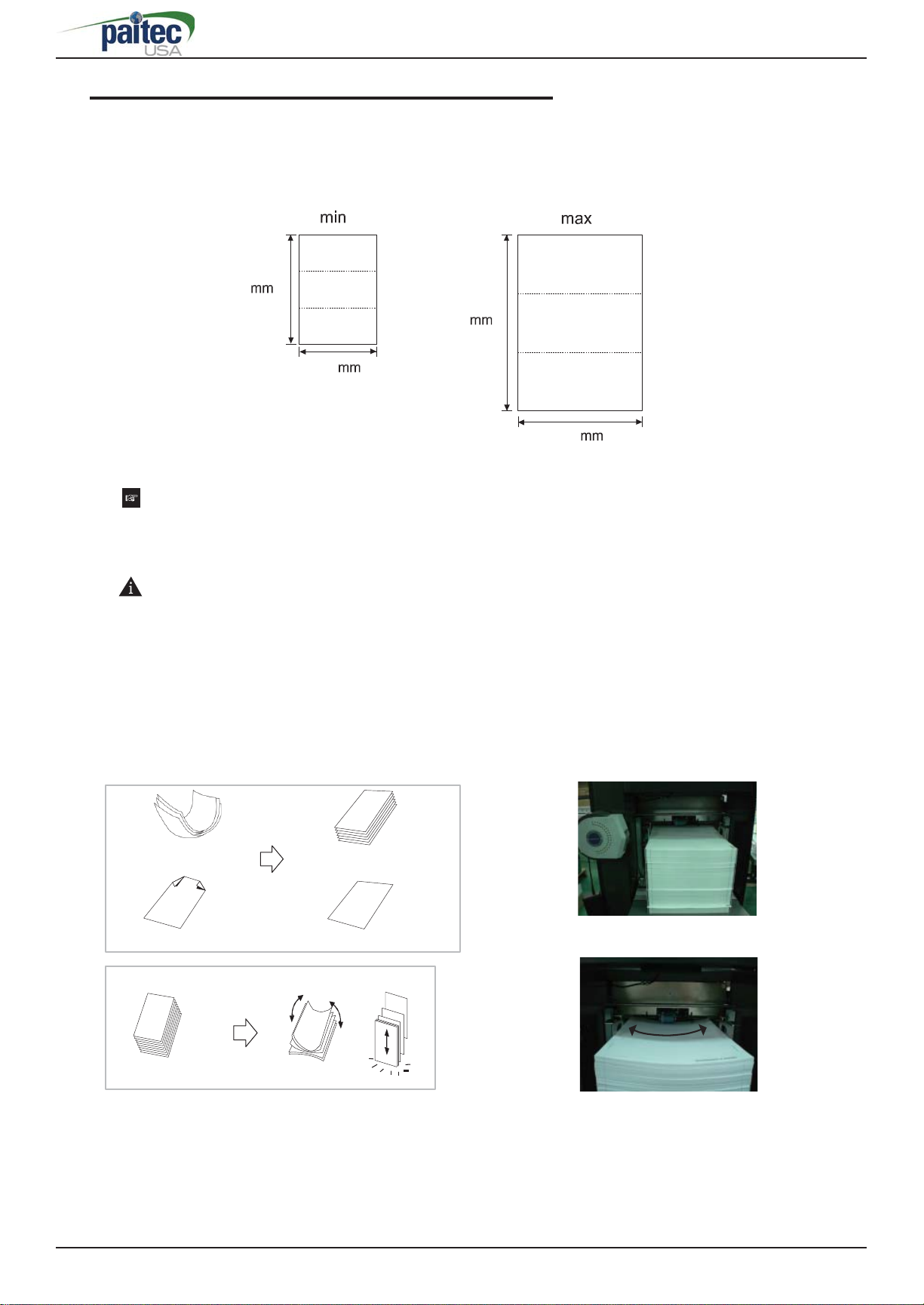

3-2 Paper Feeding

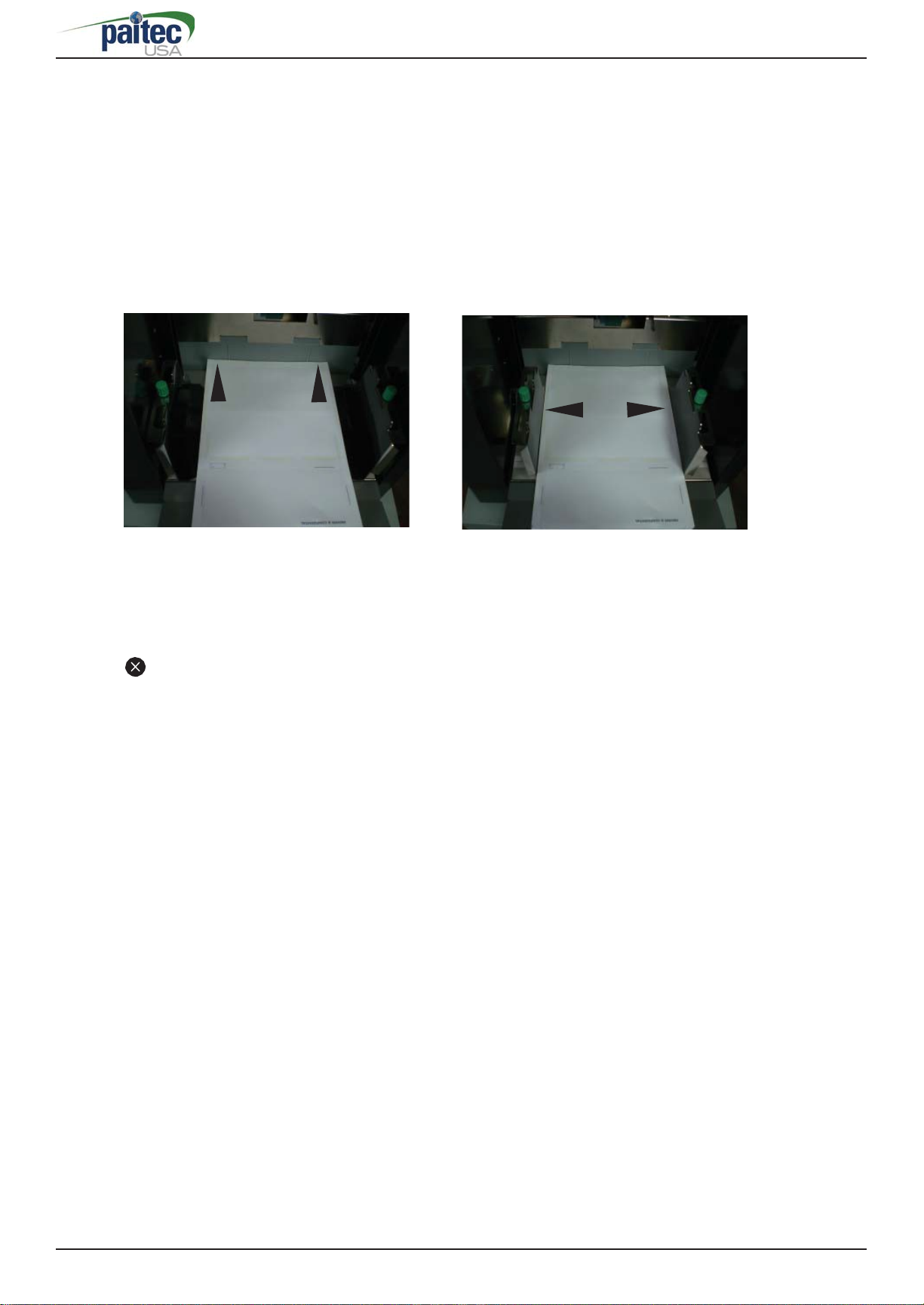

1. Before loading the forms onto the machine, please make sure all forms are aligned and
fanned. Please refer to the images below.
Good
Bad
If the condition of forms are not as good as the picture above (Bad), place appropriate
quantity of forms, small stack will be much better for feeding in this case.

ES-7000 User Manual
- 10 -
2. Open the safety cover of the feeding unit. The tray will go down.
3. When the feed tray is down to the bottom, loosen the green knobs on both paper
guides.
4. Load the aligned forms onto the feed tray and adjust the paper guides so they
are gently covering the sides of the stacked forms.
5. Tighten back the green knobs on both paper guides.
6. Once loading is complete, please close the safety cover. The feed tray will go
up.
Caution
- Poor quality forms may cause frequent paper jams.
- Make sure the paper guides are not set too narrower or wider than the
width of the paper.
Good Bad

ES-7000 User Manual
- 11 -
3-3 Setting of Paper and Folding Type (ES-7000)
The following instruction shows how to set 8 ½ X 11” Z-Fold.
(Note: Please be noted that the position marker doesn’t guarantee 100% positioning.)

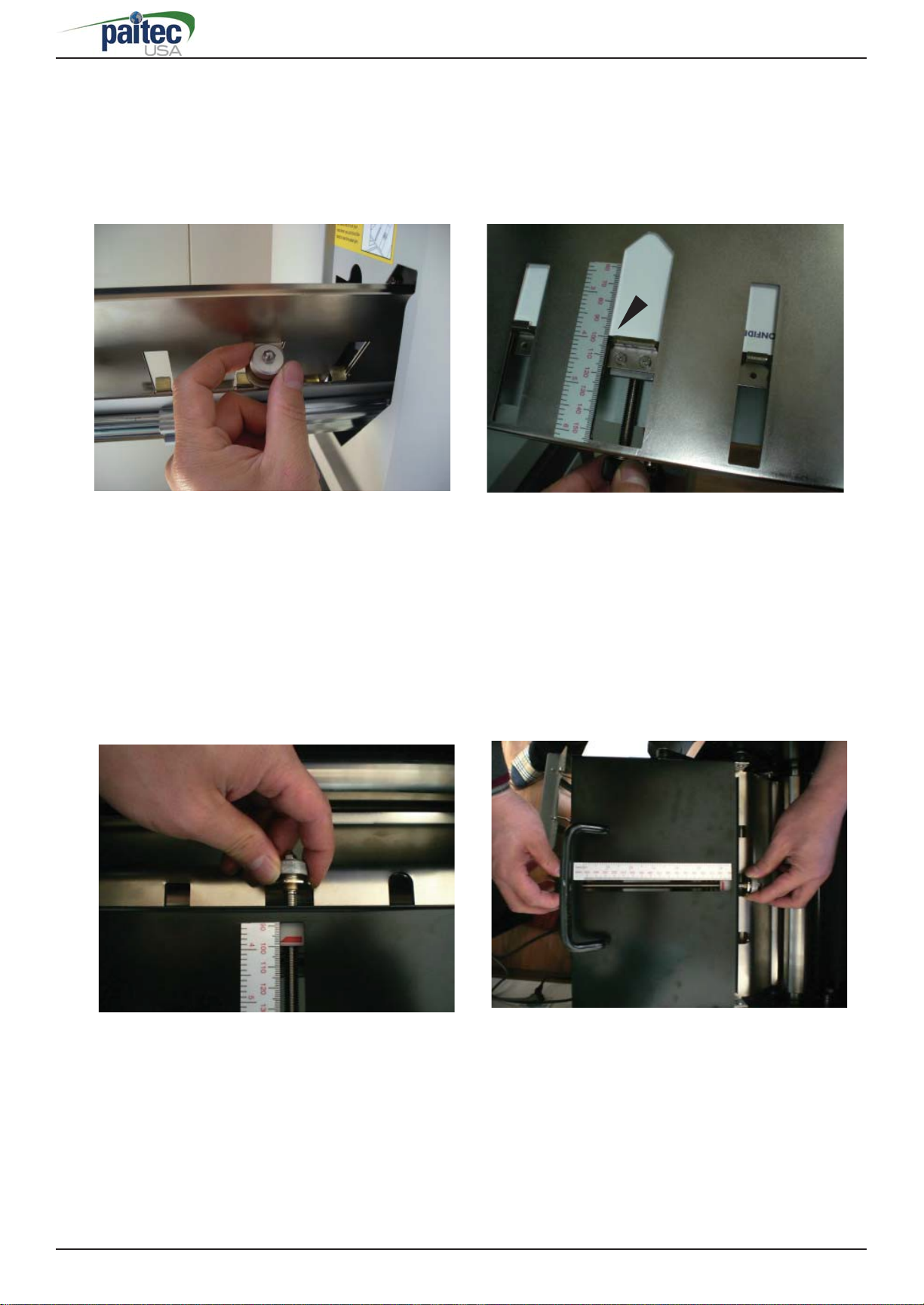

1. Lower Cassette Fold Setting - 93mm
1. Unlock the fold position of the lower cassette by turning the stopper locking knob
counter clockwise.
2. Adjust the stopper so the surface of the rubber is lined up at 93mm.
3. Lock the stopper by holding the stopper adjustment knob and turning the stopper
locking knob clockwise.
2. Upper Cassette Fold Setting - 93mm
1. Unlock the fold position of the upper cassette by turning the stopper locking knob
counter clockwise.
2. Adjust the stopper so the red marker is lined up at 93mm.
3. Lock the stopper by holding the stopper adjustment knob and turning the stopper
locking knob clockwise.

ES-7000 User Manual
- 12 -
3-4 Understanding Folding Mechanism
It is important to understand how ES-7000 folds paper in order to accurately set
the fold setting. Please read the following information carefully to fully understand
the folding mechanism of ES-7000.

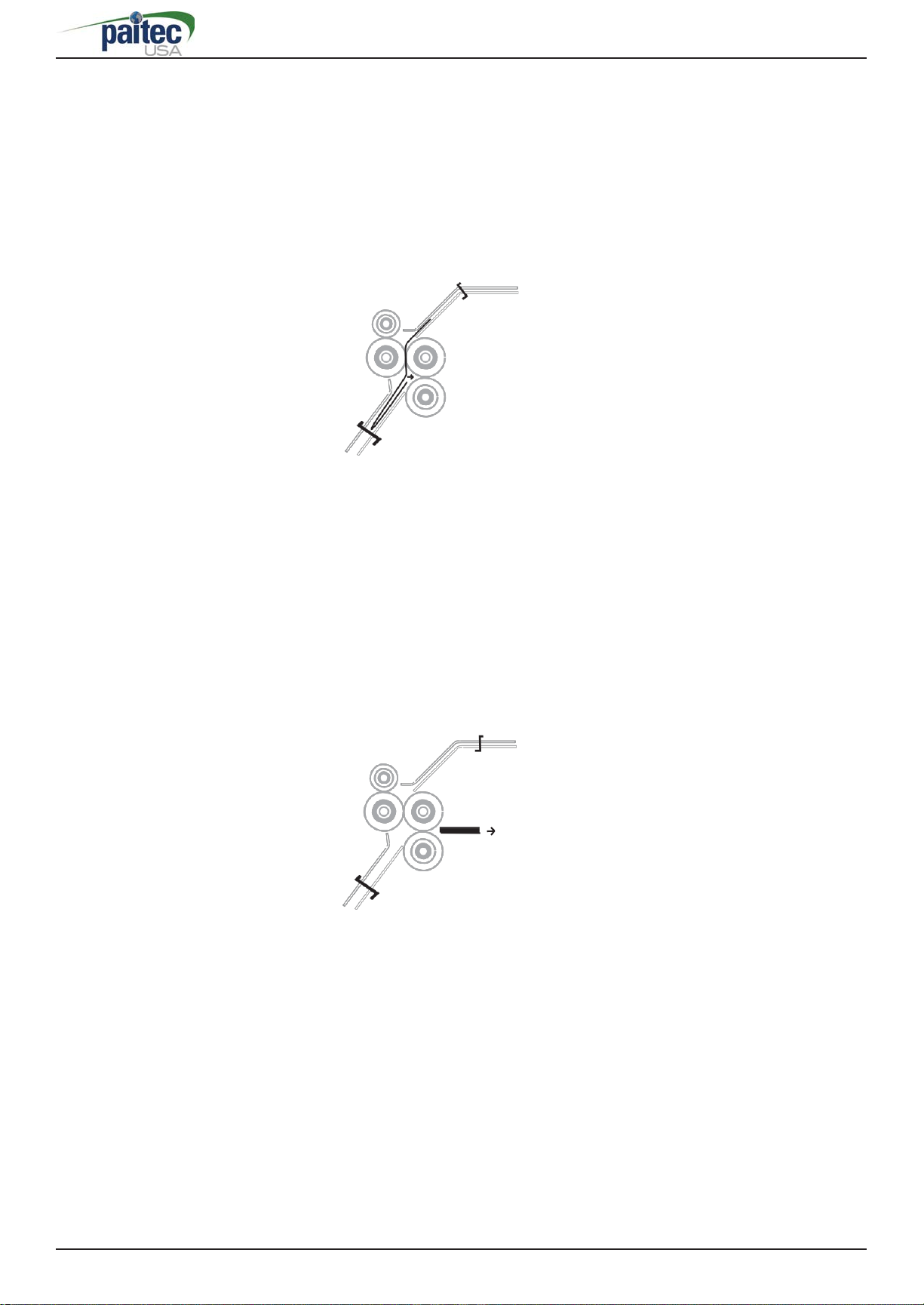

1. The folding unit is composed of rollers, cassettes and stoppers.
2. The form enters in between the two front fold rollers.
3. The form hits the upper cassette stopper and buckles in the middle. Then the folded
portion enters in between the middle two rollers.

ES-7000 User Manual
- 13 -
4. The form hits the lower cassette stopper and forms a buckle. The folded form
then enters in between the two outer rollers.
5. The folded form then exits the fold rollers and then exit to the press unit.

ES-7000 User Manual
- 14 -
3
Second Fold
(Lower Cassette)
2
First Fold
(Upper Cassette)
Infeed Direction
A

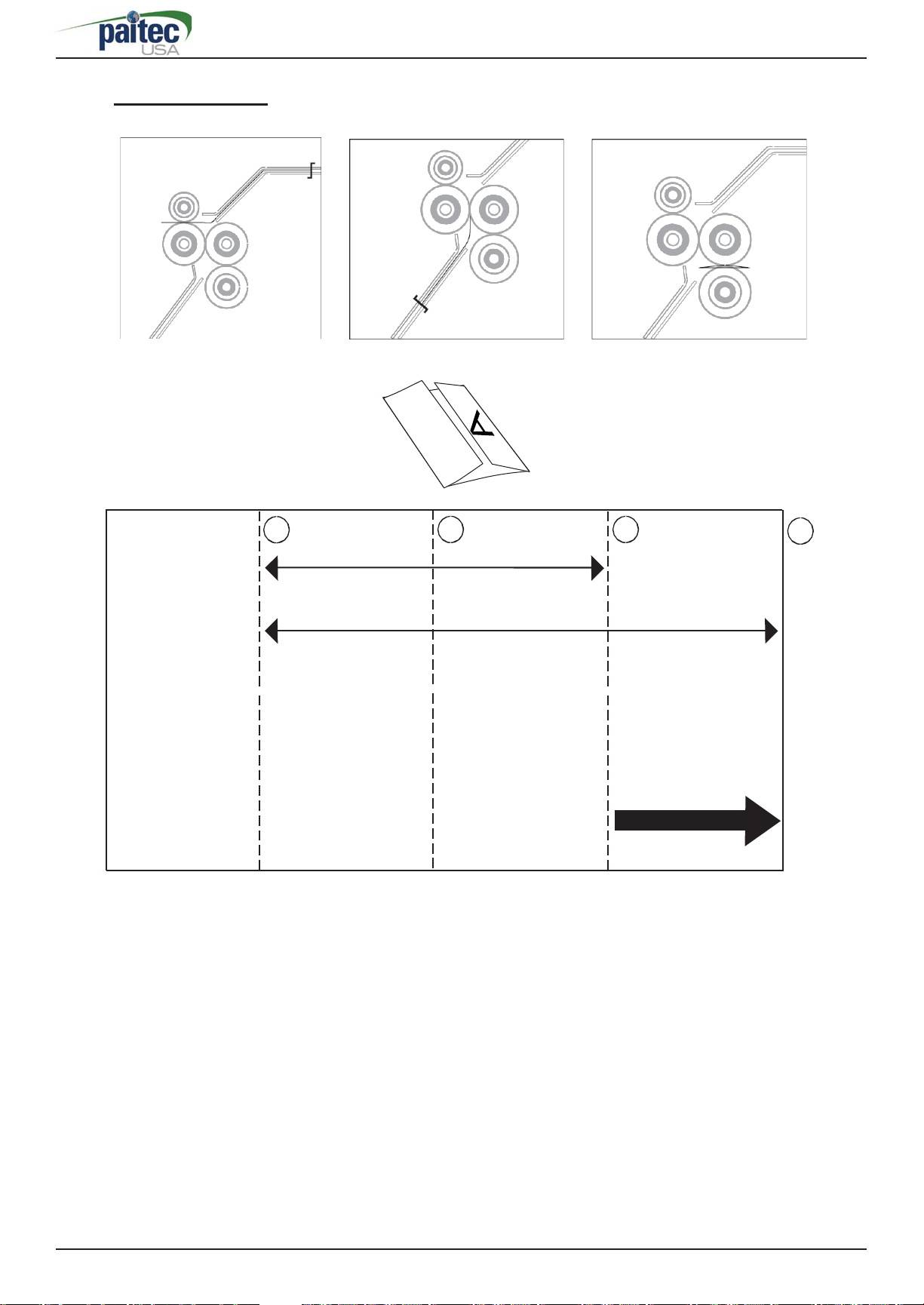

Z-Fold Setting
Paper
Infeed
Direction
Lower Cassette
Upper Cassette
Stopper
Outfeed
Direction
1

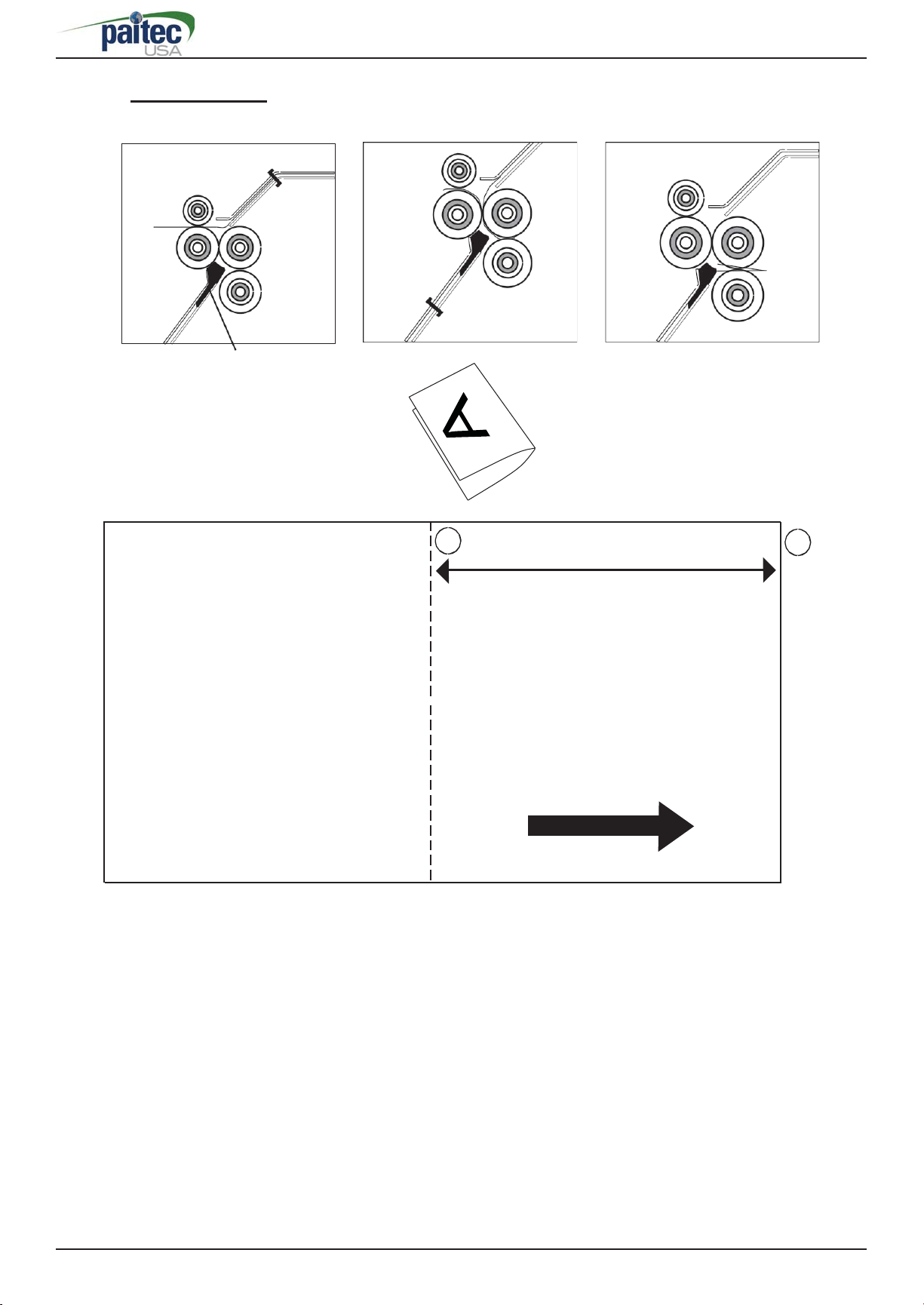

When setting a Z-Fold, please read the following steps.
1. Measure the length from line 1 to line 2 of the form as indicated in the
image above. That measurement is the fold setting for the first (upper
cassette) fold.
2. Measure the length from line 2 to line 3 of the form as indicated in the
image above. That measurement is the fold setting for the second
(lower cassette) fold.

ES-7000 User Manual
- 15 -

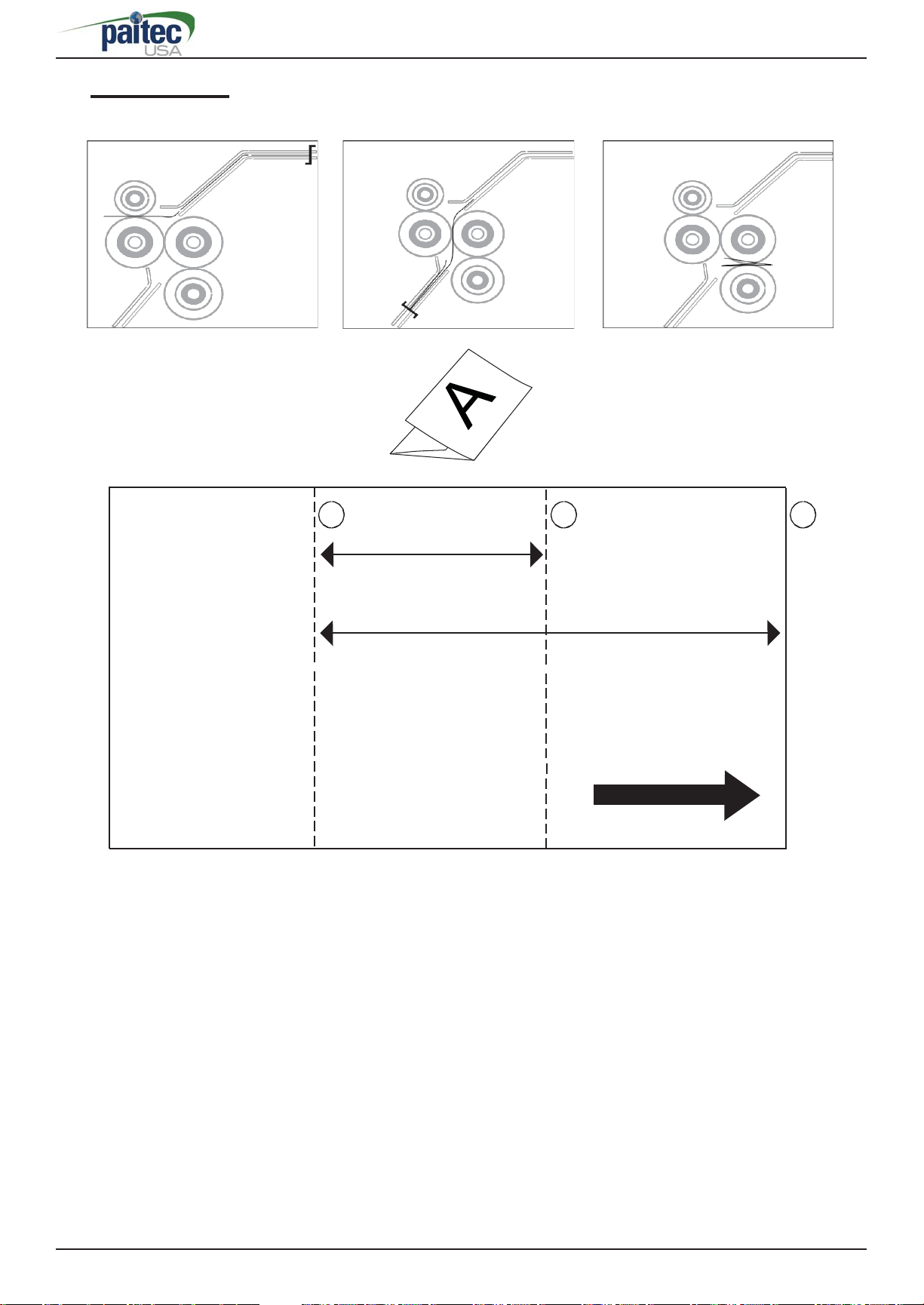

V-Fold Setting
V-Fold Guide
2 1
First Fold (Upper Cassette)
Infeed Direction
When setting a V or a Single-Fold, please read the following steps.
1. Measure the length from line 1 to line 2 of the form as indicated in the
image above. That measurement is the fold setting for the first (upper
cassette) fold.
2. Make sure the V-fold guide is placed at the entrance of the lower
cassette.

ES-7000 User Manual
- 16 -
C-Fold Setting
3 2 1
Second Fold
(Lower Cassette)
First Fold (Upper Cassette)
Infeed Direction
When setting a C-Fold, please read the following steps.
1. Measure the length from line 1 to line 3 of the form as indicated in the
image above. That measurement is the fold setting for the first (upper
cassette) fold.
2. Measure the length from line 3 to line 2 of the form as indicated in the
image above. That measurement is the fold setting for the second
(lower cassette) fold.

- 17 -
ES-7000 User Manual
Double Folding
3 2 1
Second Fold
(Lower Cassette)
First Fold (Upper Cassette)
Infeed Direction
When setting a Double-Fold, please read the following steps.
1. Measure the length from line 1 to line 3 of the form as indicated in the
image above. That measurement is the fold setting for the first (upper
cassette) fold.
2. Measure the length from line 3 to line 2 of the form as indicated in the
image above. That measurement is the fold setting for the second
(lower cassette) fold.

- 18 -
ES-7000 User Manual
Window Folding
4 3 2 1
Second Fold (Lower Cassette)
First Fold (Upper Cassette)
Infeed Direction
When setting a Window-Fold, please read the following steps.
1. Measure the length from line 1 to line 4 of the form as indicated in the
image above. That measurement is the fold setting for the first (upper
cassette) fold.
2. Measure the length from line 4 to line 2 of the form as indicated in the
image above. That measurement is the fold setting for the second
(lower cassette) fold.

- 19 -
ES-7000 User Manual
3-5 Count Setting
You can set the number of jobs to be done.
For example, if you set count on 100, machine will stop operating when the job
reaches 100. Press Start/Stop button again, machine will start to finish another
100.
1. Press Count Button and the LED will light on
2. Select job volume by using - / + button.
* If you press the button on by one, count will change by 1 and if you press
for more than one second, the count will change by 10/second.
3. Press Set button and check the number displayed on the panel.
* You can set the counter up to 250 sheets.
3-6 Fine Adjustment of Folding Position
You can adjust the fold setting in the following cases.
1. Fine adjustment is required from the standard folding type.
2. In case the folding is slightly different.
Reference
If the folding is slightly off from the desired position, please check the
following possible causes.
a. Incorrect fold setting
b. Machine clearance
c. Incorrect position of fold cassettes
d. The FRR or the fold rollers are worn out
3-7 Use of “Auto Start” Function
In case you need job separation, you do not have to press Start button again.
1. Press the button. Then ‘Time Interval’ will be displayed on the panel. Select the
desired delay time by second with - / + button.
2. Press Set/Store button.
3. Max. 10 seconds of delay time can be set.
Reference
For example, in case count set to 10 andAuto Start time interval set to 3
seconds, after 10 products, machine will stop for 3 seconds. LED will blink.
3 seconds later, it will work again.
If you switched off the power and on, you have to set the function again
