MyCharge 2000 User manual

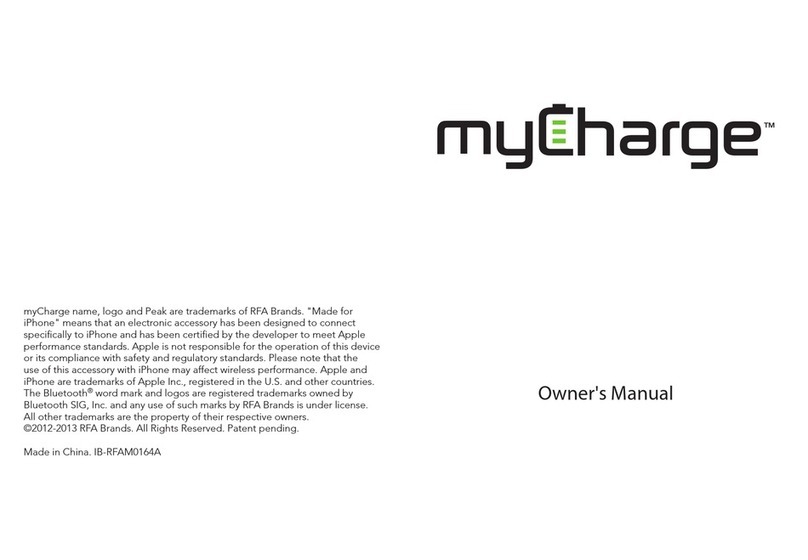

Owner’s Manual
Portable Power
Bank 2000
™

2
Thanks for choosing myCharge.
In The Box
• myCharge Portable Power Bank 2000
• USB to Micro-USB Charging Cable
• USB to Micro-USB Short Cable
• USB to Mini-USB Short Cable
• USB to Apple® Connector Short Cable
• Storage Pouch
• Owner's Manual
NOTE: iPhone® or iPod® sold separately

3
The Power Bank 2000 is a portable
battery designed to t your lifestyle. Its small size makes it easy
to keep on hand for charging your devices at a moment's notice. Let's get
you started. Micro USB
USB Port
(Output) Micro-USB Port (Input)
Mini USB
Apple
Connector

4
Quick Start
1. Choose the appropriate short connector for your device:
Apple, Micro-USB or Mini-USB connectors are included, or provide your
own USB device cable.
2. Insert the appropriate connector to the device you want to charge and then
connect the other end to Power Bank's full-size USB power port.
3. Press and hold the multifunction button for 2 seconds to power on.
4. When charging is nished, disconnect Power Bank and cable from
your device.

5
Charging
Please fully charge your Power Bank before using the rst time.
To charge, connect the included USB charging cable to your Power Bank
and to the USB wall adapter that came with the device you want to charge. When
connected, the LED light on the front of the unit will begin to ash indicating that it
is charging. It is ne to leave your device connected when charging as Power Bank
ensures your device always gets priority. Charge times with a device connected will
vary depending on its current charge level. Charge time for Power Bank alone
is approximately 2.5 hours from a standard 1A iPod/iPhone USB wall
adapter. Note: USB wall adapter sold separately.

6
Note: It is normal for Power
Bank to be warm to the touch while in use.
Powering On and Off
Because of its small size, it's easiest to just to remove
Power Bank when you're nished charging your iPhone
or iPod. To leave it connected, but not charge, press
and hold the multifunction button for 2 seconds. It is
located on the front of Power Bank just below the
LED indicators. (Fig. 1)
Fig. 1
Multifunction button
LED Indicators

7
Syncing
Your iPhone or iPod can be synced to a computer while
connected to Power Bank. When it's time to sync, simply connect Power
Bank to your computer with the provided USB cable while your device is
connected to Power Bank. (Fig. 2)
Fig. 2
USB port
(Output) Micro-USB port (Input)

8
Battery Indication
To check how much battery is left, make sure the function
switch is in the on/charge position (green indicator) and press the level
check button on Power Bank’s side. (Fig. 1).
• LED 1 is lit - 00-25% Power
• LED 2 is lit - 25-50% Power
• LED 3 is lit - 50-75% Power
• LED 4 is lit - 75-100% Power

9
Hours Chart
*Average smartphone statistics are based on
a 1400 mAh battery.
Talk Standby Browsing Video Audio/Music
iPhone 4 +8hrs
(3G)
+343hrs +11hrs (WiFi)
+7hrs (3G)
+11hrs +46hrs
iPod touch +12hrs +67hrs
Average
Smartphone*
+8hrs +343hrs +11hrs +46hrs

10
Maintenance
To keep your Power Bank operating at its full potential, please
do the following:
1. Re-charge every three months when not in use.
2. Keep it away from moist and corrosive materials.
3. Do not immerse in water, air dry. To clean, wipe surface with damp cloth.
Product Specifications
Battery: 2000mAh Lithium Polymer
Input: 5VDC, 1A
Output: 5VDC, 1A

11
Troubleshooting
• My Device is not charging: Conrm that your device
is properly connected to Power Bank with the appropriate USB connector
as described in the Quick Start section. Press the multifunction button on the
front to indicate charge status. If power levels are shown, press and hold the
multifunction button for 2 seconds to toggle the power. If no power level status is
shown, please connect Power Bank to a power source to charge.

12
• The status indicator lights are
not glowing: The charge status lights are designed not
to illuminate when your device is charging unless plugged into a power
source. Check the battery indicator on the screen of your device to verify that
it is charging. Press the multifunction button to indicate remaining charge status. If
no status is shown, please connect Power Bank to a power source to charge.
For additional troubleshooting tips,
please visit us at www.mychargepower.com

13
Warnings
Read all instructions and warnings prior to using this product.
Improper use of this product may result in product damage, excess heat,
toxic fumes, re or explosion, for which myCharge is not responsible. (1) Do
not store battery in high temperature environment, including intense sunlight or
heat. Do not place battery in re or other excessively hot environments. (2) Be
cautious of excessive drops, bumps, abrasions or other impacts to this battery. If
there is any damage to the battery such as dents, punctures, tears, deformities
or corrosion, due to any cause, discontinue use and contact the
manufacturer or dispose of it in an appropriate manner.

14
(3) Do not disassemble the battery
or attempt to repair or modify it in any manner. (4) Do not
expose this battery to moisture or submerge it in liquid. Keep battery
dry at all times. (5) Do not attempt to charge battery using any other method,
apparatus, or connections other than the device’s USB connector. For directions
on the various ways to charge your myCharge product please refer to the owner’s
manual. (6) Do not attempt to replace any part of the battery. (7) If this battery
is intended by the Purchaser to be used by a minor, purchasing adult agrees
to provide detailed instructions and warnings to any minor prior to use.
Failure to do so is the sole responsibility of the purchaser,

15
who agrees to indemnify the Manufacturer
for any unintended use or misuse by a minor. (8) All batteries
have gone through a thorough quality assurance inspection. If you nd
that your battery is excessively hot, deformed, cut, emitting odor, experiencing
or demonstrating an abnormal phenomenon, immediately stop all battery use and
contact the manufacturer. (9) For extended storage, rst charge your battery for one
hour. (10) Never dispose of batteries in the garbage. This is unlawful under state
and federal environmental laws and regulations. Always take used batteries to
your local battery-recycling center.

16
Note: The Manufacturer is not
responsible for any damages one may suffer as a result of
use, intended or unintended, or misuse of this battery in conjunction with
any device or accessory other than the appropriate entertainment device for
which this battery is designed.

17
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modications to this equipment. Such modications
could void the user authority to operate the equipment.

18
Note: This equipment has been tested
and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be

19
determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

20
ONE YEAR LIMITED WARRANTY
RFA Brands sells its products with the intent that they are free
of defects in manufacture and workmanship for one year from the date of
original purchase, except as noted below. RFA Brands warrants that its products
will be free of defects in material and workmanship under normal use and service.
This warranty extends only to consumers and does not extend to Retailers.
