3
1. INTRODUCTION
This manual has been carefully prepared and reviewed to provide reliable information
and assistance for proper installation, use, and maintenance that will ensure proper
operation and prolong the life of the oven. This manual is divided into two parts, the first
part dedicated to the installation of the equipment at the working point, and the second
part focused on the cleaning and maintenance of the oven.
Before any intervention or use of the equipment, it is necessary to read this
manual carefully and completely.
The manufacturer declines all implicit or explicit responsibility for any errors or
omissions it may contain.
- The furnace may not be used by personnel who have not received any kind of
training, and who do not have the necessary skills or experience for the proper
functioning of the equipment. Do not let children use or play with the equipment.
- The owner of the equipment is obliged to have this manual read by personnel
responsible for its use and maintenance, and to keep this manual in a safe place
for use by all users of the equipment and for future reference. If the equipment
is sold to others, they must be given this manual.
- This oven must only be used for the purpose for which it was designed, i.e.
cooking, heating, regenerating or dehydrating food. Any other use can be
dangerous and can result in personal injury and property damage.
- The equipment is shipped from the factory once it has been calibrated and has
passed rigorous quality and safety tests that ensure its correct operation.
The manufacturer will disclaim any responsibility for problems caused by
improper installation, modification, use or maintenance.

4

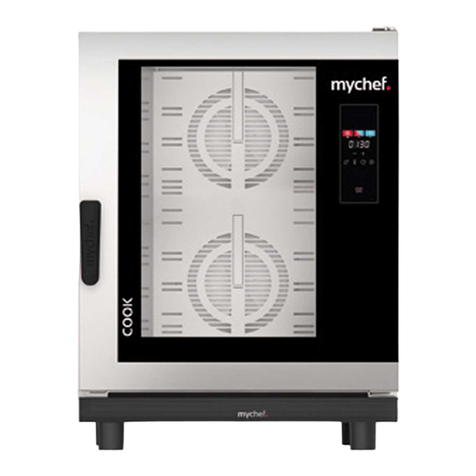

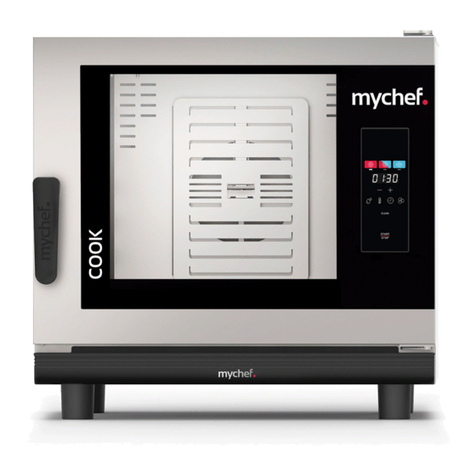

2. MYCHEF COOK AND MYCHEF BAKE
2.1 Control Panel
The figure below shows the control panel for the Mychef Cook and Mychef Bake ovens.
It consists of a central screen with displays, indicators and buttons.
Figure 1. Control panel.

5
The functionality of each of them is explained below:
Figure 2. Control panel detail.
A
C
E
C
B
D
F
G
B
H
I
J
K
L
M
N
O

6
Block
Function
Description
A
Convection button
Convection mode selection button.
B
Convection mode indicator
Mark the chosen mode.
C
Mixed mode button
Mixed mode selection button.
D
Mixed mode indicator
Mark the chosen mode.
E
Steam button
Steam mode selection button.
F
Steam mode indicator
Mark the chosen mode.
G
Display
Displays the selected parameter: humidity, temperature, time or fan
speed
H
Adjustment button -
Decreases the selected parameter: humidity, temperature, time or fan
speed.
I
Adjustment button +
Increases the selected parameter: humidity, temperature, time or fan
speed
J
Moisture button
Moisture selection button.
K
Temperature button
Temperature selection button.
L
Time button
Time selection button.
M
Fan speed button
Fan speed selection button.
N
Self-cleaning CLEAN button
Button for selecting the self-cleaning program.
O
START/STOP button
Oven on/off and start/stop button
If the oven is on, but not cooking/washing, slight pressure will start
the cooking/washing cycle.
If the oven is on and cooking/washing, slight pressure will cancel the
cooking/washing cycle.
Table 1: Control panel description.
The central display is a very important part when interacting with the furnace, since it
indicates the value of each firing parameter.
Figure 3: Central screen.

7
The parameter display format is explained below:
Icon
Function
The moisture level is shown with an H in the first digit. The humidity value is
shown below.
The chamber temperature is shown with a T in the first digit. The temperature
value in degrees Celsius is shown below.
The cooking time is shown with the two central points. The two digits on the
left are the hours, and the two digits on the right are the minutes.
Cooking can also be continuous. In this case, CONT appears on the display.
For continuous firing, press the adjustment key - until CONT appears in the
display.
The fan speed is shown with an F in the first digit. If the convection fan is on
high speed, HI is displayed. Otherwise, if the convection fan is at a low speed,
LO appears.
If the self-cleaning button is pressed, the central display will show the
message CLN. However, if the temperature in the firing chamber is too high to
perform the self-cleaning process, the message COOL is displayed, indicating
that cooling of the chamber must be performed prior to self-cleaning.
To start both self-cleaning and cooling, press START/STOP.

8
This icon indicates that a cooking or cleaning process has been completed.
The message DOOR appears when the door is opened during a cooking or
cleaning process.
In the case of an error, the first two digits of the display show ER, followed by
the error number. Refer to the chapter on errors for more information.
It is possible to change the operating parameters of the furnace. In the
parameter edit menu, the central display shows a P, followed by the parameter
number. The two digits on the right show the value of the parameter. Refer to
the chapter on the configuration menu for more information.
Table 2: Description of messages on the central screen.
2.1.1 Switching on the equipment
The equipment is switched on or off by pressing the START/STOP button for two
seconds.
In order to protect the furnace from possible overheating, some protective
elements may work even when the furnace is switched off. When the oven is at
a safe temperature it will automatically turn off.
If the equipment does not turn on, check the status of the safety thermostat and the
service switch, located at the rear of the equipment.

9
Figure 4: Safety thermostat (A) and service switch (B).
2.1.2 Cooking modes
There are three cooking modes: convection, mixed and steam. To select a particular
mode, tap on the corresponding button.
Figure 5: Cooking mode selector.
The convection mode acts as a forced convection oven without adding or removing
moisture from the baking chamber.
The mixed convection mode allows to regulate, in an intelligent and controlled way by
the oven, the elimination or contribution of humidity in the cooking chamber. To do this,
press the humidity button and adjust with the +/- buttons to the desired value. This value
is shown in the central indicator.
Figure 6: Humidity setting in mixed mode.
A
B

10
The steam mode saturates the cooking chamber with moisture.
The table below summarizes the characteristics of each of them.
Mode
Icon
Temperature
Moisture
Convection
30ºC to 260ºC
0%
Mixed
30ºC to 260ºC
-99 to 100%, in
jumps of 20%
Steam
30ºC to 130ºC
100%
Table 3: Cooking modes in Mychef ovens
In order to prolong the life of your oven, it may automatically reduce the
maximum temperature of the baking chamber.
In all cooking modes it is possible to humidify the chamber at will. To do so, press the
HUMIDITY button until the oven sprays water into the baking chamber.
2.1.3 Cooking control
2.1.3.1 Temperature and time controlled cooking
In the temperature and time control mode we choose a cooking mode, a temperature
and a time by adjusting with the +/- buttons after having pressed the TEMPERATURE and
TIME buttons respectively.

11
By pressing the START/STOP button, the oven will start to heat the chamber and will
stop when the set time has passed. At this point, the time indicator will display the
keyword "End", the oven will beep for one second and the interior light will illuminate until
the user finishes cooking by lightly pressing the START/STOP button.
Example of cooking at 90º for 10 minutes:
Figure 7: Example. Cooking at 90ºC in steam mode for 10 minutes.
Figure 8: Oven temperature.
2.1.4 Start of the cooking cycle
Once the firing parameters have been selected, either in manual mode or in a certain
program, the process can be started.
To do this, press the START/STOP key slightly. The two central points will flash every
second.

12
Figure 9: Cooking indicator.
If the door is opened during cooking, the timer stops, and the following message is
shown in the central display:
Figure 10: Door open indicator.
2.1.5 End of cycle
At the end of a cooking cycle, the unit signals this status visually and acoustically.
Specifically:
- A beep is emitted.
- The light in the oven chamber comes on.
- The keyword END appears in the central display until the user finishes the firing.
Press START/STOP to end the cooking process.
2.1.6 Speed selection
In any cooking mode the user can select the speed of the convection fan that best suits
his needs. To do this, press the fan speed button. Then select the appropriate speed with
the +/- buttons.

13
Figure 11: Maximum speed (HI) and reduced speed (LO).
2.1.7 Automatic cleaning
2.1.7.1 Self-cleaning and rinsing program
Using the MyCare cleaning system allows for automatic cleaning of the firing chamber
and has a washing program specifically designed to use CleanDuo detergent. The
special formulation of this product stands out for having twice the concentration of
active product than most similar products available on the market. It also includes a
polishing additive for a perfect all-in-one finish. This allows you to use only one CleanDuo
tablet per wash, with the consequent savings and ease of use.
Use CleanDuo in the Cook and Bake ovens, both equipped with the automatic
washing system. The use of other products will void the warranty.
For the use of the cleaning processes and for the handling of the products used
in the process, appropriate protections should be used. Never touch the
detergent with your hands.
The time required to perform the self-cleaning program is listed in the table below:
Program
Description
Duration
CLN
ECO self-cleaning program
70
minutes
Table 4: Self-cleaning and rinsing program.
Before starting any cleaning process, make sure that the water passage to the
equipment is open.
Prior to the self-cleaning cycle, remove any solid food pieces/rests from the chamber by
hand. Do not use the hand shower accessory to remove food residues from the cooking
chamber, remove them first and prevent them from going down the drain. No trays or

14
grids should be placed during the washing process. It should always be done without
load, to ensure that the equipment is properly cleaned.
The automatic cleaning cycle can then be started. To do this, select the cleaning program
on the control panel by pressing the CLEAN button. The cleaning program appears on
the central display.
Figure 12: Self-cleaning program.
2.1.7.2 Fast cooling
Before placing the CleanDuo tablet, check that the temperature of the cooking chamber
is not too high. If the furnace is too hot, the central display will show that cooling is
required.
Figure 13: Required temperature setting.
In this mode the convection fan is turned on and the resistors are turned off. In this
particular case, even if the oven door is opened the process will not stop and the fan will
continue to rotate. In this way, and with the door open, the temperature of the chamber
can be lowered in a few seconds.
Once in this mode, the display alternately shows the temperature of the cooking
chamber. To exit the fast cooling mode, briefly press START/STOP.
Please note that in this mode the convection fan works with the door open. Take
the appropriate precautions.
Once the oven is at a low enough temperature, it will show that you can cancel the
cooling process:

15
Figure 14: Cooling completed.
At this point it is important to stop the fan using the START/STOP button, open the door
and insert the detergent tablet into the dedicated housing. Once entered, close the door
again to start the cleaning program.
Never place the detergent with the convection fan running.
If cooling is not required, you can place the MyCare detergent directly in its allocated
space, and start the cleaning or rinsing cycle by pressing the START/STOP key. Place as
many tablets as there are holes in your oven.
Figure 15: MyCare detergent holder.

16
Before starting any cleaning process, check that no temperature adjustment of
the firing chamber is required.
To introduce the detergent tablet into the chamber it is essential to stop the
fan. It is important not to introduce the detergent while it is in operation in
order to prevent the detergent from being dragged away by the air current
which could endanger the health of the user.
Once the automatic washing process has started, do not open the door under any
circumstances, as chemicals used for cleaning may escape and come out as steam.
This situation would entail a significant risk of corrosion and burns.
Never open the oven door during an automatic cleaning process.
The process can be stopped in an emergency with the START/STOP button.
If the cleaning process has been stopped without automatic completion, it is
mandatory to remove all undissolved detergent tablet pieces from the chamber
before proceeding with the final rinse.
If, at the end of any of the automatic cleaning processes, you find that there are still
traces of detergent in the chamber (even behind the fan protection plate), run a self-
cleaning program without detergent again or carry out a thorough manual rinse of the
cooking chamber.
If there is a power failure during the cleaning process, the furnace will resume the
cleaning process from the beginning.

17
2.2 Configuration menu
To access the configuration menu, with the furnace turned off, press the CONVECTION
and START/STOP buttons simultaneously.
Figure 16: Accessing the configuration menu.
When entering the configuration menu, the three mode indicators, convection, mixed and
steam, will light up simultaneously.
To navigate through the parameters, press the CONVECTION button and adjust the
parameter number with the +/- buttons.
Once the parameter is selected, to edit it press the STEAM button and adjust the
parameter value with the +/- buttons.
In the central display we will see parameter (left side) and the value of that parameter
(right side).

18
Figure 17: Example. Display of parameter P1 and its value (01)
This block allows the consultation of the internal configuration parameters of the
furnace and facilitates the diagnosis of faults and malfunctions, as well as their solution
to the technical assistance service.
Registration
Name
Parameter
Editable
P0
Password
Service password
Yes
P1
Type
Oven type
No (SAT)
P2
Tsc
Number of TSC channels (0 - 4)
No (SAT)
P3
Autoclean
Type of self-cleaning
No (SAT)
P4
FanConfig
Fan and inverter type
No (SAT)
P5
RelayTest
Relay test 1 to 15
No (SAT)
P6
GPIOTest
GPIO Test
No (SAT)
P7
TSCTest
TSC test
No (SAT)
Table 5: P3 block, SAT configuration.
The parameters provide information on a very wide range of characteristics, from the
type of furnace to the configuration of the fan, etc. and also allow the technical service
to carry out tests and trials to ensure perfect operation.
2.2.1.1 NightWatch
NightWatch allows the oven to automatically continue a cooking process after a power
failure. This functionality is especially useful for unattended cooking.
This function will only continue with one firing in the event of a power failure and
subsequent recovery of the power supply.
This function can be disabled by your dealer. Make sure that you fully understand
the risks of its use.
When a power failure and subsequent restoration of the power supply occur, the furnace
recovers the firing in progress (if any) and continues it with the same parameters as
before the power failure.
In the event of a power failure during a wash, the oven starts the self-cleaning process
from scratch.

19
2.3 Errors and alarms
Errors and alarms can occur during the preparation and execution of cooking or washing
processes. If this is the case, the central display will show the error or alarm code.
Figure 18: Error indicator.
The table below shows the various errors and alarms, as well as possible solutions to
them:
Error
Internal definition
Clarification
0
NO ERROR
No mistake.
1
ERROR GENERAL PURPOSE INPUT
Reserved. Not used.
2
ERROR OVERTEMPERATURE
Reserved. Not used.
3
ERROR OVERTEMPERATURE PCB
Overtemperature PCB. Check that the electronics' cooling fans are
working properly, that there is enough space between the back
and the wall, and that the ambient temperature is not excessive.
4
ERROR COMMUNICATION
Inter-board communication not responding. Check the cable
between the power board and the control board.
5
ERROR EEPROM
Processor communication and EEPROM not working. Check the
control board.
6
ERROR MOTOR
Engine error. Check the motor wiring. Overtemperature in the
engine. Engine nailed down.
7
ALARM WATER
Reserved. Not used.
8
ERROR WASHING
Reserved. Not used.
9
ERROR PROBE1 TEMP SENSOR NOT
CONNECTED
Reserved. Not used.
10
ERROR PROBE1 TEMP SENSOR SHORTED
Reserved. Not used.
11
ERROR PROBE2 TEMP SENSOR NOT
CONNECTED
Reserved. Not used.
12
ERROR PROBE2 TEMP SENSOR SHORTED
Reserved. Not used.
13
ERROR PROBE3 TEMP SENSOR NOT
CONNECTED
Reserved. Not used.
14
ERROR PROBE3 TEMP SENSOR SHORTED
Reserved. Not used.
15
ERROR PROBE4 TEMP SENSOR NOT
CONNECTED
Reserved. Not used.

20
16
ERROR PROBE4 TEMP SENSOR SHORTED
Reserved. Not used.
17
ERROR PROBE5 TEMP SENSOR NOT
CONNECTED
Reserved. Not used.
18
ERROR PROBE5 TEMP SENSOR SHORTED
Reserved. Not used.
19
ERROR PROBE6 TEMP SENSOR NOT
CONNECTED
Reserved. Not used.
20
ERROR PROBE6 TEMP SENSOR SHORTED
Reserved. Not used.
21
ERROR PROBE7 TEMP SENSOR NOT
CONNECTED
Reserved. Not used.
22
ERROR PROBE7 TEMP SENSOR SHORTED
Reserved. Not used.
23
ERROR PROBE8 TEMP SENSOR NOT
CONNECTED
Probe camera not connected. Check the probe and wiring.
24
ERROR PROBE8 TEMP SENSOR SHORTED
Probe camera short circuited. Check the probe and wiring.
25
ERROR PROGRAM NOT TERMINATED
Reserved. Not used.
26
ERROR CLEANING PROGRAM NOT
TERMINATED
Reserved. Not used.
27
ERROR CLEANING TEMPERATURE TOO
HOT
Reserved. Not used.
28
ALARM RECOVERY TEMP TOO LOW
Reserved. Not used.
29
ERROR INVERTER
Reserved. Not used.
Table 6: Errors, alarms and possible solutions
