User Manual
Model No. : HR-OF808
Catalogue
Preface..................................................................................................................................................................1

1 Image, Symbol & abbreviation..........................................................................................................................2
2 Product introduction.........................................................................................................................................2
2.1 Product features and specifications.............................................................................................................. 2
2.2 Application, Contraindication and notices.................................................................................................... 3
2.3 Main structure............................................................................................................................................... 4
2.4 Working principle and characteristics........................................................................................................... 5
2.5 Main performance index............................................................................................................................... 1
2.6 Normal operating condition........................................................................................错误！未定义书签。
3 Installation & Operation instruction.................................................................................................................5
3.1 Components installation................................................................................................................................5
3.2 Structure instruction................................................................................................... 错误！未定义书签。
4 Operation notices, caution and attention...................................................................................................... 10
4.1 Main frame...................................................................................................................................................11
4.2 Hand piece................................................................................................................................................... 11
4.3 Touch screen................................................................................................................................................ 11
4.4 Regular maintenance................................................................................................................................... 12
5 Consumables...................................................................................................................................................12
6. Operation procedures....................................................................................................................................12
7 The way of solving tiny problems................................................................................................................... 13
8 Warranty......................................................................................................................................................... 16
9 The categories and degrees of responsibilities which are should be assumed for accidents will be
handled according to relevant laws and regulations........................................................................................ 17
Read this introduction carefully before operation, and pay special
attention to part 4!!
CAUTION: Do use ground wire during operation!!!

Preface
“HR-OF808 ”is a dedicated device designed for hair removal in a safe and
efficient way.
Please read this User Manual very carefully before operation and keep it for
future reference.
“HR-OF808 ”must be operated by qualified doctors who have been trained by our
company.
We are not responsible for consequences resulted from the improper operations
declared in the User Manual.
Please follow the instructions strictly to install and operate the machine.
For any problem during operation, please call our service hotline: +86-10.

1Image, Symbol & Abbreviation
2 Product introduction
2.1 Product features and specifications
2.1.1 Product features
a) This device is medical extra corporeal laser treatment equipment. It is categorized into
Class Ⅲin China, America and Canada and Class IIb in EU according to the relevant
regulations
b) By the classification rules based on the safety of medical devices, this machine belongs to
type I and ordinary movable equipment.
c) Good protection to harmful liquid. this machine is ordinary equipment.
2.1.2 Product Specifications
a) Energy density is adjustable within certain range. (1-80 J/cm2)
b) Pulse frequency is adjustable.
Image or symbol
Meaning
BF Equipment
Danger, high voltage
Attention！Refer to the documents coming along with
the machine.
IPX1
Waterproof
Laser
Fragile Object
This way up.
Away from rain.
Manufacturer
Production Date
Disposal of Discarded Electronic Items
Emergency Laser Stop

c) Different skin type treatment protocol is offered.
d) Fast mode is designed for painless and fast hair removal. Energy density and frequency
can be set freely.
e) Offer data inquiry function.
f) Hand piece cooling function assures safe and comfortable treatment.
g) Four truckles are installed in the bottom of main frame and equipment can be moved
only by loosing the brakes of truckles.
h) Emergency switch, key switch, and foot switch are set for safe use.
i) This machine is all controlled by micro computer and the display is liquid crystal screen.
The main components adopt LSI and view field which is clear and reliable. This machine
adopts modularization design and the structure is clear and can be installed and
maintained conveniently.
k) This machine is intelligent control and touch operation. Visible display makes the
operation easy, safe and convenient.
2.2 Application, Contraindication and Notices
2.2.1 Application: This device is designed to remove hair for all skin areas except the eyelids.
2.2.2 Contraindications: The device is contraindicated for subjects with any of the following:
Pregnant.
Suntan within one to three months before treatment
Person with immunosuppression action
Person with skin disease
use of isotretinoin (Accutane) within 6 months of treatment;
Sun burnt within 3 months;
Not for uppper eyelid
History of keloid formation;
Bleeding disorder;
Significant concurrent skin conditions affecting the area to be treated or any
inflammatory skin conditions;
Open lacerations or abrasions on the area to be treated;
Prior use of anticoagulant drug;
Use other hair removal methods like waxing within 6 weeks before treatment;
Allergic to hydroquinol or other bleach agent.
2.2.3.1 Notices.
Before hair removal,
a) Wear operator glasses
b) Operator should have got through training courses offered by supplier.
c) Clean the treatment area thoroughly, and shave the hair.
d) Do not pull out hair in the way like waxing prior to use “HR-OF808”within 6 weeks; or

the laser therapy does not give best results.
e) Avoid sun burning especially for dark skin. It is highly suggested to use sun lotion for
about 4-6 weeks before treatment or use some medicine like hydroquinl.
f) Try to avoid sun exposure to decrease rate of side effects.
g) It is good to take test treatment on small skin site first and observe for 15 minutes before
taking large area treatment.
2.2.3.2 Attention after hair removal
a) Swelling and hot sensation might come after the treatment. Do not soak in 24 hours after
the treatment. Avoid hot water and hard scrubbing.
b) Patients could use ice to relieve pain.
c) Protect from UV in 3-6months after hair removal, especially in summer, to avoid the
pigment changes.

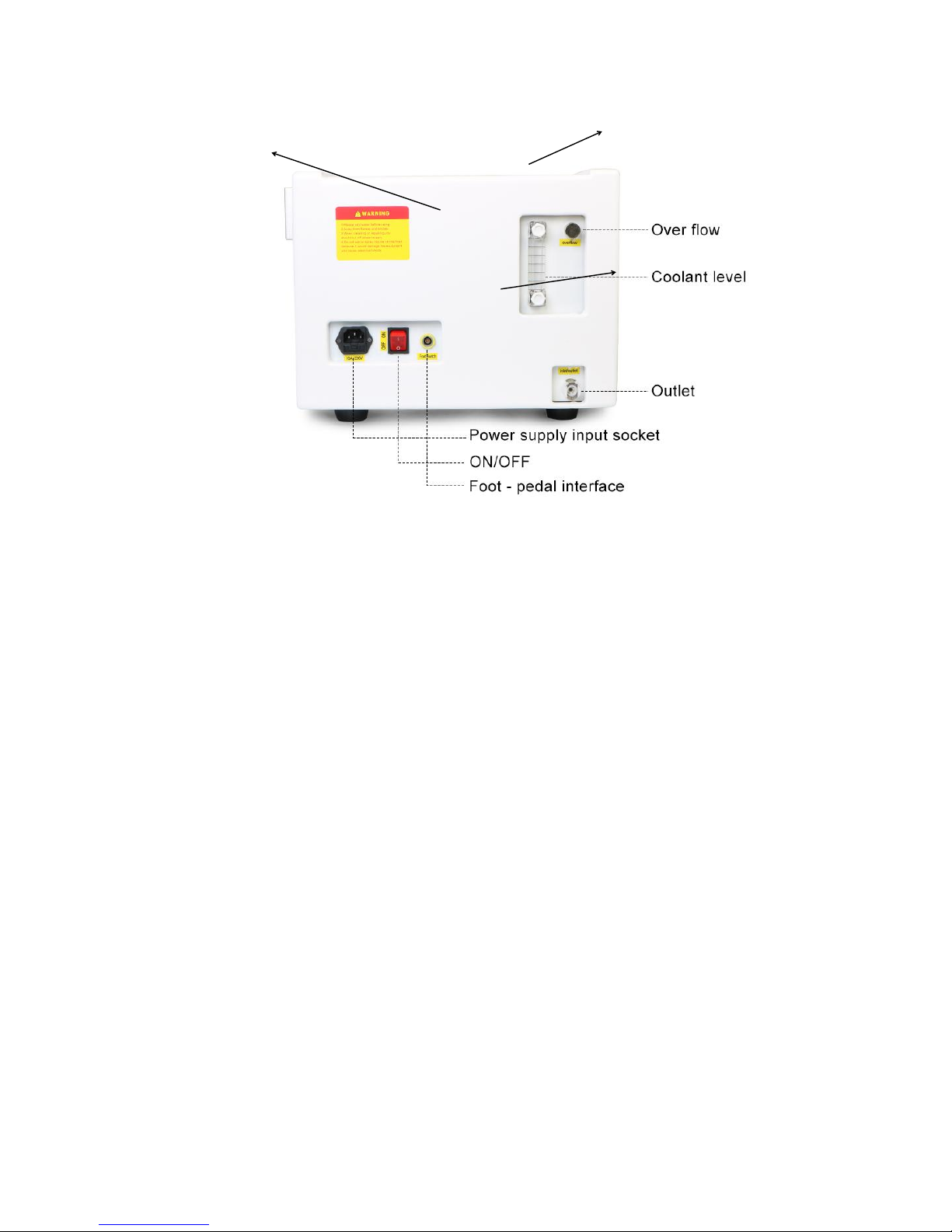

2.3 Main structure
2.3.1 This machine consists of main frame, hand piece, electric wire, and touch screen. See Figure
2.3-1 for the structure of the main frame.

Figure 2.3.1
2.4 Working principle and characteristics
2.4.1 Working principle
“HR-OF808 ”working principle is based on the photothermic theory. There is plenty of
melanin in hair follicles and hair shafts. Melanin scatters among hair bulbs and hair shaft
structure (like medullary substance, cortex and cuticula pili). “HR-OF808 ”targets on
melanin and treat selectively in a precise way. Melanin could absorb the energy from the
laser, which would result in temperature rapid increase, to destroy surrounding hair follicles,
and finally remove hair.
2.4.2 Treatment characteristics
Different pulse widths are available according to different demands. Contact cooling system
works at the same time. All above make the treatment process more comfortable, safe and
convenient. The “sealing”-like treatment way is convenient for treatment operation.
2.5 Parameter
3 Installation instruction
3.1 Installation steps
3.1.1 Open packing and take out the main machine carefully.
Light Source
FIBER laser
Wavelength
808nm /
Power
200w
Output Energy
1-80 J/cm2
Pulse width
10-400ms adjustable
Pulse frequency
1-20Hz
Spot size
10X10mm
Cooling system
Thermal electric cooling + water cooling+ Air
cooling+sapphire contact cooling for laser head
Crystal temperature
0-4℃
LCD screen
10.4 inch 24 color multi color touch screen
Power requirement
AC220V±10%、50Hz, AC110V±10%、60Hz
Laser water temperature
40℃
Net Weight
27kg
Dimension
680mm * 450mm * 520mm

3.1.2 Assemble methods
a) Lift main machine up from below, instead of forcibly pulling it out by holding the hanger.
b) As shown Figure 3.1.2.1, put the hand piece onto the hanger.
c) Show as figure 3.1.2.2,connect the foot switch to the corresponding socket “FOOT
SWITCH”behind main frame,push up the blue switch and connect the power line.
Figure 3.1.2.2
Figure 3.1.2.3
3.2 Operation procedure and interface introduction
3.2.1 Power on
For the sake of safety, please do in steps.Firstly, make sure power socket is well earthed,and
then make sure the plug is well inserted in the power supply socket.Turn on the key switch
on the front board.

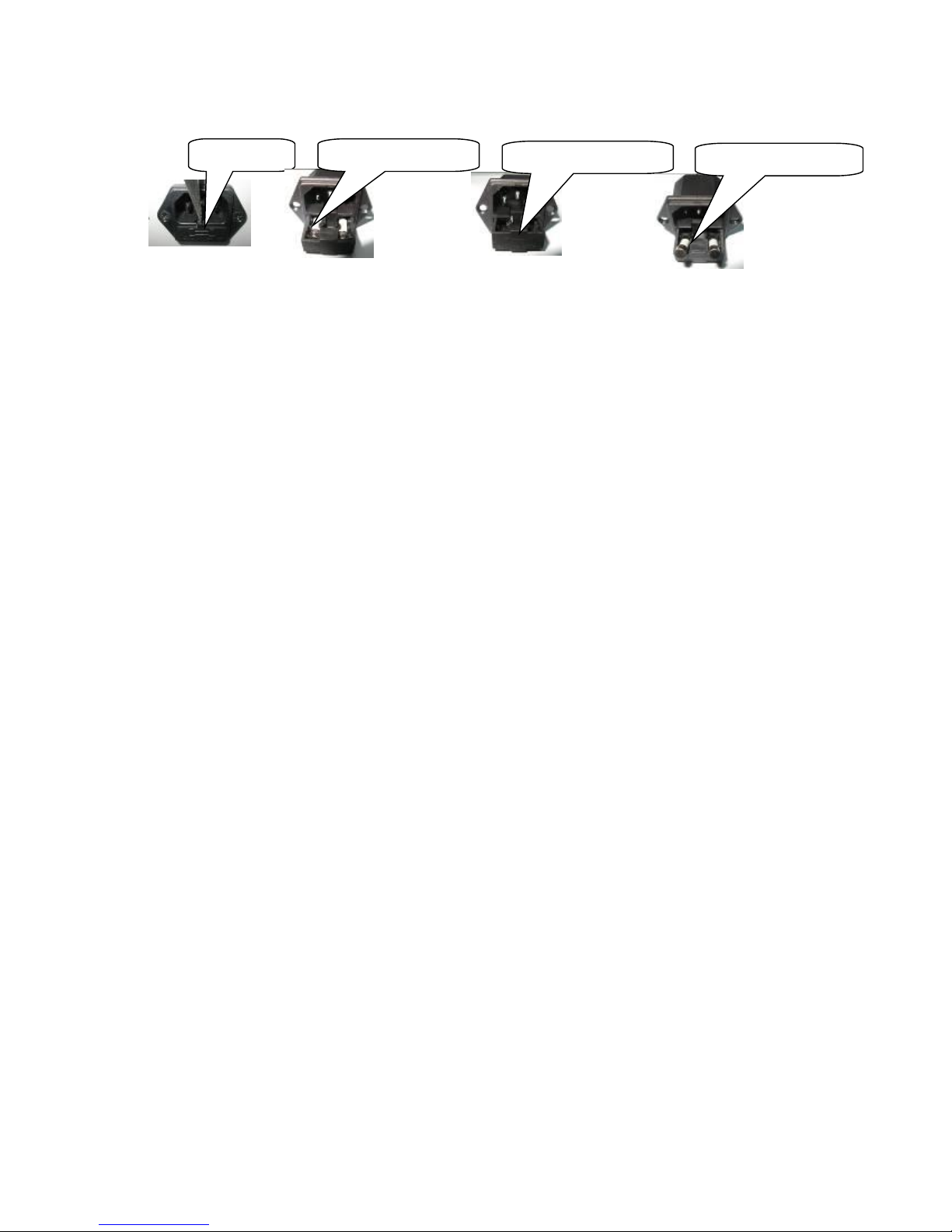

Foot switch connector
Power connector
Power Switch

"Welcome" shows on screen interface after powering on(see Figure 3.3.1-1) ,your logo can
be added here.
The system enters equipment interface automatically 10 seconds later. (see Figure 3.3.1-2).
Press " ",the system enters equipment settings interface. (see Figure 3.3.1-3)
Figure 3.3.1-1
Figure 3.3.1-2
Touch "LANGUAGE" enters language setting interface as Figure 3.3.1-4.
Touch "Factory" enters counter resetting interface as Figure 3.3.1-5. Here,the password is
needed.
3.3.1-5
Touch "FACTORY " enters interface as Figure 3.3.1-6.Here,the password is needed.
3.3.1-6
Note:The Factory Part only can be done by supplier and the machine has been setted well

before sending! So customers don't need to set the "factory settings".

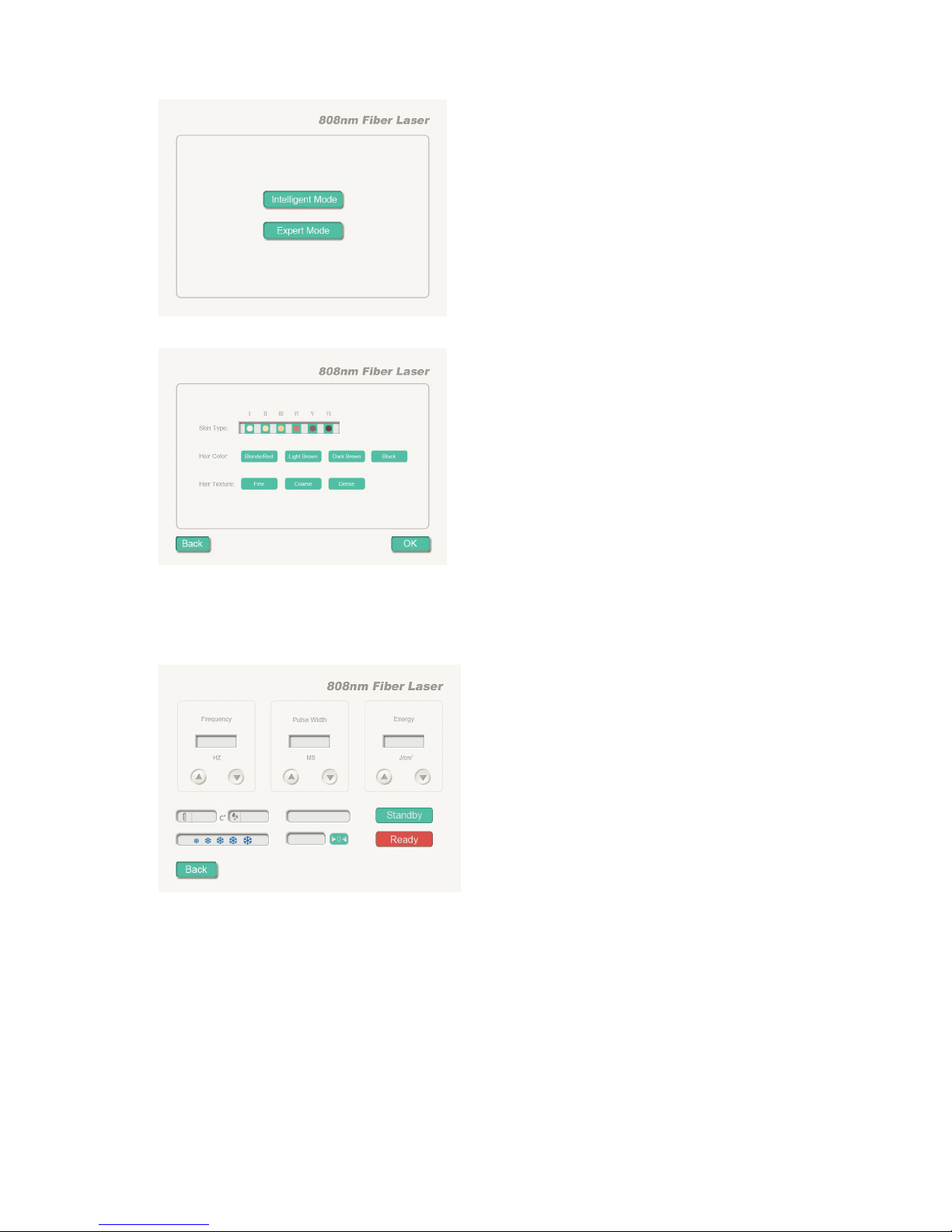

Chose the mode to go to the next operation interface,as Figure 3.3.1-9.
3.3.1-9
Chose the “Skin Type”“Hair Color”and “Hair Texture”depending on your customer’
s actual situations. Then press “Next”enter to the final interface, as Figure 3.3.1-10
3.3.1-10
3.3.2 Operation interface and parameters setting
3.3.2.1 working mode setting
There are three different modes “Fast ”is designed for fast painless hair removal,and
“Medium ”and "Slow" allow operators to set energy density and frequency freely.
Treatment region navigation is designed according to different areas.
Clinical energy adjustment-reference
