MyGica ENJOY TV ATV1220T2 User manual

Android Box
ENJOY TV DUAL CORE Hybrid Box
ATV1220T2
User’s Guide
Thank you for purchasing this Geniatech product.
.Before using it, be sure to read the precautions contained in this User’s Guide.
.Keep the User’s Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.geniatech.com

1
1. Safety Information
Read and understand all instructions before using this product. If damage is caused by failure to follow
the instructions, the warranty does not apply.
1.1 Warning
To reduce the risk of electric shock, DO NOT remove the cover (or back).
DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product .
To reduce the risk of fire or electric shock, keep this product away from exposed direct sunlight, naked
flames or heat, large amounts of moisture, dust, and sand.
FCC Note (for U.S.A)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on.
The user is encouraged to try to correct the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
- This class B digital product meets all requirements of the Canadian Interference - Causing Equipment
Regulations.
1.2 Precautions
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed
below.
Keep these operating instructions handy for future reference.
1.2.1 Read these instructions.
1.2.2 Keep these instructions.
1.2.3 Heed all warnings.
1.2.4 Follow all instructions.
1.2.5 DO NOT use this apparatus near water.
1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth.
1.2.7 DO NOT block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus
that produce heat.
1.2.9 Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where it exits the apparatus.
1.2.10 Only use attachments/accessories specified by the manufacturer.
1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
1.2.12 Unplug this apparatus during lightning storms or when unused for long period of time.
1.2.13 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been

2
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
1.3 Handling Cautions
1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects filled with liquids,
such as vases on the apparatus.
1.3.2 To turn this apparatus off completely, you must pull the power plug out of the wall socket.
Consequently, the power plug must be easily and readily accessible at all times.
1.3.3 DO NOT plug multiple electric devices into the same wall socket. Overloading a socket can cause
it to overheat, resulting in a fire.
1.3.4 Before connecting other components to this player, be sure to turn them off.
1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke, turn off the power
switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest
customer service center for technical assistance. Do not use the product. Using the product as it is may
cause a fire or an electric shock.
2. Introduction
2.1 Package Contents
Enjoy TV Dual Core Hybrid Box - ATV1220T2
User’s Guide
HDMI Cable
AV C a b l e
Optional Cables RJ45 Network cable
IR Remote Controller (IR RC)
Optional Remote Controller
2.4GwirelessRemoteController
USB wire/wireless Mouse & Keyboard
Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 12V, 1.5A
2.2 Product Features
ARM CORTEX A9 x 2, 1.5GHz, RAM is 1G,built in 4G flash memory
Powered by Android 4.1 OS
802.11b/g/n WIFI module, wireless Internet access
USB interface, support mobile HDD, wired/wireless mouse and keyboard
RJ45 10/100M Ethernet interface
Support 1080P video playback
HDMI video output, connect to HDTV for HD video playback
Support weather, calendar, and desktop clock gadgets

3
Support 2.4G wireless motion Remote Controller
Support Flash Player 10.3 for hardware decoding, Flash 11.1 for software decoding ,play back
online video
Support music player, picture player and more family entertainment
Support SD card, 4x USB ports and Google Chrome browser and virtual private network access
App Installer for application installation from USB/SD card
Support HTML5 browser
DVB-T Solution
2.3 Panel Introduction

4
2.4 Remote Controller
1. power
2. user-defined
3. Enter Netfliex, Browser, Playstore, XBMC,
Setting, Search directly
4. Rewind key
5. Pause/start
6. Home key
7. Direction key
8. Menu key
9. Mouse ON/OFF
10. Vo l u m e k e y
11. Number key
12. @
13. Mute
14. Page up
15. Page down
16. Stop key
17. Fast forward key
18. Information key
19. OK
20. Back key
21. Channel key
22. Apps
23. .COM

5
2.5 Setup Connection
Place ATV1220T2 on a flat platform near the TV, and make sure nothing block the remote control
signal.
2.6 Display when Power Up
2.6.1 After power up, the TV will first show a green robot then change to “android” logo during loading.
When loading is finished, it will go to Home screen.

6
2.6.2 Home Screen display.
2.6.3 XBMC.
You can also use XBMC button on the Remote Control to enter directly.

7
2.6.4 Local Media.

8
2.6.5 Play Store.
You can also use Play Store button on the Remote Control to enter directly.
2.6.6 All Apps.
You can also use Apps button on the Remote Control to enter directly.

9
3. Settings
Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller to select the options,
the option selected will be highlighted and confirmed by pressing OK key. Same operation for text
input if needed.
Select icon then press OK key.
3.1 WiFi
3.1.1 It will automatically scan ambient WiFi networks when select “ON”.
3.1.2 Connect an available WiFi network. If connect a secured WiFi network, corresponding password
will be input firstly. Or fail to connect and need reset password.
3.1.3 Once build up the connection with a certain WiFi network successfully, ATV1220T2 will connect
this WiFi network automatically when restart.
Note: If factory reset, the password of WiFi network have to be reset.
3.2 Ethernet
Connect Box and Router by RJ45 network cable.
Press “ ON” in Ethernet setting, it will connect to network automatically.

10
3.3 Date usage
Show data usage information.
3.4 More...
3.4.1 VPN
Build and set VPN

11

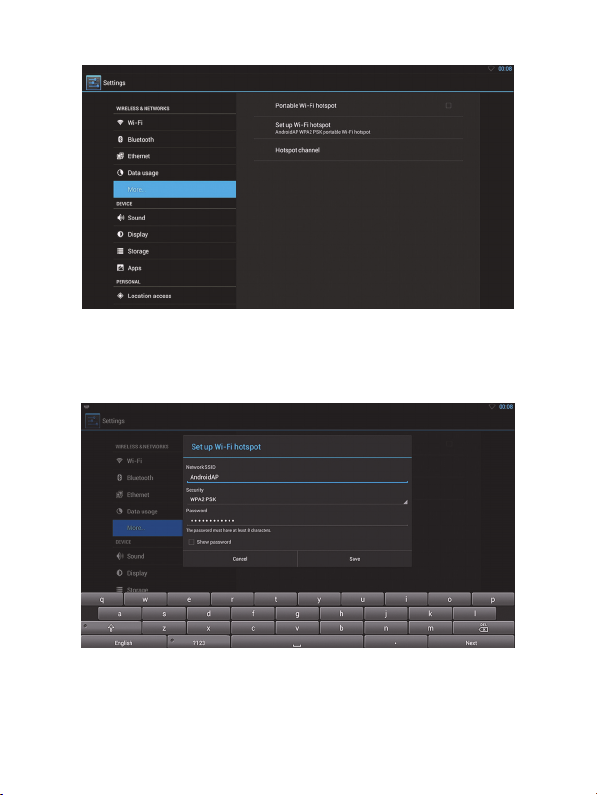

3.4.2 Tethering & Portable hotspot
3.4.2.1 Enable Portable hotspot
3.4.2.2 Configure WiFi hotspot
3.4.2.3 Choose different security way to share your network.
3.4.2.4 Help for any confusion
Note: WiFi and hotspot connection can not be applied at same time. Disconnect WiFi and connect
Ethernet while using hotspot function.
3.4.3 Proxy settings
Setup proxy server

12
3.5 Sound
3.5.1 Volumes
Increase or decrease sound volumes
3.5.2 Touch Sounds
If enable Touch sound, sound will be heard while move remote controller.
3.6 Display
3.6.1 Font size
Change the font size of OSD
3.6.2 Wireless display
3.7 Storage
Shows the storage used of the OS and SD card.

13
3.8 Apps
List all apps installed.
You can choose an application and force to shut down the app, uninstall the app, clear user data, move
to SD card and clear cache data.
3.9 Location access

14
3.10 Security
3.11 Language & input
Change OSD language and input method.
The default input method is android standard keyboard.
If you are using our IR remote control, enter into “Default” option and switch to remote controller input
method.

15
3.12 Backup & reset
Back up my data:
You can backup your application data, WiFi password and other settings.
Factory data rest:
You can reset all the settings and apps to factory default.
Note: You might want to backup important data before resetting the box. Once you choose to rest to
factory default, all data/apps will be deleted.

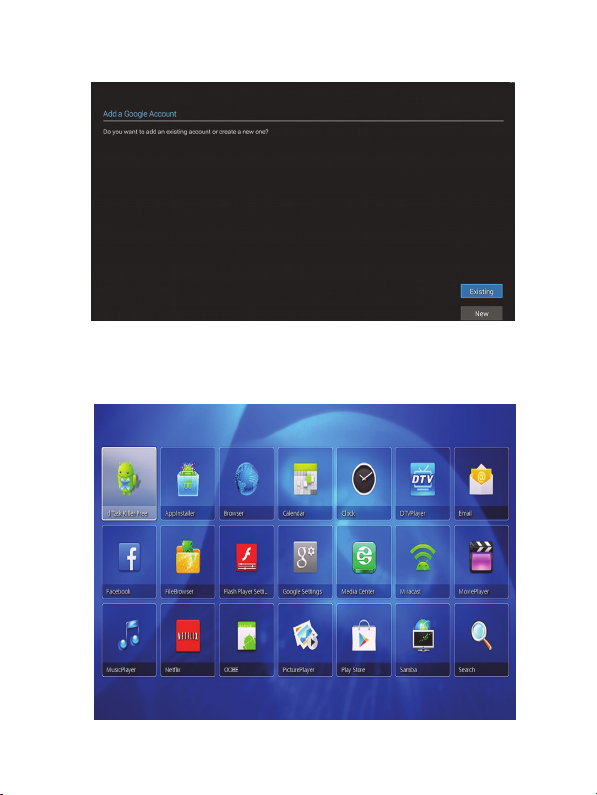

3.13 Add account

16
3.14 Date & Time
Set date, time, time zone and time format
3.15 Accessibility

17
3.16 Developer options
If user want to do some debugging on box by ADB, enable USB debugging, you will get ADB function
by Ethernet or WiFi network.
3.17 About device
Firmware version under build number.

18
4. Apps Install & Uninstall
On ATV1220T2, you can install apps from Android Market over the Internet or other sources, such as
other online sources, the internal storage and the USB storage device and SD card that you have
mounted onto ATV1220T2.
You also can manage apps on ATV1220T2 and SD card, install/uninstall apps, stop running apps, or
select other options.
5. Firmware Update
You can download newest firmware from Geniatech Official website: www.geniatech.com
6. Trouble Shooting/FAQ
6.1 No Picture
Refer to the TV user manual for how to select the correct video input channel.
6.2 USB Content cannot be read
. The format of USB storage device is not supported
. The supported memory size is 32G maximum.
. Make sure that this player supports these files.
6.3 Remote Controller cannot respond quickly to the pressing of keys
Make sure that batteries have enough power.
6.4 The firmware updating is not complete after a long time
If you update the firmware over the online service, it may take a long time to download the firmware
update files from the server. To save your time, update the firmware through the SD card.
7. Repairs
If you contact us to repair your player, an administration fee may be charged if either:
An engineer is called out to your home at your request and there is no defect in the product.
You bring the unit to a repair center and there is no defect in the product.
We will provide you with the amount of the administration fee before we make a home visit or begin
any work on your player.
We recommend you read this manual throughly, search for a solution on line at www.geniatech.com, or
contact Geniatech Customer Care before seeking to repair your player.
