myomo MyoPro 2 Motion G User manual

User manual appendix C
Specific instructions for your unique MyoPro 2

PN 25623 Rev 011 2

PN 25623 Rev 011 3
CONTENTS
›
MyoPro 2 Motion G Diagram
5
› Finger Support Diagram Close-Up 6
› Putting Your MyoPro 2 On (“Donning”) 7
› Warnings Review 8
› Steps for Putting Your MyoPro 2 On 9
› Taking Your MyoPro 2 Off (“Doffing”) 19
› Warnings Review 20
› Steps for Taking Your MyoPro 2 Off 20
› Using Your MyoPro 2 23
› Control panel 24
› Modes of Use 25
› Start Mode 25
› Elbow Modes 26
› Grasp Modes 28
› Changing Elbow Modes with the ControlPanel 30

PN 25623 Rev 011 4

PN 25623 Rev 011 5

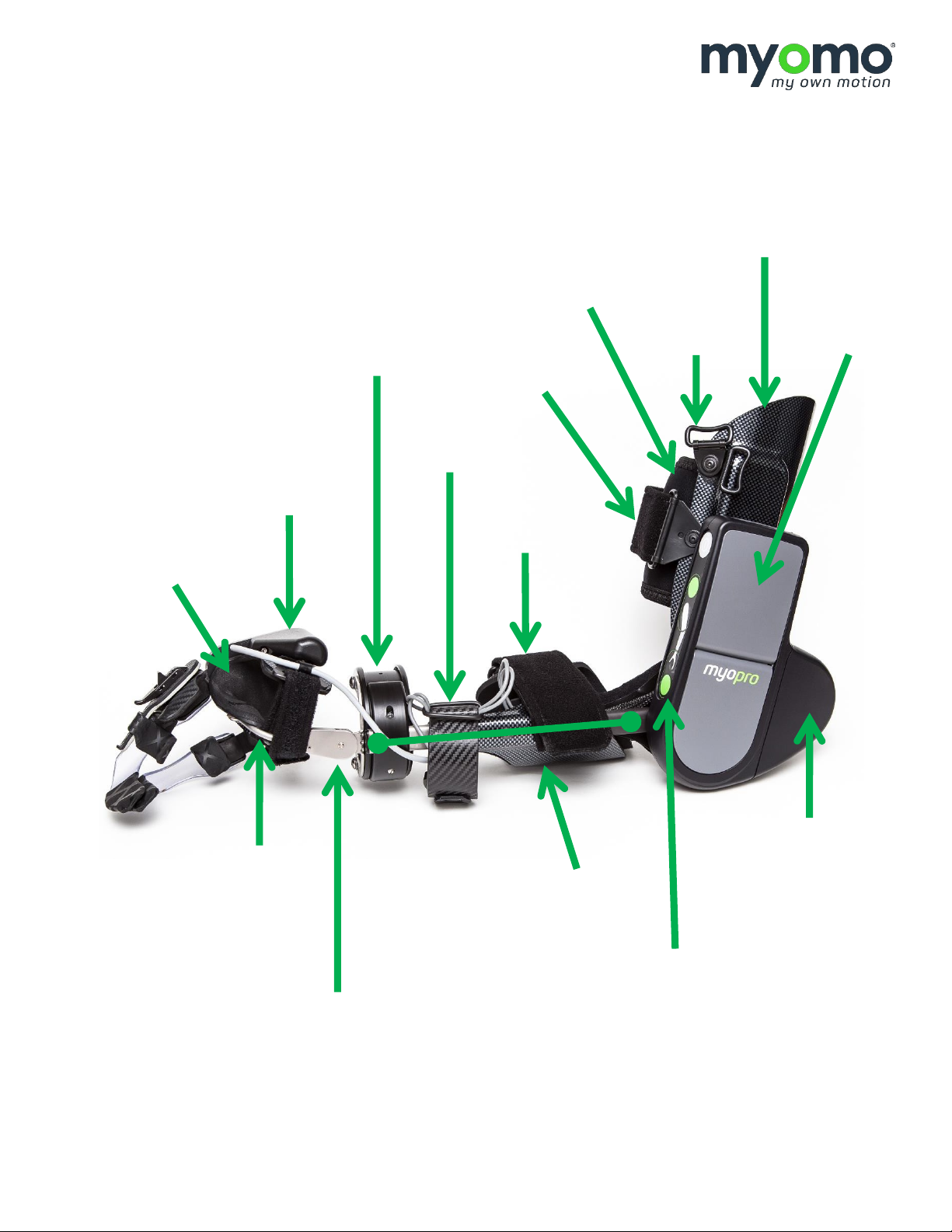

MYOPRO 2 MOTION G DIAGRAM
Component names and references (not every device includes every component).
Upper Arm
Shell
Multi-Articulating Wrist
Upper-Arm
Sensor Cuff
Harness
Attachment
Point
Battery
Compartment
(MAW), Rotational Ring Upper Cuff
Closure
Hand
Support Shell
Hand
Motor
Forearm
Sensor Cuff
Forearm
Closure
Hand Carrier
Bar
Forearm
Shell
Elbow Motor
Multi-Articulating Wrist
(MAW), Flexion Joint
Forearm Bar
Control Panel
(User
Interface)

PN 25623 Rev 011 6

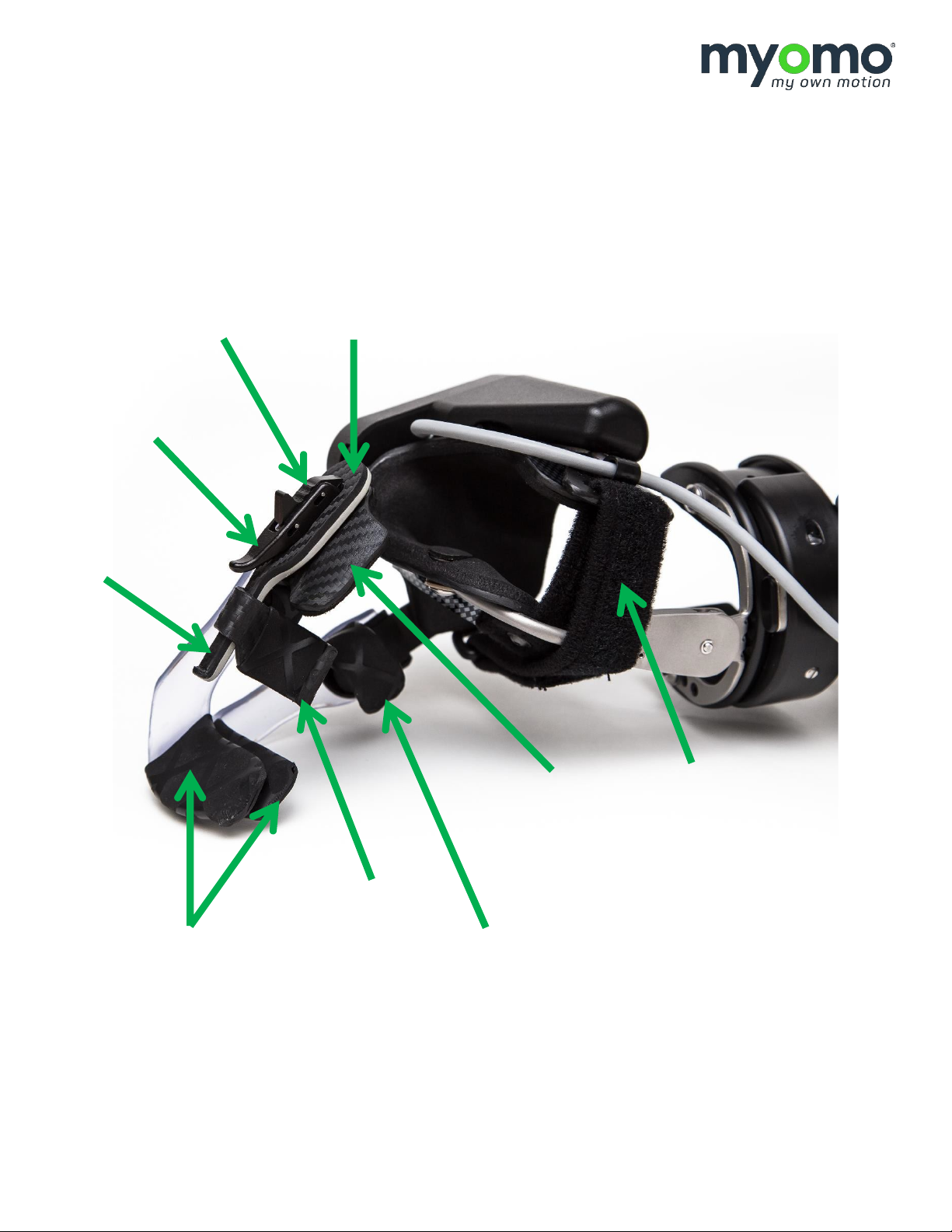

FINGER SUPPORT DIAGRAM CLOSE-UP
Latch Loop
Anvil
Stem
Dorsal Finger
Piece
Hand Strap
Prehensile
Pinchers
Finger
Saddle
Thumb
Saddle

PN 25623 Rev 011 7
PUTTING YOUR MYOPRO 2
ON
(“DONNING”)

PN 25623 Rev 011 8
PUTTING YOUR MYOPRO 2 ON (“DONNING”)
The following pages include step-by-step instructions for putting the MyoPro 2 on (sometimes referred to as
“donning the MyoPro 2”).
WARNINGS REVIEW
BEFORE donning the MyoPro 2, review the warnings below:
WARNING: DO NOT expose the MyoPro 2 to flame or excessive heat; personal injury may
occur.
WARNING: The MyoPro 2 is a prescription device and should only be used as indicated under
clinical supervision of a Provider, or after receiving instruction from a clinical Provider for at-
home use.
WARNING: The MyoPro 2 is only to be used by the person for whom it isprescribed.
WARNING: Each component of the device is supplied for safety and best performance. Use all
provided components for optimal operation.
WARNING: ONLY use the MyoPro 2 upper limb orthosis on the prescribed elbow, wrist and
hand joints. Each MyoPro 2 is built specifically for a left arm or a right arm; never wear the
MyoPro 2 on the other arm.
WARNING: Tight straps may restrict the User’s circulation. Therefore, always check that straps
are not too tight throughout the User’s range of motion.
WARNING: Do not sleep while wearing the device as straps may alter theUser’s circulation.
▲ CAUTION: If you detect fumes, flames, melting of components around the battery or battery
charger, or the device is hot to touch, TURN THE DEVICE OFF IMMEDIATELY and contact your
Provider.

PN 25623 Rev 011 9
STEPS FOR PUTTING YOUR MYOPRO 2 ON
1. POWER OFF: While donning, the MyoPro 2 should be turned OFF; check that it is OFF before starting to
put the MyoPro on your arm.
NOTE: Pads and straps should be fully air-dried from the previous use.
▲ CAUTION: Do not use a hairdryer to dry components of the MyoPro 2.
2. PREPARE: Place the MyoPro 2 in your lap, or on a flat surface that is not slippery.

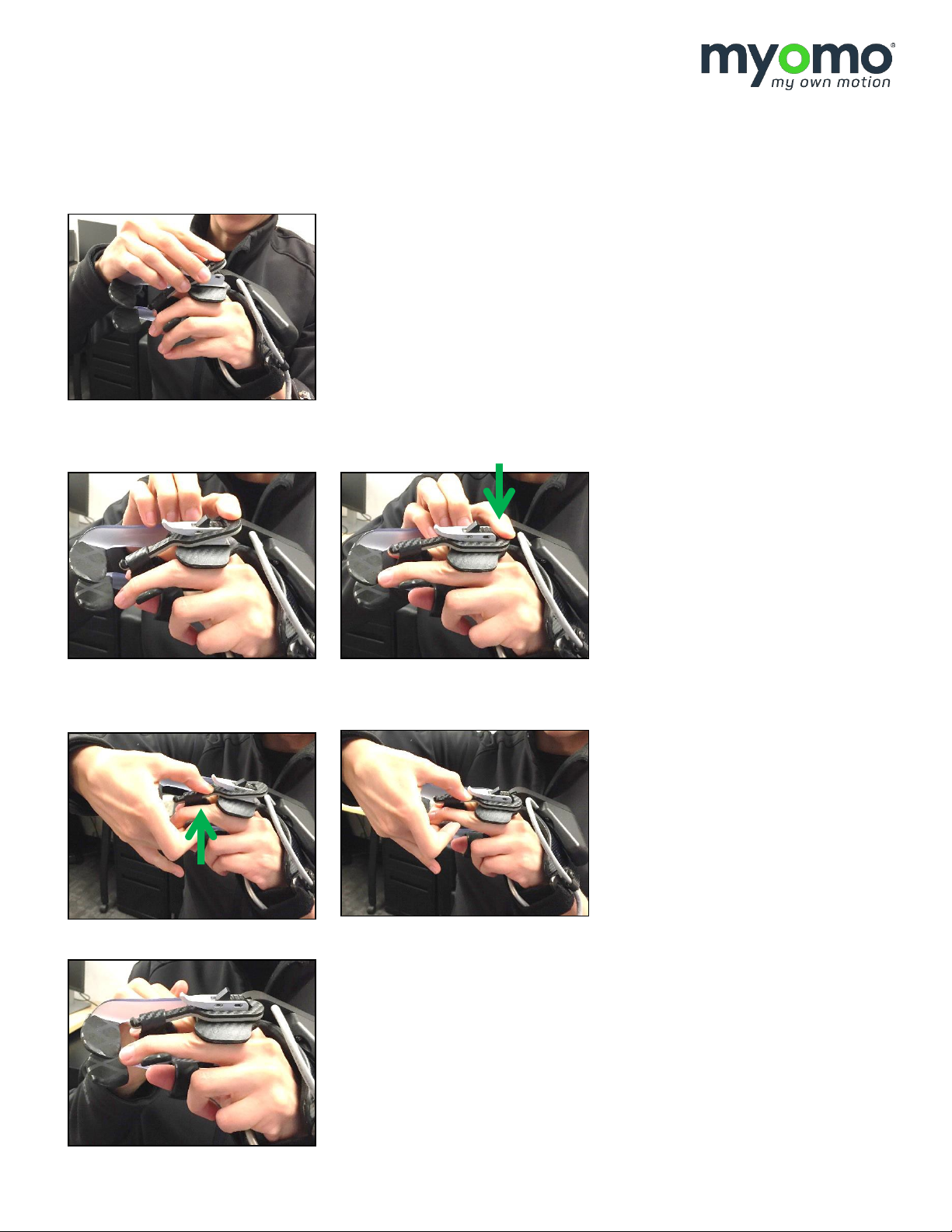

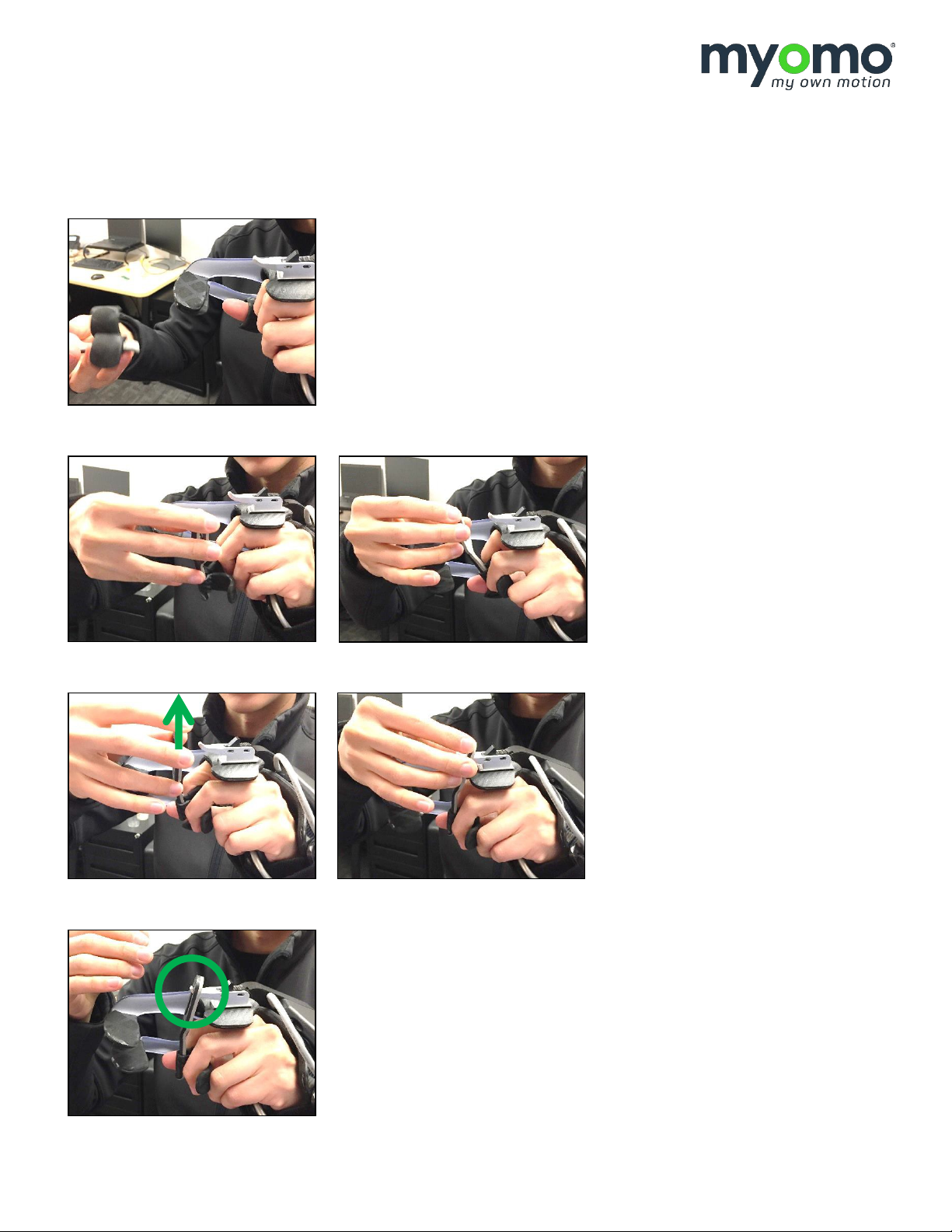

3. HAND: Start with the hand support shell: check that the strap around the hand support shell is loose.
Feed your fingers through so the under side of the hand support shell sits in your palm, and your thumb
rests in the Thumb Saddle. Be sure the base of your thumb presses against the hard plastic (opposite of
the hand strap). Leave the fingers free while you continue to put the rest of the device on – we will
secure the finger support as the last step.
NOTE: The motor and battery case should rest on the outside of the arm. If the motor and
battery case is aligned along the interior of the arm, you may be donning upside down or on
the wrong arm.
4. WRIST: Lower your wrist into the multi-articulating wrist (MAW), rotation portion.
5. FOREARM: Lower your forearm into the forearm shell.
6. Secure the Forearm Closure.
7. FINISH LOWER ARM: Tighten and secure the Velcro hand strap. This will keep the MyoPro 2 in place
while you continue to don.

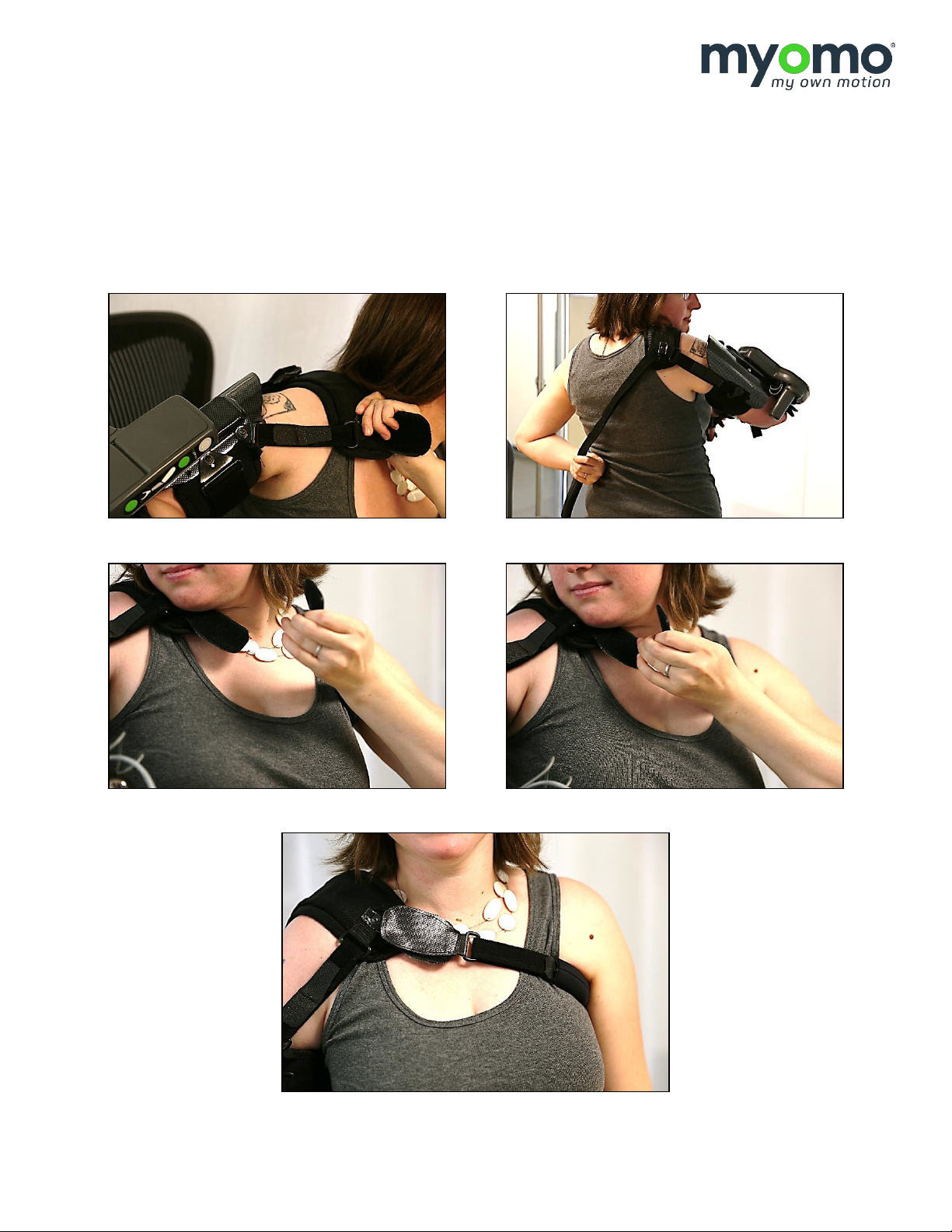

STEPS FOR PUTTING YOUR MYOPRO 2 ON, CONTINUED
PN 25623 Rev 011 10

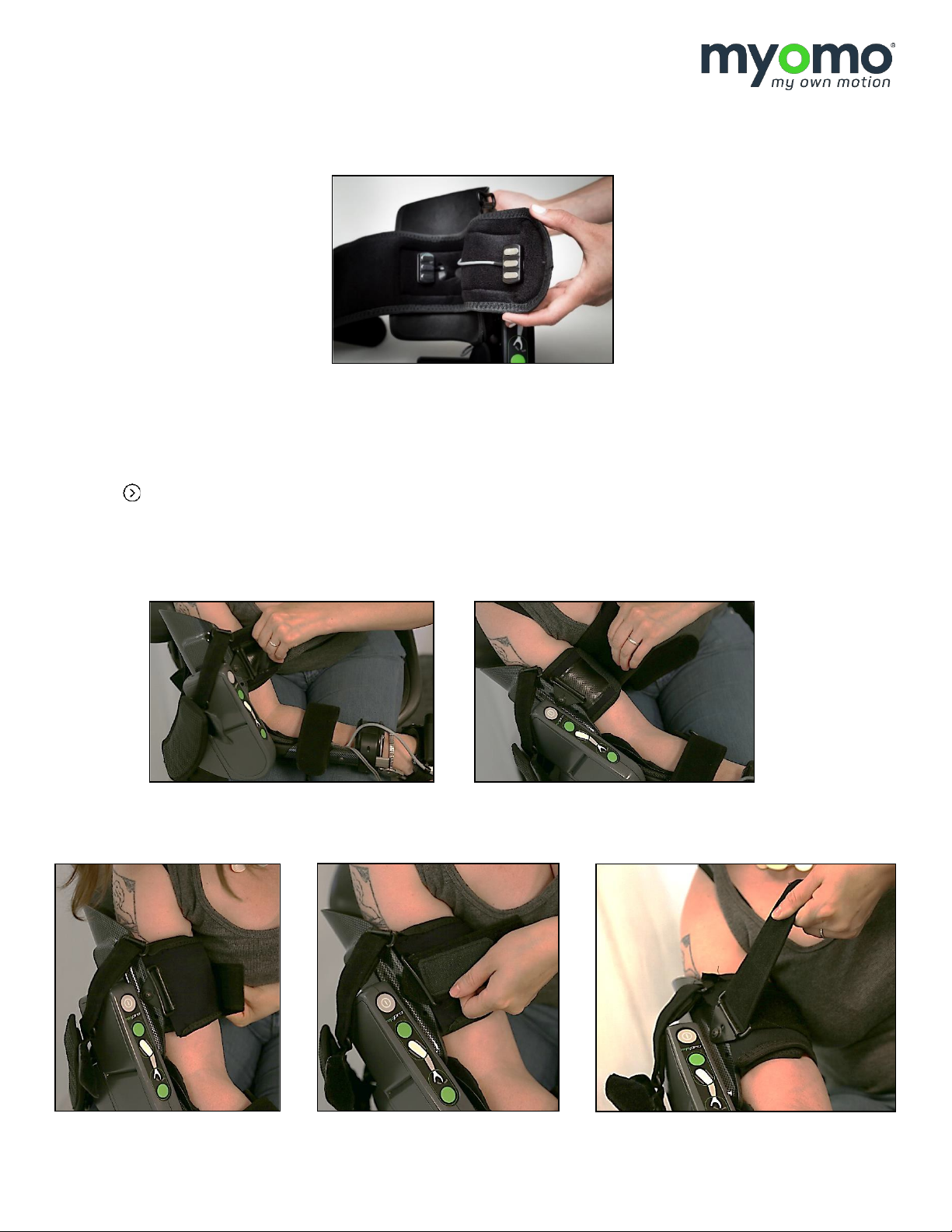

8. UPPER ARM:
Wrap the Upper Sensor Cuff around your upper arm, keeping attention on the Biceps and Triceps sensors;
when the Upper Sensor Cuff is properly fit, the sensors should be centered over the biceps and triceps
muscles. Secure the Upper Cuff Closure and pull to tighten before securing the strap’s Velcro.
NOTE: the sensor with the BLUE Velcro goes on biceps, the sensor with the RED Velcro goes on
triceps.
Upper Sensor Cuff
Upper Cuff Closure
