myPhone Classic User manual

OPERATING INSTRUCTIONS
myPhone Classic
Lot number: 201611

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
Thank you for choosing the device myPhone
Classic. Please read the Manual carefully.
SAFETY
Read these simple guidelines. Not following
them may be dangerous or illegal.
DO NOT RISK
Do not switch on the phone when the use of
mobile phones is prohibited or if it might
cause interference or danger.
ROAD SAFETY
Do not use the mobile phone while driving a
car.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect
performance.
RESTRICTED AREAS
Switch OFF your telephone in a plane since
it may disturb the operation of other
equipment located therein. The telephone

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
may interfere with operation of the medical
equipment in hospitals and health
protection entities. Abide by any kinds of
bans, regulations and warnings transferred
by the medical staff.
QUALIFIED SERVICE
Only qualified personnel may install or
repair this product. Repairing by an
unauthorized service may cause a phone
damage and warranty loss.
BATTERY AND ACCESSORIES
Avoid exposing the battery to very high/low
temperatures (below 0°C/32°F and over
40°C/104°F). Extreme temperatures may
influence capacity and battery life. Avoid
contact with liquids and metal objects as it
may cause partial or complete battery
damage. The battery should be used
according to its purpose. Disconnect unused
charger from mains supply. Excessive
charging the battery can cause damage.
Therefore, a single battery charge should
not last longer than three days. In case of a

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
damage the charger should not be repaired
but replaced with a new one. Use only
original myPhone accessories available
with your phone. Installing an incorrect
battery type can cause explosion. Please
dispose of battery according to the
instructions.
ALARM CALLS
Making alarm calls may not be possible in
some areas or circumstances. It is
recommended to find an alternative way to
notify emergency services if you are going
to undeveloped or remote areas.
WATERPROOF
This device is not waterproof. Protect it
from moisture.
CHILDREN
The phone is not a toy. Keep the device and
its accessories out of reach of children.
USING THE MANUAL
Before you use the device refer to
information about safety precautions and

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
instructions for using the phone. The
descriptions in this manual are based on the
default settings of the phone. The latest
version of the user manual can be found on
website:
www.myphone.pl.
Depending on the installed version of the
software, service providers, SIM card or
country, some of the descriptions in this
manual may not match your phone.
PETROL STATION SAFETY
Always turn off the phone while refueling
your car on petrol station. Do not use your
phone close to chemicals.
SOUNDS
To avoid hearing damage, do not use the
device at high volume levels for a long
period of time, do not put operating device
directly to the ear.

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
Manufactured by:
myPhone Sp. z o.o.
ul. Nowogrodzka 31
00-511 Warszawa
Polska
phone: [phone]
E-mail: [e-mail]
website: www.myphone.pl

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
myPhone Classic contents
Before you start using your phone, make
sure all of the following items are included
in the box:
myPhone Classic,
Li-Ion 1100 mAh battery,
headphones,
mains charger,
user manual,
If any of the above items is missing or
damaged, please contact your dealer.
There is a sticker containing an IMEI and a
serial number on the packaging of myPhone
Classic set.
Therefore, it is recommended to keep the
packaging in case of any complaint. Keep
the container out of reach of children.

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
Introduction
Nr
Description
Function
1
Display
LCD screen.
2
Earphone
Phone calls' speaker.
3
Camera
The camera lens.
4
LED
flashlight
May be turned on by
pressing [Menu] →

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
[Application] →
[Torch] → <OK>.
5
<Menu>
button/Left
functional
key
Standby: enter the
menu.
In the menu: Press to
confirm the function
indicated on the display
on the bottom left
corner of the screen
above the key.
Standby: the
combination of
pressing the left
functional
key/<Menu> button
and then immediately
pressing the * to lock /
unlock the keyboard.
6
<Contacts>
/<Back>
button/
Right
Standby: enter the
Contacts
In the menu: Press to
confirm the function

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
functional
key
indicated on the display
in the bottom right
corner of the screen
above the key.
7.
<Green
handset>
key
Press to answer an
incoming call.
Standby: Press to access
the call list.
8
<Red
handset>
key
Phone turned off: press
and hold to turn the
phone on.
Phone turned on: press
and hold to turn the
phone off.
In the menu: Press to
return to the Home
screen.
9
Navigation
keys <Up>,
<Dow>,
<Left>,
Used to navigate
through various menus
and used to insert
actions in the calculator

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
<Right>
and <OK>
app: <Up> - add,
<Down> - subtract,
<Left> - multiply,
<Right> - divide.
10
Spot to
open the
back cover
Place to delicately open
the phone to insert
battery, SIM card etc.
11
Keyboard
Alphanumeric keypad.
12
<*>
Button/
lock key
The combination of
pressing the left
functional key and then
immediately pressing
the <*> to lock / unlock
the keyboard.
13
Flashlight
<On/Off>
Button
Press for about 3
seconds to turn the
flashlight on/off.
14
<#> Button
Long press to
activate/deactivate

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
Silent, Meeting or
General mode.
15
Microphone
Make sure that the
microphone is not
obstructed or covered
by anything during the
call.
16
Audio
socket
Mini jack 3.5mm socket
for headphones and
hands free.
17
Micro USB
socket
Used to charge and to
connect the data cable.

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
Specifications
Parameters
Description
Network
GSM 900/1800MHz
Dimensions and
weight
120×53×14.4 mm;
111 g
LCD
Bright and colorful,
2.4” 240x320px
Battery
1100mAh, Li-Ion
3.7 V
Memory card
Up to 32GB microSD.
Camera
2.0 Mpx
Additional functions
Audio player, FM
radio, flashlight,
Bluetooth, Camera.
Charger input
characteristics
100-240 V~, 50/60
Hz, 0.15 A
Charger output
characteristics
5 V , 0.5 A
Storing and charging the battery
Turn off the phone and unplug the charger
to remove the battery. Use only batteries

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
and chargers that are approved for use with

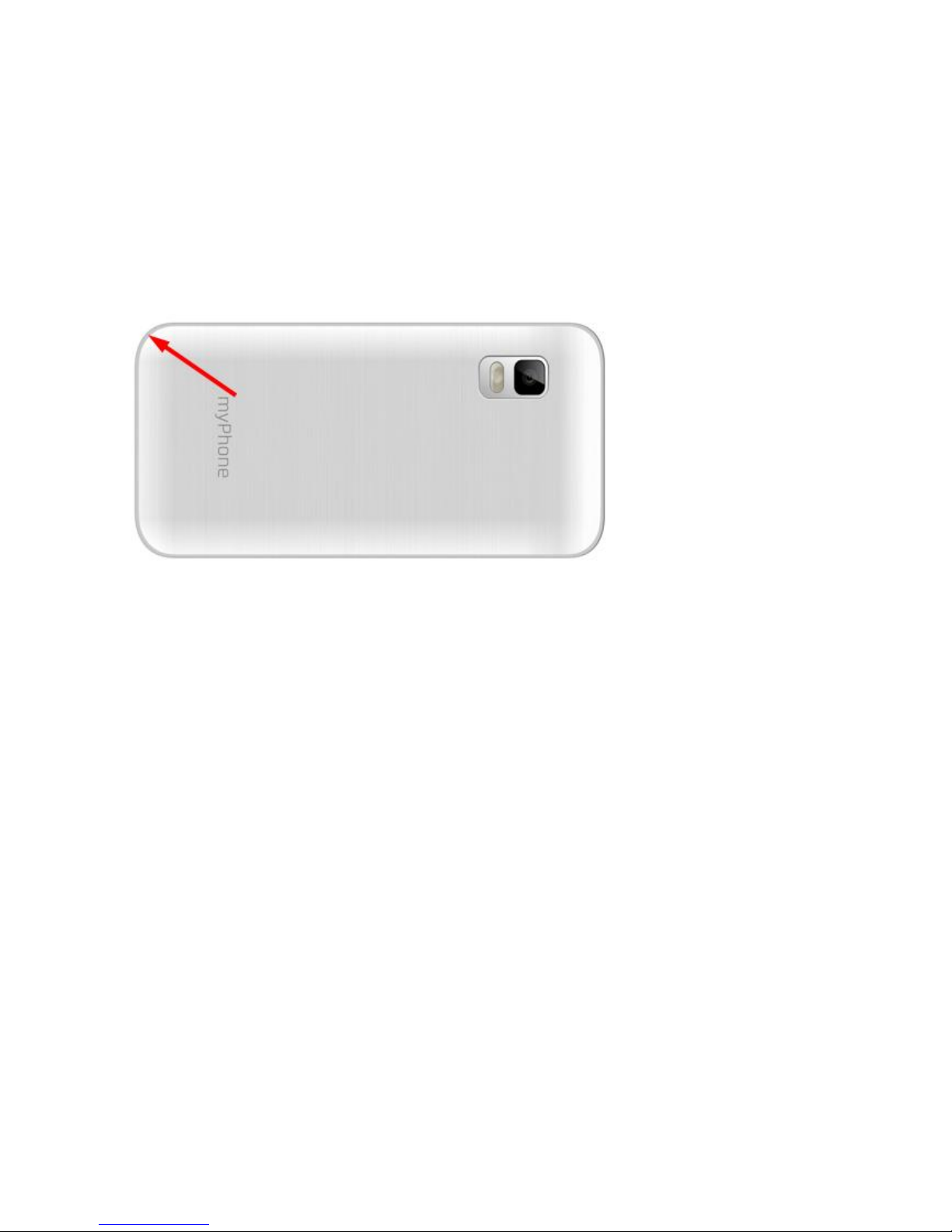

this model. Using your fingernail in the
designed slot (marked in the photo below
with a red arrow), pry the cover open. Make
sure not to damage any part of the phone.
Insert the battery. Battery contacts must
touch the contacts in your phone. Close the
battery cover and make sure it is snapped
all around.
First steps
Insert a SIM card, microSD card if necessary
and battery and turn on your phone. The
SIM card(s) should be placed with its gold
contacts facing down in a way that the
recess is stamped. To insert a microSD card,

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
unlock a corresponding tray and put the
card as in a way that the recess is stamped.
First use of a new SIM card
Enter 4-digit PIN code and confirm.
Be aware that the PIN is the 4-digit number,
you have only 3 attempts to input it
correctly. After the third incorrect entry, the
SIM card might be unlocked only via
entering the PUK code. The terms PIN and
PUK pertain to the documentation received
from your mobile operator.
Call
Use the numeric keypad to enter the desired
phone number (remember to include
regional codes for specific countries and
cities) and confirm. You can also call
numbers stored in your contacts.

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
Notice
Emergency calls (like 112 Europe) can be
made without a SIM card or without any
credits on a SIM card.
Functions during a call
During a call, the phone supports various
features, hands free for instance, to activate
hands free feature press button with a
speaker sign.
Energy saving
To conserve battery power, when you are
not using the device, dim the display by
moving the lock key. What is more, draining
battery is not considered as a justified
complaint, thus cannot be taken as a phone
defect.
Messages
The phone can receive and send messages.
The new, received message is indicated on
the phone display on top of the screen.

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
Contacts
The phone has a contacts directory in which
you can store names and phone numbers. It
is recommended to set numbers with
international call prefixes (eg. +48 for
Poland, +49 for Germany etc.).
In the directory, you can search for contacts
already saved on the phone or on the SIM
card, you can also delete, edit, copy, send
SMS or call the contact.
Profiles
The phone can have various preset profiles
that determine the phone ringer volume,
ring type and extra functions in certain
situations.
To select a desired profile, go to:
[Menu] → [User profiles]
To edit the selected profile, go to:
[Menu] → [User profiles] → [Choose a
profile] → [Options] → [Settings] and adjust
the preferences.

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
To activate a desired profile go to:
[Menu] → [User profiles] → [Choose a
profile] → [Activate].
Language
English is preset as a default language of the
phone. If by any chance, you have a phone
with a language that you do not understand,
go to the major desktop and follow these
steps:
press left functional key <Menu button> →
navigate through the menu to select an icon
with a cog → press left functional button
(OK) --> 1x navigation key down --> 1x left
functional button (OK) --> 1x navigation
key down --> 1x left functional button (OK)
and there you can select English or any
other desired language by pressing <OK>
button once more.

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
FM radio
To listen to the radio with this device you
have to connect it to the supplied
headphones.
You can turn on the radio in the [Menu] →
[Multimedia] → [FM Radio].
To find available radio stations, select:
[Options] → [Auto search and save] →
[Ok]. All of the found radio stations will be
saved in [Channel list].
Notice
The quality of listening to the radio depends
on the quality of radio waves in the area.
The radio may not be fully functional in
places when the radio waves may be
obstructed, eg. within buildings.
Calculator
Your phone also has a basic calculator that
can add, subtract, multiply and divide.

© 2016 myPhone. Wszelkie prawa zastrzeżone. Classic
From [Menu] choose [Application] →
[Calculator] and press [OK] to confirm.
Basic arithmetic operations can be entered
with the keypad (like entering numbers).
The operator can be inputted with the
navigation keys <Up>, <Down>, <Left>
and <Right>, by pressing <Ok> you will get
the result of your operation.
LED Flashlight
The phone also has an LED Flashlight
located on the back side of the phone. The
flashlight can be turned on / off with the
<0> button pressed for about 3 seconds.
Remember to turn off the flashlight when
the phone is not being used. By doing so, you
will prevent the unnecessary draining of the
battery.
Camera
With myPhone Classic you can take pictures
and record videos. To open a camera app, go
to:
