Nabis D02183 Installation guide

INSTALLATION INSTRUCTIONS
& WARRANTY LEAFLET
* Nabis 6mm Style Curved 1400x800 - CH
D02183

Please familiarise yourself with the fitting instructions before
commencing fitting.

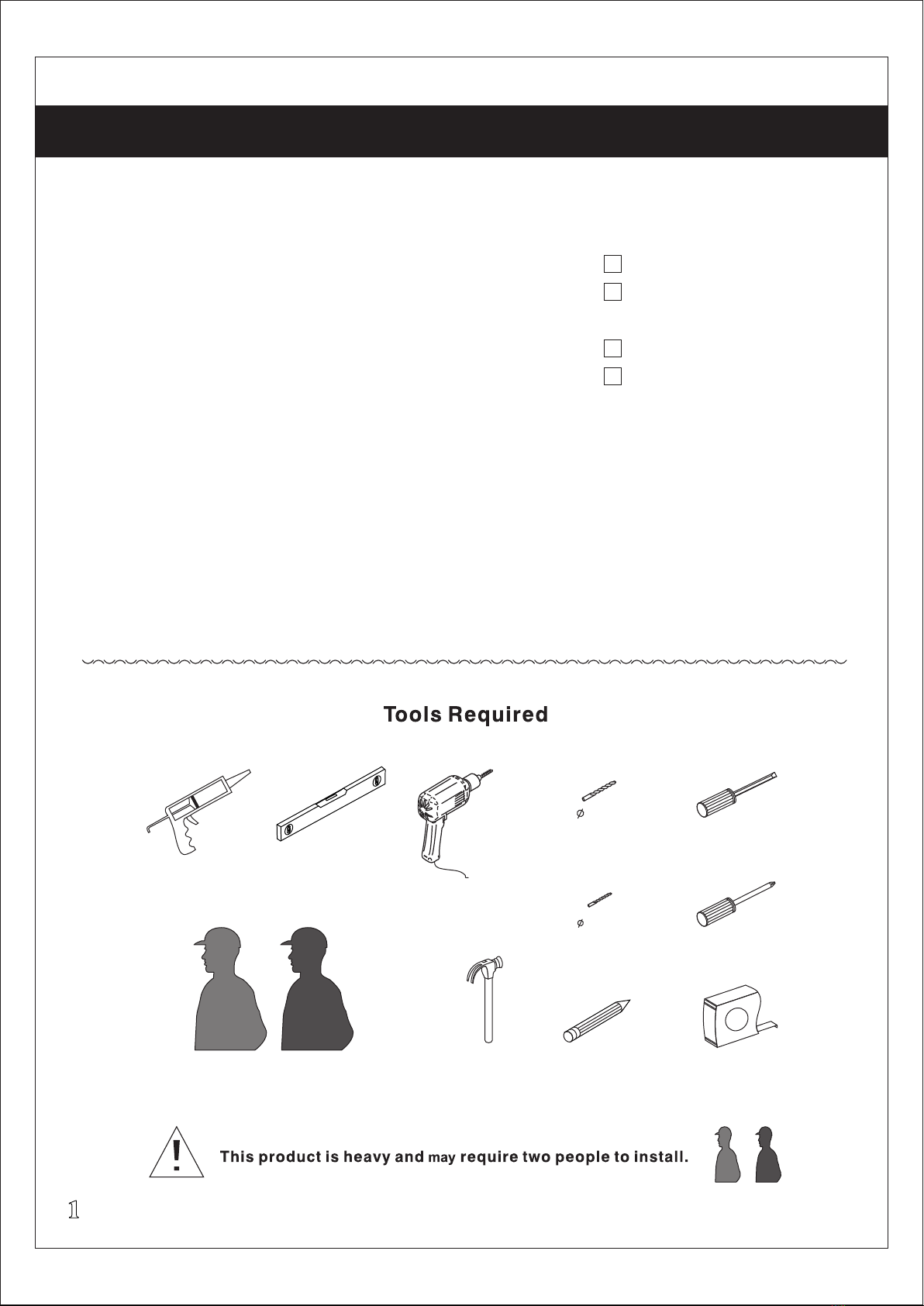

1 Check that you have the tools required
2 Check that the installation site is compatible
with size of door supplied
3 Check all the enclosure components
4 Check that the installation kit is complete
DO NOT ALL 4 boxes
as satisfactory.
The wall plugs supplied with the installation kit are for use in solid walls.
Hollow or ‘stud-partition’ walls will require alternative fixings.
Please consult a hardware supplier for the correct type.
It may also be necessary to consult your tiling supplier about the correct
method for drilling your tiles.
attempt to install the product unless you can tick
3.0mm
6mm
IMPORTANT

2
[1] 1xWall Post
[2] 3xWallPlugs
[3] 3xRound Screws ST4x35
[4] 3xScrew Cover Caps
[5] 3xScrews ST3.5x8
[6] 1xWater Deflector
[7] 1xDoor Panel
[8] 1xProfile Cover
1xInstallation
Instruction

[1]
[2]
[3]
[5]
[4]
[6]
[7]
[8]
Number Description Picture Quantity Can be purchased separately Wolseley Spare Product code
1
2
3
4
5
6
7
8
1
3
3
3
3
1
1
1
Wall Post
WallPlugs
Round Screws ST4x35
Screw Cover Caps
Screws ST3.5x8
Water Deflector
Door Panel
Profile Cover
N/
N/
N/
YD03086
N/
N/
YD03103
YD03097

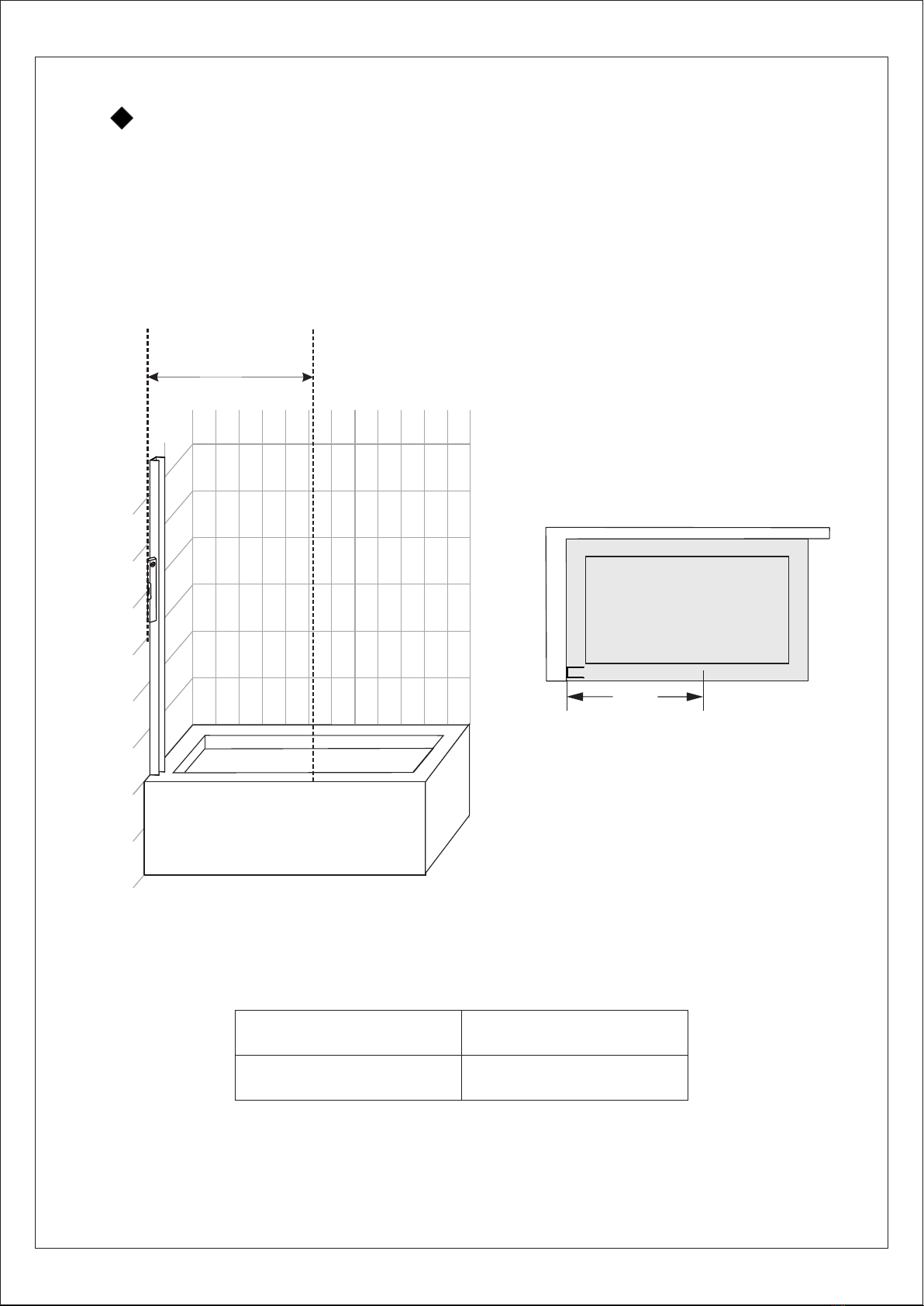

SIZE(mm) A
800 790-800
Adjust The Size
4
A
A
NF6211-4/-6

[1]
[2]
[3]
[7]

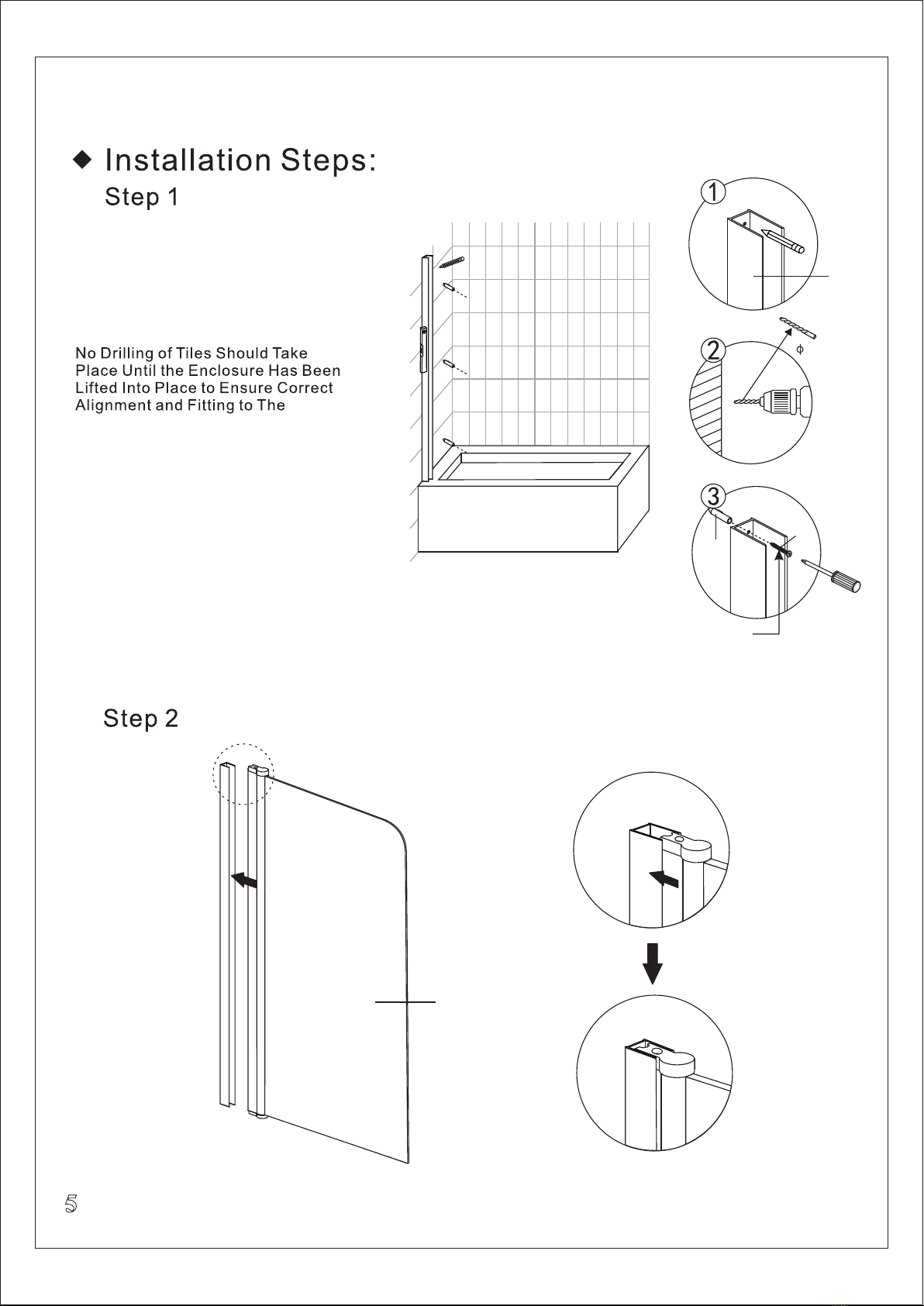

The profile must be checked with the
spirit level whilst marking.
6mm
Round Screw
ST4x35
Bath.
NF6211-4/-6

1
1
[6]
[5]
[4]
Take extra care
not to drill through
to exterior side.
with screw cover
3.0mm
Screw ST3.5x8
[4]
NF6211-4/-6

LH RH
7

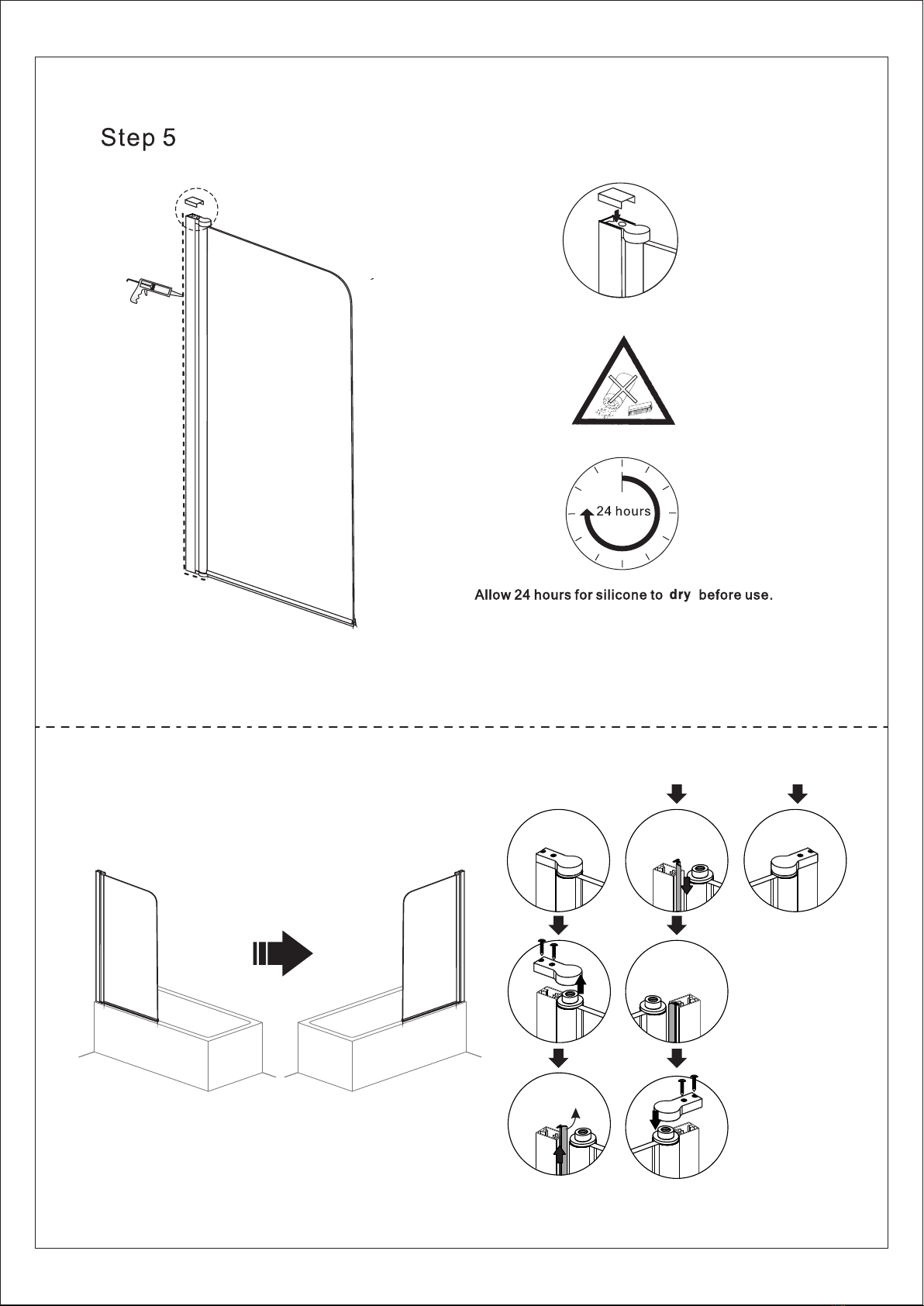

The sealant should be applied
to the outside edge.
Left
Right
Left
Right
Right
Left
Right
Attention-Seal to be positioned on the
inside of the bath.
For right handed requirement, flip seal from left to right face as shown in diagram.
NF6211-4/-6

Safety Information for User & Installer
Important information for fitter:
Installation information
• It is recommended that only approved/qualified plumbers should install the product.
• Incorrect installation of the enclosure will invalidate guarantee.
Safety information prior to and during installation
• Carefully check the product for transport damage prior to installation.
• Never install damaged panels as there is a risk of spontaneous glass breakage.
• The supplied fixings/wall plugs are only for mounting directly on solid walls.
• It is essential that the solid, masonry/walls be inspected for adequate load-bearing capacity prior to every installation.
• The supplied fixings/wall plugs are not for use with stud walls such as plaster board, wood, metal or fiber board.
• Always seek professional advice to confirm wall type and appropriate type of fixing to be used for installation.
• Always check walls for concealed utility lines (power, gas, and water) prior to drilling the fixing holes.
• Ensure that fittings will not hinder the movement of the door as this may cause glass breakage.
• For hinge/pivot doors ensure that toilet bowls, wash-stands or other objects are outside of the door opening area.
Special information on handling glass
• Always protect all glass edges from damage.
• Never stand the glass on its corners throughout the installation! Place the packing material beneath the glass panel;
never place the glass on tiles, concrete floors or similarly hard surfaces
• It is mandatory to check each glass panel for damage prior to installation. Never install damaged glass panels as this
could cause spontaneous glass breakage!
• If the glass panel is damaged during use it must be replaced without delay. (Failure could cause a risk of spontaneous
glass breakage!)
Prevent damage to glass or operation of the product.
• Ensure fittings do not hinder the movement of the door.
• Ensure that no objects are within the range of the door opening/ closing area.
• Avoid hitting the panels with hard objects such as mops when cleaning or tools during assembly. Damaged panels
must be replaced as failures may cause latent glass breakage.
• Do not hit against the glass edge with hard or pointed objects (e.g. with mop handle) Damaged panels must be
replaced; damage may cause spontaneous glass breakage.
• Do not use panels or handles to hang or support items such as drying towels or clothes.
Hazard information for special groups of people
• Do not allow small children, sick or disabled persons to shower unattended.
• A strong magnet is attached in the closing profile of some of the panels. This magnet could affect a pacemaker. Keep
a minimum distance of 15 cm from the magnet. Consult insulation guide for location of magnets.
Maintenance Information
Service/repair and inspection required for safety
• After cleaning, check all the moving elements are sufficiently greased, re-grease, if necessary. Only use acid-free
grease. We recommend silicone grease or standard household Vaseline.
Cleaning
Do not use steam cleaners, caustic or aggressive cleaning and scouring agents, cleaners that corrode
plastics, or solvents containing acetone or turpentine or neat bleach.
• Do not use any cleaning agents, which according to the manufacturer's specifications may corrode aluminum or light
alloys.
• Do not use glass cleaning pastes and micro-fiber cloths to prevent damage to glass coating system.
• In order to prevent the build-up of lime scale, remove any remaining drops of water after showering using a squeegee,
soft cloth without any cleaning agent.
• After use, carefully rinse off all residue such as; liquid soaps, shampoos, shower gels or similar cosmetic product with
water to avoid deposits.
Important: Never apply the cleaning agent for longer than necessary. After cleaning, check all the moving elements
are sufficiently greased, re-grease, if necessary.
NF6211-4/-6

Helpline
Should you require any technical help in association with your NABIS
products please call with your query.
0344 292 7062
Warranty: Years
For detail warranty information, please visit our website:
www.wolseley.co.uk
5
Wolseley
CV34 6DY
www.wolseley.co.uk
NF6211-4/-6
