Nacecare SM1200 Use and care manual

FormNo.70676N 3/04 NACECARE SOLUTIONS Printed in the U.S.A.
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your
N.A.C.E.machinecouldresultininjurytoyouortootherpersonnel;damagetothemachineortoother
property could occur as well. You must have training in the operation of this machine before using
it. IfyouroperatorcannotreadEnglish,havethismanualexplainedfullybeforeattemptingtooperate
this machine.
Si Ud. no pueden leer el Inglés, se hagan explicar este manual completamente antes de tratar el
manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
Fornewbookswriteto: NACECARESOLUTIONS,1205BritanniaRoadEast,Mississauga,
Ontario, Canada L4W iC7
SM1200 & SM1600
UprightVacuum
Operating Instructions and Repair Parts List

Page -2- N.A.C.E. Operator's Manual - SM1200 & SM1600
TableofContents
Operator Safety Instructions...................................................................................3
GroundingInstructions ............................................................................................5
Consignesde sécuritédel'utilisateur ......................................................................6
Instructions visant la mise a la terra........................................................................8
How to Prepare the Machine For Operation ...........................................................9
How to Operate the Machine..................................................................................9
Maintenance ...........................................................................................................10
The Belt to Drive the Brush................................................................................10
How to Replace the Belt....................................................................................10
What to do About the Wear of the Brush...........................................................11
Steel Core Brush ...............................................................................................12
Lubrication .........................................................................................................12
ElectricalMaintenance.......................................................................................12
Trouble Shooting Guide ..........................................................................................13
Wiring Diagram.......................................................................................................13
BaseAssemblyDrawing .........................................................................................14
BaseAssembly Part List.....................................................................................15

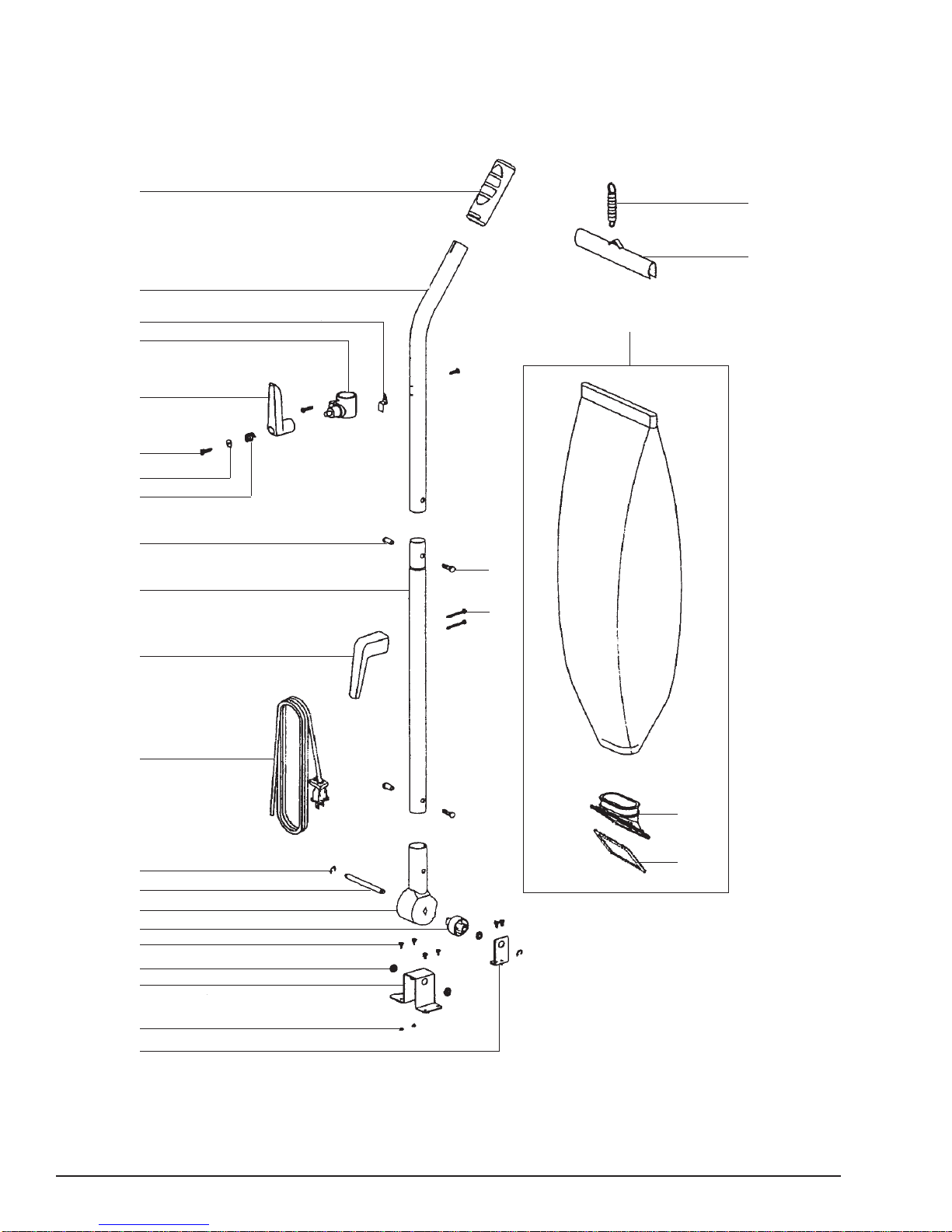

Handleand Filter BagAssemblyDrawing................................................................16
Handle and Filter BagAssembly Parts List .........................................................17

Page -3-
N.A.C.E. Operator's Manual - SM1200 & SM1600
OPERATOR SAFETY INSTRUCTIONS
WARNING AVERTISSEMENT ADVERTENCIA
Forthesafeoperationofthis machine,readandunderstandalldangers,warningsand
cautions. Look for these symbols:
DANGER: If you do not follow the instructions in a DANGER, severe bodily injury or death can occur to
theoperatorand/orotherpersonnel.
WARNING: If you do not follow the instructions in a WARNING, injury can occur to you or to other
personnel.
CAUTION: If you do not follow the instructions in a CAUTION, damage can occur to the machine.
WARNING: To reduce the risk of fire, electric shock, or injury:
1. You must have training in the operation of this machine before using it. READ THE
INSTRUCTION BOOK.
2. Do not use outdoors or on wet surfaces.
3. Do not leave vacuum cleaner unattended when plugged in. Turn off the switch and unplug
the electrical cord when not in use and before servicing.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
7. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull a cord
around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away
from heated surfaces.
8. Connect to a properly grounded outlet only (refer to Grounding Instructions).
9. Do not use extension cords or outlets with inadequate current carrying capacity.
10.Turn off all controls before unplugging.
11.Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
12.Do not handle plug or vacuum cleaner with wet hands.
13.Do not put any objects into openings. Do not use with any opening blocked, keep free of
dust, lint, hair, and anything that may reduce airflow.
14.This vacuum cleaner creates suction and contains a revolving brush. Keep hair, loose
clothing, fingers and all parts of body away from openings and moving parts.
15.Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot
ashes.

Page -4- N.A.C.E. Operator's Manual - SM1200 & SM1600
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury:
16.Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt
pulleywhenservicingthedrivebelt.
17.Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas
where they may be present.

Page -5-
N.A.C.E. Operator's Manual - SM1200 & SM1600
GROUNDINGINSTRUCTIONS
Preparation:
The following are instructions for connection to the
power supply and the electrical ground.
This machine must be connected to the electrical ground to
protect the operator from electrical shock. The machine has
anapprovedpowercordwiththreeconductors and a plug
with three terminals. Connect the plug to a receptacle that
has three holes and is connected to the electrical ground.
Thegreen(orgreenandyellow)conductorinthecordis the
groundwire. Neverconnectthiswiretoanyterminalother
thanthegroundpinterminal.
DANGER: Improper connection of
the equipment-grounding conductor can result
in risk of electric shock. Check with a qualified
electrician or service person if you are in doubt
as to whether the outlet is properly grounded.
Do not modify the plug provided with the
appliance. If it will not fit the outlet, have a
proper outlet installed by a qualified
electrician.
This machine is for use on a 110 to 120 VoltAC 60 cycle
electric circuit. Make sure you have the correct frequency
andvoltagebeforeconnectingthepowercordtoanoutlet.
The machine has a plug as shown in figureA. If a receptacle
connected to the electrical ground as shown in figureAis not
available,useanadapterasshowninfigureC. Thisadapter
must be connected as shown in figure B to an electrical
ground in the electrical outlet. Make sure you use the plate
screw and the tab to fasten the adapter.
WARNING: Always use this machine with anAC
three-conductor electrical system connected to
the electrical ground. Replace any worn, cut or
damaged cords. Replace any damaged plugs,
receptacles or connector bodies.
WARNING: Do not cut, remove, or break the
ground terminal. Do not try to fit a three-termi-
nal plug into a receptacle or connector body
that does not fit the plug, see your Authorized
N.A.C.E.Dealer to get an authorized person to
make the connection.
WARNING: Do not move the machine over an
electrical cord. Always lift the cord over the
machine.
EXTENSIONCORDS:
Useonlyanapprovedextensioncordwiththreeconductors,
a plug with three terminals and a connector body with three
holes. This machine has a power cord with wire size 18
AWG (AWG meansAmerican Wire Gauge).
WARNING: If you use an extension cord, use an
extension cord with minimum wire size 16 AWG.
Do not use an extension cord longer than 50
feet. Do not join two extension cords.
FIGURE A
Grounded
Outlet Box
Grounding Blade
is longest of the
three blades
FIGURE B
FIGURE C
Grounding
Tab
Metal
Screw
Adapter
Grounded
Outlet Box

Page -6- N.A.C.E. Operator's Manual - SM1200 & SM1600
CONSIGNES DE SÉCURITÈ DE L'UTILISATEUR
AVERTISSEMENT
Pour utiliser cet appareil en toute sécurité, il faut lire et coprendre tous les consignes de danger,
d'avertissement et d'attention. Soyez attentif aux symboles que voici.
DANGER: Ne pas respecter les consignes d'un avis de DANGER,peutoccasionnerlamortoudes
lesionscorporellesgravespourl'utilisateuret/oud'autrespesonnes.
AVERTISSEMENT: Nepasrespecterles consignesd'unAVERTISSEMENTpeutoccasionner deslesions
corporellespourl'utilisateuret/oud'autrespersonnes.
ATTENTION: Nepasrespecterlesconsignesd'unavisd'ATTENTIONpeutoccasionnerdesdommage
àl'appareil.
AVERTISSEMENT: Pour réduire le risque de feu, de choc électrique, ou de blessure:
1. Vous devez recevoir une formation appropriée avant de vous servir de cet appareil. LISEZ
LEMANUELDECONSIGNESDUFABRICANT.
2. Ne pas utiliser à l'extérieur ou sur des surfaces mouillées.
3. Ne laissez pas l'aspirateur seul quand il est branché. Fermez le commutateur et débranchez
l'appareillorsquevous nel'utilisezpasou avantlenettoyageou l'entretien.
4. Ne permettez pas quel'aspirateursoit utilisé comme un jouet. Une attention particulière est
nécessarie lorsqu'il est utilisé par ou près d'un enfant.
5. Suivezstrictementlesrecommandationsd'utilisationdecemanuel. Utilisezuniquementles
accessoires recommandés par le fabriquant.
6. N'utilisez jamais l'aspirateur si le cordon ou la fiche sont endommagés. Si l'aspirateur ne
foncitionne pas comme il le devrait, s'il a été échappé, s'il est endommagé, s'il a été laissé à
l'extérieur ou échappé dans l'eau, retournez-le à un centre de service avant de l'utiliser.
7. Ne tirez pas l'aspirateur ou le transportez par le cordon. N'utilisez pas le cordon en guise
de poignée. Ne fermez pas uen porte sur le cordon ou tirez le cordon sur des bordures ou
des coins pointus. Ne passez pas l'aspirateur sur le cordon. Tenez le cordon à distance
des surfaces chauffantes.
8. Branchez toujours l'aspirateur dans une prise à trois (mise à terre).
9. N'utilisez pas des rallonges ou des prises qui n'ont pas une capacité suffisante pour
transporter le courant.
10.Mettez sur arrêt tous les boutons de commande avant de débrancher.
11.Ne débranchez pas l'aspirateur en tirant sur le cordon. Pour débrancher, tenez la fiche et
non pas le cordon.
12.Ne manipulez pas la fiche ou l'aspirateur avec les mains mouillées.
14.N'insérez rien dans les ouvertures. N'utilisez pas l'aspirateur si des ouvertures sont
bloquées. Assurez-vous qu'elles soient dégagées de poussière, de mousse, de cheveux
ou de tout autre chose qui pourrait réduire le passage de l'air.
15.Cet aspirateur crée de la succion et contient une rouleau-brosse tournant. Tenez les
parties mobiles et les ouvertures loin des cheveux, du linge, des doigts et de toute partie
du corps.

Page -7-
N.A.C.E. Operator's Manual - SM1200 & SM1600
16. Ne remassez pas de objets qui brûient ou fument comme les cigarettes, les allumettes ou
lescendreschaudes.
17.Les poulies de la courroie peuvent devenir chaudes pendant l'utilisation normale. Pour
prévenir des brûlures, évitez de toucher la poulie lors de l'entretien de la courroie.
CONSERVEZ CES INSTRUCTIONS
AVERTISSEMENT: Pour réduire le risque de feu, de choc électrique, ou de blessure:

Page -8- N.A.C.E. Operator's Manual - SM1200 & SM1600
INSTRUCTIONS VISANT LA MISE A LA TERRE
PREPARATION:
Consignes pour brancher l'appareil a la source d'energie
et pour la mise à la terre.
Cetappareildoit être mise à la terre afin d'eviter le risque de
chocélectrique. Cetappareilestpourvud'uncordonmunide
trois conducteurs et d'une fiche munie de trois bornes.
Brancher la fiche à une prise qui a trois tous et est mise à la
terre. Leconducteurvert(ouvertetjaune)danslecordon
est le fil neutre. Ne jamais attacher ce conducteur à une
borneautrequelaborneàterre.
DANGER: Un conducteur de terre
mal raccordé peut entraîner un risque de choc
électrique. Consulter un electricien ou un
technicien qualifié si vous n'êtes pas certain
que la prise est correctement mise à la terre. Ne
pas modifier la fiche fournie avec l'appareil. Si
elle ne peut être insérée dans la prise, faire
installer une prise adéquate par un électricien
qualifié.
Cet appareil est destiné à un circuit de 110 à 120 volts et 60
cycles. S'assurer que l'appareil est branché à une prise de
courant ayant la même configuration que la fiche. Cet
appareil est muni d'une fiche de mise à la terre semblable à
celle illustrée par la FigureA.
AVERTISSEMENT: Toujours employer cet
appareil avec un système électrique AC à trois
conducteurs, raccordé à la mise à la terre.
Remplacer tout cordon usé, coupé ou
endommagé. Remplacer toute fiche ou prise
endommagée.
AVERTISSEMENT: Ne pas couper, briser, ou
enlever la prise de terre. Ne pas chercher à
brancher la fiche à trois bornes, à une prise que
ne lul correspond pas. Si la prise ne correspond
pas à la fiche, contacter votre agent de vente
autorisé des appareils N.A.C.E.afin qu'une
personne qualifiée effectue le branchement.
AVERTISSEMENT: Ne pas faire passer l'appareil
sur le cordon électrique. Soulever toujours le
cordon pour faire passer l'appareil en dessous.
LESRALLONGES:
Utiliseseulementunerallongeapprouvéeàtroisfils
conducteurs,munied'uneficheàtroisbornesetd'uneprise
à trois trous. Cet appareil est muni d'un cordon électrique
dont les fils sont de calibre 16AWG (AWG signifieAmerican
WireGauge).
AVERTISSEMENT: Si vous utilisez une rallonge,
celle-ci doit avoir un calibre de fil minimum de
16 AWG. Ne pas utiliser de rallonge qui dépasse
50 pieds (15 mètres) de long. Ne pas raccorder
deux rallonges ensemble.
FIGURE A
Boîte de Prise
de Terre
LALAMEDE
TERREESTLA
PLUSLONGUE
DESTROIS
LAMES
Note:AuCanada,l'utilisationd'unadaptateur
temporairen'estpasautoriséeparleCode
canadiendel'électricité.

Page -9-
N.A.C.E. Operator's Manual - SM1200 & SM1600
HOW TO PREPARE THE MACHINE FOR OPERATION
Assemble the Handle
Attach upper (A) and lower (B) handle to handle
socket (C) by aligning holes and securing with 2 part
screws (D). See figure 1.
Install the BagAssembly
Position the bag coupling into the left bag support (A)
and turn the bag knob (B) counterclockwise to secure
bag to base. Attach bag spring to bag hook (C)
located on the rear of the top cord hook. See figure
2.
HOW TO OPERATE THE MACHINE
With power cord plugged into the proper voltage
outlet,lowerhandletostartthevacuum. Lower
handleby depressing handle release pedal at the
lower left rear of the vacuum. Depress pedal again
and lower handle all the way to the floor to clean
under low furniture.
To stop vacuum, raise handle to upright position.
For handle positions, see figure 3.
Figure 1
Figure 2
Figure 3
A
B
C
D
D
A
B
C
Store
Operate
CleanUnder

Page -10- N.A.C.E. Operator's Manual - SM1200 & SM1600
MAINTENANCE
This section describes the procedures that must be
donebytheoperator.
WARNING: To prevent injury, always turn
off the switch and remove the electrical
plug from the electrical outlet before
changing the brush, belt, or filter bag and
before leaving the machine.
WARNING: To prevent electrical shock,
always turn off the switch and remove the
electrical plug from the electrical outlet
before doing any repairs or maintenance
to this machine.
WARNING: Belt pulleys can become hot
during normal use. To prevent burns, do
not touch the belt pulley when servicing
the drive belt.
WARNING: Maintenance and repairs must
be done by authorized personnel only.
The Belt to Drive the Brush
Thismachineusesaroundrubberbelttodrivethe
brush. Check the belt frequently. Replace the belt if
the belt slips on the brush. Remove hair and threads
fromthebrushrollandthemotorshaftpulleybefore
replacingthebelt.
How to Replace the Belt
To replace the drivebelt,followthisprocedure:
1. Makesuretheelectricalplug is removed from the
outlet.
2. Putthemachine upside down.
3. To remove the bottom plate, turn the two cam
latches on the sides of the plate.
4. Removethewornbeltfromthepulleyonthemotor
shaft. See figure 4.
5. To remove the brush, pull the brush out of the slots
intheframe.
6. Cleanthevacuumopeninginthebaseofthe
machine.
7. Check the bristles of the brush for wear. If the
bristles are worn, see the section "What to Do
about the Wear of the Brush."
8. Put a new belt around the pulley on the brush.
Align the brush roll pulley with the belt guide. See
figure 5.
Figure 4
Figure 5
Motor Pulley
Belt
Guide

Page -11-
N.A.C.E. Operator's Manual - SM1200 & SM1600
MAINTENANCE(CONT.)
9. Placetherubberendcapcoversoverboth end
caps (flat side against end cap). Align holes and
secure. Then, slant the brush roll forward so the
end caps are in line with the slots in the cleaner
base. Push the brush roll into the base until
seated. See figure 6.
NOTE: Endcaps are color coded.
10. Place the lower side of the belt into the belt guide
and around the left side of the motor pulley. See
figure 7.
CAUTION: Improper installation of the
brush roll or brush roll belt could cause
carpet or cleaner damage.
11. To install the chrome bottom plate, put the tab on
the base in the slot in the plate. Press the center
of the plate against the base of the machine. Turn
the cam latches to fasten the plate to the base.
See figure 8.
Figure 6
Figure 7
Figure 8
Cam Latch
Tab

Page -12- N.A.C.E. Operator's Manual - SM1200 & SM1600
Steel Core Brush
WARNING: Turn off the switch and disconnect
unit from electrical supply before replacing
brushstrips.
1. New brush strips inserts are supplied in sets. To
replace, first disconnect the machine from the
electrical outlet.
2. Remove the brush roll, see the section "How to
Replace the Belt."
3. Take the rubber end cap cover from the end of the
brushroll.
4. Removeendcap(figure9,itemA)andbearingretainer
(figure 9, item B).
5. Push the exposed end of the shaft (figure 9, item C)
throughtheoppositeendofthebrushroll.
6. Pull out the worn brush strips (figure 9, item D) with
pliers and slide in new ones of the same length,
insertingtheroundedendfirst.
7. Fit the track on either side of the brush strip securely
into the brush roll slot.
8. Replacetheotherbrushstripsfromtheoppositeendof
thebrush roll.
9. Returnshaft(figure9,itemC)andaligntheindentation
ofthebearingretainer(figure10,itemB)withthebrush
strip on both ends. Seat firmly.
10. Tighten endcaps (figure 9,itemA).
NOTE: Endcapcoversarecolorcoded. Reinstallthe
brushassemblywiththecolorcodedendcapcoverand
thecolorcodedmainframebase.
11. Addtheendcapcover.
12. When properlyassembled,thebrushrollshouldrotate
freelybetweenthetwoendcaps.
13. Check the condition of the belt; change if necessary.
Replace the roll belt bottom plate, see the section
"How to Replace the Belt".
Lubrication
Do not oil the motor. The motor in this machine is
permanently lubricated and sealed. Do not oil the motor at
any time.
Electrical Maintenance
WARNING: Electric repairs and maintenance
must be done by authorized personnel only.
Return the machine to a N.A.C.E.Authorized
repair location.
MAINTENANCE(CONT.)
Figure 9
Figure 10
AB
D
C
B

Page -13-
N.A.C.E. Operator's Manual - SM1200 & SM1600
N.A.C.E.
SM1200 & SM1600
TROUBLESHOOTINGGUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
Motordoesnot run. 1) Not firmly plugged in. 1)Checkattachment plug.
2)BadOn-Offswitch. 2)Replaceswitch.
3)Lineopen. 3)Replacecord.
4)Motoropen. 4)Check motorandwiring.
5) Fan locked by material. 5)Removeobstruction.
Motor runsbut cleaner 1) Belt broken. 1) Replacebelt.
does not pick up. 2) Blocked air system. 2)Cleanobstruction.
3)Fanbroken. 3)Replacefan.
4)Worn brush roll. 4)Replacebrushroll.
5)Motor slow. 5)Checkcarbonbrushes.
6) Bag full. 6) Emptybag (or changepaper bag).
Motorrunserratically. 1)Worncarbonbrushes. 1)Replacebrushes.
2)Defectivearmature. 2)Checkspark,replace armature.
3) Bad electrical connection. 3)Checkwiring.
4)DefectiveOn-Offswitch. 4) Replace switch.
Brushrollvibrates. 1) Ballbearingwornout. 1)Replacebrushroll.
2)Ballbearingholderdamaged. 2)Replaceballbearingholder.
Wiring Diagram 3/04

Page -14- N.A.C.E. Operator's Manual - SM1200 & SM1600
Base Assembly Drawing 3/04
N.A.C.E.
SM1200 & SM1600
113

Page -15-
N.A.C.E. Operator's Manual - SM1200 & SM1600
Ref. Part No. Description Qty.
1 51229N Hood and Graphics, N.A.C.E. 1
2 80065A Screw(M4 *10) 2
3 51949A CableClip 1
4 80066A Screw(M4*18.5) 6
5 Washer (4.2 *12*1) 4
6 51348A Motor Assembly, 120V 1
7 51230A Motor Exhaust (LH) 1
8 30161A ExhaustFoam 2
9 40178A Power Switch 1
10 51245A SwitchClip 1
11 Screw (M3*12) 2
12 30157A StrainReliefBushing 1
13 30135A BushingBracket 1
14 51256B Foot Pedal 1
15 51259A Spring,PedalReturn 2
16 30152A Knob,Bag 1
17 57951A Screw(M4 *20) 4
18 30151A BagSupport 1
19 30098N 12" Base Assembly, N.A.C.E. 1
30099N 16" Base Assembly, N.A.C.E. 1
20 Screw (M4 x 12) 2
21 51270A Rear Axle 1
22 Washer (8.5*16*1) 3
23 50441A Nut, Cap (F-Type) 2
24 30155A RearWheel 2
25 51271A Clamp,WheelAxle 4
26 56489A Screw(M4 *15) 23
27 51233A Cam (RH) 1
28 51231A Cam(LH) 1
29 Washer (4.1*8*1) 2
30 51257B Spring, Front Axle 1
31 51211A E-Clip (E6) 5
32 53369A Rod, Front Axle Support 1
33 51272B FrontAxle 1
34 51351A FrontAxleSeat 1
35 56485A Screw(M4*8) 3
36 30153B Front Wheel 2
37 51352B Plate, Front Axle Support 1
38 51261A Clamp, Front Axle 1
N.A.C.E.
SM1200 & SM1600
BaseAssemblyPartsList 3/04
Ref. Part No. Description Qty.
39 Screw (M3*10) 2
40 52807A DriveBelt 1
41 51253A 12" Bristle Strip Set (4 strips) 1
51255A 16" Bristle Strip Set (4 strips) 1
42 51247A 12"BrushRoll 1
51254B 16" Brush Roll 1
43 51251A Shaft-12" 1
51252A Shaft- 16" 1
44 51353A BearingSupport 2
45 30140A Cover,Cap 2
46 30141A EndCap 2
47 51354A Washer,Felt 2
48 51250A Bearing 2
49 51227A 12"BottomPlateAssembly 1
51228A 16"BottomPlateAssembly 1
50 30136A 12"FurnitureGuard 1
30137A 16"FurnitureGuard 1
51 30158A HeightAdjustmentCam 1
52 80051A Screw(M3*6) 2
53 51235A Clip,HeightAdjustmentCam 1
54 30159A Seat,HeightAdjustmentCam 1
55 51238A Gear,HeightAdjustment 1
56 51260A Spring,HeightAdjustment 1
57 51239A Axle,HeightAdjustment 1
58 51234A CrankGear,HeightAdjustment 1
59 51236A CrankAxle,HeightAdjustment 1
60 51355A Spring,PedalSupport 1
61 30160B Crank, Height Adjustment 1
62 51232A MotorExhaust(RH) 1
63 51356A HeightIndicator 1
108 Switch Wire -16# 1
109 Switch Wire -18# 1
110 Washer (4.2*14*1) 4
111 80237A Nut, Cap (M4) 5
112 80238A Spring 1
113 964048 Screw, M4 x .7 x 18 PnSt 2
NI* 51365A Carbon Brush 2
NI* 51366A Impeller 1
NI* 51367A MotorPulley 1
*NI = Not illustrated

Page -16- N.A.C.E. Operator's Manual - SM1200 & SM1600
N.A.C.E.
SM1200 & SM1600
Handle and Filter Bag Assembly Drawing 3/04
92
93
91
96
97
90
89
88
87
35
26
85
83
31
86
81
80 82
79
78
77
76
75
74
73
72
71
70

Page -17-
N.A.C.E. Operator's Manual - SM1200 & SM1600
Ref. Part No. Description Qty.
26 56489A Screw (M4*15) 23
31 51211A E-Clip (E6) 5
35 56485A Screw (M4*8) 3
70 30138B Handle Grip 1
71 51240A Handle Assembly - Upper Chrome 1
72 30143A Bag Hook 1
73 30144A Bag Retainer 1
74 30142A Cord Retainer- Upper 1
75 Screw (M4*25) 3
76 80127A Washer, Upper Cord Retainer 1
77 51258A Spring, Upper Cord Retainer 1
78 80129A Nut, Handle 2
79 80128A Screw, Handle 2
80 51237B Handle Assembly - Lower Chrome 1
81 30139A Cord Retainer - Lower 1
82 Screw (M4*45) 2
83 51243A Axle, Handle Socket Seat - Plated 1
84 51241A Tube, Handle Socket - Plated 1
85 51244A Cam, Handle Socket 1
86 51357A Power Cord, 120V 1
87 51242A Bushing, Handle Socket 3
88 30156A Seat, Handle Socket 1
89 51358A Nut, Handle Tube (M4) 2
90 30154A Clamp, Handle Socket Cam
91 52363N Cloth Filter Bag Assembly 1
92 51263A Spring Bag 1
93 51262A Clip, Bag Coupling 1
96 30148A Bag Coupling 1
97 30149A Gasket, Bag Coupling 1
N.A.C.E.
SM1200 & SM1600
Handle and Filter Bag Assembly Parts List 3/04

Page -18- N.A.C.E. Operator's Manual - SM1200 & SM1600
NACECARESOLUTIONS
U.S. LIMITED WARRANTY
This N.A.C.E. Industrial/Commercial Product is warranted to be free from defects in materials and workmanship under
normal use and service for a period of one year from the date of purchase, when operated and maintained in accordance
with N.A.C.E. Maintenance and Operations instructions.
This brush drive and traverse motors are warranted to be free from defects in materials and workmanship under normal
use and service for one year form the date of purchase, provided the motors are inspected for carbon motor brush wear
at six-month intervals by an authorized N.A.C.E. service center. Failure to comply with the six-month inspection requirement
or failure to replace worn motor brushes identified during the inspection will void the one-year warranty on the motors.
Cost of the six-month inspection and replacement of carbon motor brushes is the responsibility of the purchaser. In the
event of a warranty claim on the motors, proof of inspection and any required motor brush replacement must be provided.
This warranty is extended only to the original purchaser for use of the product. It does not cover normal wear parts such
as electrical cable, rubber parts, and motor brushes.
N.A.C.E.'s liability under this warranty is limited to repair of the product and/or replacement of parts and is given to
purchaserin lieu of allotherremedies,including INCIDENTALANDCONSEQUENTIALDAMAGES.
THEREARENOEXPRESSWARRANTIESOTHERTHANTHOSESPECIFIEDHEREIN. THEREARENOWARRANTIESWHICH
EXTENDBEYONDTHEDESCRIPTIONOFTHEFACEHEREOF. NOWARRANTIES,INCLUDINGBUTNOTLIMITEDTOWAR-
RANTYOFMERCHANTABILITY, SHALLBEIMPLIED.
If a difficulty develops with the product, you should: a) Contact the nearest authorized N.A.C.E. service center or contact
N.A.C.E., 1205 Britannia Road East Mississauga, Ontario, Canada for the nearest authorized N.A.C.E. service center. Only
these locations are authorized to make repairs to the product under this warranty. (b) Return the product to the nearest
N.A.C.E. Service Center. Transportation charges to and from the repair location must be prepaid by the purchaser. N.A.C.E.
will repair the product and/or replace any defective parts with out charge within a reasonable time after receipt of the
product.
NACECARESOLUTIONS
reserves the right to make changes or
improvements to its
machine without notice.
1205 Britannia Road East
Mississauga,Ontario,
Canada L4W IC7
PH.1-800-387-3210
FAX[phone]
