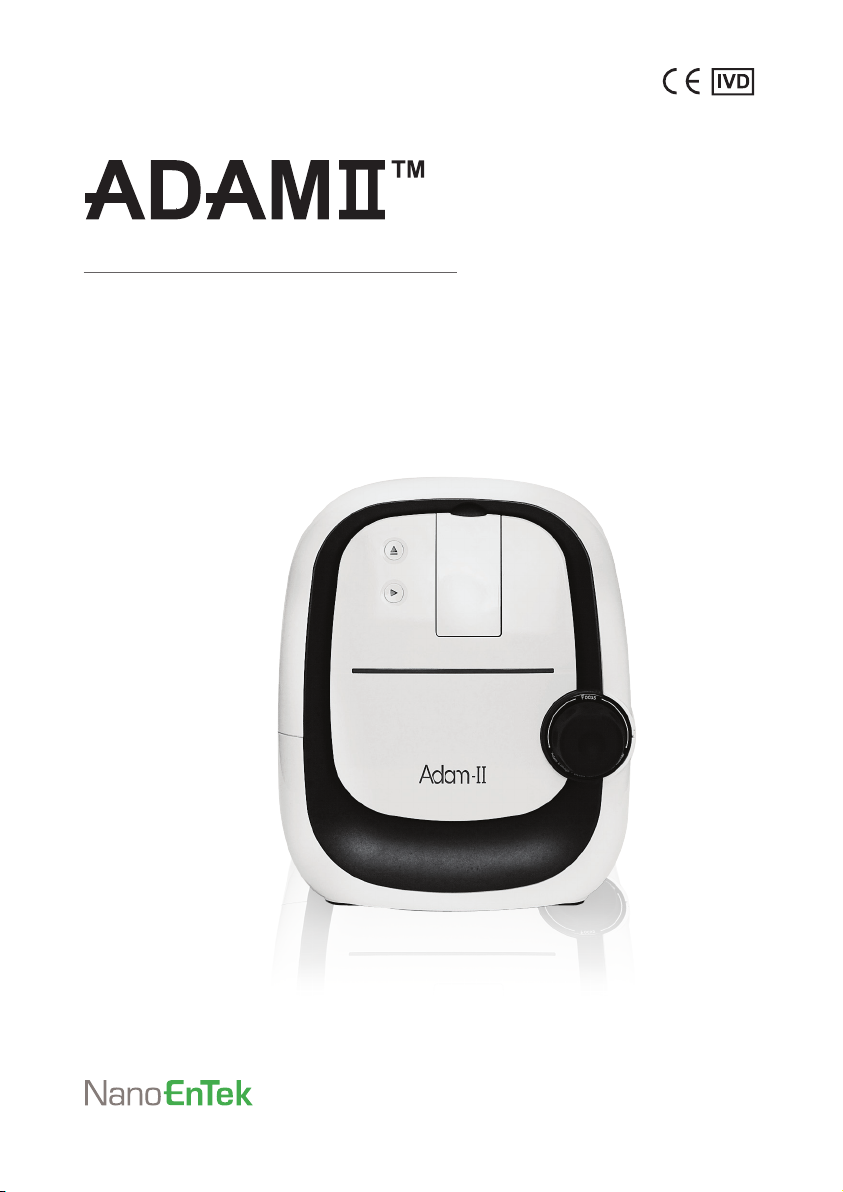

NanoEnTek ADAMII User manual

ADAMII™ ©2016 NanoEnTek Inc. 1
User manual
Bench-top Fluorescence Cell Counter

2
All the materials in this user manual are protected by Korean and international copyright laws.
They cannot be reproduced, translated, published or distributed without the permission of the
copyright owner.
Every effort has been made to ensure that all the information contained in the ADAMII™ User
Manual is correct at the time of printing. However, NanoEntek Inc. reserves the right to make any
changes necessary without notice as part of ongoing product development.
ADAMII™ User Manual
Website: www.nanoentek.com
E-mail: [email protected]
Copyright©2016 by NanoEnTek Inc.
All rights reserved. Published in Korea.
Documentation: NESMU-ACD-001E(V.0.0)
Revision history: V.0.0 Date: March 2017

ADAMII™ ©2016 NanoEnTek Inc. 3
Table of contents
Introduction
Product components
Product description
Installation
Home menu
Calibration
Sample loading
Operation
- Insert assay slide
- Measure menu
· Initial mode
· Focusing mode
- Data menu
- Setting menu
Cleaning & Maintenance
Troubleshooting
Error code
Warranty
Safety precautions
Safety symbols
Product specications
Ordering information
Technical support
4
5
6-7
8-9
10-11
12-19
20
21-49
50
51-52
53-54
55
56-57
58
59
60
61
21-23
24-33
24-26
27-33
34-43
44-49

4

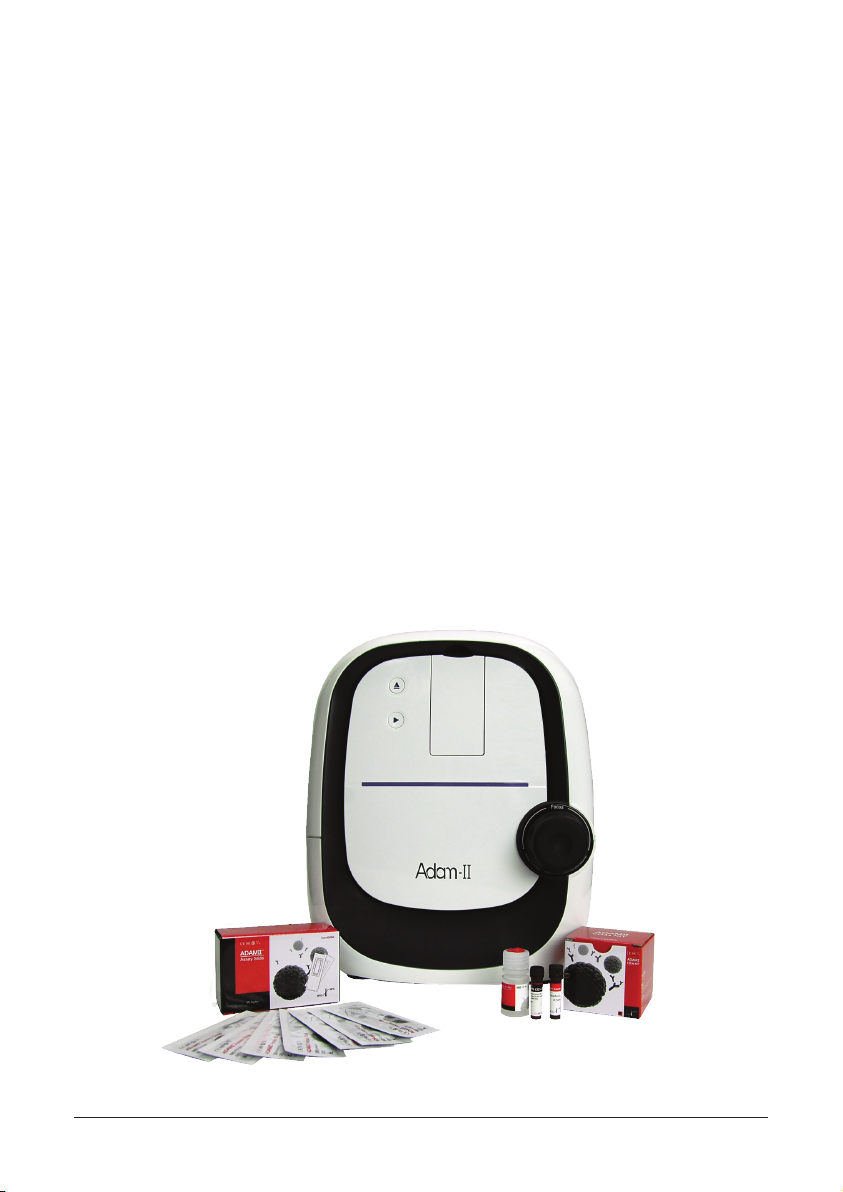

ADAMIITM is a bench top uorescent cell counting analyzer that can be used in either a hospital and
research laboratory.
It has 4-channel (Bright, Yellow (PE), Red (PerCP) and Green (FITC)) light sources, so three color
uorescence samples can be analyzed simultaneously. The automatic X-Y-Z stage captures a maxi-
mum of 136 images and which increases the accuracy of analysis.
The obtained images are processed by image analysis software integrated in the system. All proce-
dures are automatic once the stained sample has been placed in the disposable assay slide.
[Features]
•A benchtop uorescence cell counting analyzer
•Can be used in hospital and research laboratory
•Visualize: Quantitative results with visual conrmation
•Quantify uorescence-labelled cells without sheath tank maintenance
Introduction

ADAMII™ ©2016 NanoEnTek Inc. 5
ADAMII™ is shipped with the following components. Once you receive your instrument, please
check that all components listed below were shipped.
If any component is missing or damaged, contact your local distributor or e-mail [e-mail]
Product components
ADAMII™
1 EA
Operating laptop
(Please note: Laptop will be
packaged separately)
1 set
User manual
1 EA
Focus guide
1 EA
4 pcs/1 SET
Power cord with 4 adaptor cords
(for U.S./Canada/ Taiwan/Japan,
Europe or UK)
2 EA
USB cable

6
Product description
Front view
Side view
Slide Holder
Door
Focus Knob
Insert/Eject Button
Run Button
State LED
Light up when software runs in the laptop and
connection of camera and serial perform cor-
rectly.
Perform all procedures of automatic counting.
Insert and eject the slide from the ADAMII™.
Functions as load and unload.
State LED
Insert/Eject
button
Run button
Adjust focus to obtain better cell images.
Open to check the slide holder.
Location to insert or remove the slide.
Focus Knob
Slide Holder
Door

ADAMII™ ©2016 NanoEnTek Inc. 7
Product description
Rear view Serial Camera
+-
Control the ADAMII™ operating
Control the camera of the ADAMII™
Power on/off
Power supply
Serial connection port
Camera connection port
Power supply port
Power switch
Power
supply port
Power switch Serial
connection
port
Camera
connection
port

8
Installation
Unpacking the
instrument
Install
the instrument
1. Open the box and remove the material foam in the box.
2. Carefully lift the instrument out of the box.
3. Place the instrument on a at, level surface.
1. Plug the power cord into the electrical outlet and connect two USB cables..
2. Connect the laptop and the ADAMII™ using two USB cables.
Serial Camera
+-
Power supply port USB port

ADAMII™ ©2016 NanoEnTek Inc. 9
Installation
Install
SW program
1. Turn on the laptop and ADAMII™ by pressing the Power button. At
this time, the slide holder will be ejected automatically.
2. Double-click ADAMII™ icon on Desktop to start the software.
CAUTION:
• You must turn on the ADAMII™ before running the software program.
☞
Note: The ADAMII™ will be ready to use after initialization is
completed when powered on.
☞ Note: When the software runs and is connected with ADAMII™
normally, the state LED of instrument will be lighted up.

10
Home menu
Log in
User
management

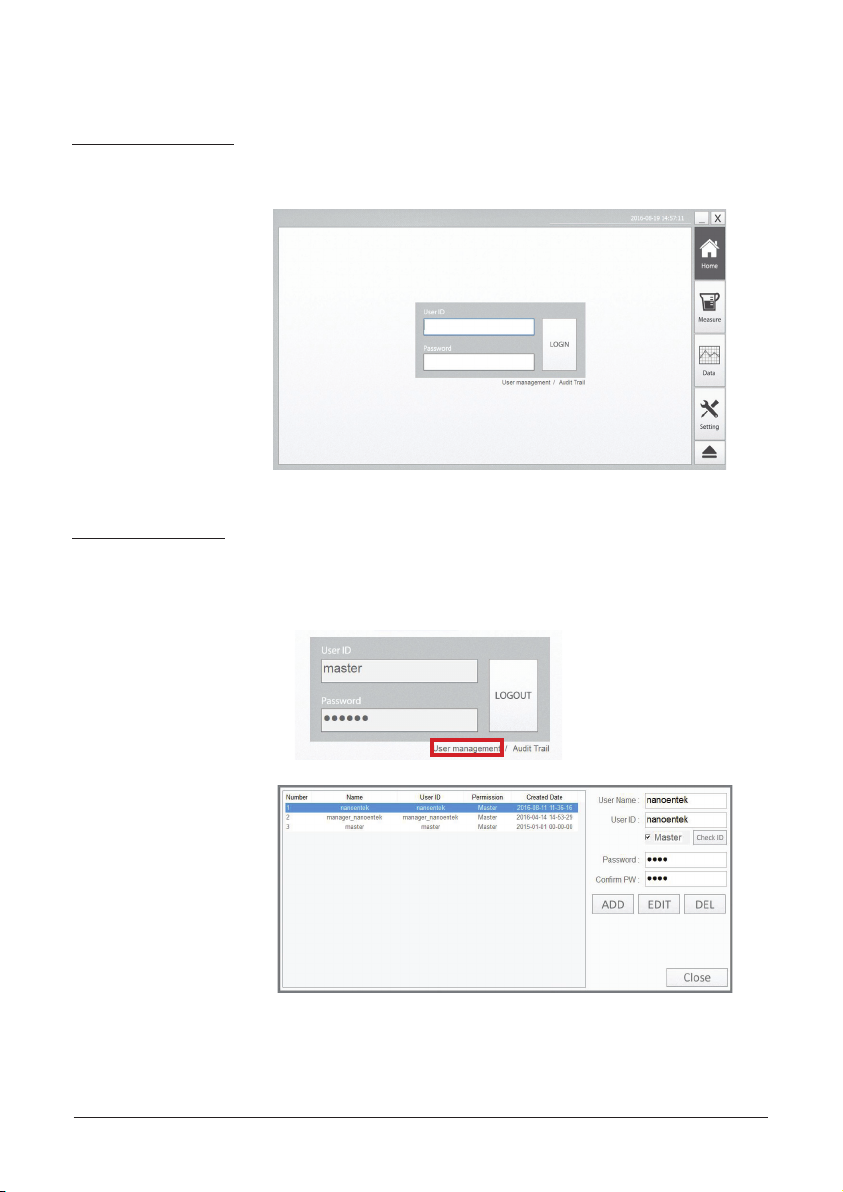

At the ‘Home’ screen, enter the user ID and password to log in.
Default ID and password are both ‘master’.
Click ‘User management’ when you need to manage accounts (e.g. ID
addition, password change). To create a new ID, ll out the blank (user
name, user ID, password, conrm PW) and click ‘Add’.
☞ Note: Only the master user can access the ‘User management’ .

ADAMII™ ©2016 NanoEnTek Inc. 11
Home menu

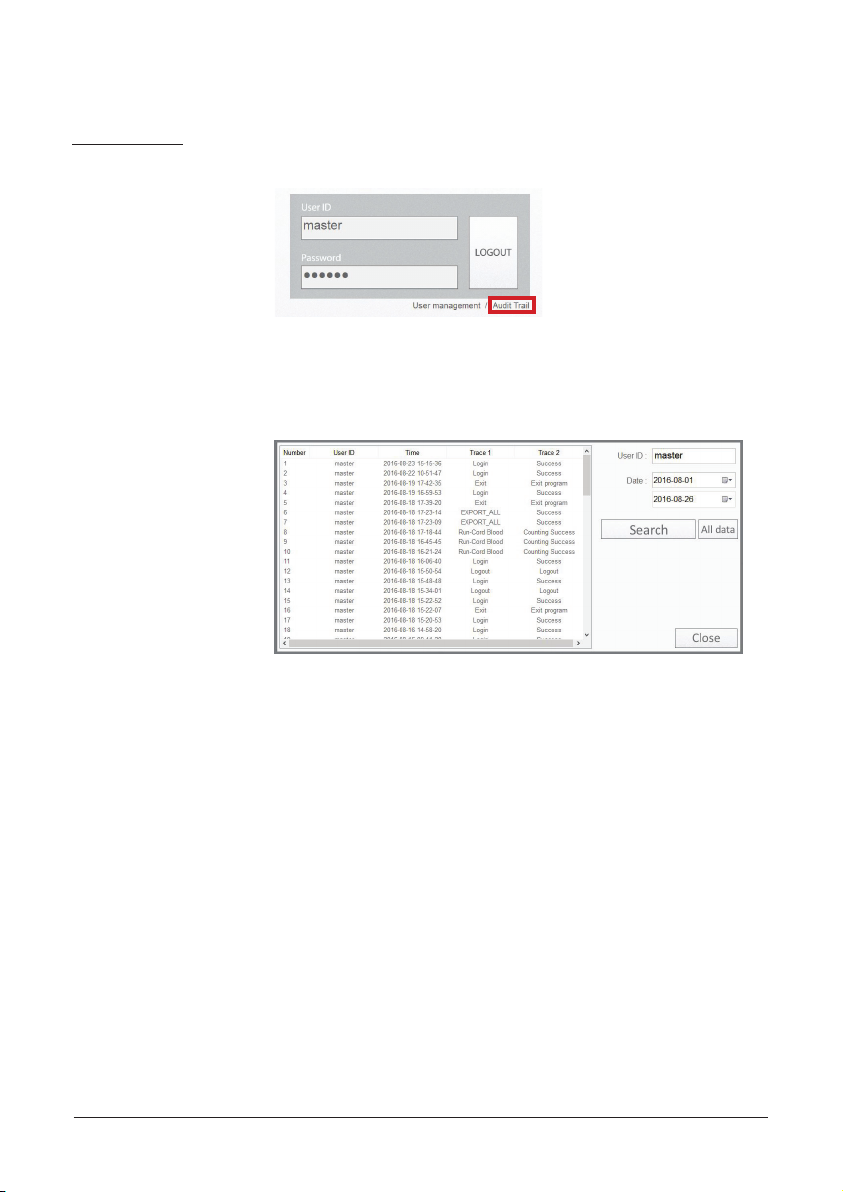

Audit trail Click ‘‘Audit trail” to search and trace detailed information of each user.
1. Enter the User ID and set the date that you want to search.
2. Click ‘Search’ button.
3. Information of the selected user will appear.
☞ Note: Only the master user can access the ‘ ‘Audit trail”.

12
Calibration

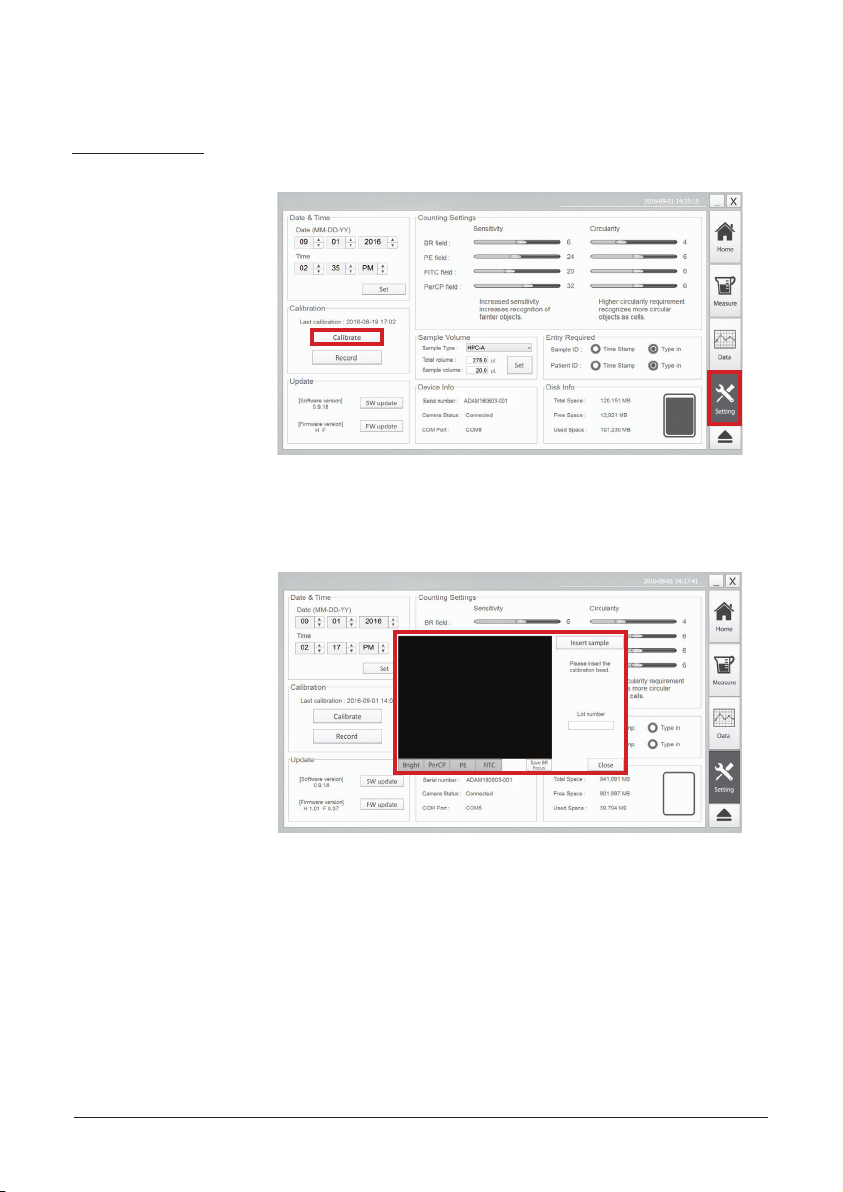

1. For calibration, go to ‘Setting’ menu and click ‘Calibrate’.
2. Then, calibration window will appear.
Calibration
procedure

ADAMII™ ©2016 NanoEnTek Inc. 13
Calibration
Calibration
procedure
3. Shake bottle vigorously or vortex briey for 5 seconds before use.
4. Once again, vortex for 4 seconds and pipette for 25 μL immediately.
5. Load 25 μL of calibration beads on the ADAMII™ assay slide.
[Shake bottle vigorously] [Vortexing]
5 sec.
4 sec.
[Vortexing]
[Load 25 μL calibration bead]
[Pipetting calibration bead 25 μL]

14
Calibration
Calibration
procedure

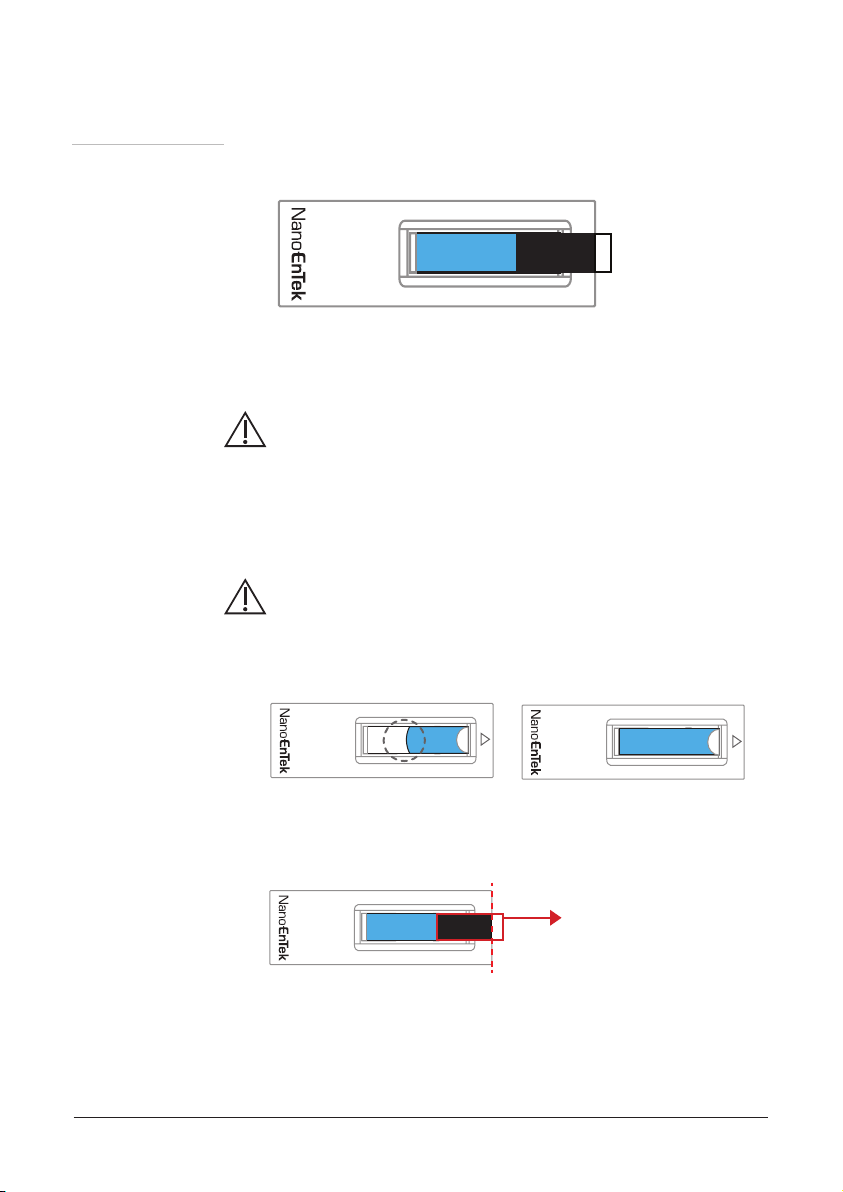

6. Attach dry-proof closure tape to prevent drying.
[Attach dry-proof closure tape]
Low volume Correct volume
Warning:
• Calibration bead loading error
- Ensure that 25μL of calibration bead is fully loaded on the ADAMII™
assay slide.
- The instrument will not detect in low or high loading volumes.
CAUTION:
• Avoid bubbles as theymay negativelyaffect results.
• Boundary between black and white on the tape should be lined up
with the edge of the slide.
Dry-proof closure tape

ADAMII™ ©2016 NanoEnTek Inc. 15
Calibration
Calibration
procedure

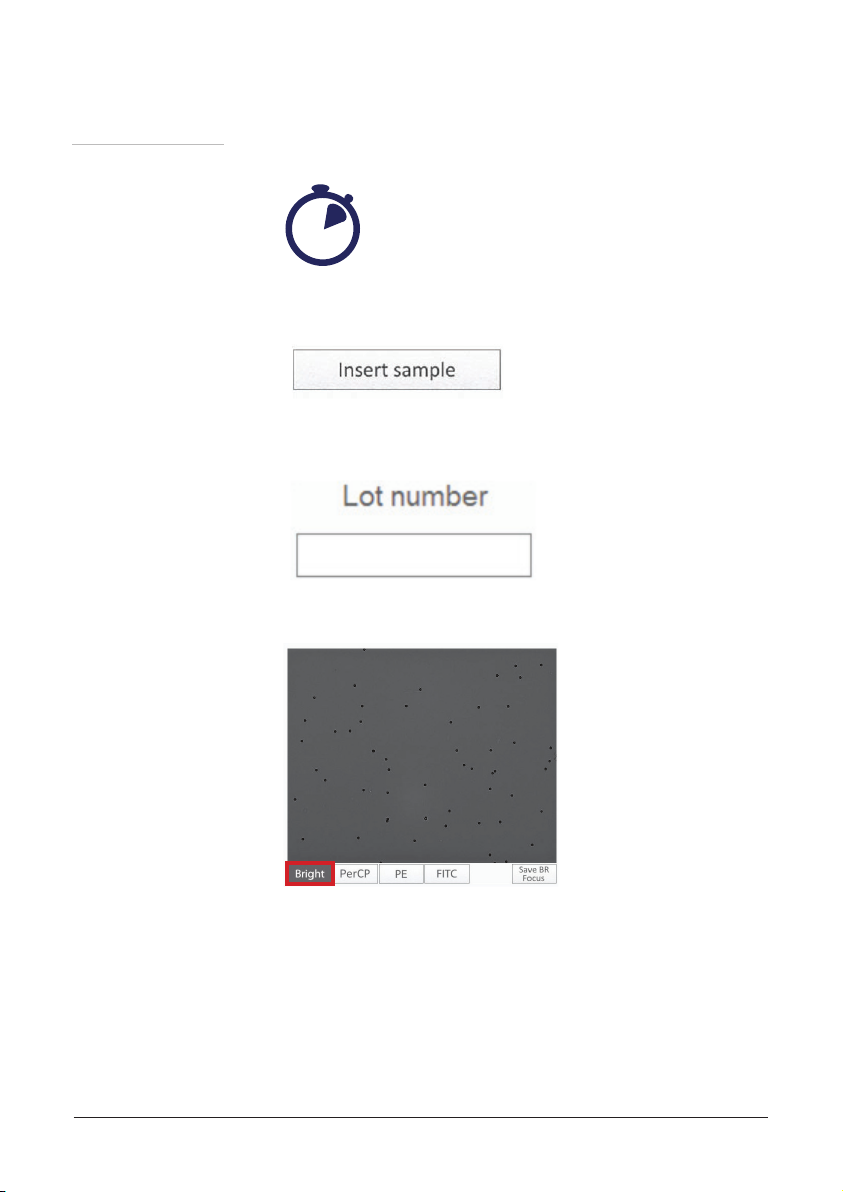

7. Leave for 20 seconds (need time for beads to settle).
8. Insert the slide with calibration beads into the slide port of the
instrument and press ‘Insert sample’ button.
9. Enter lot number of calibration beads.
10. Select Bright channel and adjust the focus using the focus knob.
20 sec.

16
Calibration
Calibration
procedure
Bright- Good Focus
FL- Good Focus
Bright- Bad Focus
FL- Bad Focus
[Focusing example - representative images]
• Bright - Good Focus: Clear circumference of the beads, Dark and
clear contrast to the background
•Bright - Bad Focus: Blurry and unclear bead circumference
•FL - Good Focus: Bright uorescence beads with clear contrast to the
background
•FL - Bad Focus: Weak uorescence beads with unclear contrast to the
background
Good Focus VS. Bad Focus
☞ Note: Please check ‘ADAMII™ Focus guide’ before setting the focus.

ADAMII™ ©2016 NanoEnTek Inc. 17
Calibration
Calibration
procedure

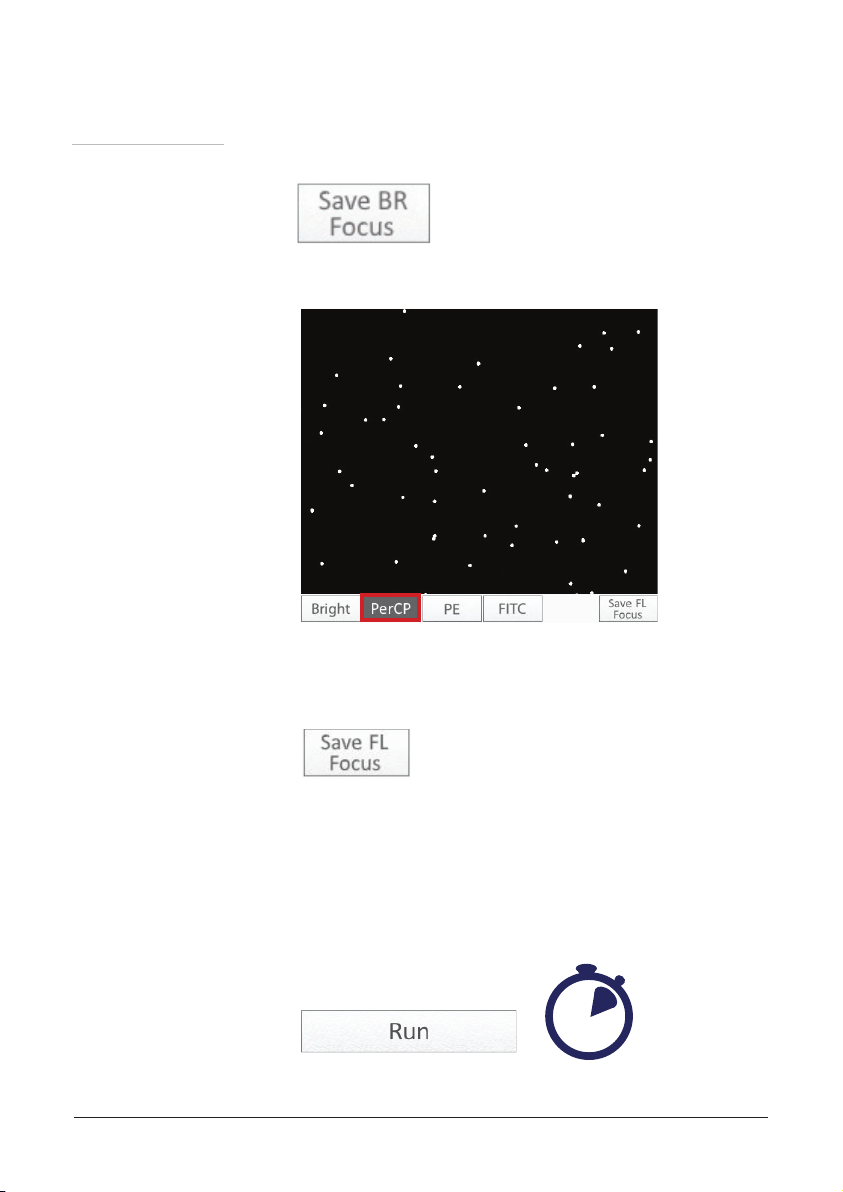

12. Select PerCP channel and adjust the focus using the focus knob.
13. Press the ‘Save FL Focus’ after adjusting focus. The focus of other
uorescence channels will be set automatically.
14. Press the ‘Run’ button to start the auto calibration. Calibration will
take about 3 minutes to count the 24 frames.
☞ Note: Save the focus in ‘Bright’ and ‘PerCP’ channel.
The other channels will be automatically focused.
3 min.
11. Press the ‘Save BR Focus’ after adjusting focus.
• Bright - Good Focus: Clear circumference of the beads, Dark and
clear contrast to the background
•Bright - Bad Focus: Blurry and unclear bead circumference
•FL - Good Focus: Bright uorescence beads with clear contrast to the
background
•FL - Bad Focus: Weak uorescence beads with unclear contrast to the
background

18
Calibration
Calibration
procedure
15. When the calibration is completed, the results will be displayed.
16. When you need previous results of calibration, click ‘Record’ button.
☞ Note: If the results are not within the range on the tube,
please ask your manufacturer or distributor.

ADAMII™ ©2016 NanoEnTek Inc. 19
Calibration
Calibration
procedure
17. Calibration result list records will appear.
18. Click ‘Save’ button to save the calibration records. The result will be
saved in CSV format.
19. Press “Close” button to nish calibration.

20
Sample loading
Sample
preparation
Load sample
Prepare sample and check the sample type.
To run a sample, click ‘Measure’ menu.
Load 25 μL sample into the ADAMII™ assay slide and attach a dry-
proof closure tape.
[Load 25 μL sample] [Attach dry-proof closure tape]
☞
Note: Please refer to page 14 to check cautions for loading correct
volume and attaching the dry-proof closure tape.
☞ Note: Note: Before loading the antibody stained specimen or bead to
the slide, vortex enough to mix them up.
