Napoleon Allure Series User manual

W415-1699 / 02.08.16
MULTIPLE PRODUCT CODES (LEAVE BLANK IF N/A) ENGLISH
ADD MANUAL TITLE
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 2.22 AND NO-46/ UL 1278
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
PRODUCT NAME™
ADD PRODUCT CODE
(IF MULTIPLE, _____ ILLUSTRATED)
ADD PRODUCT IMAGE
CSA /
INTERTEK
LOGO
SAFETY INFORMATION
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
FIRE OR EXPLOSION HAZARD
If the information in these instructions are
not followed exactly, a fire or explosion may
result causing property damage, personal
injury, or loss of life.
WARNING
!
$10.00
FOR INDOOR USE ONLY
INSTALLATION AND
OPERATION MANUAL
ALLURE™ SERIES
(NEFL50FH-EU ILLUSTRATED)
NEFL32FH-EU / NEFL42FH-EU / NEFL50FH-EU / NEFL60FH-EU / NEFL72FH-EU / NEFL100FH-EU

W415-1699 / 02.08.16
EN
2
safety information
• If equipped with a heater, this appliance
can be hot when operated and can cause
sever burned if contacted.
• Do not operate appliance before reading and
understanding operating instructions. Failure
to operate appliance according to operating
instructions could cause fire or injury.
• Do not install damaged, incomplete or
substitute components.
• Do not burn wood or other materials in this
appliance.
• All electric appliances have hot and arcing or
sparking parts inside. Do not use it in areas
where a gas line, paint or flammable liquids are present.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• It is imperative that the control compartments, circulating blower and its passageway in the appliance
are kept clean. The appliance should be inspected before use and at least annually by a qualified service
person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system which has been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• Servicing should be done only while the appliance is disconnected from the power supply circuit.
• Always unplug appliance when not in use.
• Do not operate this appliance with a damaged cord or plug after the appliance malfunctions, has been
dropped or damaged in any manner. Return appliance to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
• Do not use outdoors.
• Never locate appliance where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord
away from traffic area and where it will not be tripped over.
• Connect to properly grounded outlets only.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the appliance.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
shall be installed for the protection of children and other
at-risk individuals.
!WARNING

EN
W415-1699 / 02.08.17 3
safety information
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like
a carpet, where openings may become blocked.
• Always plug appliances directly into a wall outlet/receptacle. Never use an extension cord or re locatable
power tap (outlet/power strip).
• These appliances are tested and listed for use only with the optional accessories listed in these instructions.
Use of optional accessories not specifically tested for this appliance could void the warranty and/or result in
a safety hazard.
For appliances equipped with a heater:
• Risk of burns. Power to the appliance should be turned off and the appliance allowed to cool before
servicing. To disconnect power to the appliance, turn controls to off, then remove plug from outlet.
• Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict access to an appliance or stove, install
an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and
away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from
hot surfaces. These screens and guards must be fastened to the floor.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage to decorations, a T.V. or other electronic components.
!WARNING

W415-1699 / 02.08.16
EN
4
table of contents
1.0 general information 5
1.1 dimensions 5
1.2 product information 5
1.3 general instructions 6
1.4 unpacking and testing appliance 6
1.5 hardware parts list 7
1.6 rating plate information 8
1.7 locating appliance 8
2.1 minimum clearance to combustibles 9
2.0 installation 9
2.2 minimum mantel clearances 10
2.3 framing 11
2.4 installing the appliance 12
2.5 recessing the appliance into the wall 13
2.6 installing the appliance into a mantel 14
2.7 rubber feet installation 15
2.8 hard wiring installation 16
3.1 front glass installation 17
3.0 finishing 17
3.2 front glass removal 18
3.3 crystal ember installation 18
4.1 main power button 19
4.2 operating touch display panel and remote control 19
4.0 operating instructions 19
5.0 maintenance 20
5.1 remote battery installation 20
6.0 wiring diagram 21
7.0 replacement parts 23
8.0 troubleshooting 25
9.0 warranty 26
10.0 service warranty 27
The camera icon indicates video tutorials are available as additional reference, visit
http://mynapoleon.napoleonproducts.com/download/index/44/1
Changes, other than editorial, are denoted by a vertical line in the margin
note:

EN
W415-1699 / 02.08.17 5
model designation
1.0 general information
1.1 dimensions
1.2 product information
This appliance has been tested in accordance with the GS Standards for fixed and location-dedicated electric
room appliances in Europe. If you need assistance during installation, please contact your local dealer.
Description Electric Fireplace
Type 3 Way Mounting Unit
Wall-Mount, Recess into Wall and
Assemble with mantel
Voltage 220-240V AC
Watts MAX 1750-2000W
Net Weight Gross Weight
NEFL32FH-EU 34.6 lbs (15.7kg) 50.3 lbs (22.8kg)
NEFL42FH-EU 44.3 lbs (20.1kg) 60.2 lbs (27.3kg)
NEFL50FH-EU 50.9 lbs (23.1kg) 77.4 lbs (35.1kg)
NEFL60FH-EU 61.3 lbs (27.8kg) 88.1 (40kg)
NEFL72FH-EU 81.8 lbs (37.1kg) 117.3 (53.2kg)
NEFL100FH-EU 111.3 lbs (50.5kg) 159.4 (72.3kg)
A
B
G
F
E
D
C
FRONT VIEW SIDE VIEW
TOP VIEW
Dimensions
ABCDEFG
NEFL32FH-EU 32"
(813mm)
21 5/8"
(550mm)
5"
(127mm)
20 1/2"
(520mm)
27 5/16"
(694mm)
12"
(304mm)
22 5/16"
(567mm)
NEFL42FH-EU 42"
(1067mm)
21 5/8"
(550mm)
5"
(127mm)
20 1/2"
(520mm)
37 1/2"
(951mm)
12"
(304mm)
32 5/16"
(821mm)
NEFL50FH-EU 50"
(1270mm)
21 5/8"
(550mm)
5"
(127mm)
20 1/2"
(520mm)
45 7/16"
(1154mm)
12"
(304mm)
40 5/16"
(1024mm)
NEFL60FH-EU 60"
(1524mm)
21 5/8"
(550mm)
5"
(127mm)
20 1/2"
(520mm)
55 5/16"
(1405mm)
12"
(304mm)
50 5/16"
(1278mm)
NEFL72FH-EU 72"
(1830mm)
21 5/8"
(550mm)
5"
(127mm)
20 1/2"
(520mm)
67 3/8"
(1711mm)
12"
(304mm)
62 5/8"
(1583mm)
NEFL100FH-EU 100"
(2540mm)
21 5/8"
(550mm)
5"
(127mm)
20 1/2"
(520mm)
95 3/8"
(2422mm)
12"
(304mm)
90 9/16"
(2300mm)

W415-1699 / 02.08.16
EN
6
general information
• Prior to plugging your appliance into an electrical outlet, verify that the house circuit breakers for the outlet are on.
• The appliance may emit a slight, harmless odour when first used. This odour is normal and it is caused by the initial
heating of internal appliance elements and will not occur again.
• If your appliance does not emit heat, consult the “operation” section of this manual for further information.
• Use with a CSA or UL certified surge protector.
• Do not route the power cord directly underneath the appliance.
This electric applaince meets the construction and safety standards of H.U.D. for application in manufactured homes when
installed according to these instructions.
1.3 general instructions
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5°C (41°F) and 35° C (95°F). During the colder winter months, allow the
fireplace to reach room temperature before turning it on.
1.4 unpacking and testing appliance
Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance
operates properly by plugging the power supply cord into a conveniently located 120 volt, 15 amp grounded
outlet.
The NEFL50/60/72/100FH-EU appliances are shipped with the front glass not assembled onto the appliance.
Refer to the “front glass installation” section for assembly.
note:
CE- or GS-certified

EN
W415-1699 / 02.08.17 7
general information
1.5 hardware parts list
A - Fireplace
NEFL32FH-100FH (1)
B - Wood Screws
NEFL32FH-50FH (6)
NEFL60FH-72FH (12)
NEFL100FH (16)
C - Drywall Anchors
NEFL32FH-50FH (6)
NEFL60FH-72FH (12)
NEFL100FH (16)
D - ST4x12 Metal Screws
NEFL32FH-100FH (8)
E - Remote Control
NEFL32FH-100FH (1)
F - Wall Bracket
NEFL32FH-50FH (1)
NEFL60FH-100FH (2)
G-Crystals
NEFL32FH-100FH (2)
H-Cover Plate
NEFL32FH-100FH (1)
I - Strain Relief
NEFL32FH-100FH (1)
J - Metal Bracket
NEFL32FH-100FH (4)
K - Cord Corner
NEFL32FH-100FH (2)
L - Cord Corner
NEFL32FH-100FH (2)
M - Cord Cover
NEFL32FH (2)
NEFL42FH-100FH (1)
N-Rubber Foot
NEFL32FH-50FH (4)
NEFL60FH-100FH (6)

W415-1699 / 02.08.16
EN
8
general information
The rating plate must remain with the appliance at all times. It must not be removed.
note:
1.6 rating plate information
This illustration is for reference only. Refer to the rating plate on the appliance for accurate
information.
W385-2178
ELECTRIC FIREPLACE. SUITABLE FOR BEDROOM
AND BED-SITTING ROOM INSTALLATION. SUITABLE
FOR MOBILE HOME INSTALLATION.
VOLTAGE: 220-240 VAC
FREQUENCY: 50Hz
POWER: 1750-2000W
Wolf Steel Ltd.
24 Napoleon Road,
Barrie, ON, L4M 0G8 Canada DESIGNED IN NORTH AMERICA
BY WOLF STEEL LTD.
MADE IN CHINA
Wolf Steel Europe
Poppenbouwing 29-31
4191 NZ Geldermalsen
Holland
Manufacturer: Importer:
SERIAL NUMBER: NEFL
MODELS
NEFL32FH-MT-EU
NEFL42FH-MT-EU
NEFL50FH-MT-EU
NEFL60FH-MT-EU
NEFL72FH-MT-EU
NEFL100FH-MT-EU
NEFL32FH-EU
NEFL42FH-EU
NEFL50FH-EU
NEFL60FH-EU
NEFL72FH-EU
NEFL100FH-EU
SAMPLE
CanadaCanada
Wolf Steel EWolf Steel E
PoppenPo
4141
Im
p
orter
:Importer:
NEFL
32
FH
-
MT
-
EUNEFL32FH-MT-EU
AM
NEFL
42
FH
-
MT
-
EUNEFL42FH-MT-EU
AM
NEFL50FH-MT-E
UNEFL50FH-MT-EU
AM
NEFL60FH-M
P
NEFL7N
P
P
H-EU
1.7 locating appliance
• Due to high temperatures, this electric appliance should be located out of traffic. Keep combustible materials
such as furniture, pillows, bedding, papers, clothes, curtains, and similar items at least 36” from the front of the
appliance.
• Never located this electric appliance where it may fall into a bathtub or other water container.
• Wear safety gloves and safety glasses for protection during installation and maintenance.
• To prevent contact with sagging or loose insulation, the electric appliance must not be installed against vapor
barrier or exposed insulation. Localized overheating could occur and fire could result.
• Do not expose the electric appliance to the elements (such as rain, etc.)
!WARNING

EN
W415-1699 / 02.08.17 9
installation
2.0 installation
Your appliance is a wall-mounted, recessed and/or mantel installed appliance. Select a suitable location that is not
susceptible to moisture and is away from drapes, furniture and high traffic areas.
2.1 minimum clearance to combustibles
!WARNING
• Risk of fire! The power cord must not be pinched against a sharp edge. Secure cord to avoid tripping or
snagging to reduce the risk of fire, electric shock, or personal injury. Do nut run cord under carpeting. Do not
cover cord with throw rugs, runners, or similar items. Arrange cord away from traffic areas and where it will not
be tripped over.
• Risk of fire! To prevent a possible fire, Do not block air intake or exhaust in any manner. Do not use on soft
surfaces where openings may become blocked.
• Risk of fire! Do not blow or place insulation against the appliance.
• This electric appliance is tested and listed for us only with the approved optional accessories. Use of optional
accessories not specifically tested for this electric appliance could void the warranty and/or result in a safety
hazard.
• If the information in these instructions is not followed exactly, a fire or explosion may result causing property
damage, personal injury, or death. Do not store or use gasoline or other flammable vapors in the vicinity of this
or any other appliance.
• This appliance is heavy. It is highly recommended that two people install this appliance.
• If your appliance is equipped with a heater, ensure the heater vents cannot, in any way, by covered as it may
create a fire hazard.
• Do not run the power cord horizontally, directly below the appliance.
Measurements are taken from the glass front
Bottom 0”
Sides 0”
Back 0”
Top 8” (20.3cm) to ceiling / mantel
The power switch is located on the top left hand side of the appliance. Always ensure that access to this switch
remains accessible.
note:
Follow all national and local electrical codes.
note:
Measurements are taken from the body
Sides, back, and top 0”

W415-1699 / 02.08.16
EN
10
installation
2.2 minimum mantel clearances
• When using paint or lacquer to finish the mantel, the paint or lacquer must be heat resistant to prevent
discoloration.
!WARNING
Side View
8" (203mm)
Mantel
Floor
Wall

EN
W415-1699 / 02.08.17 11
installation
5"
127mm
A
3 1/2"
89mm
MIN MAX
A
BB
Finishing Material
2.3 framing
(Non-load
bearing)
MODEL NO. A B
NEFL32FH-EU 21" (535mm) 27 13/16" (707mm)
NEFL42FH-EU 21" (535mm) 38" (965mm)
NEFL50FH-EU 21" (535mm) 45 15/16" (1166mm)
NEFL60FH-EU 21" (535mm) 55 13/16" (1418mm)
NEFL72FH-EU 21" (535mm) 67 7/8" (1725mm)
NEFL100FH-EU 21" (535mm) 95 7/8" (2435mm)

W415-1699 / 02.08.16
EN
12
installation
2.4 installing the appliance
Due to the many different materials used on different walls, it is highly
recommended that you consult your local builder before you install this
appliance on the wall.
A. Select a location that is not prone to moisture and is located at least
36" (914mm) away from combustible materials such as curtain drapes,
furniture, bedding, paper, etc.
B. Have two people hold the appliance against the wall to determine the
final location.
C. Place unit face down on a soft, non abrasive surface. Remove the
bracket from the back of the unit by removing the screws, refer to
Figure 1.
D. Mark out location, then mount the bracket(s) onto the wall using the supplied screws. This bracket MUST
have the hooks facing upward and be level.
E. With the wall mounting bracket
installed, have two people lift the
appliance up and insert the two
hooks on the bracket into the two
slots on the back of the appliance.
F. Check the appliance for stability
ensuring that the bracket will not
pull free from the wall.
HOOK
SCREWS
HOOK
SIDE VIEW
BODY
FLOOR
GLASS FRONT
21 5/8"
550mm
NEFL32/42/50FH-EU Bracket Illustrated
NEFL60/72/100FH-EU Bracket Illustrated
It is strongly recommended that the mounting bracket be screwed into the wall studs where possible. If the wall
studs cannot be used, ensure that the supplied plastic anchors are used to affix the bracket to the wall and the
bracket is adequately secured.
note:

EN
W415-1699 / 02.08.17 13
installation
Due to the many different finish materials used on walls, it is highly recommended that you consult your local
builder before you install this appliance in the wall.
Select a location that is not prone to moisture and is located at least 36" (91.4cm) away from combustible
materials such as curtain drapes, furniture, bedding, paper, etc.
2.5 recessing the appliance into the wall
A. Measure the appliance and create a rough in with electrical.
B. Remove the front glass, refer to "front glass removal" section.
C. Hold the appliance up to ensure it will fit into the framing.
D. If the appliance is fully recessed into the wall:
• Bend the two top tabs upward on the front glass. Refer to Figure 4.
• Use the 6 screws (provided) to lock the appliance into the wall with the existing two side
flanges. Refer to Figure 2.
• Install the media and reinstall the glass front.
E. If partial recess into the wall:
• Use the two mounting brackets (supplied) to lock the appliance to the wall, see Figure 3.
It is recommended the walls of the appliance enclosure be finished (i.e. drywall) to avoid exposed insulation or
vapour barrier coming in contact with the appliance. This will ensure clearance to combustibles is maintained.
Two sets of holes are provided for recessing into wall. The wall structure may limit how far the appliance can be
recessed. Use the appropriate set of holes when recessing to the frame. It may be necessary to use the four
holes on the top and bottom.
note:
note:

W415-1699 / 02.08.16
EN
14
installation
FIG. 4
2.6 installing the appliance into a mantel
A. Remove the glass front, refer to "front glass installation" section for removal instructions.
B. Install the rubber feet onto the bottom of the appliance for stability, refer to "rubber feet installation"
section for instructions.
C. Install the top and bottom brackets provided.
D. Insert the appliance into the mantel and secure it with the brackets or refer to "electric fireplace mantel"
installation manual for proper appliance installation instructions.
E. Place the crystal embers along the media tray, refer to "crystal ember installation" section.
F. Reinstall the glass front.
The appliance tabs come bent. You must bend the tab flat by hand when fully recessing the appliance into the
wall. See Figure 4.
note:

EN
W415-1699 / 02.08.17 15
installation
2.7 rubber feet installation
A. Place the appliance face down on a soft surface.
B. Using a screw driver, remove the screws on the bottom of the appliance.
C. Install the 4 rubber feet (6 rubber feet for NEFL60/72/100FH) onto the bottom of the appliance using the
screws from Step B, see below.
NEFL32/42/50FH-EU Illustrated
NEFL60/72/100FH-EU Illustrated
The screws for installing the rubber feet are secured to the appliance. Removal of the screws is necessary for
installing the rubber feet.
note:

W415-1699 / 02.08.16
EN
16
installation
2.8 hard wiring installation
Hard wiring connection
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the
appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes.

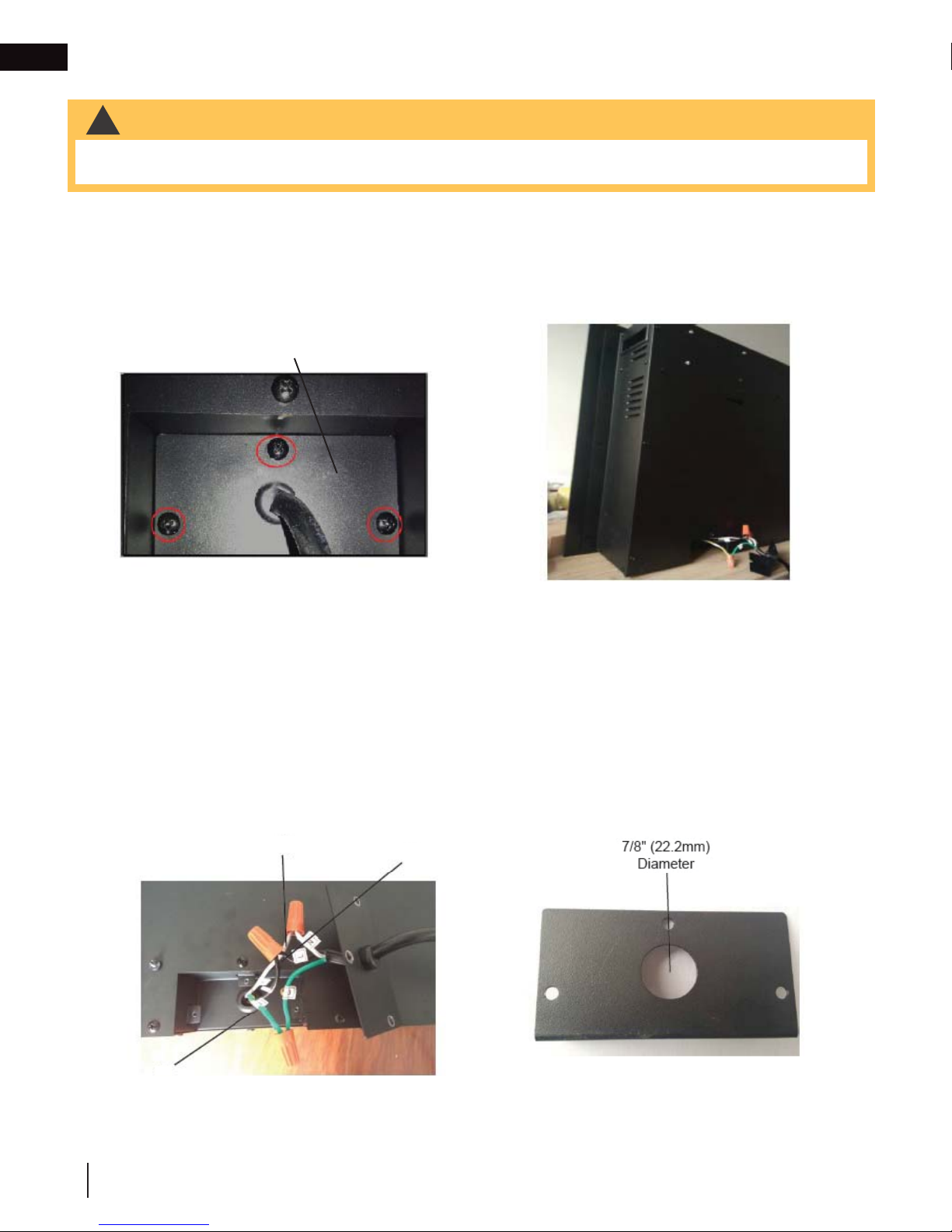

A. Remove the cover plate from the right side
bottom of the appliance by removing the
three screws, as shown above.
B. Remove the wire connectors from the power
cord. The power cord may be discarded.
C. Take the new cover plate, supplied in the hardware bag. Punch out the 7/8" (22.2mm) hole and
install a box connector through the junction box. Snap the box connector clamp onto the supply
wires.
D. Using the wire connectors, connect the ground green wires (G), the common white wires (N)
together, and the hot black wires (L). Refer to Figure 3.
E. Reinstall the cover plate using the three screws, shown in Figure 1.
Fig. 1
Fig. 2
Cover Plate
G
NL
Fig. 3
• Turn off the appliance completely and let it cool down before servicing. Only a qualified service person should
service and repair this electric appliance.
!WARNING

EN
W415-1699 / 02.08.17 17
finishing3.0 finishing
3.1 front glass installation
FOR MODELS NEFL50/60/72/100FH-EU ONLY:
A. Before installing the front glass, remove the screws securing the paper board on the inside of the
appliance that protects the control panel. Discard the paper board.
B. Reinstall the screws,see Figure 1. (For recessed installed appliances only)
C. Remove the 2 screws from the top of the appliance.
D. Have two people, lift the glass up and away from the appliance, holding the glass vertical not flat while
carrying. Place the glass face down onto a soft, non-abrasive surface, careful not to flex the glass.

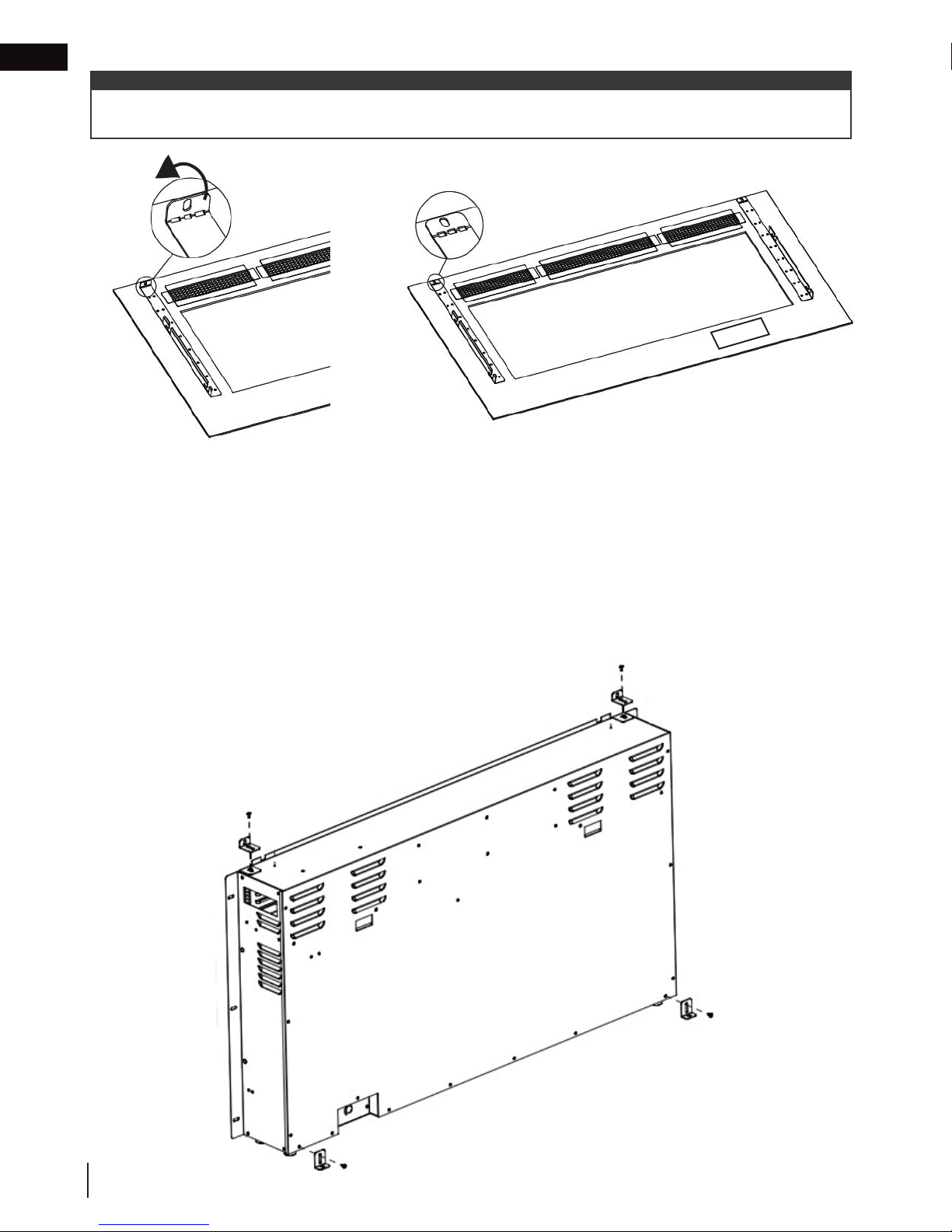

E. Bend the top tabs flat, see Figure 2
F. Install the crystal embers, refer to "CRYSTAL EMBER INSTALLATION" section.
G. Install the front glass by aligning with the pins on the appliance. Press the glass in and down to securely
engage with the brackets. It must be fully engaged to ensure the touch display panel performs properly.
H. Secure the front glass using the screws provided to the top of the appliance, see Figure 3.(If fully recessed
this is not necessary)
Paper Paper
Pin
FIG. 1
FIG. 2
• Power supply service must be completed prior to finishing to avoid reconstruction.
• Heat vents and air openings cannot be covered in any circumstances.
!WARNING
!WARNING
• Glass may be hot. Do not touch glass until cooled.
• If equipped with door latches that are part of a safety system, they must be properly engaged. Do not
operate the appliance with latches disengaged.
• Facing and/or finishing materials must not interfere with air flow through air openings, louvre openings,
operation of louvres, or doors/access for service. Observe all clearances when applying combustible
materials.
• Before door is removed, turn the appliance off and wait until appliance is cool to touch. Doors are heavy and
fragile so handle with care.

W415-1699 / 02.08.16
EN
18
finishing
FIG. 3
The glass front must be removed and the appliance must be secured in its final location before the crystal embers
are installed.
A. Carefully place crystal embers into the bottom media tray on the front of
the appliance as illustrated. Apply an even layer from side to side.
A. Remove the 2 screws from the top of the appliance, as shown below.
B. Have two people lift the glass up and away from the appliance, holding the glass vertical not flat while
carrying. Place the glass face down onto a soft, non-abrasive surface, careful not to flex the glass.
C. Install the crystal embers, refer to "cystal ember installation" section. Install the front glass by aligning with
the pins on the appliance. This ensures the touch display panel performs properly.
FOR WALL MOUNT, PARTIAL RECESS AND MANTEL INSTALLED APPLIANCE ONLY:
3.2 front glass removal
3.3 crystal ember installation

EN
W415-1699 / 02.08.17 19
operating instructions
4.0 operating instructions
Once the appliance has been plugged into a grounded electrical outlet, it is ready to operate.
The main power button is located on the front bottom right side of the appliance.
4.1 main power button

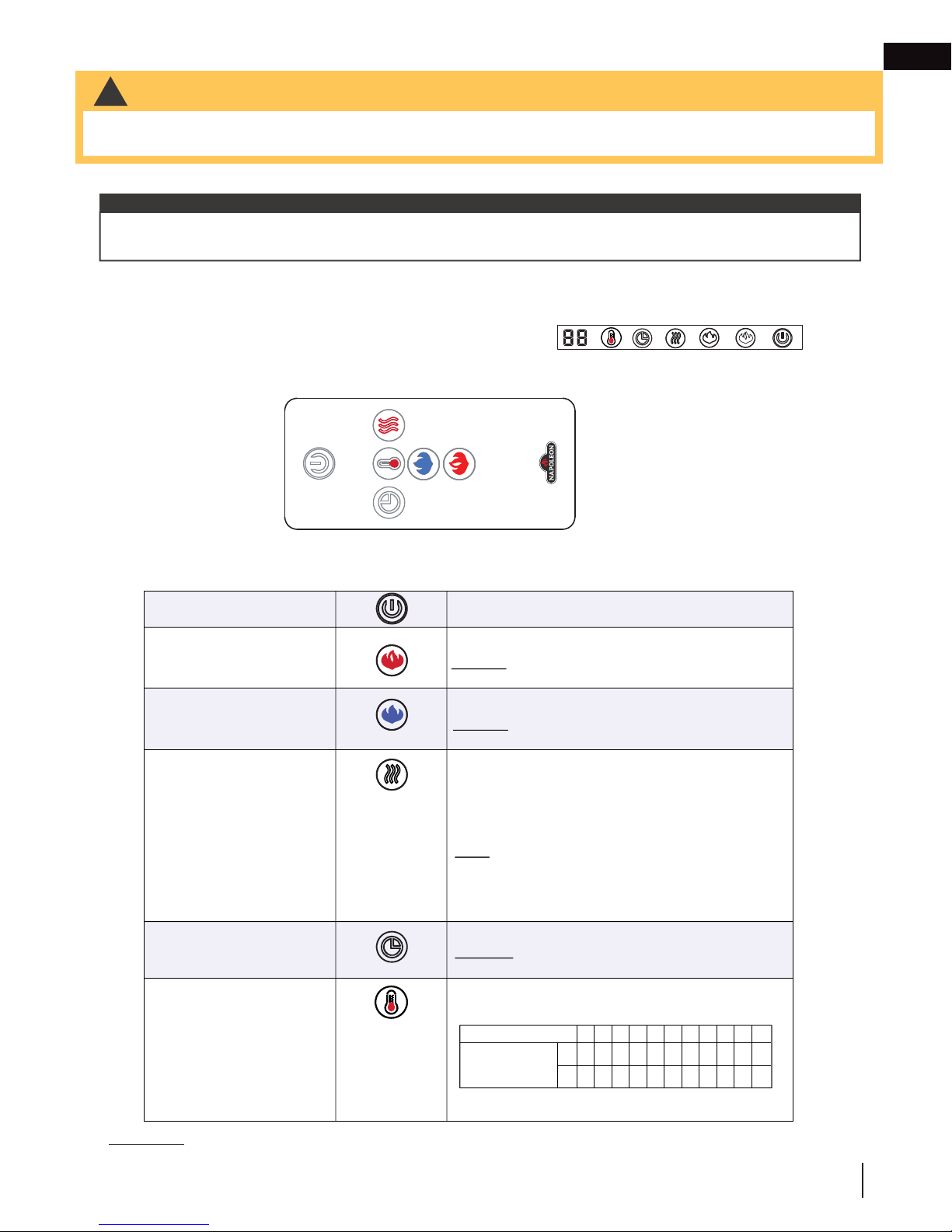

4.2 operating touch display panel and remote control
POWER Turns the appliance ON/OFF.
FLAME - ORANGE
FLAME - BLUE
TIMER
TEMPERATURE
Controls Orange Flame brightness.
6 Settings: ( F5-F4-F3-F2-F1-F0 ) Flame dims from F5 to F1.
F5 is the brightest setting and F0 is off.
Controls Blue Flame brightness.
6 Settings: ( F5-F4-F3-F2-F1-F0 ) Flame dims from F5 to F1.
F5 is the brightest setting and F0 is off..
Controls the Timer.
9 Settings: (0.5h, 1h, 2h, 3h, 4h, 5h, 6h, 7h, 8h) Press button
until reach desired setting.
Display Value
Temperature
0123456789N
18 19 20 21 22 23 24 25 26 27 ON
64 66 68 70 72 74 76 78 80 82 ON
° C
° F
HEATER Controls the Heater.
Press button to initiate the heater.
(H0) no heater or blower.
(BL) blower only.
(H1), heater blows warm air (750W)
(H2), heater blows hot air (1500W)
NOTE: Heater functions cycle from H0-BL-H1-H2, Press
and hold the heater button for 5s, the heater and
temperature setting will be locked onto the selected
setting. Hold the button for 5s again, the heater will be
unlocked.
1. Press once: Touch panel indicator becomes active.
2. Press again until desired setting is reached. Digital display
shows setting circles as below.
NOTE: Press the button for 5 seconds, the temperature
setting will switch from °C to °F. Same way from °F to °C.
The touch display panel is shown by LED's on the front bottom right of the appliance. The LED's will
disappear after 10 seconds of no function change. The Main Power button will be dim.
WARNING: Do not move or remove the glass panel, when the appliance is plugged in and operating.
This will cause the remote control and touch panel to no longer function.
(950W)
(2000W)
Ensure the house circuit breakers for the power supply are turned on. In the event of a power failure, the
appliance will lose its memory function and will reset to factory mode when the power returns.
note:
• While the appliance is operating do not remove the glass panel. This will cause the remote control and touch
panel to disfunction.
!WARNING

W415-1699 / 02.08.16
EN
20
maintenance
5.0 maintenance
5.1 remote battery installation
1. To replace the existing battery remove the battery
holder.
2. To remove the battery holder turn remote onto
rear side and press the left side leaver towards
the center while pulling the battery holder out
using the slot provided.
3. Replace existing battery, type CR 2025, with a
new battery and reinstall the battery holder into
the remote by sliding it into position, as shown.
Remote
(Rear Side)
Battery Holder
Battery (CR 2025)
• Preparation for maintenance: always disconnect the power and allow the electric appliance to cool before
performing any cleaning, maintenance, or relocation of this electric appliance. Turn controls to off and remove
plug from outlet or turn of the house circuit breaker to electric appliance receptacle.
• Do not install replacement lamps that exceed specified maximum watts.
• The halogen lamps in your appliance can be extremely hot. Allow at least 10 minutes between turning off the
appliance and removing the lamps to avoid accidental burns.
• Do not handle the lamp with bare fingers, oils from your skin will damage the lamps when they heat up. use
gloves or a clean dry cloth when handling lamps.
!WARNING
The remote control has a removable plastic tab to prolong the battery life while shipping. Remove the tab for the
remote control to function.
The remote control has a removable plastic tab to prolong the battery life while shipping. Remove the tab for the
remote control to function.
The remote control must remain within 5 meters or 17 feet of the appliance to be effective, this range may be
reduced when battery power is depleted.
note:
note:
