Napoleon Vector series User manual

FRENCH PG. 41

W415-2036 / D / 08.05.21

- Do not store or use gasoline or other ﬂammable vapors and liquids in the vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbour’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

- Installation and service must be performed by a qualiﬁed installer, service agency, or the supplier.

WARNING

ENGLISH

For indoor use only

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death, or property damage.

OWNER’S MANUAL

Vector / Luxuria Series

SAFETY INFORMATION

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone 1 (866) 820-8686 • www.napoleonﬁreplaces.com • hearth@napoleonproducts.com

Luxuria model illustrated.

W415-2036 / D / 08.05.21

safety information

• This appliance is hot when operated and can cause

severe burns if contacted.

• Any changes to this appliance or its control can be

dangerous and are prohibited.

• Do not operate appliance before reading and

understanding operating instructions. Failure

to operate appliance according to operating

instructions could cause ﬁre or injury.

• Risk of ﬁre or asphyxiation do not operate appliance

with ﬁxed glass removed.

• Do not connect 110 volts to the control valve.

• Risk of burns. The appliance should be turned off

and cooled before servicing.

• Do not install damaged, incomplete or substitute

components.

• Risk of cuts and abrasions. Wear protective gloves

and safety glasses during installation. Sheet metal

edges may be sharp.

• Children and adults should be alerted to the

hazards of high surface temperature and should

stay away to avoid burns or clothing ignition.

• Young children should be carefully supervised

when they are in the same room as the appliance.

Toddlers, young children, and others may be

susceptible to accidental contact burns. A

physical barrier is recommended if there are at

risk individuals in the house. To restrict access to

an appliance or stove, install an adjustable safety

gate to keep toddlers, young children and other at

risk individuals out of the room and away from hot

surfaces.

• Clothing or other ﬂammable material should not be

placed on or near the appliance.

• Due to high temperatures, the appliance should be

located out of trafﬁc and away from furniture and

draperies.

• Ensure you have incorporated adequate safety

measure to protect infants/toddlers from touching

hot surfaces.

• Even after the appliance is out, the glass and/or

screen will remain hot for an extended period of

time.

• Check with your local hearth specialty dealer

for safety screens and hearth guards to protect

children from hot surfaces. These screens and

guards must be fastened to the ﬂoor.

• Any safety screen, guard or barrier removed for

servicing the appliance, must be replaced prior to

operating the appliance.

• The appliance is a vented gas-ﬁred appliance. Do

not burn wood or other materials in the appliance.

• The appliance area must be kept clear and free

from combustible materials, gasoline and other

ﬂammable vapors and liquids.

3.1

WARNING

• Under no circumstances should this appliance be

modiﬁed.

• This appliance must not be connected to a chimney

ﬂue pipe serving a separate solid fuel burning

appliance.

• Do not use this appliance if any part has been

under water. Immediately call a qualiﬁed service

technician to inspect the appliance and to replace

any part of the control system and any gas control

which has been under water.

• Do not operate the appliance with the glass door

removed, cracked or broken. Replacement of the

glass should be done by a licensed or qualiﬁed

service person.

• Do not strike or slam shut the appliance glass door.

• When equipped with pressure relief doors, they

must be kept closed while the appliance is

operating to prevent exhaust fumes containing

carbon monoxide, from entering into the home.

Temperatures of the exhaust escaping through

these openings can also cause the surrounding

combustible materials to overheat and catch ﬁre.

• Only doors / optional fronts certiﬁed with the unit

are to be installed on the appliance.

• Keep the packaging material out of reach of

children and dispose of the material in a safe

manner. As with all plastic bags, these are not toys

and should be kept away from children and infants.

• As with any combustion appliance, we recommend

having your appliance regularly inspected and

serviced as well as having a carbon monoxide

detector installed in the same area to defend you

and your family against carbon monoxide.

• Ensure clearances to combustibles are maintained

when building a mantel or shelves above the

appliance. Elevated temperatures on the wall or

in the air above the appliance can cause melting,

discolouration or damage to decorations, a T.V. or

other electronic components.

• A barrier designed to reduce the risk of burns from

the hot viewing glass is provided with this appliance

and shall be installed.

• If the barrier becomes damaged, the barrier shall

be replaced with the manufacturer’s barrier for this

appliance.

• Installation and repair should be done by a qualiﬁed

service person. The appliance should be inspected

before use and at least annually by a professional

service person. More frequent cleaning may be

required due to excessive lint from carpeting,

bedding material, etc. It is imperative that control

compartments, burners and circulating air

passageways of the appliance be kept clean.

WARNING:

Electric

This product can expose you to chemicals including lead and lead

Gas, Wood

Mantels (including Firebox)

Accessories / Metal

Accessories / Brick

Accessories / Powder Coat

Fibre

compounds, which are known to the State of California to cause cancer, and chemicals includ-

ing BBP and DEHP, which are known to the State of California to cause birth defects or other

reproductive harm. For more information, go to www.P65Warnings.ca.gov.

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

plomb et les composés de plomb qui, selon l’État de Californie, causeraient le cancer, et des

substances chimiques incluant le BBP et DEHP qui, selon d’État de Californie, causeraient des

malformations congénitales ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

WARNING:

This product can expose you to chemicals including lead and lead compounds,

which are known to the State of California to cause cancer, and chemicals including carbon

monoxide, which are known to the State of California to cause birth defects or other reproduc-

tive harm. For more information, go to www.P65Warnings.ca.gov.

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

plomb et les composés de plomb qui, selon l’État de Californie, causeraient le cancer, et des

substances chimiques incluant le monoxyde de carbone qui, selon d’État de Californie, cause-

raient des malformations congénitales ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

WARNING:

This product can expose you to chemicals including wood dust, which are

known to the State of California to cause cancer, and chemicals including BBP and DEHP,

which are known to the State of California to cause birth defects or other reproductive harm.

For more information, go to www.P65Warnings.ca.gov.

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

poussière de bois qui, selon l’État de Californie, causeraient le cancer, et des substances

chimiques incluant le BBP et DEHP qui, selon d’État de Californie, causeraient des malforma-

tions congénitales ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

WARNING:

This product can expose you to chemicals including chromium, which are

known to the State of California to cause cancer, and chemicals including toluene, which are

known to the State of California to cause birth defects or other reproductive harm.

For more information, go to www.P65Warnings.ca.gov.

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

chrome qui, selon l’État de Californie, causeraient le cancer, et des substances chimiques

incluant le toluène qui, selon d’État de Californie, causeraient des malformations congénitales

ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

WARNING:

This product can expose you to chemicals including silica, which are

known to the State of California to cause cancer.

For more information, go to www.P65Warnings.ca.gov.

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

silice qui, selon l’État de Californie, causeraient le cancer.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

WARNING:

This product can expose you to chemicals including titanium dioxide, which

are known to the State of California to cause cancer, and chemicals including toluene, which

are known to the State of California to cause birth defects or other reproductive harm.

For more information, go to www.P65Warnings.ca.gov.

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

dioxyde de titane qui, selon l’État de Californie, causeraient le cancer, et des substances

chimiques incluant le toluène qui, selon d’État de Californie, causeraient des malformations

congénitales ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

WARNING:

This product can expose you to chemicals including silica, which are known to

the State of California to cause cancer, and chemicals including toluene, which are known to

the State of California to cause birth defects or other reproductive harm.

For more information, go to www.P65Warnings.ca.gov.

AVERTISSEMENT:

silice qui, selon l’État de Californie, causeraient le cancer, et des substances chimiques

incluant le toluène qui, selon d’État de Californie, causeraient des malformations congénitales

ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

Ce produit peut vous exposer à des substances chimiques incluant le

ADVERTENCIA:

Este producto puede exponerlo a productos químicos, entre ellos, plomo

y compuestos con plomo, que el Estado de California reconoce como causantes de cáncer, y

productos químicos, entre ellos, bencilbutilftalato (BBP, por sus siglas en inglés) y di(2-etilhex-

il) ftalato (DEHP, por sus siglas en inglés), que el Estado de California reconoce como caus-

antes de malformaciones congénitas u otros daños para la reproducción. Para obtener más

información, visite www.P65Warnings.ca.gov.

ADVERTENCIA:

Este producto puede exponerlo a productos químicos, entre ellos, polvo

de madera, que el Estado de California reconoce como causantes de cáncer, y productos

químicos, entre ellos, bencilbutilftalato (BBP, por sus siglas en inglés) y di(2-etilhexil) ftalato

(DEHP, por sus siglas en inglés), que el Estado de California reconoce como causantes de

malformaciones congénitas u otros daños para la reproducción. Para obtener más infor-

mación, visite www.P65Warnings.ca.gov.

W415-2036 / D / 08.05.21 3

clear space

Fireplaces

generate radiant

heat. Do not put

objects in front

of the appliance

(minimum

distance of 4 feet

[1.21m]).

If ﬁtted with Dynamic Heat Control™

(DHC), DO NOT COVER OR PLACE

ITEMS AT AIR OUTLET OPENINGS!*

!WARNING

The area above a ﬁreplace gets hot,

(unless the appliance is ﬁtted with

Napoleon’s Dynamic Heat Control™

system). Combustible objects or mate-

rials must never be placed in this area.

For minimum distance, refer to installa-

tion manual or your authorized dealer.

!WARNING

*The DHC air outlet is shown at the front of

the ﬁreplace enclosure (see

illustration), however it may be located at

ceiling height, it may be in the room

behind or in both rooms.

Dynamic Heat Control™ is optional on the Vector series (LV models) and included on the Luxuria series (LVX

models). [PATENT PENDING]

note:

FIRE HAZARD!

The air that comes out of the DHC air

outlet is very hot. NEVER PLACE OR

ALLOW ITEMS TO FALL INSIDE THE

DHC OUTLET AIR OPENING.

LA VITRE CHAUDE CAUSERA DES

BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES ENFANTS

TOUCHER LA VITRE.

HOT GLASS WILL CAUSE BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

DANGER

AVERTISSEMENT

A barrier designed to reduce the risk of burns from

the hot viewing glass is provided with this appliance

and shall be installed for the protection of children

and other at-risk individuals.

Une barriére conçu à réduire le risque de brûlures

causées par le verre chaud est fourni avec l’appareil

et sera installé pour la protection des enfants et

d’autres personnes à risque.

LA VITRE CHAUDE CAUSERA

DES BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES

ENFANTS TOUCHER LA VITRE.

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

WARNING

AVERTISSEMENT

W415-2036 / D / 08.05.21

welcome

Dealer Information

Name of Dealer:

Dealer Location:

Dealer Phone:

Dealer E-mail:

Customer:

Customer Address:

Date of Installation:

Location of the appliance:

Installer:

Napoleon is proudly committed to your total home comfort. We are proud to say that our products continunously

surpass industry standards and our inspiration is you! More than anything, we want you to feel conﬁdent in

choosing Napoleon for your home. Our products are designed to provide that conﬁdence and ensure that every

Napoleon product is beyond compare.

Napoleon products are designed with superior components and materials assembled by trained craftsmen who

take great pride in their work.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance for your

safety. This barrier must be installed.

Your Napoleon ﬁreplace has been thoroughly inspected by a qualiﬁed technician before packaging to ensure that

you, the customer, receives the quality product that you expect from Napoleon.

Dealer : Fill in your dealer information (or business card) and the appliance installation information below.

congratulations

Model:

Serial Number:

Dealer: Business card location

Propane:

Natural Gas:

Luxuria

LV38N-1

LV50N-2

LV62N

LV74N

LVX38N-1

LVX50N-1

LVX62N-1

LVX74N-1

LV38N2-1

LV50N2-2

LV62N2

LV74N2

LVX38N2-1

LVX50N2-1

LVX62N2-1

LVX74N2-1

LV38P-1

LV50P-2

LV62P

LV74P

LVX38P-1

LVX50P-1

LVX62P-1

LVX74P-1

LV38P2-1

LV50P2-2

LV62P2

LV74P2

LVX38P2-1

LVX50P2-1

LVX62P2-1

LVX74P2-1

Dynamic Heat Control installed (Optional for LV / included for LVX)*

Vector

Vector or

Luxuria

W415-2036 / D / 08.05.21 5

table of contents

1.0 getting to know your appliance 6

1.1 control access 7

1.2 rating plate / lighting instructions location 8

2.0 operating your appliance 9

2.1 using your appliance 9

2.2 on/off components 9

2.3 operating and lighting instructions (electronic) 10

2.4 pilot-on-demand (electronic) 11

2.4.1 changing the batteries in the remote / battery holder (including switch) 12

3.0 remote control layout 13

4.0 remote control operation 14

4.1 remote control operation 14

4.2 temperature display 14

4.3 ﬂame height time 14

4.4 child proof function 14

4.5 LEDs 14

4.6 night light dimmer control 14

4.7 continuous pilot / intermittent pilot (CPI / IPI) selection 15

4.8 low battery / manual bypass 15

4.9 in the event of a power failure 15

4.10 eFIRE Controller application 15

4.11 LED colour control 16

5.0 clearances around fireplace 17

5.1 Dynamic Heat Control™ (LV optional / LVX included) 18

6.0 maintenance 19

6.1 care of glass 20

6.2 care of plated parts 21

6.3 glass guard assembly (GGA-1) removal / installation (LVX models only) 22

6.4 safety barrier removal (LV models only) 31

6.5 door trim removal 31

6.6 ﬁrebox glass door removal 32

7.0 replacement parts 33

8.0 accessories 34

9.0 troubleshooting 36

10.0 faq 37

11.0 warranty 38

The camera icon indicates video tutorials are available as additional reference, visit

http://mynapoleon.napoleonproducts.com/download/index/44/1

W415-2036 / D / 08.05.21

appliance components

1.0 getting to know your appliance

BurnerPilot

Glass guard

assembly

(LVX only)

Safety barrier

(LV only) Door trim Firebox

glass door

Glass guard

mounting

brackets

(LVX only)

Some features and components illustrated may vary depending on your model.

Heat rail

(LVX only)

Control cover

Valve / rating

plate / lighting

instructions

Single-sided model illustrated.

Battery holder

(including switch)

This owner’s manual is written for a complete series of linear ﬁreplaces that have a range of different features and

speciﬁcations. Before reading this manual, be sure you know which model of ﬁreplace that you have. This informa-

tion will have been ﬁlled out by the installer on the proceeding page and on the rating plate that is permanently

attached to the ﬁreplace (see “appliance overview” section).

This manual is for the:

• Vector Series (model number preﬁx “LV”)

• Luxuria Series (model number preﬁx “LVX”)

If required, more detailed technical information is included in the ﬁreplace installation manual.

The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves

the right to change or modify any information within this manual at any time without notice. Changes, other than

editorial are denoted by a vertical line in the margin.

Visit the Napoleon website for the most current version of your appliance’s manual.

W415-2036 / D / 08.05.21 7

appliance overview

The term “access side” is used in this manual and refers to the open side of the ﬁreplace where the ﬁrebox glass

door is located.

In the case of see-thru appliances, there are ﬁrebox glass doors on both sides of the appliance. One of these

doors is ﬁxed and cannot be removed. The access side can be identiﬁed with the pilot location.

access side ﬁxed side pilot location

pilot location

Access to the control can be done by removing the safety barrier (LV models) or glass guard (LVX models),

glass door, door trim and control cover (see “maintenance” section for instructions on how to remove these

components).

ELECTRICAL

BOX

CONTROL

MODULE

VALVE

PRE-FINISHING

ACCESS PANEL

LV50 ILLUSTRATED

1.1 control access

PRE-FINISHING

ACCESS PANEL

ELECTRICAL

BOX

LV50 ILLUSTRATED

VALVE

CONTROL

MODULE

W415-2036 / D / 08.05.21

getting to know your appliance

1.2 rating plate / lighting instructions location

CERTIFIED UNDER / HOMOLOGUE SELON LES NORMES: CSA2.33b - 2008, ANSI Z21.88b- 2008 VENTED GAS FIREPLACE HEATER / APPAREIL DE CHAUFFAGEALIMENTÉ

AU GAZ ET VENTILÉ

VENTEDGAS FIREPLACE HEATER. APPROVEDFOR BEDROOM, BATHROOM AND BED-SITTING ROOM INSTALLATION.SUITABLEFOR MOBILE HOME INSTALLATIONIF INSTALLED IN ACCORDANCE WITH THE

CURRENTSTANDARD CAN/CSA Z240MH SERIESGAS EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATESTHE MANUFACTURED HOME CONSTRUCTIONAND SAFETY STANDARD, TITLE 24CFR,

PART3280. WHEN THIS US STANDARDIS NOT APPLICABLE USE THE STANDARD FOR FIRE SAFETYCRITERIA FOR MANUFACTURED HOME INSTALLATIONS,SITES AND COMMUNITIES,ANSI / NFPA 501A.

FOYERDE CHAUFFAGE AU GAZ AVECÉVACUATION. HOMOLOGUÉPOUR INSTALLATION DANS UNE CHAMBREÀ COUCHER, UNE SALLE DE BAIN ET UN STUDIO. APPROPRIÉ POUR INSTALLATIONDANS UNE

MAISONMOBILE SI SON INSTALLATIONCONFORME AUX EXIGENCES DE LA NORME CAN/CSAZ240MH SÉRIE DE MAISONS MOBILES ÉQUIPÉES AU GAZ, EN VIGUEURAU CANADA OU AUX ÉTATS-UNISDE LA

NORMEDE SECURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉES,TITRE 24 CFR, SECTION 3280. DANS LE CAS OU CETTE NORME D'ÉTATS-UNISNE PEUT ÊTRE APPLIQUÉE, SE RÉFÉRERA LA NORME

RELATIVEAU CRITÈRE DE MESURES DE SÉCURITÉCONTRE L'INCENDIE POUR LES INSTALLATIONSDANS LES MAISONS MANUFACTURÉS, LES SITES ET LES COMMUNAUTÉS,ANSI/NFPA 501A.

NOT FOR USE WITH

SOLID FUEL. FOR USE

WITH GLASS DOORS

CERTIFIED WITH THIS

UNIT ONLY.

WARNING

DONOT ADD ANY MATERIAL

TOTHE APPLIANCE, WHICH WILL COME

INCONTACT WITH THE FLAMES, OTHER

THANTHAT SUPPLIED BY THE

MANUFACTURERWITH THE APPLIANCE.

MINIMUM CLEARANCE TO

COMBUSTIBLE MATERIALS:

TOP 0”

FLOOR 0”

RECESSEDDEPTH ONE SIDED 23"

RECESSEDDEPTH SEE THRU 13.5”

FRAMING (NOT INCLUDING

FACE MATERIAL)

SIDES 0”

VENT 2"

BACK 0”

MANTLE 15"*

TOP,SIDES & BACK: PER STAND OFF SPACERSFOR FRAMING MATERIALS. FOR FINISHING MATERIALS

SEEOWNERS MANUAL

UN COMBUSTIBLE SOLIDE NE

DOIT PAS ÊTRÉ UTILISÉAVEC

CET APPAREIL.UTILISER AVEC

LES PORTES VITRÉES

HOMOLOGUÉES SEULEMENT

AVEC CETTE UNITÉ.

AVERTISSEMENT:

N'AJOUTEZPAS A

CETAPPAREIL AUCUN MATÉRIAU DEVANT

ENTREREN CONTACT AVEC LES FLAMMES

AUTREQUE CELUI QUI EST FOURNI AVEC

CETAPPAREIL PAR LE FABRICANT.

DÉGAGEMENTS MINIMAUX DES

MATÉRIAUXCOMBUSTIBLES:

DESSUS 0”

PROFONDEURD'ENCASTRÉ 25"

PLANCHER 0”

ÉVENT 2"

CÔTES 0”

MANTEAU 15"*

ARRIÉRE 0”

MADEIN CANADA / FABRIQUÉ AU CANADA

WOLF STEEL LTD.BARRIE,ONTARIO, CANADA

ALTITUDE/ÉLÉVATION

INPUT/ ALIMENTATION

REDUCEDINPUT/ ALIMENTATIONRÉDUITE

ORIFICE/ INJECTEUR

MANIFOLDPRESSURE/

PRESSIONAUCOLLECTEUR

MINIMUMSUPPLYPRESSURE/

PRESSIOND'ALIMENTATION MINIMALE

MAXIMUMSUPPLYPRESSURE/

PRESSIOND'ALIMENTATION MAXIMALE

0-4500FT(0-1370M)

30,000BTU/H

23,000BTU/H

#38

3.5"WATERCOLUMN/D'UNECOLONNED'EAU

4.5"WATERCOLUMN/D'UNECOLONNED'EAU

7.0"WATERCOLUMN/D'UNECOLONNED'EAU

0-4500FT(0-1370M)

30,000BTU/H

23,000BTU/H

#53

10"WATERCOLUMN/D'UNECOLONNED'EAU

11"WATERCOLUMN/D'UNECOLONNED'EAU

13"WATERCOLUMN/D'UNE COLONNED'EAU

THEAPPLIANCE MUST BE VENTED USING THE APPROPRIATE

NAPOLEONVENT KITS. SEE OWNERS INSTALLATION MANUAL

FORVENTING SPECIFICS. PROPER REINSTALLATION AND

RESEALINGIS NECESSARY AFTER SERVICING THE VENT-AIR

INTAKESYSTEM.

L'APPAREILDOIT ÉVACUER SES GAZ EN UTILISANT L'ENSEMBLE

D'ÉVACUATIONPROPRE A NAPOLEON. RÉFÉRER AU MANUEL

D'INSTALLATIONDE PROPRIÉTAIRE POUR L'ÉVACUATION

PRÉCISE.IL EST IMPORTANT DE BIEN RÉINSTALLER ET

RESCELLERL'ÉVENT APRÈS AVOIR ASSURÉ LE MAINTIEN DU

SYSTÉMEDE PRISE D'AIR.

CLASSIFICATION:115V 0.82AMP, 60HZ

W385-2007

MODEL NATURAL GAS /

GAZ NATURAL

LHD50NT

MODEL PROPANE

LHD50PT

SERIAL NUMBER/NO. DE SÉRIE: LV50

ELECTRICALRATING: 115V 0.82AMP,60HZ

REFERENCE #

W/N 16131

*MAXIMUM HORIZONTAL EXTENSION / L'EXTENSION

HORIZONTALEMAXIMALE: 2".SEE INSTRUCTION MANUAL FOR GREATER EXTENSIONS.

SEEOWNER'S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM VENT LENGTHS.

DESSUS,COTÉS&ARRIÈRE:SELONLES ESPACEURSDEDÉGAGEMENTPOURLESMATÉRIAUXD'OSSATURE

SELONLEMANUELDE PROPRIÉTAIREPOURLESMATÉRIAUXDEFINITION.

*L'EXTENSIONHORIZONTALE MAXIMALE: 2". RÉFÉRERAU MANUELD'INSTRUCTIONPOURDESEXTENSIONS

PLUSGRANDES.RÉFÉRERAUMANUELD'INSTALLATION DEPROPRIÉTAIRE.

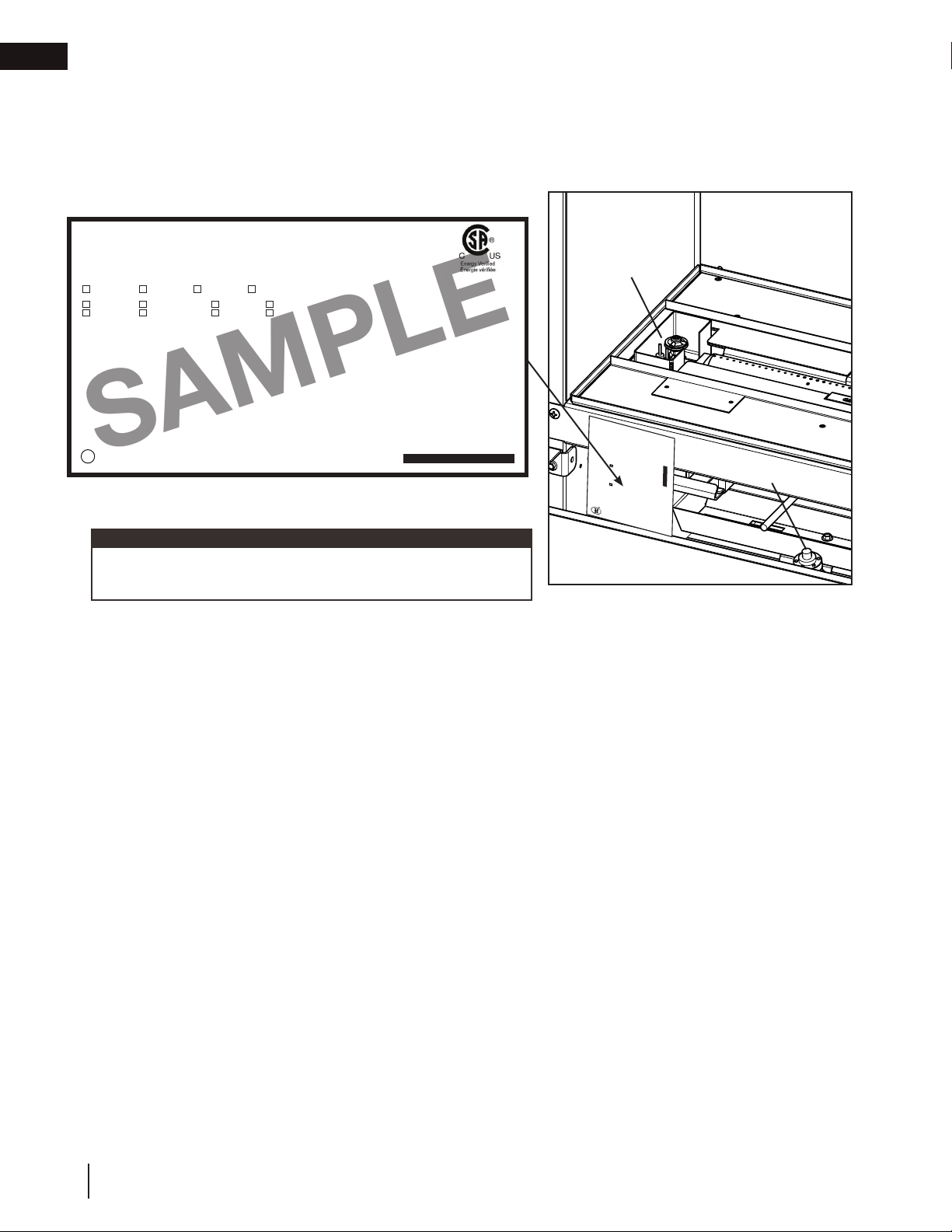

Both the rating plate and lighting instructions are attached to a chain located on the left side of the control area

near the valve (access side). Remove the safety barrier or glass guard and the control cover (LV / LVX only) to gain

access to the control area, see “control access” section.

To replace, slide the instructions back into the control area and slide the glass front into its locked position.

This illustration is for reference only. Refer to the rating plate on

the appliance for accurate information.

The rating plate must remain with the appliance at all times. It

must not be removed.

note:

Pilot location

Valve location

Certiﬁed to Canadian and American National Standards: CSA 2.22-XXXX / ANSI Z21.50-XXXX for Vented Decorative Gas Appliances

Certiﬁé selon les normes Nationales Canadiennes et Américaines: CSA 2.22-XXXX / ANSI Z21.50-XXXX pour les Appareils à gaz décoratif à évacuation

Direct vent, vented gas ﬁreplaces. Approved for bedroom, bathroom and bed-sitting room installation. Suitable for mobile home installation, if installed in accordance with the current

standard CAN / CSA Z240MH Series gas equipped mobile homes in Canada, or, in the United States, the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part

3280. When this US Standard is not applicable, use the Standard for Fire Safety Criteria for Manufactured Home Installations, Sites and Communities, ANSI / NFPA 501A. This appliance

must be installed in accordance with local codes, if any; if none, follow the current ANSI Z223.1 or CSA B149. For use with barrier WXXX-XXXX. Follow installation instructions.

Foyer à gaz ventilé. Homologué pour installation dans une chambre à coucher, une salle de bain et un studio. Approprié pour installation dans une maison mobile si son installation

conforme aux exigences de la norme CAN / CSA Z240MH Séries de maisons mobile équipées au gaz en vigueur au Canada, ou, aux États-Unis selon la norme 24 CFR, Part 3280,

Manufactured Home Construction and Safety Standard. Dans le cas ou cette norme d’États-Unis n’est pas pertinentes, utiliser la norme NFPA 501A, Fire Safety Criteria for Manufactured

Home Installations, Sites and Communities. Installer l’appareil selon les codes ou règlements locaux ou, en l’absence de tels règlements, selon les codes d’installation ANSI Z223.1 ou

CSA B149 en vigueur. Utiliser uniquement avec l’écran WXXX-XXXX. Suivre les instructions d’installation.

9700539 (WSL) 4001658 (NAC) 4001657 (NGZ) 4001659 (WUSA)

WOLF STEEL LTD. 24 Napoleon Road, Barrie, ON, L4M 0G8 Canada

XXXX XXXX XXXX XXXX

MODEL / MODÈLE

Altitude

Input

Reduced Input

Élévation

Alimentation

Alimentation Réduite

Manifold Pressure: 3.5” w.c. (NG)

Minimum Supply Pressure: 4.5” w.c. (NG)

Maximum Supply Pressure: 7”* w.c. (NG)

Pression au Collecteur: 3,5” d’une colonne d’eau (GN)

Pression d’Alimentation Min.: 4,5” d’une colonne d’eau (GN)

Pression d’Alimentation Max.: 7” ** d’une colonne d’eau (GN)

** Maximum inlet pressure not to exceed 13”.

Manifold Pressure: 10” w.c. (P)

Minimum Supply Pressure: 11” w.c. (P)

Maximum Supply Pressure: 13”* w.c. (P)

Pression au Collecteur: 10” d’une colonne d’eau (P)

Pression d’Alimentation Min.: 11” d’une colonne d’eau (P)

Pression d’Alimentation Max.: 13” * d’une colonne d’eau (P)

** Pression d’alimentation maximale ne devait pas dépasser 13”.

0-XXXXft (0-XXXXm)

Minimum clearance to combustible materials:

Top, sides & back: per standoff spacers for framing and ﬁnishing

materials. For non-combustible framing and ﬁnishing materials,

see installation manual.

Top X”

Floor X”

Sides X”

Back X”

Vent top X”

Vent sides & bottom X”

Recessed depth X”

*** Mantel X” from appliance opening

Dégagements minimaux des matériaux combustibles:

Dessus, côtés et arrière: selon les espaceurs de dégagements

pour les matériaux d’ossature selon le manuel du propriétaire

pour les matériaux de ﬁnition.

Dessus X”

Plancher X“

Côtés X”

Arrière X“

Dessus du conduit d’évent X”

Côtés et dessous du conduit d’évent X”

Profondeur d’encastré une face X”

*** Tablette X” de l’ouverture de l’appareil

WARNING: Do not add any material to the appliance which will come in contact with the

ﬂames, other than that supplied by the manufacturer with the appliance.

AVERTISSEMENT: N’ajoutez pas à cet appareil aucun matériau devant entretien

contact avec les ﬂammes autre que celui qui est fourni avec cet appareil par le fabricant.

*** Maximum horizontal extension:

X”. See installation manual for

greater extensions, minimum vent

lengths and maximum vent lengths.

*** L’extension horizontale maximale: X”.

Référez au manuel d’installation pour des

extensions plus grandes, les longueurs

d’évacuation minimaux et maximum.

The appliance must be vented using the appropriate Napoleon vent kits. See installation

manual for venting speciﬁcations. Proper reinstallation and resealing is necessary after servicing

the vent-air intake system.

L’appareil doit être ventilé à l’aide de l’ensemble d’évacuation propre à Napoleon. Référez au

manuel d’installation pour les spéciﬁcations d’évacuation. Il est nécessaire de bien réinstaller et

resceller l’évacuation après avoir executer l’entretien du système de prise d’air.

Serial Number / N° de Série:

W385-XXXX

REFERENCE# 161746

XXXX

VENTED DECORATIVE GAS APPLIANCE: NOT A SOURCE OF

HEAT, NOT INTENDED FOR USE AS A HEATING

APPLIANCE, NOT FOR USE WITH SOLID FUEL.

APPAREIL À GAZ DÉCORATIF À ÉVACUATION: N’EST PAS

UNE SOURCE DE CHALEUR; N’EST PAS DESTINÉ À ÈTRE

UTILISÉ COMME UN APPAREIL DE CHAUFFAGE; NE

CONVIENT PAS AUX COMBUSTIBLES SOLIDES.

FOR USE WITH GLASS DOORS CERTIFIED WITH THIS APPLIANCE ONLY.

POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE

CERTIFIÉES AVEC L’APPAREIL.

XX,XXX XX,XXX

For natural gas when equipped with No. XX drill size oriﬁce.

For propane when equipped with No. XX drill size oriﬁce.

Convient au gaz naturel quand l’appareil est muni d’un injecteur de diamètre no. XX.

Convient au propane quand l’appareil est muni d’un injecteur de diamètre no. XX.

Electrical rating: 115V, 60HZ. Less than 12 amperes. Spéciﬁcations électriques: 115V, 60HZ. Moins de 12 ampère.

XX.X% XX.X%

XXXX XXXX XXXX XXXX

SAMPLE

W415-2036 / D / 08.05.21 9

operating your appliance

2.0 operating your appliance

When operating your appliance for the ﬁrst time, there is a required burn-in process that cures materials used

to manufacture the ﬁreplace that may emit both vapors and an odor. These are normal when operating a new

appliance for the ﬁrst time. Ensure adequate air circulation is provided during burn-in process, if this was not

completed by the installer during installation.

To turn the appliance on:

2.1 using your appliance

A For battery holder (including switch) operation: Turn the appliance on/off by turning the battery holder

(including switch) to the ‘on’ and/or ‘off’ position.

For remote control operation: Ensure the battery holder (including switch) is in the ‘remote’ position. Press and

release the on/off button on the remote control. An audible beep should be heard from the remote.

B After 3-5 seconds, the control will start a spark at the pilot, light the pilot and then the burner. The spark

period will last 60 seconds, or until the pilot has lit.

C When used for the ﬁrst time, if the burn-in process was not completed by the installer; run appliance

continuously for 4 hours.

D Turn the appliance off. Wait until appliance is completey cool before moving to the next step.

E Remove glass guard (LVX models) or safety barrier (LV models) and ﬁrebox glass door. Clean ﬁrebox glass

door (see “maintenance” section). Replace ﬁrebox glass door and glass guard/safety barrier.

For more detailed information, see your installation manual or contact your authorized dealer.

| On/off switch | Battery holder (including switch) | Remote control |

(Not supplied)

Batteries must be disposed of according to the local laws and regulations. Some batteries may be

recycled, and may be accepted for disposal at your local recycling center. Check with your

municipality for recycling instructions.

Les piles doivent être mises au rebut conformément aux lois et à la réglementation locales.

Certaines piles peuvent être recyclées et acceptées dans votre centre de recyclage local. Rensei-

gnez-vous auprès de votre municipalité au sujet des directives de recyclage.

Las baterías deben desecharse de acuerdo con las leyes y regulaciones locales. Algunas baterías

pueden reciclarse, y es posible que su centro de reciclado local las acepte para desecharlas.

Consulte en su municipalidad sobre las instrucciones para el reciclado.

2.2 on/off components

(Optional)

W415-2036 / D / 08.05.21

operating your appliance

This appliance is equipped with an “On Demand” intermittent pilot ignition system (IPI) which also includes a

continuous pilot ignition (CPI) mode with an integrated seven day timer. This system minimizes your appliance’s

carbon footprint as well as reducing its annual fuel consumption and operating costs.

In IPI mode, the pilot will ignite prior to the main burner, when the appliance is turned on using a switch, remote

or from a call for heat with the thermostat (if equipped). Once the appliance is turned off (or the call for heat is

satisﬁed), the main burner and pilot ﬂame will shut down.

The continuous (CPI) mode is intended to enhance the performance of the appliance during the startup phase in

colder climates and extreme weather by keeping the system warm when the main burner is not in use. However,

the timer feature provides the convenience that the appliance automatically switches off the pilot when the

appliance has not been used for seven days to save unnecessary fuel consumption.

When the CPI function is turned on, the pilot will remain on after the main burner

is turned off. A timer will then begin the countdown for approximately seven days

before shutting off the pilot if the appliance is not used. This countdown will reset

anytime the appliance main burner is used. Therefore, if the appliance is regularly

used day to day, the pilot will remain on. However, this system does not require

the user to remember to turn the pilot off as summer approaches and avoids

unnecessary fuel consumption while still readily turned back on when the cold

weather returns.

Your appliance may be equipped with an ACS or remote control device which

enables you to select IPI or CPI modes.

If your appliance is equipped with an ACS switch, it has the option to change

modes. If installed with the blue wire facing up, ﬂipping the switch UP turns on the

continuous pilot with timer and ﬂipping the switch DOWN turns on the intermittent

pilot ignition. If installed with the white wire facing up, the opposite is true.

If your appliance is equipped with a remote control device capable of selecting IPI / CPI modes, refer to remote

operating instructions.

In order to start your pilot, turning the main burner on with the switch, remote or thermostat and then turning it off

will reactivate the continuous pilot mode and reset the seven day timer.

For further information, refer to www.napoleon.com/pilotondemand.

31.2A

WARNING

• Do not turn on if children or other at risk individuals are near the appliance.

• This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the

pilot by hand.

• Before operating, smell all around the appliance area for gas and next to the ﬂoor because some gas is

heavier than air and will settle on the ﬂoor.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁed service technician

to inspect the appliance and replace any part of the control system and any gas control which has been

underwater.

FOR YOUR SAFETY READ BEFORE LIGHTING

WHAT TO DO IF YOU SMELL GAS

LIGHTING INSTRUCTIONS

TO TURN OFF GAS

A. Stop! Read the above safety information on this label.

B. Remove batteries from the transmitter and set thermostat to lowest setting, if

equipped.

C. Turn off all electrical power to the appliance.

D. Open the glass door, if equipped.

E. Turn the manual shut-off valve clockwise to the “OFF” position. (Shut-off valve is

located on the ﬂex connector).

F. Wait ﬁve (5) minutes to clear out any gas. If you smell gas including near the

ﬂoor, STOP! Follow the instructions above in the “WHAT TO DO IF YOU

SMELL GAS” section. If you don’t smell gas; close the glass door and go to

the next step.

G. Turn the manual shut-off valve counter clockwise to the “ON” position.

H. Turn on all electrical power to the appliance and re-install the batteries into the

transmitter. Set thermostat to desired setting, if equipped.

I. Turn on the remote wall switch to the appliance.

J. If the appliance will not operate, follow instructions “TO TURN OFF GAS” and

call your service technician or gas supplier.

A. Set thermostat to lowest setting, if equipped.

B. Turn off the remote wall switch to the appliance.

C. Turn off all electric power to the appliance if service is to be performed.

D. Turn manual shutoff valve clockwise to the “OFF” positon. Do not force.

• Turn off all gas to the appliance.

• Open windows.

• Do not try to light any appliance.

• Do not touch any electric switch; do not use

any phone in your building

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call

the ﬁre department.

• If you do not follow these instructions exactly, a ﬁre or explosion may result causing property damage, personal

injury, or loss of life.

• If applicable, always light the pilot whether for the ﬁrst time or if the gas supply has run out with the glass door

opened or removed.

add gas knob

add gas valve

Ensure that a continuous gas ﬂow is at the burner before installing the door. When lit for the ﬁrst time, the

appliance will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in” of

paints and lubricants used in the manufacturing process and will not occur again. After extended periods of

non-operation, such as, following a vacation or warm weather season, the appliance may emit a slight odor for a

few hours. This is caused by dust particules in the heat exchanger burning off. In both cases, open a window to

sufﬁciently ventilate the room.

This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the

pilot by hand.

note:

ADD TITLE: PILOT-ON-DEMAND

2.3 operating and lighting instructions (electronic)

W415-2036 / D / 08.05.21 11
