INSTALLATION GUIDE
TB-2705 PXI TERMINAL BLOCK FOR ES
ERIES
AND WAVEFORM GENERATION DEVICES
This installation guide describes how to install and connect signals to
the TB-2705 terminal block for use with PXI E Series and waveform
generation devices.
Introduction
The TB-2705 is a terminal block assembly consisting of a printed circuit
board, 62 screw terminals, and a plastic enclosure with a strain relief. The
terminal block assembly connects directly to the front panel of National
Instruments E Series and waveform generation devices, eliminating the
need for an external cable.
The TB-2705 allows you to easily connect analog input, analog output,
counter-timer, and digital I/O signals to your National Instruments device.
The 62 screw terminals allow access to every pin on the device with the
exception of some digital ground signals that are common to one another.
The TB-2705 also has a shielded strain-relief to secure your I/O wires and
provide an adequate chassis-ground connection.
What You Need to Get Started
You need the following to set up and use your terminal block:
❑TB-2705 Terminal Block Assembly
❑TB-2705 PXI TerminalBlock for E Series and Waveform Generation
Devices Installation Guide
❑One of the following:
– PXI E Series device
– waveform generation device with a 68-pin I/O connector
™

TB-2705 PXI Terminal Block 2 ni.com
❑One of the following:
– PXI E Series User Manual
–waveform generation device user manual
❑0.10 in. slotted screwdriver
❑Number 1 Phillips-head screwdriver
❑Wire cutters
❑Wire insulation stripper
❑One of the following:
–E Series device overlay
–Waveform generation device overlay
Conventions
The following conventions are used in this guide:
<> Angle brackets that contain numbers separated by an ellipsis represent a
range of values associated with a bit or signal name—for example,
DBIO<3..0>.
This icon denotes a note, which alerts you to important information.
This icon denotes a caution, which advises you of precautions to take to
avoid injury, data loss, or a system crash.
italic Italic text denotes variables, emphasis, a cross reference, or an introduction
to a key concept. This font also denotes text that is a placeholder for a word
or value that you must supply.
Safety Information
Cautions Do not operate the device in an explosive atmosphere or where there may be
flammable gases or fumes.
Do not operate damaged equipment. The safety protection features built into this device
can become impaired if the device becomes damaged in any way. If the device is damaged,
turn the device off and do not use it until service-trained personnel can check its safety.
If necessary, return the device to National Instruments for service and repair to ensure that
its safety is not compromised.

©National Instruments Corporation 3 TB-2705 PXI Terminal Block
Do not operate this equipment in a manner that contradicts the information specified in this
document. Misuse of this equipment could result in a shock hazard.
Do not substitute parts or modify equipment. Because of the danger of introducing
additional hazards, do not install unauthorized parts or modify the device. Return the
device to National Instruments for service and repair to ensure that its safety features
are not compromised.
You must insulate all of your signal connections to the highest voltage with which the
TB-2705 can come in contact.
Connections, including power signals to ground and vice versa, that exceed any of the
maximum signal ratings on the terminal block can create a shock or fire hazard, or can
damage any or all of the boards connected to the host computer, and the terminal block.
National Instruments is not liable for any damages or injuries resulting from incorrect
signal connections.
Clean the module and accessories by brushing off light dust with a soft non-metallic brush.
Remove other contaminants with a stiff non-metallic brush. The unit must be completely
dry and free from contaminants before returning it to service.
Signal Descriptions
Table 1 describes the E Series signals available on the TB-2705. Table 2
describes the waveform generation signals.
Table 1. TB-2705 Terminal Block E Series Signal Descriptions
Signal Name Reference Direction Description
AIGND — — Analog Input Ground—These
terminals are the reference point for
single-ended measurements in RSE
configuration and the bias current
return point for differential
measurements. All three ground
references—AIGND, AOGND, and
DGND—are connected together on
your E Series device.
ACH<0..15> AIGND Input Analog Input Channels 0 through
15—You can configure each channel
pair, ACH<i, i+8> (i = 0..7), as either
one differential input or two
single-ended inputs.

TB-2705 PXI Terminal Block 4 ni.com
AISENSE AIGND Input Analog Input Sense—This terminal
serves as the reference node for any
of channels ACH <0..15> in NRSE
configuration.
DAC0OUT AOGND Output Analog Channel 0 Output—This
terminal supplies the voltage output
of analog output channel 0.
DAC1OUT AOGND Output Analog Channel 1 Output—This
terminal supplies the voltage output
of analog output channel 1.
EXTREF AOGND Input External Reference—This terminal
is the external reference input for the
analog output circuitry.
AOGND — — Analog Output Ground—The analog
output voltages are referenced to these
terminals. All three ground
references—AIGND, AOGND, and
DGND—are connected together on
your E Series device.
DGND — — Digital Ground—These pins supply
the reference for the digital signals at
the I/O connector as well as the
+5 VDC supply. All three ground
references—AIGND, AOGND, and
DGND—are connected together on
your E Series device.
DIO<0..7> DGND Input or
Output
Digital I/O Signals—DIO 6 and 7
can control the up/down signal of
general-purpose counters 0 and 1,
respectively.
+5 V DGND Output +5 VDC Source—These terminals are
fused for up to 1 A of +5 V supply.
The fuse is self-resetting.
Table 1. TB-2705 Terminal Block E Series Signal Descriptions (Continued)
Signal Name Reference Direction Description

©National Instruments Corporation 5 TB-2705 PXI Terminal Block
SCANCLK DGND Output Scan Clock—This terminal pulses
once for each A/D conversion in the
scanning modes when enabled. The
low-to-high edge indicates when you
can remove the input signal from the
input or switched to another signal.
EXTSTROBE DGND Output External Strobe—This output is used
for controlling SCXI modules.
PFI0/TRIG1 DGND Input PFI0/Trigger 1—As an input, this
is either one of the programmable
function inputs (PFIs) or the source for
the hardware analog trigger. For more
information on PFI signals, see the
PXI E Series User Manual.
Output As an output, this is the TRIG1 signal.
In posttrigger data acquisition
sequences, a low-to-high transition
indicates the initiation of the
acquisition sequence. In pretrigger
applications, a low-to-high transition
indicates the initiation of the pretrigger
conversions.
PFI1/TRIG2 DGND Input PFI1/Trigger 2—As an input, this is
one of the PFIs.
Output As an output, this is the TRIG2 signal.
In pretrigger applications, a
low-to-high transition indicates the
initiation of the posttrigger
conversions. TRIG2 is not used in
posttrigger applications.
PFI2/CONVERT DGND Input PFI2/Convert—As an input, this is one
of the PFIs.
Output As an output, this is the CONVERT*
signal. A high-to-low edge on
CONVERT* indicates the start of an
A/D conversion.
Table 1. TB-2705 Terminal Block E Series Signal Descriptions (Continued)
Signal Name Reference Direction Description

TB-2705 PXI Terminal Block 6 ni.com
PFI3/GPCTR1_
SOURCE
DGND Input PFI3/Counter 1 Source—As an input,
this is one of the PFIs.
Output As an output, this is the
GPCTR1_SOURCE signal. This
signal reflects the actual source
connected to general-purpose
counter 1.
PFI4/GPCTR1_GATE DGND Input PFI4/Counter 1 Gate—As an input,
this is one of the PFIs.
Output As an output, this is the
GPCTR1_GATE signal. This signal
reflects the actual gate signal
connected to the general-purpose
counter 1.
GPCTR1_OUT DGND Output Counter 1 Output—This is the
general-purpose counter 1 output.
PFI5/UPDATE DGND Input PFI5/Update—As an input, this is one
of the PFIs.
Output As an output, this is the UPDATE*
signal. A high-to-low edge on
UPDATE* indicates that the analog
output primary group is updating.
PFI6/WFTRIG DGND Input PFI6/Waveform Trigger—As an input,
this is one of the PFIs.
Output As an output, this is the WFTRIG
signal. In timed analog output
sequences, a low-to-high transition
indicates the initiation of the
waveform generation.
PFI7/STARTSCAN DGND Input PFI7/Start of Scan—As an input, this
is one of the PFIs.
Output As an output, this is the STARTSCAN
signal. This pin pulses once at the start
of each analog input scan in the
interval scan. A low-to-high transition
indicates the start of the scan.
Table 1. TB-2705 Terminal Block E Series Signal Descriptions (Continued)
Signal Name Reference Direction Description

©National Instruments Corporation 7 TB-2705 PXI Terminal Block
PFI8/GPCTR0_
SOURCE
DGND Input PFI8/Counter 0 Source—As an input,
this is one of the PFIs.
Output As an output, this is the
GPCTR0_SOURCE signal. This
signal reflects the actual source
connected to the general-purpose
counter 0.
PFI9/GPCTR0_GATE DGND Input PFI9/Counter 0 Gate—As an input,
this is one of the PFIs.
Output As an output, this is the
GPCTR0_GATE signal. This signal
reflects the actual gate signal
connected to the general-purpose
counter 0.
GPCTR0_OUT DGND Output Counter 0 Output—This is the
general-purpose counter 0 output.
FREQ_OUT DGND Output Frequency Output—This output is
from the frequency generator output.
Table 2. TB-2705 Terminal Block Waveform Generation Signal Descriptions
Signal Name Reference Direction Description
AOGND — — Analog Output Ground—The analog
output voltages are referenced to this
node.
DAC<0..7>OUT AOGND Output Analog Output Channels 0
through 7—These pins supply the
voltage output of the respective
channel.
DGND — — Digital Ground—This pin supplies the
reference for the digital signals at the
I/O connector as well as the reference
for the +5 VDC supply.
DIO<0..7> DGND Input or
Output
Digital I/O Signals—DIO6 and 7 can
control the up/down signal of
general-purpose counters 0 and 1,
respectively.
Table 1. TB-2705 Terminal Block E Series Signal Descriptions (Continued)
Signal Name Reference Direction Description

TB-2705 PXI Terminal Block 8 ni.com
+5 V DGND Output +5 VDC Source—These pins are fused
for up to 1 A of +5 V supply. The fuse
is self-resetting.
EXTREF AOGND Input External Reference—This is the
external reference input for the analog
output circuitry.
EXTSTROBE* DGND Output External Strobe—This output is used
for controlling SCXI modules.
PFI0 DGND Input PFI0—As an input, this is one of the
Programmable Function Inputs (PFIs).
For more information on PFI signals,
see the 6711/6713/6715 User Manual.
You cannot use PFI0 as an output.
PFI1 DGND Input PFI1—As an input, this is one of the
PFIs. You cannot use PFI1 as an
output.
PFI2 DGND Input PFI2—As an input, this is one of the
PFIs. You cannot use PFI2 as an
output.
PFI3/GPCTR1_SOURCE DGND Input PFI3/Counter 1 Source—As an input,
this is one of the PFIs.
Output As an output, this is the
GPCTR1_SOURCE signal. This
signal reflects the actual source
connected to the general-purpose
counter 1.
PFI4/GPCTR1_GATE DGND Input PFI4/Counter 1 Gate—As an input,
this is one of the PFIs.
Output As an output, this is the
GPCTR1_GATE signal. This signal
reflects the actual gate signal
connected to the general-purpose
counter 1.
GPCTR1_OUT DGND Output Counter 1 Output—This is the
general-purpose counter 1 output.
Table 2. TB-2705 Terminal Block Waveform Generation Signal Descriptions (Continued)
Signal Name Reference Direction Description

©National Instruments Corporation 9 TB-2705 PXI Terminal Block
PFI5/UPDATE* DGND Input PFI5/Update—As an input, this is one
of the PFIs.
Output As an output, this is the UPDATE*
signal. A high-to-low edge on
UPDATE* indicates that the analog
output waveform generation group is
being updated.
PFI6/WFTRIG DGND Input PFI6/Waveform Trigger—As an input,
this is one of the PFIs.
Output As an output, this is the WFTRIG
signal. In timed analog output
sequences, a low-to-high transition
indicates the initiation of the waveform
generation.
PFI7 DGND Input PFI7—As an input, this is one of the
PFIs. You cannot use PFI7 as an
output.
PFI8/GPCTR0_SOURCE DGND Input PFI8/Counter 0 Source—As an input,
this is one of the PFIs.
Output As an output, this is the
GPCTR0_SOURCE signal. This
signal reflects the actual source
connected to the general-purpose
counter 0.
PFI9/GPCTR0_GATE DGND Input PFI9/Counter 0 Gate—As an input,
this is one of the PFIs.
Output As an output, this is the
GPCTR0_GATE signal. This signal
reflects the actual gate signal
connected to the general-purpose
counter 0.
GPCTR0_OUT DGND Output Counter 0 Output—This is the
general-purpose counter 0 output.
FREQ_OUT DGND Output Frequency Output—This is the
frequency generator output.
Table 2. TB-2705 Terminal Block Waveform Generation Signal Descriptions (Continued)
Signal Name Reference Direction Description

TB-2705 PXI Terminal Block 10 ni.com
Connecting the Signals
See your PXI E Series User Manual or waveform generation device user
manual for examples of how to connect your signals. Refer to Figure 1 as
you perform the following steps to connect signals to your terminal block.
Figure 1. TB-2705 Parts Locator Diagram
1Cover
2 Cover Screws (Captive)
3 Strain-Relief Bar
4 Chassis Connection Screws
5 Ground Lug Screw
6 Ground Lug
7 Chassis Ground Tab
8 Connection to PXI Module
9 Strain-Relief Screws
1
2
8
4
4
9
7
6
5
3

©National Instruments Corporation 11 TB-2705 PXI Terminal Block
1. Remove the terminal block cover by unscrewing the two cover screws
using the 0.10 in. slotted screwdriver.
Note Your kit contains overlays for both E Series and waveform generation devices.
Use the appropriate overlay for your application.
Figure 2. E Series Device Overlay
PIN# SIGNAL PIN# SIGNAL
PIN# SIGNAL
68
34
29
33
66
24
65
31
56
57
23
22
54
8
46
50
42
18
5
37
2
1
28
61
59
62
25
58
27
21
20
55
16
48
35
11
43
41
6
4
ACH0
ACH8
AIGND
ACH1
ACH9
AIGND
ACH2
ACH10
AIGND
ACH7
ACH15
DAC0OUT
AOGND
+5V
SCANCLK
DGND
PFI3/GPCTR1_SOURCE
DGND
PFI6/WFTRIG
PFI8/GPCTR0_SOURCE
GPCTR0_OUT
FREQ_OUT
ACH4
ACH12
AIGND
AISENSE
ACH6
ACH14
AIGND
DAC1OUT
EXTREF
AOGND
DIO6
DIO7
DGND
PFI0/TRIG1
PFI2/CONVERT
PFI4/GPCTR1_GATE
PFI5/UPDATE
DGND
30
63
67
60
26
64
32
19
52
17
53
9
51
49
47
45
10
14
40
38
3
36
ACH3
ACH11
AIGND
ACH5
ACH13
AIGND
AIGND
DIO4
DIO0
DIO1
DGND
DGND
DIO5
DIO2
DIO3
EXTSTROBE
PFI1/TRIG2
+5V
GPCTR1_OUT
PFI7/STARTSCAN
PFI9/GPCTR0_GATE
DGND

TB-2705 PXI Terminal Block 12 ni.com

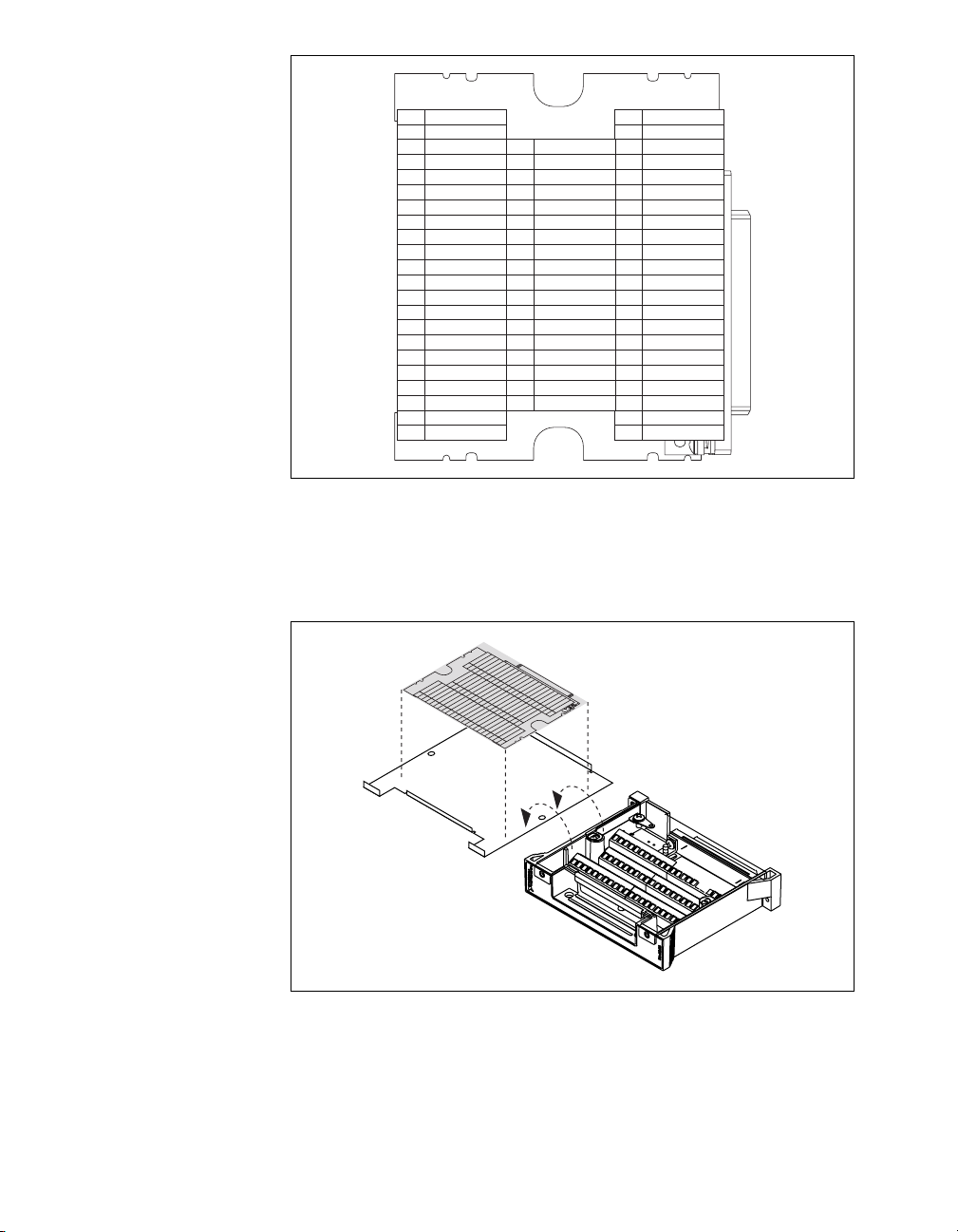

Figure 3. Waveform Generation Device Overlay
2. Apply the label to the inside of the top cover as shown in Figure 4.
This label is a pin number to signal name reference. Each overlay has
an adhesive backing for adhering the overlay to the top cover.
Figure 4. Applying the Overlay
PIN# SIGNAL PIN# SIGNAL
PIN# SIGNAL
68
34
29
33
66
24
65
31
56
57
23
22
54
8
46
50
42
18
5
37
2
1
28
61
59
62
25
58
27
21
20
55
16
48
35
11
43
41
6
4
NC
AO GND
AO GND
NC
AOGND
AOGND
DAC7OUT
AOGND
AOGND
DAC2OUT
AOGND
DAC0OUT
AOGND
+5V
NC
DGND
PFI3
DGND
PFI6
PFI8
GPCTR0_OUT
FREQ_OUT
DAC5OUT
AO GND
AO GND
NC
DAC3OUT
AOGND
AOGND
DAC1OUT
EXTREF
AOGND
DIO6
DIO7
DGND
PFI0
PFI2
PFI4
PFI5
DGND
30
63
67
60
26
64
32
19
52
17
53
9
51
49
47
45
10
14
40
38
3
36
DAC6 OUT
AOGND
AOGND
DAC4OUT
AOGND
AOGND
AOGND
DIO4
DIO0
DIO1
DGND
DGND
DIO5
DIO2
DIO3
EXTSTROBE
PFI1
+5V
GPCTR1_OUT
PFI7
PFI9
DGND
PIN# SIGNAL PIN# SIGNAL
PIN# SIGNAL
68
34
29
33
66
24
65
31
56
57
23
22
54
8
46
50
42
18
5
37
2
1
28
61
59
62
25
58
27
21
20
55
16
48
35
11
43
41
6
4
NC
AO GND
AO GND
NC
AOGND
AOGND
DAC7OUT
AOGND
AOGND
DAC2OUT
AOGND
DAC0OUT
AOGND
+5V
NC
DGND
PFI3
DGND
PFI6
PFI8
GPCTR0_OUT
FREQ_OUT
DAC5OUT
AO GND
AO GND
NC
DAC3OUT
AOGND
AOGND
DAC1OUT
EXTREF
AOGND
DIO6
DIO7
DGND
PFI0
PFI2
PFI4
PFI5
DGND
30
63
67
60
26
64
32
19
52
17
53
9
51
49
47
45
10
14
40
38
3
36
DAC6 OUT
AOGND
AOGND
DAC4OUT
AOGND
AOGND
AOGND
DIO4
DIO0
DIO1
DGND
DGND
DIO5
DIO2
DIO3
EXTSTROBE
PFI1
+5V
GPCTR1_OUT
PFI7
PFI9
DGND

©National Instruments Corporation 13 TB-2705 PXI Terminal Block
3. Loosen or remove the strain-relief bar by loosening the
two strain-relief screws.
4. Use wire cutters and wire insulation strippers to strip no more than
7 mm of insulation from the wire ends.
5. Loosen the screws in the screw terminals with the 0.10 in. slotted
screwdriver.
6. Insert the stripped wires into the screw terminals. Tighten the screws
with the 0.10 in. slotted screwdriver. No bare wire should extend past
the screw terminal. Exposed wire increases the risk of short circuits
and failures.
7. Tighten or replace the strain-relief screws.
8. Replace the terminal block cover and tighten the cover screws.
Installing the Terminal Block
Refer to Figure 5 as you perform the following steps to connect the
terminal block to the PXI module I/O connector.
Caution The connectors of both the PXI module and the terminal block are polarized.
You can attach them in only one way. Do not force the terminal block when inserting it into
or removing it from the PXI module I/O connector.
1. Install the PXI module into the chassis and tighten the two module
screws. You must install the TB-2705 terminal block on the PXI
module after the module is installed in the chassis.
2. Guide the terminal block onto the switch module connector.
3. Tighten the two terminal block mounting screws.

TB-2705 PXI Terminal Block 14 ni.com

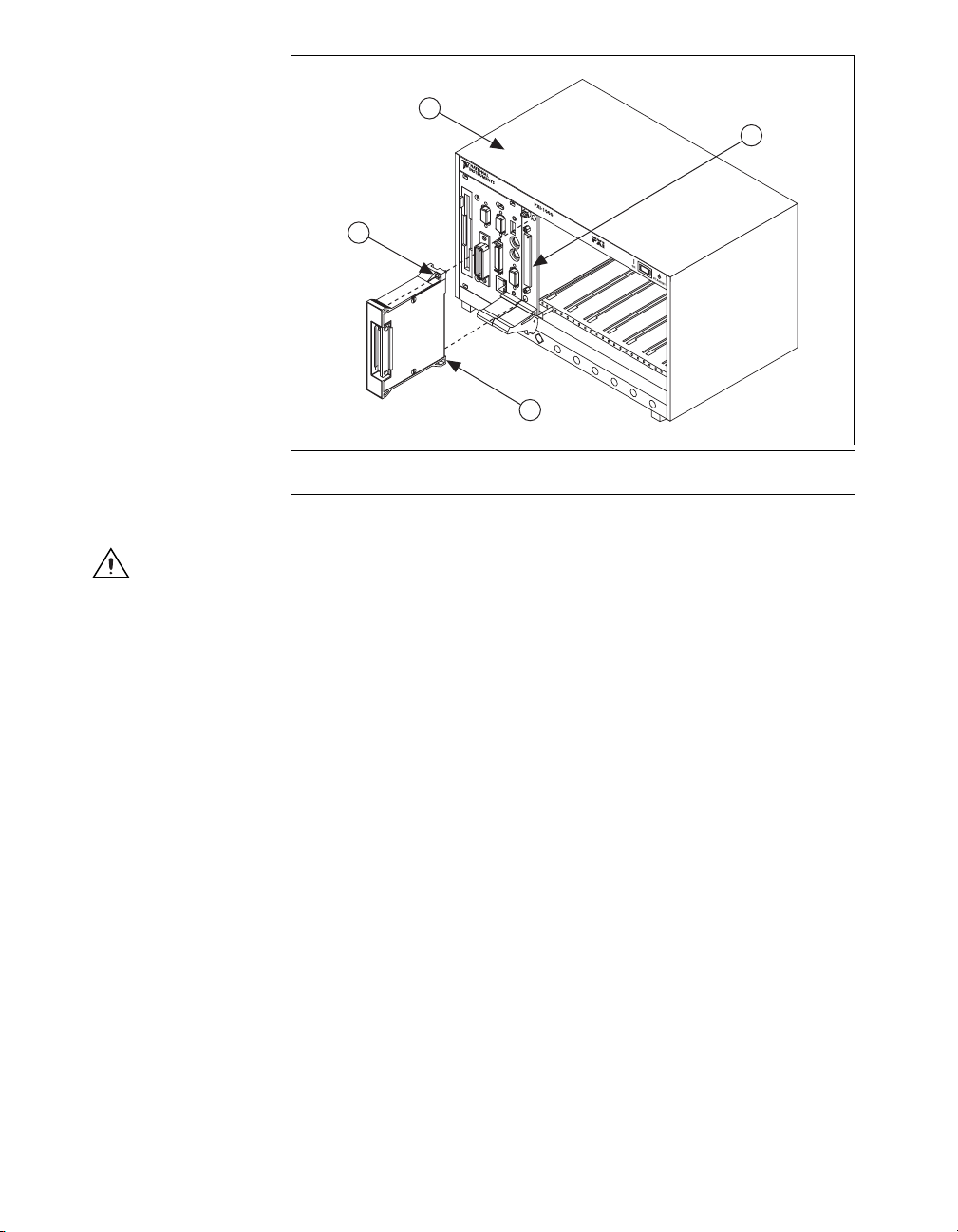

Figure 5. Connecting the TB-2705 to an E Series or Waveform Generation Device
Caution The TB-2705 is not designed for input voltages greater than 42 V, even if you
install a voltage divider that reduces the voltage to within the input range of the DAQ
device. Input voltages greater than 42 V can damage the TB-2705, any device connected
to it, and the host computer. Overvoltage can also cause an electric shock hazard for the
operator. National Instruments is not liable for damage or injury resulting from such
misuse.
1 Terminal Block Mounting
Screws
2 PXI Chassis 3 PXI Module Connector
1
1
8
7
6
5
4
3
2
2
3

©National Instruments Corporation 15 TB-2705 PXI Terminal Block
Specifications
This section lists the specifications of the TB-2705. These specifications
are typical at 25 °C unless otherwise specified.
Input/Output
See the documentation of your E Series or waveform generation device to
determine the input/output specifications for your application.
Physical
Dimensions............................................. 8.4 by 10.7 by 2.0 cm
(7.5 by 4.125 by 1.38 in.)
I/O connector.......................................... One 68-position female connector
Environment
Operating temperature............................ 0 to 50 °C
Storage temperature............................... –20 to 70 °C
Relative humidity................................... 10 to 90% noncondensing
Safety
Designed in accordance with IEC61010-01, EN 61010-1, UL 3111-1,
and CAN/CSA C22.2 No.1010.1 for electrical measuring and testing
equipment.
For use at altitudes up to 2000 meters.
Installation Category II
Pollution Degree 2
Electromagnetic Compatibility
EMC/EMI............................................... CE, C-Tick and FCC Part 15
(Class A) Compliant
Electrical emissions................................ EN 55011 Class A @ 10 meters
FCC Part 15A above 1 GHz
Electrical immunity................................ Evaluated to EN 61326:1998,
Table 1
Note To ensure full EMC and EMI compliance only operate equipment under test (EUT)
with shielded cabling. See the Declaration of Conformity for this product for any additional
regulatory compliance information.

Technical Support Resources
NI Web Support
National Instruments Web support is your first stop for help in solving
installation, configuration, and application problems and questions. Online
problem-solving and diagnostic resources include frequently asked
questions, knowledge bases, product-specific troubleshooting wizards,
manuals, drivers, software updates, and more. Web support is available
through the Technical Support section of ni.com
Worldwide Support
National Instruments has offices located around the world to help address
your support needs. You can access our branch office Web sites from the
Worldwide Offices section of ni.com. Branch office Web sites provide
up-to-date contact information, support phone numbers, e-mail addresses,
and current events.
If you have searched the technical support resources on our Web site
and still cannot find the answers you need, contact your local office or
National Instruments corporate. For telephone support in the United States,
dial 512 795 8248. For telephone support outside the United States, contact
your local branch office:
Australia 03 9879 5166, Austria 0662 45 79 90 0, Belgium 02 757 00 20,
Brazil 011 284 5011, Canada (Calgary) 403 274 9391,
Canada (Ontario) 905 785 0085, Canada (Québec) 514 694 8521,
China 0755 3904939, Denmark 45 76 26 00, Finland 09 725 725 11,
France 01 48 14 24 24, Germany 089 741 31 30, Greece 30 1 42 96 427,
Hong Kong 2645 3186, India 91805275406,
Israel 03 6120092, Italy 02 413091, Japan 03 5472 2970,
Korea 02 596 7456, Mexico (D.F.) 5 280 7625,
Mexico (Monterrey) 8 357 7695, Netherlands 0348 433466,
New Zealand 09 914 0488, Norway 32 27 73 00, Poland 0 22 528 94 06,
Portugal 351 1 726 9011, Singapore 2265886, Spain 91 640 0085,
Sweden 08 587 895 00, Switzerland 056 200 51 51,
Taiwan 02 2528 7227, United Kingdom 01635 523545
