Nauticam Atomos shogun User manual

0

1
Thank you for your purchase of a NAUTICAM housing.
At NAUTICAM, we pride ourselves in the ability to recognise the re uirements of
professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high level
of user-friendliness by allowing stress-free installation and easy operation of all
important functions of the camera.
Each housing is individually inspected and water pressure tested to ensure
optimum uality.
Please read this manual carefully before using the housing, this will maximise its
performance as well as its lifetime.

2
1.
All NAUTICAM Products are warranted against any material and
manufacturing defects for one year from the date of purchase for consumer
use. Please fill in the warranty cards shipped with our housings and
viewfinders at the time of sale and return them to your point of purchase
within a month. If we do not receive the completed warranty card for a
particular product, the warranty period would be assumed to begin from the
day that the product is shipped from our facility. This warranty only applies to
products purchased from authorised NAUTICAM dealers and does not extend
beyond the original retail purchaser.
2.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the
product is purchased in the territory where the service centre is located.
3.
NAUTICAM accepts no liability for any damage to and defects in the housing
caused by improper use and/or poor maintenance; it is the responsibility of
the owner to carefully follow the instructions in our manuals.
4.
NAUTICAM does not hold responsibility for damage, of any nature, to any
e uipment used with and/or placed within our products.
5.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
6.
Unauthorised modifications and/or repairs of our products will automatically
invalidate the warranty.

3
1. Nauticam Atomos Shogun Housing
2. HDMI bulkhead with integrated cable and type D connector
3. Instruction manual
4. Hand pump
5. Spare silicone rubber main o-ring
6. O-ring remover
7. CR2032 battery (Vacuum Check and Leak Detection System)
8. Lubricant
9. Set of Allen keys
Spare silicone rubber o-ring
Lubricant CR2032 battery
HDMI bulkhead with integrated
cable and type D connector
Hand Pump
O-ring remover

4
1. A water-tight test without the monitor inside the housing is highly
recommended when using the system for the first time and after the changing
of port and O-ring(s).
2. Do not use lubricants from other brands with the silicone rubber O-ring on this
housing, only use the lubricant provided by NAUTICAM.
3. Discontinue use immediately should you notice any leakage.
4. Store the housing in a robust, shock-proof container during transportation;
avoid transporting with any e uipment, such as a camera, inside the housing.
5. When travelling by air, do not close the housing as this may lead to a pressure
difference between the atmosphere and inside the housing.
6. Care must be taken when opening the housing, as pressure may build up inside
the housing which increases the opening force.
7. Do not open the product in a wet or sandy environment. Protect the interior
from moisture and debris in order to prevent malfunction or leakage.
8. Do not store the product in an environment of high humidity.
9. Do not leave the housing and the monitor in direct sunlight for prolonged
periods.
10. Keep out of reach of children, failure to do so could result in injury.
11. Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in malfunction
or leakage.

5
Specifications 6
Identification of Parts 7
Opening and Locking the Housing 8
Preparation of the Housing 9
Installing the Monitor 13
onnecting to the amera Housing 14
are and Maintenance 16
Optional Accessories 17

6
Construction
Housing body: Aluminium alloy
Surface treatment: Hard anodised
Display window: Abrasion resistant polycarbonate
Dimensions
Width: 286mm
Height: 176mm
Depth: 120mm
Weight Approx. 2.35kg
Buoyancy Positive
Depth rating 60 metres
Operating
Temperature
Normal operating temperature is between 10°C and
40°C. For usage outside the stated temperature range,
please contact our dealers for more information.

7
1 HDMI cable 10 Fan indicator
2 Moisture alarm window 11 M14 accessory port
3 M16 Vacuum valve 12 Fan on/off button
4 Threaded holes for monitor
hood (4x) 13 Monitor on/off button
5 REC button 14 Housing lock safety button
6 PLAY button 15 Housing lock
7 1/4" threaded holes attachment
points (4x) 16 Waveform Monitoring button
8 Swing button for various
controls 17 Monitor Assist button
9 M16 accessory port
1
3
2
9
4
12
13
8
7
11
14
15
5
6
16
17
10

8
To open the housing:
To lock the housing:
1.
Press the housing lock safety
button.
2.
Turn the housing lock anti
-
clockwise for 270°, until the lock
reaches the “Open” position as
shown.
3.
Close the housing while the
housing lock is in the “Open”
position.
4.
Turn the housing lock clockwise
for 270°, until the lock reaches the
“lock” position as shown.
Confirm that the white indicator
line on the safety button is
visible.

9
1. After verifying that the main O-ring is in good condition, lightly coat it with the
lubricant provided.
2. Make sure the O-ring groove located in the front part of the housing is free
from any foreign material; the groove can be cleaned with the aid of a
microfiber cloth.
3. Place the main O-ring into the groove, first at the corners, then the whole
perimeter.
4. Setting up the cooling fans:
Insert a Sony NP-F570 battery or Atomos 7.4V 2600mah battery to the fan battery
holder as shown. Only use the battery models stated above.

10

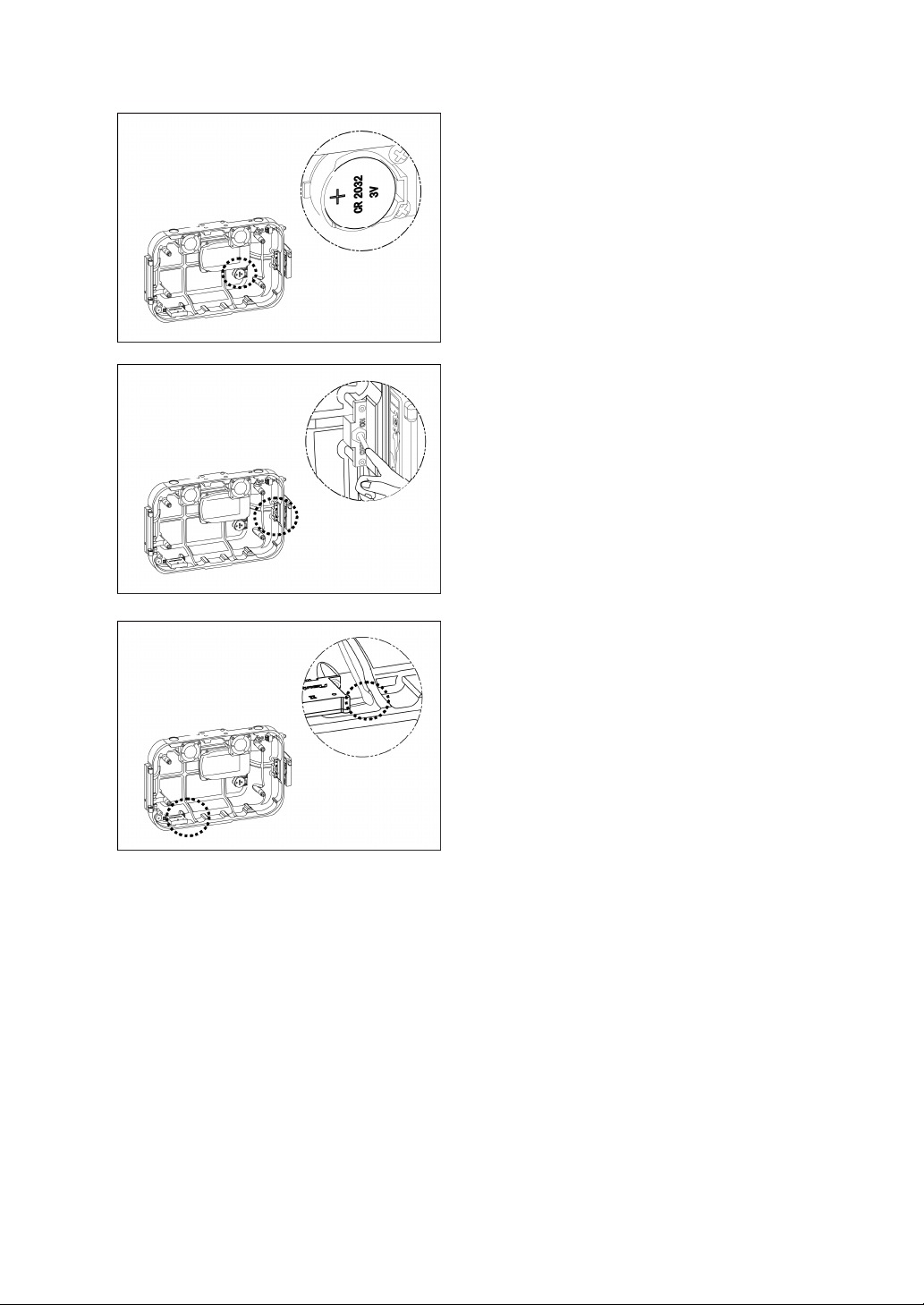

1.
Install the CR2032 bat
tery provided
into the battery compartment on
the circuit board inside the front
part of the housing.
5. Setting up the moisture alarm:
2.
Switch the al
arm on. The LED light will
flash blue once and turn blue for five
seconds indicating the battery is
normal. Then it goes into flashing blue
light standby mode.
3.
T
est the alarm by con
necting
the two
wires near the bottom of the housing
with a damp cotton bud; the alarm
should start giving out a repeating
“beep” sound along with a flashing red
light. The “beep” sound and the light
should keep on going for 5 seconds
after the removal of the damp cotton
bud .

11
1.
Remove the vacuum valve cap.
2. Make sure the vacuum release ring is
at its closed position by turning it
clockwise until it cannot go any
further.
5.
Please ensure that the cap is attached back to the vacuum valve before going underwater.
6. Vacuum can be released by turning the vacuum release ring anti-clockwise.
To build up vacuum
Caution: Please DO NOT attempt to go over the designated vacuum level, i.e. stop pumping when
the LED turn green. Excessive vacuum level may lead to the malfunctioning of the camera and lens.
Attention: Although the vacuum indicator is designed to compensate for a certain amount of
temperature variation, it is recommended to conduct the vacuum test in an environment where
the temperature is stable.
4.
After the target vacuum level is reached, i.e. steady green light. It is recommended to leave
the housing for at least 20mins to ensure it is sealed. If the LED light changes from steady
green light to rapidly flashing yellow light, that means there is a leakage and please he k
every o-ring and ondu t the va uum test again.
Seal
Release
3.
After the target vacuum level is reached, i.e. steady green light. It is recommended to
leave the housing for at least 20mins to ensure it is sealed. If the LED light changes from
steady green light to rapidly flashing yellow light, that means there is a leakage and please
he k every o-ring and ondu t the va uum test again.

12
LED status identification:
On start up:
LED indicator
Status
Flash “Blue” light once
Indicates a 2nd genera
tion PCB
Steady "Blue" light
Battery is normal,
goes into flashing "Blue" light
standby mode after 5 seconds.
"Blue" and "Red"
lights alternating
Battery low. R
eplac
e
battery
as soon as possible
.
Goes into standby mode after 5 seconds.
Steady "Red" li
ght
Battery empty
, replace battery.
After start up:
LED indicator
Status
Flashing "Blue" light
Standby mode. The moisture alarm is active, and
the system is ready for vacuum indication whenever
a vacuum is detected.
Flashing "Red" light
with beeping sound
Moisture is
detected.
Flashing "Yellow" light
Some vacuum is detected,
target vacuum level is
not reached.
Steady "Green" light
Target vacuum level is reached.
Rapidly flash "Yellow"
light
Vacuum is dropping. (Will occur only after target
vacuum level is reached)
Rapidly flashing "Red"
light
Vacuum is totally lost. Circuit stalled until switched
off. (Will occur only after target vacuum level is
reached)

13

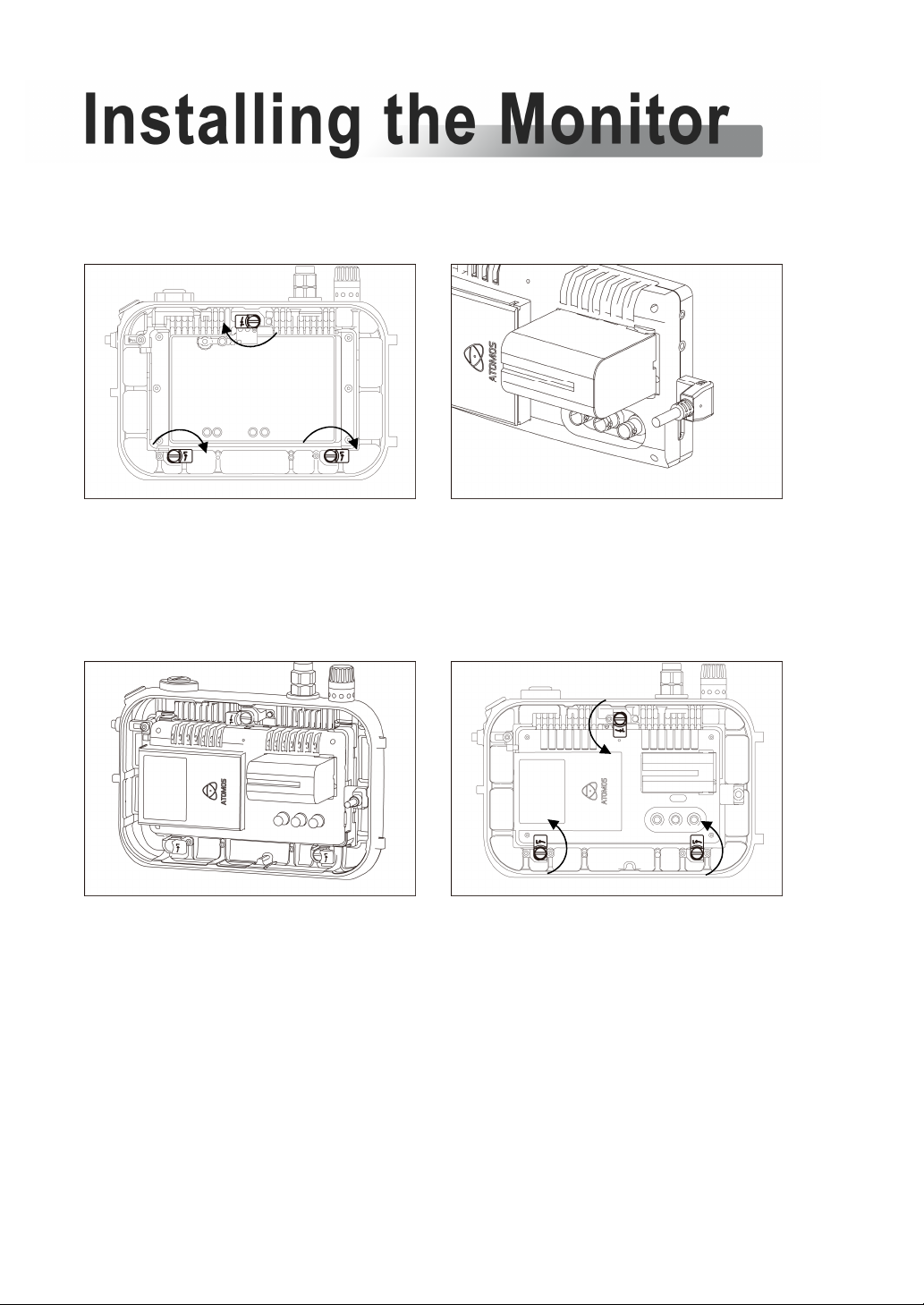

To install the monitor into the housing:
1.
Turn the three locking levers
in
the
direction as shown.
3.
Secure the monitor by turning
the three locking levers towards
the monitor as shown.
2.
Connect the HDMI cable with "L
" connector to the monitor.
4.
Plac
e the monitor inside the
housing as shown.

14

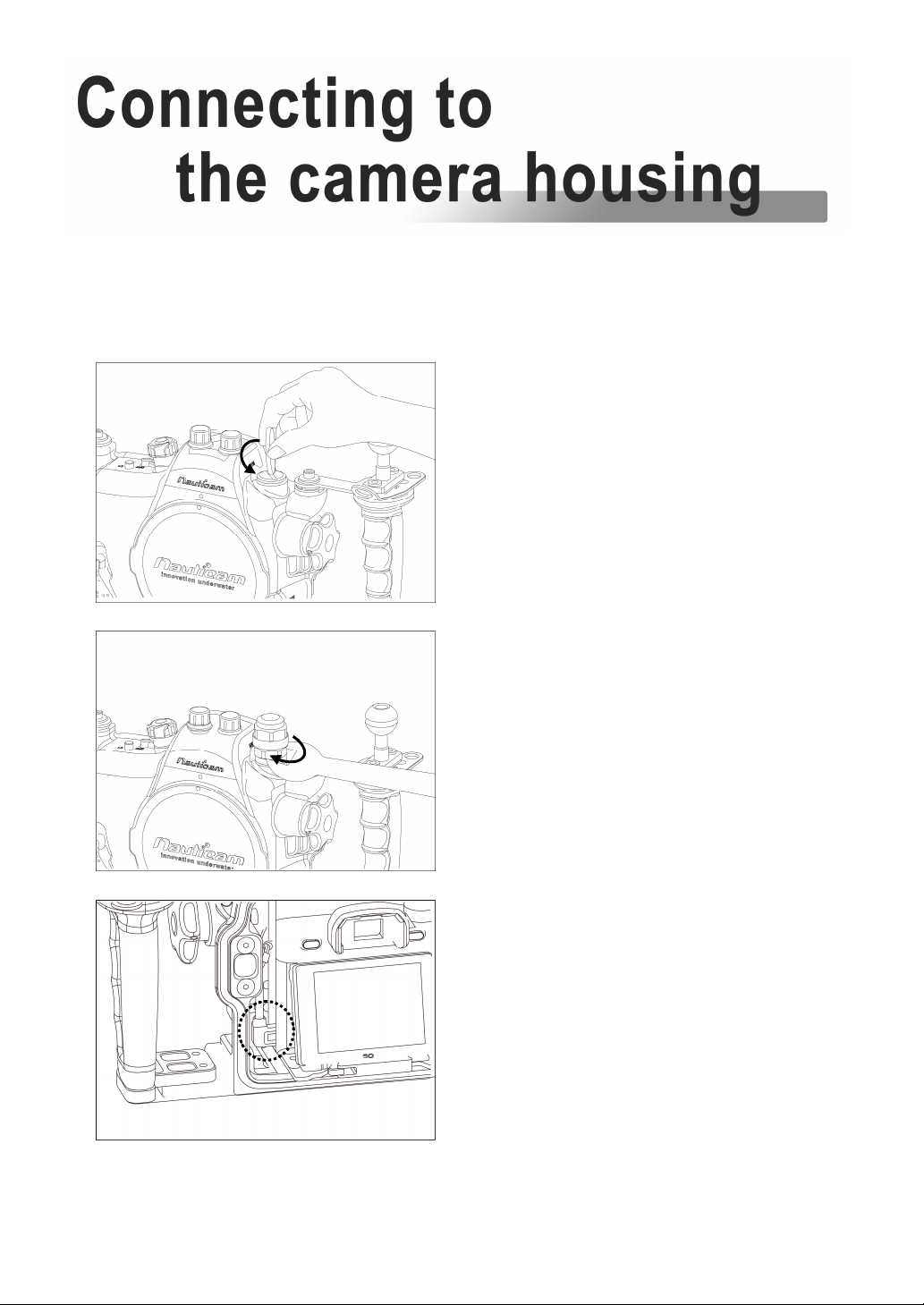

To install the standard HDMI bulkhead:
ii.
Insert the HDMI bulkhead with
cable into the hole and tighten the it
with a spanner.
iii.
Connect the HDMI cable to the
camera's HDMI connector.
i.
Unscrew the M16 plug from the
threaded hole with a coin.

15
To connect the monitor housing to HDMI bulkhead:
i.
Unscrew the cap
o
f
f the HDMI
bulkhead.
ii.
Unscrew the
c
ap
of
f
the HDMI cable
.
iii.
Align and plug the HDMI cable in the
HDMI bulkhead. Tighten the
connection by turning the threaded
ring on the HDMI cable

16
1. Soak the housing system in fresh water after each salt water use, during which
all control buttons/knobs should be operated a few times to avoid the
accumulation of salt residue; wipe the housing with a towel before opening.
2. Carefully press the housing lock safety button for a few times to avoid the
accumulation of salt residue.
3. After each day of diving, it is advisable to have the main O-ring in the front part
of the housing removed from its groove with the O-ring remover and
inspected for damage. Also check that the O-ring retains its original circular
shape; never stretch the O-ring excessively or remove it with a sharp object.
The O-ring groove should be cleaned to ensure it is free from any salt deposit
or foreign material; lightly coat the O-ring with the provided lubricant before
reinstalling it in the groove. A damaged O-ring should be discarded
immediately and replaced only with one that is provided by NAUTICAM.
4. Replace the main O-ring annually.
5. It is recommended that you ship the housing to our distributor for a complete
overhaul every year or after every 200 dives.

17
P.N.
1791
4
Monitor hood for Nauti am Atomos
Shogun housing
P.N. 17951
Nauti am Atomos Shogun housing
mounting system
P.N.
17952
Nauti am Atomos Shogun housing
mounting adaptor for NA-A7S
P.N. 179
53
Nauti am Atomos Shogun housing
mounting adaptor for NA-GH4

18

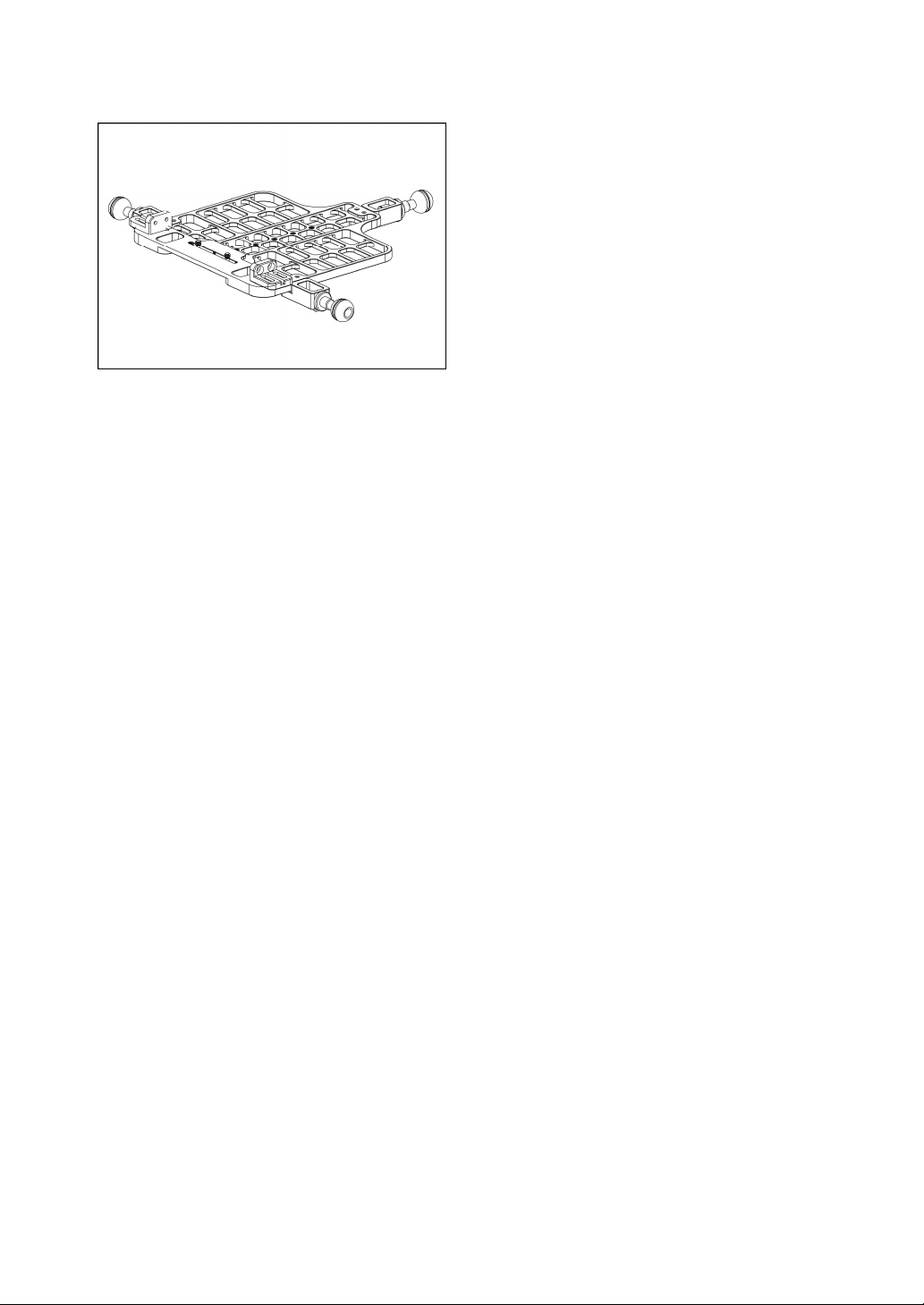

P.N. 17954
Tripod plate for NA-A7S and NA-GH4

19
