Thank you for your purchase of a NAUTICAM camera housing.
At NAUTICAM, we pride ourselves on the ability to recognise the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Each NA-GH2 and NA-GH2P housing is individually inspected and water
pressure tested to ensure optimum quality.
Please read this manual carefully before using the housing, this will
maximise its performance as well as its lifetime.

2
1. All NAUTICAM Products are warranted against any material and
manufacturing defects for one year from the date of purchase for
consumer use.
2. NAUTICAM accepts no liability for any damage to and defects in the
housing caused by improper use and/or poor maintenance; it is the
responsibility of the owner to carefully follow the instructions in
this manual.
3. NAUTICAM does not hold responsibility for damage, of any nature,
to any equipment used with and/or placed within the housing.
4. NAUTICAM accepts no liability for any loss of captured images or
the inability to capture images even if it is due to the
malfunctioning or leakage of the housing.
5. This warranty only applies to products purchased from authorised
NAUTICAM dealers and does not extend beyond the original retail
purchaser.
6. Unauthorised modifications and/or repairs of the housing will
automatically invalidate this warranty.
7. To return products for service, please contact our regional
distributor, normally you would need to notify them by email first
and ship them the product by registered mail, along with your
contact details and a brief description of the defect.

3

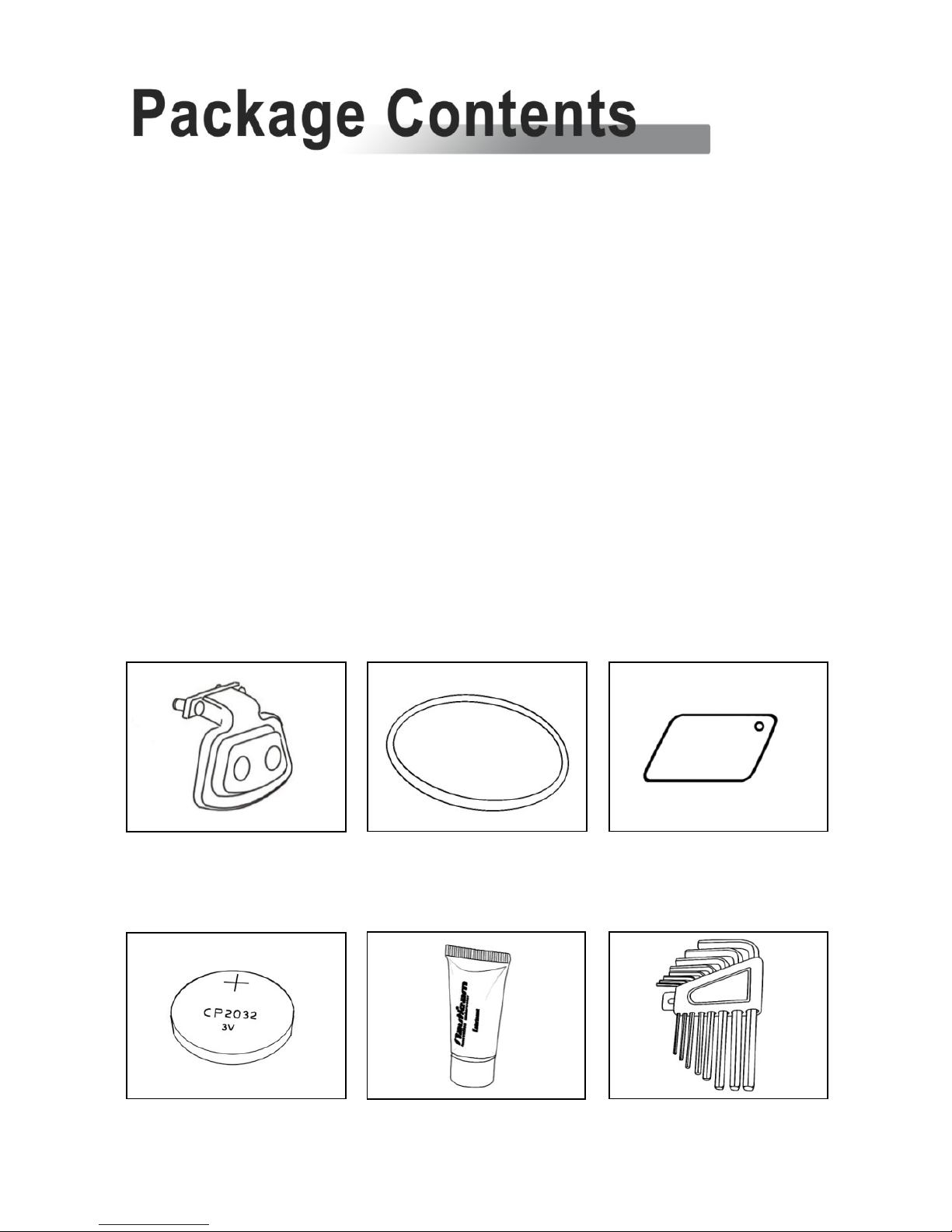

1. NA-GH2 housing
2. Optical fibre mount
3. Instruction manual
4. Spare silicone rubber housing o-ring
5. O-ring remover
6. CR2032 battery (for moisture alarm)
7. Lubricant
8. Set of Allen keys
Spare silicone rubber o-ring
Lubricant
Set of Allen keys
CR2032 battery
O-ring remover
Optical fibre mount
with screws

4
1. A water-tight test without the camera inside the housing is highly
recommended when using the system for the first time and after
the changing of port and O-ring(s).
2. Do not use lubricants from other brands with the silicone rubber O-
ring on this housing, only use the lubricant provided by NAUTICAM.
3. Discontinue use immediately should you notice any leakage.
4. Store the housing in a robust, shock-proof container during
transportation; avoid transporting with any equipment, such as a
camera, inside the housing.
5. When travelling by air, do not close the housing if the port is
installed, as this may lead to a pressure difference between the
atmosphere and inside the housing.
6. Care must be taken when opening the housing, as pressure may
build up inside the housing which increases the opening force.
7. Do not open the product in a wet or sandy environment. Protect
the interior from moisture and debris in order to prevent
malfunction or leakage.
8. Do not store the product in an environment of high humidity.
9. Do not leave the housing and the camera in direct sunlight for
prolonged periods.
10. Keep out of reach of children, failure to do so could result in injury.
11. Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in
malfunction or leakage.

5
Specifications
6
Identification of Parts
7

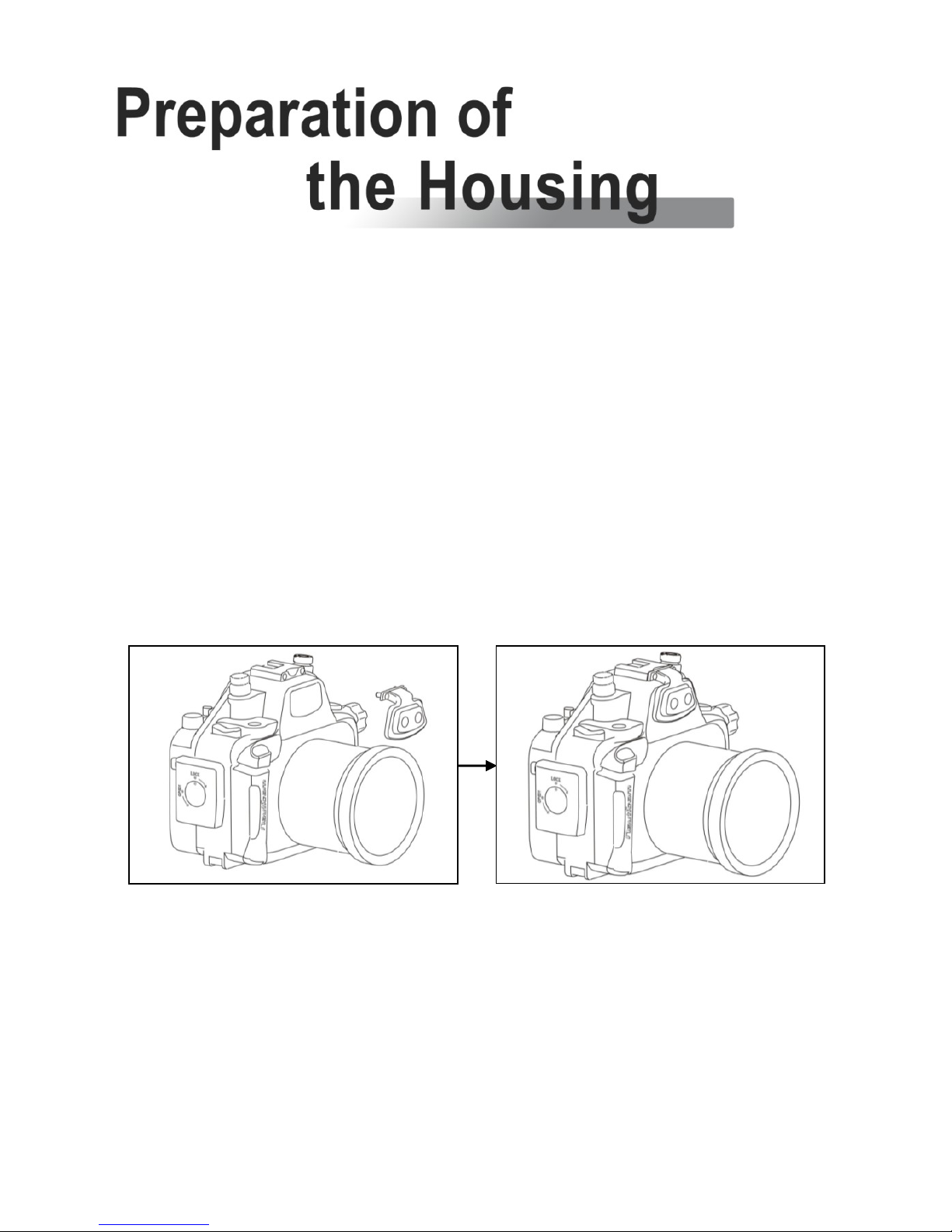

Preparation of the Housing
10
Opening and Locking the Housing
12
Installing the Camera
14
Mounting the Port
16
Care and Maintenance
18

6
Construction
Housing body:
Aluminium alloy
Surface treatment:
Hard anodised
Display window:
Abrasion resistant polycarbonate
Dimensions
Width:
190 mm
Height:
155 mm
Depth:
100 mm
Weight
NA-GH2: Approx. 1.24 kg (without camera)
NA-GH2P: Approx. 1.49 kg (without camera)
Buoyancy
NA-GH2: About neutral
NA-GH2P: Slightly negative
Depth rating
NA-GH2: 60 metres
NA-GH2P: 100 metres
Features
Moisture alarm:
Blinking LED and audible alarm
TTL capability:
Optical fibre mount included for
external strobes connection,
utilising the camera’s pop-up flash
as trigger.
Port mount:
Patented easy port installation
system.
Rocker switch:
Enable easy access of the Function
1 and Motion Picture controls.
Flash up/off lever:
Allows the camera’s built-in flash
to be enabled/disabled
underwater.

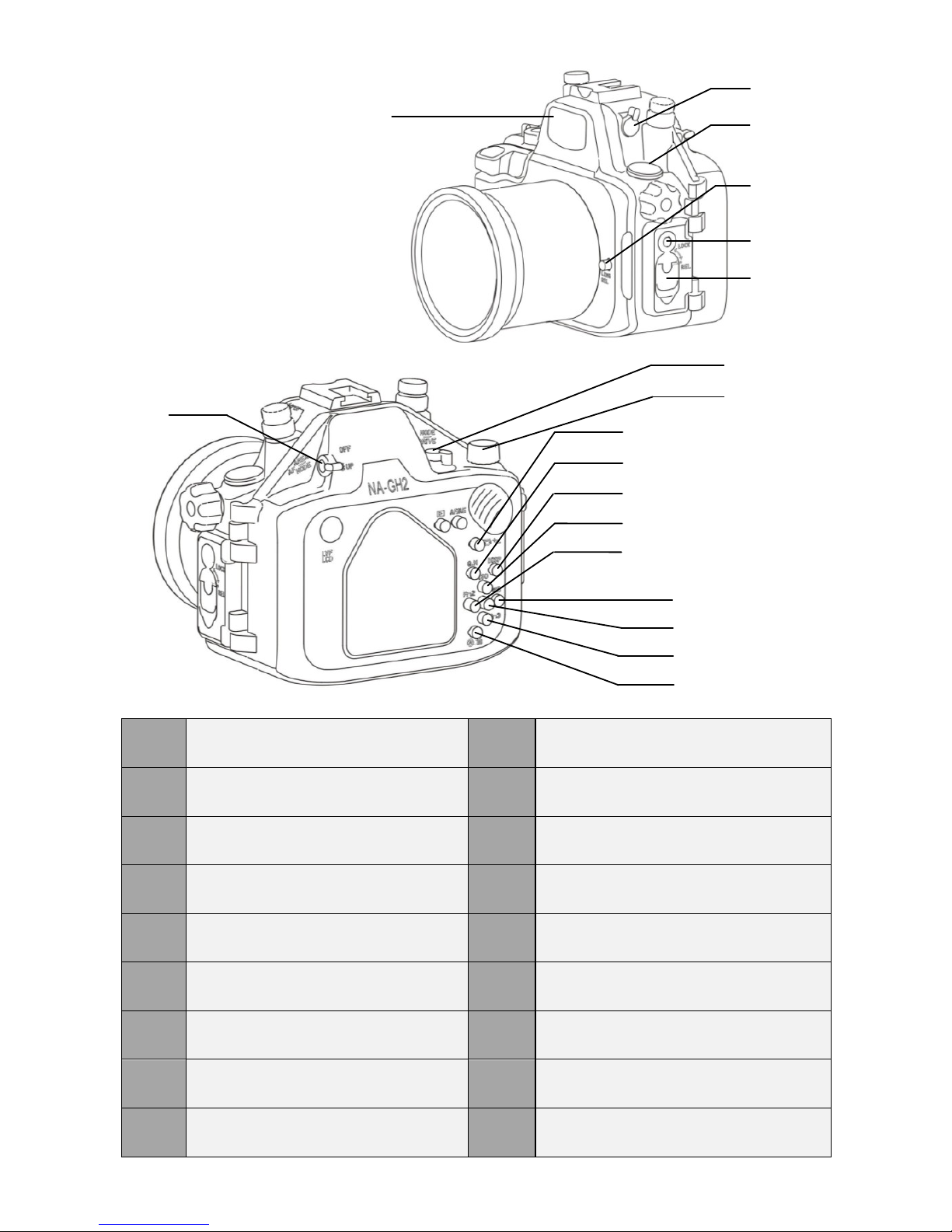

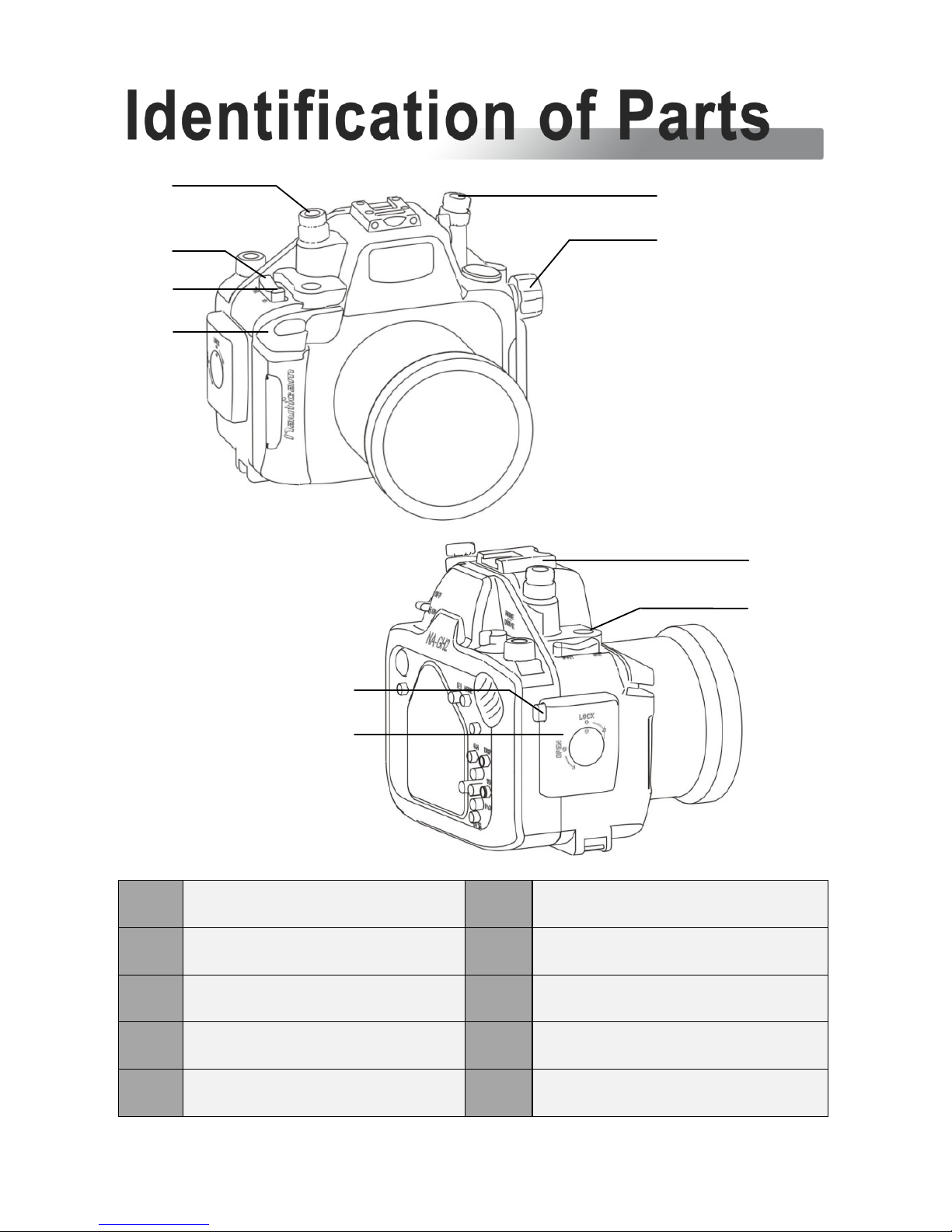

7
1
Mode dial (Top)/
Drive mode dial (Buttom)
6
Zoom/Focus knob
2
Function 1 key
7
Housing lock safety button
3
Motion picture key
8
Housing lock
4
Shutter release lever
9
Accessory coldshoe
5
Auto focus mode dial (top)/
Focus mode dial (bottom)
10
M10 strobe mounting base
1
2
3
4
5
6
7
8
9
10

8
11
Internal flash window
20
Rear dial mode control button
12
Flash open lever
21
Q.Menu buton
13
M16 accessory socket
22
Display button
14
Lens release button
23
Up/ISO button
15
Port release safety button
24
Left/Function 2 button
16
Port lock/release latch
25
Right/White balance button
17
Flash up/Off lever
26
Menu/Set button
18
On/Off lever
27
Down/Function 3 button
19
Rear dial
28
Delete/Preview button
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
17

9
29

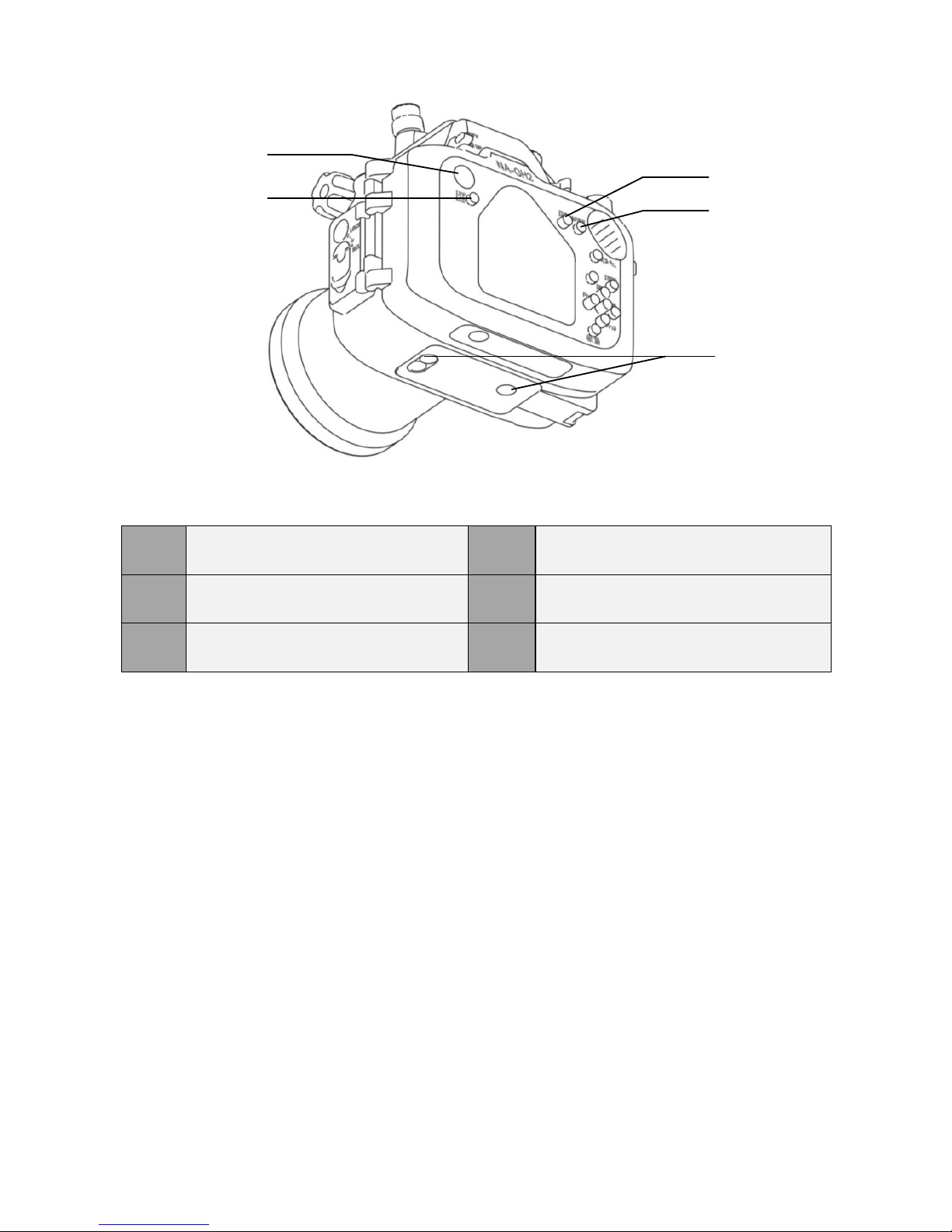

Moisture alarm window
32
AF/AE lock button
30
LVF/LCD button
33
1/4”–20UNC tripod socket x 2*
31
Playback button
29
30
31
32
33
* The maximum length of screws that can be
used with the tripod sockets is 4mm

10
1. After verifying that the housing O-ring is in good condition, lightly
coat it with the lubricant provided.
2. Make sure the O-ring groove located in the front part of the
housing is free from any foreign material; the groove can be
cleaned with the aid of a microfiber cloth.
3. Place the O-ring into the groove.
4. To install the optical fibre mount for external strobe connection,
gently push it into the sockets of the accessory coldshoe as shown:

11
Setting up the moisture alarm
1. Install the CR2032 battery
provided into the battery
compartment on the circuit
board inside the rear part of the
housing.
2. Test the alarm by contacting
the two wires near the bottom
of the housing with a damped
cotton bud; the alarm should
start giving out a repeating
“beep” sound along with a
flashing red light. The “beep”
sound and the light should keep
on going for 5 seconds after the
removal of the damped cotton
bud.

12

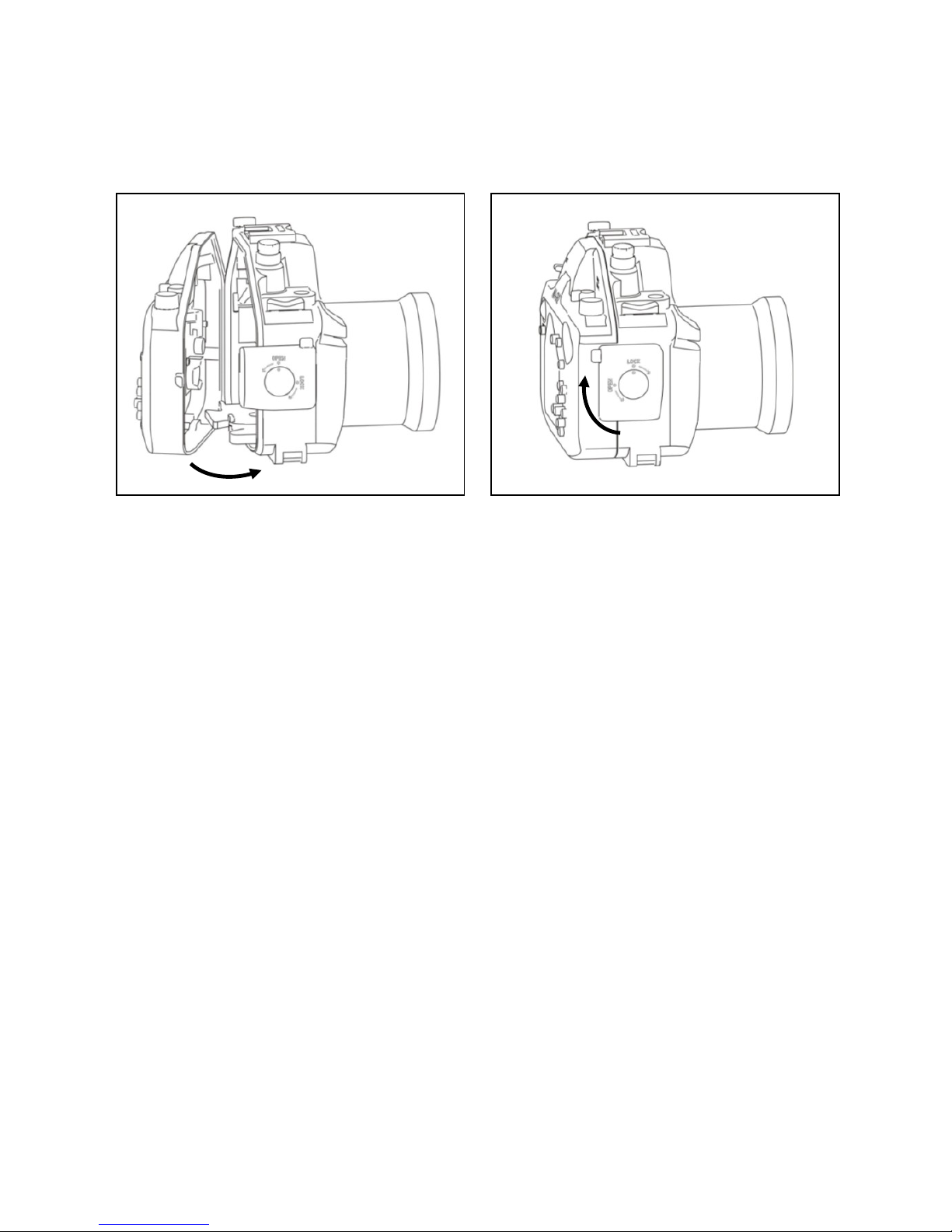

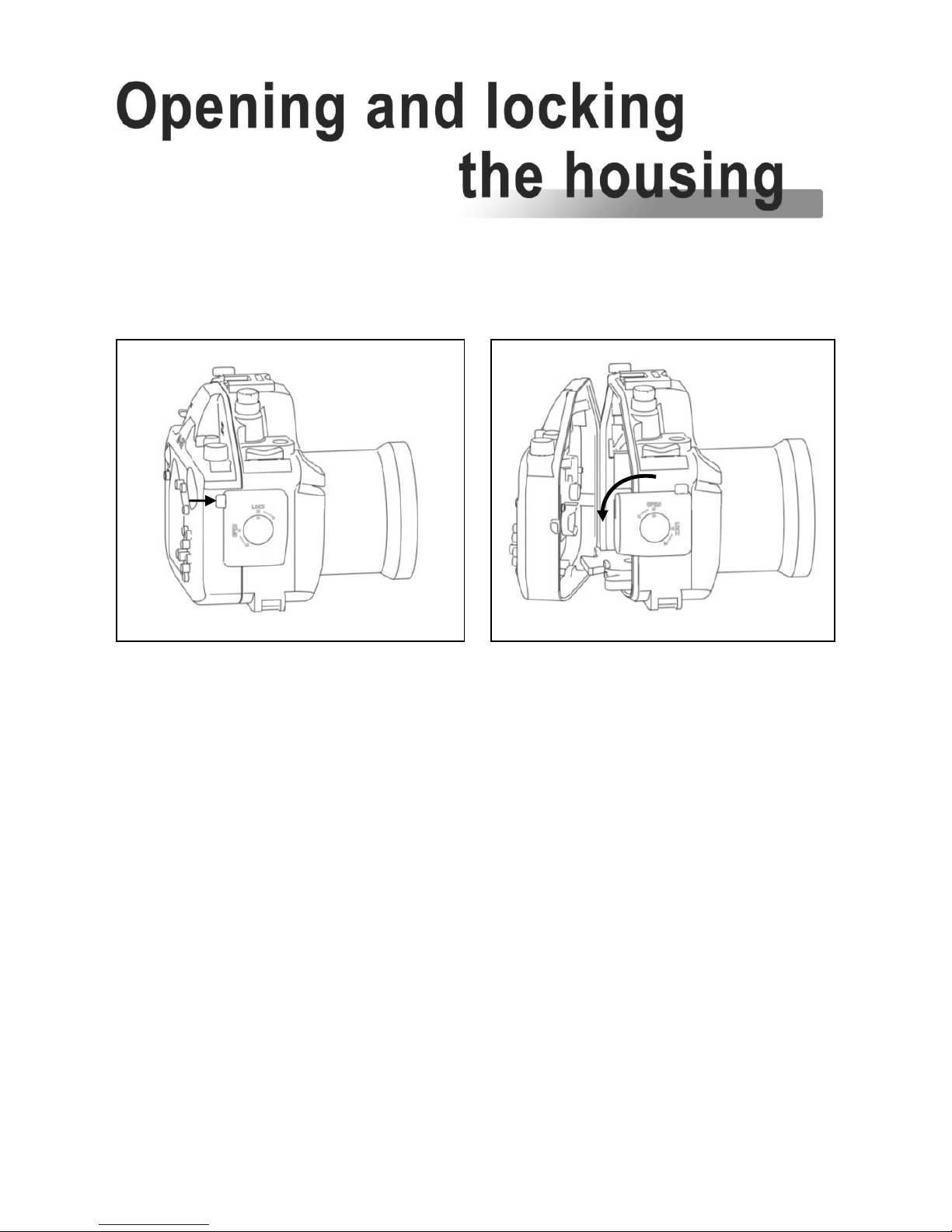

To open the housing:
1. Press the housing lock safety
button.
2. Turn the housing lock anti-
clockwise for 270°, until the lock
reaches the “Open” position as
shown.

13
To lock the housing:
4. Turn the housing lock clockwise
for 270°, until the lock reaches
the “lock” position as shown.
Confirm that the white indicator
line on the safety button is
visible.
3. Close the housing while the
housing lock is in the “Open”
position.

14

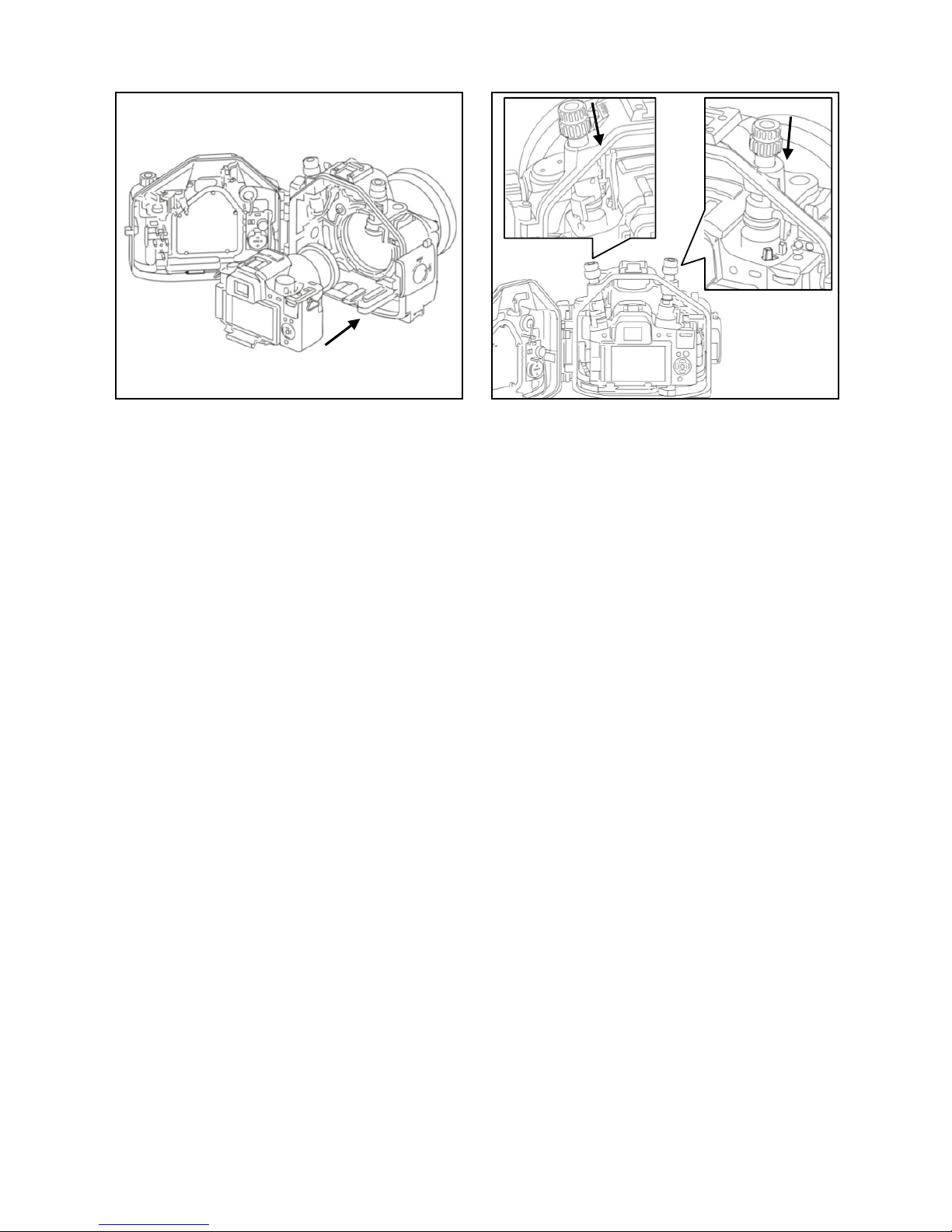

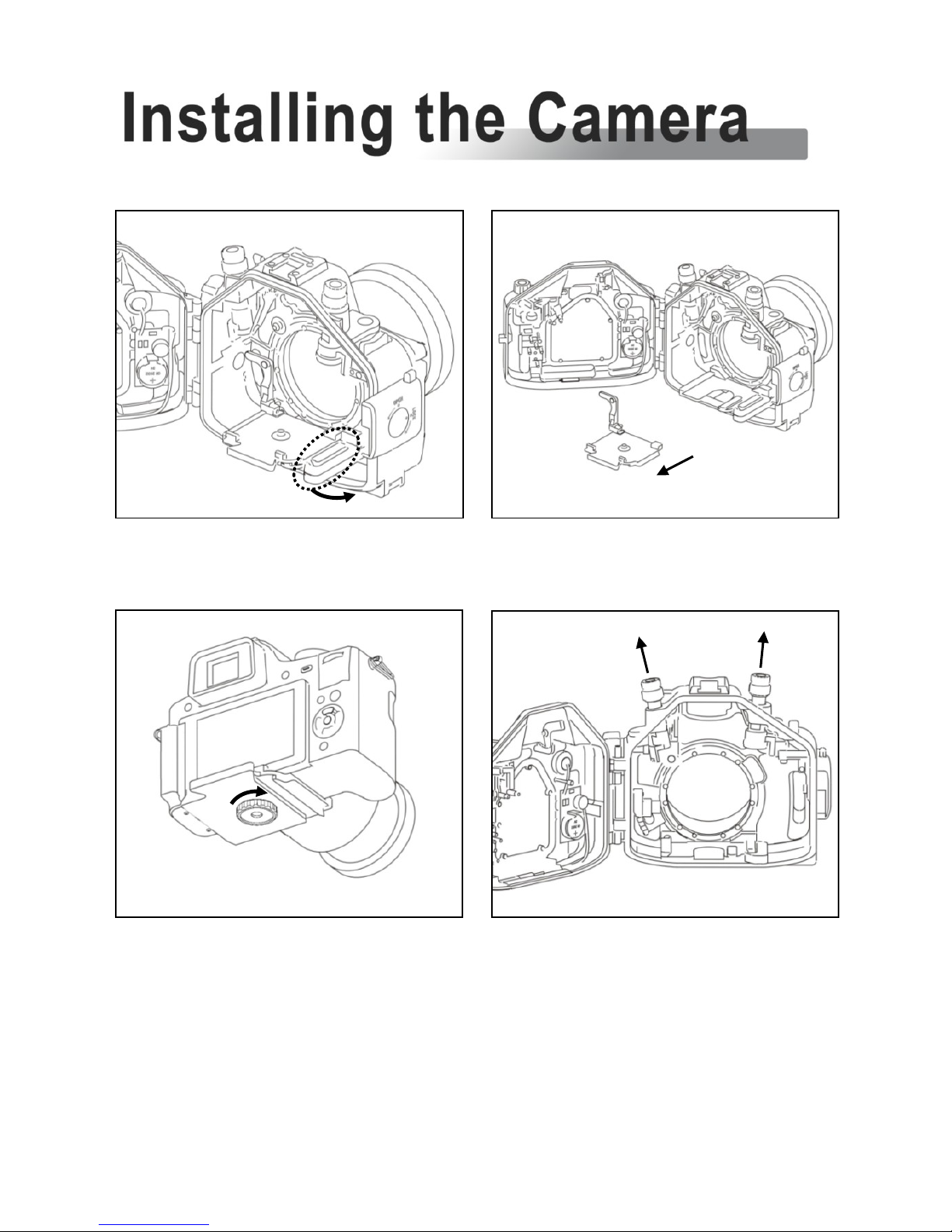

1. Disengage the saddle lock by
sliding it to the right as shown in
the diagram.
2. Remove the camera saddle from
the housing.
3. Attach the saddle to the camera
by tightening the screw to the
tripod socket of the camera.
1. Disengage the camera saddle
lock by sliding it to the right.
4. Lift the Auto focus mode
dial/Focus mode dial and the
Mode dial/Drive mode dial
upwards.

15
7. Gently push the Auto focus
mode dial/Focus mode dial
downwards ensuring the
actuator correctly engages with
the Focus mode lever of the
camera.
8. Gently push the Mode dial/Drive
mode dial downwards ensuring
the actuator correctly engages
with the Drive mode lever of the
camera.
5. Make sure the ON/OFF switches
of both the camera and the
housing are in the “OFF”
position.
6. Install the camera by sliding the
attached saddle along the rail in
the housing until it cannot go in
any further and the saddle lock
moves back to the engaged
position.

16
Please refer to the NAUTICAM system port chart for a range of compatible
ports.

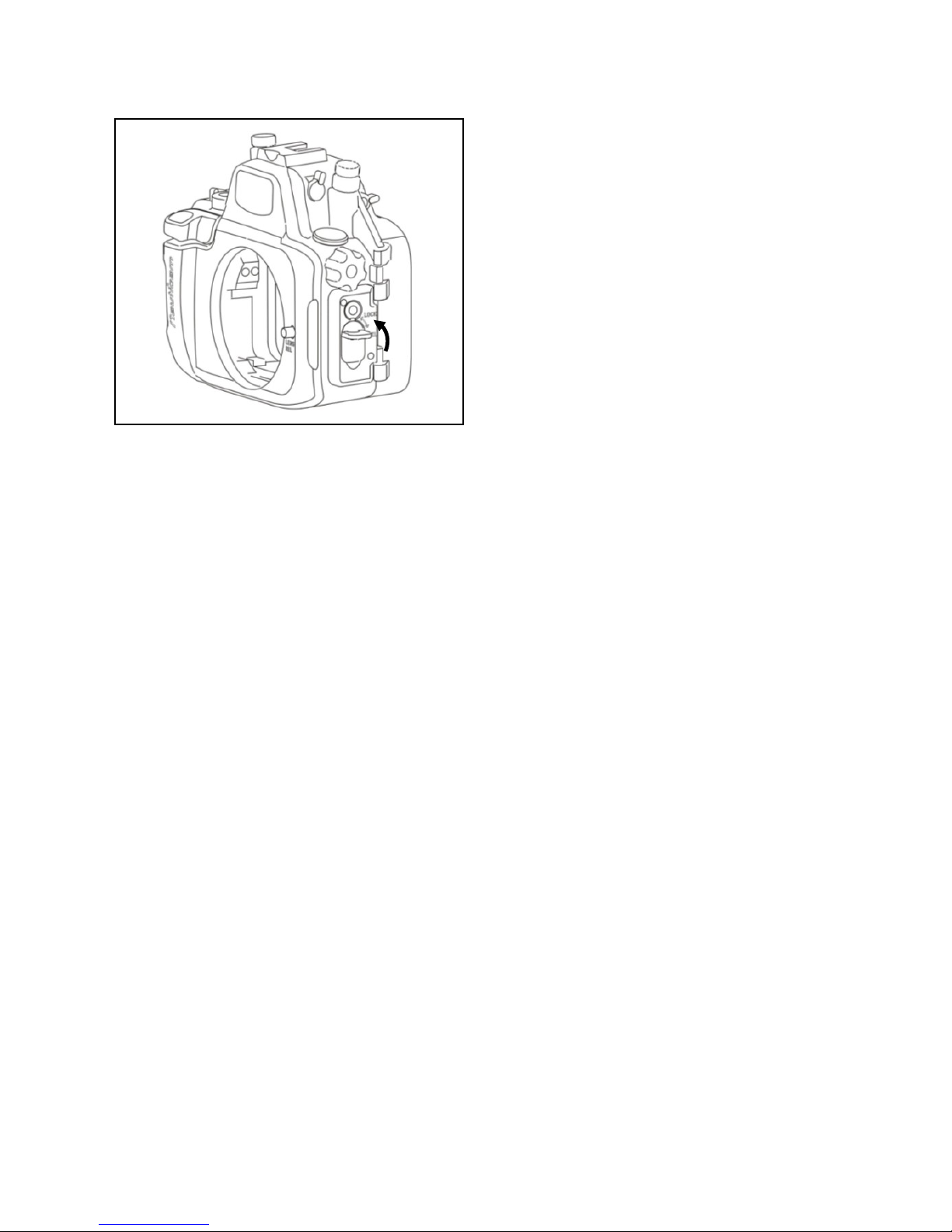

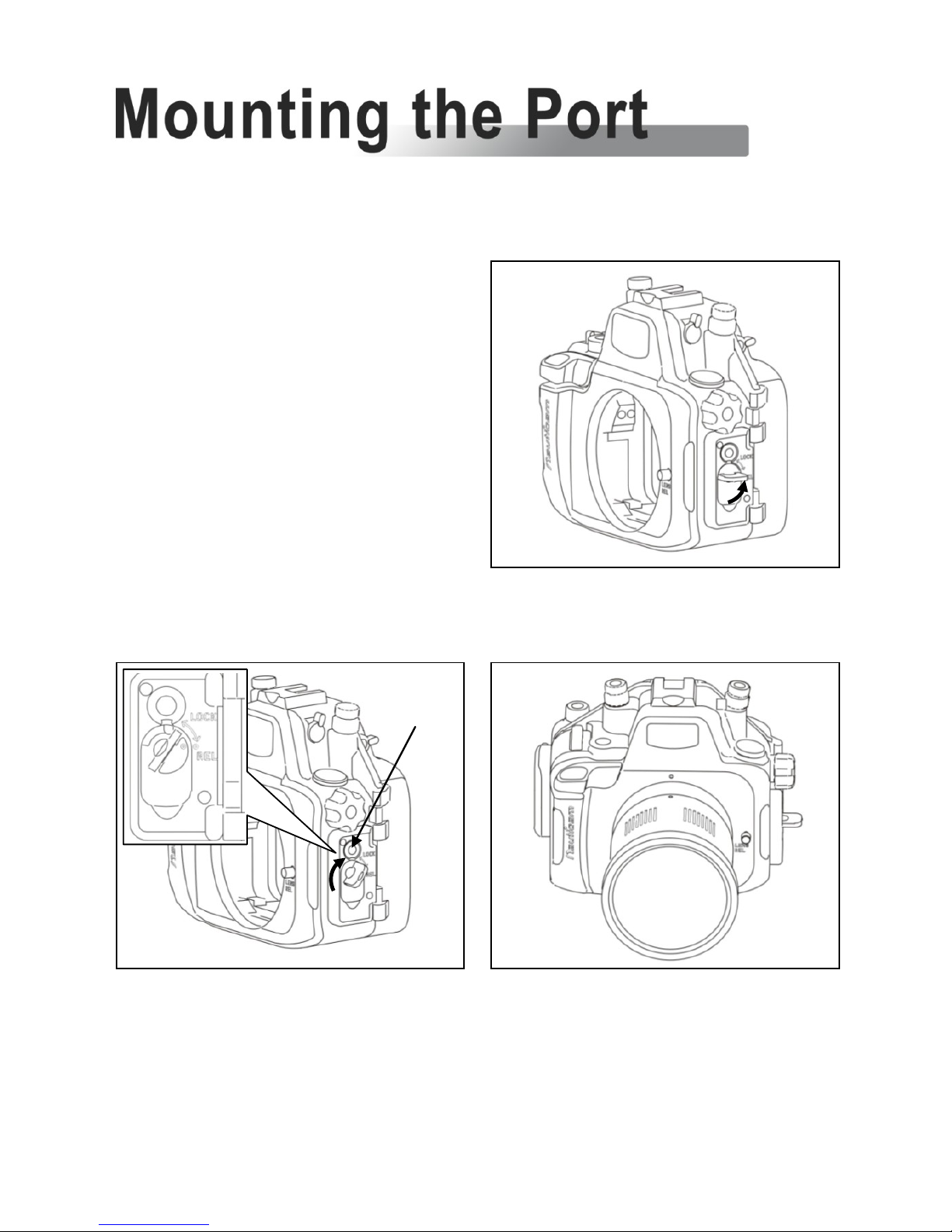

1. Remove the O-ring from the
port, inspect for any damage
and lightly coat it with the
provided lubricant before
placing it back into its groove.
2. Verify that the port opening of
the housing is clean and free
from foreign material.
3. Lift the Port lock/release latch.
4. Press and hold the port release
safety button, turn the port
lock/release latch clockwise for 135°
until the circle mark on the latch
aligns with the “Rel” index on the
rear housing.
5. Align the Port mounting indices of
the port and the housing.
6. Gently push the port into the port
opening of the housing, until it
cannot go in any further.
Press

17
7. To lock the port in place, turn the
port lock/release latch anti-
clockwise for 135°to the “Lock”
position.
8. To remove the port from the
housing, repeat steps 3 and 4
then gently pull it out.

18
1. Soak the housing system in fresh water after each salt water use,
during which all control buttons/knobs should be operated a few
times to avoid the accumulation of salt residue; wipe the housing
with a towel before opening.
2. After each day of diving, it is advisable to have the main O-ring in
the front part of the housing removed from its groove with the O-
ring remover and inspected for damage. Also check that the O-ring
retains its original circular shape; never stretch the O-ring
excessively or remove it with a sharp object. The O-ring groove
should be cleaned to ensure it is free from any salt deposit or
foreign material; lightly coat the O-ring with the provided lubricant
before reinstalling it in the groove. A damaged O-ring should be
discarded immediately and replaced only with one that is provided
by NAUTICAM.
3. Replace the main O-ring annually.
4. It is recommended that you ship the housing to our distributor for a
complete overhaul every year or after every 200 dives.
