Nautilus E514c User manual

ASSEMBLY MANUAL / OWNER’S MANUAL
Manual en Español Latino Americano:
http://www.nautilus.com
E514c

2
Important Safety Instructions - Assembly 3
Safety Warning Labels / Serial Number 4
Specifications 5
Before Assembly 5
Parts 6
Hardware 7
Tools 7
Assembly 8
Moving the Machine 18
Leveling the Machine 18
Important Safety Instructions 19
Features 20
Console Features 21
Remote Heart Rate Monitor 22
Operations 24
Initial Setup 24
Quick Start Program 25
Guest User / Profile Program 25
User Setup Mode 25
Profile Programs 28
Fitness Test 28
Heart Rate Control Workout 29
Distance Goal Workout 29
Results/Cool Down Mode 29
Pausing or Stopping 30
User Statistics 30
Console Setup Mode 31
Maintenance 32
Troubleshooting 35
TABLE Of CONTENTS
To validate warranty support, keep the original proof of purchase and record the following
information:
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty , go to: www.nautilus.com/register.
Or call 1 (800) 605–3369.
Nautilus, Inc., (800) NAUTILUS / [phone], www.NautilusInc.com - Customer Service: North America [phone],
[email protected] | outside U.S. +01-360-859-5180, [email protected] | Printed in China | © 2012 Nautilus, Inc.

3
IMpORTANT SAfETY INSTRUCTIONS
-ASSEMBLY
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Obey the following warnings:
Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions.
• Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.
• Donotconnectpowersupplytothemachineuntilinstructedtodoso.
• Donotassemblethismachineoutdoorsorinawetormoistlocation.
• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafficandexposuretobystanders.
• Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhendoingtheassemblysteps
involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
• Setupthismachineonasolid,level,horizontalsurface.
• Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethesafetyofthismachineandwill
void the warranty.
• Ifreplacementpartsarenecessary,useonlygenuineNautilus®replacement parts and hardware. Failure to use genuine
replacement parts can cause a risk to users, keep the machine from operating correctly and void the warranty.
• Donotuseuntilthemachinehasbeenfullyassembledandinspectedforcorrectperformanceinaccordancewiththe
Manual.
• ReadandunderstandthecompleteManualsuppliedwiththismachinebeforefirstuse.KeeptheManualforfuture
reference.
• Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjuryorincorrectfunction.
• Thisproductcontainsmagnets.Magneticfieldscaninterferewiththenormaluseofcertainmedicaldevicesataclose
range.Usersmaycomeintoproximityofthemagnetsintheassembly,maintenance,and/oruseoftheproduct.Giventhe
obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical provider
inconnectionwiththeuseofthisequipment.Pleaseconsultthe“SafetyWarningLabelsandSerialNumber”sectionto
determine the location of the magnets on this product.

4
SAfETY WARNINg LABELS ANd
SERIAL NUMBER
FCC Compliance
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’s
authoritytooperatetheequipment.
The machine and power supply comply with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Note: This machine and power supply have been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin
accordance with the instructions, may cause harmful interference to radio communications.
However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful
interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouraged
to try to correct the interference by one or more of the following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Serial Number
•
•
•
•
•
•
•
•
•
•
•
•

5
SpECIfICATIONS
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a hard,
levelsurface.Allowaworkoutareaofaminimum74”x130”(190cmx330cm).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
• Readandunderstandthe“ImportantSafetyInstructions”beforeassembly.
• Collect all the pieces necessary for each assembly step.
• Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counterclock-
wise) to loosen, unless instructed otherwise.
• When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the holes.
• Theassemblyrequires2people.
• Someaxlescontainoil.Usecautiontoavoidstainingclothesorcarpet.
Maximum User Weight: 300 lbs. (136 kg)
Power Requirements:
 OperationalVoltage: OperationalVoltage9VDC
Operating Current: 1500 mA
Regulatory Approvals:
AC Power Adapter: UL listed, CSA certified (or
equivalent),Rated120V
60HzInput,9VDC,1500mA
Output. Class 2 or LPS.
71”
(180.3 cm)
26” (66 cm)
62” (157.5 cm)
This product, its packaging, and components contain chemicals known to the State of California to cause cancer, birth
defects,orreproductiveharm.ThisNoticeisprovidedinaccordancewithCalifornia’sProposition65.Ifyouwouldlike
additional information, please refer to our website at www.nautilus.com/prop65.

6
Adecalhasbeenappliedtoallright(“R ”)andleft(“L ”)partstoassistwithassembly.
Item Qty Description Item Qty Description
1 1 Frame 11 1 Left Leg
2 2 Pedal Mount Plate 12 1 Right Handlebar Arm
3 1 Rear Stabilizer 13 1 Left Handlebar Arm
4 1 Front Stabilizer 14 1 Lower Left Handlebar Arm
5 1 Console Mast 15 1 Lower Right Handlebar Arm
6 1 Transport Handle 16 1 Static Handlebar
7 2 Rail 17 1 Console
8 1 Right Pedal 18 1 AC Adapter
9 1 Left Pedal 19 1 Arm Pivot Rod
10 1 Right Leg 20 1 MP3 Cord (not shown)
pARTS
7
6
3
4
1
5
16
17
11
10
14 15
19
8
2
13
12
18
9

7
Tools
Included Not Included
#2
6 mm
Item Qty Description Item Qty Description
A 4 Wide Washer, M8 J 2 Leveler Washer
B 32 Lock Washer, M8 K2 Leveler Screw
C 32 Washer, M8 L 4 Round Cover
D 4 HexHeadBolt,M8x20LThreadLock M 2 Cotter Pin
E 4 ButtonHeadHexScrew,M8x25L
Thread Lock
N 2 Wave Washer
F 2 PhillipsHeadScrew,M5x20L O 4 Lock Washer, M8 Black
G 8 ButtonHeadHexScrew,M8x20L P 6 Cover
H 2 ButtonHeadHexScrew,M8x20L
Thread Lock
Q 6 ButtonHeadHexScrew,M8x25L
I 12 ButtonHeadHexScrew,M8x15L R 6 FlatHeadHexScrew,M8x25LThread
Lock
(recommended)
HARdWARE / TOOLS
A B C D E F G
HIJ LK
M N OQR

8
1. Attach Rear Stabilizer and Transport Handle to Rails
ASSEMBLY
2. Attach Rail Assembly and Front Stabilizer to Frame
6 mm
C
X8
7
6B
I
3
K
J
X2
7
6 mm
R
4
1
X6

9
3. Connect the Lower Console Cables
NOTICE : Align the clips on the cable connectors and make sure the connectors lock. Do
not crimp Console Cable.
5

10
4. Attach Console Mast to Frame Assembly
NOTICE : Do not crimp Console Cable.
6 mm
Q
P
B
C
X6

11
5. Attach the Static Handlebar
NOTICE : Do not crimp Console Cable.
6. Remove Hardware from Console
NOTICE : Do not crimp the cables.
* Hardware is pre-installed on Console and not on Hardware Card.
#2
17
*
X4
6 mm
X2
C
16 E
B

12
7. Connect Cables and Attach Console to Frame Assembly
NOTICE : Align the clips on the cable connectors and make sure the connectors lock. Do not crimp the cables.
* Hardware is pre-installed on Console and not on Hardware Card.
*
#2
X4

13
8. Attach Legs to Frame Assembly
A
11
10
O
D
L
X2

14
9. Attach Lower Handlebar Arms
X2
L
14
15
D
O
A
19
N
X2

15
10. Attach Pedals to Rails and Lower Handlebar Arms
NOTICE : Be sure the key on the Cotter Pin engages the Lower Handlebar Arm.
X2
C
8
9
X2
6 mm
6 mm
M
BE
C
B
I
H
B
C
I
B
C
2
2

16
11. Attach Upper Handlebar Arms
13
X8
6 mm
G
12
B
C

17
12. Connect AC Adapter to Frame Assembly
13. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the
Owner’sManual.
18

18
BEfORE YOU START
Moving the Machine
The machine may be moved by one or more persons depending on
their physical abilities and capacities. Make sure that you and
others are all physically fit and able to move the machine safely.
1. Remove the power cord.
2. Use the Transport Handle to carefully lift the machine onto the
transport rollers.
3. Push the machine into position.
4. Carefully lower the machine into position.
NOTICE: Be careful when you move the elliptical. All abrupt motions can
affect the computer operation.
Leveling the Machine
The machine needs to be leveled if your workout area is uneven or if the Rail Assembly is slightly off
the floor. To adjust:
1. Place the machine in your workout area.
2. Safely stand on the back of the Rail Assembly for
approximately20seconds.
3. Step off the machine.
4. Loosen the locking wing nuts and adjust the levelers
until they all contact the floor.
Do not adjust the levelers to such a height that
they detach or unscrew from the machine. Injury to
you or damage to the machine can occur.
5. Adjust until the machine is level. Tighten the locking wing
nuts.
Make sure the machine is level and stable before you
exercise.

19
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Before using this equipment, obey the following warnings:
ReadandunderstandthecompleteManual.KeeptheManualforfuturereference.
Read and understand all warnings on this machine. If at any time the Warning stickers become loose, unreadable or
dislodged, contact Nautilus®Customer Service for replacement stickers.
• Childrenmustnotbeletonorneartothismachine.Movingpartsandotherfeaturesofthemachinecanbedangerousto
children.
• Notintendedforusebyanyoneunder14yearsofage.
• Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainortightnessinyourchest,
become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values calculated or
measuredbythemachine’scomputerforreferencepurposesonly.
• Beforeeachuse,examinethismachineforloosepartsorsignsofwear.Donotuseiffoundinthiscondition.Monitorthe
Handlebars, Pedals, and Crank Arms closely. Contact Nautilus®Customer Service for repair information.
• Maximumuserweightlimit:300lbs.(136kg).Donotuseifyouareoverthisweight.
• Thismachineisforhomeuseonly.
• Donotwearlooseclothingorjewelry.Thismachinecontainsmovingparts.Donotputfingersorotherobjectsinto
movingpartsoftheexerciseequipment.
• Setupandoperatethismachineonasolid,level,horizontalsurface.
• MaketheFootPedalsstablebeforeyousteponthem.UsecautionwhenyousteponandoffthemachineasthePedals
may move.
• Disconnectallpowerbeforeservicingthismachine.
• Donotoperatethismachineoutdoorsorinmoistorwetlocations.
• Keepatleast24”(0.6m)oneachsideofthemachineclear.Thisistherecommendedsafedistanceforaccessand
passagearoundandemergencydismountsfromthemachine.Keepthirdpartiesoutofthisspacewhenmachineisin
use.
• Donotoverexertyourselfduringexercise.Operatethemachineinthemannerdescribedinthismanual.
• CorrectlyadjustandsafelyengageallPositionalAdjustmentDevices.MakesurethattheAdjustmentDevicesdonothit
the user.
• KeeptheFootPedalscleananddry.
• Exerciseonthismachinerequirescoordinationandbalance.Besuretoanticipatethatchangesinspeedandinclinecan
occur during workouts, and be attentive in order to to avoid loss of balance and possible injury.
IMpORTANT SAfETY INSTRUCTIONS

20
A Handlebar, Static I Transport Handle
B Contact Heart Rate (CHR) Sensors J Foot Pedal
C Console KMedia Tray
D Swing Arm Handlebars L Fan
E Transport Roller M Speakers
F AC Adapter Plug N MP3 Input
G Leveler O Water Bottle Holder
H Rail

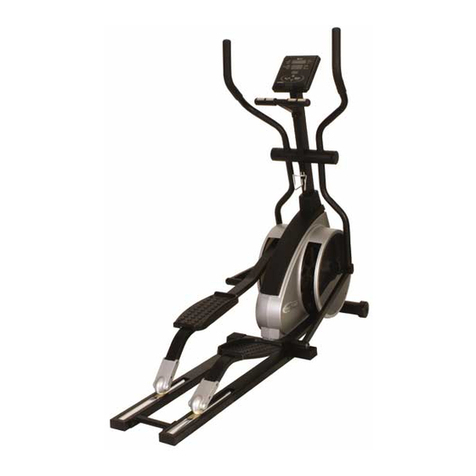

fEATURES
B
A
C
D
E
G
J
H
F
I
G
O
K
L
M
N
